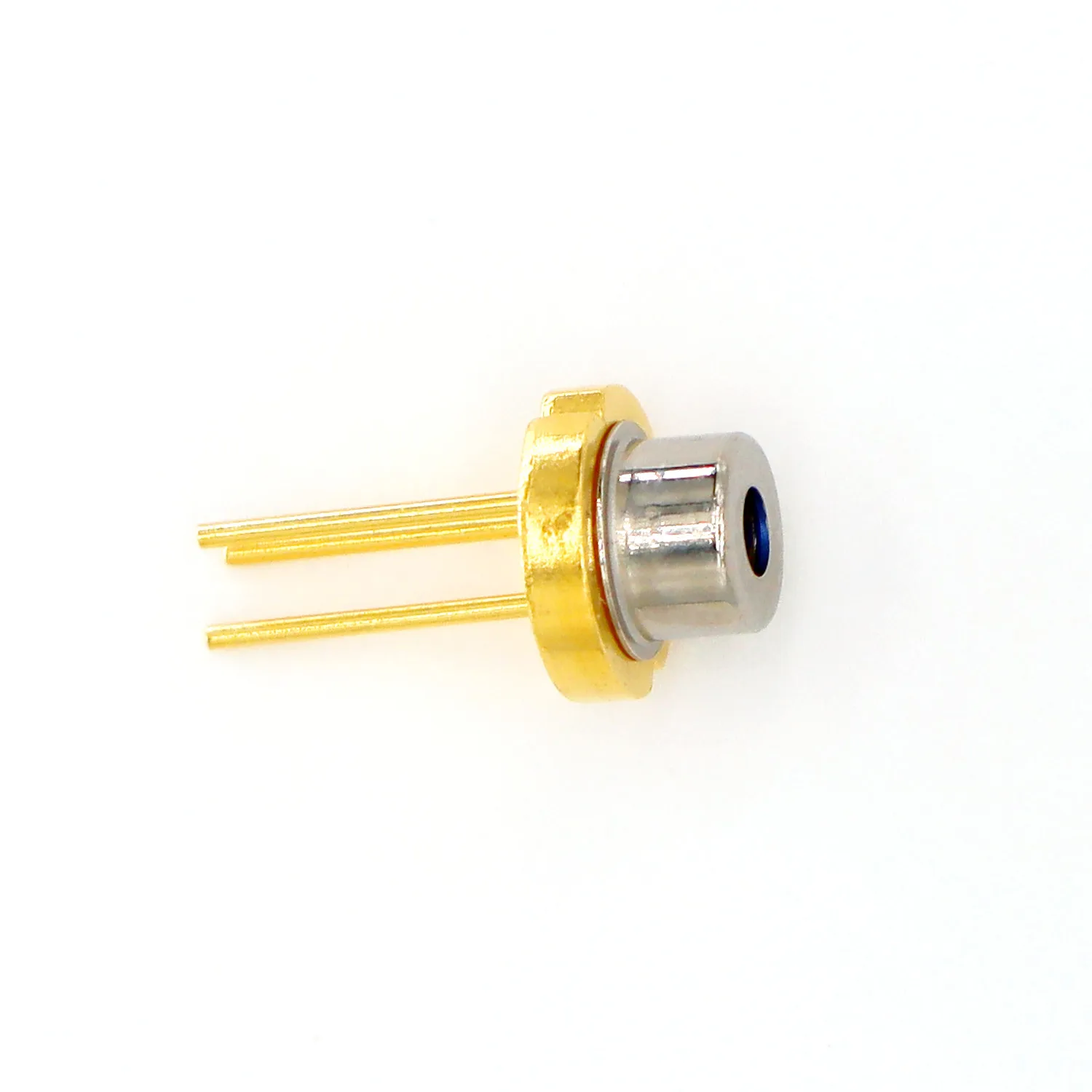

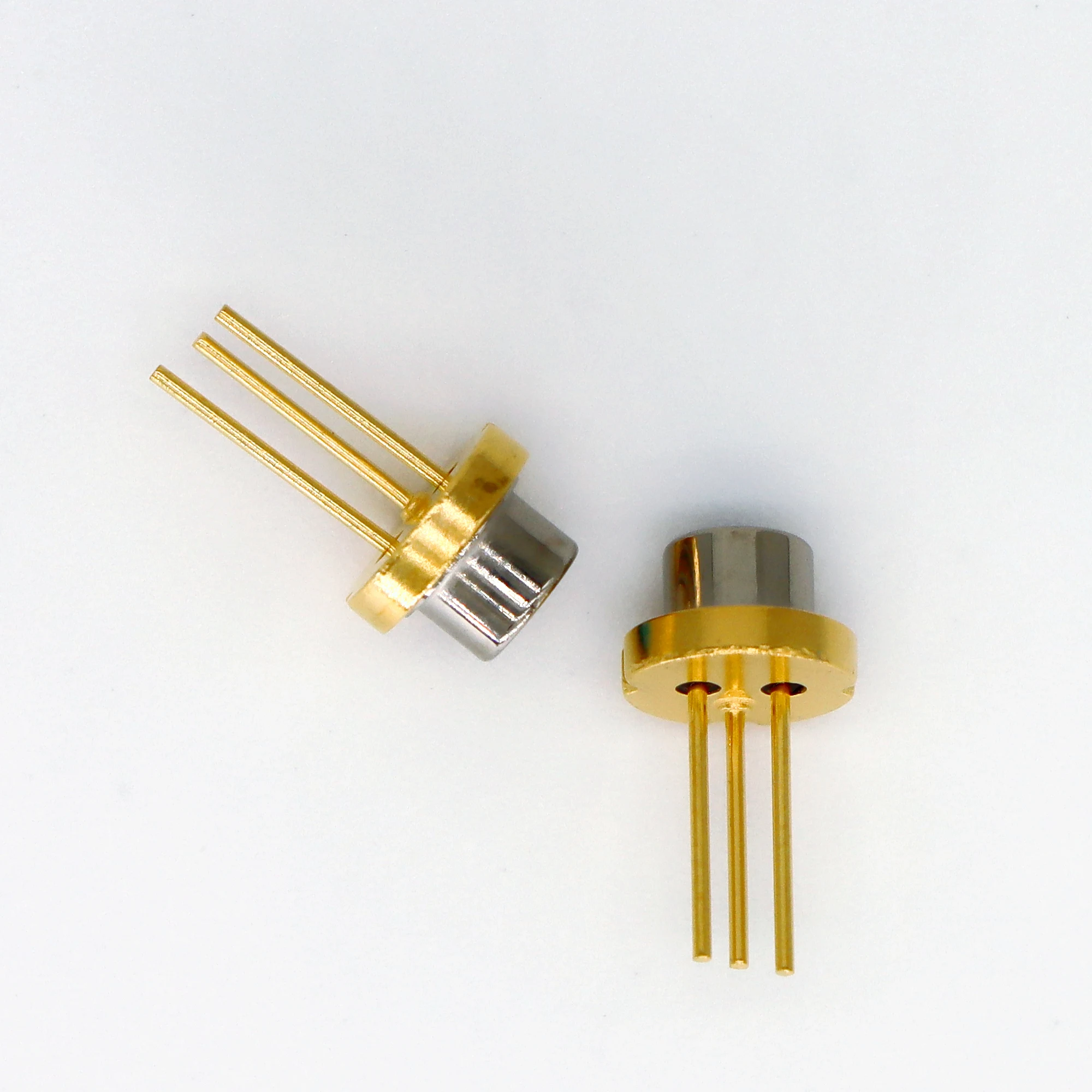

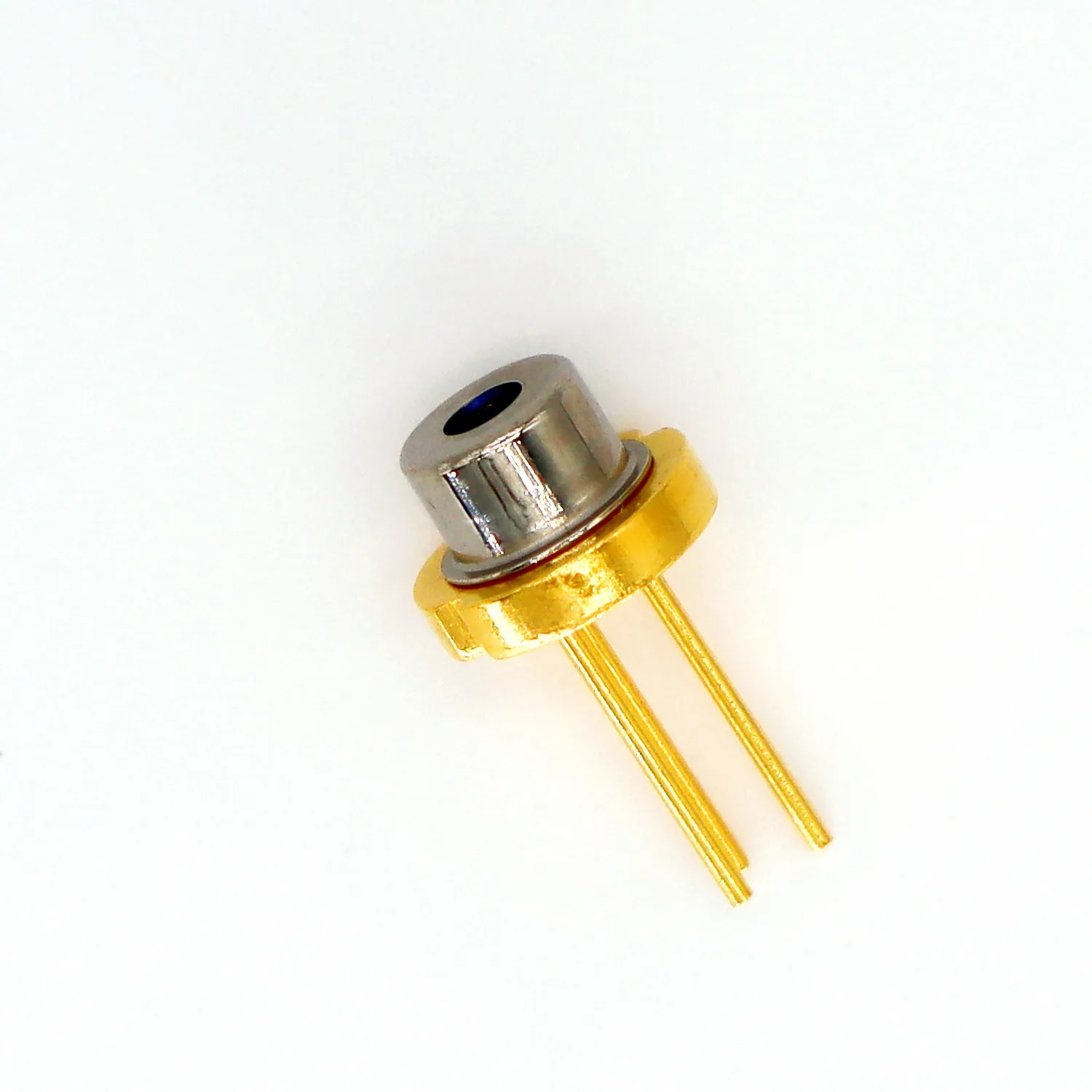

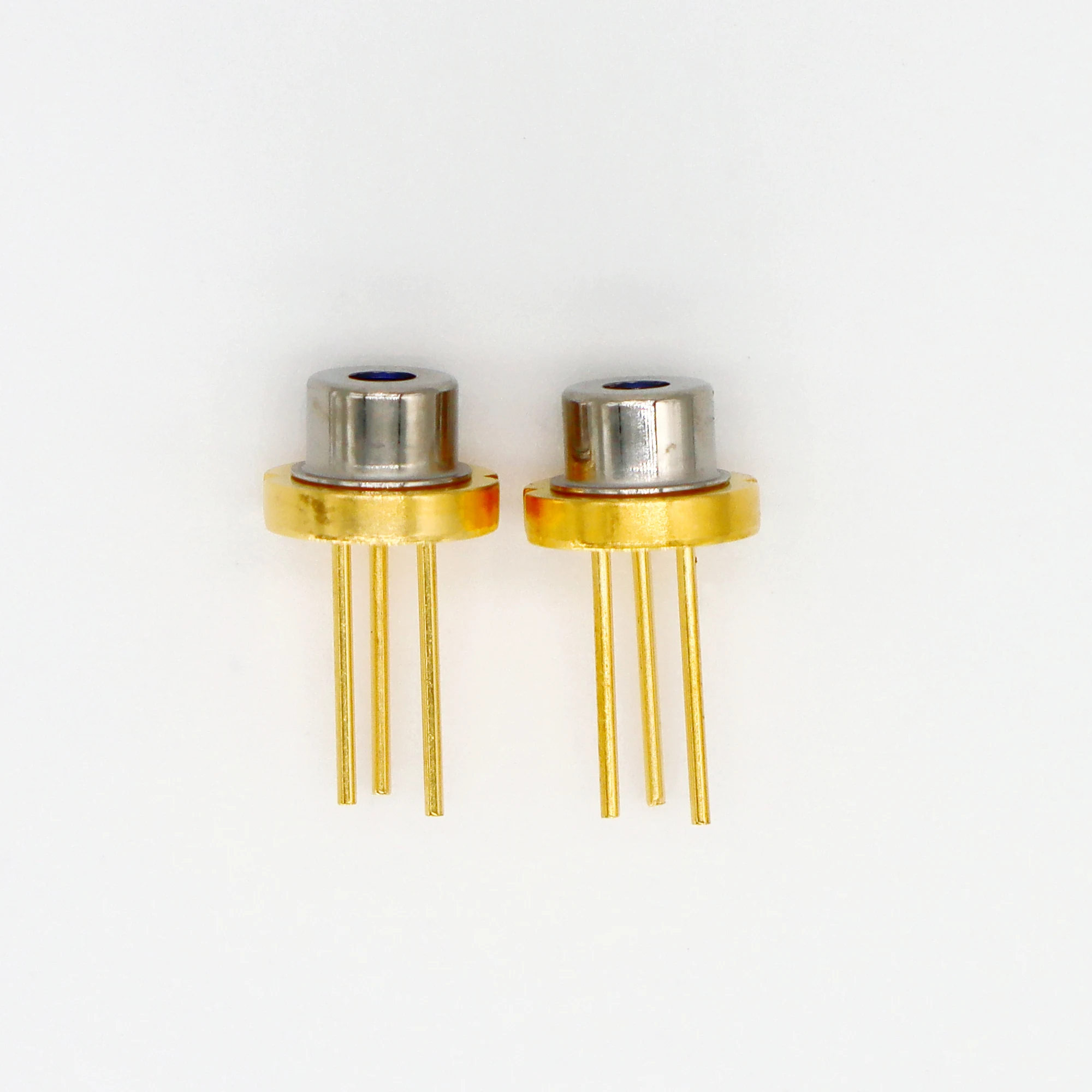

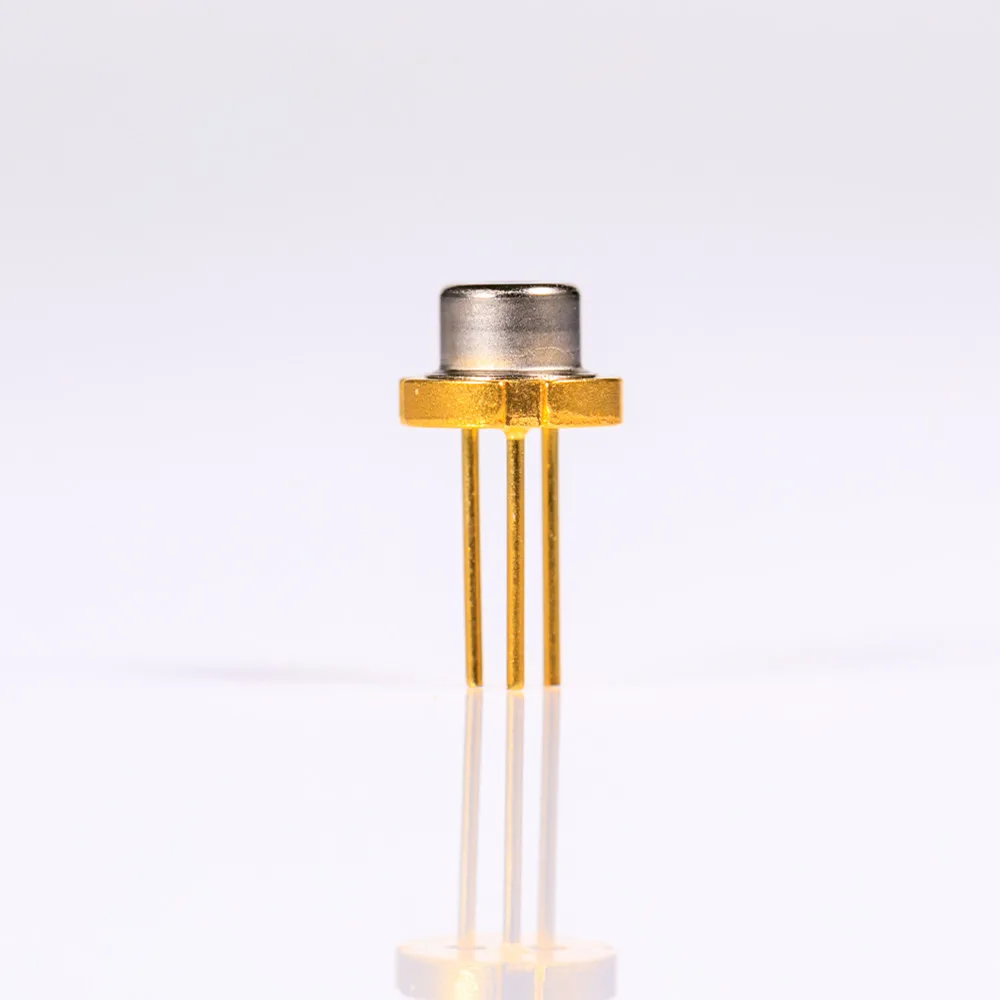

1550nm 50W TO9 with FAC laser diode chip LD RB 1550A 190 50 2 TO9 S1
1550nm 50W TO9 with FAC laser diode chip LD RB- 1550A-190-50-2-TO9-S1
1550nm 50W TO9 with FAC laser diode chip LD RB- 1550A-190-50-2-TO9-S1
1550nm 50W TO9 with FAC laser diode chip LD RB- 1550A-190-50-2-TO9-S1
1550nm 50W TO9 with FAC laser diode chip LD RB- 1550A-190-50-2-TO9-S1
1550nm 50W TO9 with FAC laser diode chip LD RB- 1550A-190-50-2-TO9-S1
1550nm 50W TO9 with FAC laser diode chip LD RB- 1550A-190-50-2-TO9-S1

1550nm 50W TO9 with FAC laser diode chip LD RB 1550A 190 50 2 TO9 S1

Share on (1601033907761):


Price:$49.00 - $65.00

Quantity:


Product Overview

Description

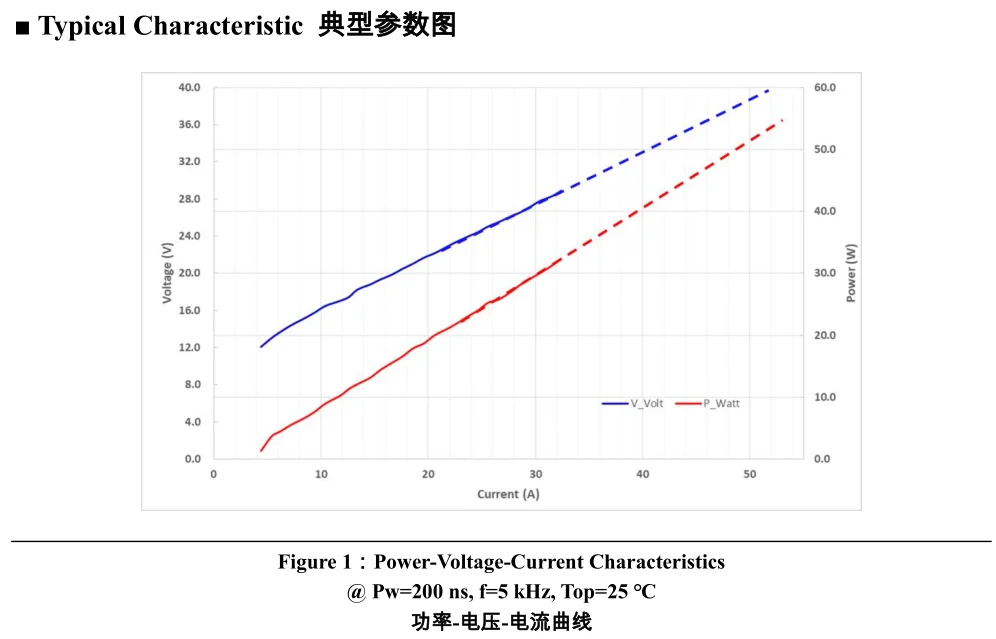

Typical Characteristics


RB- 1550A-190-50-2-TO9-S1
Absolute Maximum Ratings
Parameter
Symbol
Values
Unit
Operation Current
I op
55
A
Reverse Voltage
Vr
50
V
Pulsed Duration
P w
200
ns
Duty Ratio
D R
0.1
%
Operation Temperature
T op
-40~85
℃
Storage Temperature
T stg
-50~75
℃
Soldering Temperature
T s
≤260
℃
Characteristics (I op =50 A, P w =200 ns, f=5 kHz, D R =0.1 %, T op =25)
Parameter
Symbol
Min.
Typ. ①②
Max.
Unit
Wavelength
Peak Emission Wavelength
λ op
1530
1550
1570
nm
Spectral Bandwidth
BW
15
nm
Wavelenth Temperature Coefficient
Δλ/ΔT
0.55
nm/℃
Electro Optical Data
Operation Power
P op
-
50
-
W
Operation Current
I op
55
A
Threhold Current
I th
1
A
Operation Voltage
V op
40
V

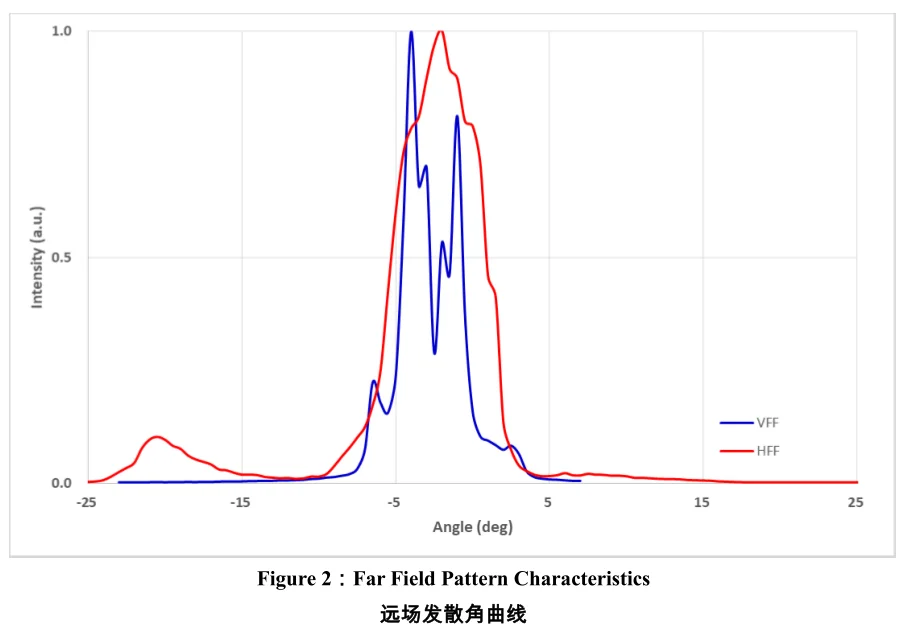

Beam Divergence Angle Width (Horizontal)
θ ∥
11
degrees
Beam Divergence Angle Width (Vertical)
θ ⊥
8
degrees
Beam Pointing Angle （Horizontal）
θ ∥ ,p
-2
0
+2
degrees
Beam Pointing Angle （Vertical）
θ ⊥ ,p
-2
0
+2
degrees
Geometrical


Optical Aperture Size ①
w x h
190 x 10
μm 2
①In the above table, the typical values of the test data are obtained according to the test system of Raybow Opto. ②According to the single emitter chip test data. The single-emitter Chip is tested in the form of COS (Chip On Submount) package, and the COS test temperature is 25℃.
③Full width at 95% of Power content;
④FWHM(Full width half maximum)。

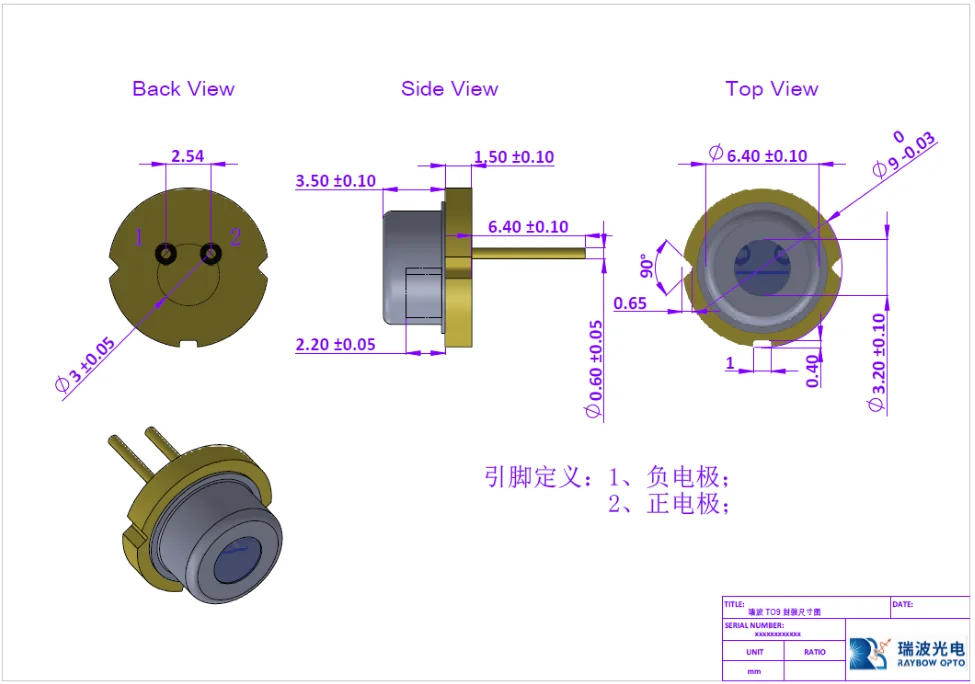

Product Dimension


Laser Diode Chip TO9 Packaging Dimensional Drawing >>
