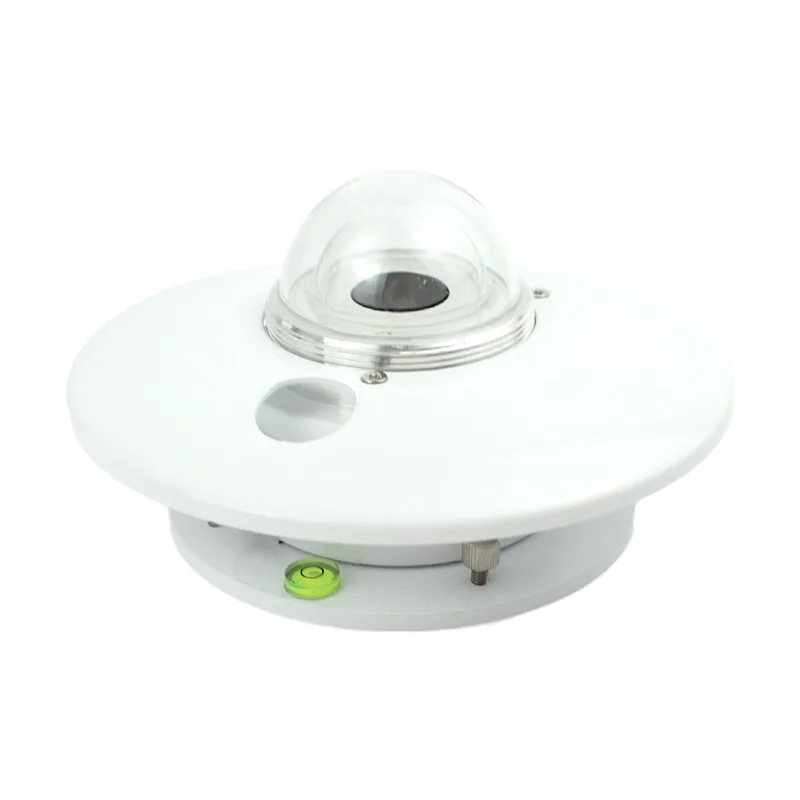

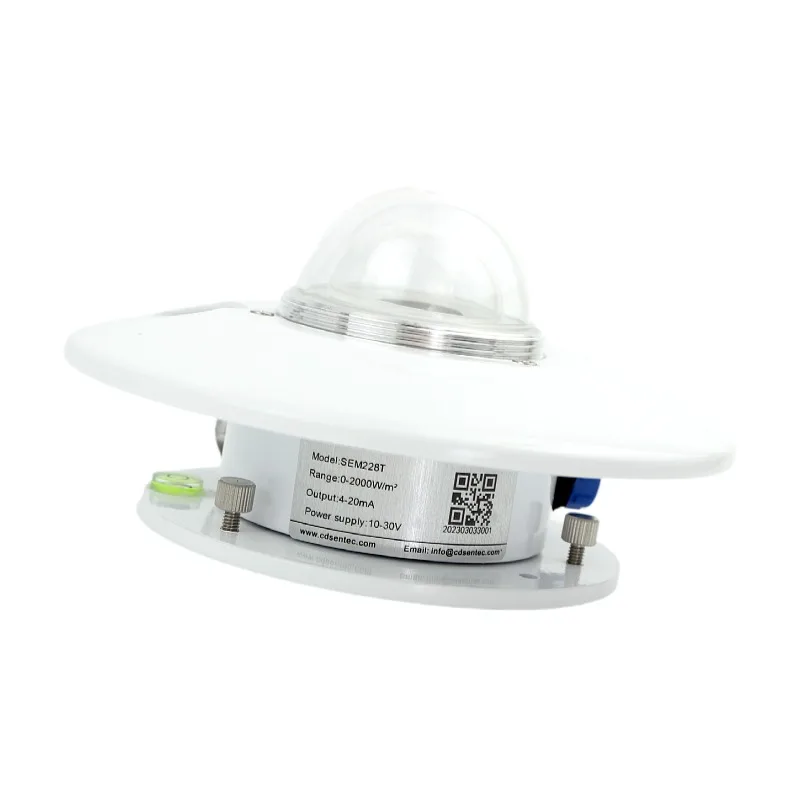

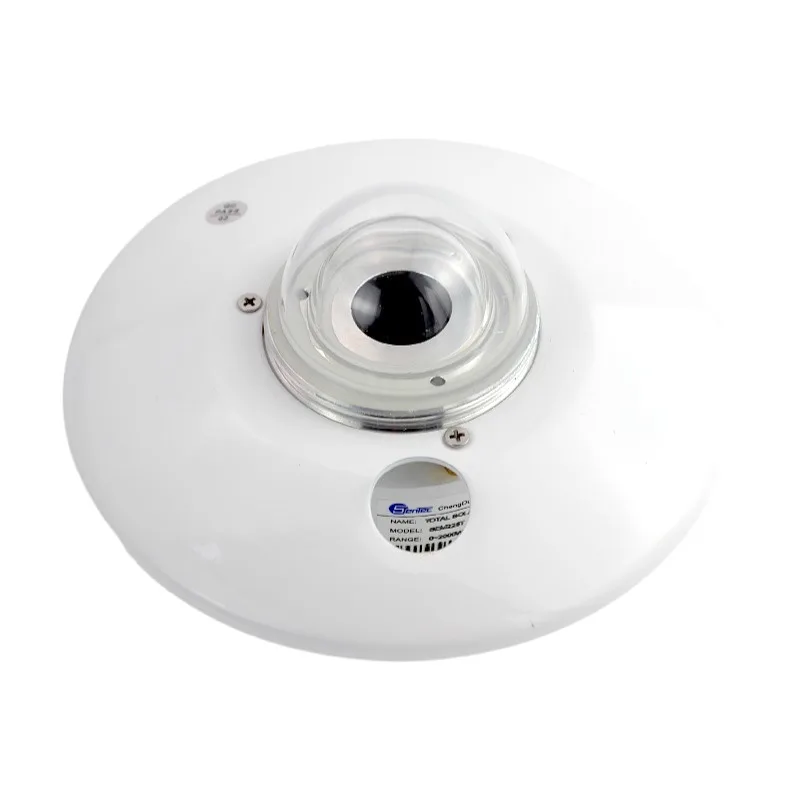

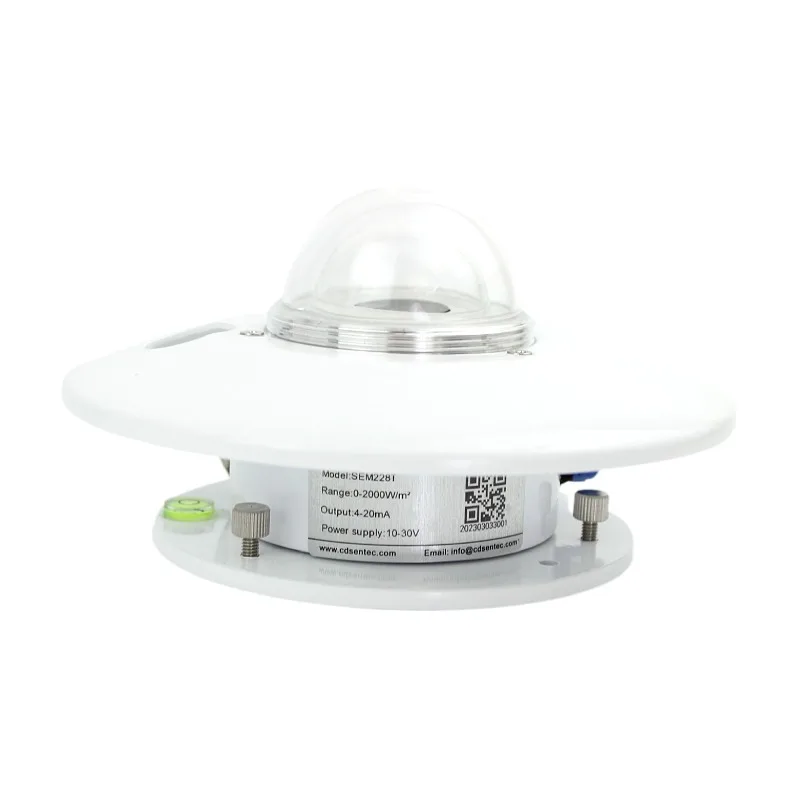

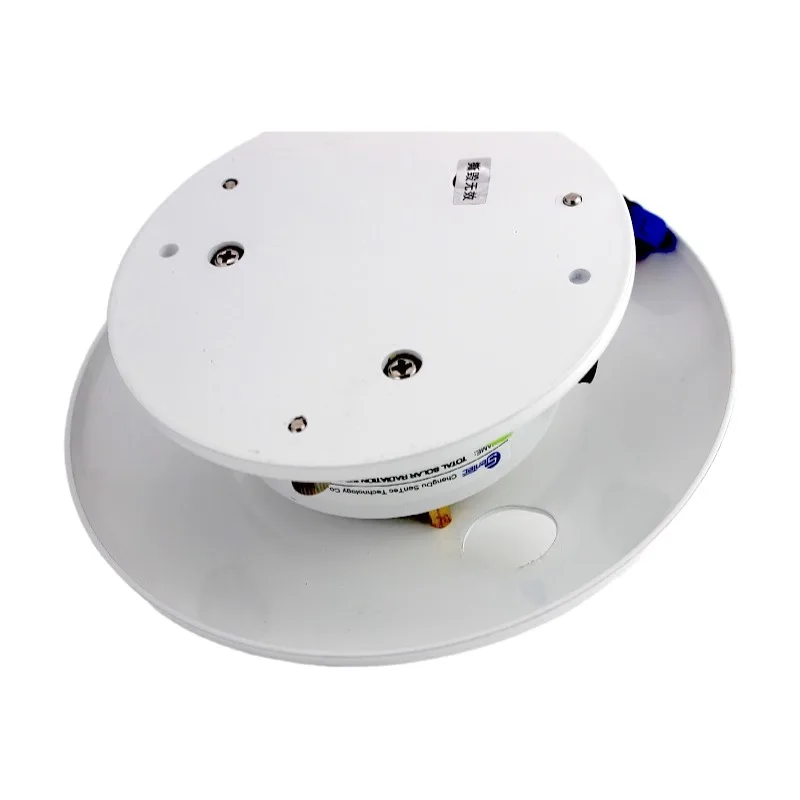

Analog or RS485 output radiation sensor weather station solar pyranometer Solar Radiation
- Category: >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (1601033910310):
Product Overview
Description
SEM228T total solar radiation transmitter adopts the thermoelectric principle and can be used to measure solar radiation with a spectral range of 0.3~3μm. The sensing element adopts a wire-wound electroplating thermopile, and the sensing surface is a black layer with high absorptivity. Using the thermal effect of radiation,Absorb solar radiation and convert it into thermoelectromotive force. It also has a temperature compensation function, which can accurately measure solar radiation. The double-layer glass cover above the sensing surface can not only reduce the influence of air convection on the device, but also block the radiation of the cover itself. And add a radiation shield to measure scattered radiation.
SEM228T support standard analog signal or Modbus-RTU 485 communication protocol, which can directly read the current total solar radiation value, and the wiring method is simple. The appearance is beautiful, and the installation space is small. Products are widely used in solar energy utilization, meteorology, agriculture, building materials aging and air pollution and other departments to measure solar radiation energy.
Product Specification
Power supply | 10V～30V DC, or without power supply | ||
Power consumption | 485 output: 0.8W 4~20mA/0~5V/0~10V: 1.2W | ||
Output signal | 485 (standard Modbus-RTU protocol) 4~20mA current output 0~5V/0~10V voltage output | ||
Working temperature | -40℃~60℃ | ||
Working humidity | 0%~RH | ||
Sensitivity | 7～14 μV·W-1·m2 | ||
Internal resistance | about 300Ω | ||
Response time (99%) | ≤30s | ||
Non-linear error | ≤±3% | ||
Corresponding error of directionality | ≤±30W/m² (≤±20W/m² customized) | ||
Temperature response error | ≤±8% (-40℃～+40℃) | ||
Corresponding error of tilt | ≤±5% | ||
Spectral range | 0.3~3μm | ||
Measuring range | 0-2000W/m² | ||
Resolution | 1W/m² | ||
Accuracy | ±3% | ||
Annual stability | ≤±3% | ||
Spectral selectivity | ≤±10% | ||
Cosine response error | ≤±5% | ||
Shipping
FAQ
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
4. Can I get a discount?
Yes, for the order quantity more than 50pcs, please contact us to get the best price.
5. What is your MOQ?
The MOQ of most of our products is 1PCS. You can also contact us to get a lower low MOQ.
6. How to contact you?
Email/Skype: sales01@cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
