Professional Tablet Pvc Fabric High Frequency Welding Paper Card Sealing Blister Packing Machine Price
- Category: >>>
- Supplier: Foshan Xingle Machinery Equipment Co. Ltd.
Share on (1601033914568):
Product Overview
Description
Products Description

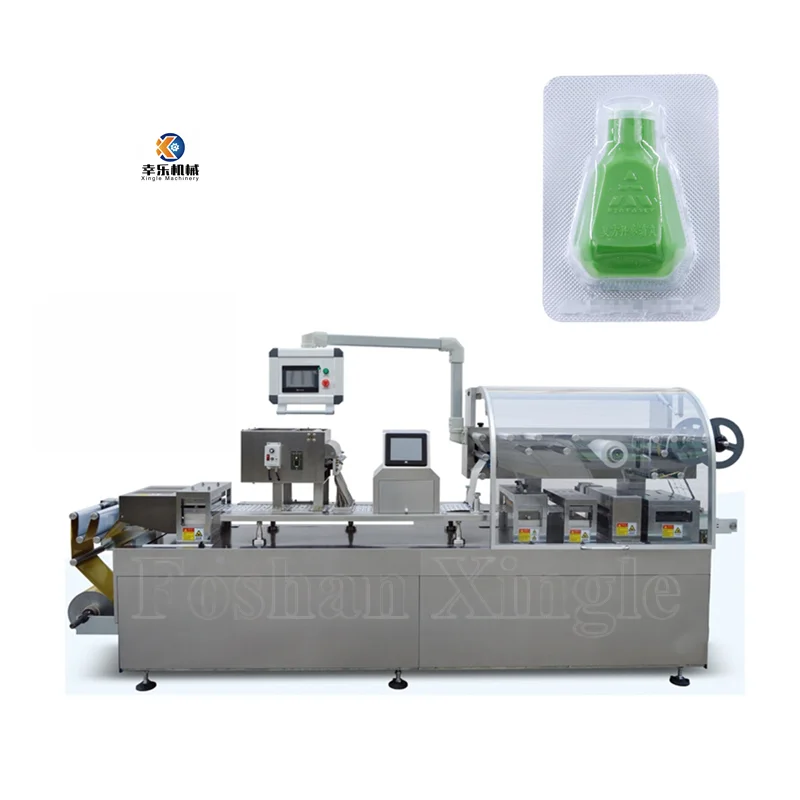

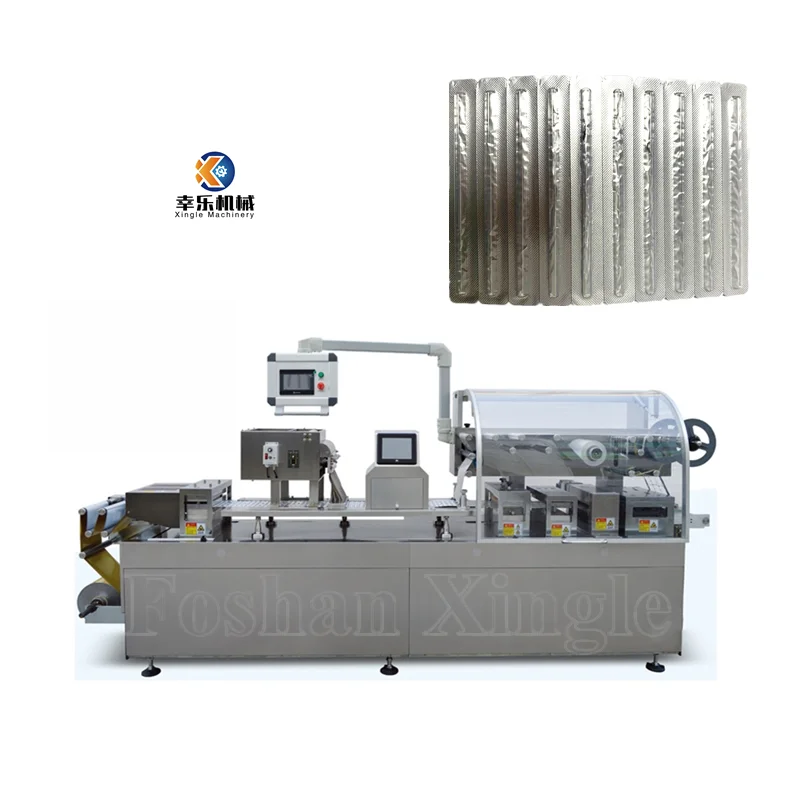

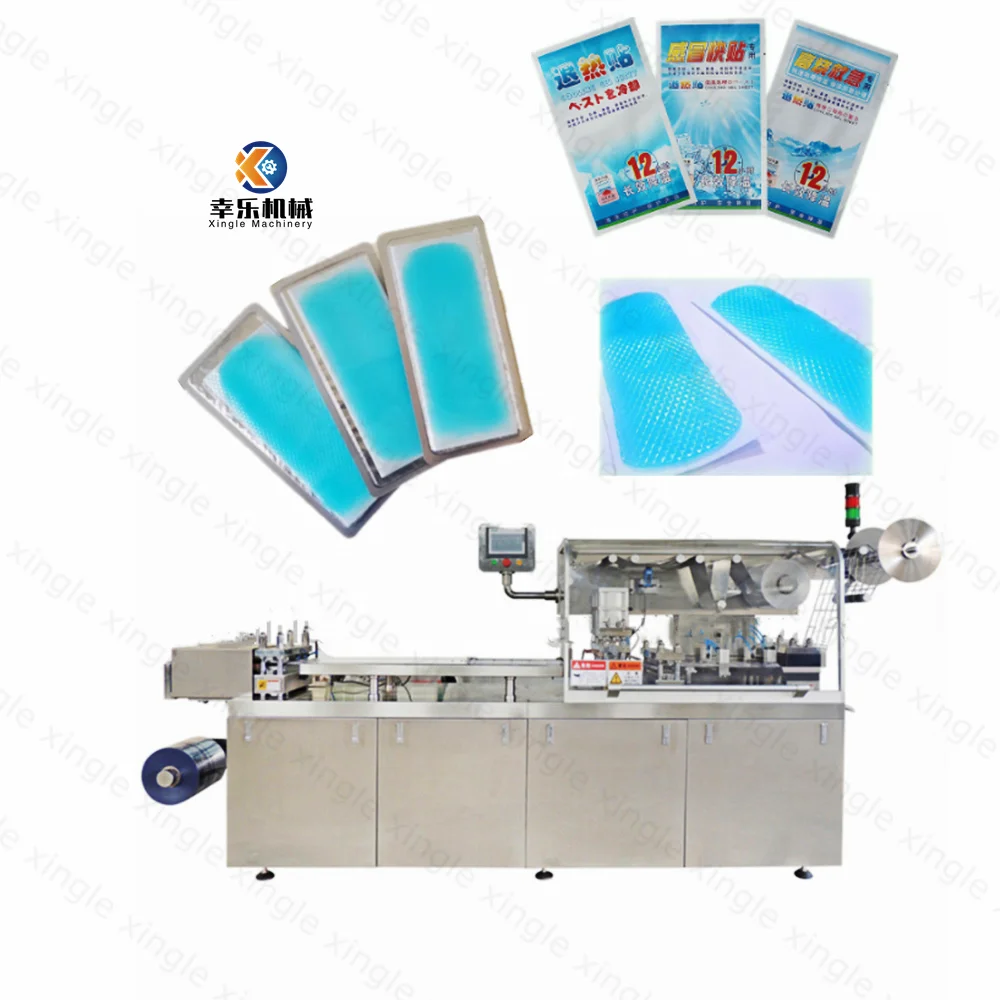

DPP- 260/350 Flat Type ALU-PVC/ALU-ALU Blister Packing Machine
The blister packing machine is special for food, chemical industrial usage. It has the function of packaging,
detecting and rejection. It adopted PLC control system, touch screen interface, frequency converter system, which make the machine automatic running more stable and enhance the machine life time. The machine can use ALU PVC, ALU ALU, PVC PAPER material for blister packaging. It meet GMP standard.
Operating principle:
1.The travel scope is adjustable, and the mold is located in the groove for easy mold changing.
2.Automatic feeding system, and the mold and feeder can be designed based on different products.
3.It can use easy tearing line pressing device, batch printing device and waste collecting and eye mark tracing device.
4.The heating molds separate automatically when the machine stopped, which protect the packaging material and increase the machine life time.
Main Parameter
Model | DPP-260 | DPP-350 |
Cutting Frequency (times/min) | Alu Pvc 10-50 t/minAlu Alu 10-25t/min | Alu Pvc 10-50 t/minAlu Alu 10-25t/min |
Output Capacity (pcs/h) | 4000-9000 pcs/h | 6000-12000 pcs/h |
Travel Scope (mm) | 30-130 | 30-150 |
Max. Blister Size(mm) | 250*120*30 | 350*140*40 |
Air Consumption(m3/min) | ≥0.38 | ≥0.42 |
Voltage | 380V 50Hz | 380V 50Hz |
Power (KW) | 8.5 | 13 |
Plastic Film (mm) | 260×(0.15-0.5) | 350×(0.15-0.5) |
Aluminum Foil (mm) | 260×(0.02-0.035) | 350×(0.02-0.035) |
Overall Size (mm) | 3900×650×1750 | 4000×720×1800 |
Weight (Kg) | 1500 | 2300 |
Foshan Xingle Machinery Equipment Co., Ltd. is a professional manufacturer and supplier of machinery and enjoys a good reputation in local and global markets. We are specialized imachines including pulverizes, mixer, Granulator, coating machine, counting machine, blister packaging machine, cartoning machine, labeling machine,ampoule filling and sealing machine, oral liquid filling production line, ampoule printing machine, suppository machine, we can undertake concept design, process design turnkey project and so on.High-quality machinery, competitive prices and sincere customer service are highly appreciated by customers. Our machines have been exported to many countries in the world, North America, Europe, Australia, South America, Southeast Asia and Africa. In order to provide the best quality, the products we manufacture comply with GMP, cGMP and other international standards.
Q: Why choose us?
A: We have been supplying machines including blender,counting machine,blister packing machine etc for over 14 years. What we offer is a good product at a reasonably price.
Q: Can I customize the product?
A: Abosolutely. We can customize machine according to your need. Also we can the package the products according to your request.
Q:What's the delivery time?
A:if machine we have in stock we ship in 7 days ,if not have in stock producing time it is around 15- 45days depends on different machine.
Q: Can I customize the product?
A: Abosolutely. We can customize machine according to your need. Also we can the package the products according to your request.
Q:What's the delivery time?
A:if machine we have in stock we ship in 7 days ,if not have in stock producing time it is around 15- 45days depends on different machine.
