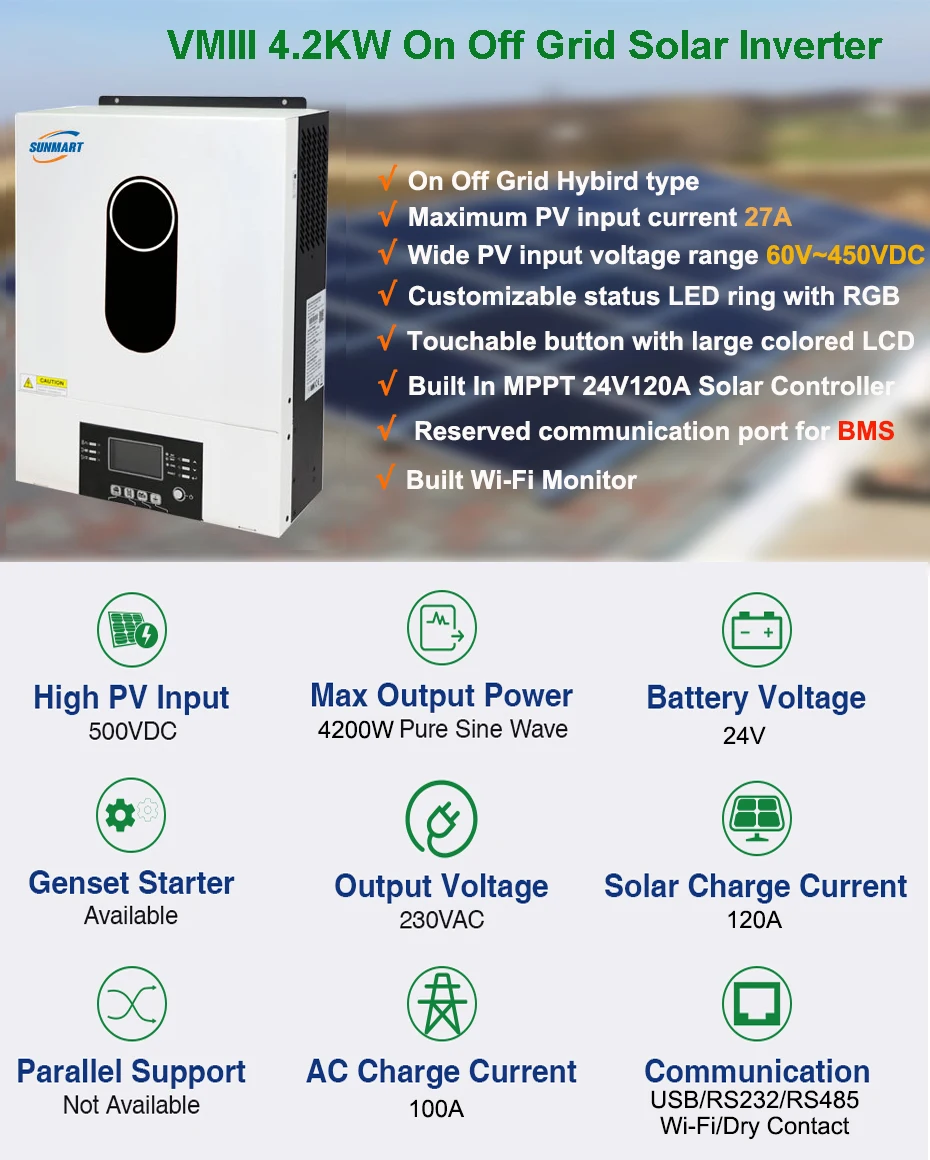

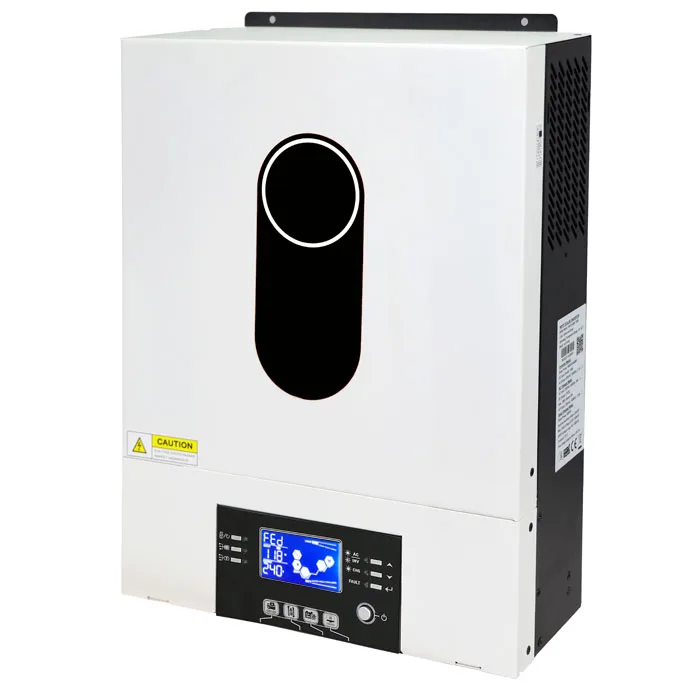

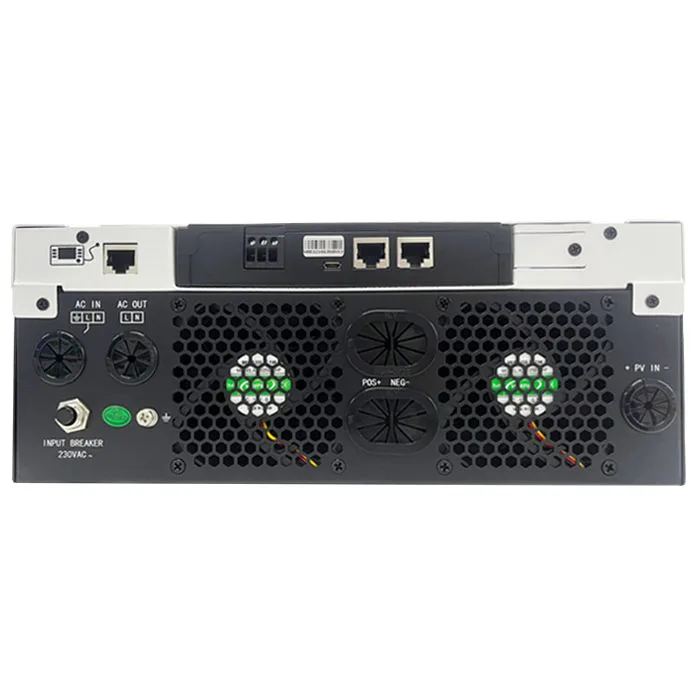

Popular Hybrid inverter MPPT 24V 4.2KW 6.2KW Pure Sine wave on off grid system WiFi BMS

Product Overview

Description

Popular Hybrid inverter MPPT 24V 4.2KW 6.2KW Pure Sine wave on off grid system + WiFi + BMS



Features:



Specifications:

MODEL	VMIII 4200W-24V
PHASE	1—phase
Rated Output Power	4200W
Maximum PV Input Power	5500W
Maximum Solar Charging Current	120A
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120~140VAC/180VAC
Acceptable Input Voltage Range	90~280VAC or 170~280VAC
Maximum AC Input Current	30A
Nominal operating frequency	50/60Hz
Surge power	8400W
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Waveform	Pure sine wave
Efficiency (DC to AC)	94%
BATTERY & CHARGER
Battery Type	Lead acid/Gel/Lithium
Nominal DC Voltage	24VDC
Maximum Charging Current (Solar to AC)	120A
Maximum AC Charging Current	100A

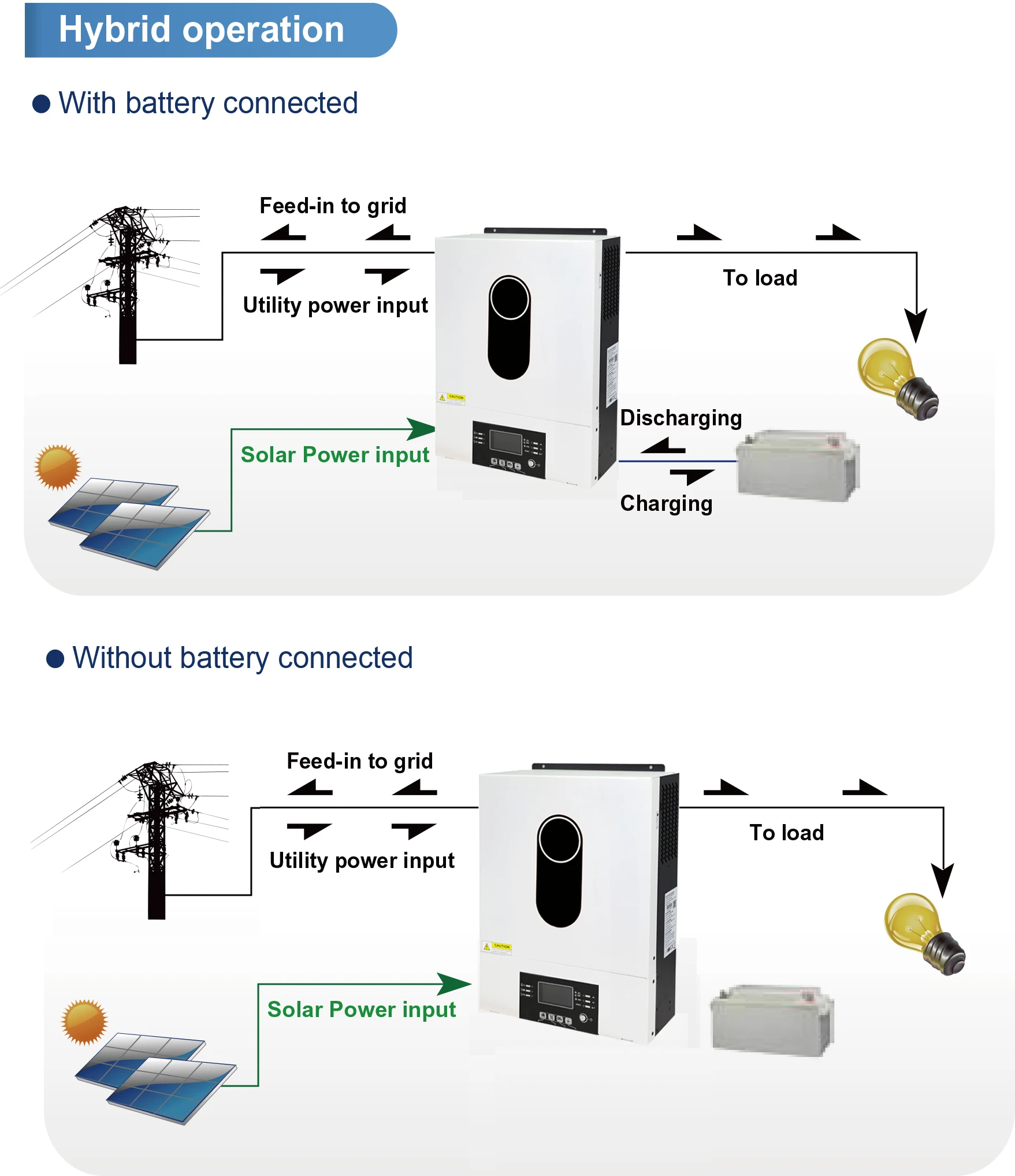

GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage	60VDC/120VDC
MPPT Range@Operating Voltage	60VDC~450VDC
Number of MPPT Tracker/Max Input Current	1/27A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195V~253VAC
Nominal Output Current	18.2A
Power Factor	>0.99
Feed-in Grid Frequency Range	49-51±1Hz
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)	98%
OUTPUT POWER
Full Load	4200W
Maximum Main Load	4200W
GENERAL
Dimension, D*W*H (MM)	420*300*115
Net Weight(KGS)	12
Communication Port	COMM
Operating Temperature	-10~50℃























Why choose us ?



1 Rich experienced.

 We have over 10 years experience in production and installation of solar power system and wind power system products and our products are sold to more than twenty countries in the world. We can send installation team engineers to your location and instruct the system installation.



2 Strong technical support

 We have advanced R&D team to customize the system configuration and make sure our product is in stable performance, including solar panel , solar inverter , charge controller etc. Only if you have problem, we will provide professional technical support and solve it by the fastest speed.



3 Good quality, steady operation

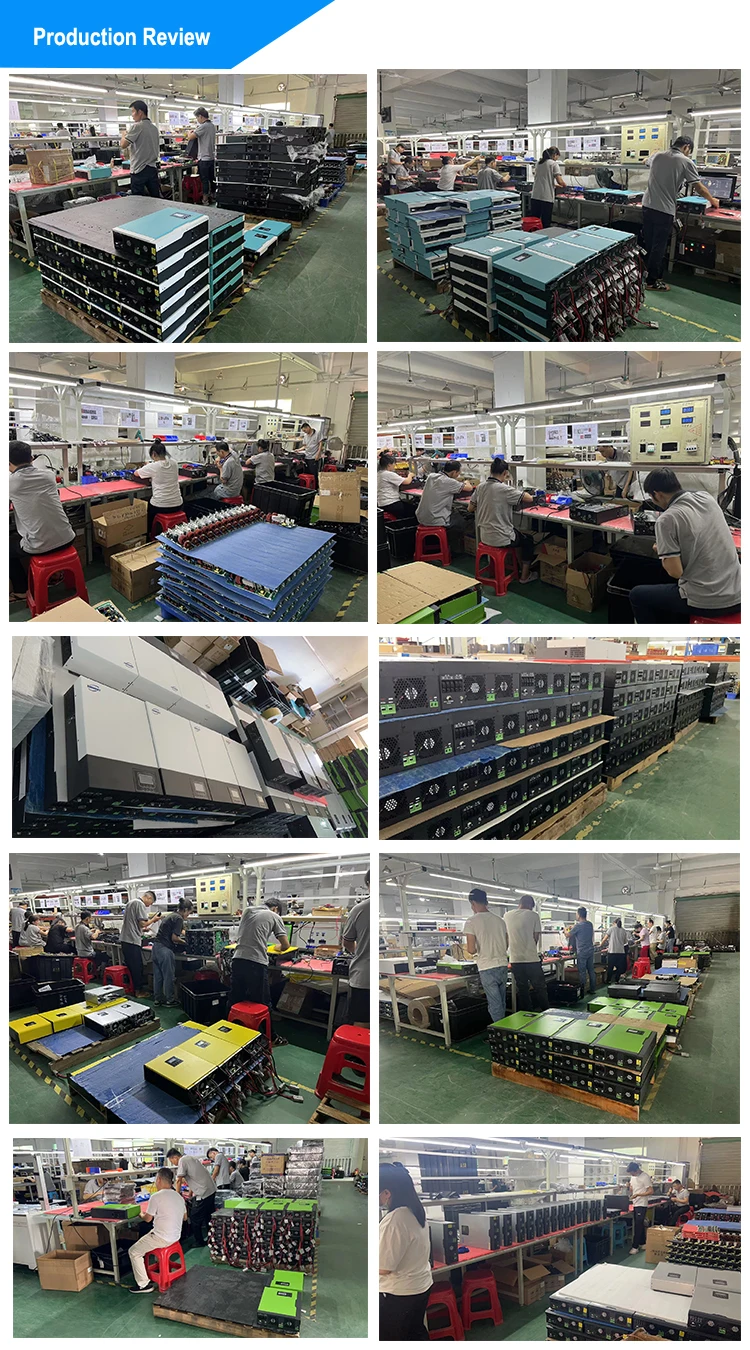

 Quality and Service are our Culture! With over 10 years new energy experience with two factories (which produce solar panel, inverter and battery), introduced advanced production equipment and specialized production line, adopt international standard management and strict quality control to ensure the stable-performance and high-quality.



4 Competitive price

 We are professional manufacturer. We will not guarantee you the cheapest price in China, but we will guarantee you the advantaged competitive product .We will do our best to support our customers to open the market and reach a win-win situation in the end.



5 Fast delivery time.

 "Time is gold" We have high-efficiency supply chain and long-term cooperation with shipping company, thus rapid production and fast delivery are assured.



6 Excellent after sales service.

We have professional after sales service engineer team to help you solve any kind of problem:

Solar inverter has 2 years warranty, ship the free PCB by DHL or FEDEX for service. we are not doing one-time business!
