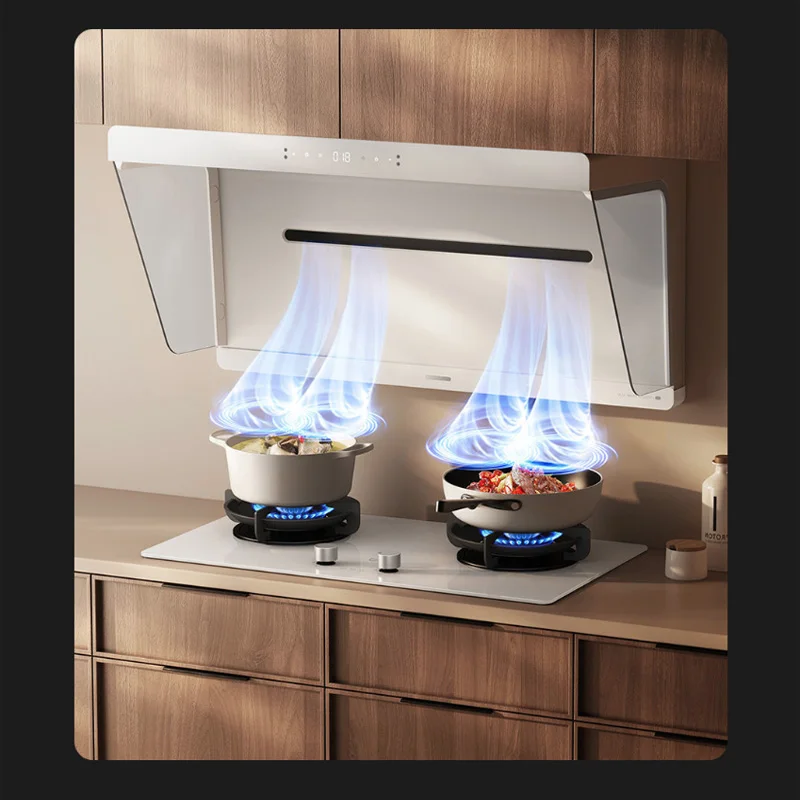

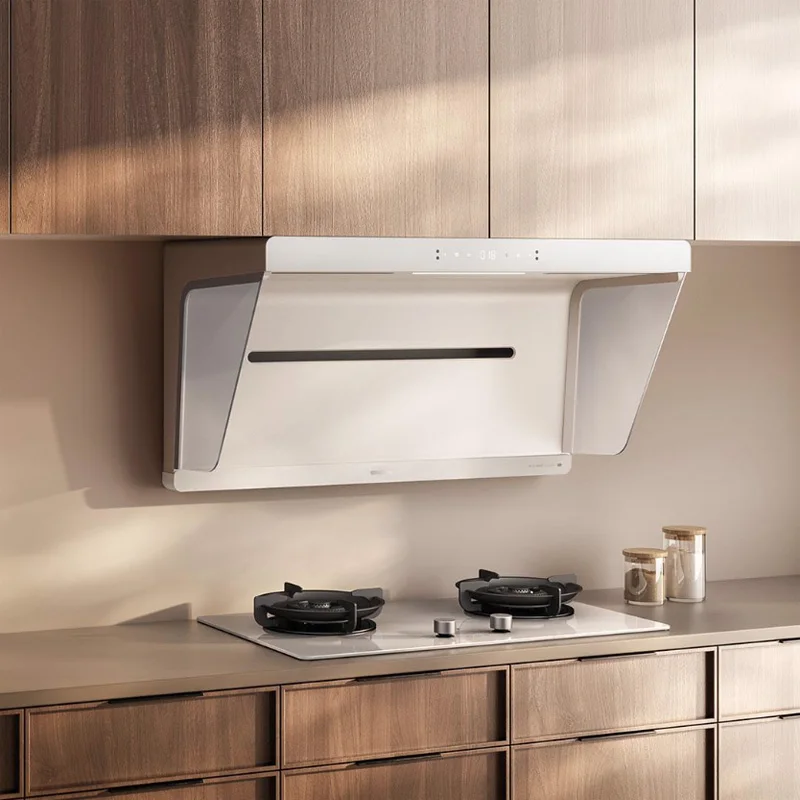

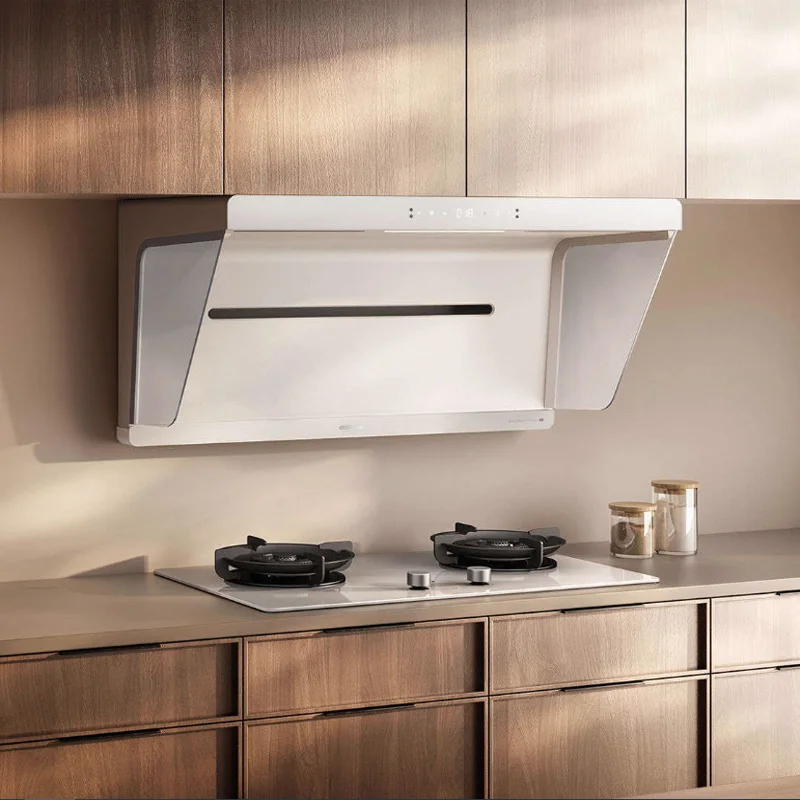

Xiaomi Mijia Intelligent Range Hoods S2 and Mijia Intelligent Timer Gas Stove S2 Smoke Cooker Set Natural Gas CN Version

Product Overview

Description

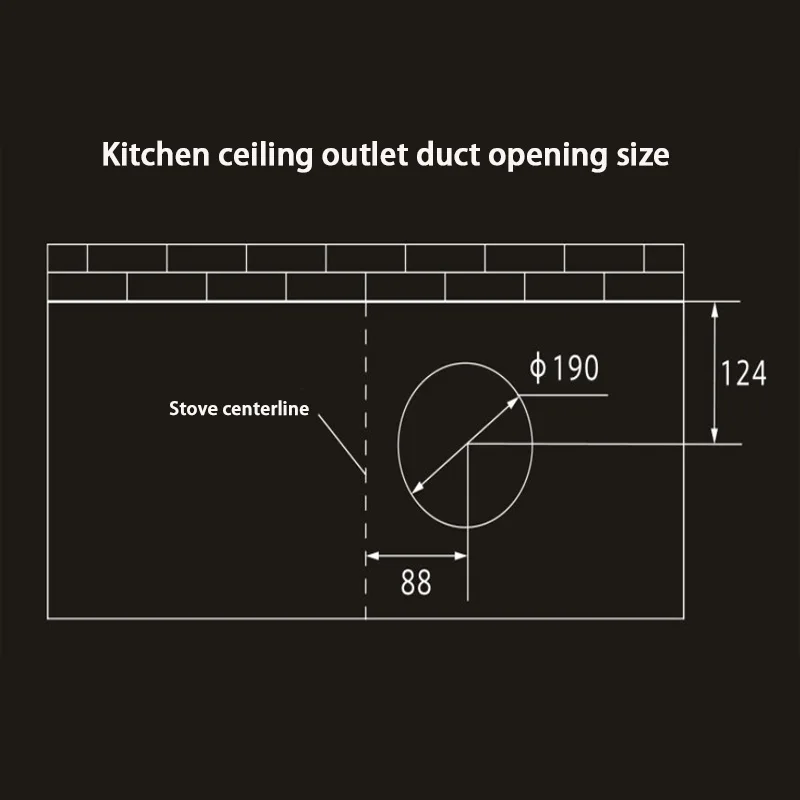

In order to ensure the smoke cleaning effect of the smoke cleaner, the installation must meet the following conditions.
The inner diameter of the flue stop valve should be 160mm-180mm.
It is recommended to use the standard three-layer thickened pipe with no bulge or depression on the pipe wall, and the interface should be tight without smoke leakage: if you need to extend the pipe, the total length should not exceed 3 meters.
If you need to extend the pipe, the total length of the pipe should not exceed 3 meters, and the bending should not exceed 2 times.
If the diameter of the air outlet of the public flue is less than 180mm, the air outlet should be enlarged.

Product Parameter

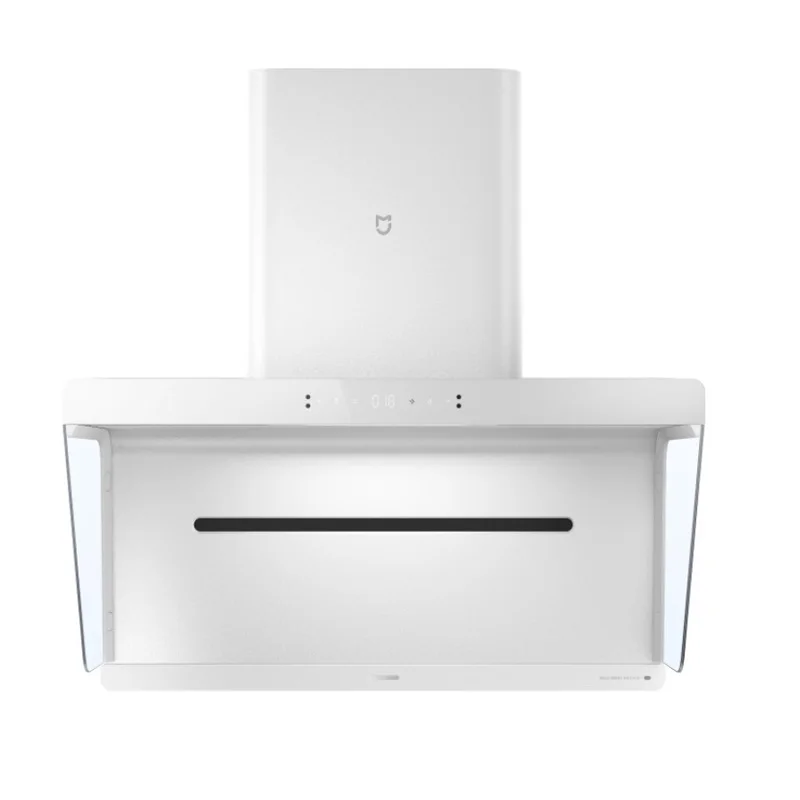

Product Name:Mijia Smart Smoker S2
Model:CXW-165-MJ05A
Product Size:902mmx 435mmx898mm
Net weight:21.5kg
Rated Voltage:220V~
Rated Frequency:50Hz
Input power: Rated input power of the whole machine
Rated input power of the whole machine (including lamp): 168W
Maximum input power of replaceable lamp:3W
Rated input power of main motor:165W
Standby power:2.0W
Maximum static pressure:900Pa
Air volume:Working air volume under the highest speed gear:11m3/min
Maximum full-pressure efficiency:27
Odor Reduction:95
Grease Separation Degree:90
Energy efficiency grade:Grade 1 energy efficiency

Product Parameter
Product name:Mijia intelligent timer gas cooker 5200WS2 white (natural gas)
Product Model:JZT-MJ04A
Applicable opening size(mm):(630~710)x(330~390)
Recommended opening size(mm):630x330
Ignition method: pulse ignition, timing length 180min
Product size(mm):780x440x160
Energy Efficiency:Grade 1
