Wireless Traffic Detector Replace Traditional Loop For Intersection Vehicle Detection Solution

Product Overview

Description

Embedded intersection wireless traffic detector replace loop for vehicle detection



1. Introduction

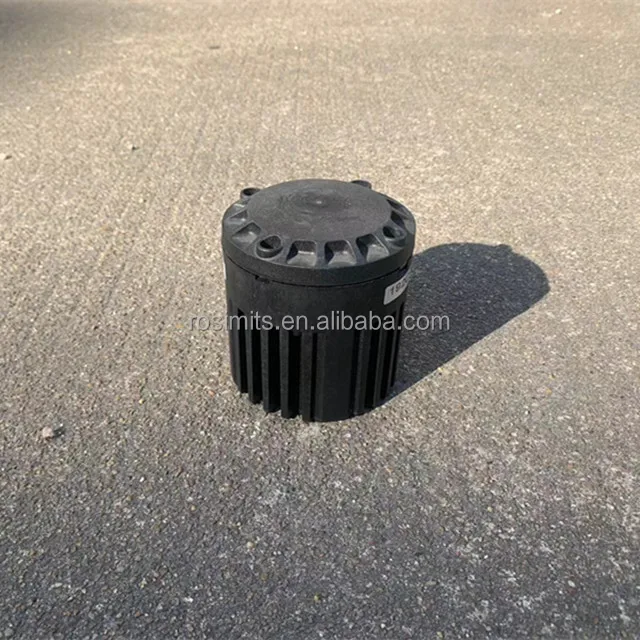

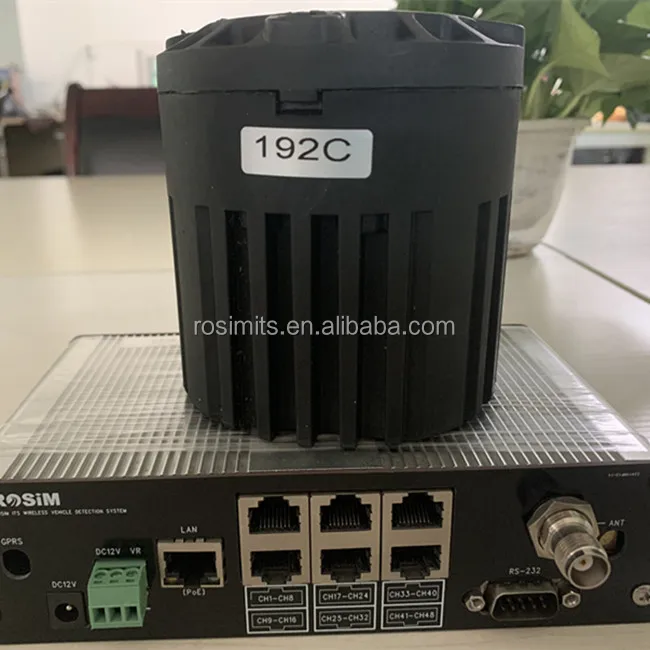

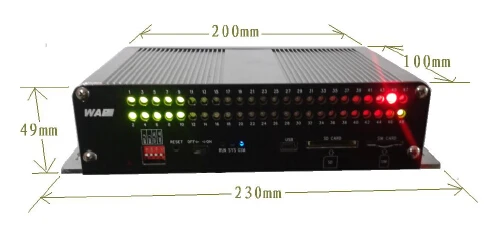

Wireless Vehicle Detector(WVD) is based on  magnetic , short range RF and nano power communication protocol technology. It is installed onto the road surface to collects the data of traffic flow. The data is gathered by Wireless Access Point(WAP), which acts as a wireless gateway between the wireless vehicle detection system and other traffic application systems. All the WVDs, under the management of WAP, establish a local wireless sensor network, which collects traffic information real timely.











2. Principle and Technology

By capture the tiny change of magnetism caused by the passing vehicle, WVD (Wireless Vehicle Detection Sensor) in the Wireless vehicle detection system calculate the vehicle velocity, length, type and occupy rate rapidly, and then send these information to the WAPs (Wireless Access Points), which will receive all on line WVDs’ information and transmit these data to the user systems through RS-232/485, Ethernet, GPRS, etc.



3. Advantages

a)  Install fast. It is only almost 6 minutes that is needed to install one  wireless vehicle detector sensor in the road, after installation, the traffic control could be released immediately;

b)  Work all-weather. Bad weather for example heavy fog, snow and rain makes no difference;

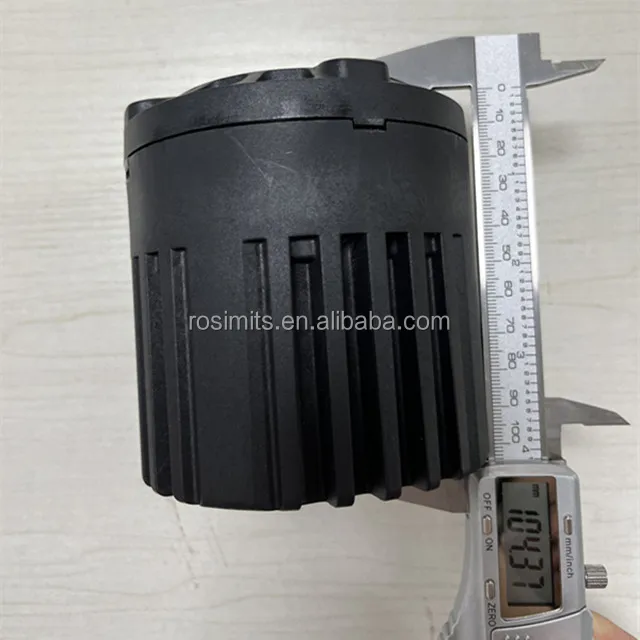

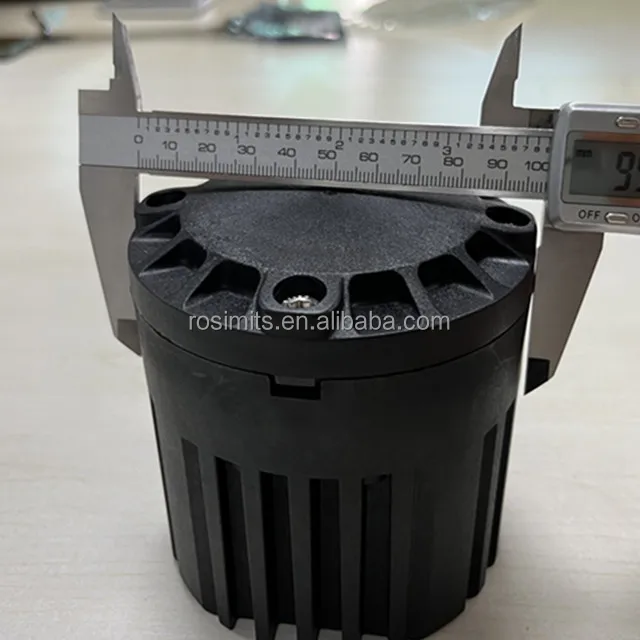

c)  No damage to the road. There’s no need to cut slots on the road surface and place cables or wires as the installation of loops, but only a tiny hole with the size Φ 120/H 100 mm, which makes WVDs become the most suitable vehicle detecting solution on the city high-way and bridges;

d)  About 10 years long life span. With high standard water proof and anti-press characteristics,  WVD wireless vehicle detector sensor can even be used in the damaged or distorted roads where loops cannot be installed.

e)  Cost saving.

f)  Easy to maintain. Unlike the loops that are easily to be damaged but difficultly to be repaired, WVD wireless vehicle detector sensor supports firmware updating over the air. No need to re-cut the slots, no more materials needed, and all of what you need is to take almost 10 minutes for the devices wireless updating;

g)  Low operation consuming. Due to the ultra-low power design and battery supply solution, WVD wireless vehicle detector’s consumed power is very lower than any other detectors like loops, video, micro-wave etc. in the market. This appears more and more significantly to our environments;

h)  Replace loops seamlessly. The same installation position and compatible output signals makes it easily and simply to replace loops in your system directly.

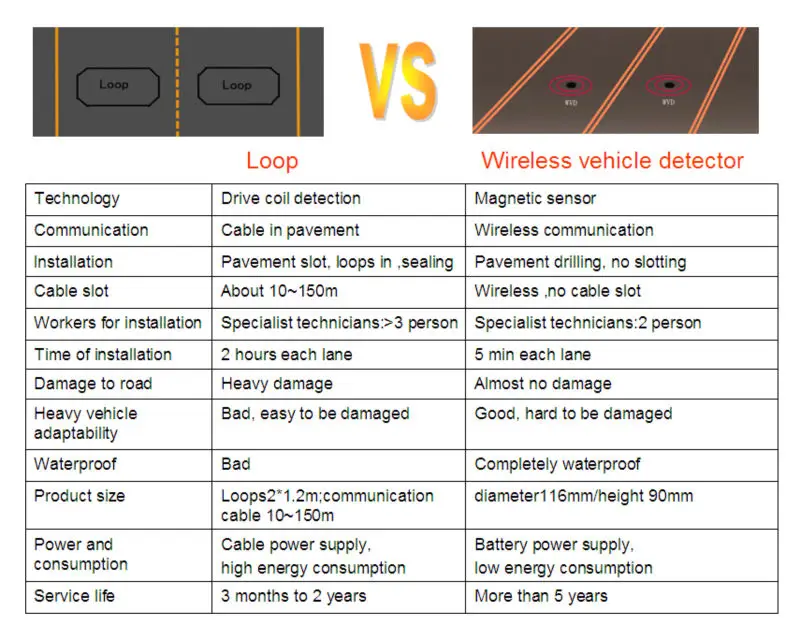

4. Compared with Loops







5. Applications





(1) Adaptve Traffic Signal Control System



(2)Travel Information System



(3)Traffic Flow Monitoring System



(4)Red Light and Speed Enforcement



(5)Corridor Management







6.Case Study



 Rosim wireless vehicle detector sensor had successfully integrated with Haixin signal controller.
