Product Overview
Description
Product Description

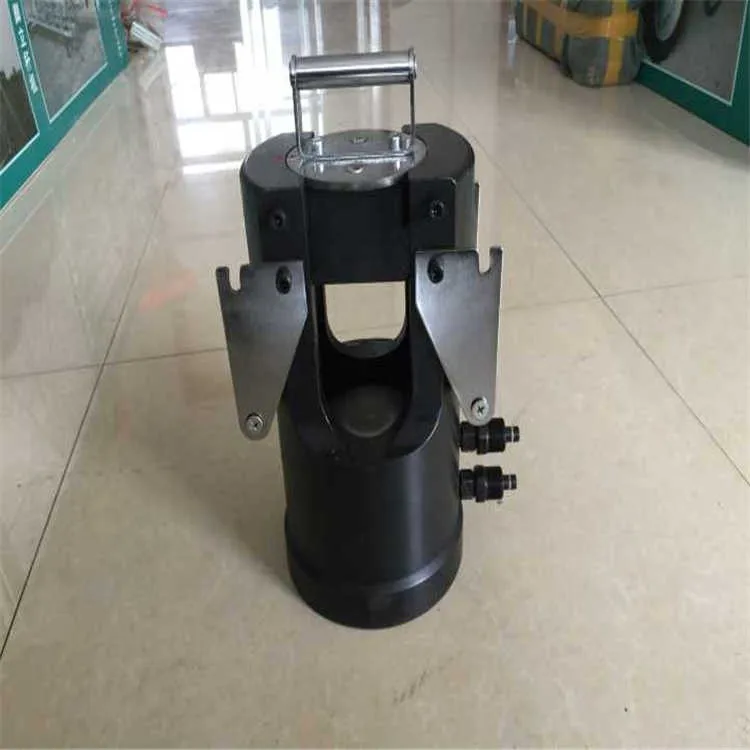

The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics: excellent weight/power ratio; very short pressing cycle (all the presses have an hydraulically-driven piston release); each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press.
For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.
For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.
Model | Max compression force (kN) | Rated pressure (kN) | Conductor size (mm2) | Max stroke (mm) | Weight (kg) |
QY-35 | 350 | 70 | ≤240 | 25 | 12 |
QY-65 | 650 | 94 | ≤500 | 25 | 25 |
QY-125 | 1250 | 94 | ≤720 | 25 | 40 |
QY-200 | 2000 | 94 | ≤1440 | 25 | 85 |
For die,
Model | Compressor model | Aluminum Dies (mm) | Steel Dies | Copper Dies |
QYD-35 | QY-35 | 16/18/20/22/24/ 26/30/32/34/36 | 16~500mm2 | |
QYD-65 | QY-65 | 26/28/30/32/34/ 36/38/40/45/50 | 12/14/16/18/ 20/22/24/26 | 16~800mm2 |
QYD-125 | QY-125 | 26/28/30/32/34/36/38/ 40/45/50/52/55/60 | 12/14/16/18/ 20/22/24/26 | 16~800mm2 |
QYD-200 | QY-200 | 26/28/30/32/34/36/38/40/45/ 50/52/55/60/65/70/75/80 | 12/14/16/18/20/22/ 24/26/28/30/32 | 16~800mm2 |

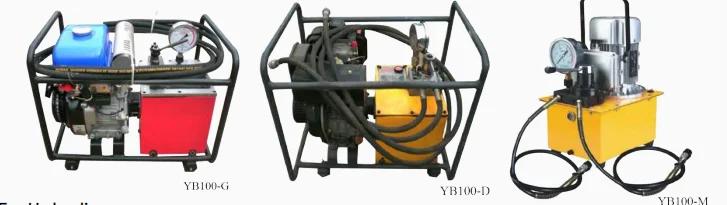

For Hydraulic Pump,
Model | Engine | Max compression force | Flow | Tank capacity | Power | Weight | Dimension (mm) |
YB-100-G1 | Gasoline | 100Mpa | 1.6L/min | 8L | 4hp | 85kg | 600x420x510 |
YB-100-G2 | Gasoline | 100Mpa | 1.6L/min | 8L | 5.5hp | 80kg | 600x420x510 |
YB-100-D | Diesel | 100Mpa | 1.6L/min | 8L | 4hp | 100kg | 600x430x520 |
YB-100-M | Motor | 100Mpa | 1.6L/min | 8L | 1.5hp | 90kg | 750x400x580 |
Specifications
Item number | 16101 | 16101A | 16101B | 16101C |
Model | CO-630B | CO-630A | CO-1000 | CO-400 |
Crimping force | 300KN | 350KN | 550KN | 200KN |
Crimping range | 150-630mm² | 150-630mm² | 400-1000mm² | 16-400mm² |
Crimping type | hexagon crimping | hexagon crimping | hexagon crimping | hexagon crimping |
Dies | 150,185,240,300, 400,500,630mm² | 150,185,240,300, 400,500,630mm² | 400,500,630, 800,1000mm² | 16,25,35,50, 70,95,120,150, 185,240,300,400mm² |
Stroke | 24mm | 24mm | 26mm | 24mm |
Height | approx.275mm | approx.350mm | approx.400mm | approx.250mm |
Weight(KG) | approx.N.W11.5KG G.W20KG | approx.N.W16.7KG G.W25.5KG | approx.N.W32KG G.W39KG | approx.N.W5.4KG G.W10KG |
Package | wooden case | wooden case | wooden case | paper box |
Application

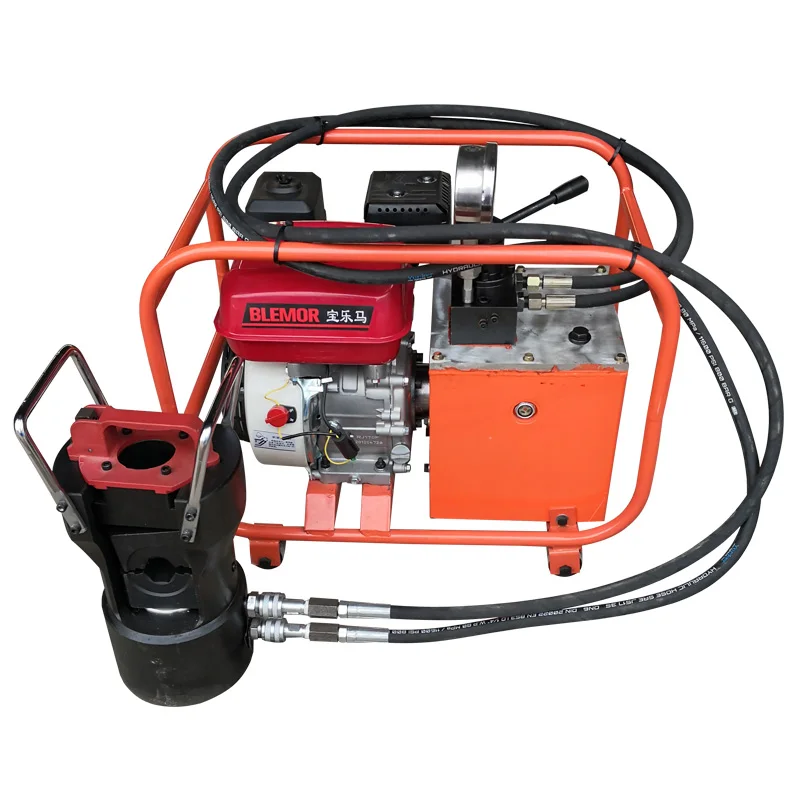

Connecting with ultra high pressure pump, it is used for pressing of overhead steel-cored aluminium strand and intermediate connecting pipe of steel strand and tension clamp of transmission line above 110KV
Features
1. Using high strength alloy steel forging processing and exquisite heat treatment to ensure the strength and service life of the equipment.
1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.
3. The maximum tube sleeve size is 76mm, the crimping surface is wide, and the number of crimping is small, which can reduce the crimping deformation and control the elongation.
4. The double acting hydraulic cylinder can avoid the problem of spring fatigue and slow reset, and can shorten the reset time of piston and improve the working efficiency.
5. The movable mould can assist the operator to take out the mould easily after crimping.
6. The rotary die cover can be opened and closed quickly, which makes the operation and positioning easier.
7. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.
1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.
3. The maximum tube sleeve size is 76mm, the crimping surface is wide, and the number of crimping is small, which can reduce the crimping deformation and control the elongation.
4. The double acting hydraulic cylinder can avoid the problem of spring fatigue and slow reset, and can shorten the reset time of piston and improve the working efficiency.
5. The movable mould can assist the operator to take out the mould easily after crimping.
6. The rotary die cover can be opened and closed quickly, which makes the operation and positioning easier.
7. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.
Mold selection method
1. Select the mold according to the principle that the outer diameter of the pressure pipe is equal to the diagonal dimension of the press mould.
2. This table is for reference only. The specific specifications and dimensions are subject to the actual measurement data.
3. The press mould can be customized according to the special requirements of customers
2. This table is for reference only. The specific specifications and dimensions are subject to the actual measurement data.
3. The press mould can be customized according to the special requirements of customers
Company Profile
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German WIKA Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German WIKA Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.

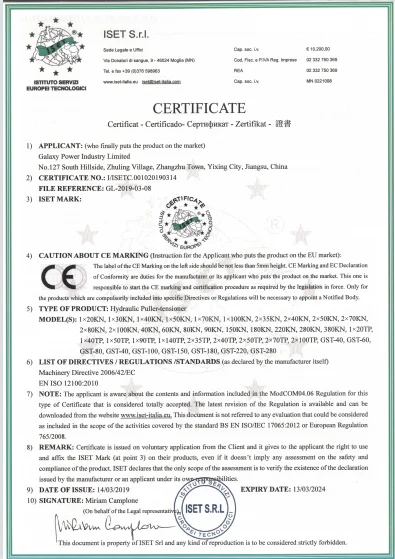

Certifications
Why Choose Us
1. Our Quality Assurance
Before packaging, we should control the quality of each process to avoid defects in the manufacturing process.
2. Fast delivery time
There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days.
3. Packaging
Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state.
4. Application
It is widely used in overhead power line construction.
Before packaging, we should control the quality of each process to avoid defects in the manufacturing process.
2. Fast delivery time
There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days.
3. Packaging
Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state.
4. Application
It is widely used in overhead power line construction.
