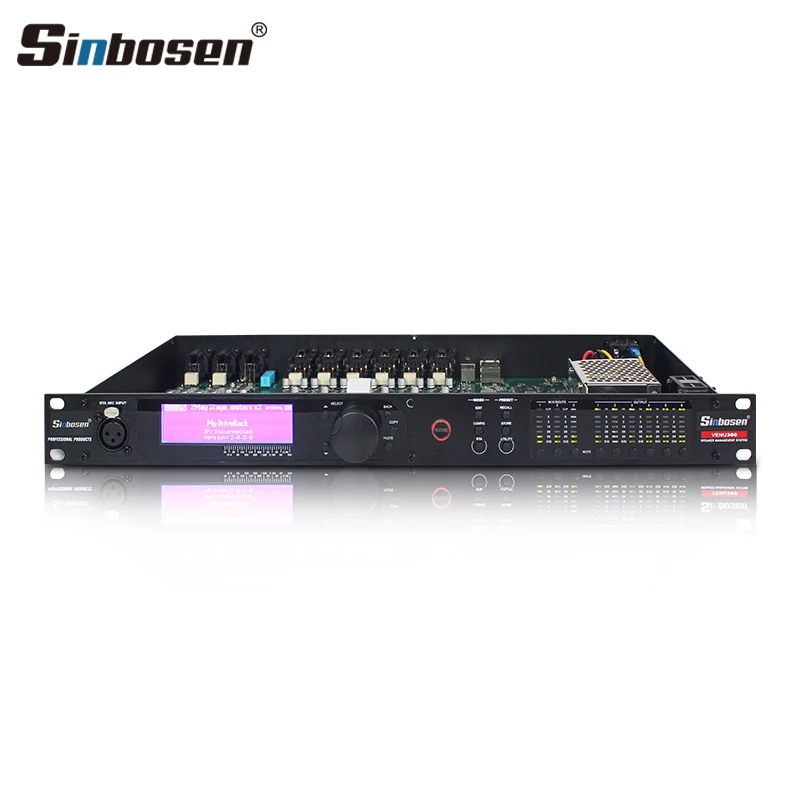

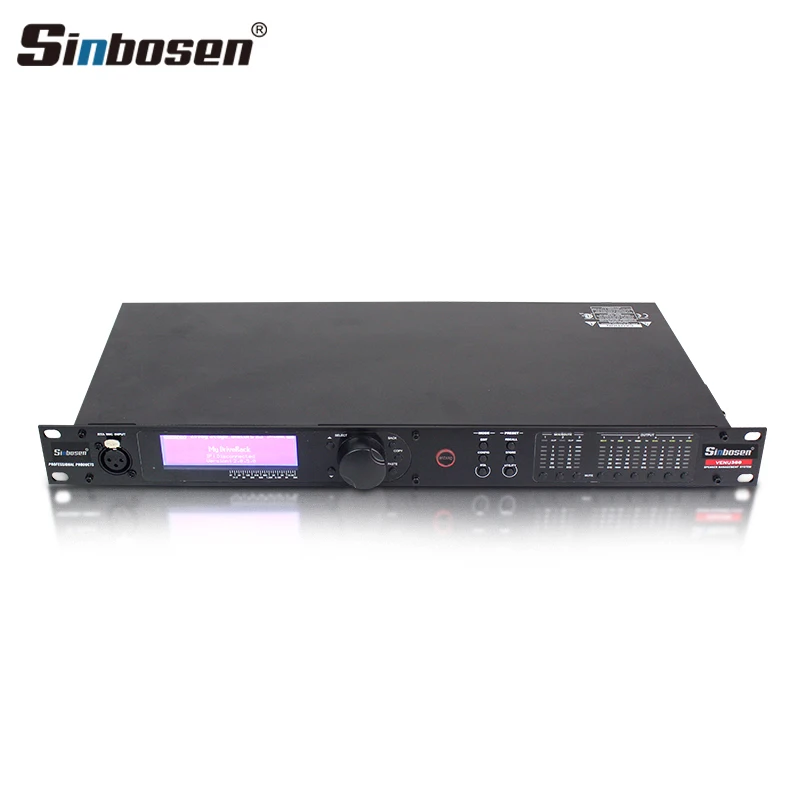

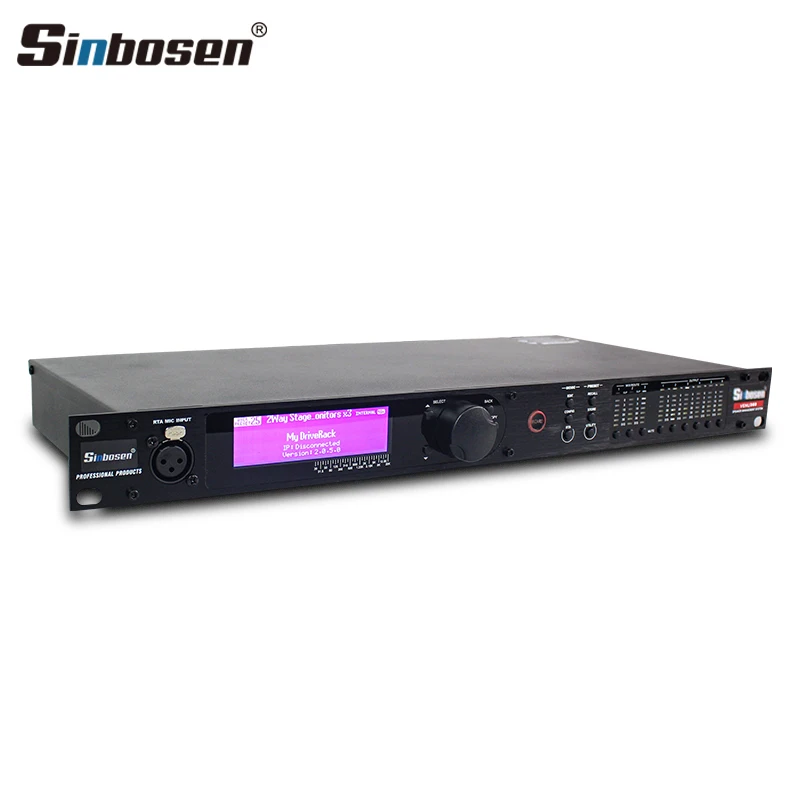

V 360 24 bit AES Karaoke Digital Signal Processor 3 x 6 Oem Professional Audio Processor with Narrow Notch Capabilities
- Category: >>>
- Supplier: Guangzhou Xinbaosheng Audio Equipment Company Limited
Share on (1601034157411):
Product Overview
Description
3 input 6 output professional sound system karaoke digital effect audio processor
Product Description
| 3 in 6 out Digital Processor | |

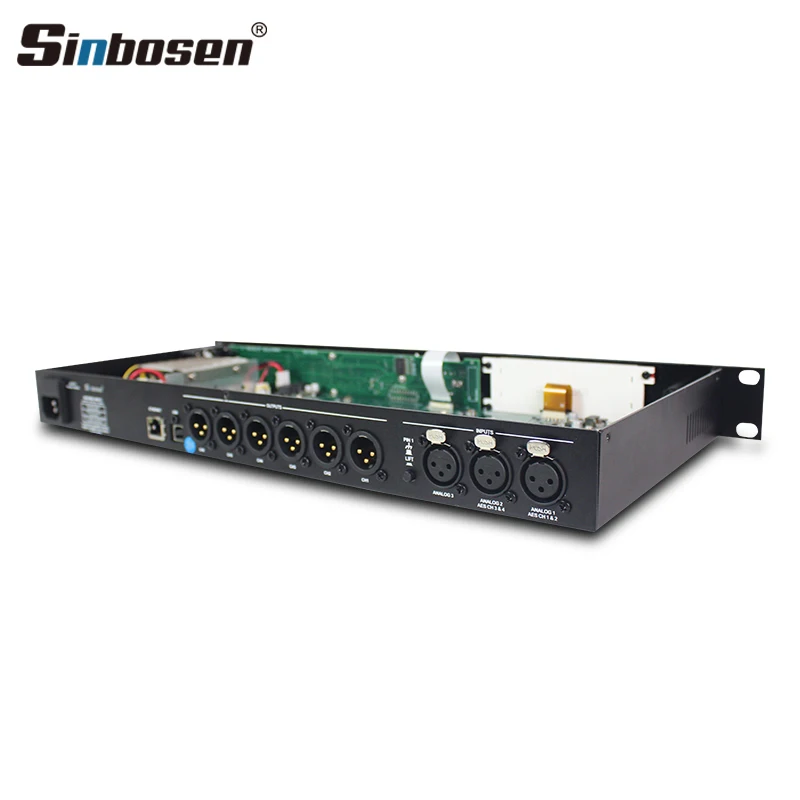

| Input | (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input |
| Input Connectors | (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input |
| Input Type | Electronically balanced/RF filtered |
| Input Impedance | > 30 kΩ, balanced line to line |
| Max Input Level (line inputs) | > +28 dBu, balanced, ≤1% THD |
| CMRR | > 50 dB @ 1 kHz |
| RTA Mic Preamp Phantom Power | +48 VDC |

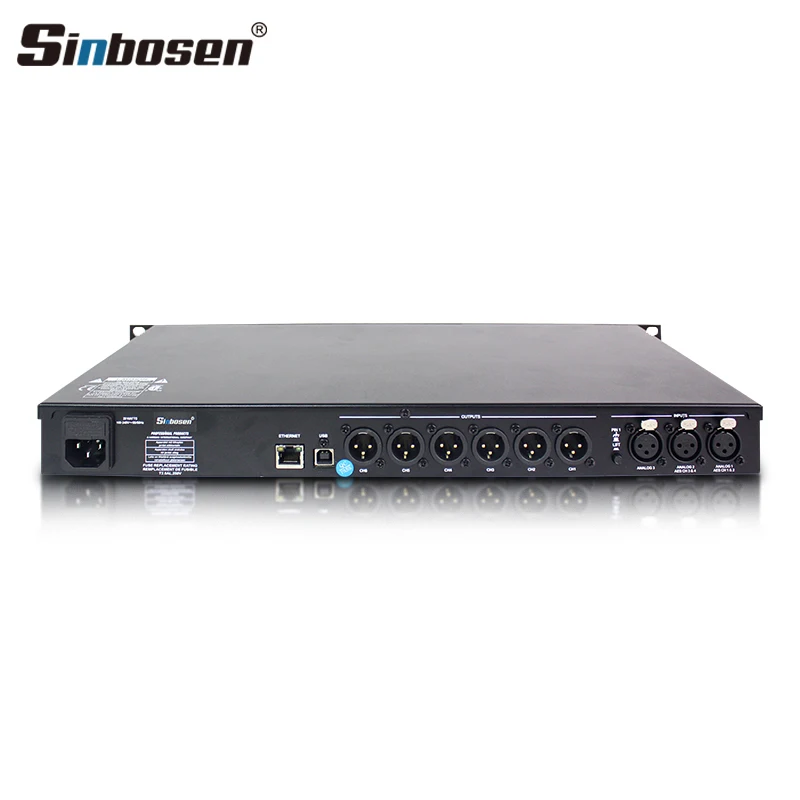

| Output | (6) Line Outputs |
| Output Connectors | Male XLR |
| Output Type | Electronically balanced, RF filtered |
| Output Impedance | 120 Ω, balanced line to line |
| Max Output Level | +22 dBu, balanced, ≤1% THD |
| Alignment Delay | Up to 1000 ms per output channel |
| A/D Converter | 24-bit |
| A/D Dynamic Range | 117 dB A-weighted, 114 dB unweighted, 22 kHz BW |
| Type IV Dynamic Range | 129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW |
| D/A Converter | 24-bit |
| D/A Dynamic Range | 116 dB A-weighted, 113 dB unweighted, 22 kHz BW |
| Internal Processing Wordlength | 32-bit floating point |
| Supported Sample Rates | 48/96 kHz (32-192 kHz using sample rate conversion) |
| System Performance Dynamic Range | 114 dB A-weighted; 110 dB unweighted |
| THD+Noise | 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain |
| Frequency Response | 20 Hz – 20 kHz, +0 /- 0.5 dB |
| Interchannel Crosstalk | < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured |
| Latency | Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz); Digital AES input to output: 2.31 (48 kHz), 2.15 ms (96 kHz) |
| Operating Voltage | 100-240 VAC 50/60 Hz |
| Power Consumption | 18 W |
| Unit Weight | 5.48 lbs. (2.49 kg) |
| Dimensions | 1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W) |
| INPUT PROCESSING |
| Compression |
| Advanced Feedback Suppression |
| 31-Band Graphic EQ |
| 12-Band Parametric EQ (with narrow notch capabilities) |
| Subharmonic Synthesis |
| Backline Delay |
| Noise Gate |
| OUTPUT PROCESSING |
| Crossover (supports full range up to mono 6-way systems) |
| 12-Band AutoEQs (8 AutoEQ bands, 4 User bands) |
| Compression |
| Automatic Gain Control |
| Subharmonic Synthesis |
| Noise Gate |
| Tower Delays (up to 1000ms per output) |
| 8-Band Parametric EQs (used for speaker tunings) |
| Limiting |
| Driver Alignment Delays |
FEATURE
| Provide all necessary processing for optimizing and protecting the speaker system. |
| Excellent audio quality with high internal headroom and wide dynamic range. |
| Supports multi-channel, stereo, auxiliary bass speaker, and LCR system configurations |
| Integrated with high-quality 24 bit A/D and D/A converters to protect inputs. |
| Suitable for applications such as public broadcasting,chapels,clubs,tour venues and other professional event! |
