Product Overview
Description
Products Description
Boring machine

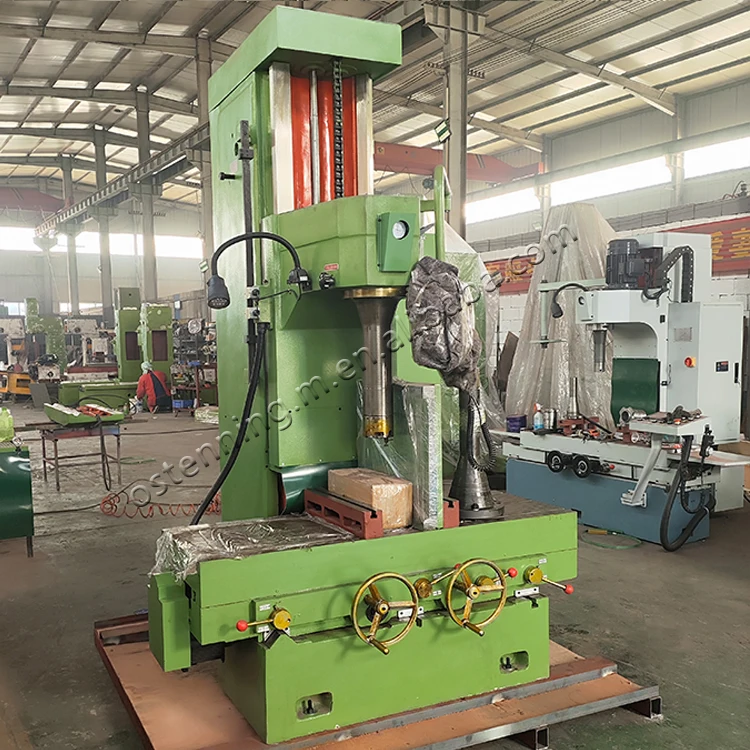

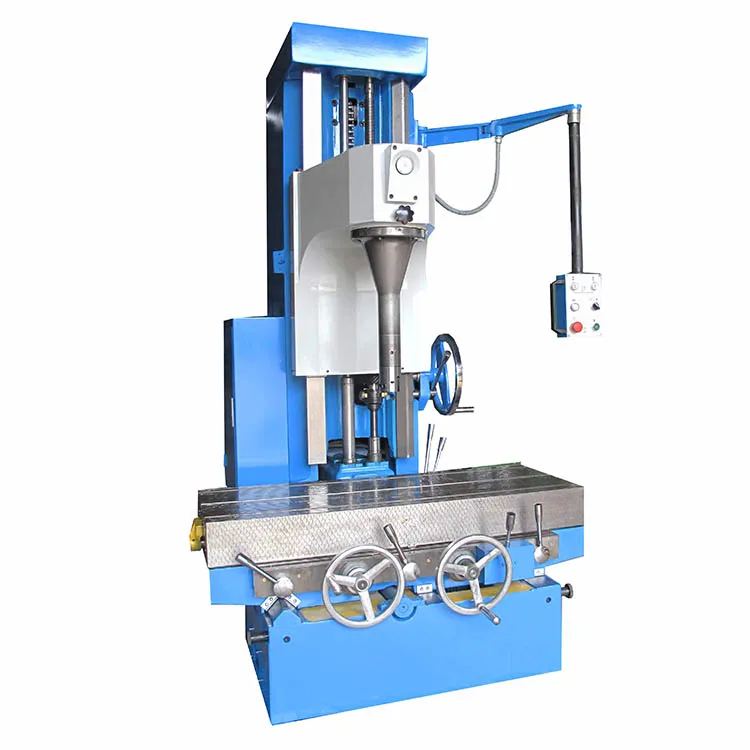

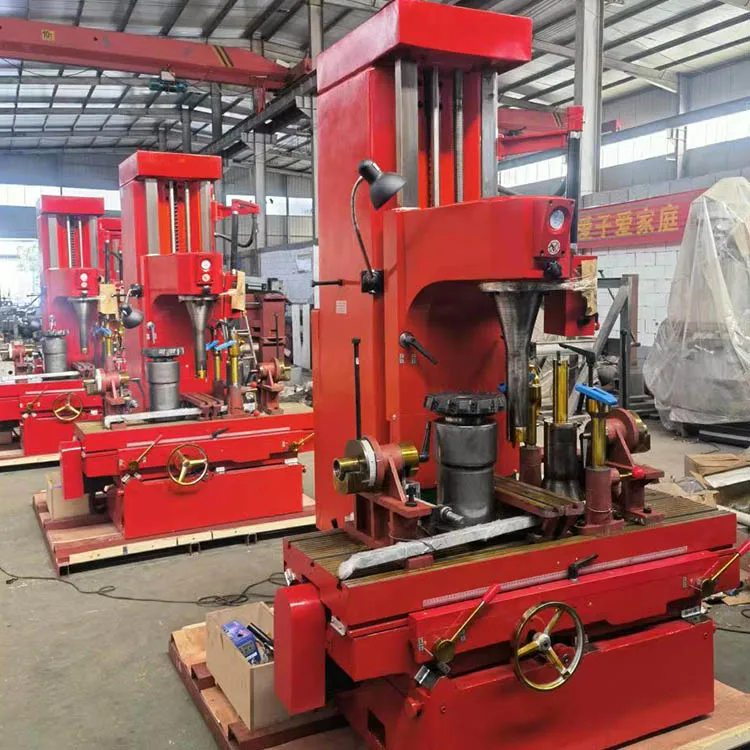

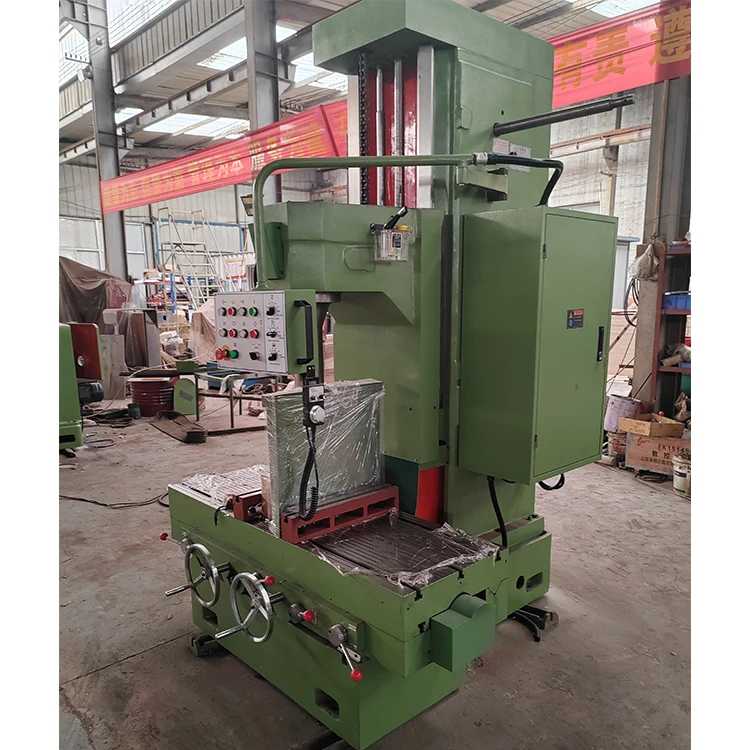

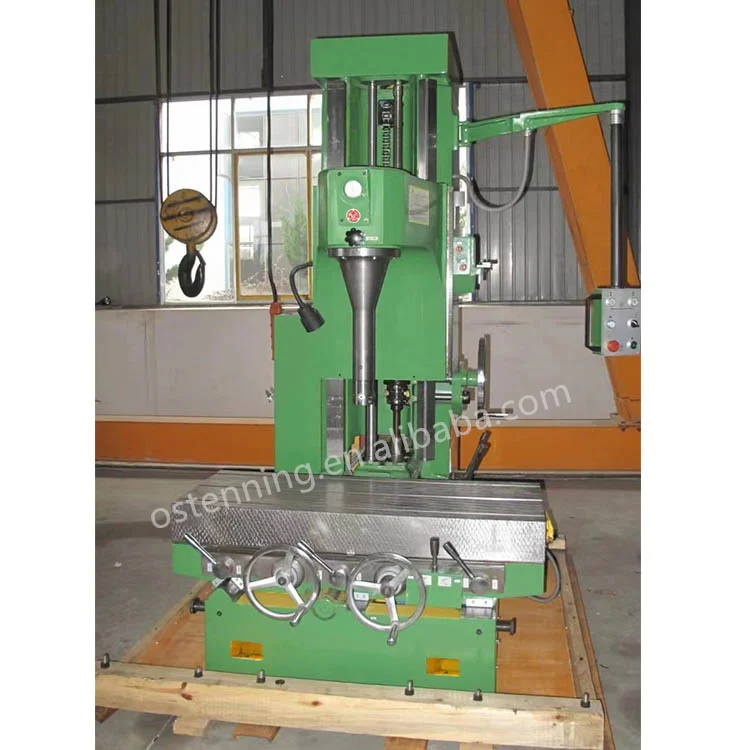

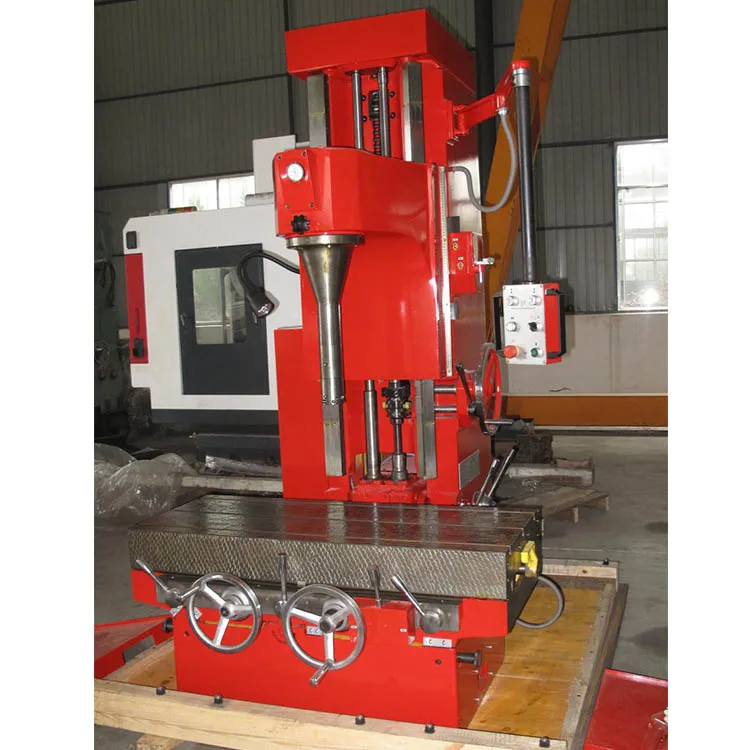

Vertical Boring Machine T7220B
The cylinder boring machine is used for boring cylinder holes of internal combustion engine,and inner holes of cylinder sleeve of cars or tractors,and also for other machine element hole.It has high cost performance.
The cylinder boring machine is used for boring cylinder holes of internal combustion engine,and inner holes of cylinder sleeve of cars or tractors,and also for other machine element hole.It has high cost performance.
One year warranty & lifetime service | Standard testing & economical & applicable | Full power and full power | low noise |
T7220B Vertical boring machine main features
Mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
1. The table longitudinal and latitudinal moving device;

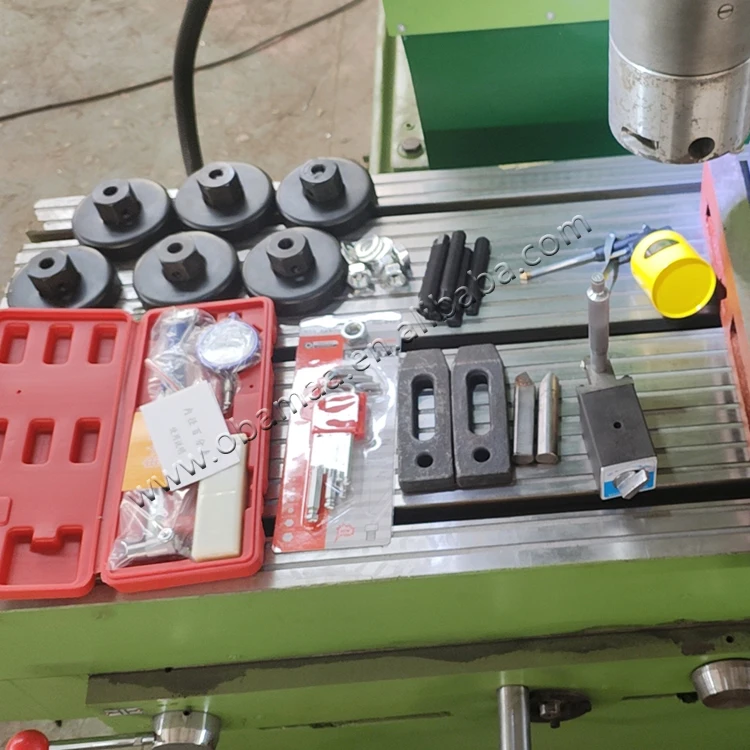

2. Boring measuring device;
3. Also provides optional digital readout for the table's longiland latimoving accessories to servo the users.
1. The table longitudinal and latitudinal moving device;
2. Boring measuring device;
3. Also provides optional digital readout for the table's longiland latimoving accessories to servo the users.
Specification
Model | T7220B |
Max. boring Diameter | 200mm |
Max. Boring Depth | 500mm |
Spindle Speed Range | 53-840rev/min |
Spindle Feed Range | 0.05-0.20mm/rev |
Distance from Spindle Axis to Carriage Vertical plane | 315mm |
Table Longitudinal Travel | 900mm |
Table cross travel | 100mm |
Machining accuracy | Dimension Accuracy 1T7 |
Roundness | 0.005 |
Cylindricity | 0.02/300 |
Surface roughness | Ra0.8-1.6 |

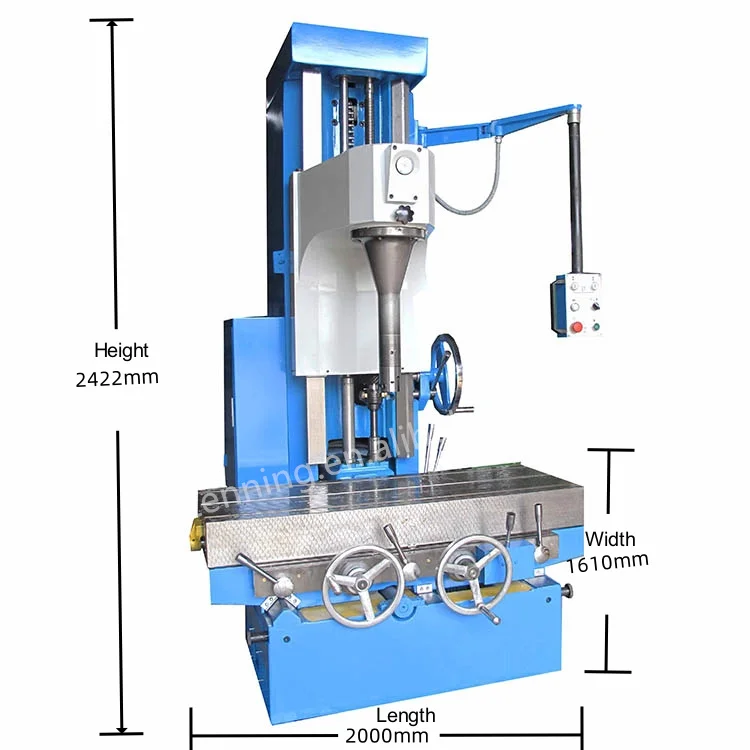

Overall Dimension (L×W×H) | 2250x1588x2335mm |
N.W/G.W kg | 3300/3800kg |

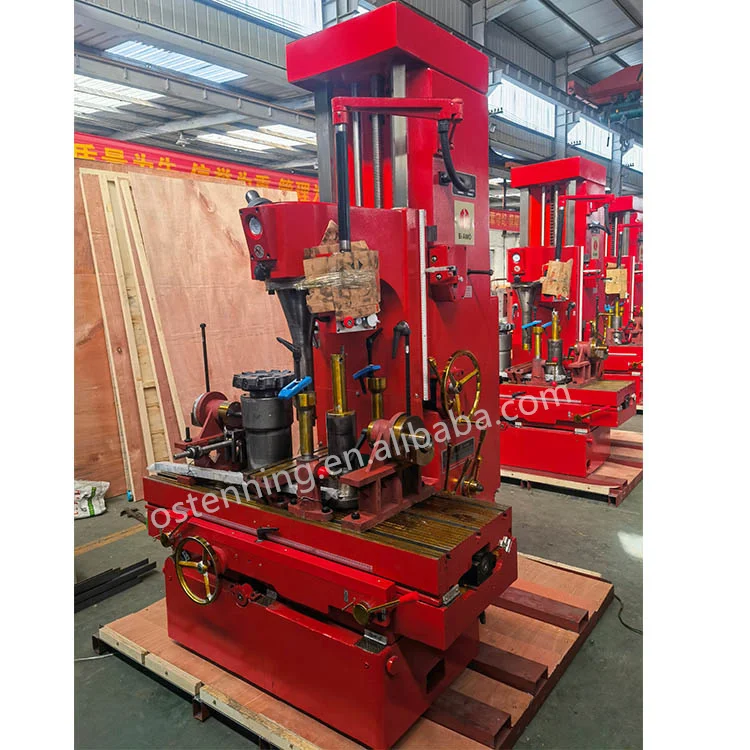

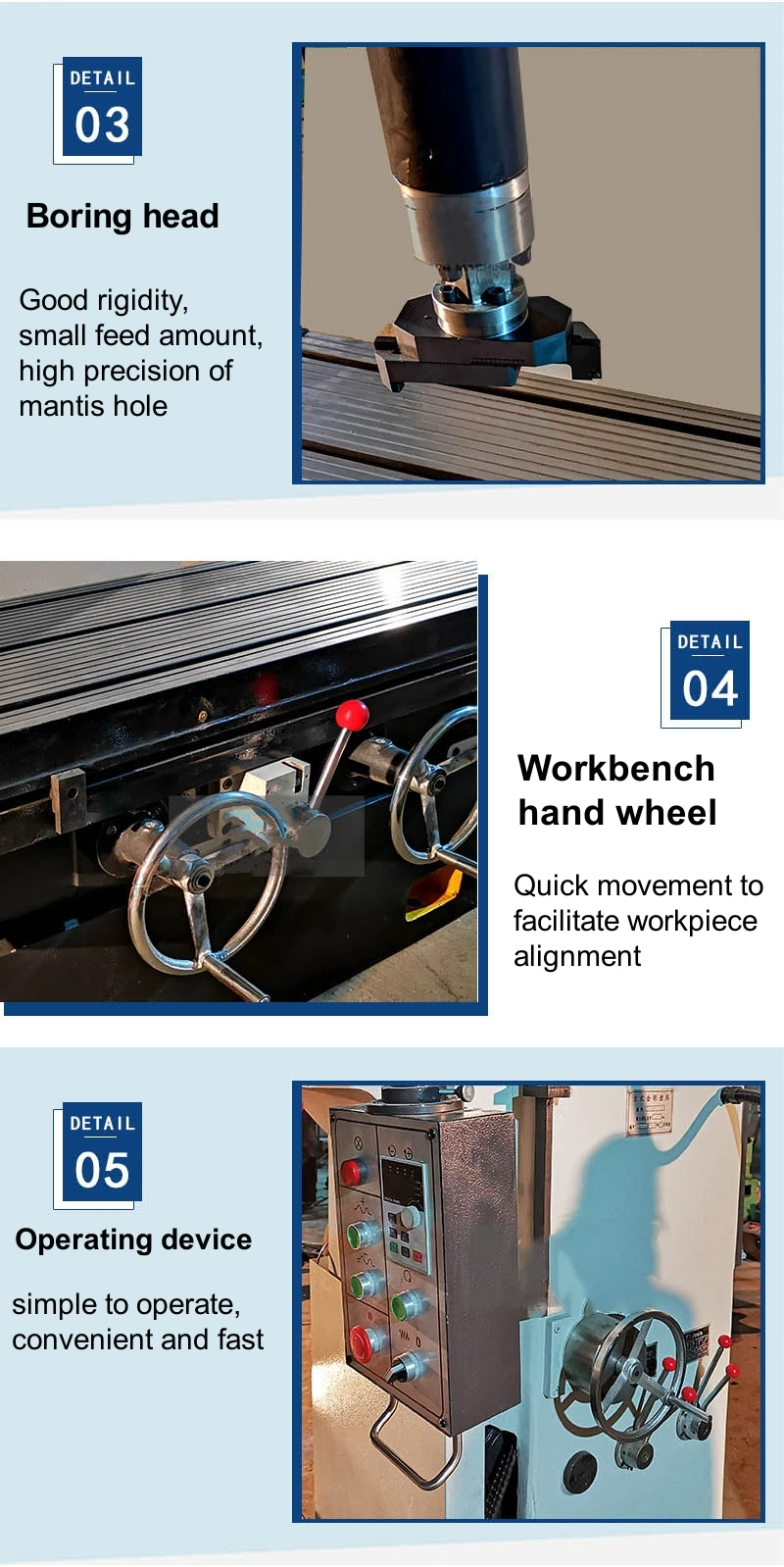

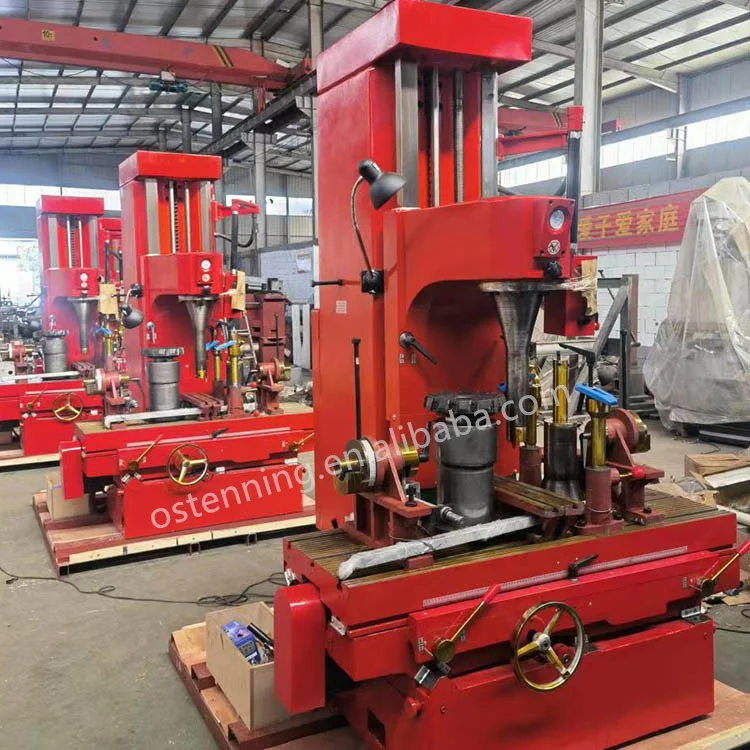

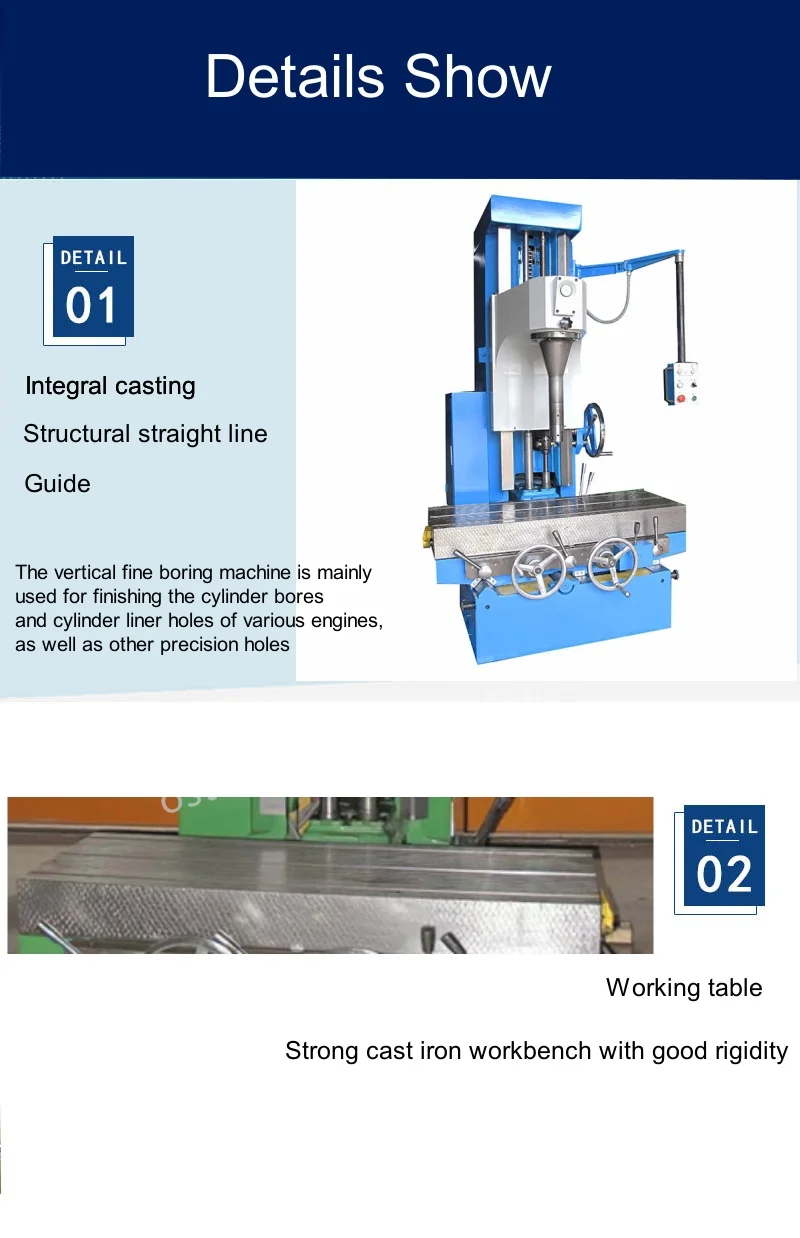

Details Images

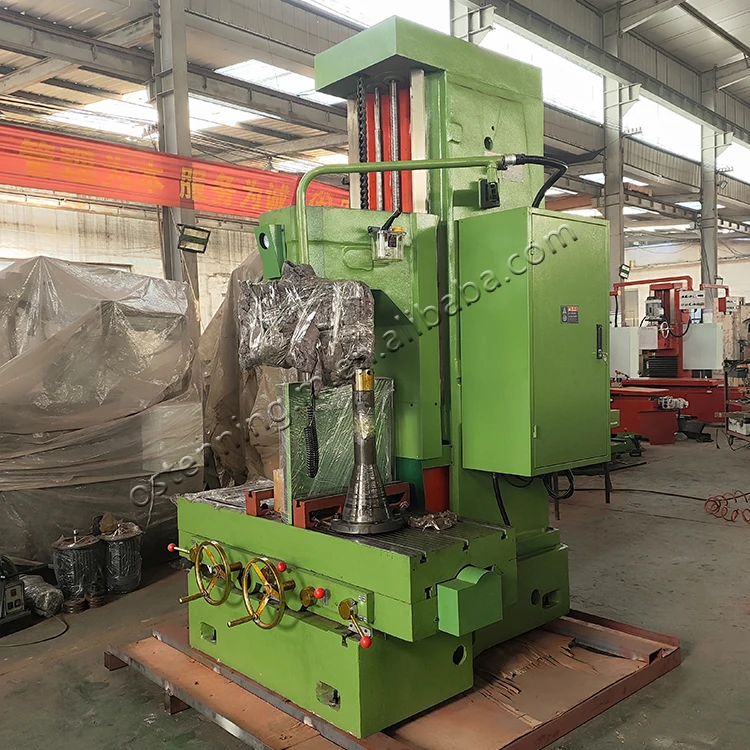

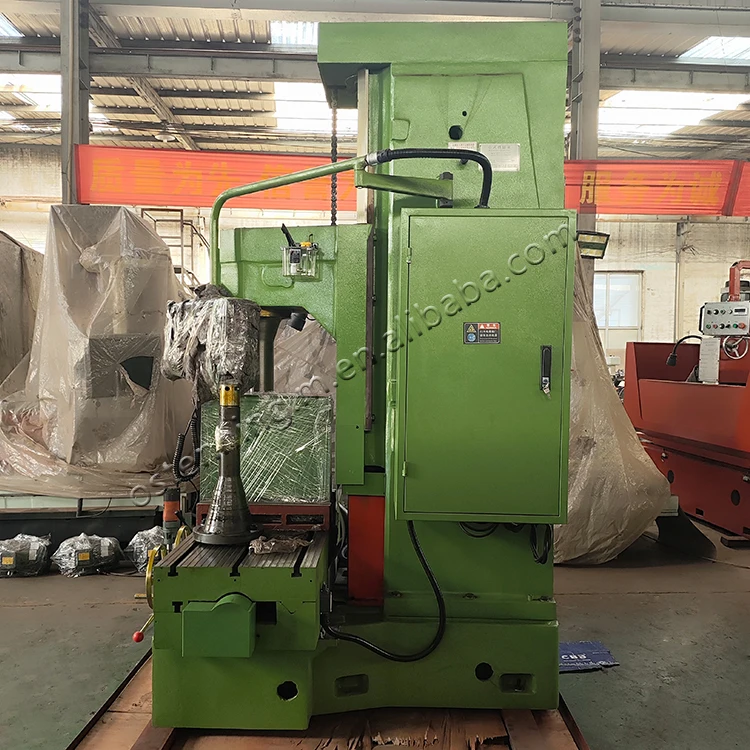

Workshop Overview

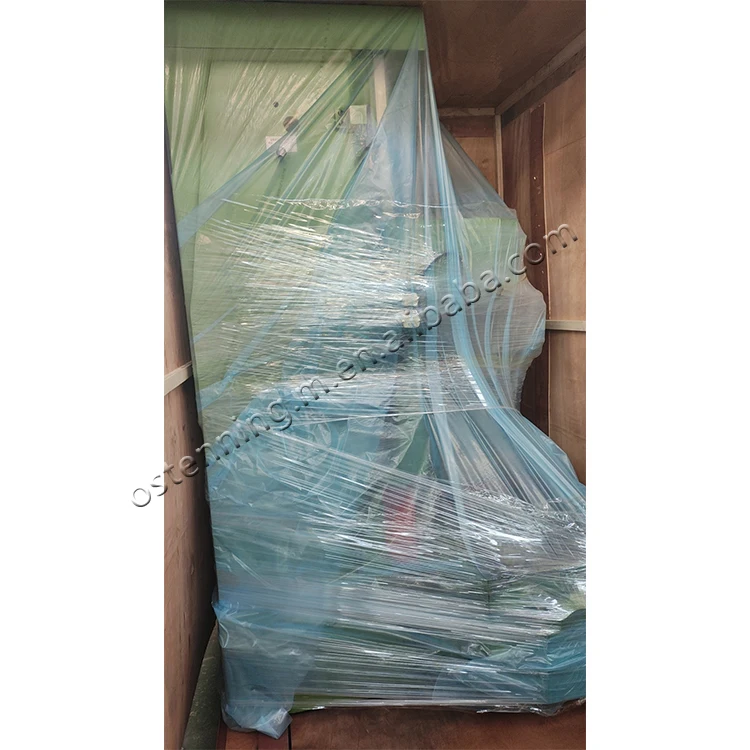

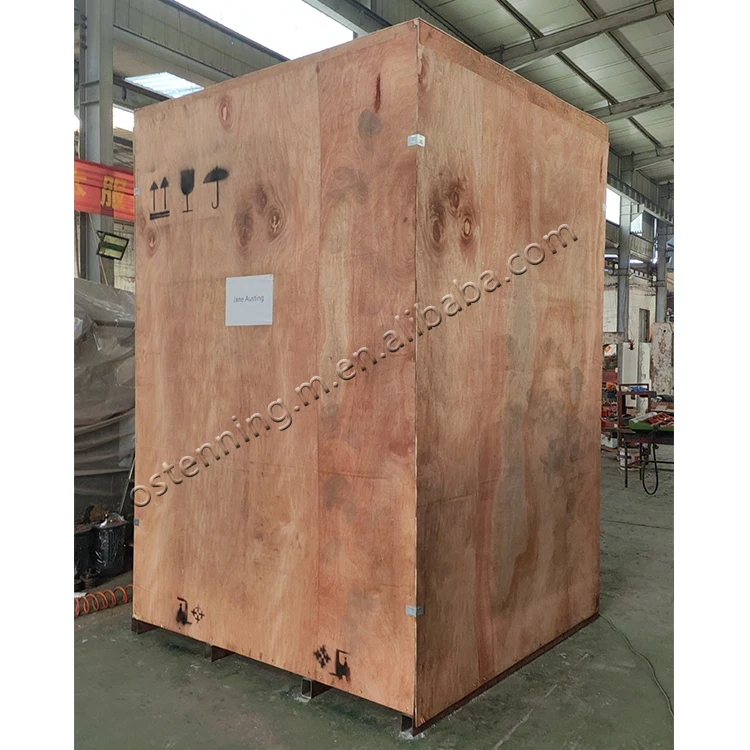

Packaging & Shipping
Company Profile
Henan AUSTING Machinery Co., Ltd. is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on. We specialized in manufacturing metal roofing roll forming machine, cz c z u purlin producing line,Glazed tile roll forming machine, floor tile making machine, rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, gutter machine,no beam roof tile machine, pipe welding machine.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
