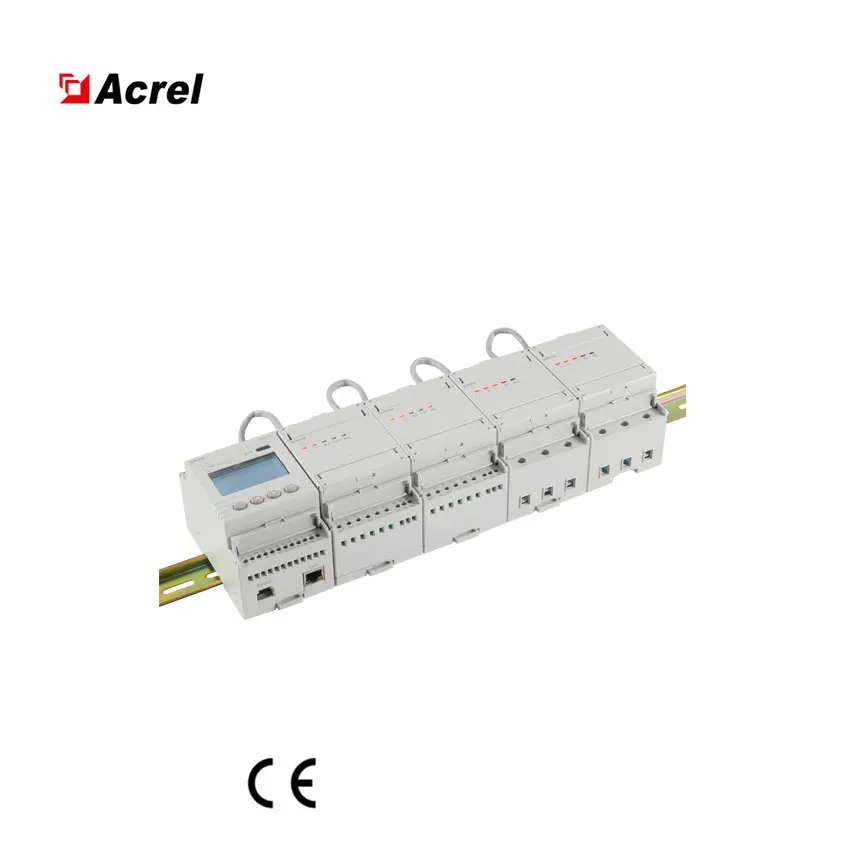

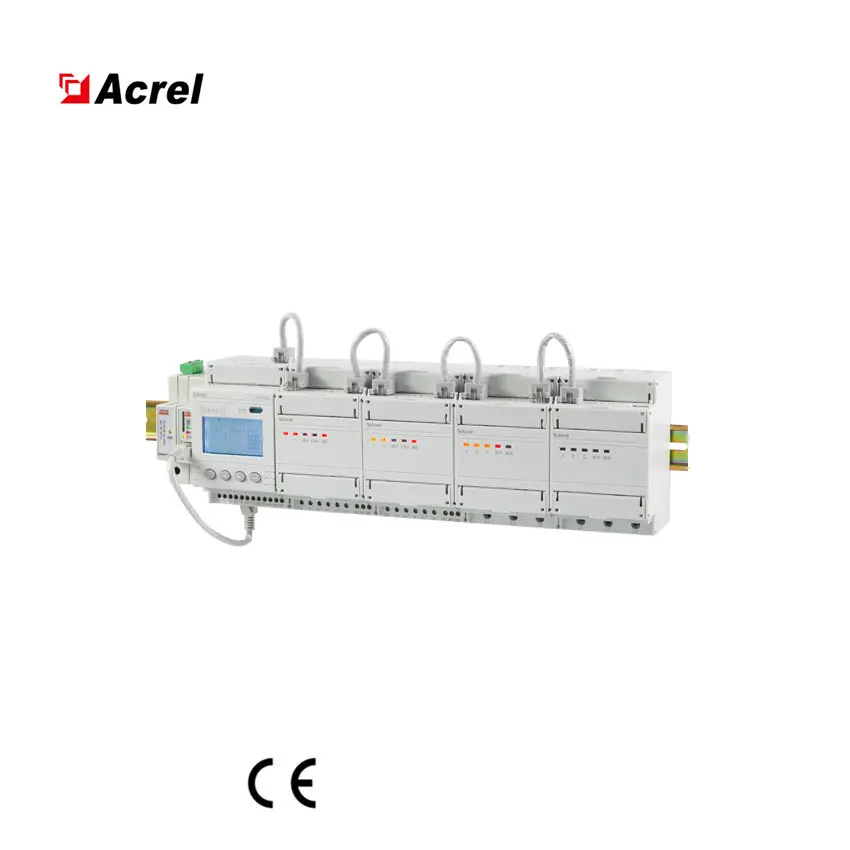

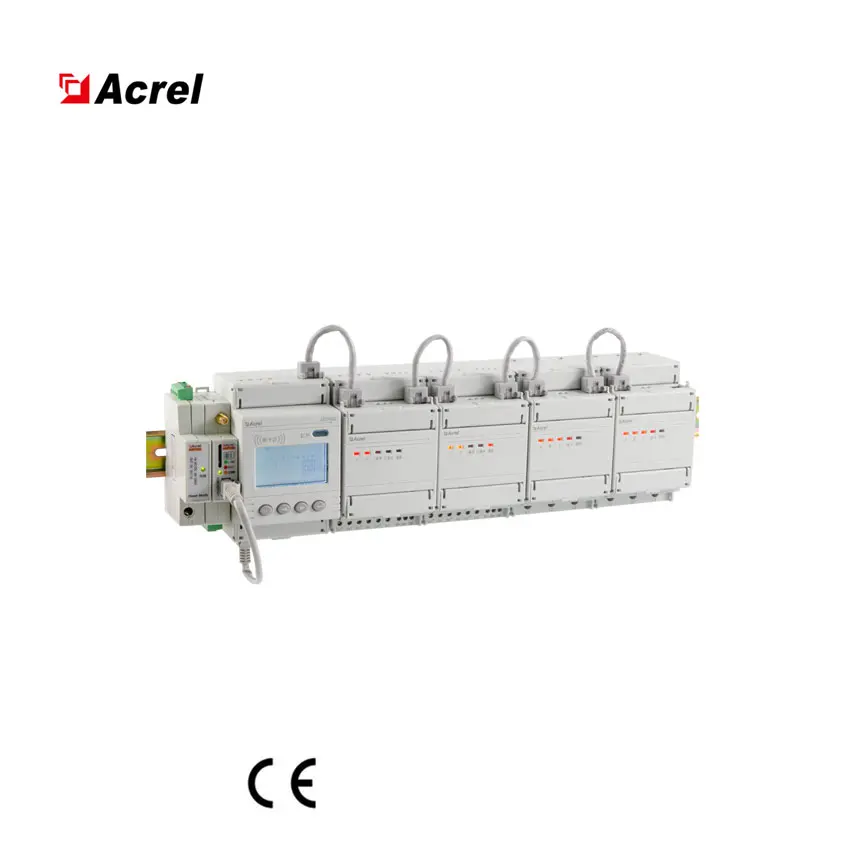

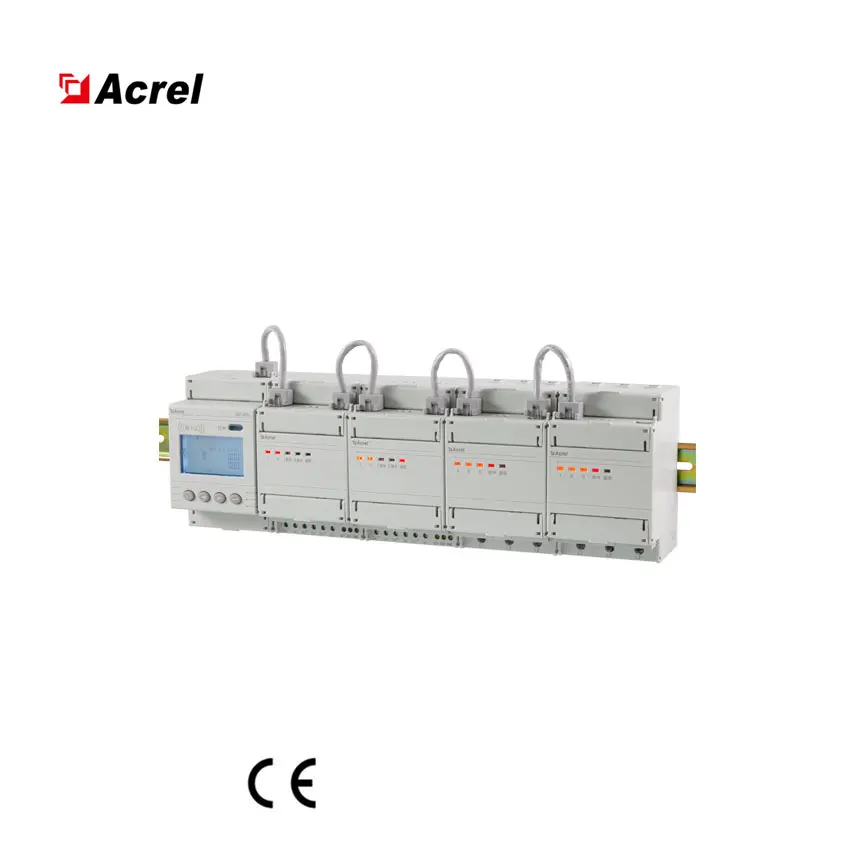

Acrel ADF400L Three Phase Multi circuit Energy Meter Multi channel Din Rail Power Meter Up to 36 Single Phase
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1601034215776):
Product Overview
Description

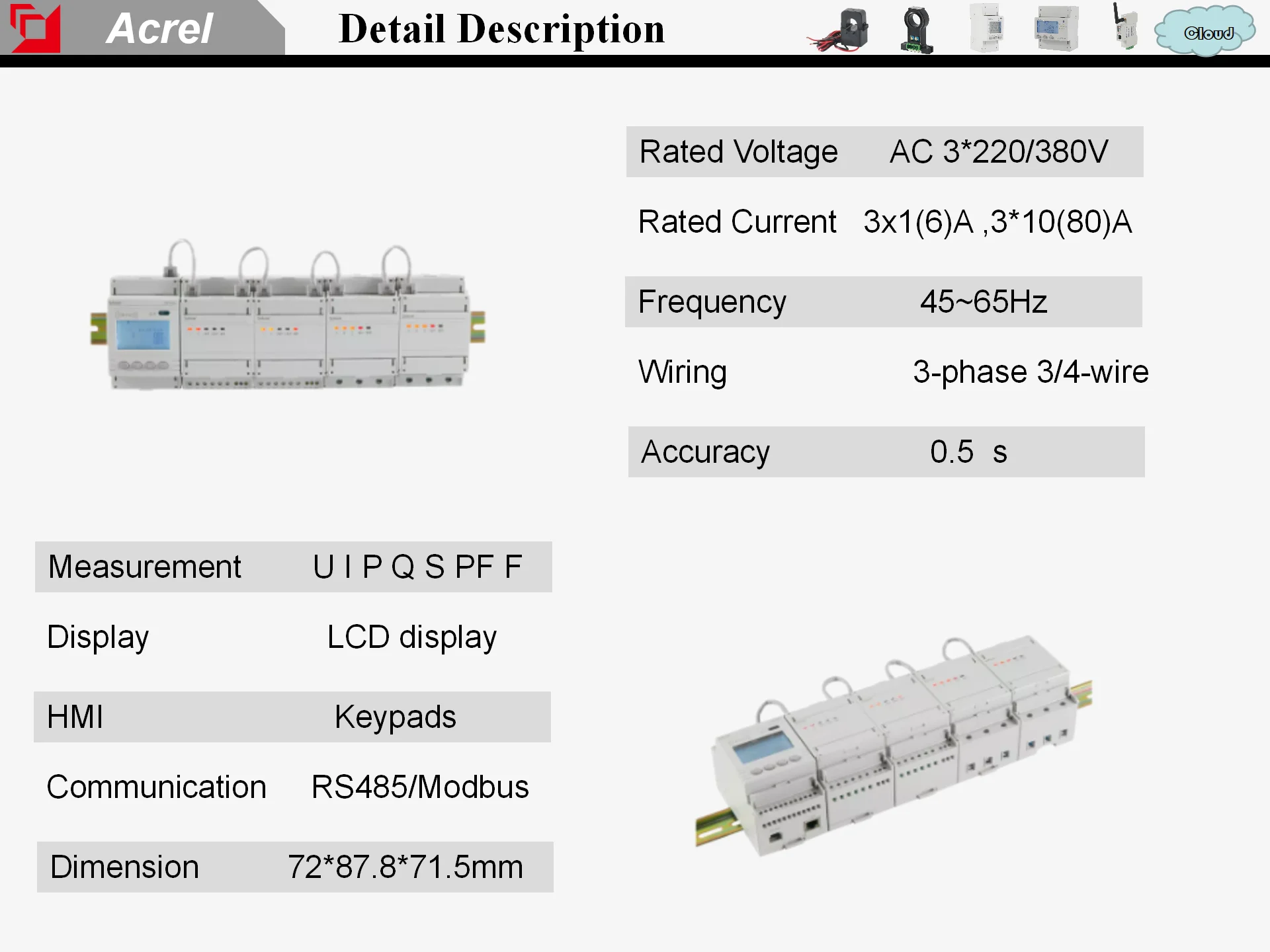

Technical parameters
1.Products measurement type
Features | Function Description |
Display method | LCD（Field） |
Energy metering | Active energy metering（Forward and reverse）， Reactive power measurement（Forward and reverse） |
Electricity measurement | Voltage, current (zero sequence current), power factor, frequency, active power, reactive power, apparent power |
Harmonic function | Total harmonic content, sub-harmonic content (2～31 times) |
Three-phase unbalance | Voltage and current unbalance |
DI/DO | Main module 2DI2DO |
Transformer access to the slave module 2DI4DO (direct access to the slave module without) | |
LED Instructions | Pulse light indication |
Communication | Infrared communication |
RS485 interface (main module) supports MODBUS | |
Historical power | Historical Electricity in Last December |

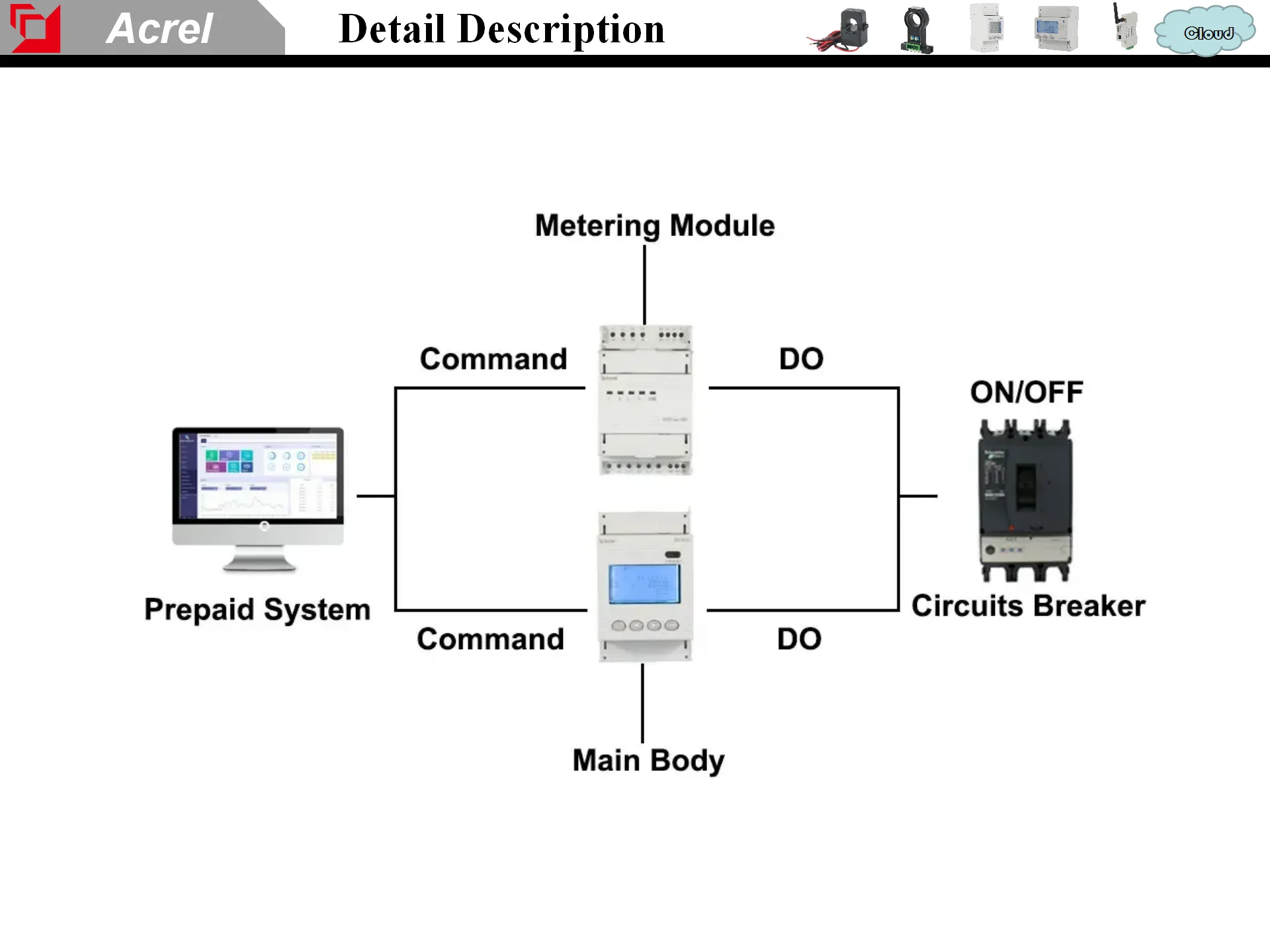

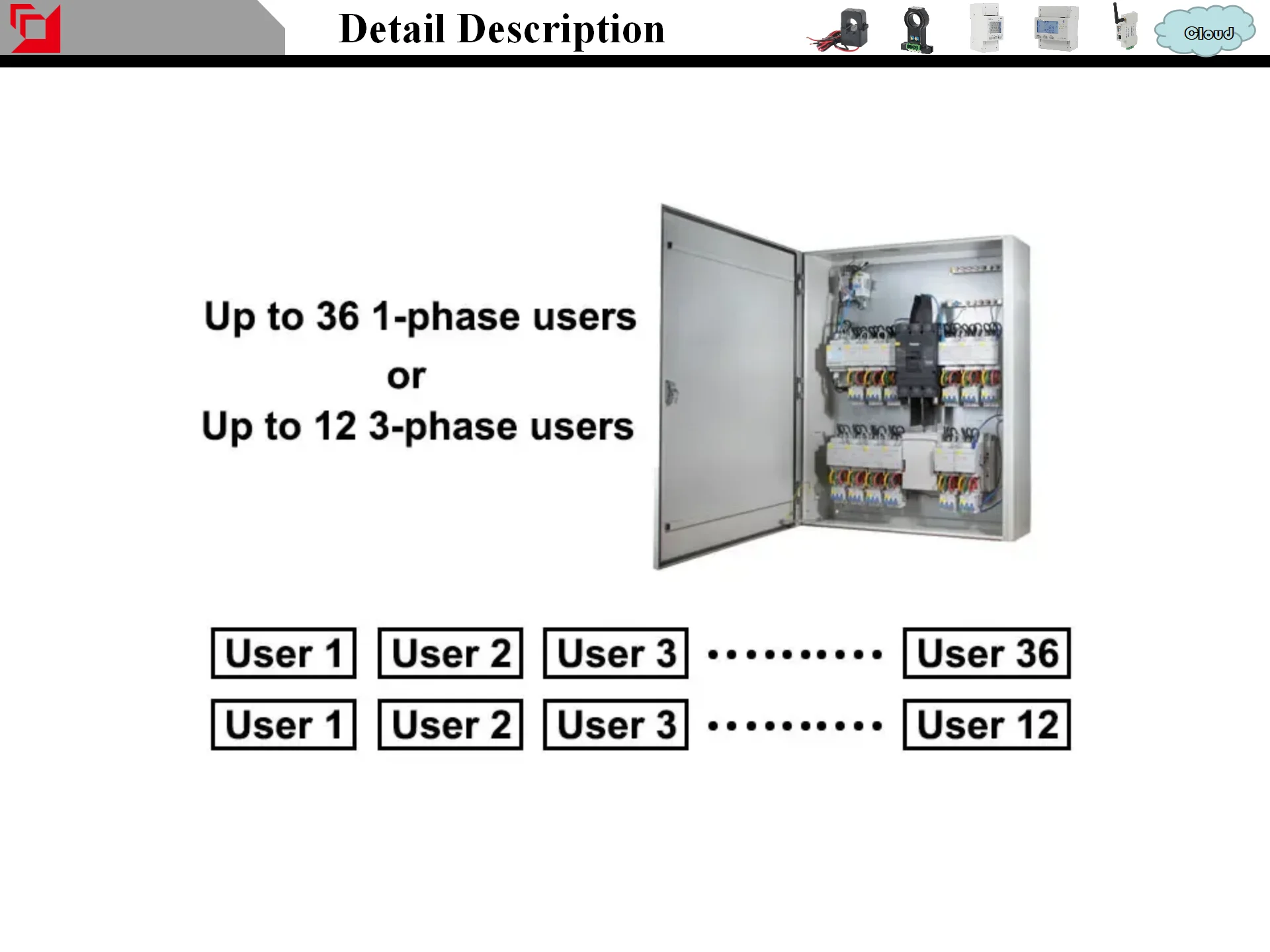

Product Description

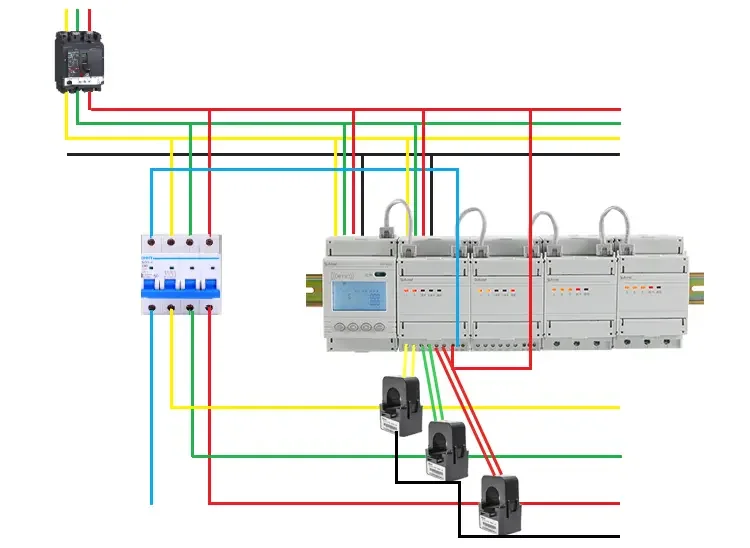

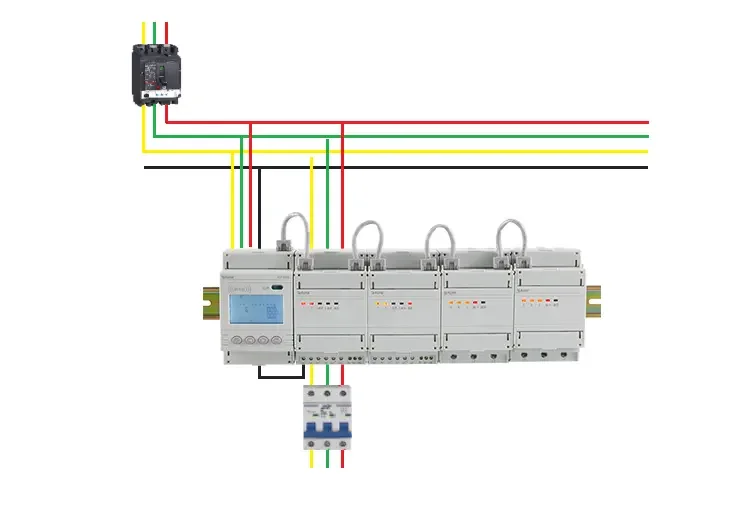

Dimensions and wirings
Main module size

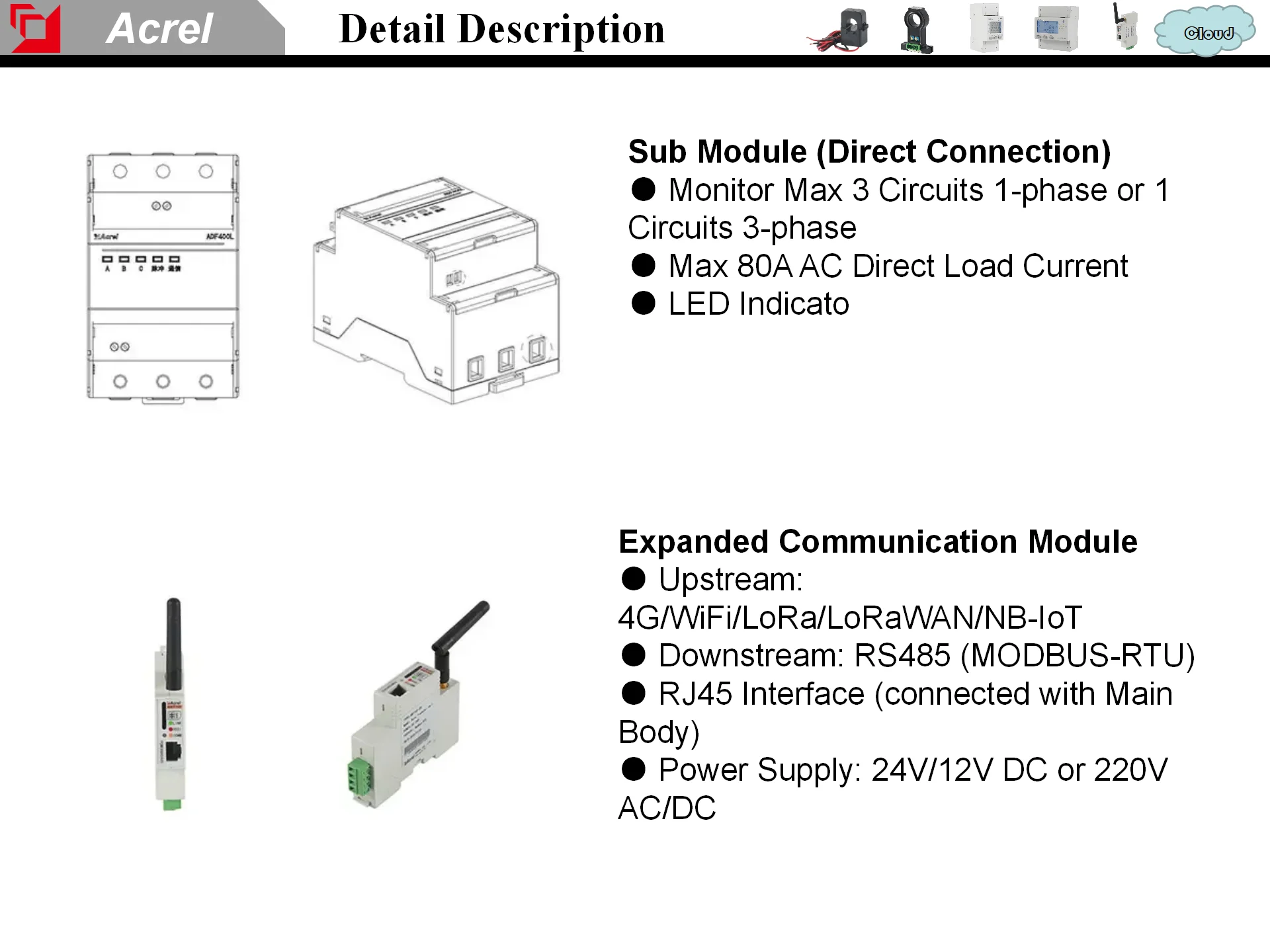

Slave module (direct access or transformer access module) size
Company Profile
WELCOME TO VISIT US
JIANGSU ACREL ELECTRICAL MANUFACTURING CO.,LTD
Founded on June 23, 2003,Acrel is a listed company engaged in R&D, production and sales of products.Headquarteredin jiading district, Shanghai, it is the technology R&D centre,system integration centre and business centre. The headauarter locating in Jiadina district Shanahai which covers the office area of 30000 square meters is the technology R&D centre,system integration centre and business centre of Acrel.
The production base is located in Jiangyin,jiangsu province,with its area covering 100000 square meters is 138 kilometers from Jiading district Shanghai. lt is divided into three parts instrument business division,energy saving andcontrolling business division,and electric power sensor business division.
Founded on June 23, 2003,Acrel is a listed company engaged in R&D, production and sales of products.Headquarteredin jiading district, Shanghai, it is the technology R&D centre,system integration centre and business centre. The headauarter locating in Jiadina district Shanahai which covers the office area of 30000 square meters is the technology R&D centre,system integration centre and business centre of Acrel.
The production base is located in Jiangyin,jiangsu province,with its area covering 100000 square meters is 138 kilometers from Jiading district Shanghai. lt is divided into three parts instrument business division,energy saving andcontrolling business division,and electric power sensor business division.
Exhibition
Shanghai Electric Power Exhibition
Indonesia Exhibition
Vietnam Exhibition
Packing & Delivery
MINIMUM PACKAGE | Package dimensions(4 PC) 170*150*130mm | Net Weight(0.034KG/PC*4) 0.136KG | |||||
WHOLE BOX PACKAGE | Package dimensions(36 PCS) 480*260*200mm | Package Weight(36 PCS) 2.304kG | |||||
PRODUCT HS CODE | 9028301400 | ||||||
FAQ
1. Where is your factory located ?
Our production base is located in Jiangyin City, Jiangsu Province, China.
2. How long would your equipment be used?
Generally, more than 10 years.
3. How long could I get my order?
Stock Products: shipping within 5-7 days.
Customized products: usually 10-15 days. It depends on your design and quantity.
4. What certificate do you have?
We have ISO9001, CE, IEC and so on.
5. What's the payment term?
We accept T/T, L/C, PayPal, cash, etc.
6. What's your MOQ?
At least one pcs.
