Price:$400.00-788.00

Quantity:


Product Overview

Description



Product Description

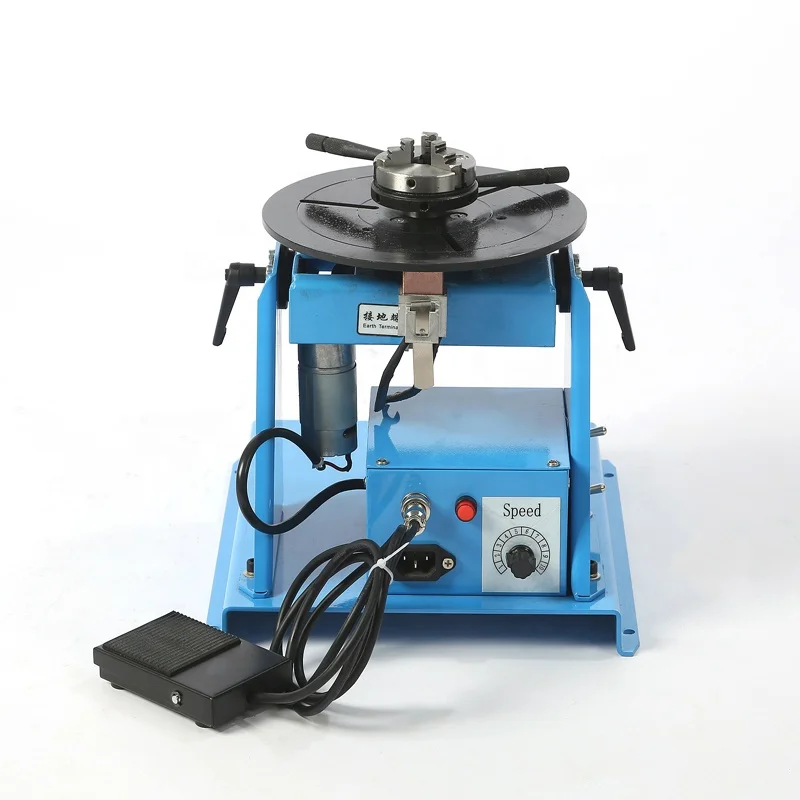

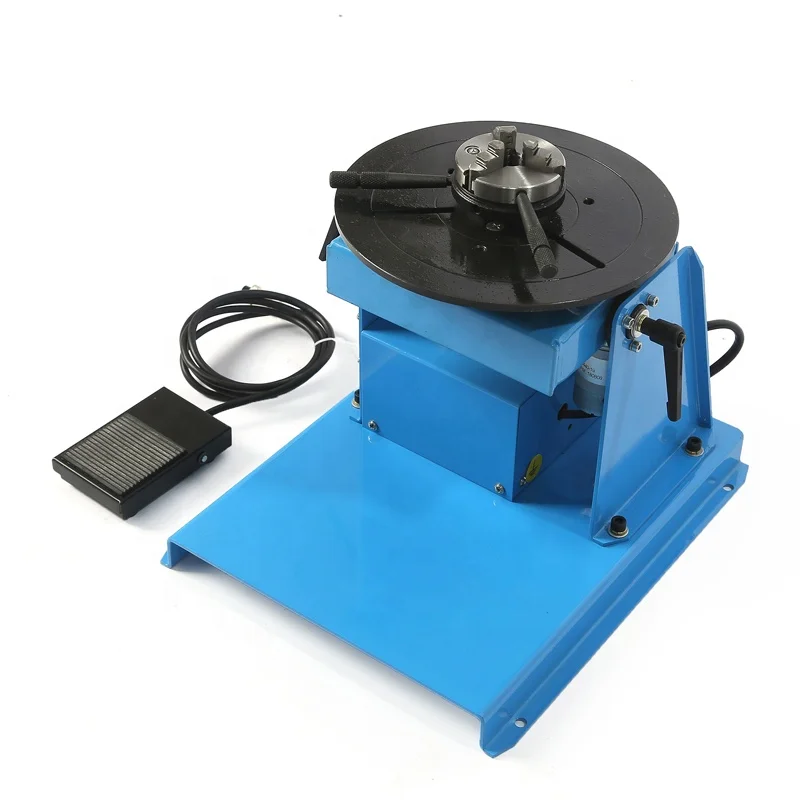

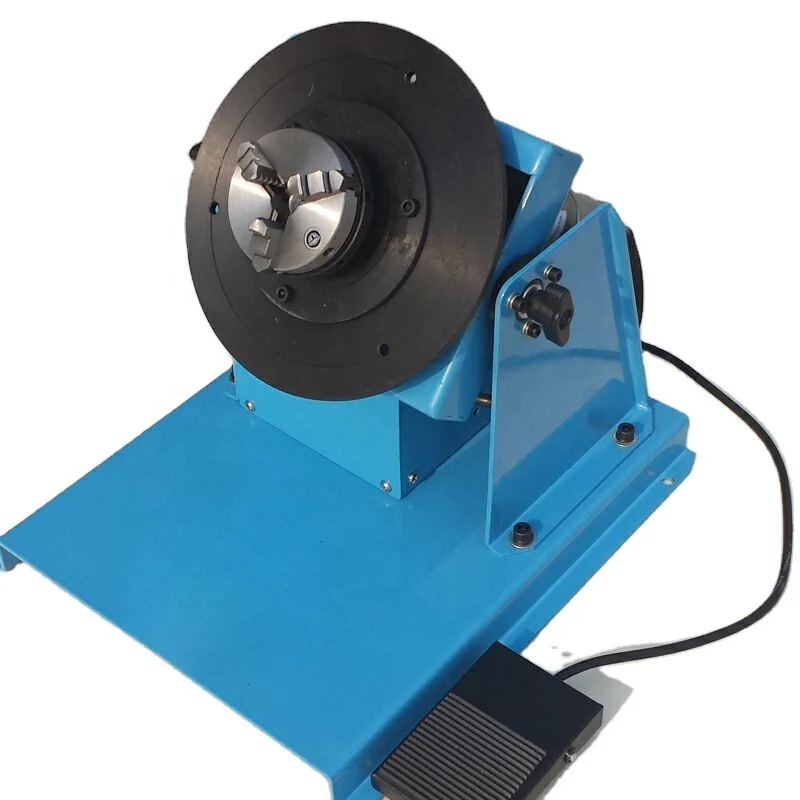

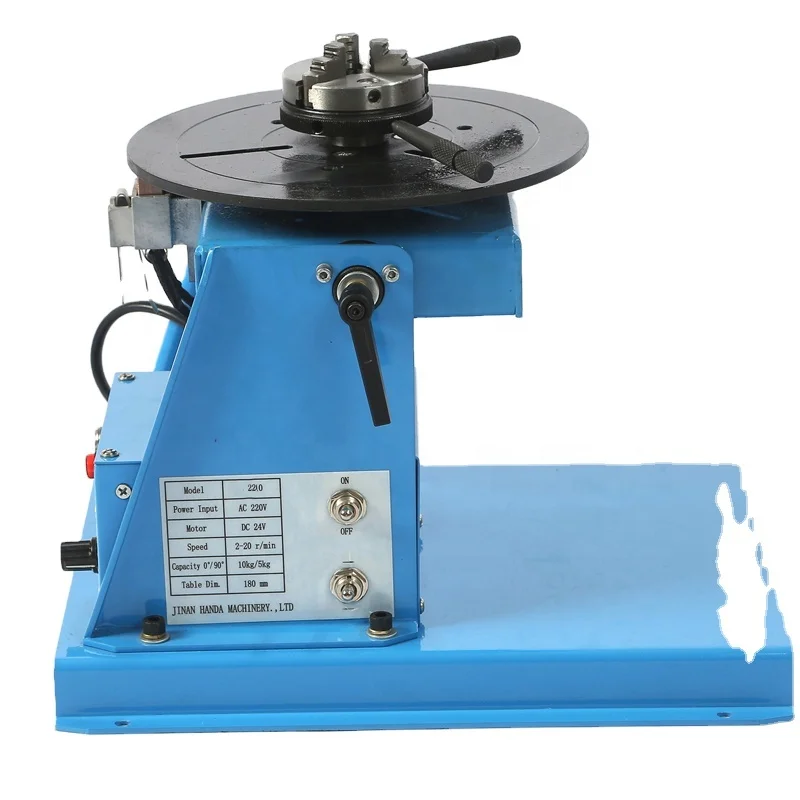

Special welding machine ground wire conductive copper brush
Equipped with an emergency stop switch, both foot and automatic functions
Famous brand DC speed control motor reducer

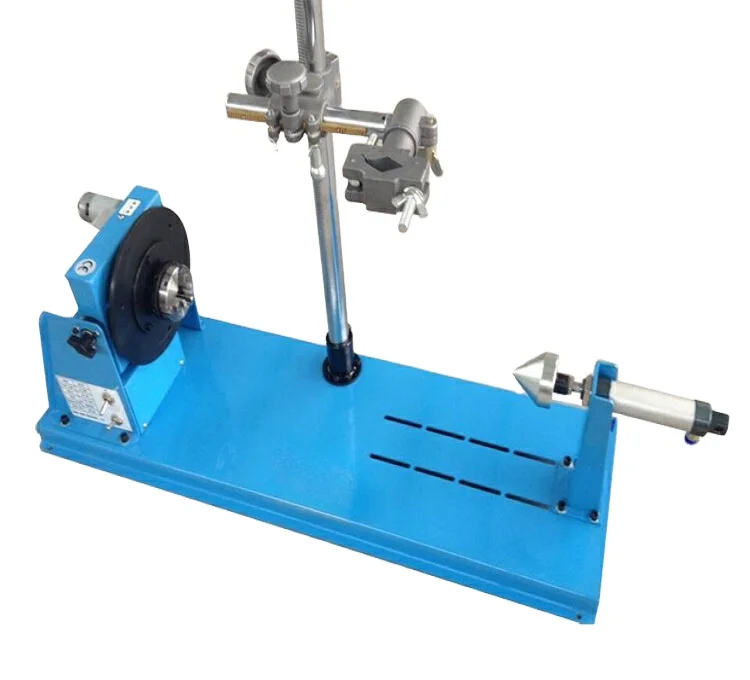

Optional pneumatic tailstock and welding gun bracket;


Specification


Horizontal load
10kg
15kg
30
50
Vertical load
5kg
7.5kg
12
25kg
Rotation speed
2-16rpm
2-16rpm
1-12r/min
0.5-5r/min
Tilt (Degree)
0°-90°/Manual flip
0°-90°/Manual flip
0°-90°//Manual flip
0°-90°/Manual flip
Worktable Dia.
180mm
200mm
315mm
315mm
Workable height
232mm
275mm
340mm
340mm
Motor Power
20w
40w
90w
120w
Weight
10kg
12kg
28kg
32kg
Adapter chuck
KC-65/KC-80
KC-65/KC-80/C-125
KD-125/200/300
KD-125/200/300
Input voltage
1PH 220 50~60Hz
1PH 220 50~60Hz
1PH 220 50~60Hz
1PH 220 50~60Hz


Horizontal load
100kg
200kg
300kg
Vertical load
50kg
100kg
150kg
Rotation speed
0.5-5r/min
0.5-5r/min
0.2-2.5r/min
Tilt (Degree)
0°-90°/Manual flip
0°-90°/Manual flip
0°-90°/Manual flip
Worktable Dia.
400mm
400mm
500mm
Workable height
500mm
500mm
600mm
Center through-hole
45mm
45mm
90mm
Motor Power
120w
140w
200w
Weight
75kg
80kg
110kg
Adapter chuck
KD-200/30/400
KD-200/30/400
KD-300/400/500
Input voltage
1PH 220 50~60Hz
1PH 220 50~60Hz
1PH 220 50~60Hz


Model
HD-600
Horizontal load
600kg
Vertical load
300kg
Rotation speed
0.1-1r/min
Tilt (Degree)
0°-90°/Manual flip
Reverse Speed
0.4rpm
Worktable Dia.
650mm
Center through-hole
0.37kw
Rotating motor power
0.55kw
Flip motor power
KD-400/500/600
Input voltage
3PH 380-460v 50-60HZ


Rated load capacity (kg)
800
1200
3000
5000
10000
20000
30000
Workbench diameter (mm)
φ1000
φ1000
φ1400
φ1400
φ1500
φ2000
φ3000
Rotation speed (rpm)
0.1-1
0.1-1
0.05-0.5
0.05-0.5
0.05-0.5
0.04-0.4
0.03-0.3
Rotating motor power (kW)
0.55
0.75
1.1
1.5
3
5.5
7.5
Flipping motor power (kW)
0.75
1.1
2.2
3
4
11
15
Tilt angle
0-120°
0-120°
0-120°
0-120°
0-120°
0-120°
—45-90°
Maximum turning diameter (mm)
φ1350
φ1350
φ2200
φ2300
φ2500
φ3500
φ4000
Center of Gravity Distance (mm)
200
250
300
300
300
500
500
Eccentricity (mm)
150
200
200
200
200
200
200


Company Profile








Packing & Delivery








FAQ


Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available, but we need authorization.
Q: Can I choose the colors?
A: Yes, we normally have several colors optional for each item and OEM color is available on mass production.
Q: What is delivery item?
A: Prompt delivery normally for sample orders and 10-20 days for mass production.
Q: What is payment?
 A: T/T, Western Union, Paypal, etc.
Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q: May I visit your factory and office?
A: Sure, you are always welcomed! We will pick you up at the airport and station.
