Product Overview
Description
Product Overviews

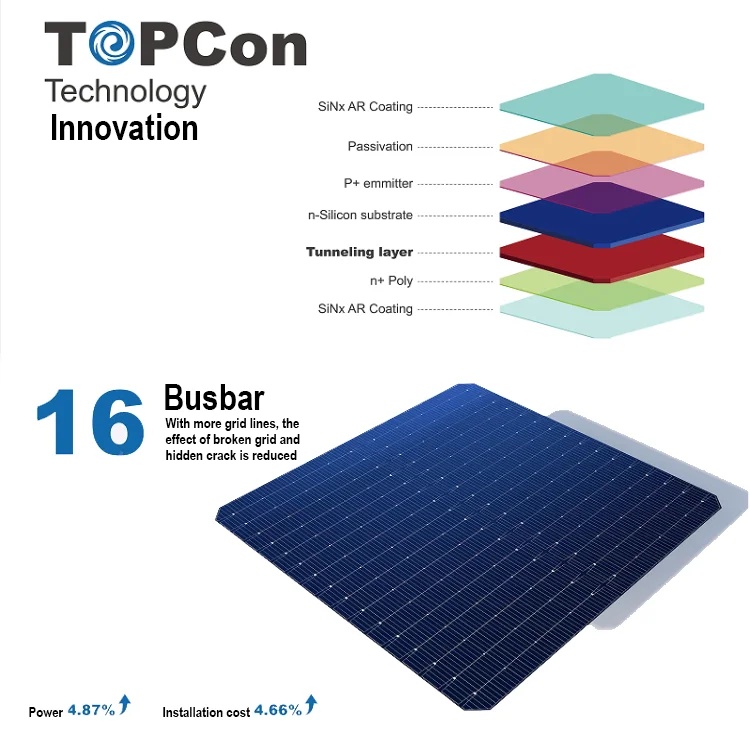

TOPCon 182-16BB

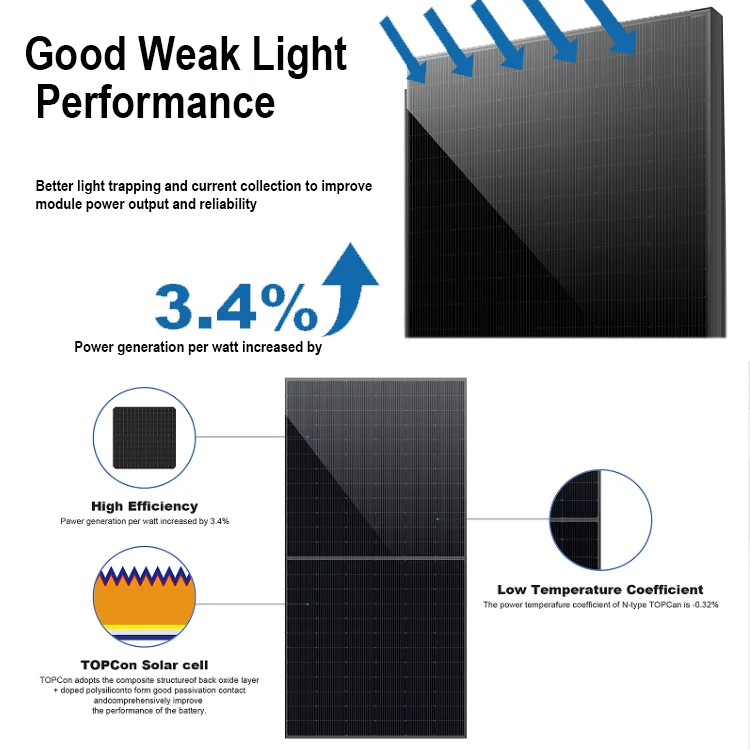

| 182mm Half-Cell High Efficiency PV Module Durability Against Extreme Environmental Conditions High salt mist and ammonia resistance certified by TUV NORD. PID Resistance Excellent Anti-PID performance guarantee limited power degradation for mass production.(Potential Induced Degradation) under the test conditions. High Efficiency Higher module conversion efficiency(up to 22.24%) benefit from half cell structure(low resistance characteristic). Low-light Performance Advanced glass and cell surface textured design ensure excellent performance in low-light environment. Severe Weather Resilience Certified to withstand:Wind load(2400 pascal) and snow load(5400 pascal). 12-year Warranty for Materials and Processing 30-year Warranty for Extra Linear Power Output |
| Module Type | KSM-565/144-S5 | KSM-570/144-S5 | KSM-575/144-S5 | KSM-580/144-S5 | KSM-585/144-S5 | |||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power(Pmax/W) | 565 | 425 | 570 | 429 | 575 | 433 | 580 | 436 | 585 | 440 |
| Open Circuit Voltage(Voc/V) | 50.60 | 48.05 | 50.74 | 48.15 | 50.88 | 48.29 | 51.02 | 48.42 | 51.16 | 48.55 |
| Short Circuit Current(Isc/A) | 14.23 | 11.51 | 14.31 | 11.55 | 14.39 | 11.62 | 14.47 | 11.68 | 14.55 | 11.74 |
| Voltage at Maximum Power(Vmp/V) | 41.92 | 39.46 | 42.07 | 39.59 | 42.22 | 39.68 | 42.37 | 39.75 | 42.52 | 39.87 |
| Current at Maximum Power(Imp/A) | 13.48 | 10.76 | 13.55 | 10.85 | 13.62 | 10.92 | 13.69 | 10.98 | 13.76 | 11.04 |
| Module Efficiency(%) | 21.87 | 22.06 | 22.25 | 22.44 | 22.64 | |||||
Company Information
Karstsolar, a company dedicated to accelerating the global transition to sustainable energy, combines photovoltaics, energy storage systems and innovative technologies. Solar panels are available in a wide range of power levels, from 5W to 300W, 450W, 550W, 600W, 650W, 680W, 700W, 800W and more. Solar panels such as PERC, N-Type TOPCON, HJT, Tile, etc., as well as double-sided/double-glazed, single-glazed, all-black, black-framed and frameless half panels Mono-crystalline silicon standard PV panels Flexible PV Modules, and Foldable Solar Module panels. We have all certificates such as TUV, CE, ISO, IEC Brazilian INMETRO certificates.
Flexible Integrated Solar Systems Services, OEM and ODM Services For all your customisation needs.
Our products are designed for long term use and easy recycling, ensuring that we minimise our carbon footprint and contribute positively to the circular economy.
Your power, my power, let's work together, endeavour to promote green innovation, build a better future for mankind and create a better world for future generations.
