Touch screen PLC control 5L plastic bottle blower machine
- Category: >>>
- Supplier: Taizhou Waton Machinery Co. Ltd.
Share on (1601034303954):
Product Overview
Description
Product Description
Models | BS-5L2 |
Theoretical Capacity | 1200-1600 BPH |
Mold Cavities | 2 |
Neck Size | 50-100mm |
Max. Volume | 5 Liter |
Advantages | High productivity; easy to operate; long time after-sale service. |
BS-5L2 2-cavities linear full-auto stretch blow molding machine, is an economical full-automatic PET bottle blowing machine independently developed by WATON Machinery. It is economical, fast and convenient. It can produce all kinds of bottles below 5 L, including food packaging bottles, edible oil bottles, soda and mineral water bottles, fruit juice bottles, wine bottles, cosmetics bottles and so on.
Direction for use
1.We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
2.We will send the instruction book to you to let you install the machine. You can talk with our engineer by video chat or we will send the engineers overseas to help you.
WATON Machinery designs the most suitable machine models according to the special requirements of customers, suitable for PET containers from 200ml~20L, including package for water, Carbonated Soft Drink, juice, milk, edible oil, beer, solid food, cosmetics, pharmaceuticals, etc.
Detailed Images
1. Upgrade to Servo Motor Drive:

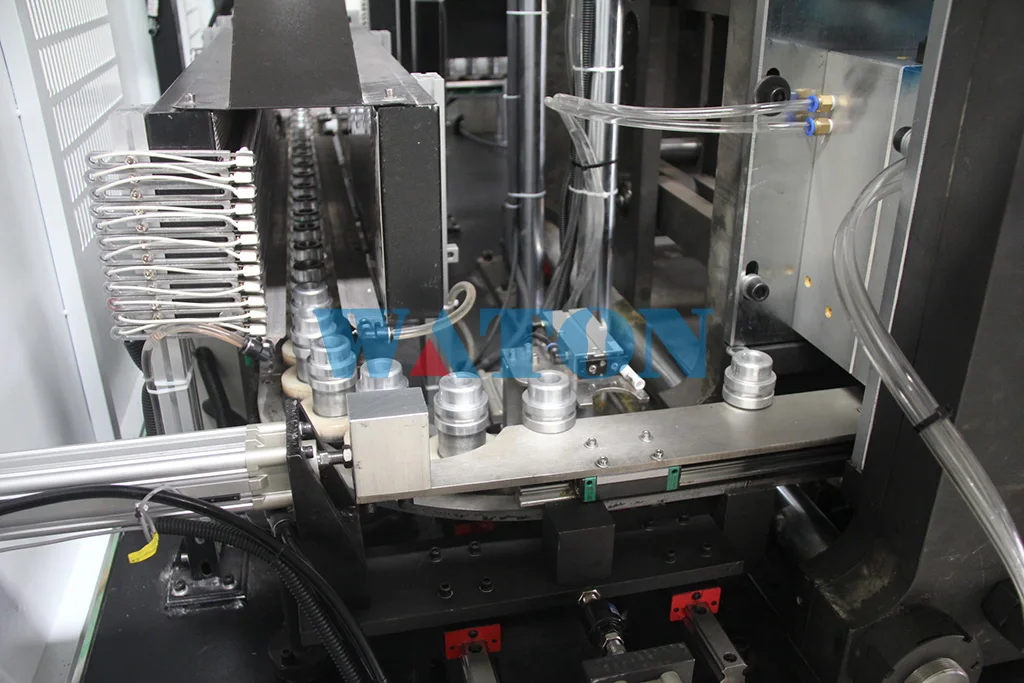

Preform Transfer System: preforms horizontal movements are driven by Servo Motor. Make preforms 4pcs as one unit, overall simplified stepping motion, achieve high-speed positioning and smooth motion. To complete one step cycle, the Servo Motor drive gear rotate only one-third of a turn. Speed of preform moving is 2 times of Cylinder Driven way.

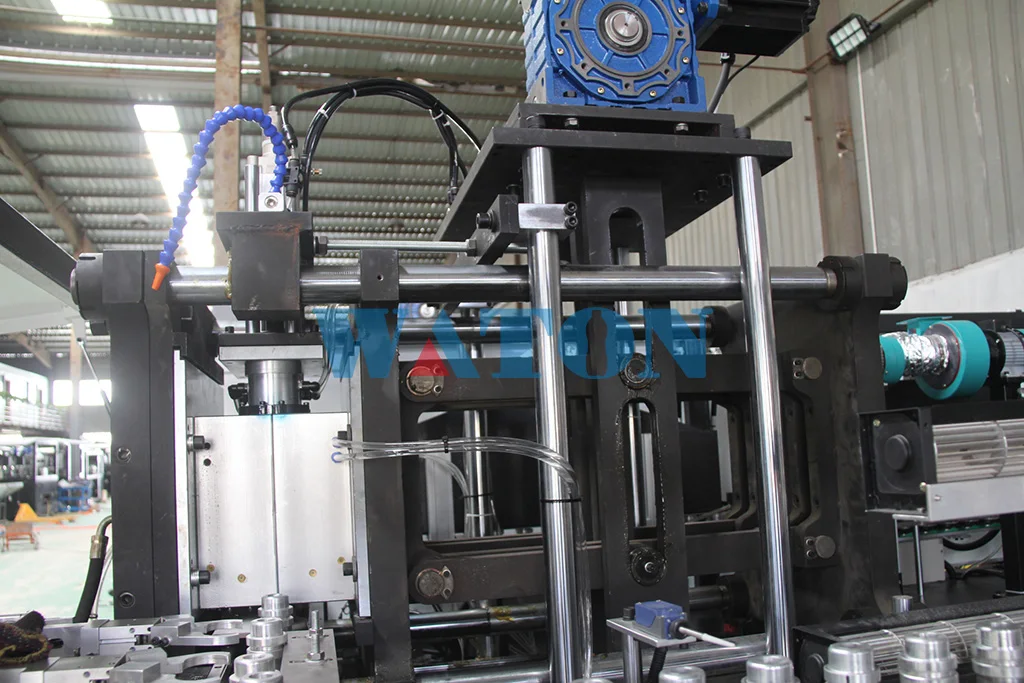

Mold Clamping System: The servo motor drives the rocker linkage, driving frame and the bottom mold opening and closing. Reaction time is reduced to 50% compared to traditional pneumatic model. Simple structure, no wear, longer use life.
2. Mold fixed by drawer design, mold changeover can be easily done in half hour.
3. Efficiency Constant Temperature Oven:

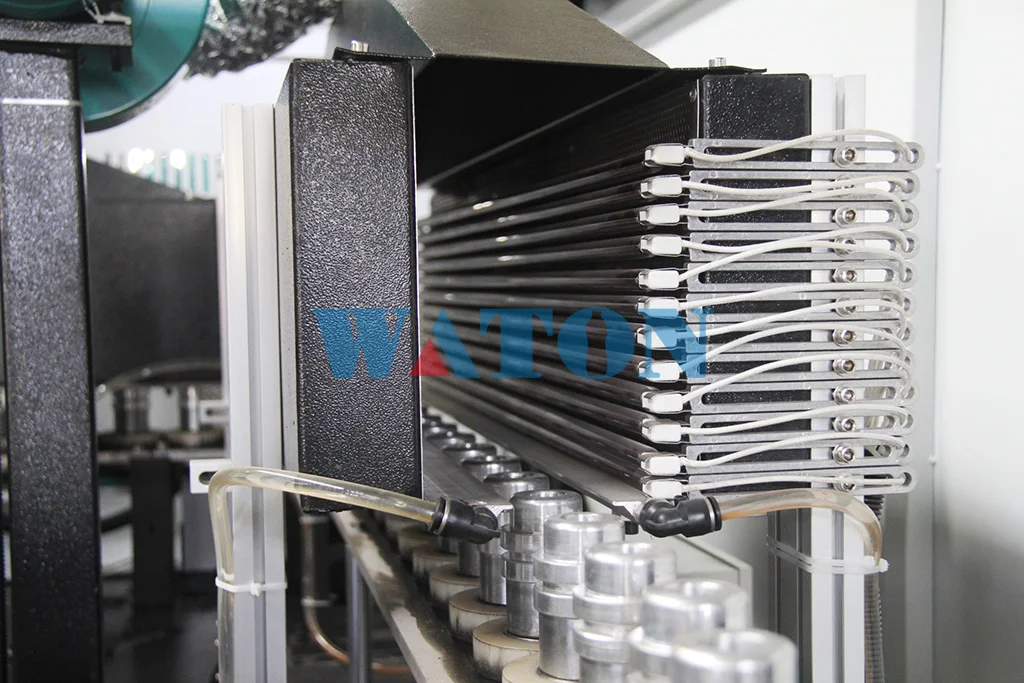

a. Use the most advanced high frequency Infrared Lamp, increase heating efficiency 30%－50%.

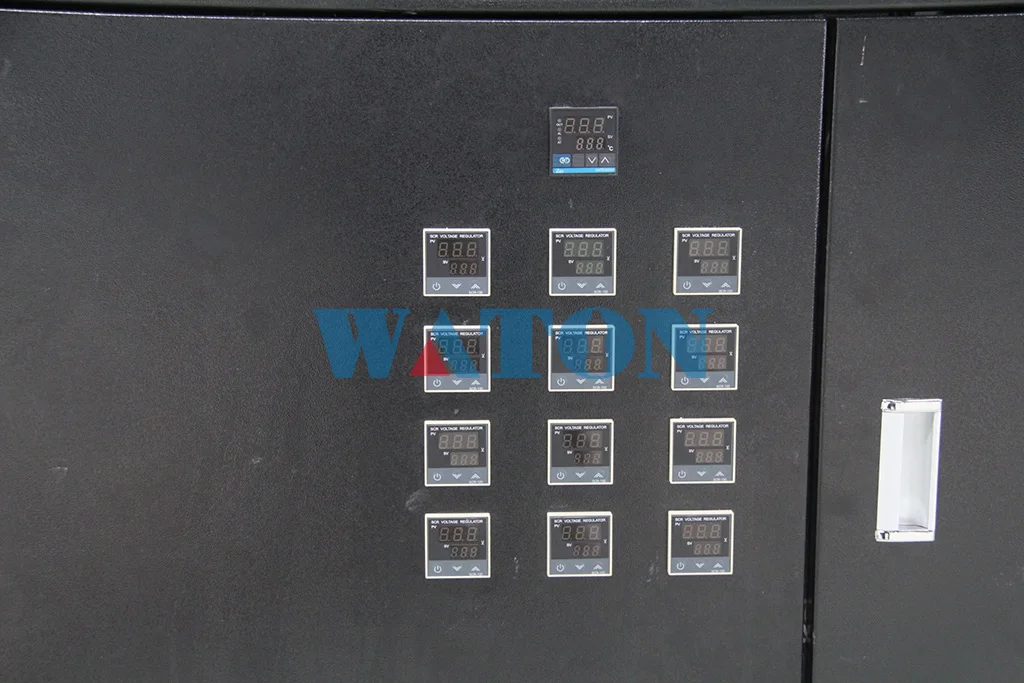

b. Each layer of lamp are separately controlled, with assistant ruler on machine.
c. Intelligent temperature control system.
Temperature detector feedback to PLC automatically, PLC makes accurate judgment and then control circulation air in oven. It leads to constant temperature in Oven, free from voltage fluctuations and ambient temperature. It works when large ambient temperature difference (-28~45℃).

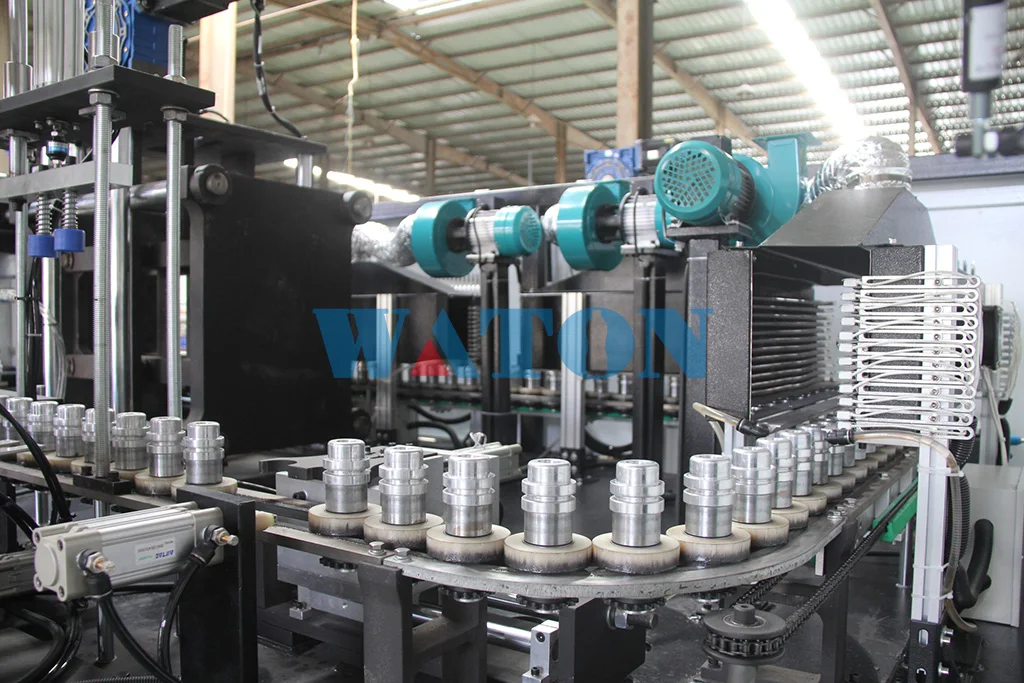

d. Preform self-rotation System, ensure every side of every preforms are heated evenly, which ensure quality of blown bottle. (thickness up to 4.5mm)
e. Neck Cooling in Oven.
Preform Necks are cooled by recycling water, which avoid neck deformation
Preform Transfer System: preforms horizontal movements are driven by Servo Motor. Make preforms 4pcs as one unit, overall simplified stepping motion, achieve high-speed positioning and smooth motion. To complete one step cycle, the Servo Motor drive gear rotate only one-third of a turn. Speed of preform moving is 2 times of Cylinder Driven way.
Mold Clamping System: The servo motor drives the rocker linkage, driving frame and the bottom mold opening and closing. Reaction time is reduced to 50% compared to traditional pneumatic model. Simple structure, no wear, longer use life.
2. Mold fixed by drawer design, mold changeover can be easily done in half hour.
3. Efficiency Constant Temperature Oven:
a. Use the most advanced high frequency Infrared Lamp, increase heating efficiency 30%－50%.
b. Each layer of lamp are separately controlled, with assistant ruler on machine.
c. Intelligent temperature control system.
Temperature detector feedback to PLC automatically, PLC makes accurate judgment and then control circulation air in oven. It leads to constant temperature in Oven, free from voltage fluctuations and ambient temperature. It works when large ambient temperature difference (-28~45℃).
d. Preform self-rotation System, ensure every side of every preforms are heated evenly, which ensure quality of blown bottle. (thickness up to 4.5mm)
e. Neck Cooling in Oven.
Preform Necks are cooled by recycling water, which avoid neck deformation
Specifications
Models | BS-5L2 | BS-10L2 | BS-20L2 | ||
Theoretical Capacity(BPH) | 1,200~1,600 | 900~1,000 | 500~600 | ||
Mold Cavities | 2 | 2 | 2 | ||
Bottle | Neck Size | 55-100mm | 55-100mm | 55-100mm | |
Max. Volume | 5000ml | 10000ml | 20000ml | ||
Max. Diameter | 180mm | 260mm | 280mm | ||
Max. Height | 350mm | 420mm | 500mm | ||
Blowing Method | stretch blow molding | stretch blow molding | stretch blow molding | ||
Main Machine Size | 3000*1800*2400mm | 3300*2000*2200mm | 4200*2100*2400mm | ||
Main Machine Weight | 2500KGS | 3600KGS | 5000KGS | ||
Certifications
Packing&Shipping
Because of the new provisions on fumigation, we pack machines with bubble film and wrap film. It is safe pack in container. We can also do wooden case. Some countries require fumigation for wooden case. It depends on your country’s requirement.
After Sales Service
after-sales service we offer
1.Your inquiry related to our product & price will be replied within 72 hours.
2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.
3.Working time: 8:30am ~5:30pm, Monday to Saturday.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sales service offered, please get back to us if you got any questions.
2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.
3.Working time: 8:30am ~5:30pm, Monday to Saturday.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sales service offered, please get back to us if you got any questions.
Company Introduction
WATON Machinery is a professional manufacturer of two-step linear full-electric high-speed automatic PET bottle blow molding machine, located in Taizhou City, Zhejiang Province. Our team has 20-years experience in PET stretch Blow Molding Machine manufacturing. Since establishment, we have been committed to be a trustworthy and reliable partner, providing customers with high efficiency, low energy consumption, stable operation of equipment and excellent services. Our offer service in:
√Automatic/Semi-auto Electric PET Blow Molding Machine
√Turnkey solution for PET bottle production line
√In-line service for PET bottle production line & Filling line.
√Automatic/Semi-auto Electric PET Blow Molding Machine
√Turnkey solution for PET bottle production line
√In-line service for PET bottle production line & Filling line.
Our Services & Strength
Firstly, we manufacture and supply Blow Molding Machine with good quality and reasonable price.
Secondly, we offer turnkey solution. We offer complete line equipment including accessories machines.
Thirdly, we offer bottle design service for free. Leave message or an email to us, we will do our best.
FAQ
Q1: Are you a manufacturer or trading company?
A: We are the manufacturer from Taizhou, so we can offer you the best quality and best price of the machine.
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality after-service. Also we have two year warranty of the spare parts, free of charge.
Q3: What is the advantage of servo control?
A3: 1. Precision
2. Fast reaction, make high speed possible
3. Low power consumption
4. Low noise
5. hygiene, without oil leakage problem
Q4: Do you have technical support after we purchased your machines?
A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q5: What after-sales service your company offers?
1.Your inquiry related to our product & price will be replied within 72 hours.
2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.
3.Working time: 8:30am ~5:30pm, Monday to Saturday.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sales service offered, please get back to us if you got any questions.
Q6: Can I visit your factory and send team for learning and inspect?
A6:Yes,sure.We will do our best to teaching you how to use the machine.welcome to visit our factory!
Q7: What your advantages are?
A7: 1. Stable running machines with newly technology, competitive price;
2. top rank technical support
3. Best and prompt service
Q8: Where is your factory located? How can we visit there?
A8: Our factory is located in Tai Zhou City, Zhe Jiang Province, China. From Shanghai to our city, it takes 3.5hrs by train, 45mins by air.
Q9: What is your terms of packing?
A9: Because of the new provisions on fumigation, we pack machines with bubble film and wrap film. It is safe pack in container. We can also do wooden case. Some countries require fumigation for wooden case. It depends on your country’s requirement.
Q10: When Can I get my machine after I paid?
A10: The delivery time is about 30-45 working days
