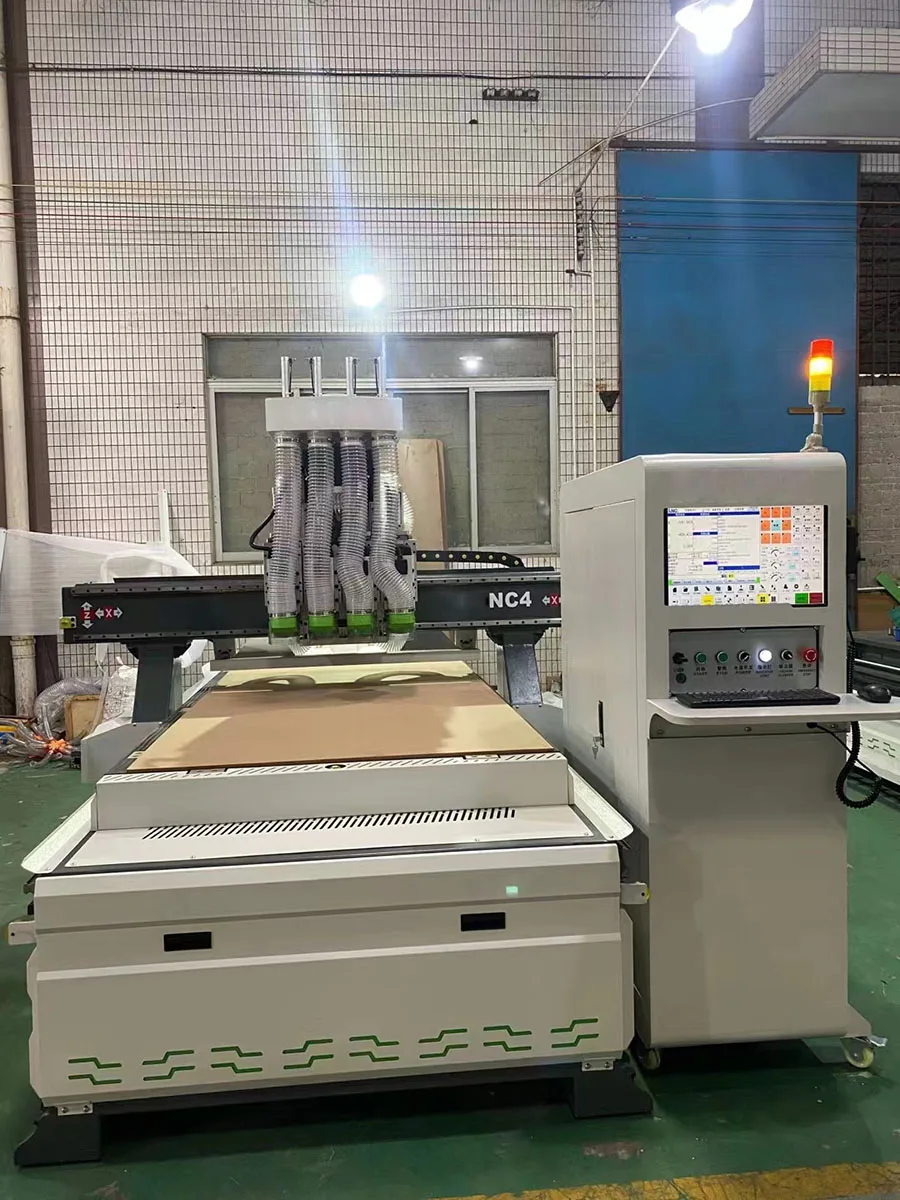

Chinese Manufacturer Automatic Cnc Wood Cutting Machine With High Quality
- Category: >>>
- Supplier: Zhengzhou The Right Time Import And Export Co. Ltd.
Share on (1601034307587):
Product Overview
Description
Products Disply
Model | ZDS-NC4 |
Control System | Taiwan LNC System |
Drive motor | 1.5kw Zhishan servo motor 2+1 ( braking ) |
Spindle | 6.0kw Spindle X4, speed 18000 rpm |
Frequency converter | Inverter 7.5KW (KEKEN) |
Guide rail, slider | Taiwan, Y axis adopts 30#, XZ axis adopts 25#, frame and beam adopt flange slider |
Rack | Taiwan Jingte high-precision 2-mode helical rack, rack with additional quenching process |
Screw rod | 2510 Taiwan TBI ball screw |
Bearing | Japan angular contact bearing x2, domestic deep groove ball bearing x1 |
Countertop | 1220X2440mm vacuum adsorption, 6 partitions |
Racks, beams | National standard rectangular square tube welding |
Vacuum Pump | 7.5kw Water-cooled circulating pump |
Electrical components | Schneider Electric |
Processing speed | 0-25m/min |
No load speed | 0-80m/min |
Accurate relocation | ±0.2mm |
Total power | about 24kw |
Total weight | about 3 tons |
Effective working stroke | 2440X1220X200mm (L x W x H) |
Dimensions | 3800X2400X2200mm (L x W x H) |
Voltage | 380V±5% 50HZ1±1% |
Product details

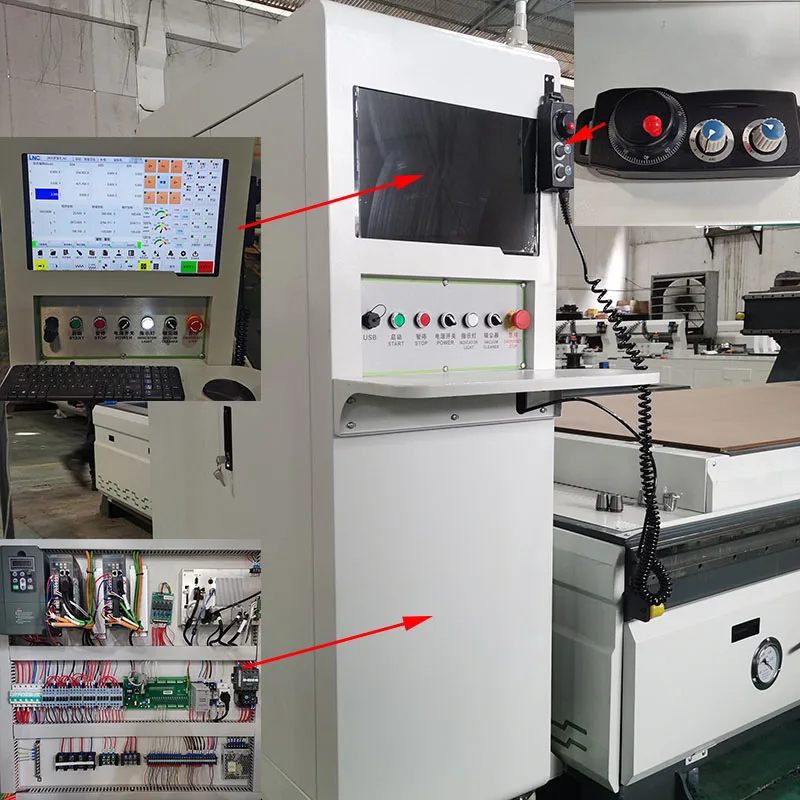

Electric control cabinet
Large electric control cabinet, fast heat dissipation.
Taiwan LNC control system.
7.5KW inverter.
Taiwan LNC control system.
7.5KW inverter.
Equipped with fine adjustment handle.

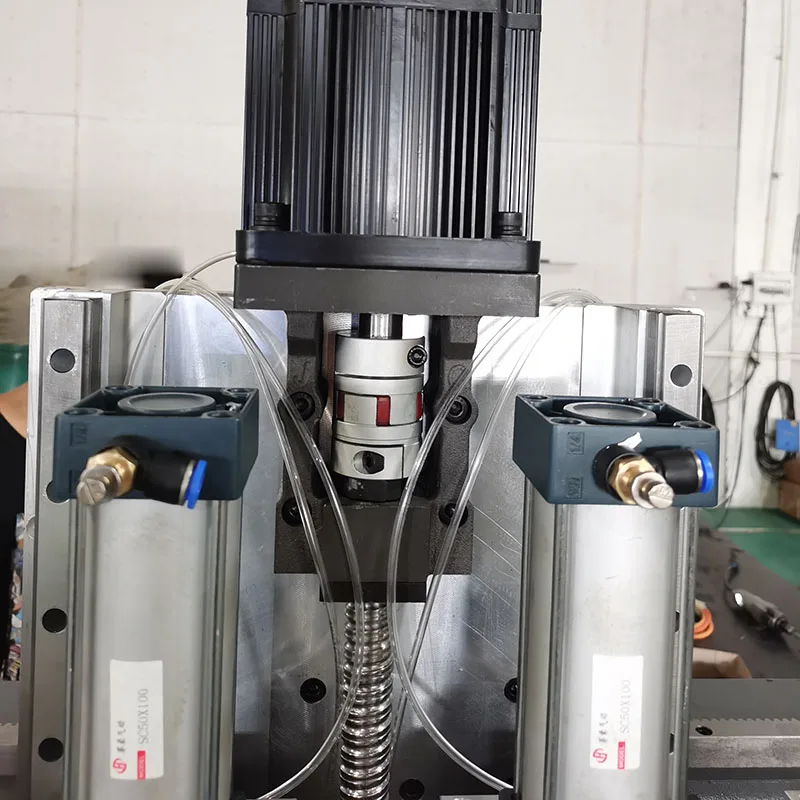

Z axis adopts 1.5kw servo motor(with brake) + coupling + TBI ball screw.

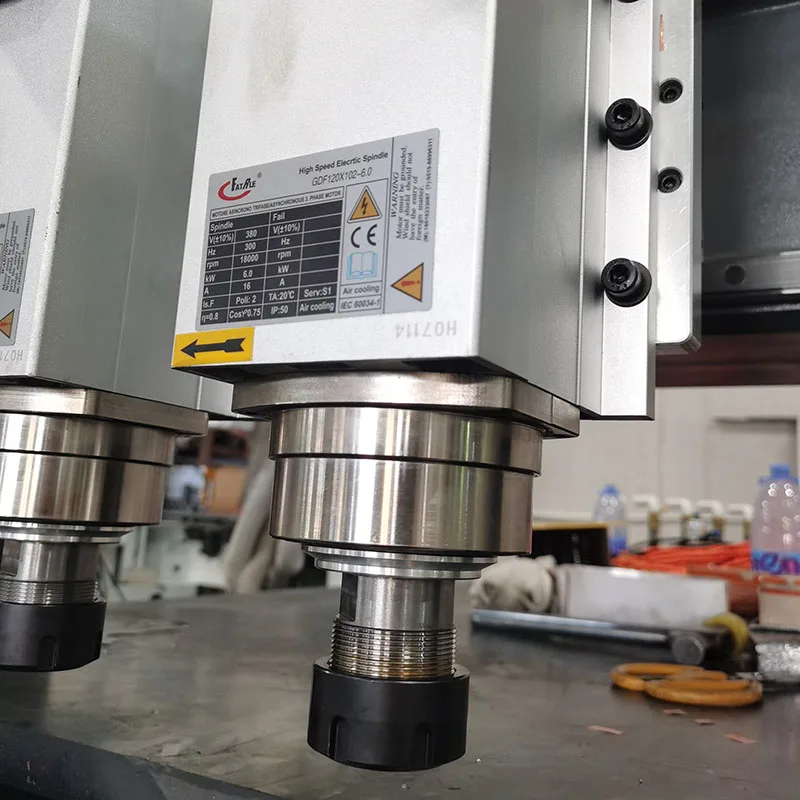

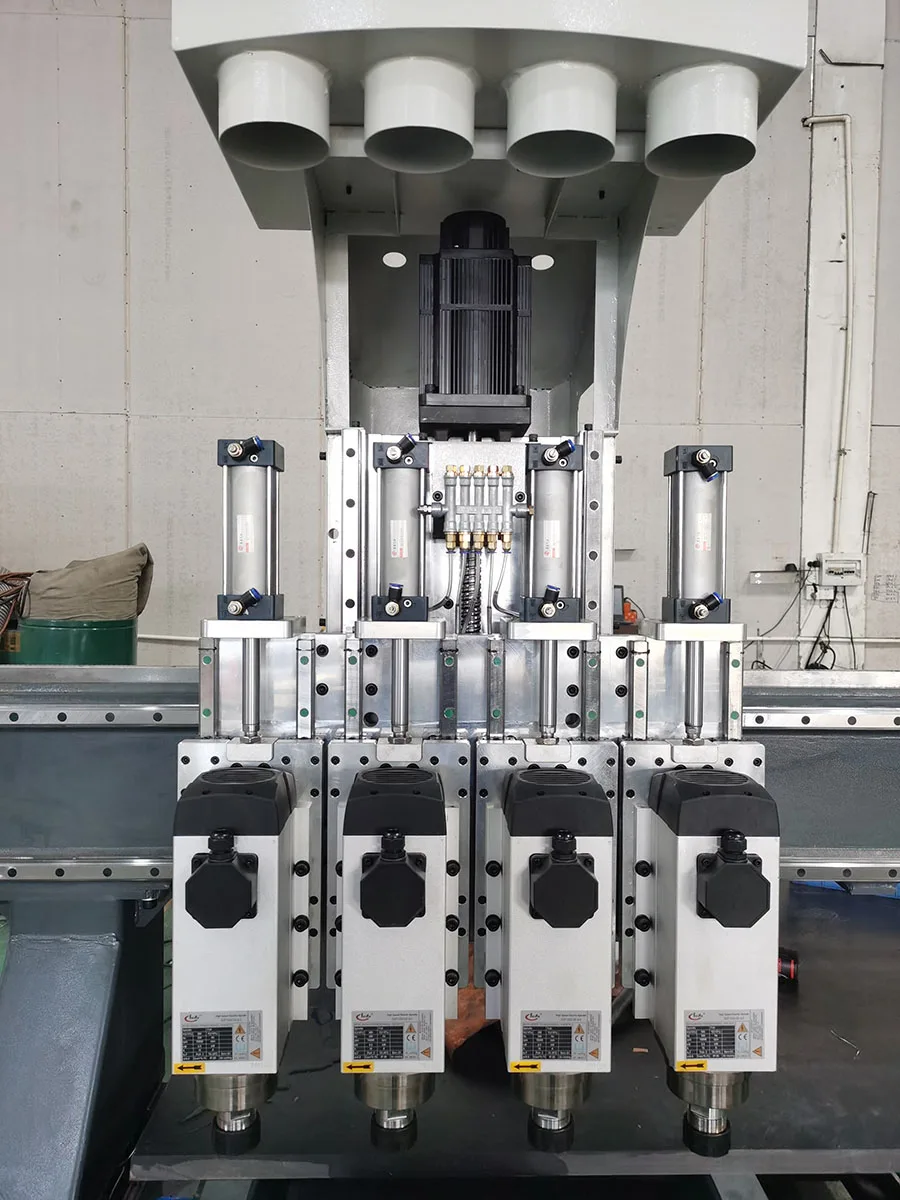

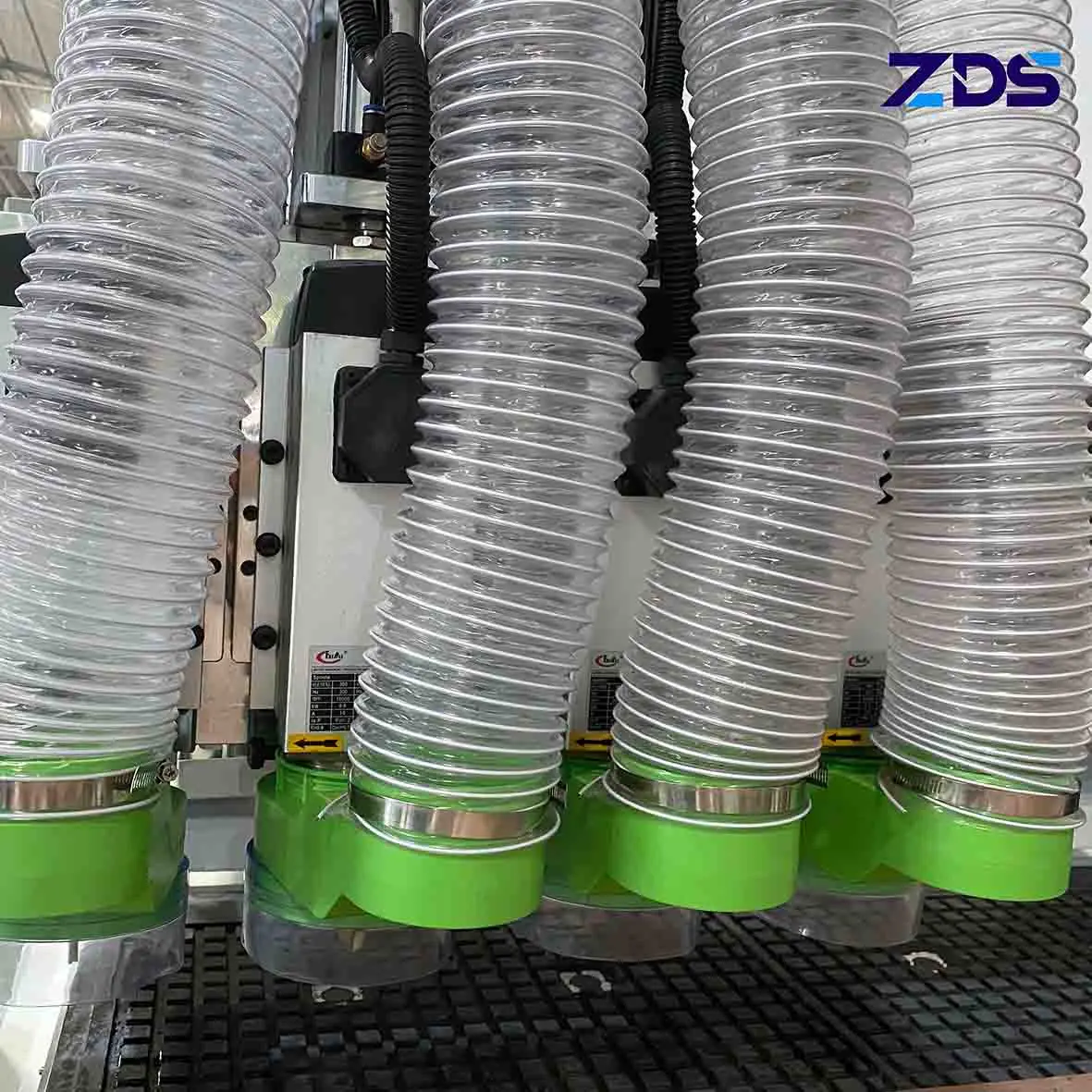

4*6KW Air-cooled spindle motor, 18000 rpm.Suitable for heavy cutting,milling.

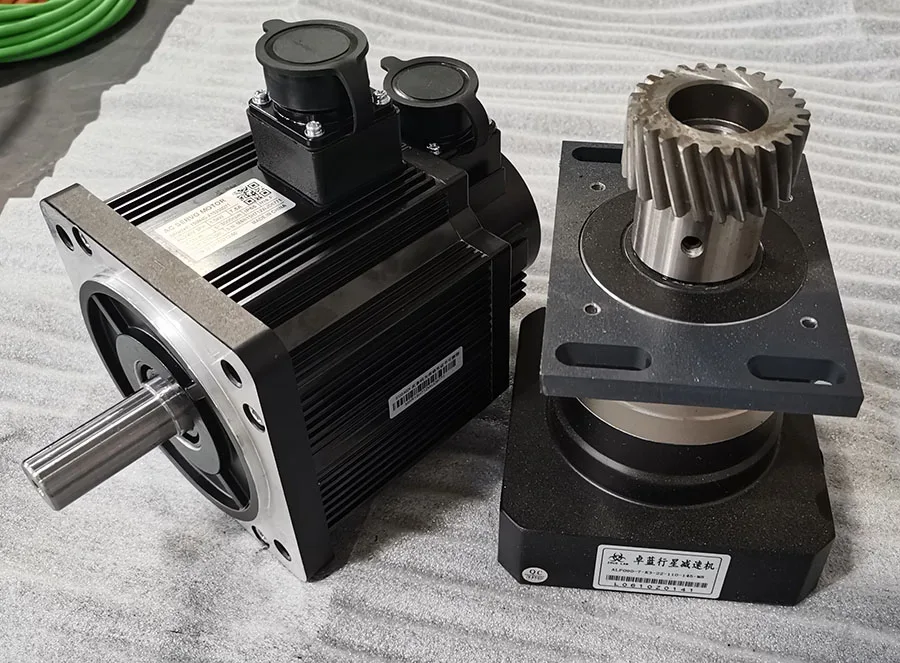

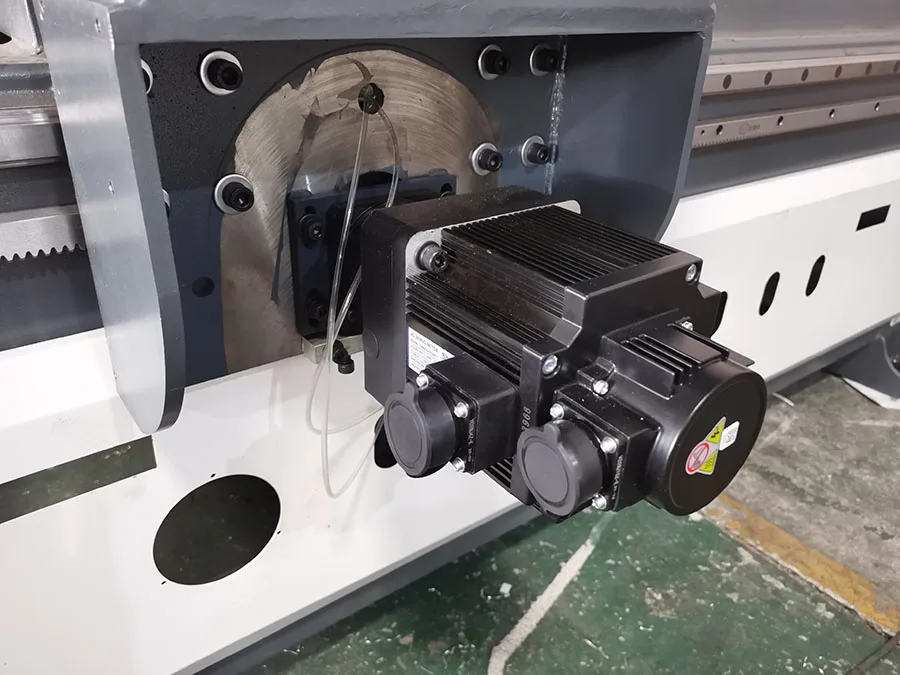

The Y axis is driven by two 1.5kw servo motors + planetary reducer, running smoothly at high speed.

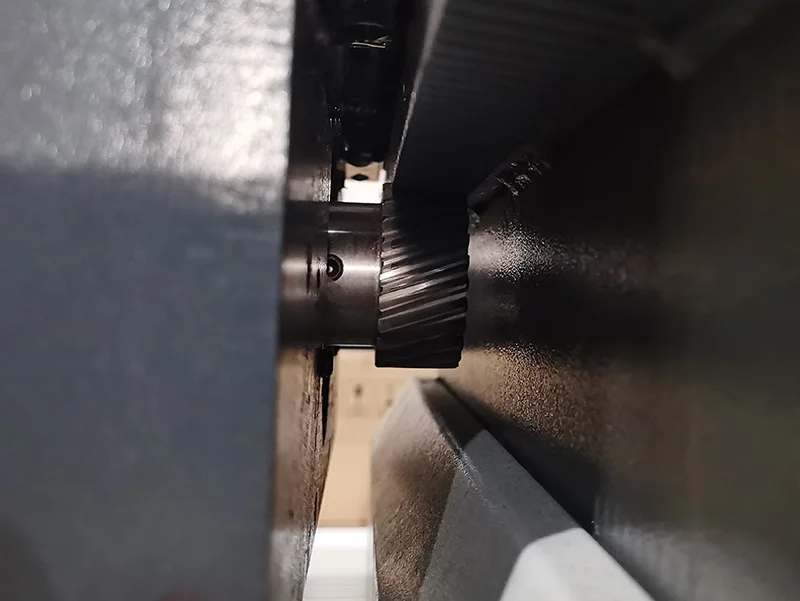

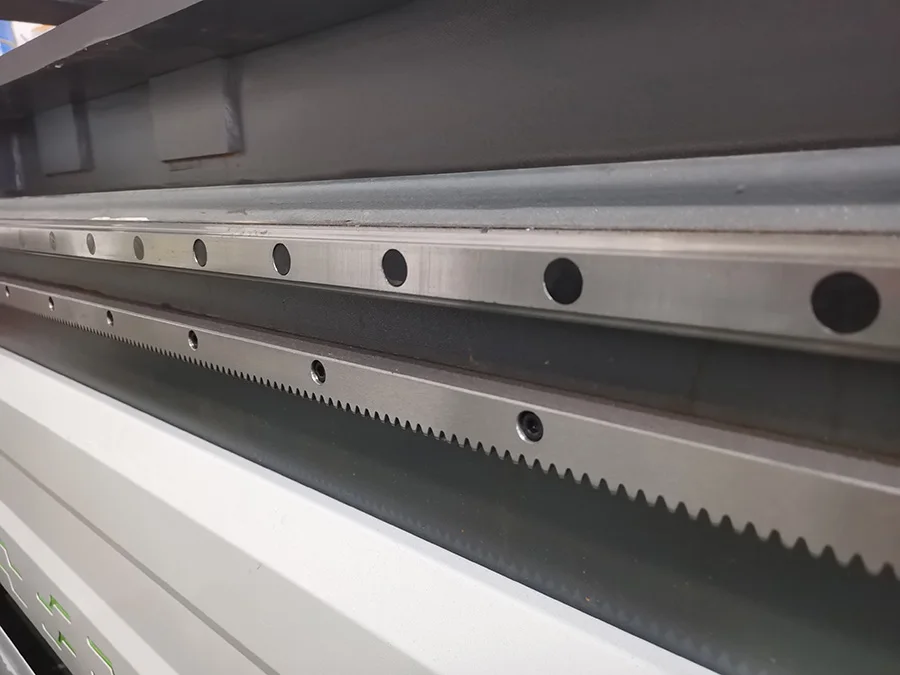

30#Taiwan Jingte high-precision helical rack, additional quenching process is added to the rack, which is strong and durable.
Automatic tool calibration device, convenient and accurate automatic record of the length of the tool.

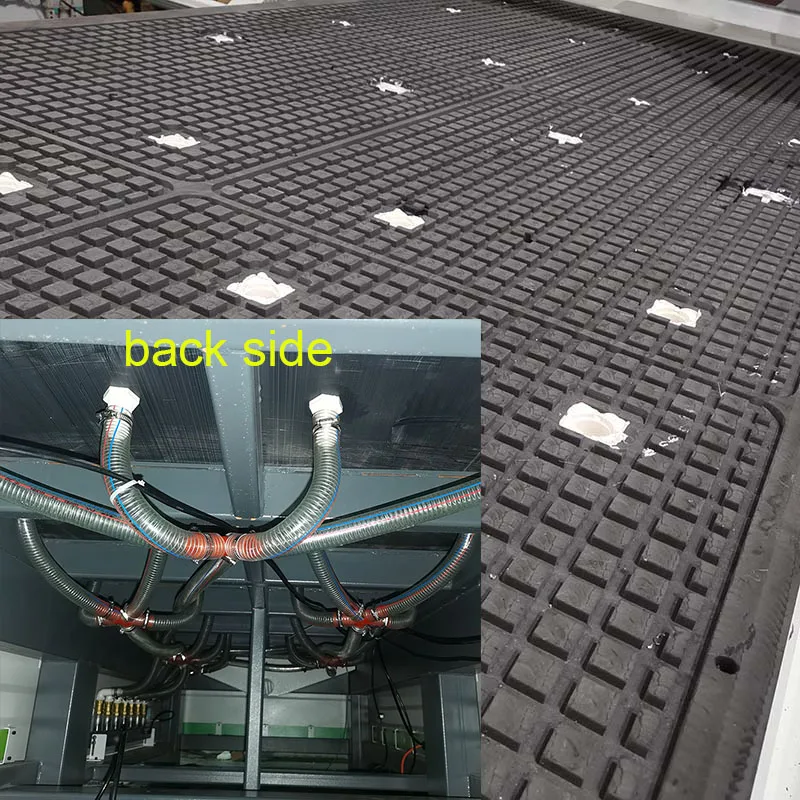

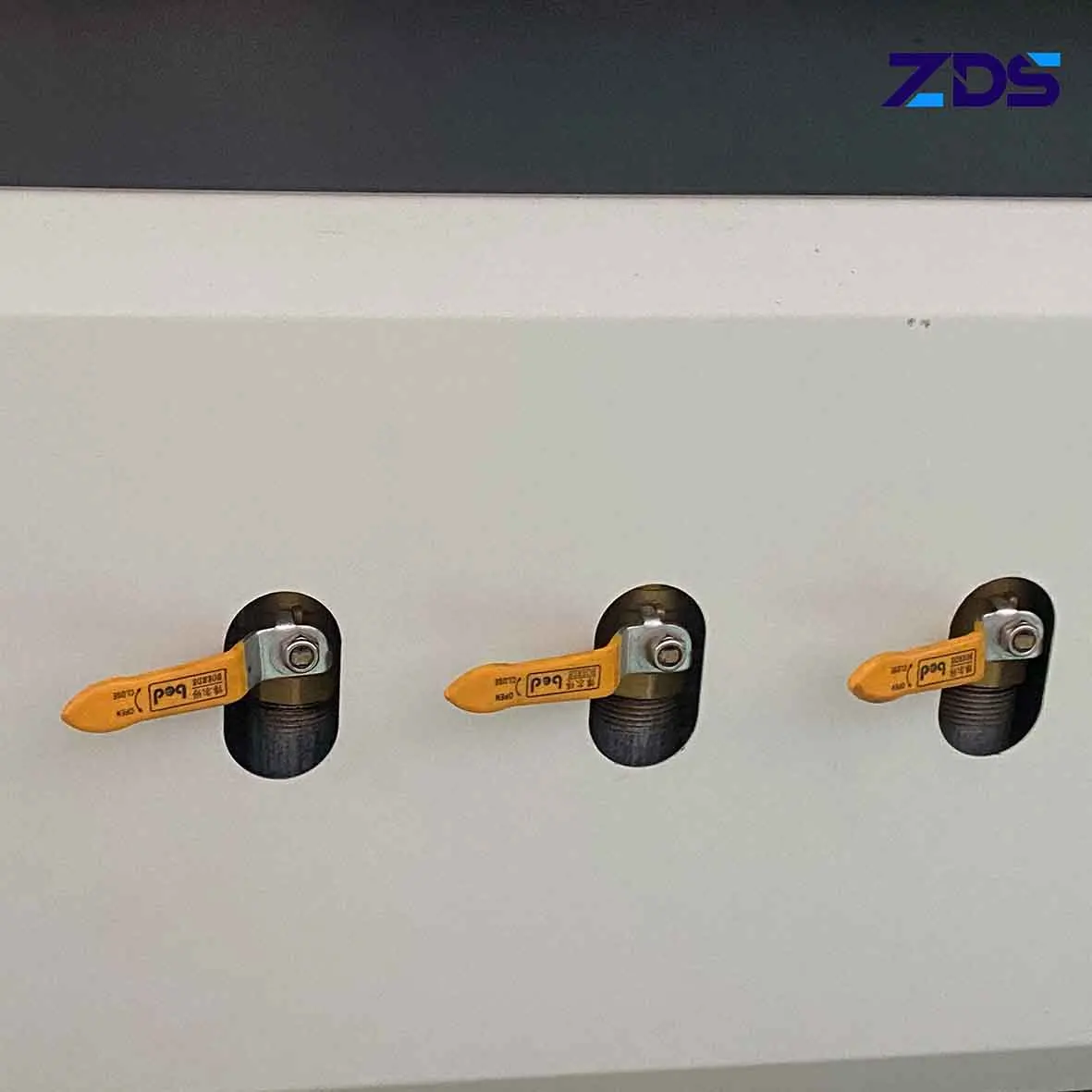

2.7cm thick high-strength PVC workbench, with vacuum suction pipes on the back, 6 partitions, each partition can be controlled individually, with strong adsorption.

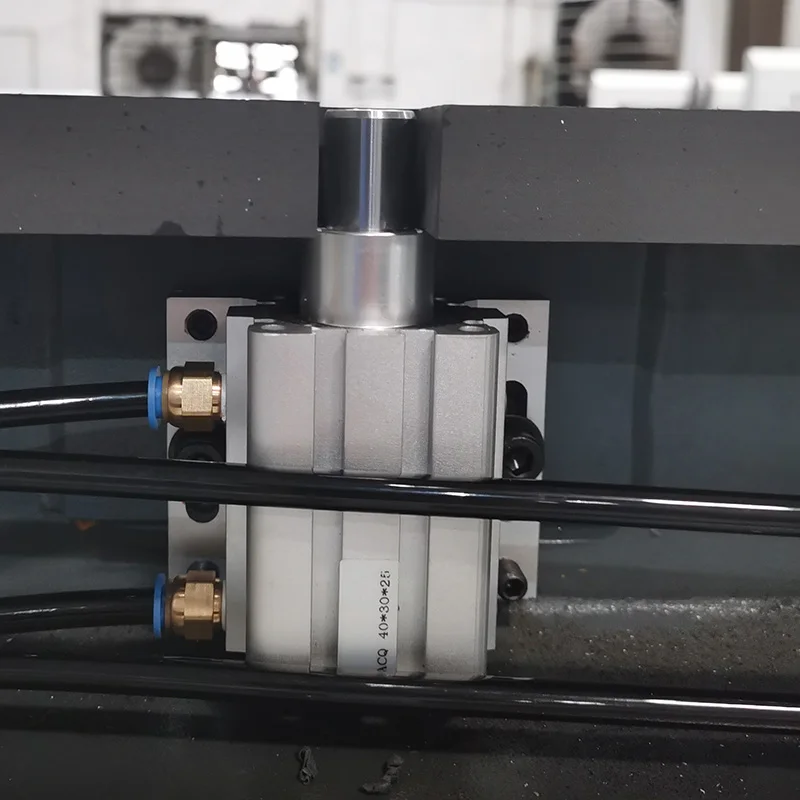

Positioning pin

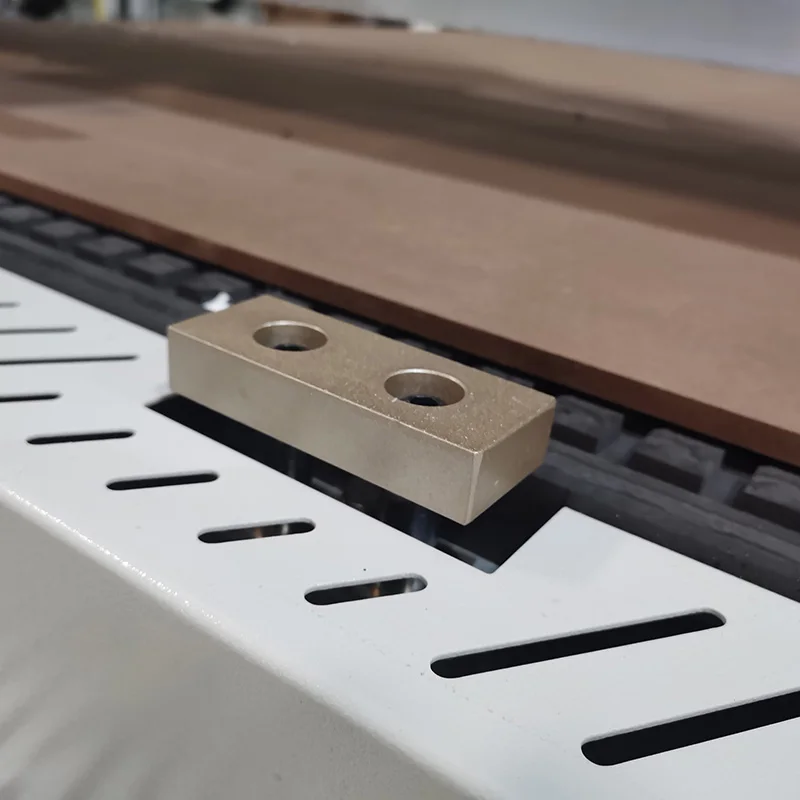

There are positioning pins on the edge of the worktable to fix the plate; 2 rectangular positioning pins on the X axis and 3 cylindrical positioning pins on the Y axis.

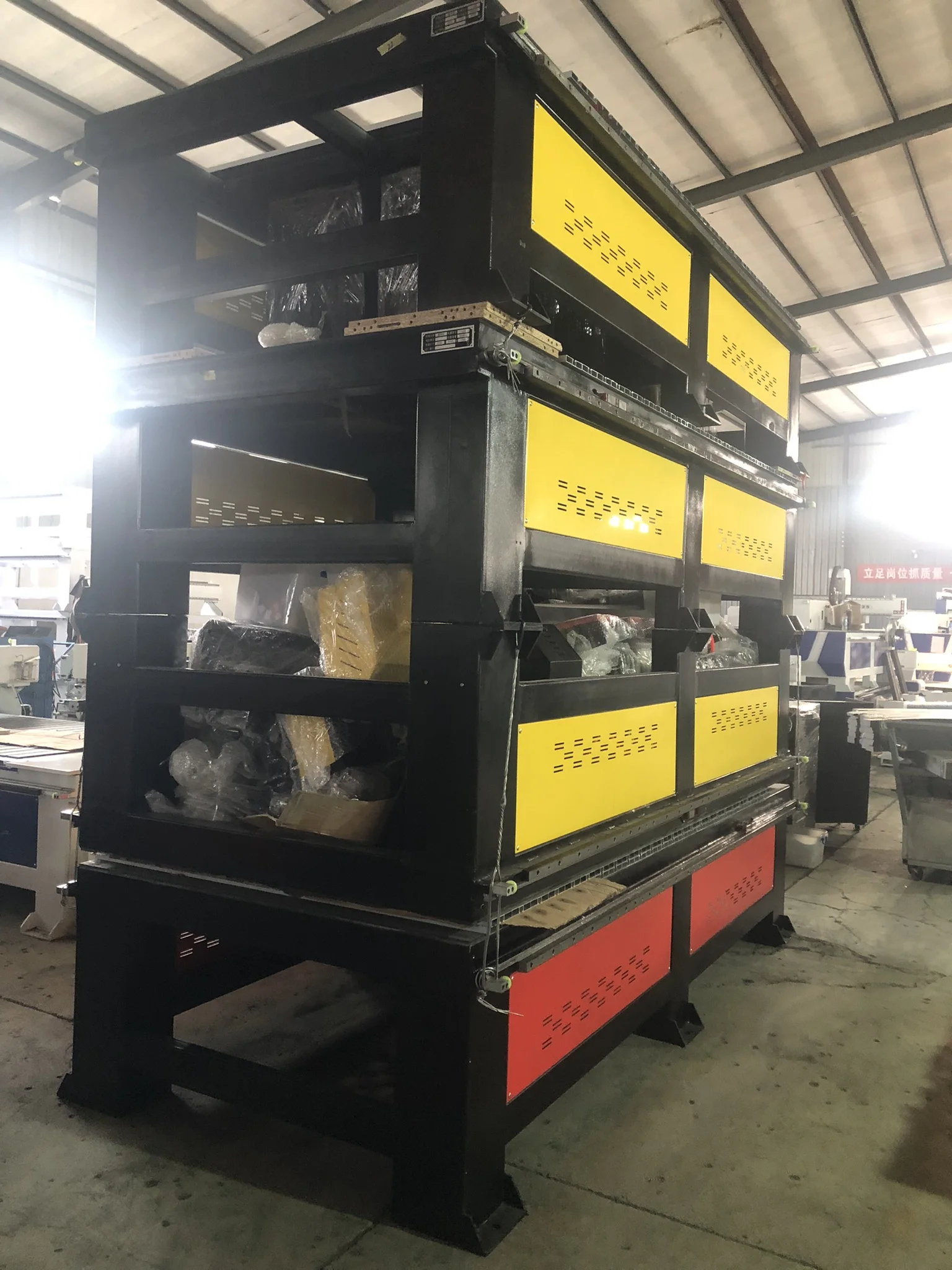

Package And Shipping

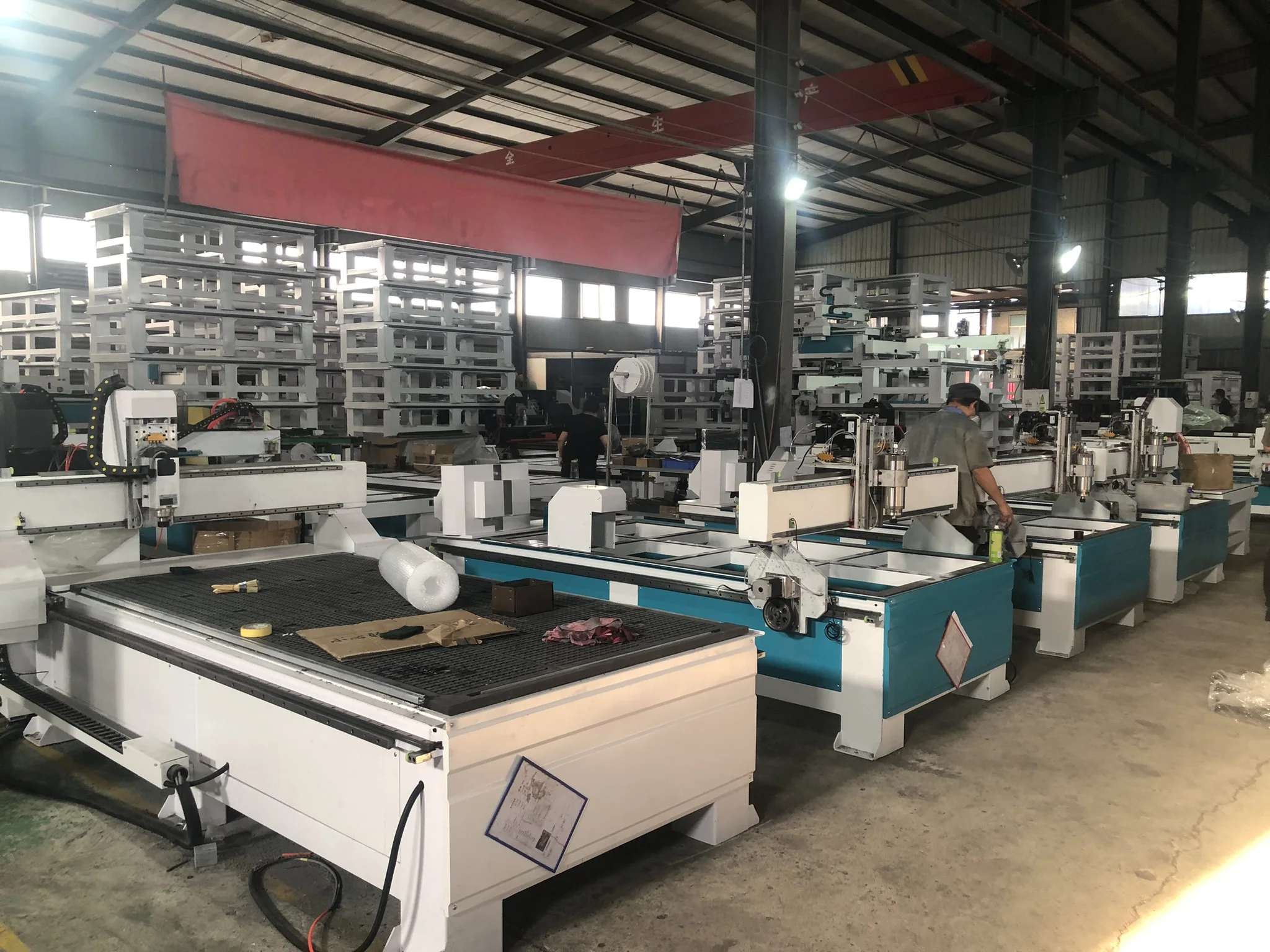

Company Profile
