Yadea electric scooter bike batteries 48V 12Ah

Share on (1601034336858):


Price:

Quantity:


Product Overview

Description





Yadea electric scooter bike batteries 48V 12Ah


































Battery Specification:



Size 151(L) x 100(D) x 99(H)mm
Charge Current 0.2512-0.312(A) for 10-14 hours
Discharge Current 20 hr rate 0.6(A)
Battery Casing:ABS





Capacity:
20hr rate (0.60A to 10.5V) 18Ah
10hr rate (1.20A to 10.5V) 16Ah
5hr rate (2.40A to 10.5V) 14.5Ah
3hr rate (4.00A to 10.5V) 13Ah
2hr rate (6.00A to 10.5V) 12Ah





Internal Resistance
Fully Charged Battery(20°C,68°F): below 13m Ohm
Max Discharge Current (5 sec):40A





Charging Methods:
Floating Use :13.5-13.8V, Compensation co-efficient-3mv/cell/°C
Cycling Use:14.7-14.9V,Compensation co-efficient-5mv/cell/°C
Constant Voltage Charge:14.8V
Max charge current :0.3C(A)
Self Discharge Rate(20°C,68°F): Above 85%/3 Months





Operating Temperature Range
Discharge:-35 to 50°C(-31to 122°F)
Charge:-15 to 40°C(5 to 104°F)
Storage:-15 to 40°C(5 to 104°F)



RECHARGEABLE
Battery quantity: 1pc (4pcs/pack)
Charging Time: 10-12hr
Recharging Voltage: 14.8V





BATTERIES
Amp Hour Rating: 12Ah

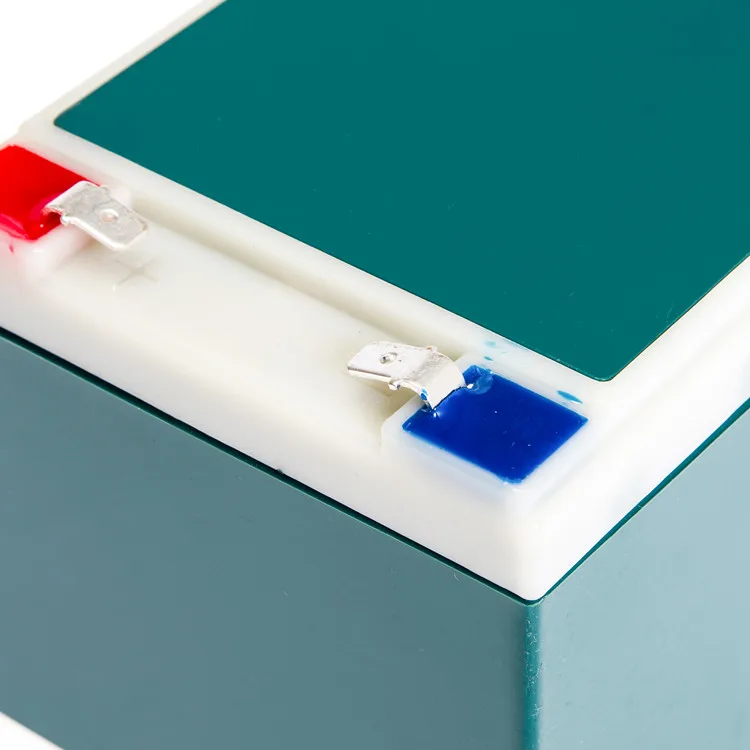

Connection Type: Spring Terminal(Pins)
2 Hour Capacity: 12Ah
3 Hour Capacity: 13Ah
5 Hour Capacity: 14.5Ah
10 Hour Capacity 16Ah
20 Hour Capacity 18Ah





Battery Usage Rechargeable
Battery Chemical Composition: Sealed Lead Acid (SLA)





DC VOLTAGE RATING
DC Voltage: 12V





PRODUCT DIMENSIONS (Tolorance.2mm)
Item Length 150mm
Item Height 100mm
Item Depth 100mm





PACKAGED DIMENSIONS





Packaged Volume 0.010CBM/CTN
Packaged Weight 17.7kgs(N.W.: 17.2KGS)
Packaged Length 31.2cm
Packaged Width 21cm
Packaged Height 14cm
20"Container:3800pcs














batteries detail information





Battery Information:



Size:L151*W100*H99MM
Capacity:12V 12AH
Lead Acid Battery
Discharge Time:2 (HRS)
Terminal:Pins





Package:





4PCS/CTN CTN Size:31.2*21*14CM
GW/NW:17.4/17.2KGS
20'':3800PCS

















Product Description

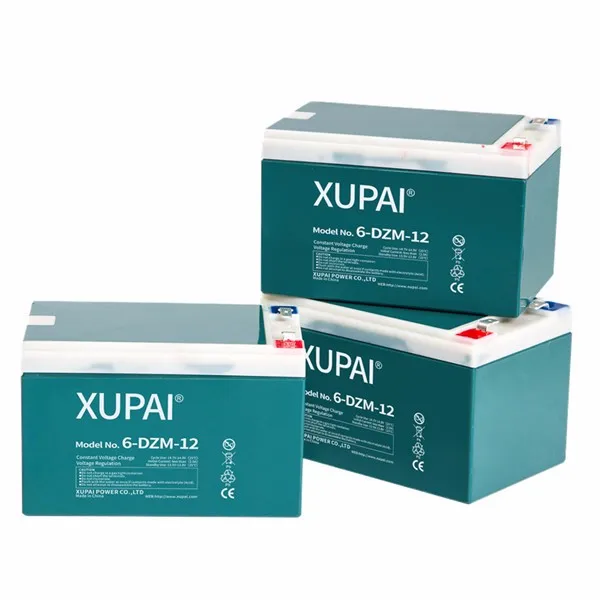

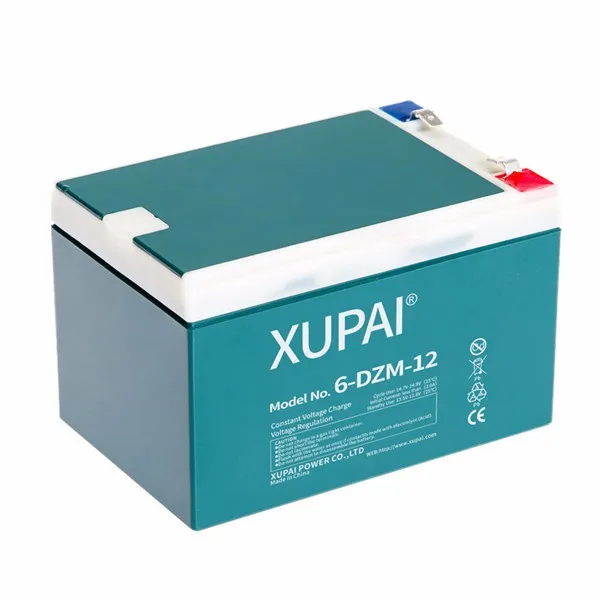

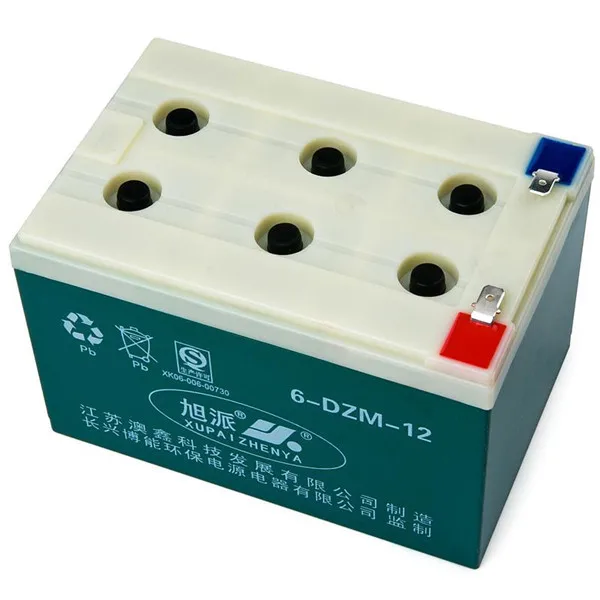

Model 6-DZM-12                               Nominal Voltage               12V Rated Capacity           12AH

Type



Lead Acid Battery Dimension

151*100*99MM

Weight 4.300 KGS
Certificate ISO9001, ISO14001, CE, UL MOQ 20 pcs/item Package Detail  Paper Carton with Wooden Pallet

Payment Terms



T/T or L/C  Main Market  India,Turkey,etc. Delivery Time  1 Days



















































Packaging & Shipping







Packaging & Delivery:





Packaging Details:Paper Box or White Box and Pallet





Delivery Details:All goods are in warehouse and can be deliveried within  1-3 Days

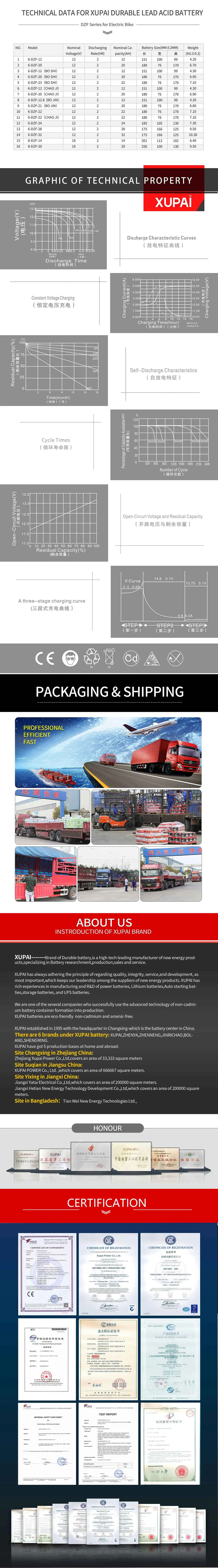

Product Specification



































































































































































































Lead Acid

Nominal

Discharge

Rated

External Dimensions/mm



 Battery

Voltage

Time

Capacity

Length

 Width

Height

Total Height

Weight

Model

(V)

(HRS)

(AH)



(MM+-2)

(KGS)
6-DZM-10 12  10 151 100 95 95 4.2

6-DZM-12

12  2 12 151 100 97 97 4.3
6-DZM-17 12 2 17 180 76 152 152 6.3

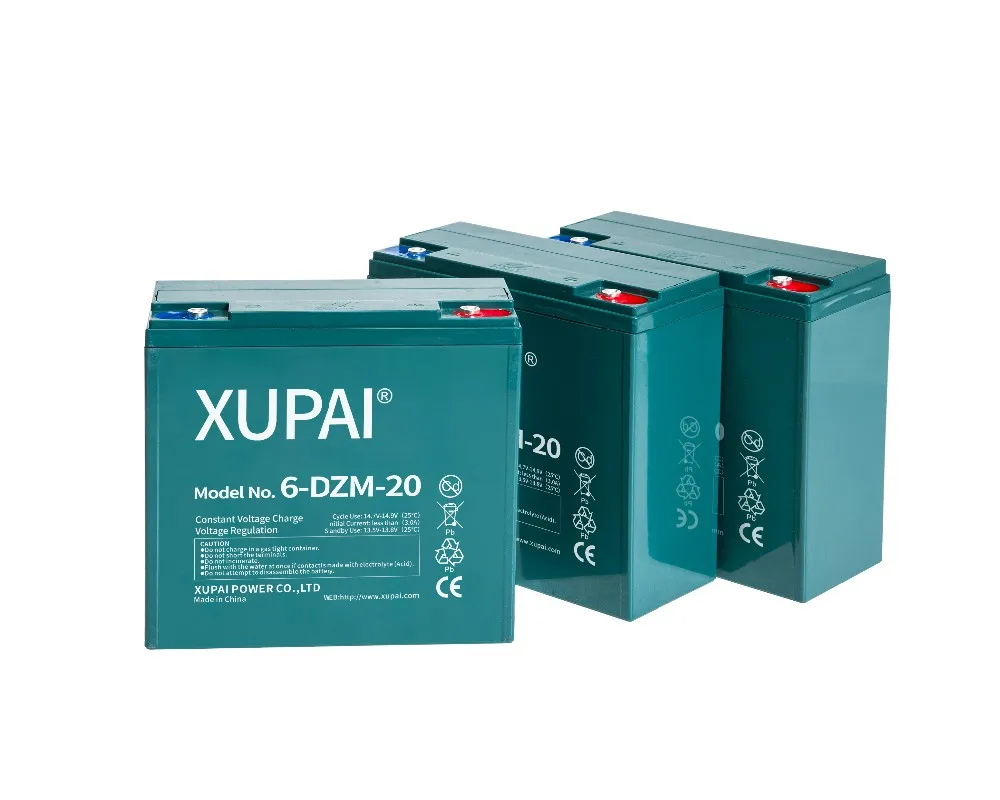

6-DZM-20 12  2 20 180 76 170 170 7.0
6-DZM-24 12
2
24
185
105
130
130
7.3
6-DZM-28 12 2 28 175 166 125 125 9.8

6-DZM-32

12  2 32 175 166 125 125- 10.5
6-DZM-48 12 2 48 196 164 175 175 16.0

6-FM-35

12  10 35 267 77 170 170 10.2
6-FM-42 12 10 42 220 120 175 175 12.5

6-FM-50

12 10 50 224 120 175 177  13.35

8-DZM-14

16  2 14 201 112 102 102 7.0
8-DZM-20 16  2 20 250  100 130 130 9.6

8-DZM-28

16 2 28 250  166 125 125 12.7

















































































































Battery OEM Ability:





Your Logo on Battery and Your Package Based on order of
500PCS
Each Item













FAQ










Terms of Payment

























 Value of goods  Terms of Payment
 Less 5,000 dollars  100%T/T advance
 5,000-20,000 dollars  50% T/T advance
 More 20,000 dollars  T/T or L/C at sight
















 A:What's your battery Charge Volte?





Re: Range from 14.70 to 14.90 Voltage/pc ,recommended 14.80 Voltage











B:What's your gurantee for Battery





Re:Email to us











C:What's your battery life time





Re:Normally depending your  useage situation as the 100% DOD over 360 Times.








D:Do you accept  L/C?





Re:Yes.
