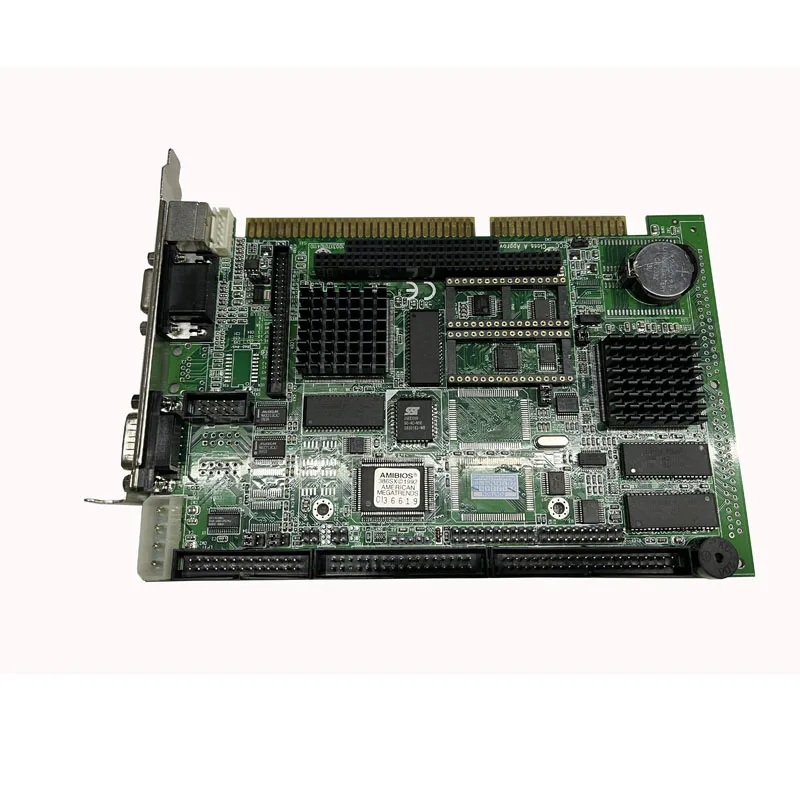

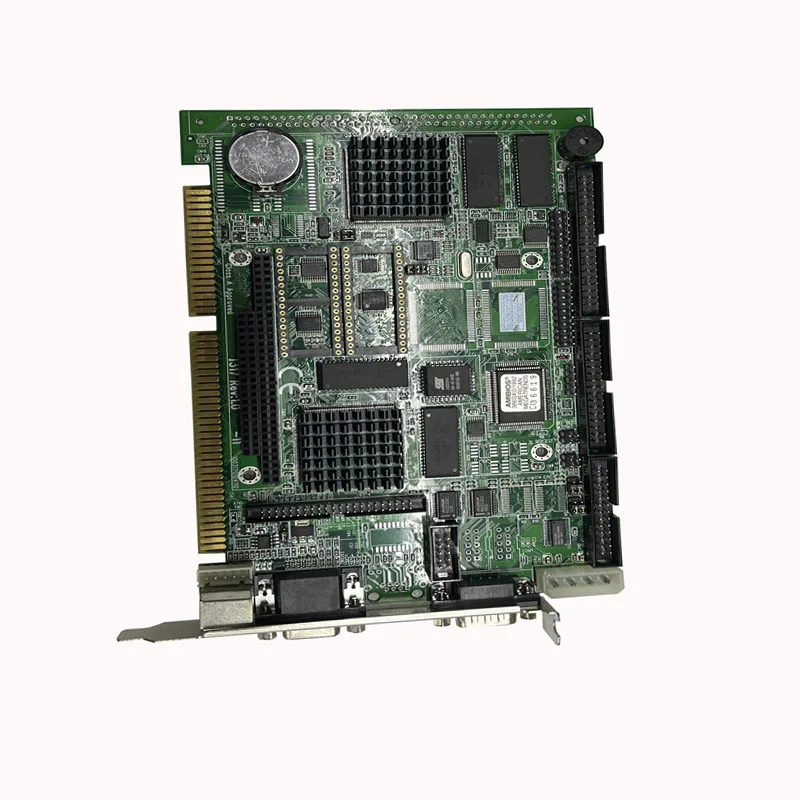

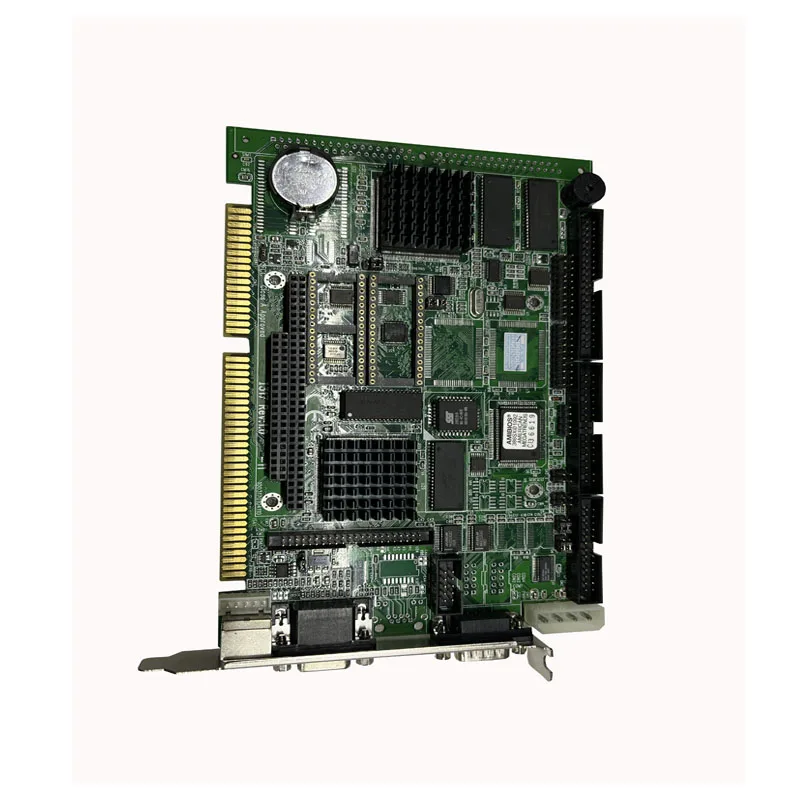

Onboard ALi M6117C CPU 386SX 40 CORE M1217B Chipset Half size motherboard with SIMM Card slot
- Category: >>>
- Supplier: Shenzhen Pontron technology Limited
Share on (1601034350177):
Product Overview
Description
Product Description
Main feature:
« Onboard ALi M6117C CPU
« Intel 386SX-40 CORE + M1217B Chipset
« Onboard 4MB EDO RAM, SIMM slot support 20MB
« 3 x RS232 ( COM1 /3 /4 ) ,1 x RS232/422/485 (COM2 )
« 1 x SIMM slot , 1 x PC/104 connector
« Supports 16 bits GPIO
« with RTL 8019AS, 10Mbps ( LAN port optional )
Specification :
CPU | Onboard ALi M6117C CPU |
Chipset | Intel 386SX-40 CORE + M1217B Chipset |
Memory | Onboard 4MB EDO RAM, SIMM slot support 20MB |
Storage | 1 x SIMM slot , 20MB |
Display | LCD connector : TTL 24 bit |
Resolution : 800 x 600 | |
Chipset : TP 6508IQ | |
Expansion Slots | 1 x SIMM slot , 1 x PC/104 connector |
I/O Port | 1 x SPP/ EPP /ECP |
1 x16 bit GPIO | |
3 x RS232 , 1x RS 232 / 422/485 ( support 4 * COM ) | |
1 x PS/2 KB&MS | |
1 x LAN ( optioanl ) | |
ATA/ IDE: 1x DMA16 , support 2 x IDE | |
1 x pc/ 104 interface | |
Watchdog Timer | Software programmable |
Bus Standard | Half-size ISA |
Power supply | DC5V/12V ATX/AT |
Dimension | 185 x 122mm |
OS | Linux/DOS/Win98/Win 2K |
Operating Temperature | 0°C ~ 60°C |
Storage Temperature | -20°C ~ 80°C |
Storage Humidity |
Ordering information:
PT-H3861 | Half-size ISA CPU Card, with Onboard ALi M6117C CPU , W/Onboard 4MB EDO RAM ,w/4*COM/1*PS2 KB/MS/PC104 connector |
