Push to Open Under Mount Concealed Drawer Slides 3 fold damper basket drawers channel push to open hidden drawer slide
- Category: >>>
- Supplier: Guangzhou Racer Hardware Co. Limited
Share on (1601034362475):
Product Overview
Description
Product Description
Item No. | FSPO11-CJFT3-450 |
Name . | Push to open concealed slides ,three sections/folds,with platic clip handles |
Material | Cold-rolled Steel |
Finish | Zinc plated |
Length | 450mm/18 inches |
Loading cap. | 30KGS |
Working life | More than 50,000 times |
Feature | 1) excellent lateral stability. |
2) Full extension design; loading up to 30kgs. | |
3) More than 50,000 cycles test certified. | |
4) Easy for installation and demolition. |
Push-Open function
When people is busy in the kitchen and carry dishes in hands ,they just need to push the kitchen cabinet lightly and then the door will open itself .But Common Soft Closing type is also available

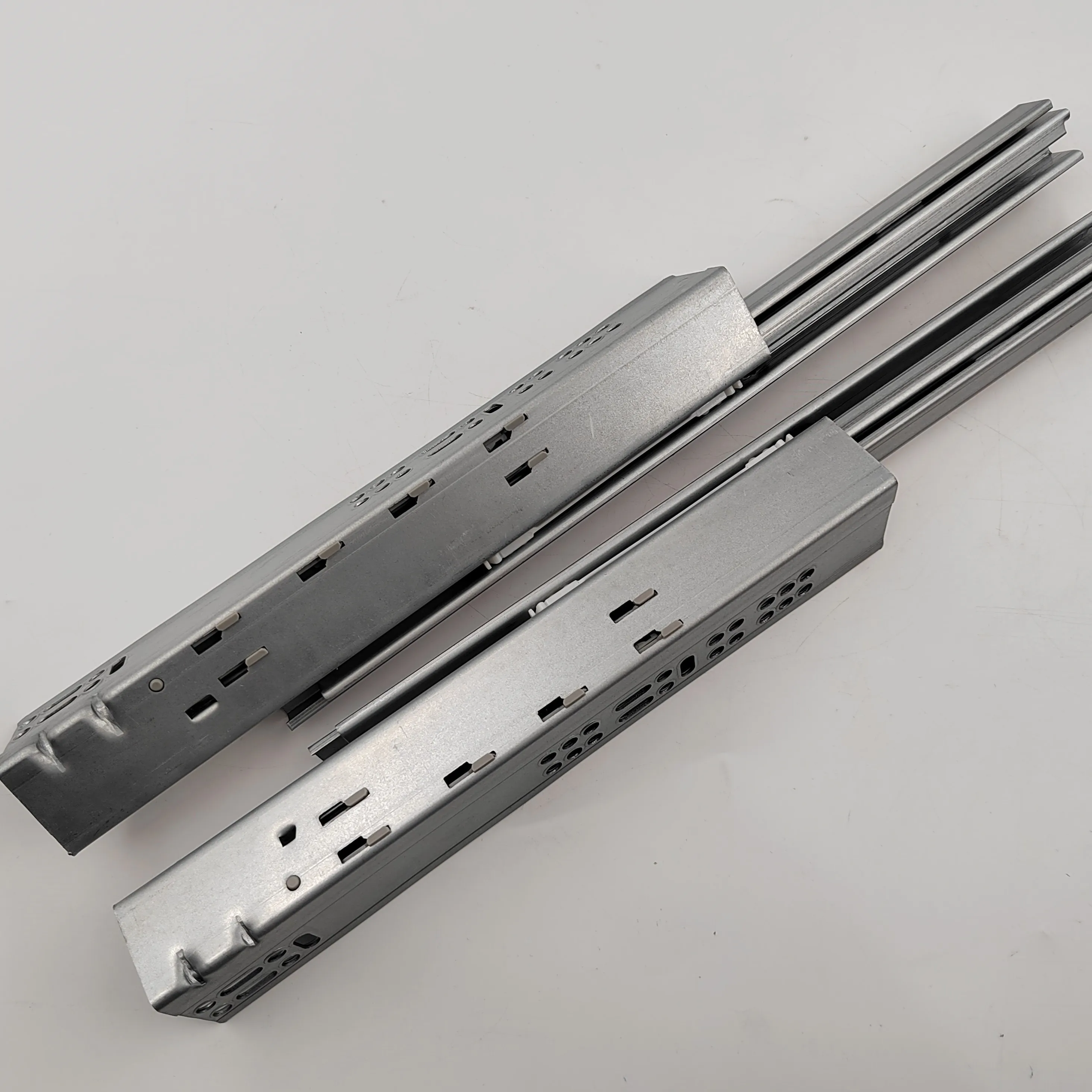

Two or Three folds
This produc's link is for THREE folds .But Two sections like this picture is also avaiable at lower prices

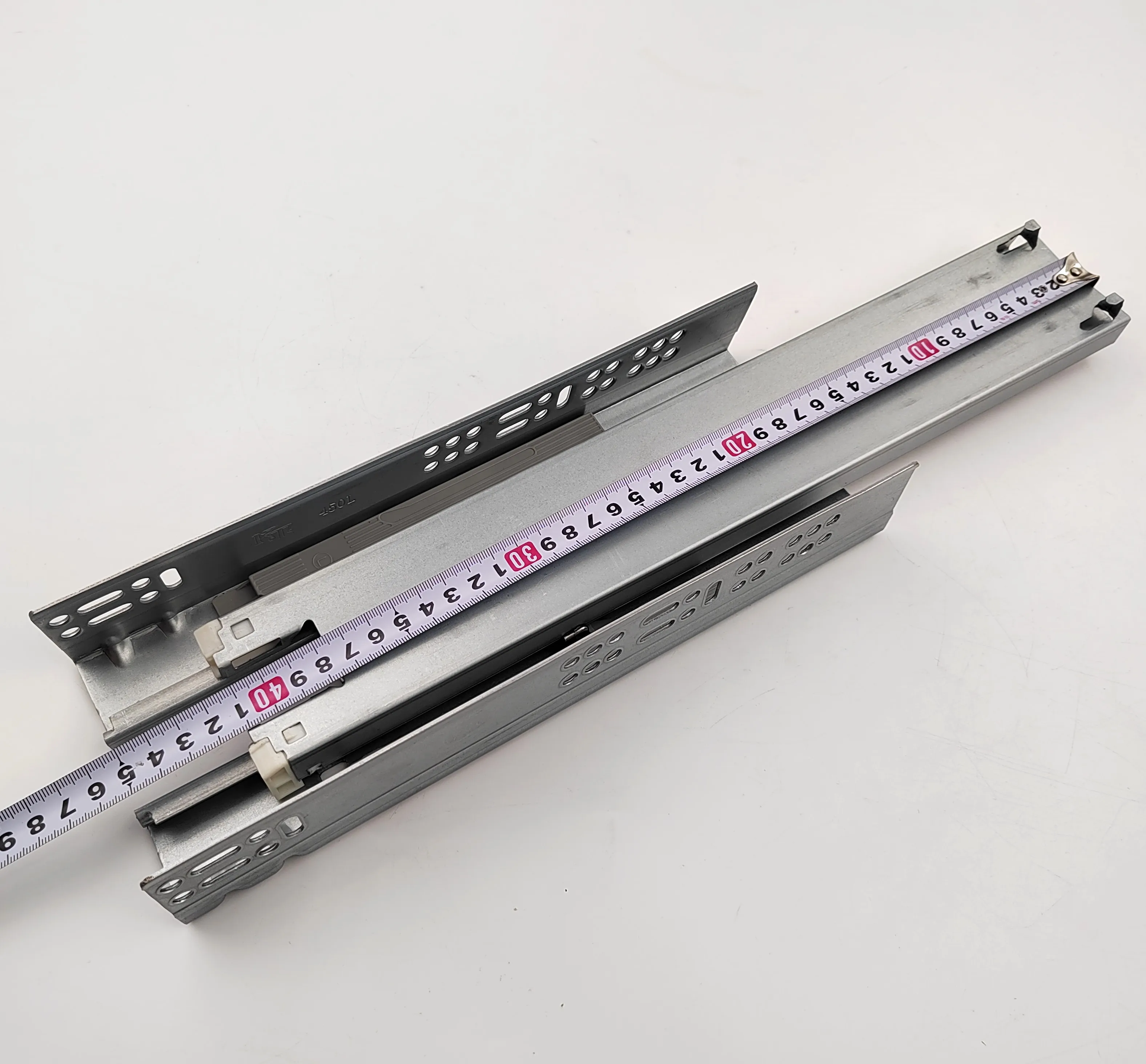

Various lengths
This product's link is for length 450mm.
But other sizes from 10inches/250mm to 24 inches/600mm are also available .
Push to open type
This product's link is for this type .450mm length
Soft closing type
Soft closing type ,also concealed slides used in kitchen .

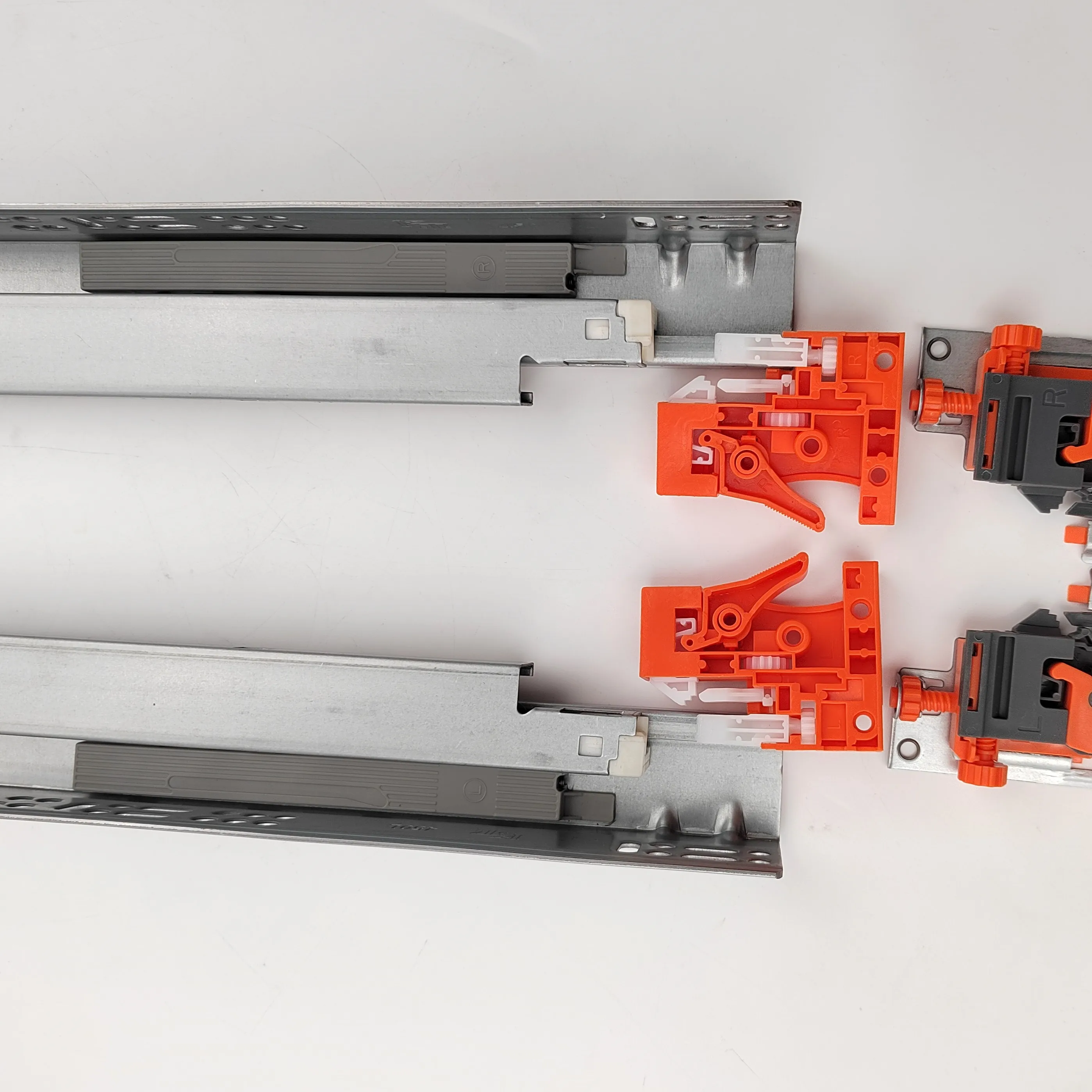

Adustable clip handles
The slides mainly goes with PLASTIC hanles to adjust up and down ,left and right .
But plastic handles with metal plate handles (like the one in the RIGHT side ) are also available ,and it could adjust three ways to be up&down ,left & right .front & back .

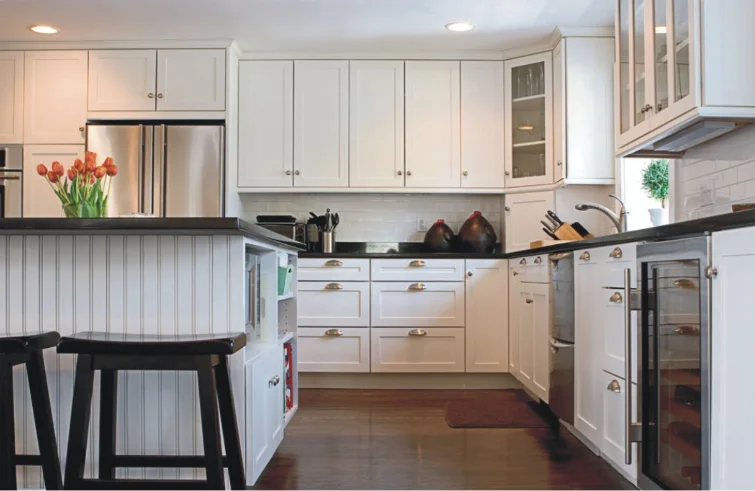

Applications
It is fit for Kitchen cabinets
