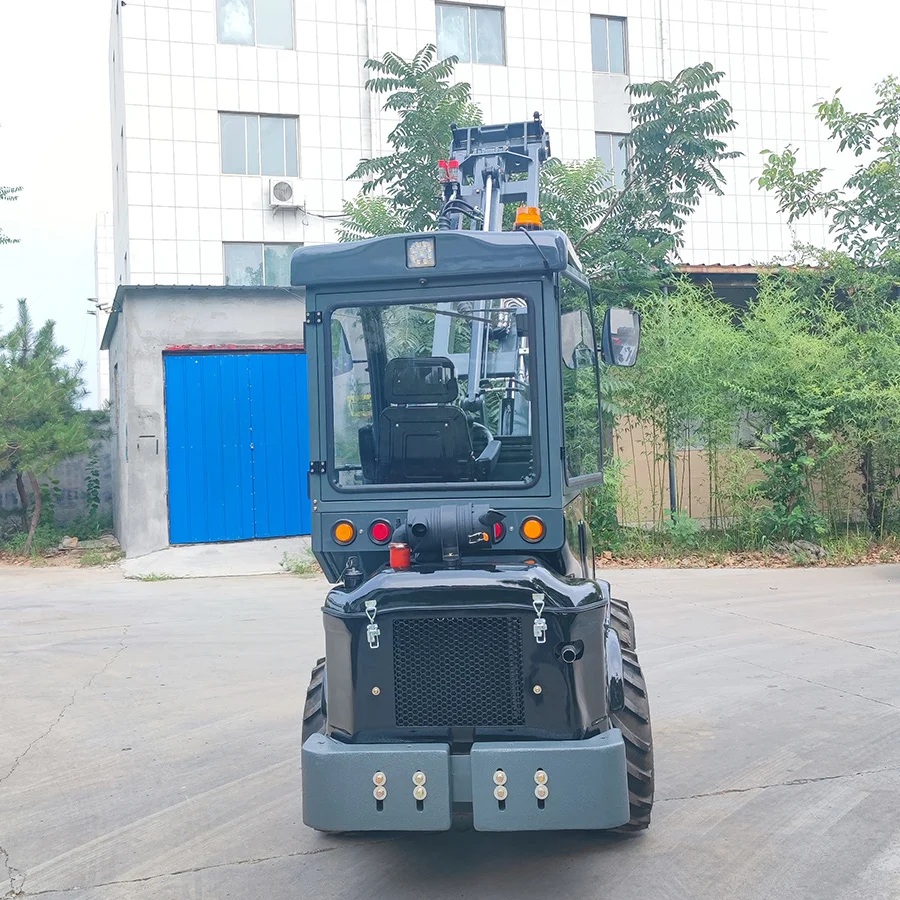

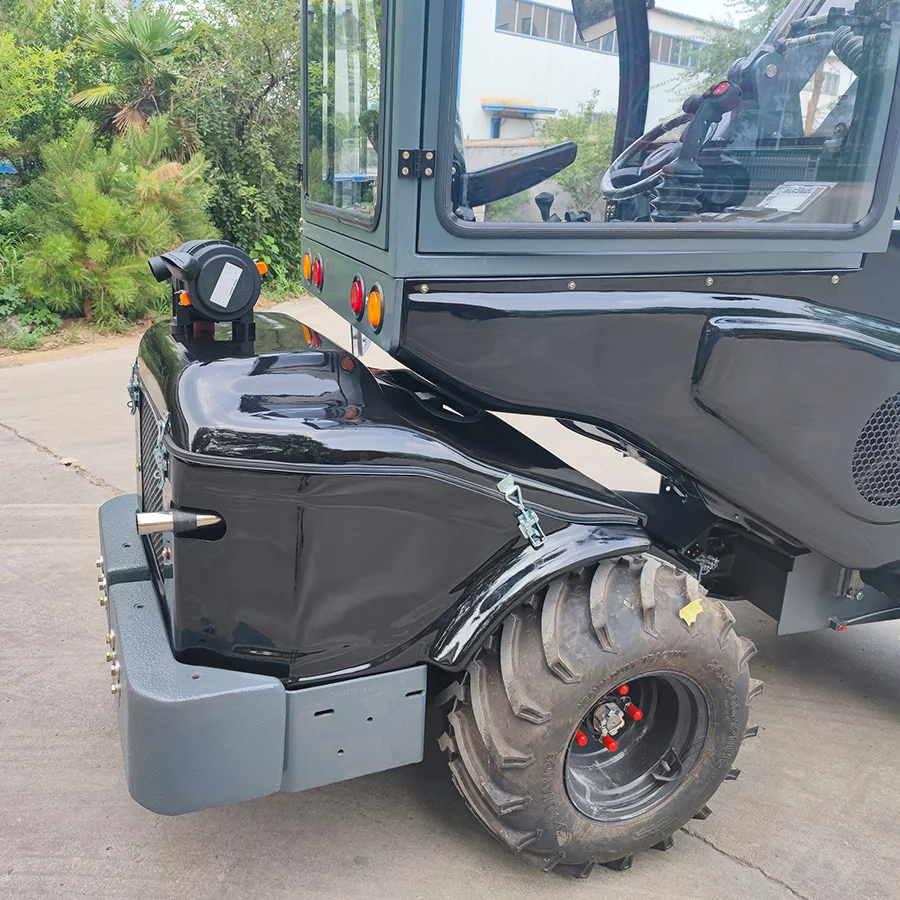

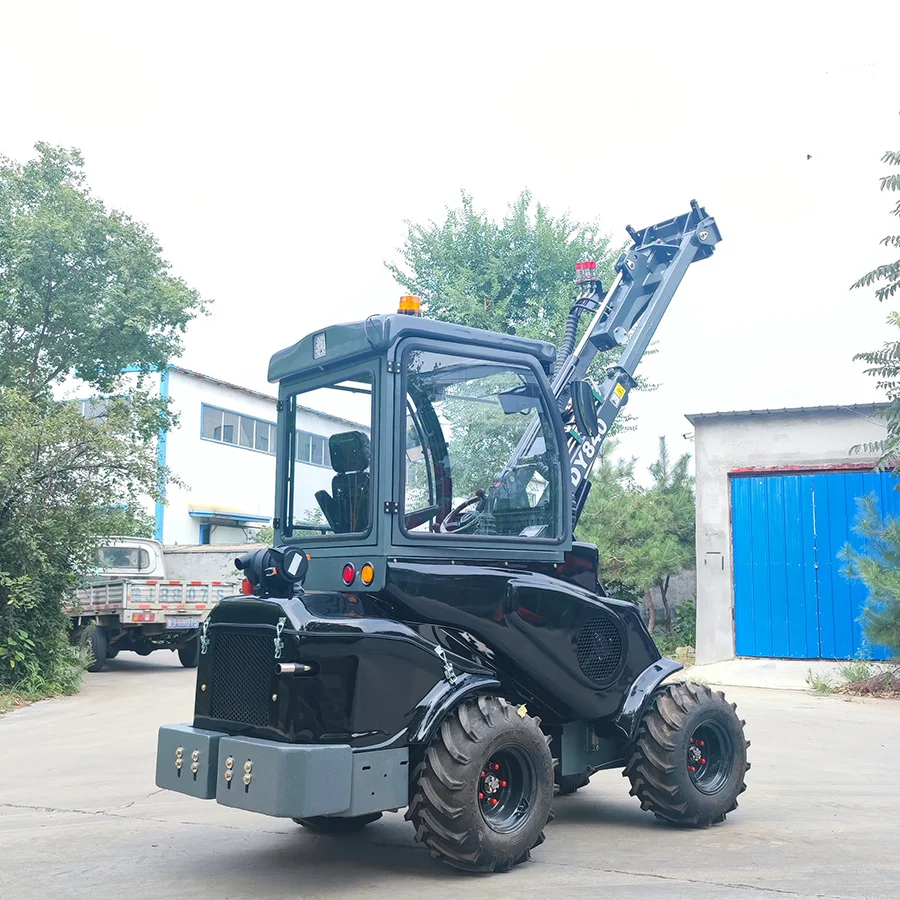

Chinese Farm Loader DY840 4Wd Small Garden Front End Loader
Product Description

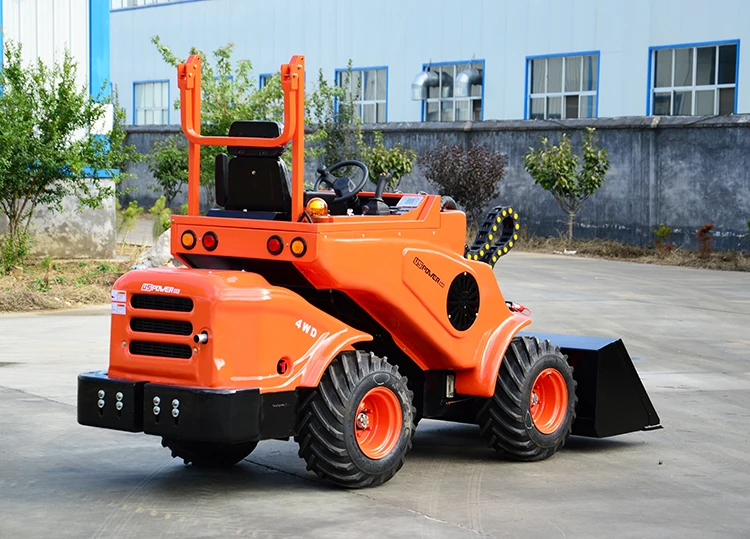

DY840 Mini Telescopic Wheel Loader Specification:
DY840 telescopic wheel loader is a machine designed for the maintenance of gardens and lawn care. Purposely developed for people who want to be completely independent and efficient.

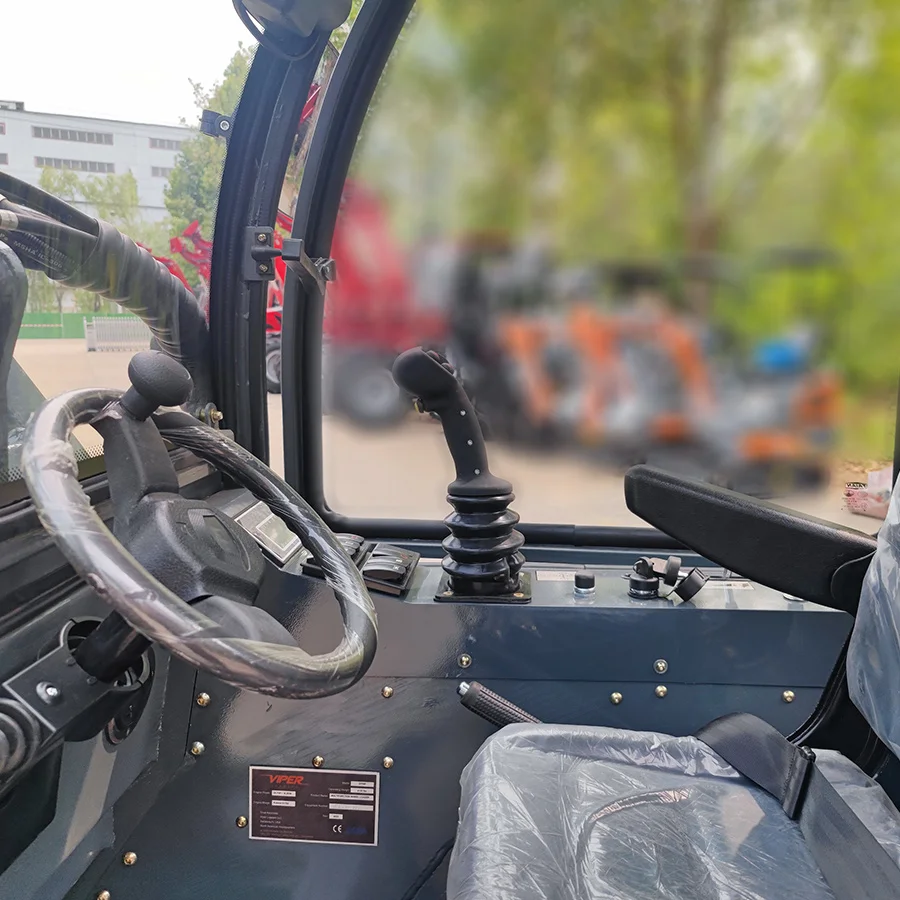

Thanks to the employed technology, DY840 can satisfy all requirements connected with cleanings, lawns mowing and handling. It is easy to use, comfortable and safe; its turning radius is equal to zero thus guaranteeing easy handling even in narrow spaces. The 4WD hydrostatic transmission with pedal control will smoothly drive you on all types of terrain assuring availability of high power whenever needed.
| Max. Reach (Boom Extended) | 3000mm |
| Max. Reach (Boom Retracted) | 2480mm |
| Min. Turning Radius | 2480mm |
| Turning Angle | 45º |
| Rated Loading Capacity | 850kg-1000kg |
| Max. Lifting Height to the Pin | 3000mm |
| Driving Speed | 12km/H |
| Transmission | 4WD |
| Weight | 1860kg |
| Standard Tire | 26X12-12 |
| Tire Pressure | 2.8Bar |
| Oil Tank Capacity | 40L |
| Pressure | 190bar |
| Working Oil Flow | 67L/min (2 Pumps) |
| Tracking Oil Flow | 78L/min |
| Oil Model(mineral oil) | L-HL46 |
| Fuel Tank Capacity | 23L |
| Battery Capacity | 60Ah |
| Voltage | 12v |
-----For all our loaders, we offer one year or 1000 working hours warranty whichever comes first.

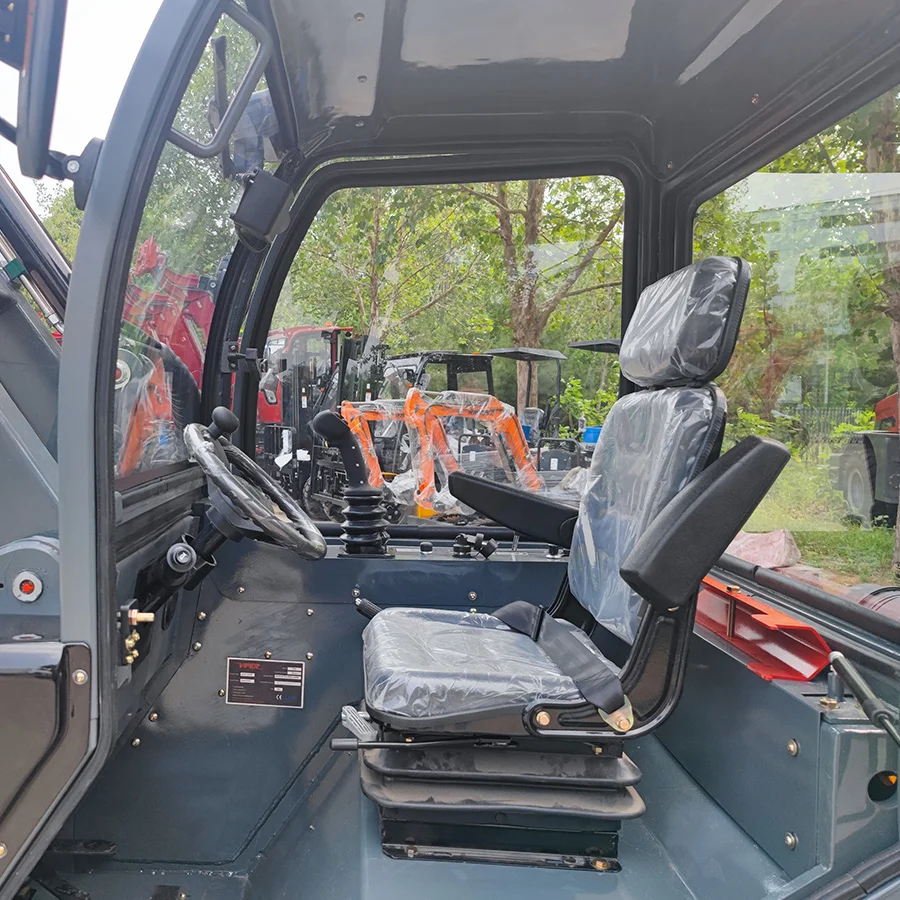

DY840 Wheel Loader Cabin:

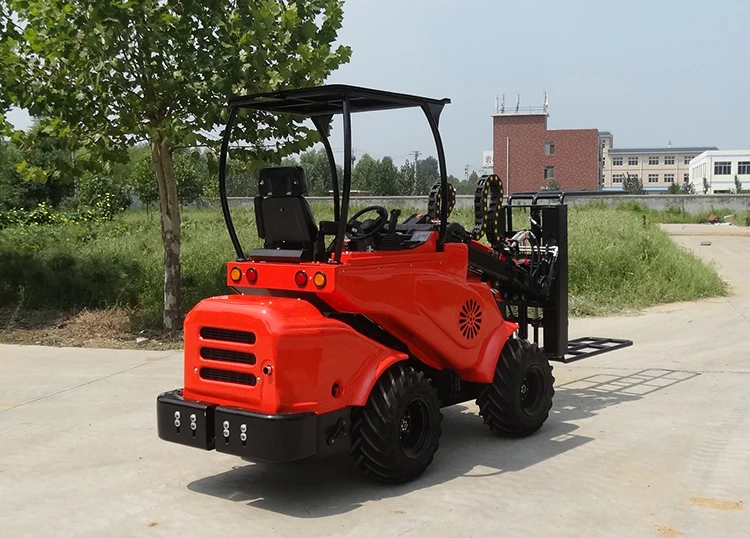

The standard basic version is Steel Proof Canopy or Collapsible Roll Bar. Closed Cab with Door is optional.
 |  |  |
| Collapsible Roll Bar | Steel Proof Canopy | Closed Cab |

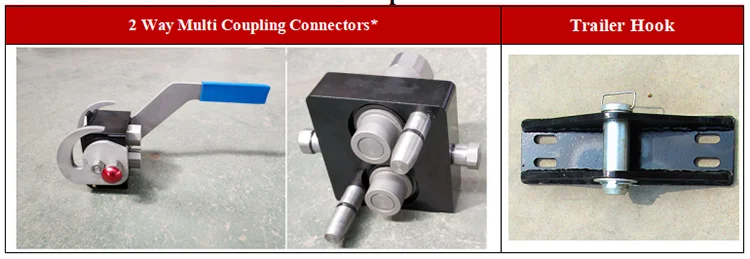

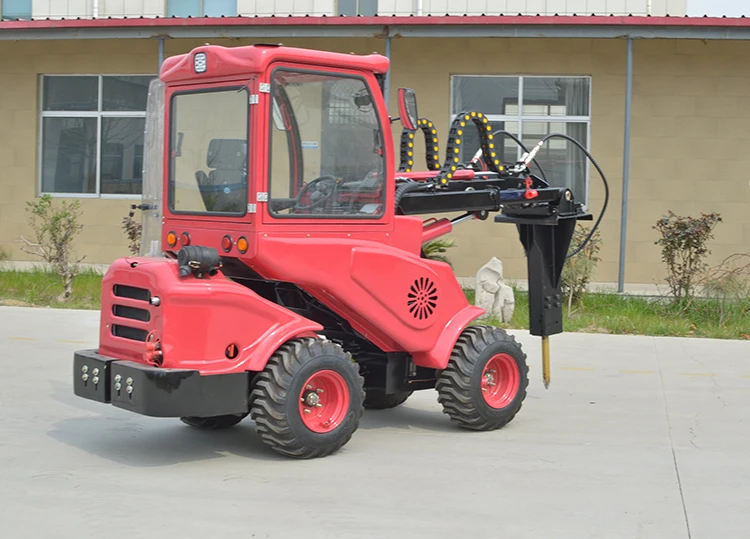

DY840 Wheel Loader Options:
Our products are exported to many countries and regions overseas and have won unanimous praise from customers

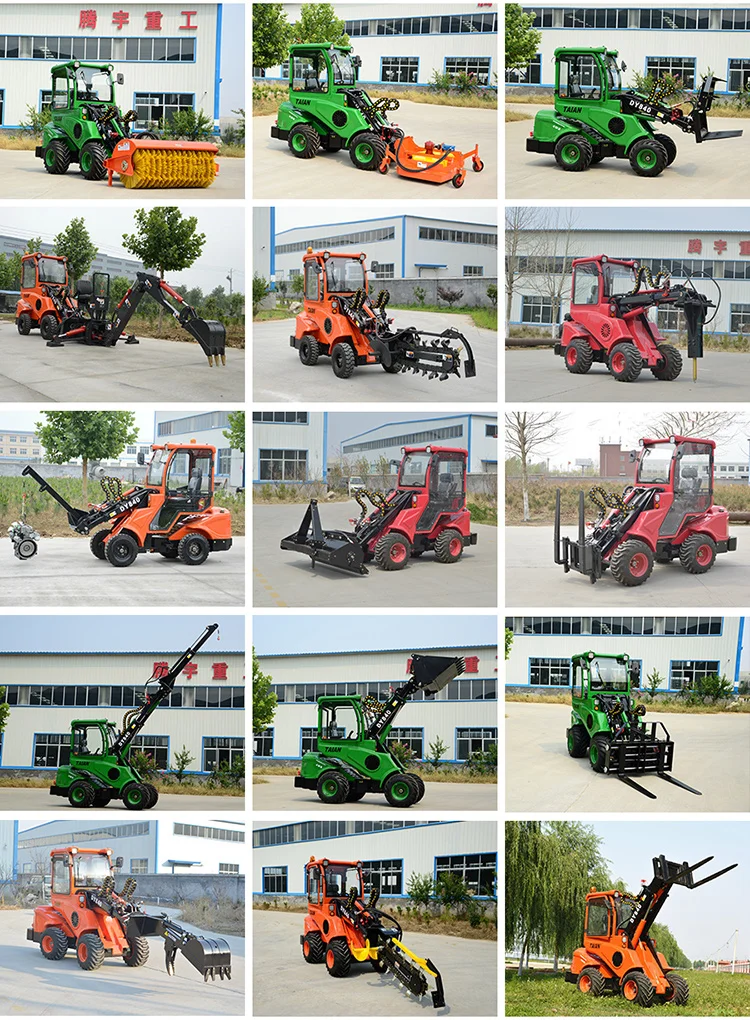

DY series loaders are very good at agriculture works. Powerful lifting force allows easily carrying round bales and performing all cleaning and maintenance operations required when breeding animals. The wide range of attachments and the power of DY loaders make the machine versatile for the care and maintenance of stable, nurseries, vineyards and orchards. Its compact dimensions allow it to move even in the narrowest spaces that cannot be accessed with other machines.
You can choose different models according to actual needs

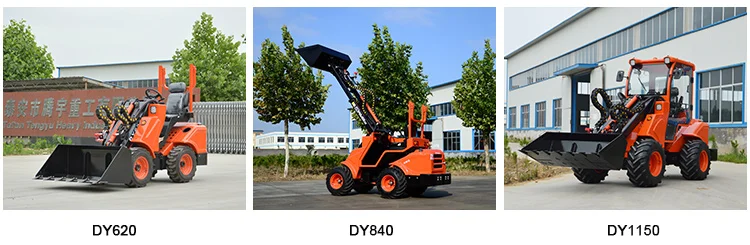

| Compare | DY620 | DY840 | DY1150 |
| Overall Dimensions (L*W*H) | 2195mm*980mm*2150mm | 2600*1240*2300mm | 3410mm*1500mm*2350mm |
| Max. Reach (Boom Extended) | 2750mm | 3000mm | 3540mm |
| Max. Reach (Boom Retracted) | 2150mm | 2480mm | 2910mm |
| Rated Loading Capacity | 500kg-800kg | 850kg-1000kg | 1600kg |
| Min. Turning Radius | 1980mm | 2480mm | 2818mm |
| Speed | 10km/h | 12km/H | 16.5km/h |
| Weight | 1100 kg | 1860kg | 2300kg |
| Standard Tire | 23X8.5-12 | 26X12-12 | 31X15.5-15 |
Related Products
Company Information
About Dongyue Carrying:
Participate In The Exhibition:
FAQ
1.Q:Why choose us?
A:First of all, we are the first one in China who start to produce telescopic loaders, thus we have rich experiences with such kind of loaders.
Second, we are real manufacturer, compared with other trading companies, the quality, delivery time and after service can be well guaranteed. We warmly welcome you to visit our factory to check everything.
Third, professional sales, engineering and service team makes your purchasing pleasant and convenient.
2.Q:What’s the warranty of the products?
A:For all our loaders, we offer one year or 1000 working hours warranty whichever comes first. And most important, within warranty, we’ll offer relative parts for free by airway or express post, customers can receive the parts within 4~6 days.
