Risen Bifacial Mono Solar Panel 560W 570W 585W EU Warehouse Solar Panel For Camping
- Category: >>>
- Supplier: Sunevo Solar Co. Ltd.
Share on (1601034403668):
Product Overview
Description
Products Description
Model Type | RSM144-9-560-585BNDG | |||||||||||
Rated Power in Watts-Pmax(Wp) | 560 | 565 | 570 | 575 | 580 | 585 | ||||||
Open Circuit Voltage-Voc(V) | 51.37 | 51.57 | 51.77 | 51.97 | 52.17 | 52.37 | ||||||
Short Circuit Current-Isc(A) | 13.89 | 13.95 | 14.01 | 14.06 | 14.12 | 14.18 | ||||||
Maximum Power Voltage-Vmpp(V) | 43 | 43.2 | 43.4 | 43.6 | 43.8 | 44 | ||||||
Maximum Power Current-Impp(A) | 13.04 | 13.1 | 13.15 | 13.21 | 13.26 | 13.32 | ||||||
Module Efficiency (%) | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 | ||||||
TEMPERATURE & MAXIMUM RATINGS | ||||||||||||
Nominal Module Operating Temperature(NMOT) | 44°C±2°C | |||||||||||
Temperature Coefficient of Voc | -0.25%/°C | |||||||||||
Temperature Coefficient of Isc | 0.046%/°C | |||||||||||
Temperature Coefficient of Pmax | -0.29%/°C | |||||||||||
Operational Temperature | -40°C~+85°C | |||||||||||
Maximum System Voltage | 1500VDC | |||||||||||
Max Series Fuse Rating | 30A | |||||||||||
Limiting Reverse Current | 30A | |||||||||||

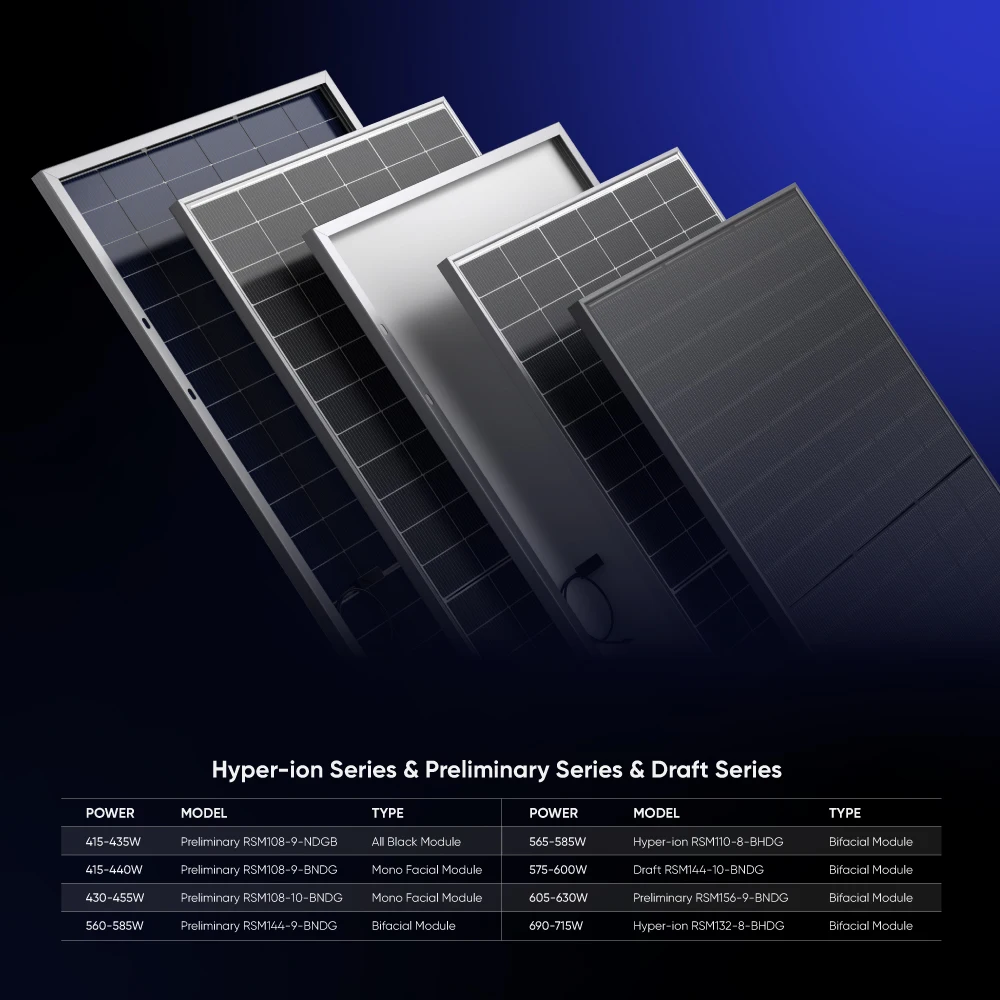

Products Series
690~715W Bifacial
Hyper-ion RSM132-8-690-715BHDG
Cells Layout: 132 Half Cells(6x22)Dimensions: 2384×1303×33mm
Weight: 37.5kg
Modules per box: 33pcs
Modules per 40' container: 594pcs
605~630W Bifacial
RSM156-9-605-630BNDG
Cells Layout: 156 Half Cells(6x26)
Dimensions: 2465×1134×30mm
Weight: 33.5kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
Dimensions: 2465×1134×30mm
Weight: 33.5kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
575~600W Bifacial
RSM144-10-575BNDG-600BNDG
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2384×1134×30mm
Weight: 33.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimensions: 2384×1134×30mm
Weight: 33.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs

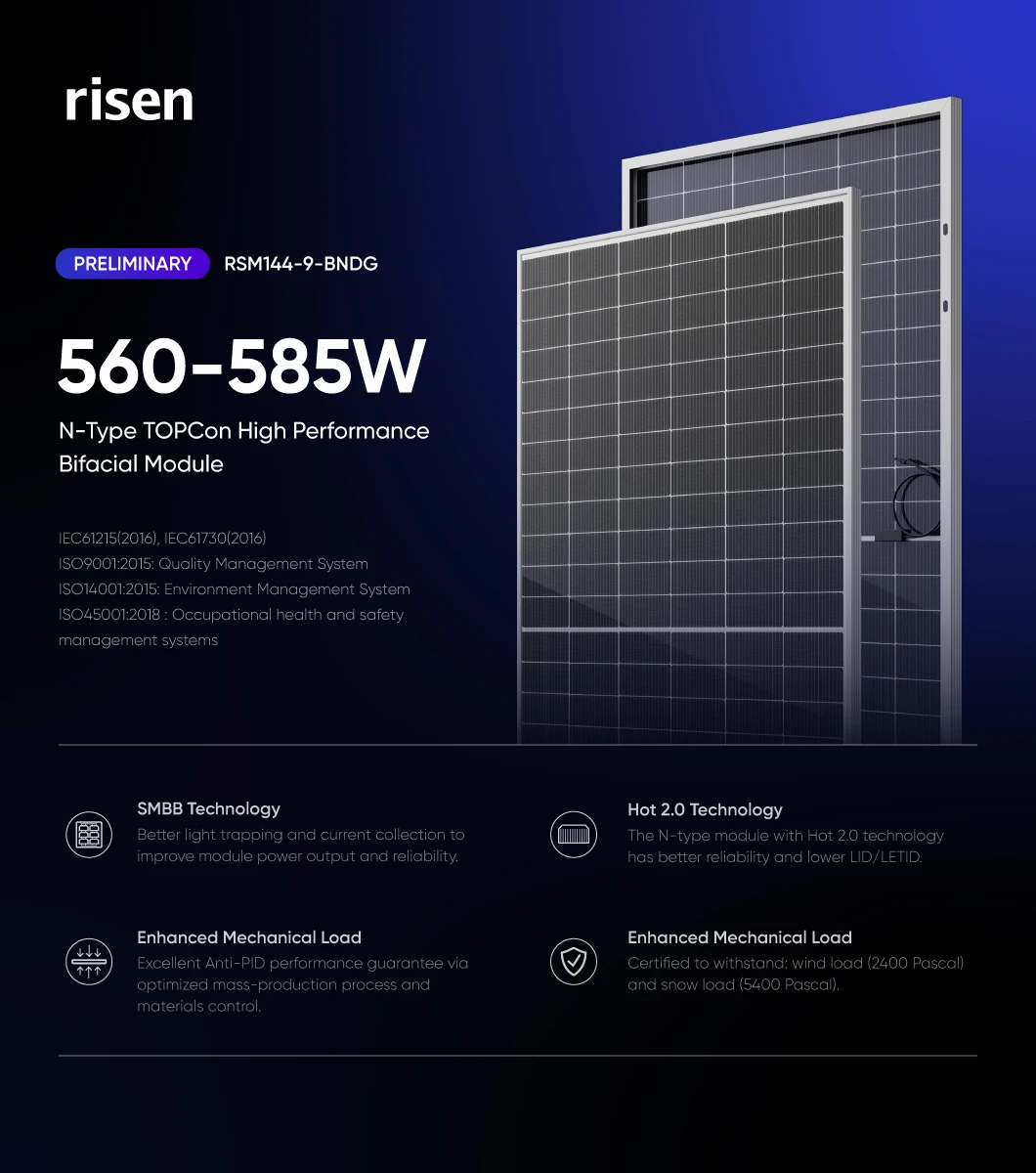

560~585W Bifacial
RSM144-9-560-585BNDG
Cells Layout: 144 Half Cells(6x24)
Dimensions: 2278×1134×30mm
Weight: 31kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimensions: 2278×1134×30mm
Weight: 31kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
565~585W Bifacial
Hyper-ion RSM110-8-565-585BHDG
Cells Layout: 110 Half Cells(5x22)
Dimensions: 2384×1096×30mm
Weight: 33kg
Modules per box: 35pcs
Modules per 40' container: 700pcs
Dimensions: 2384×1096×30mm
Weight: 33kg
Modules per box: 35pcs
Modules per 40' container: 700pcs
RSM108-10-430-455BNDG
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1800×1134×30mm
Weight: 22kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1800×1134×30mm
Weight: 22kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
RSM108-9-415-440BNDG
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1722×1134×30mm
Weight: 20.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1722×1134×30mm
Weight: 20.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
RSM108-9-415-435NDGB
Cells Layout: 108 Half Cells(6x18)
Dimensions: 1722×1134×30mm
Weight: 20.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimensions: 1722×1134×30mm
Weight: 20.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

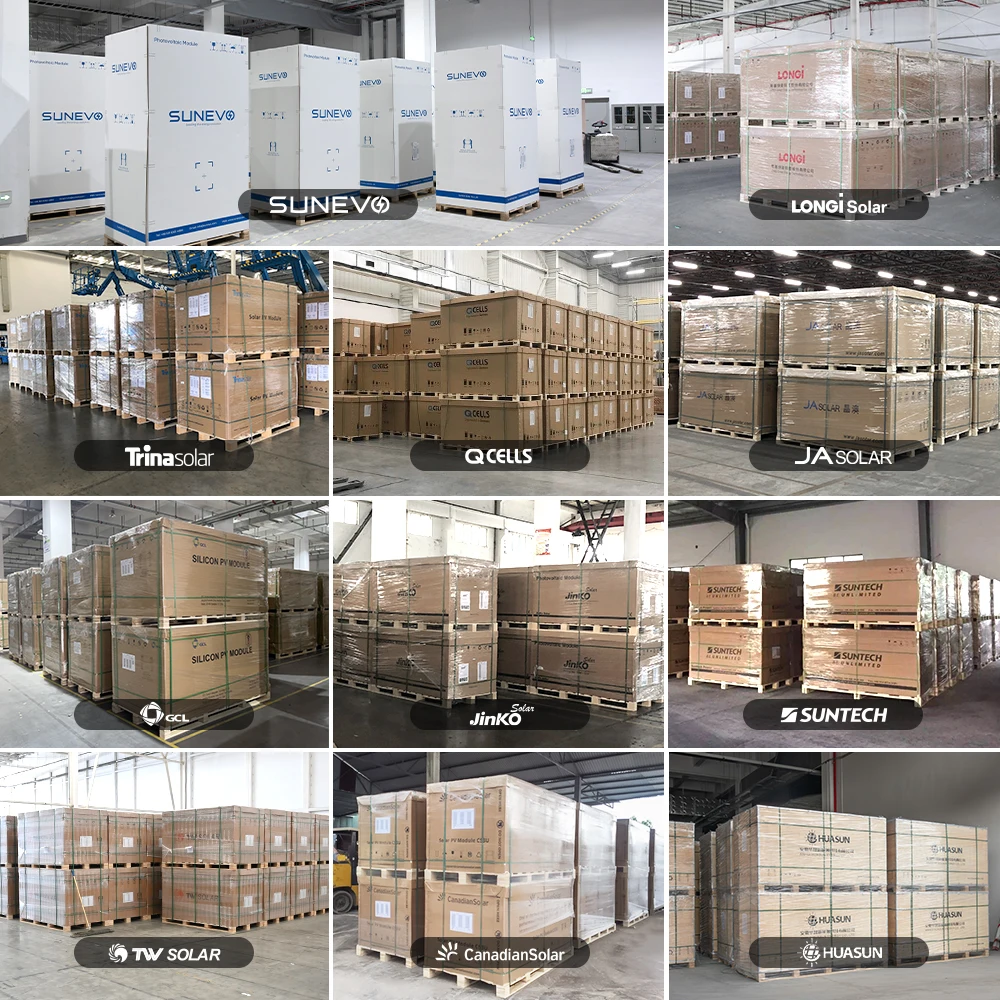

Pictures and Packages
