Products Description



What is Exploration Drilling Rig from Heangwang?
1. Efficiency of core drilling rig This exploration drilling rig has high coring efficiency, the core diameter is HTW-NTW-BTW, and the drilling depth is 180-400-500 (M). This exploration drilling rig suitable for rock geology. This core sample drill rig can drill about 50-80m per hour.The rope coring process does not need to lift the drill pipe, and the hoist is connected to the fishing tool, which improves the geological drilling rig's coring efficiency. The
use of thin-walled drilling tools can also improve the drilling efficiency of the rock core drilling machine, and is currently the most popular core drilling rig on the market.
2. Advantages of Core Drilling Rig The crawler-type geological drilling rig is an integrated rock core drilling rig that is installed on a machine by a winch, a mud pump, a tower, a power head, and a crawler chassis. Mainly used for prospecting, gold ore iron ore coal lithium ore rubidium ore, stone ore and so on. The mineral exploration drilling rig has advanced structure, adopts full hydraulic transmission, ground-contact multi-angle tower, thin-walled diamond rope core drilling technology, reliable quality, sophisticated technology, precise and convenient operation. The angle of the drilling tower can be adjusted in the range of 45° to 90°, and the mineral exploration drilling rig can perform inclined hole drilling from 45° to 90° without the need to operate the tower, reducing the safety risk of the tower operation and increasing the safety factor of the operation. It can be widely used in core drilling work with extremely complex ground conditions. It is especially suitable for construction in mountainous terrain with large cutting environments or construction in forest areas. The installation of the mining core drilling machine only needs to work on a flat site of 4*4 meters or even smaller. There is no need to build a temporary transportation road, solve the massive excavation of earth and stone or cut down a lot of trees when leveling the machine, reduce the damage to the vegetation and the environment, and reduce the compensation amount for the temporarily rented land for drilling, so as to maximize the protection of the construction site and the environment and surroundings.


Technical parameters


Diesel Engine
Model
Cummins 6CTA8.3-C260
Displacement
8.3L
Power
194kW (260 HP)
Rated RPM
1900rpm
Drilling Capacity
BQ
3500 m
NQ
2500 m
HQ
2000 m
PQ
1500 m
Drill Head

Rotation Motor
manual speedvariable motor
,rexrtoh series slanting
axial plunger motor
RPM
two Shifts

Manual speed control ： 70-

1500 RPM
Head Opener
dual hydraulic Cylinder shift
structure
Max. Torque
6550 N·m
Max. Lifting
40t
Max. Feeding
10 kN
Hydraulic Chuck(PQ)
294000N

Hydraulically opened, Disc Spring

Clamping, Normally C Closed Type

Axial Holding Capacity of 294000
N
Hold Diameter
133 mm
Primary Pump
Kawasaki series K3V
double 140 Plunger motor

dual gear pump

10ML Pilot pump

1st Pump： 252LPM at 35 MPa
2nd Pump： 252LPM at 31.5MPa
3rd Pump： 90 LPMat 31.MPa
4rd Pump： 36 LPM at 31.5MPa
5rd Pump：18 LPM at 31.5MPa
Capacity of Main Hoist

Hoisting force

singel rope 8t,
double rope 16t
Steel Wire
22-24 mm
Steel Wire Length
20 m
Capacity of Wireline

Hoist
Hoisting Force

(single wire)
1-2t
Steel Wire
6 mm-8mm
Steel Wire Length
3500 m
Mast
Mast Height
9.5 m
Mast Adjusting
0 °—90 °
Drilling Angle
45º off horizontal to
90ºvertical down
Feeding Stroke
3400 mm
Slippage
1100 mm
Feed Thrust
10 ton
Rod Pull
3m or 6m(9.84feet or 19.68feet)
Mud Pump
Type

Reciprocating Pump Triplex
Plunger
Model
BW320
Output volume
320L/min
Discharge
8.0 Mpa
Foot Clamp
Clamping Scope
55.5-118 mm
Others
Weight
12.50 ton
(L × W ×H )

Transport Dimensions
6300×2200×2400mm
Transport Way
Steel Crawler

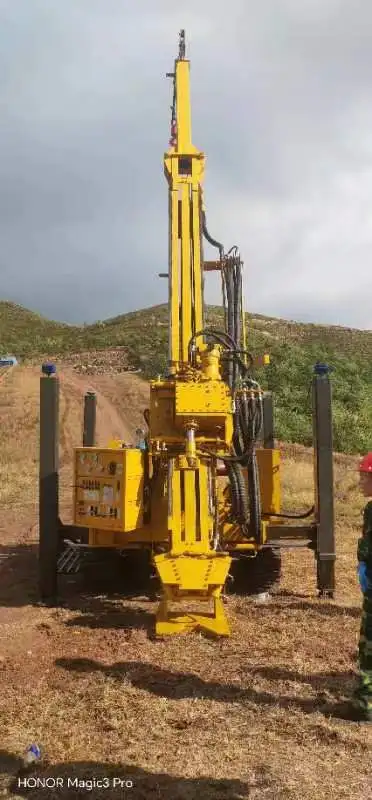

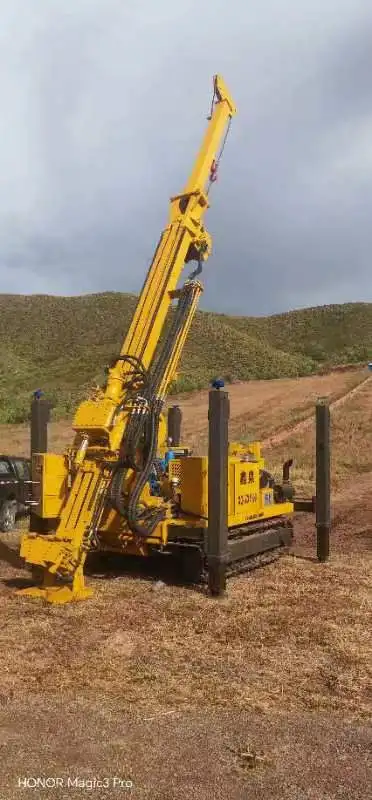

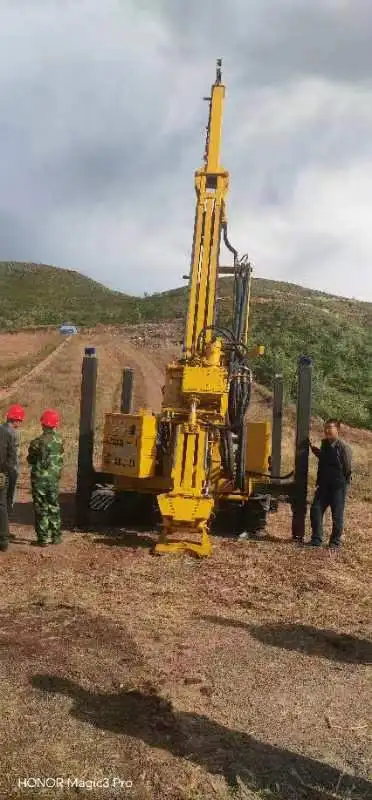

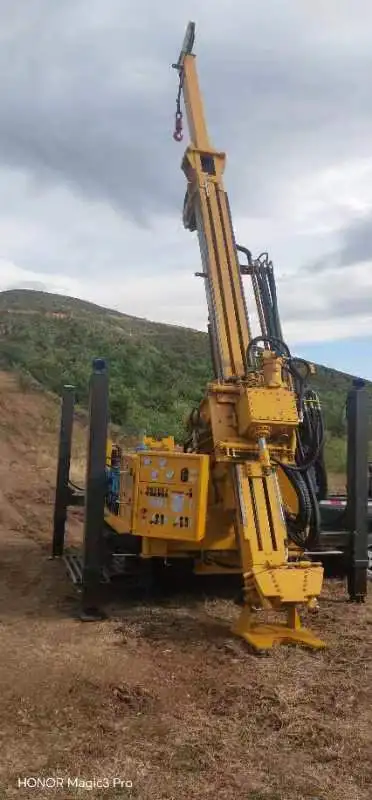

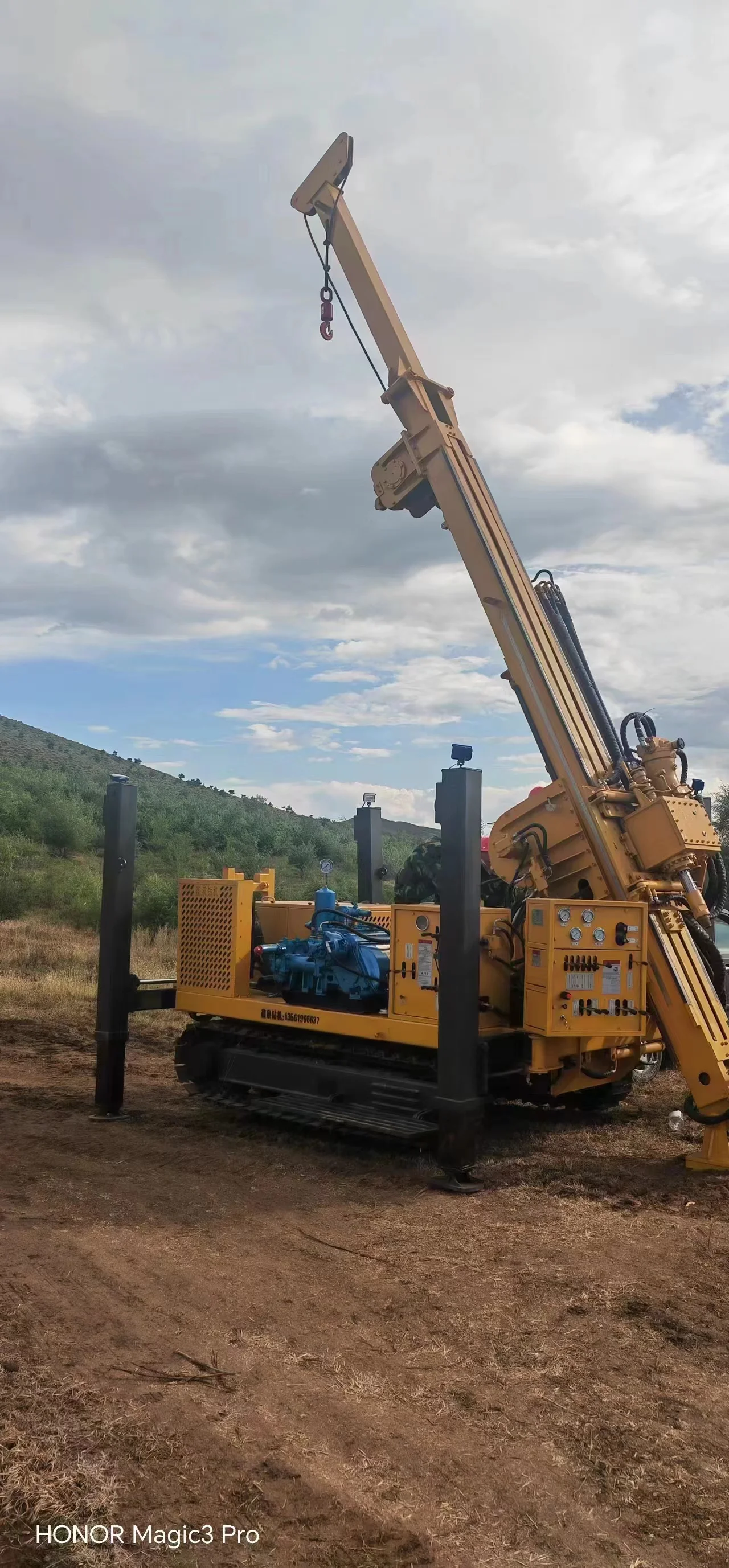

Details Images




Sales Service




About Us






Packaging & Shipping




FAQ




1:Are you original manufacture?
A:Yes, we are an official leading manufacture in constrution machinery in china and we have the whole series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Whick incoterms 2010 terms can we work?
A:Normally we work on FOB,CFR,CIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warrenty time?
A:12 months afer shipment or 2000 working hours.
6:What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
