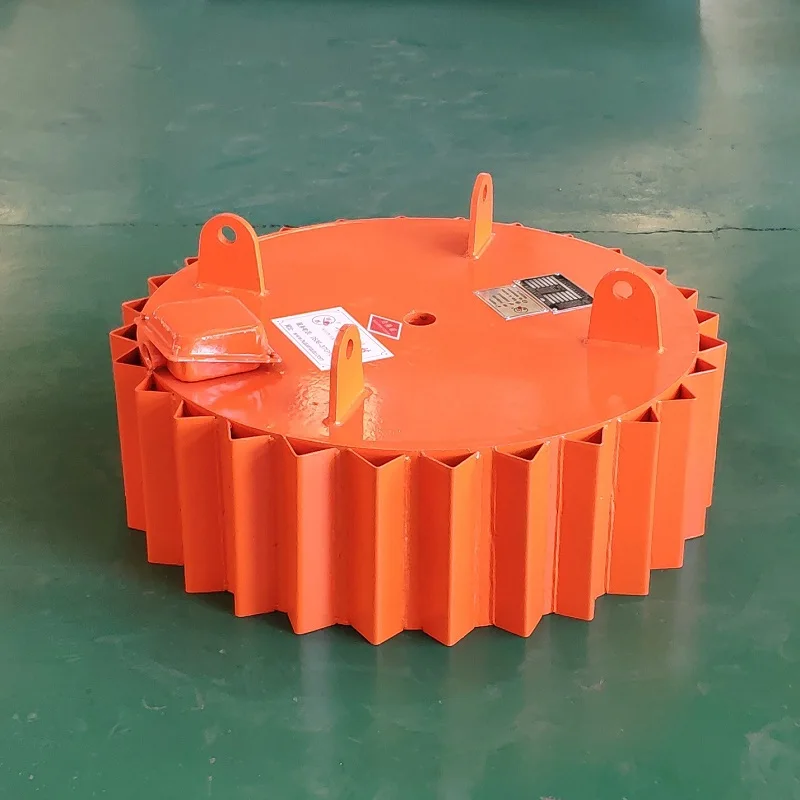

PDC suspended magnetic plate overband iron separator for conveyor belt

Product Overview

Description

       suspended Electromagnetic electromagnet separator for conveyor belt

Introduction of suspended Electromagnetic electromagnet separator for conveyor belt:

Suspended Electromagnet is an electromagnetic device used to remove iron from scattered non-magnetic materials. It is usually installed in the head or middle of belt conveyor. The strong magnetic force generated by the electrification will absorb the iron mixed in the material and then be thrown out by the strip to achieve the purpose of automatic removal. And can effectively prevent the conveyor belt longitudinal division, protect crusher, grinding machine and other equipment of normal work. The series iron remover is widely used in electric power, mining, metallurgy, building materials, coal preparation, chemical and other sectors.

Main features of suspended Electromagnetic electromagnet separator for conveyor belt

HuaXin Electromagnet come out ,through all the way needed , without one technical step missing.



1. The fully sealed natural cooling structure can effectively prevent the erosion of the coil by moisture, dust and harmful gases. Strong adaptability to climate and environment, and reasonable structure, easy operation and maintenance, safe and reliable for suspended electromagnet,

2. The magnetic circuit of suspended electromagnet is optimized to have a large depth of penetration, and the geometric shape of the spatial magnetic field is approximately rectangular hemispherical, so it has more attractive force than other similar products.

3. The suspension electromagnet excitation coil is dried by vacuum and filled with special filling materials, which improves the mechanical and electrical properties and thus has a long life.

4, the Electromagnet supporting performance is good, with all kinds of rectifier equipment functions, can adapt to the use of various occasions.

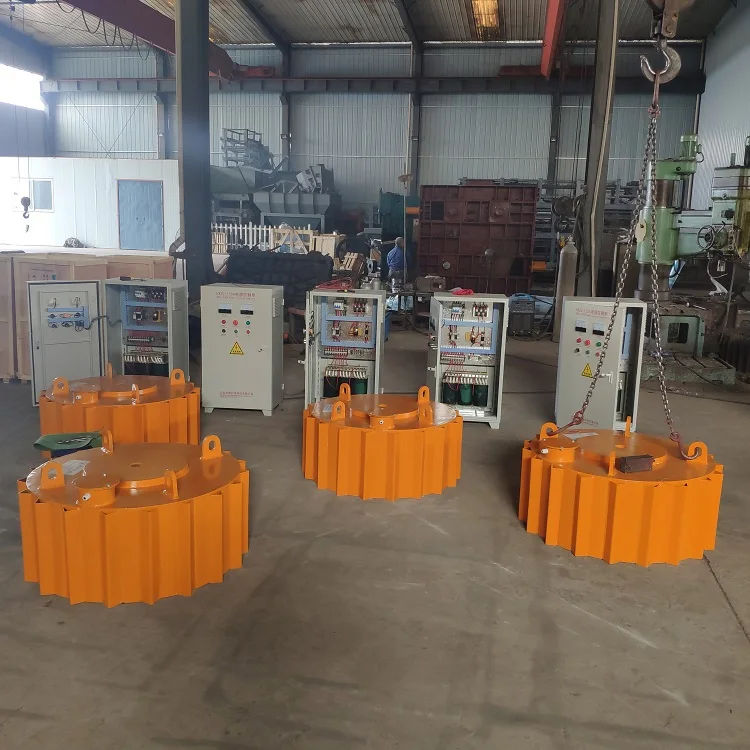

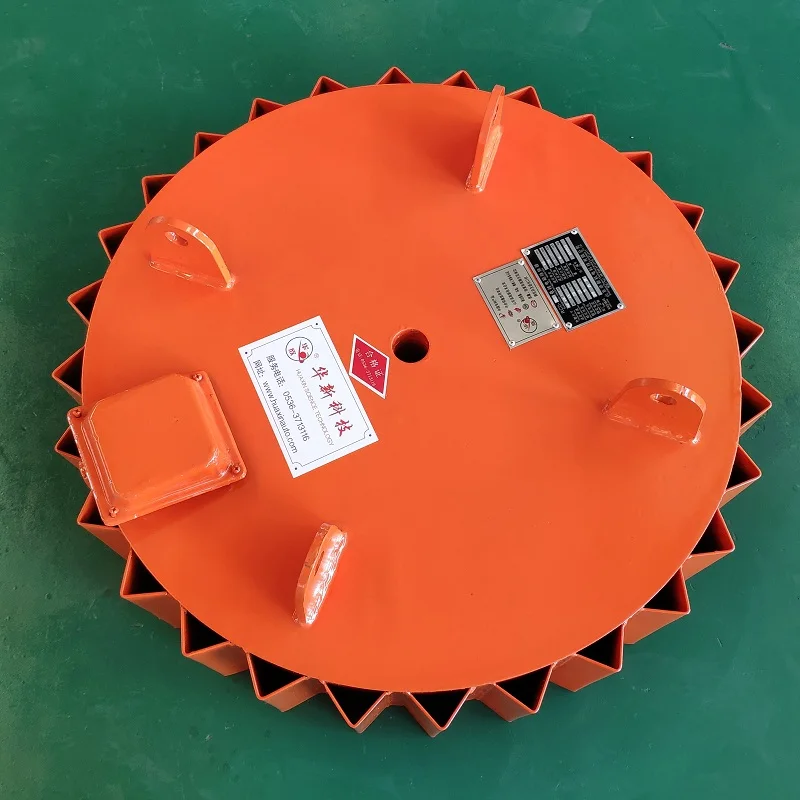

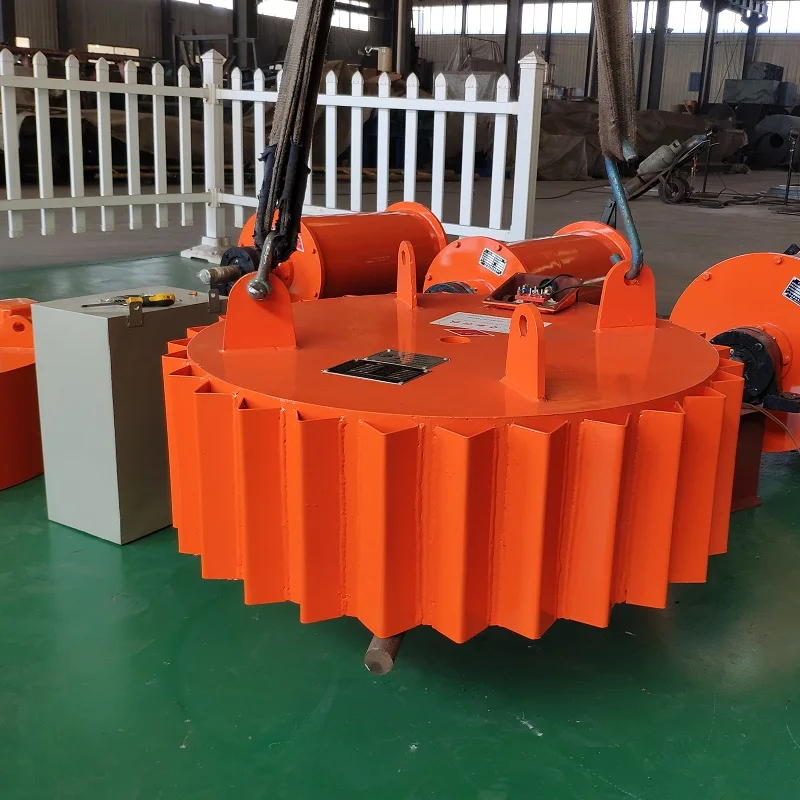

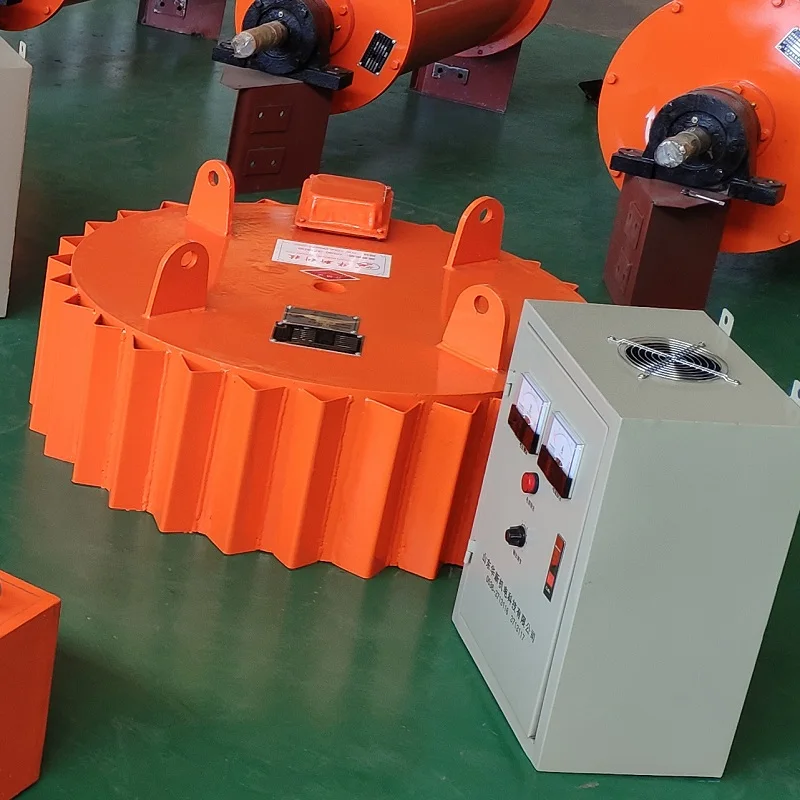

Photo Views of electromagnetic separator

HuaXin Electromagnet come out ,through all the way needed , without one technical step missing.



 electromagnetic separator for conveyor

suspended  electromagnetic separator

suspension electromagnetic separator

 suspended electromagnet



Technical data



model	belt width≤mm	rated height≤mm	magnetic intensity≥mT	burden depth≤mm	exciting power≤kw	weight
						kg
RCDB-3	300	75	60	50	0.4	185
RCDB-4	400	100	60	70	0.6	300
RCDB-5	500	150	70	90	1	430
RCDB-6	600	175	70	120	1.6	580
RCDB-6.5	650	200	70	150	2	680
RCDB-8	800	250	70	200	3.6	950
RCDB-10	1000	300	70	250	5	1520
RCDB-12	1200	350	70	300	6.8	2250
RCDB-14	1400	350	70	350	9	2950
RCDB-16	1600	400	70	350	13	4800
RCDB-18	1800	400	70	400	18	6900













































Production process of suspended Electromagnetic electromagnet separator for conveyor belt

Through all the way needed ,



Installation Case of suspended Electromagnetic electromagnet separator for conveyor belt

HuaXin Electromagnet come out ,through all the way needed , without one technical step missing.
