Large measuring range 3000A cable fault analysis clamp on current transformer

S1203000A CABLE FAULT ANALYSIS CLAMP ON CURRENT TRANSFORMER

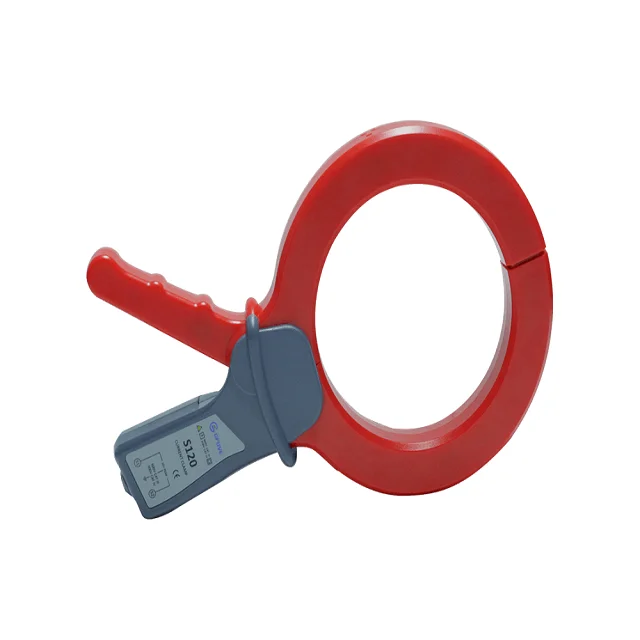

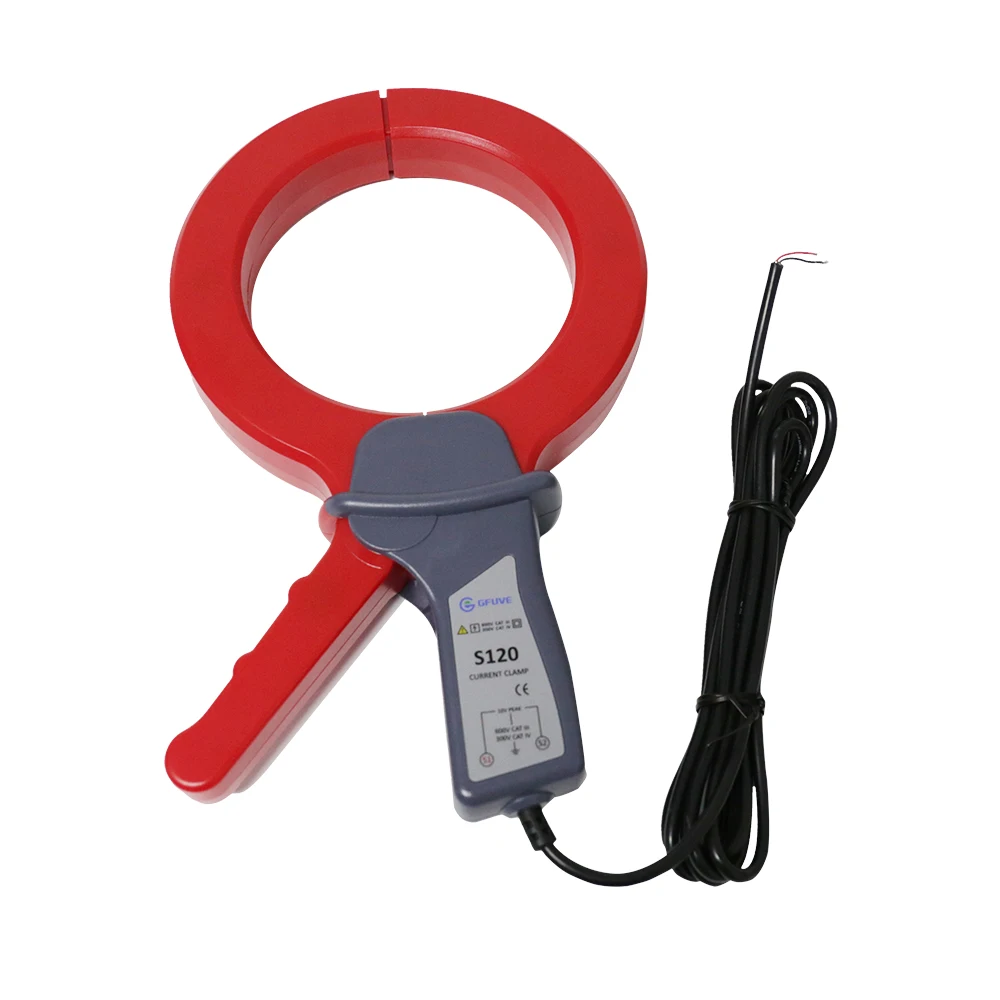

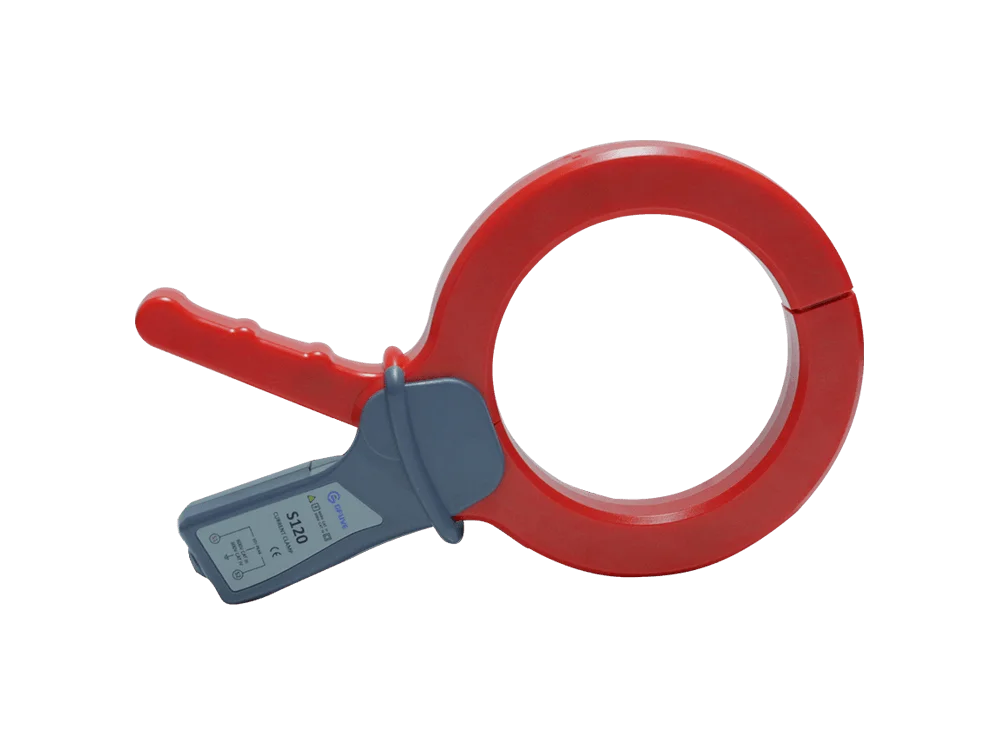

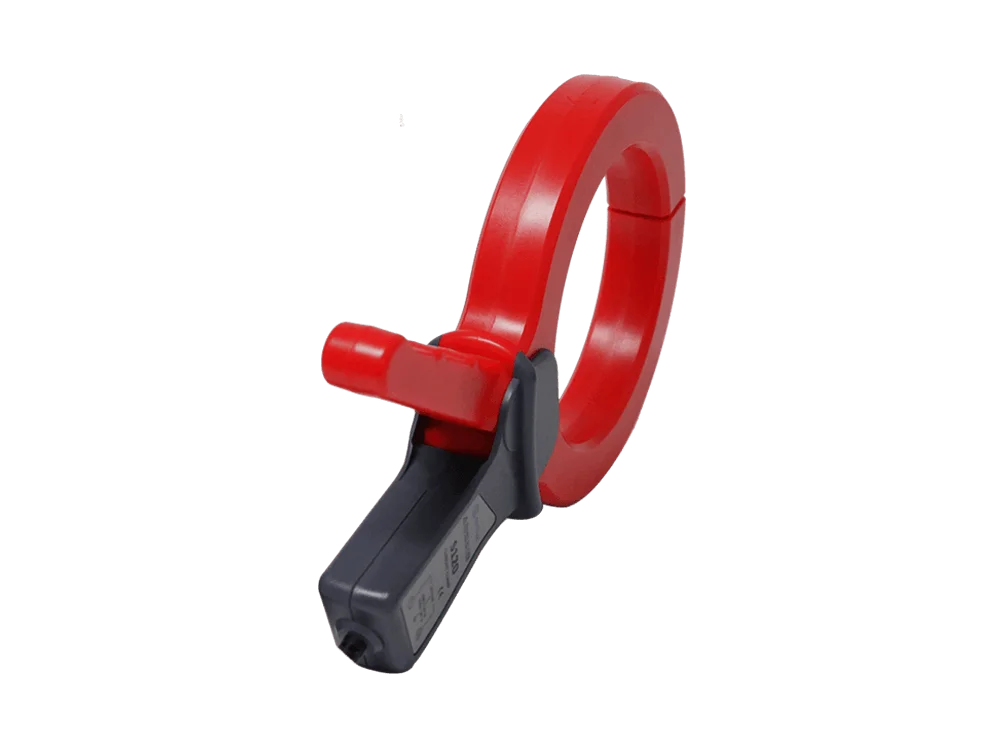

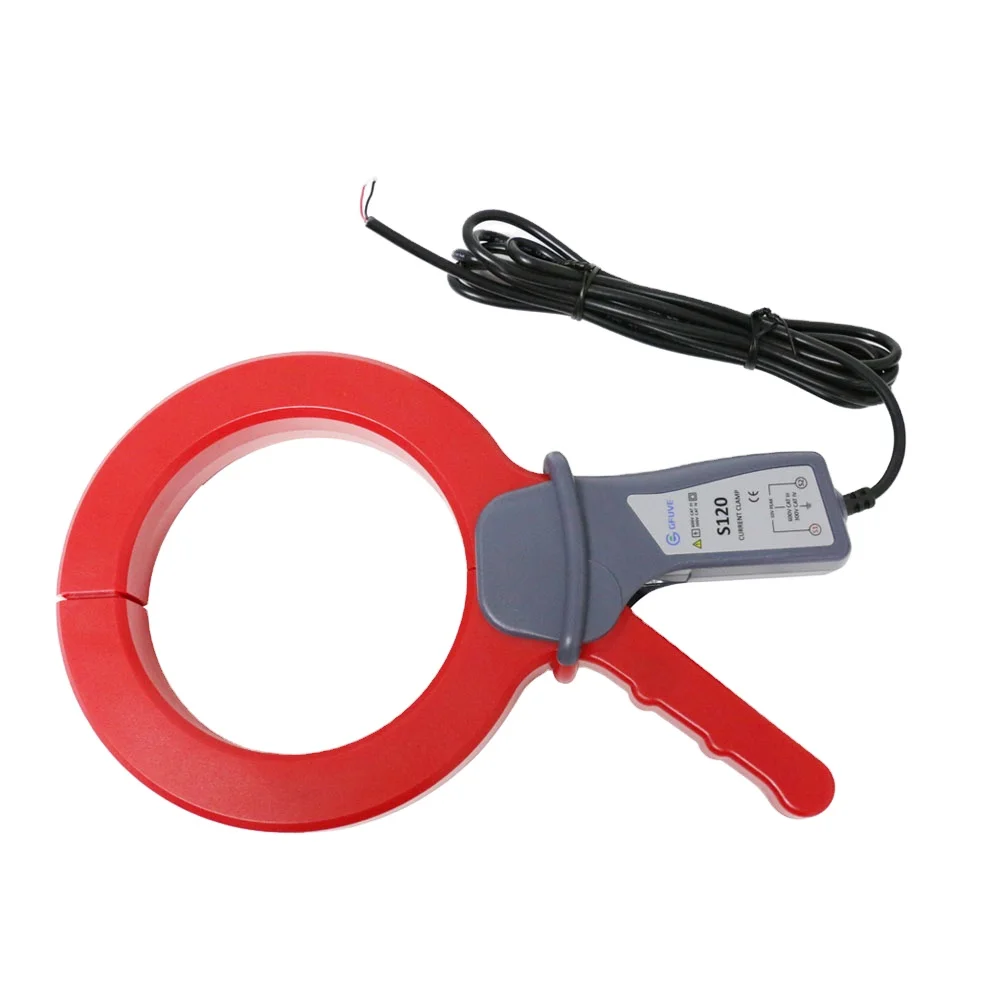

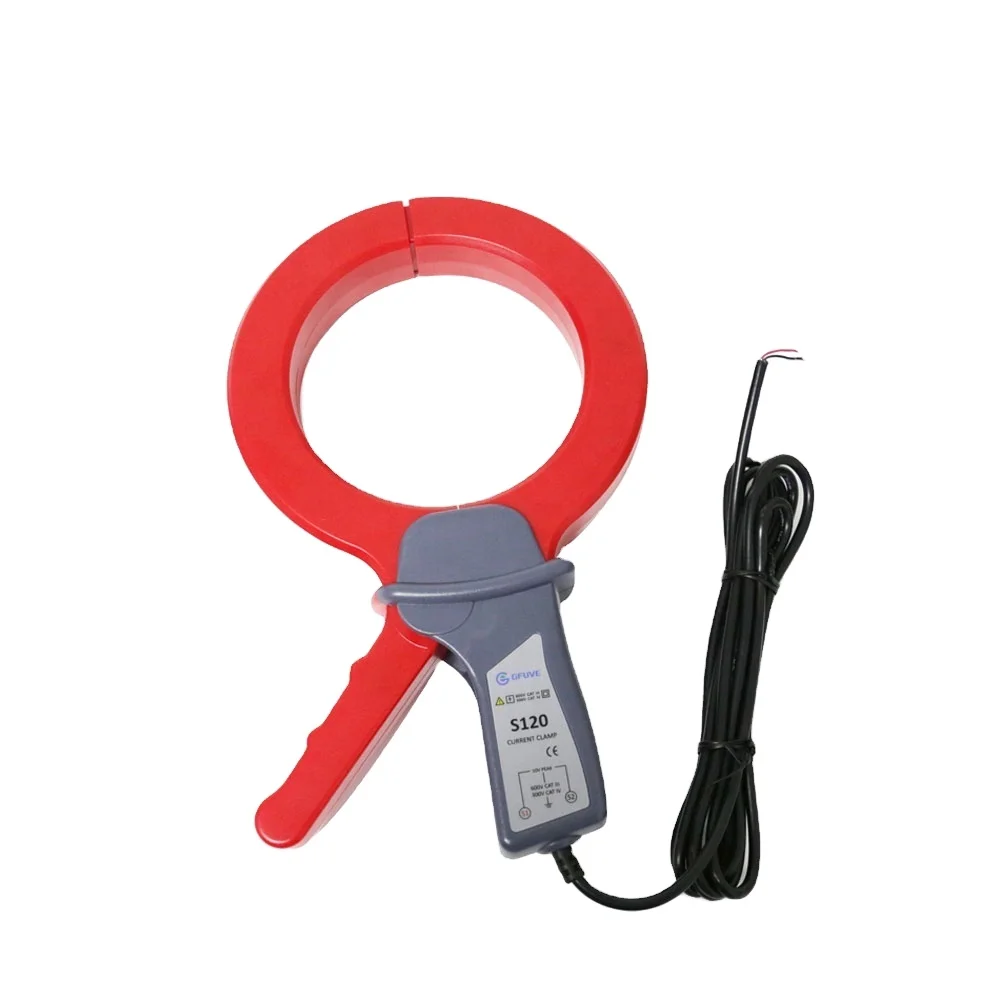

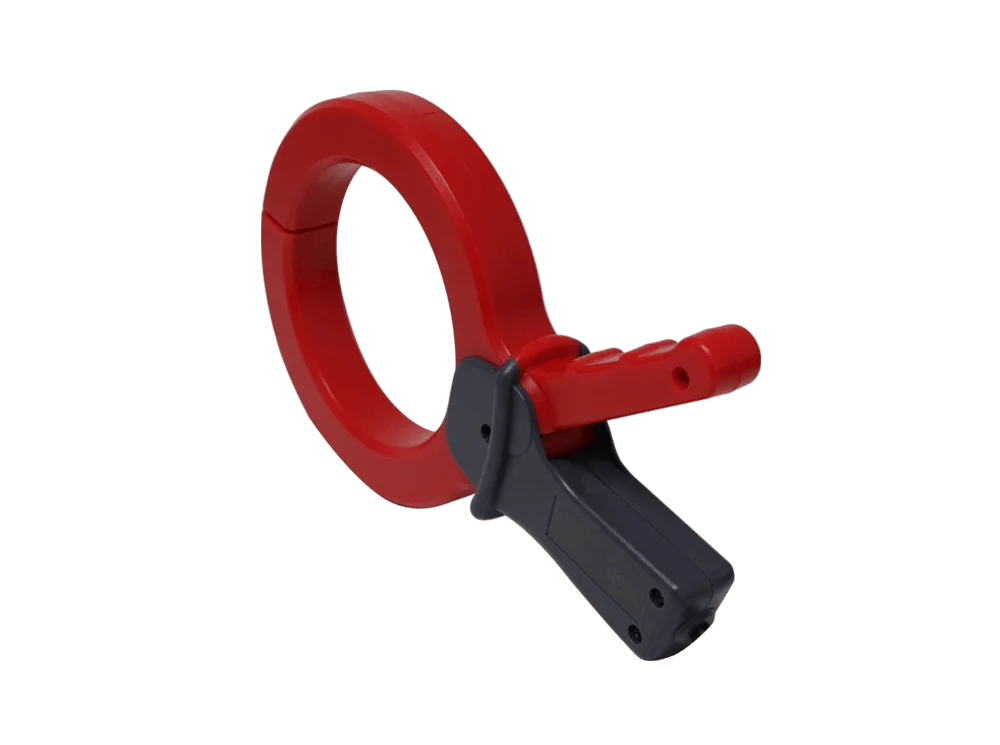

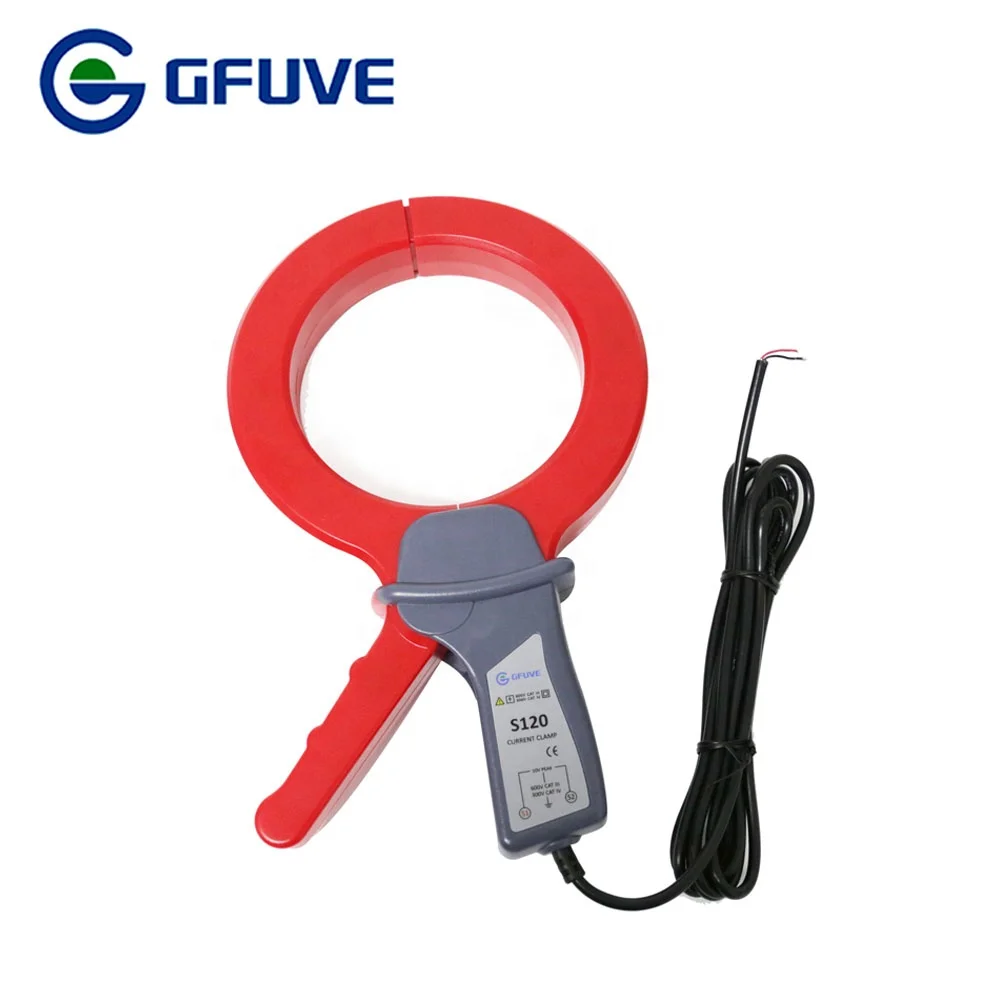

The S120 current clamp is a high performance AC Clamp on current transformer probe with excellent transformation and low phase shift. The high quality magnetic permalloy core and uniform windings provide for accurate measurements up to 3000AAC/2000AAC/1000AAC/500AAC. The "ring type" jaw permits good magnetic conduction and cable positionings. Provide excellent RMS capabilities and reliable signal reproduction.

The S120 clamp on ct is well suited for power quality applications where high accuracy and low phase shift along with wide frequency from 10Hz to 2MHz are important. Measurement range is 100mA to 3000A.
The S120 clamp on current transformer is a general purpose 3000A AC Clamp current probe transformer designed for use with DMMs & BNC, cable fault analysis and loggers instruments that have a current input. It has a 1000:1 or 2000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The S120 has an integral 2.5m or 5m lead terminated. The rounded jaw design on this clamp probe makes it well-suited for cable fault analysis applications where high accuracy and low phase shift and wide frequency.

• Power meter;


• Cable fault analysis;


• Large industrial loads;


• Power load monitoring;


• Data logging/recording;


• Energy meter calibrator;


• Power quality monitoring;


• Power and harmonic meters;


• Power quality analyzer(PQA);


• CT secondary current detection;


• Measuring around cable bundles;


• Waveform analysis(oscilloscopes meter);

• UL, CE CNAS mark;


• Frequency 10-2MHz;


• Holding wire diameter: φ120mm;


• Conforms to EN 61010, 600V CAT III;


• Low phase shift for power measurement;


• Industrial design & beautiful appearance;


• High content nickel metal permalloy core;


• Measurement range of 1mA to 3000A AC;


• Transformation ratio: 1000:1, 2000:5, 3000:5;


• Improved ergonomic design & easy operation;


• High precision 0.1% for current measurement;


• Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters;
