Raymond Mill for Ore Phosphate Powder Production Line 325 Mesh Powder Pulverizer Pendulo Molino Raymond Mill
- Category: >>>
- Supplier: Gongyi City Jingying Machinery Manufacturing Factory
Share on (1601034434682):
Product Overview
Description
Product Description
What is the application of Raymond/Grinding Mill?
Raw material: Grinding gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, iron oxide red, iron ore, etc
Hardness: below 7
Humidity below 6%
Final grinding size: 60-325 mesh (0.125 mm - 0.044 mm)
Product Parameter
Model | Number of grinding rollers | Grinding roller size(mm) | Grinding ring outer diameter and height (mm) | Max feeding Size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
3R1410 | 3 | 150*100 | 495*100 | 15 | 0.198-0.044 | 0.3-1.2 | 7.5 | 3340×2200×3200 |
3R2115 | 3 | 210*150 | 726*150 | 15 | 0.198-0.044 | 0.4-1.6 | 15 | 4480×3100×3970 |
3R2615 | 3 | 260*150 | 865*150 | 20 | 0.198-0.044 | 0.8-2.5 | 18.5 | 5000×4100×4850 |
3R2715 | 3 | 270*150 | 884*150 | 20 | 0.198-0.044 | 0.9-3 | 22 | 5050×4150×4900 |
3R3015 | 3 | 300*150 | 965*150 | 20 | 0.198-0.044 | 1.2-4 | 30 | 5200×4200×4950 |
4R3016 | 4 | 300*160 | 990*160 | 20 | 0.198-0.044 | 1.5-4 | 30 | 5250×5000×5500 |
4R3216 | 4 | 320*160 | 1073*160 | 25 | 0.198-0.044 | 1.8-6 | 37 | 7700×7200×8800 |
5R4119 | 5 | 410*190 | 1400*190 | 30 | 0.198-0.044 | 3-10 | 75 | 7900×8800×9650 |
Product Structure
Product Features
Raymond Mill Features
(1)The entire Raymond mill is a vertical structure with a relatively small footprint, strong system and strong set of integrity. It can be self-contained independently Production system from roughly processing or conveying of raw materials, milling and final packaging.(2) Compared with other Grinding milling equipment, Raymond mill has a high screening rate. The sieve size of the finished product by Raymond mill can reach more than 99%, which is not achieved by other milling equipment.
(3) The electromagnetic vibration feeder is uniform in feeding, easy to adjust, small in size, light in weight, energy-saving and power-saving, and easy to maintain.

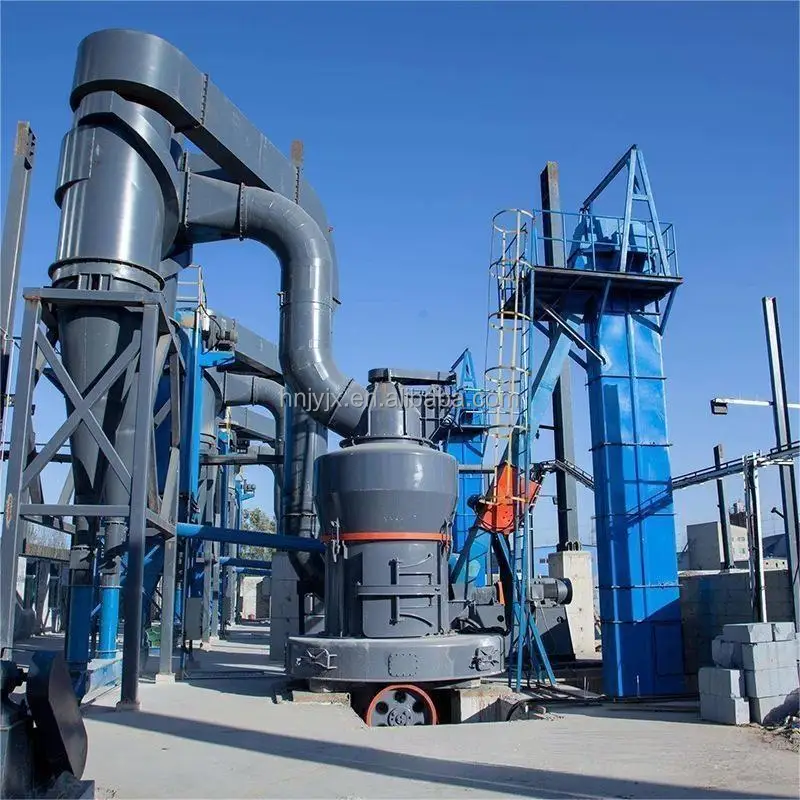

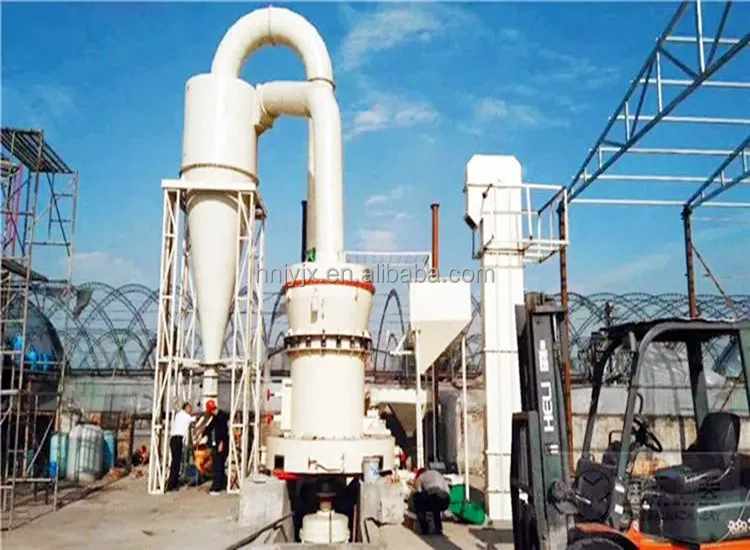

Customer Site
Packing and Shipping
For Stone Crushers, Contact Us
Why Choose Us
