Nice Price Vet Pet Ultrasonic Scalpel System Reusable For Veterinary
- Category: >>>
- Supplier: Qingdao Ansha Pharmaceutical Co. Ltd.
Share on (1601034476892):
Product Overview
Description
Product Description
Procision 100 Vet Ultrasonic Surgical System
1. Equipment Name: Ultrasonic Scalpel
2. Scope of application/intended use: It is used for soft tissue cutting that needs to control bleeding and minimal thermal damage, and can be used to close blood vessels with a diameter of no more than 5mm.
3. Technical parameters:

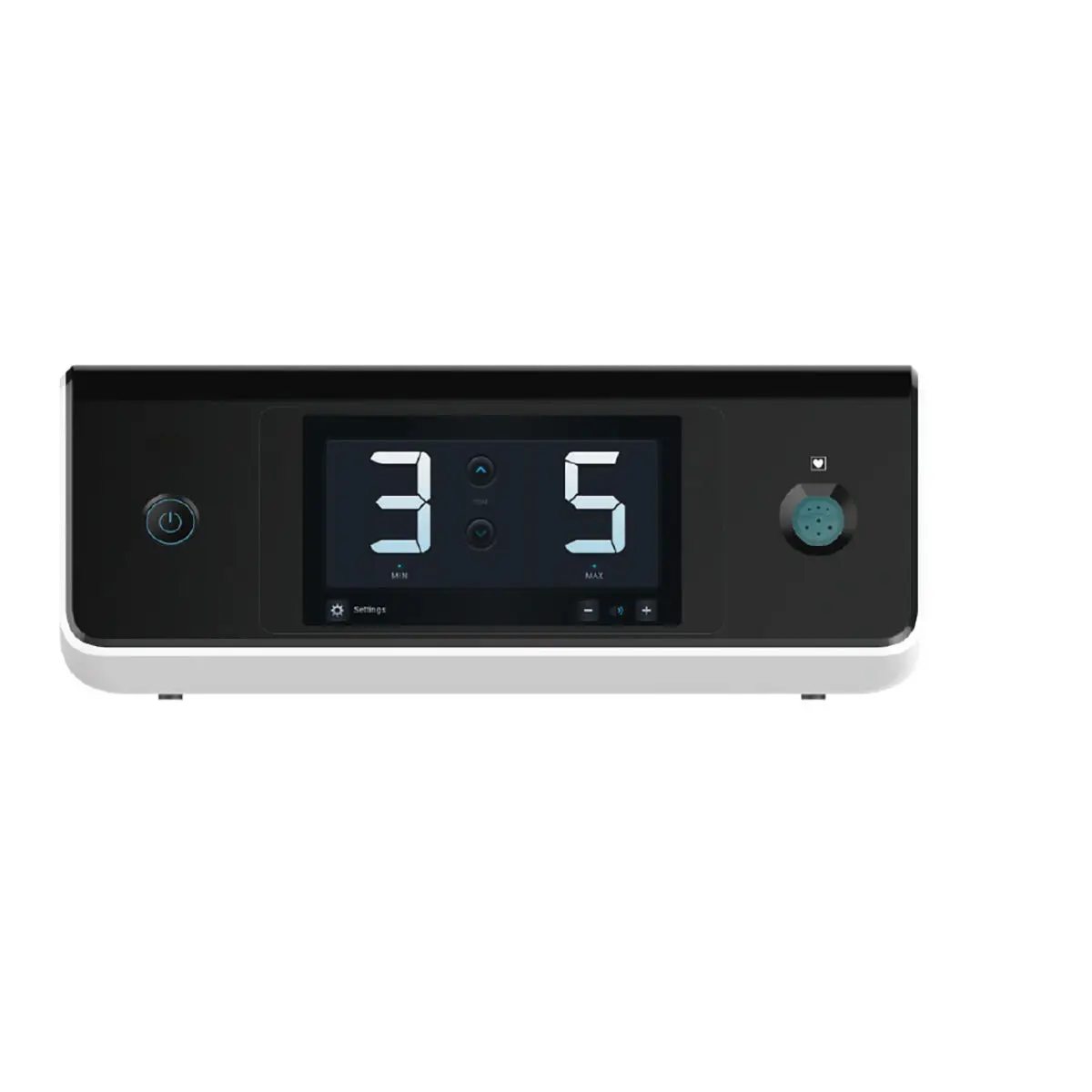

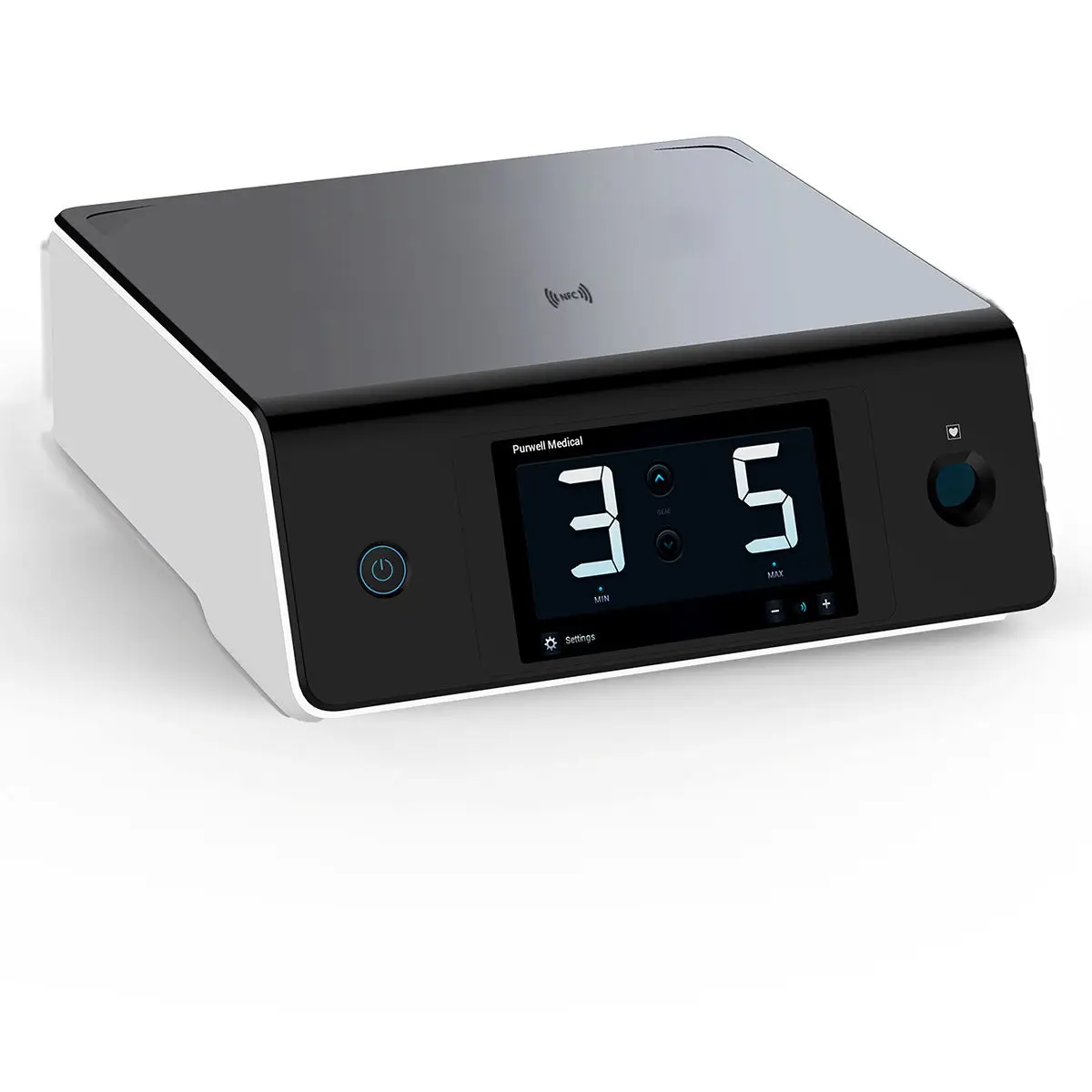

(1)Generator
1. It can automatically identify surgical instruments.
2. 7 inch color LCD touch screen, Chinese/English/German/French four languages for operation and diagnostic information display.
3. The system software version can be updated through the U disk.
4. The generator can be equipped with various specifications of shears , including cavity mirror shears and open shears
5. It can safely coagulate blood vessels of 5mm and below.
6. The power of the main engine can be adjusted in 5 gears, and the gear position is displayed during operation. When the shear is working, it can sound the working status.
7. The generator has a self test function, and the self test time is less than or equal to 3 seconds.
8. There are more than 3 kinds of prompt sounds, the volume is adjustable in 10 files, and the sound cannot be completely reduced to zero.
9, with a foot switch interface.
(2) Ultrasonic shear performance:
1. With selfadaptive induction technology, it can adjust the energy output according to the resistance change of the tissue in the jaws.
2. Vibration frequency of cutter head: 55,500Hz±500Hz.
3. Vibration amplitude of cutter head: within 50~100um.
4. There are more than 5 working surfaces of the shear ,which can meet the needs of cutting and hemostasis of different tissues in the operation.
5. The cutter head or cutter face can be rotated 360 degrees.
6. The ultrasonic knife head can safely handle blood vessels and lymphatic vessels of 5mm and below.
7. It can be used for laparoscopic surgery and open surgery.
8. The length of the shear: 14/23/36cm length is optional.

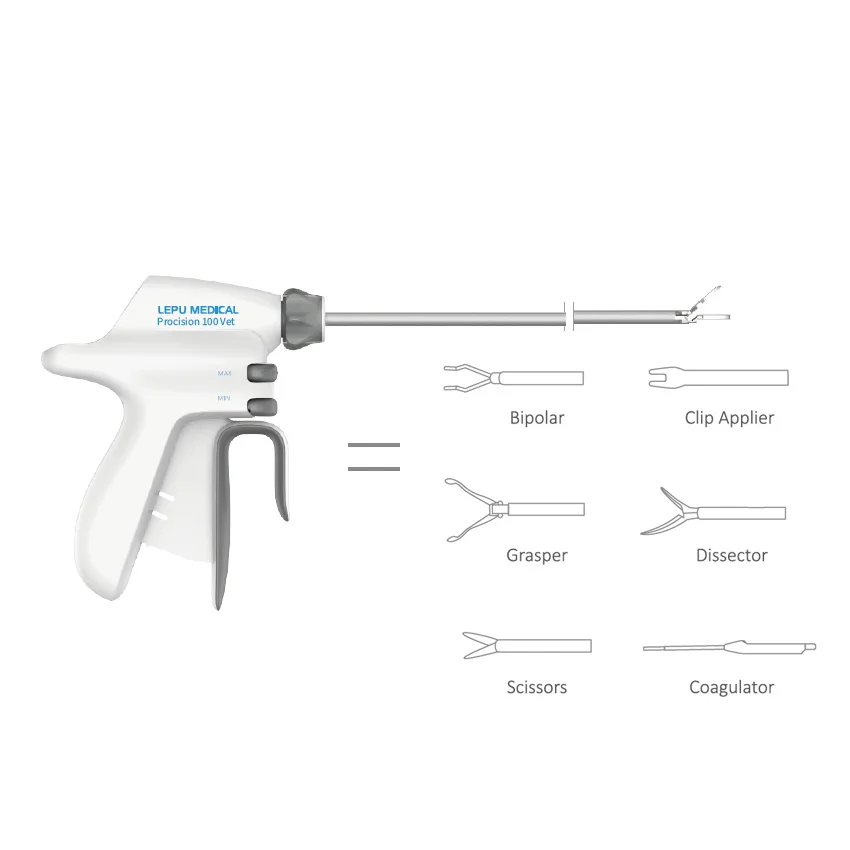

9. The shape of the ultrasonic cutter head: straight line and curved shape are optional, and it has the functions of cutting hemostasis, separating and grasping tissue.

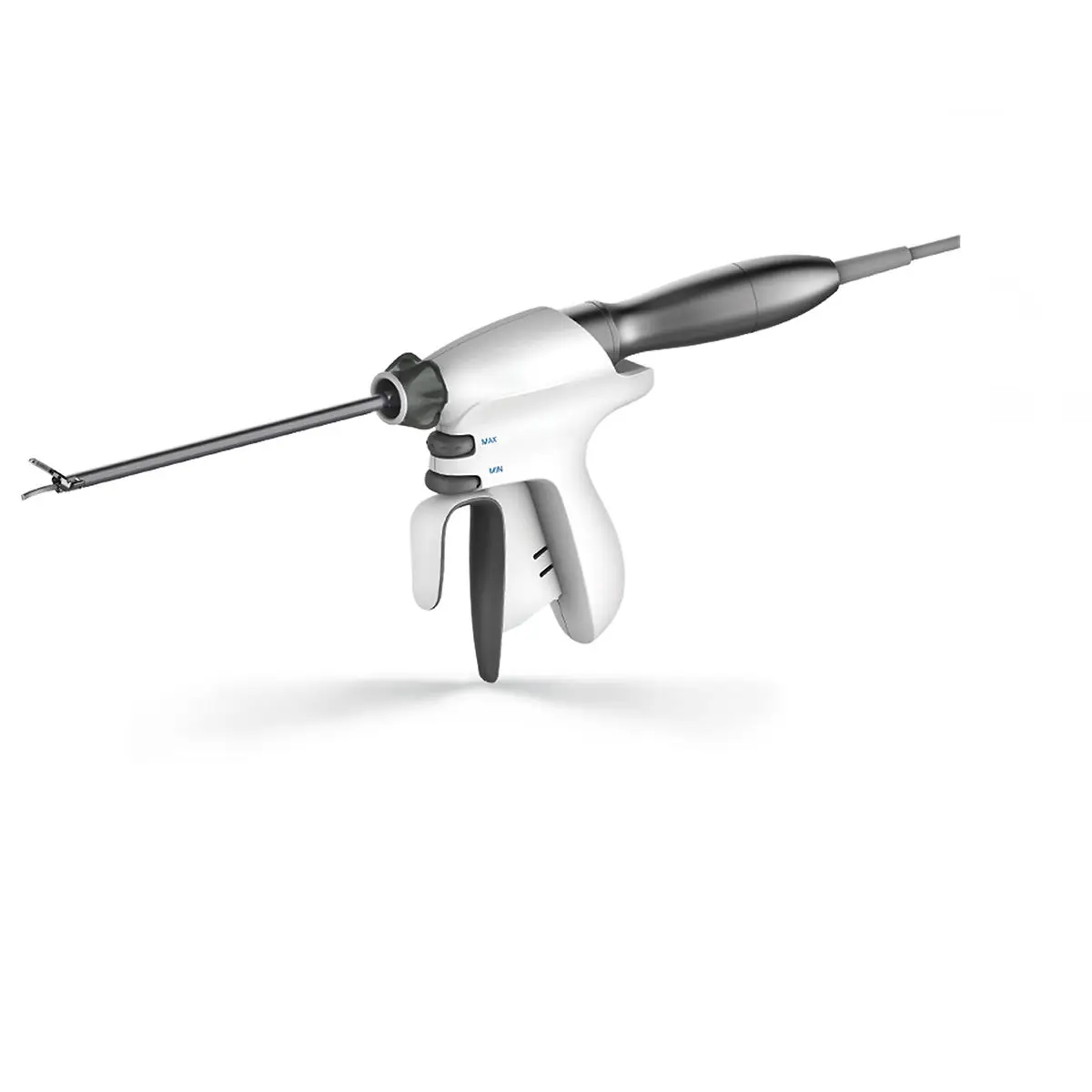

(3) Ultrasonic Scalpel Handpiece
1. Use the same handle for hand control and foot control.
2. Equipped with necessary tools to detect the performance of the transducer handle.
The main configuration:
1.Generator (model Procision 100 Vet): 1 set
2. Handle piece (model HP18): 1
3.Shear (36cm/23cm/14cm): free to choose
4. Warranty period: 1 year
2. Scope of application/intended use: It is used for soft tissue cutting that needs to control bleeding and minimal thermal damage, and can be used to close blood vessels with a diameter of no more than 5mm.
3. Technical parameters:
(1)Generator
1. It can automatically identify surgical instruments.
2. 7 inch color LCD touch screen, Chinese/English/German/French four languages for operation and diagnostic information display.
3. The system software version can be updated through the U disk.
4. The generator can be equipped with various specifications of shears , including cavity mirror shears and open shears
5. It can safely coagulate blood vessels of 5mm and below.
6. The power of the main engine can be adjusted in 5 gears, and the gear position is displayed during operation. When the shear is working, it can sound the working status.
7. The generator has a self test function, and the self test time is less than or equal to 3 seconds.
8. There are more than 3 kinds of prompt sounds, the volume is adjustable in 10 files, and the sound cannot be completely reduced to zero.
9, with a foot switch interface.
(2) Ultrasonic shear performance:
1. With selfadaptive induction technology, it can adjust the energy output according to the resistance change of the tissue in the jaws.
2. Vibration frequency of cutter head: 55,500Hz±500Hz.
3. Vibration amplitude of cutter head: within 50~100um.
4. There are more than 5 working surfaces of the shear ,which can meet the needs of cutting and hemostasis of different tissues in the operation.
5. The cutter head or cutter face can be rotated 360 degrees.
6. The ultrasonic knife head can safely handle blood vessels and lymphatic vessels of 5mm and below.
7. It can be used for laparoscopic surgery and open surgery.
8. The length of the shear: 14/23/36cm length is optional.
9. The shape of the ultrasonic cutter head: straight line and curved shape are optional, and it has the functions of cutting hemostasis, separating and grasping tissue.
(3) Ultrasonic Scalpel Handpiece
1. Use the same handle for hand control and foot control.
2. Equipped with necessary tools to detect the performance of the transducer handle.
The main configuration:
1.Generator (model Procision 100 Vet): 1 set
2. Handle piece (model HP18): 1
3.Shear (36cm/23cm/14cm): free to choose
4. Warranty period: 1 year
Specification
item | value |
Line frequency | 50/60Hz |
Mains voltage | 100-240V(±10%) |
Main fuse | T5AH 250V(quantity:2) |
Maxpower consumption | 150VA |
Width*height*depth | 350x355x136mm |
Weight | 7.6kg |
Display | 7 Inches Color LCD |
Output frequency | 55.5±0.5KHz |
Output power | 35watts Maximum |
Type according to EN 60601-1 | CF |
