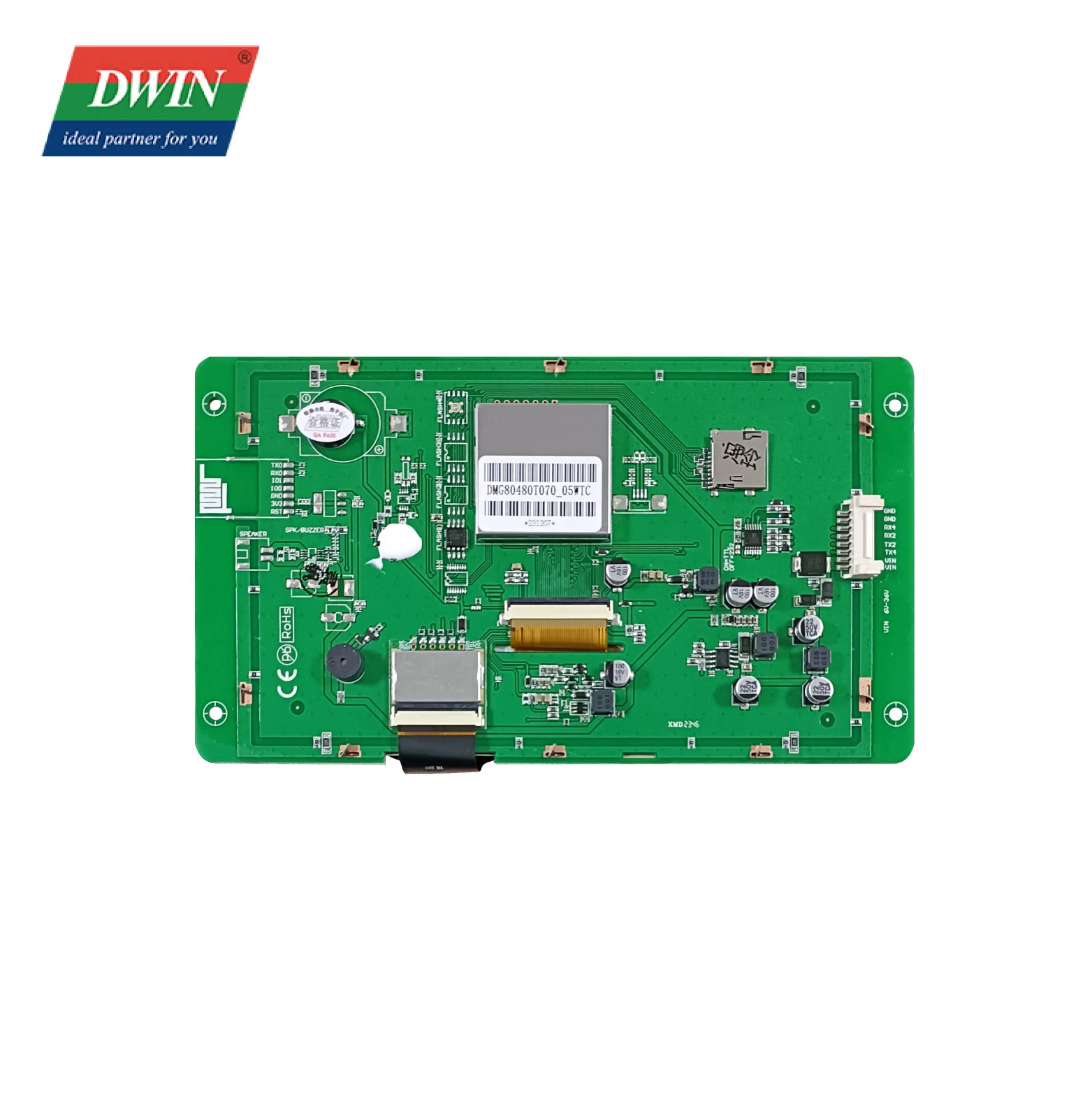

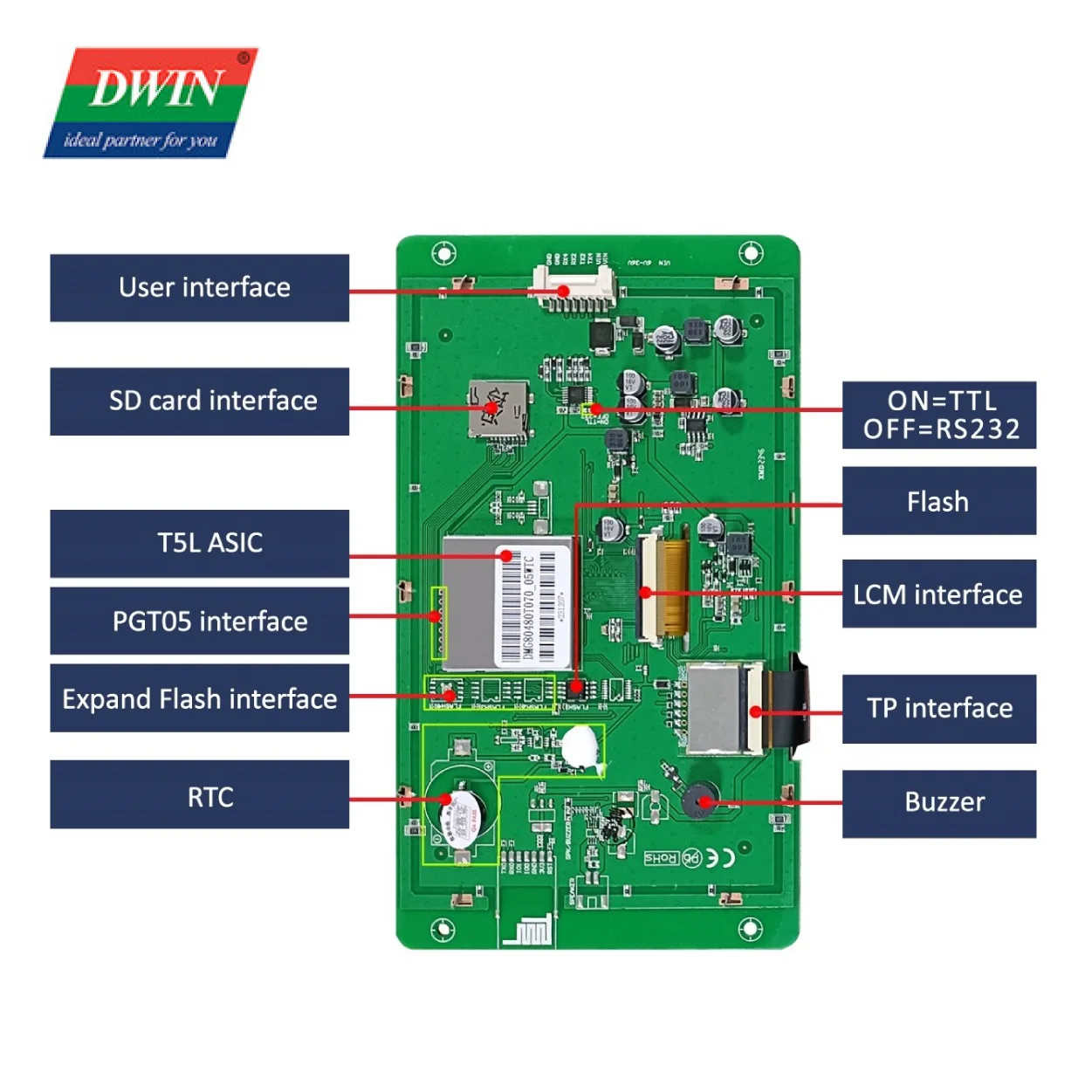

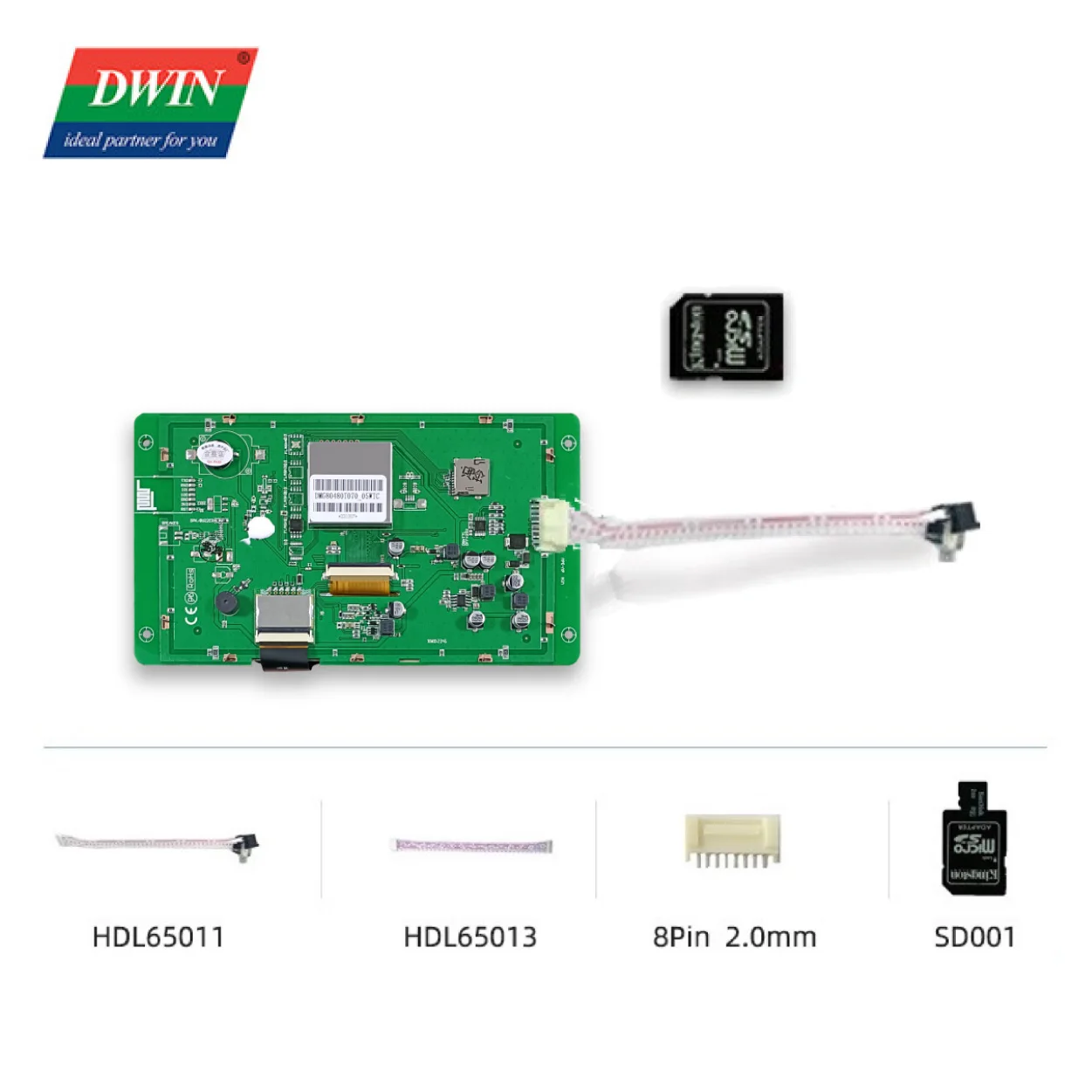

7 Inch Display LCD 800*480 HMI Smart UART 262K Colors TN TFT display Capacitive Touch Panel Screen
- Category: >>>
- Supplier: Beijing DWIN Technology Co. Ltd.
Share on (1601034504561):

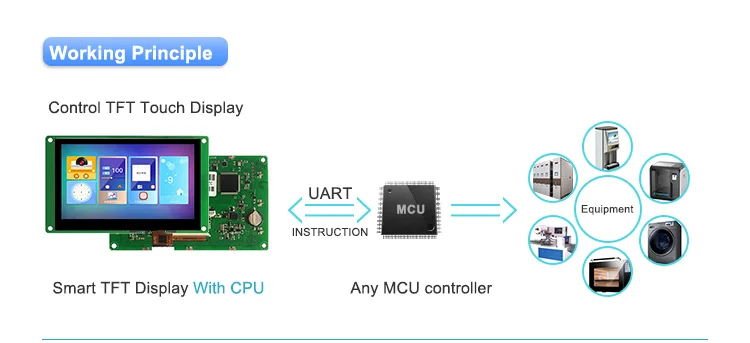

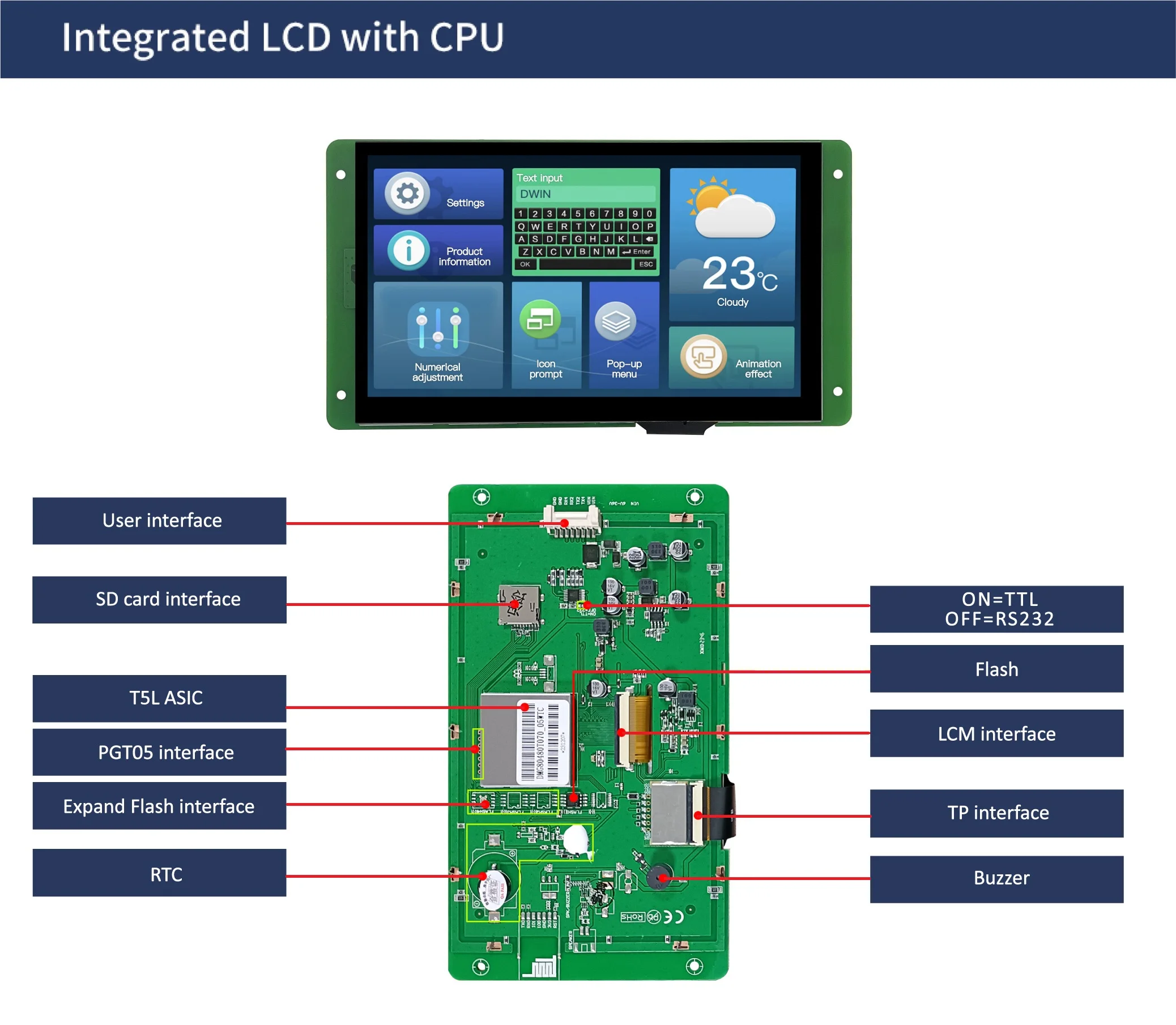

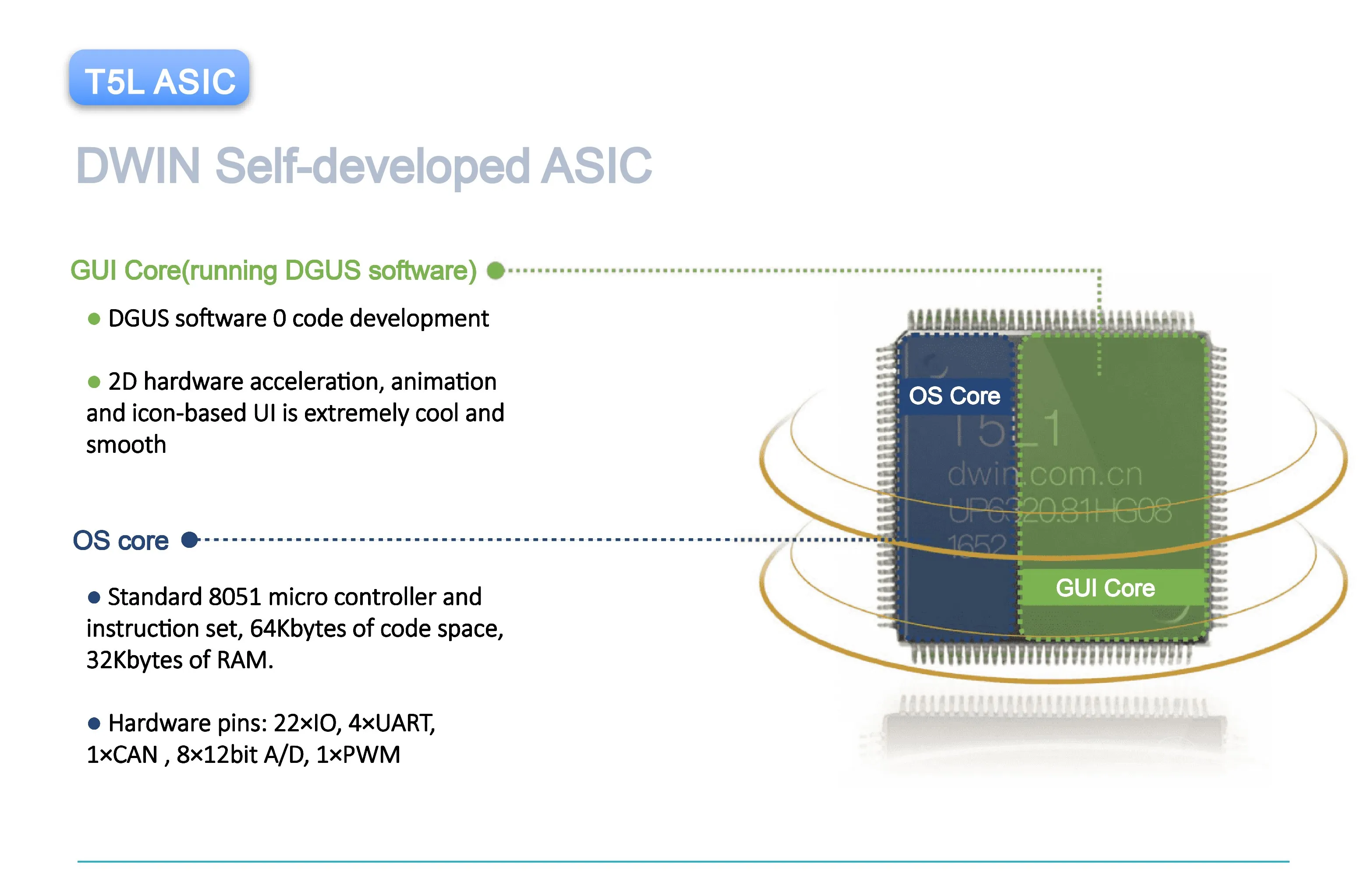

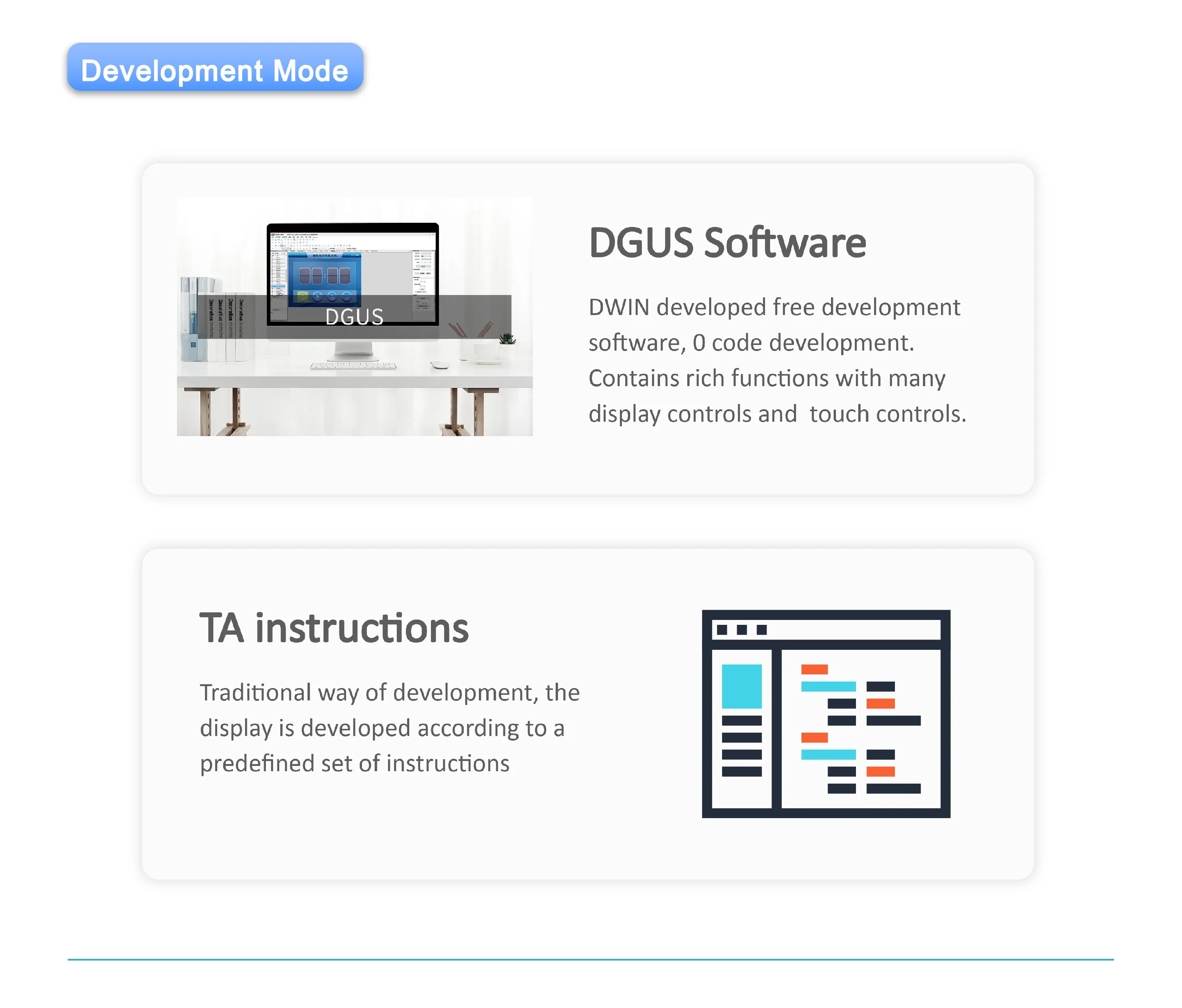

Product Overview

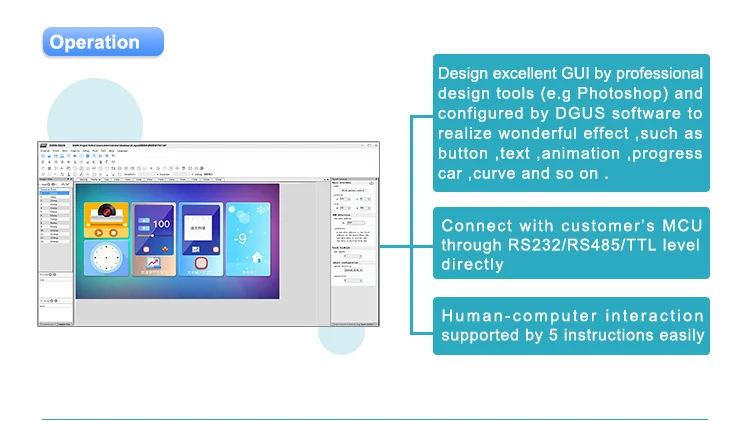

Description

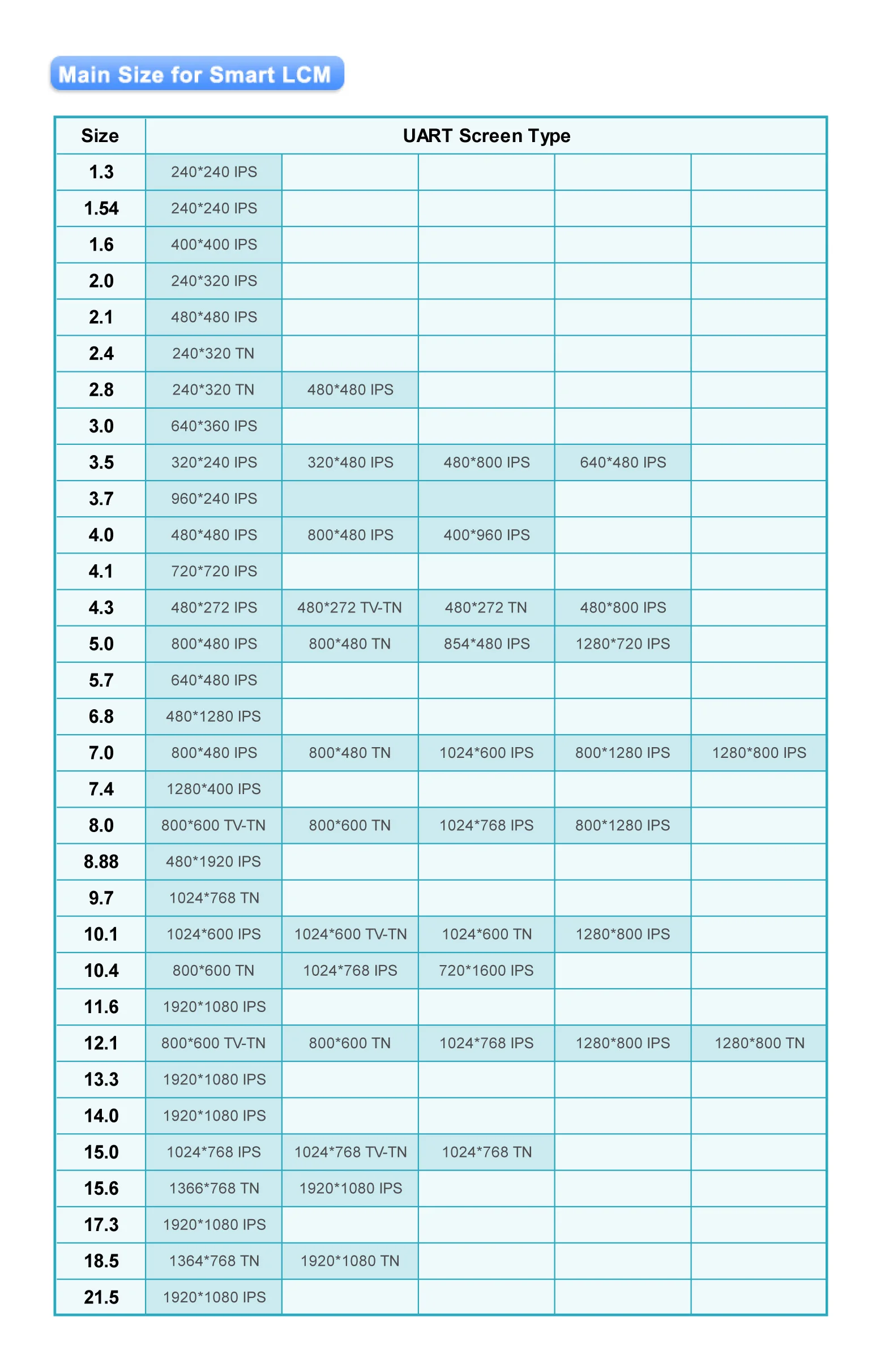

Product Specification
Model | DMG80480T070_05WTC: Capacitive touch | |||||||
LCD Type | TN, TFT LCD | |||||||
Viewing Angle | Normal viewing angle, 70°/70°/50°/70° (L/R/U/D) | |||||||
Resolution | 800×480 pixels (support 0°/90°/180°/270°) | |||||||
Color | 18-bit 6R6G6B | |||||||
Active Area (A.A.) | 154.08mm (W)×85.92mm (H) | |||||||
View Area (V.A.) | - | |||||||
Backlight Mode | LED | |||||||
Backlight Service Life | >30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) | |||||||
Brightness | 250nit | |||||||
0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range) | ||||||||
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | ||||||||

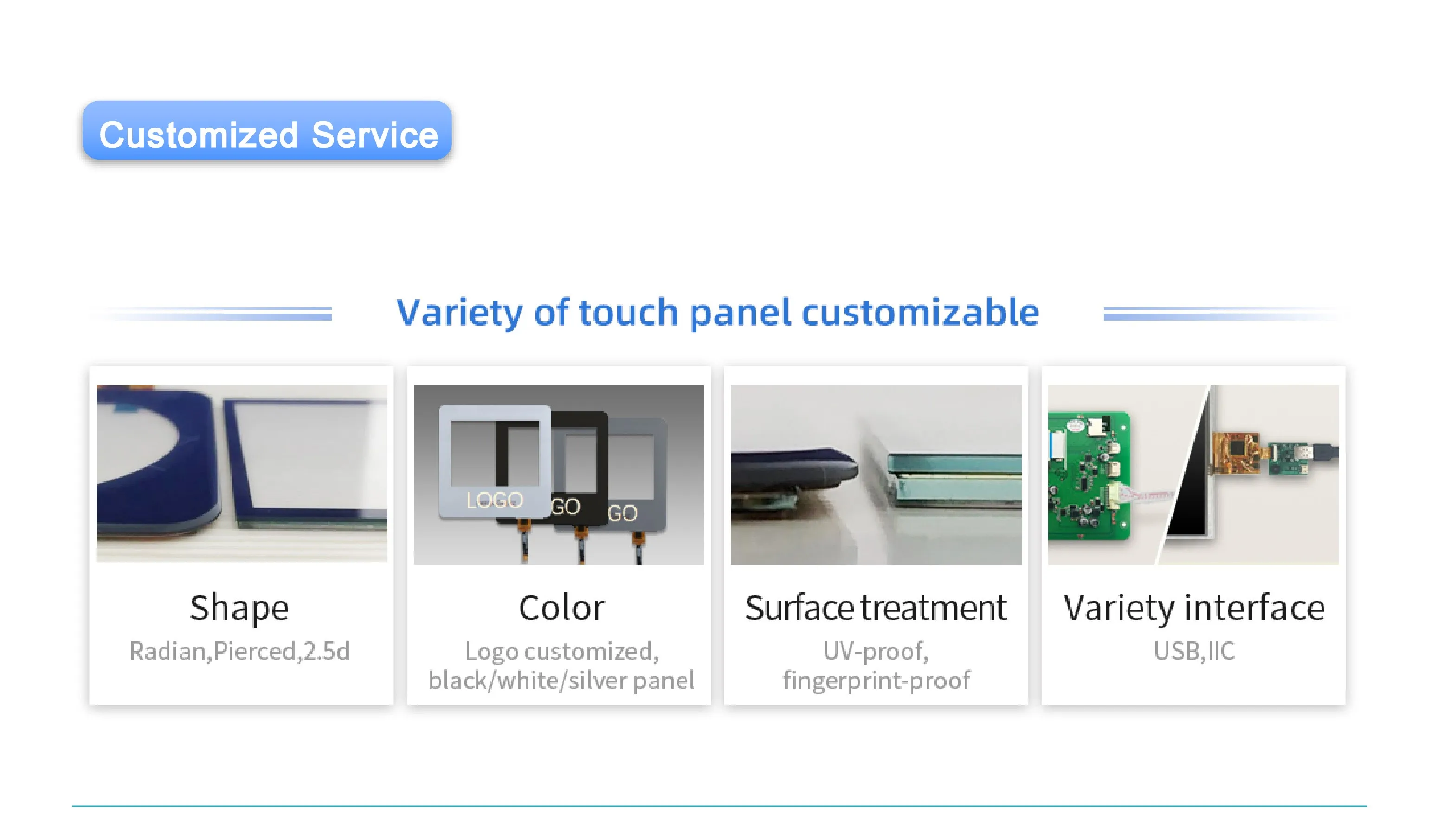

Touch parameters
Type | CTP (Capacitive touch panel) | ||||||
Structure | G+G structure with surface cover of tempered glass | ||||||
Touch Mode | Support point touch and drag | ||||||
Surface Hardness | 6H | ||||||
Light Transmittance | Over 90% | ||||||
Life | Over 1,000,000 times touch | ||||||
Serial interface parameters
Mode | UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232(Only available after OS configuration) | ||||||||
Voltage Level | Test Condition | Min | Typ | Max | Unit | ||||
Output 1, Iout = 1mA | 3.0 | 3.3 | - | V | |||||
Output 0, Iout = -1mA | - | 0 | 0.3 | V | |||||
Input 1, Iin = 1mA | 2.4 | 3.3 | 5.0 | V | |||||
Input 0, Iin = -1mA | 0 | - | 0.5 | V | |||||
Baud Rate | 3150~3225600bps, typical value of 115200bps | ||||||||
Data Format | UART2: N81 UART4: N81/E81/O81/N82, 4 modes (OS configuration) | ||||||||
Interface Cable | 8Pin_2.0mm | ||||||||
Electrical specifications
Rated Power | <5W | |||||||
Operating Voltage | 6~36V, typical value of 12V | |||||||
220mA | VCC=12V, max backlight | |||||||
80mA | VCC=12V, backlight off | |||||||
Recommended power supply: 12V 1A DC | ||||||||
Operating environment
Operating Temperature | -20℃~70℃ (5V @ 60% RH) | ||||||
Storage Temperature | -30℃~80℃ | ||||||
Conformal Coating | Yes | ||||||
Operating Humidity | 10%~90%RH, typical value of 60% RH | ||||||
Package & Dimensions

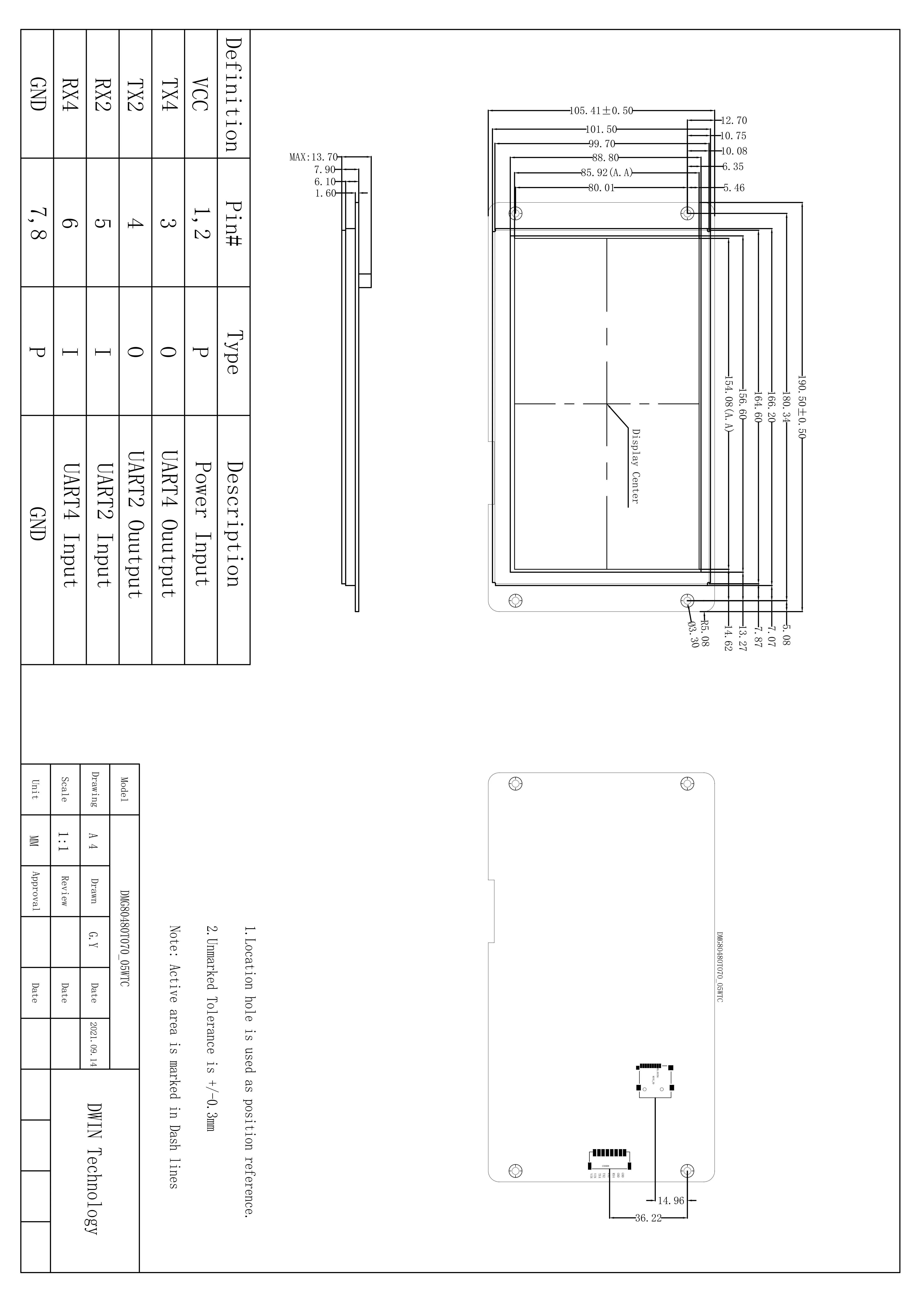

Form Factor | 190.50mm (W)×105.41mm (H) ×13.70mm (T) | ||||||
Installation Dimensions | Positioning hole: 166.20 (+0.3mm)×101.50 (+0.3mm) | ||||||
Net Weight | 268g | ||||||
Disclaimer: The product design is subject to alternation and improvement without prior notice.
