Fluidsmart Small Compressor High Pressure 4bar Electric piston Vacuum Pump Double Head Piston Lab Gas Sampling Mini Air Pump
- Category: >>>
- Supplier: Tide Smart Technology (Shanghai) Co. Ltd
Share on (1601034570538):
Product Overview
Description
Brushless Double head 24V
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushed motor >8000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported PTFE piston cup withstand a variety of gas corrosion
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushed motor >8000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported PTFE piston cup withstand a variety of gas corrosion
* Piston valve: EPDM
Products Description
Model: | ARP4DB12SP |
Voltage range: | 12VDC |
Maximum flow(in series): | 4L/min |
Max. Negative Pressure: | -70KPa |
Max. Positive Pressure: | 4-5Bar |
DMotor type: | Dc brushless motor |
Max. power: | 11w |
Waterproof grade: | IP54 |
Storage environment temp.: | -40℃~60℃ |
Working environment temp.: | -20℃~50℃ |
Pump head material: | Imported PPS |
Pump cup material: | Imported PTFE |
Pump valve material: | Imported EPDM |
Pump Body material: | Imported PPS |

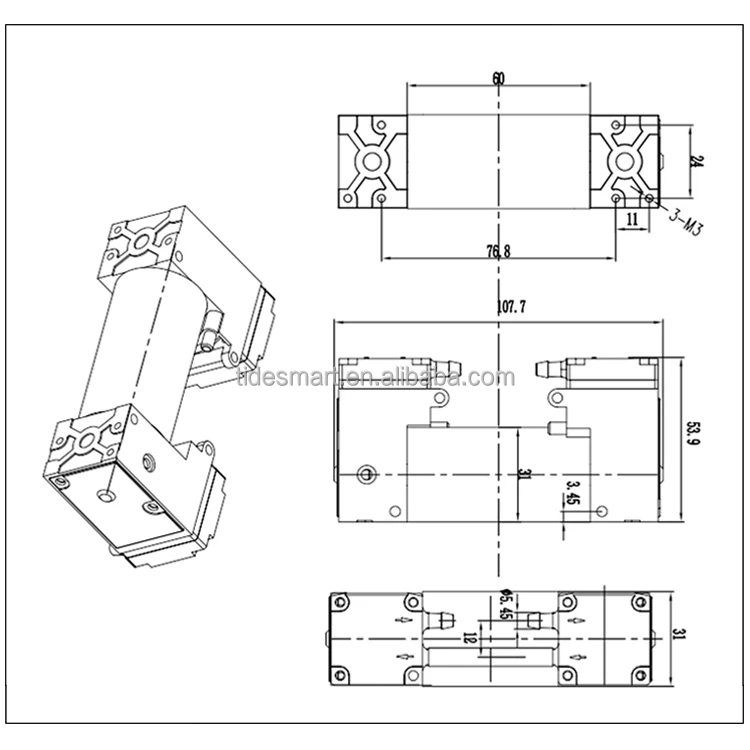

Dimensions(mm): | 110*32*54mm |
Company Profile
FAQ
Q:Do you have warranty for products?
A:Yes, every products have done reliability test, you can find product lifetime in the spcification, if any productsfailed in the set time,we can replace you new.
Q: How to choose a suitable pump for your application?
A: 1.Figure out what pumps do you need, for air or water? For possitive pressure or negative pressure?
2.Know the pump's voltage,pressure, flow rate,working pattern and lifetime.
3.Choose the right pump.
4.Tell us your application then we can give you some good suggestion.
Before Sale Service ：
1. Your inquiry will be promptly replied within 24 hours.
2. Well-trained and experienced
staffs will answer your questions in fluent English.
3. OEM&ODM welcomed.
4. Free design according to customer's demand.
For more product details, please click here to contact us, thank you!
Q: How to choose a suitable pump for your application?
A: 1.Figure out what pumps do you need, for air or water? For possitive pressure or negative pressure?
2.Know the pump's voltage,pressure, flow rate,working pattern and lifetime.
3.Choose the right pump.
4.Tell us your application then we can give you some good suggestion.
Before Sale Service ：
1. Your inquiry will be promptly replied within 24 hours.
2. Well-trained and experienced
staffs will answer your questions in fluent English.
3. OEM&ODM welcomed.
4. Free design according to customer's demand.
For more product details, please click here to contact us, thank you!
