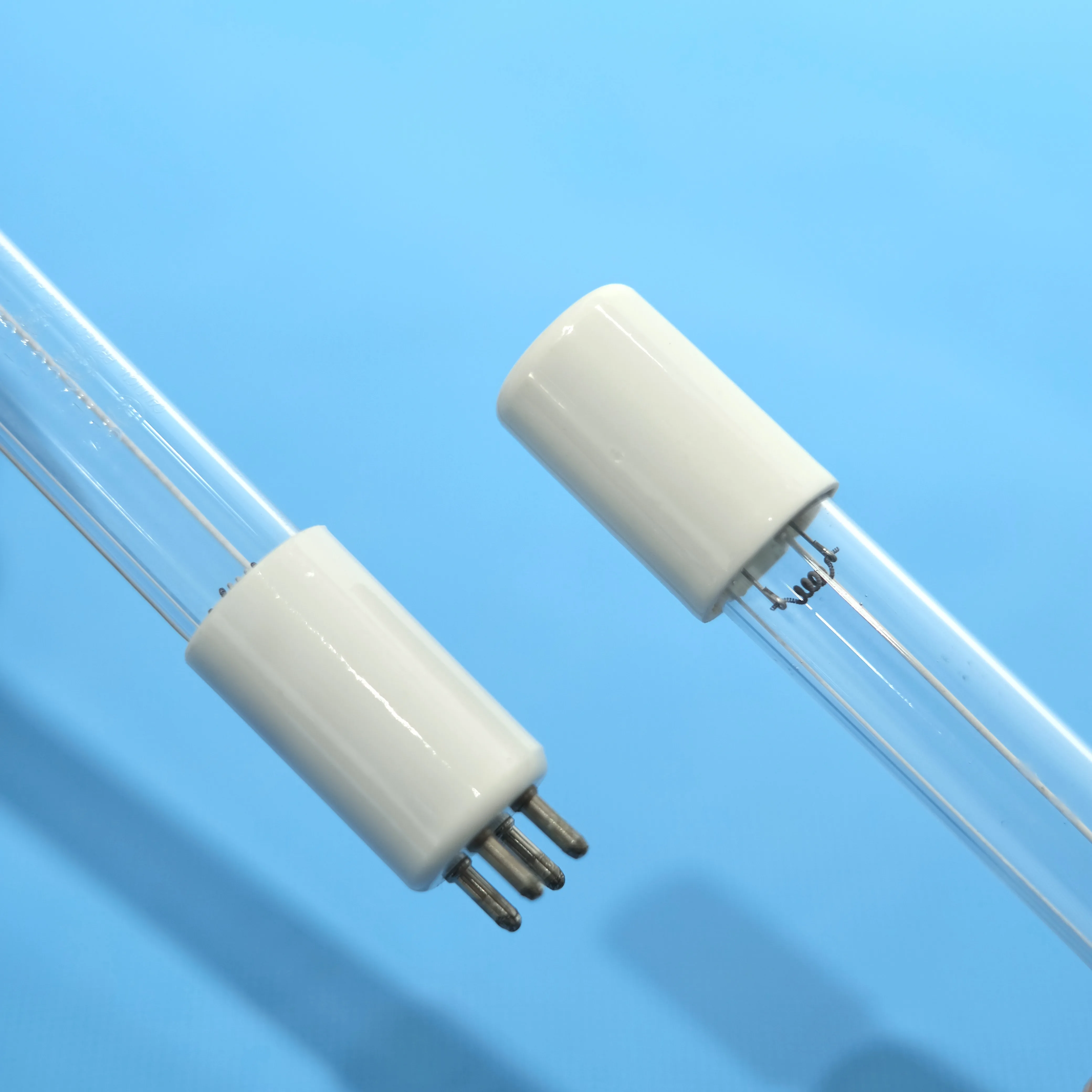

GPHA357T6L 57W Four Pins Uv Lamp 254nm Quartz Tube Amalgam Uv Disinfection Ultraviolet Germicidal Lamp For Water Sterilizer
- Category: >>>
- Supplier: Jiangyin Feiyang Instrument Co. Ltd.
Share on (1601034598150):
Product Overview
Description
Product Description
The UVC lamp is made by quartz tube which can penetrate the ultraviolet wavelength 254nm,ultraviolet wave 185nm produces ozone which be dissolved in water to destroy the walls of the cells of microorganism ,and thereby kill them immediately.

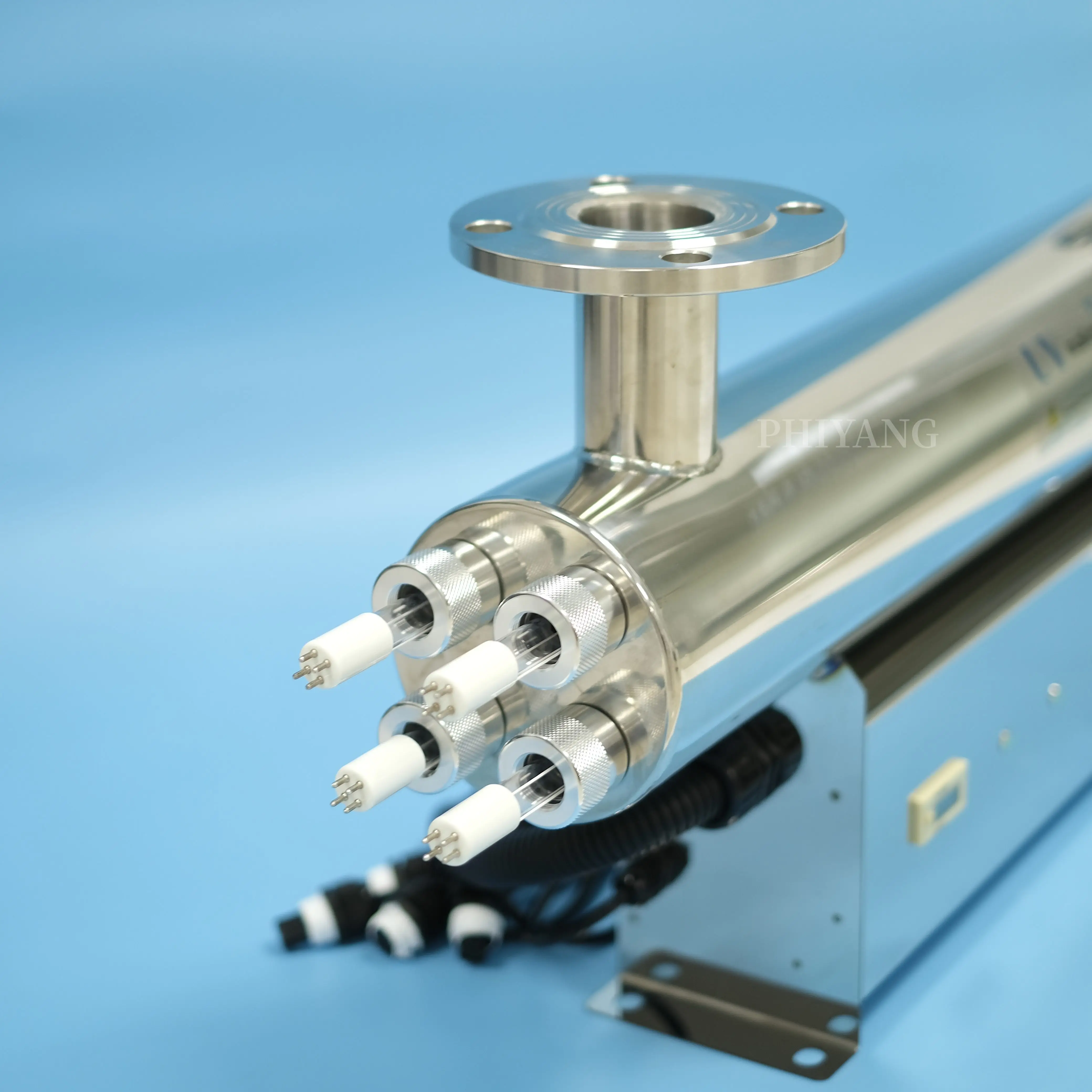

Ultraviolet technology has been one of the most effective methods of water treatment and air purification.UV germicidal lamp isthe ideal solution for water disinfection application in a safe way,without using any chemicals.
Ultraviolet technology has been one of the most effective methods of water treatment and air purification.UV germicidal lamp isthe ideal solution for water disinfection application in a safe way,without using any chemicals.

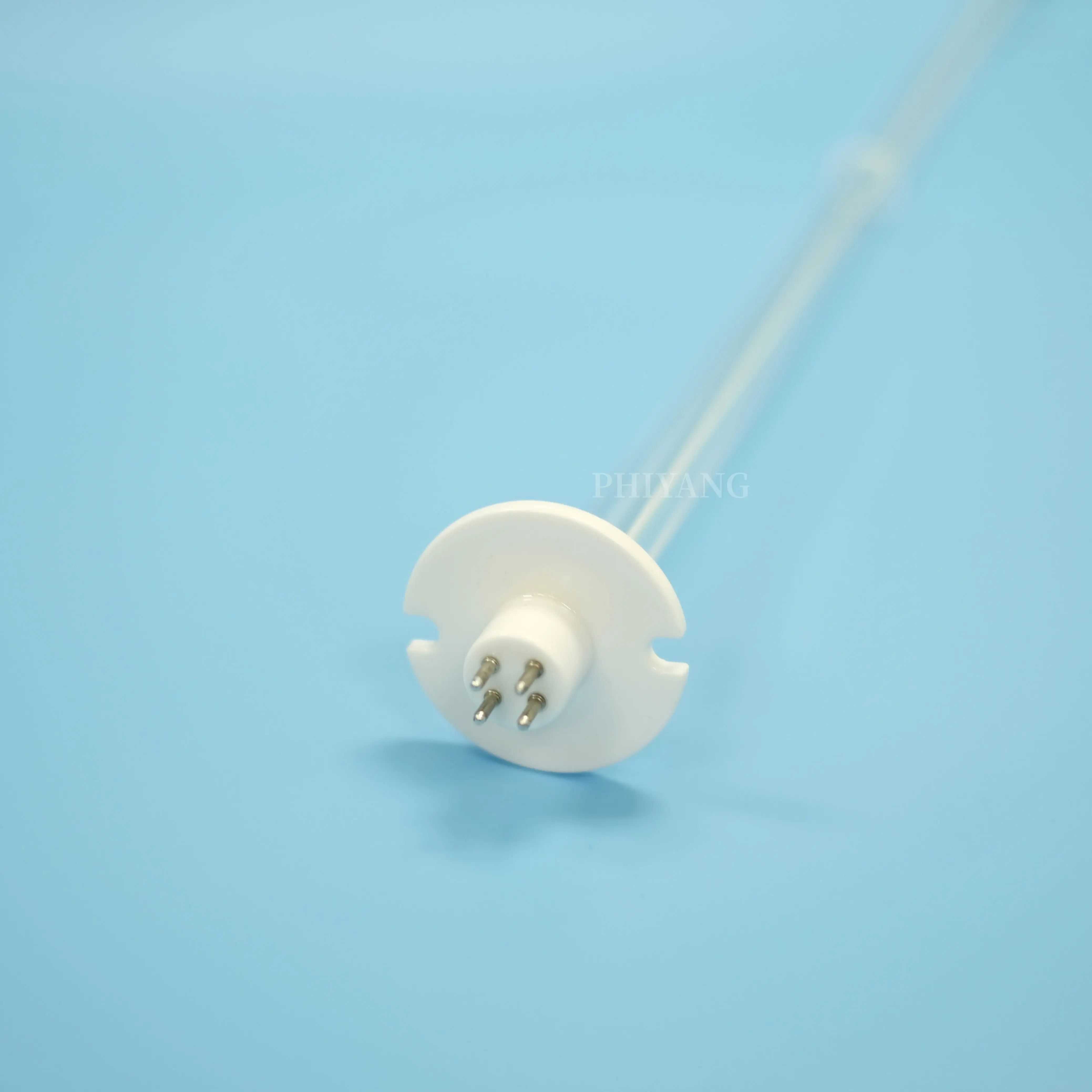

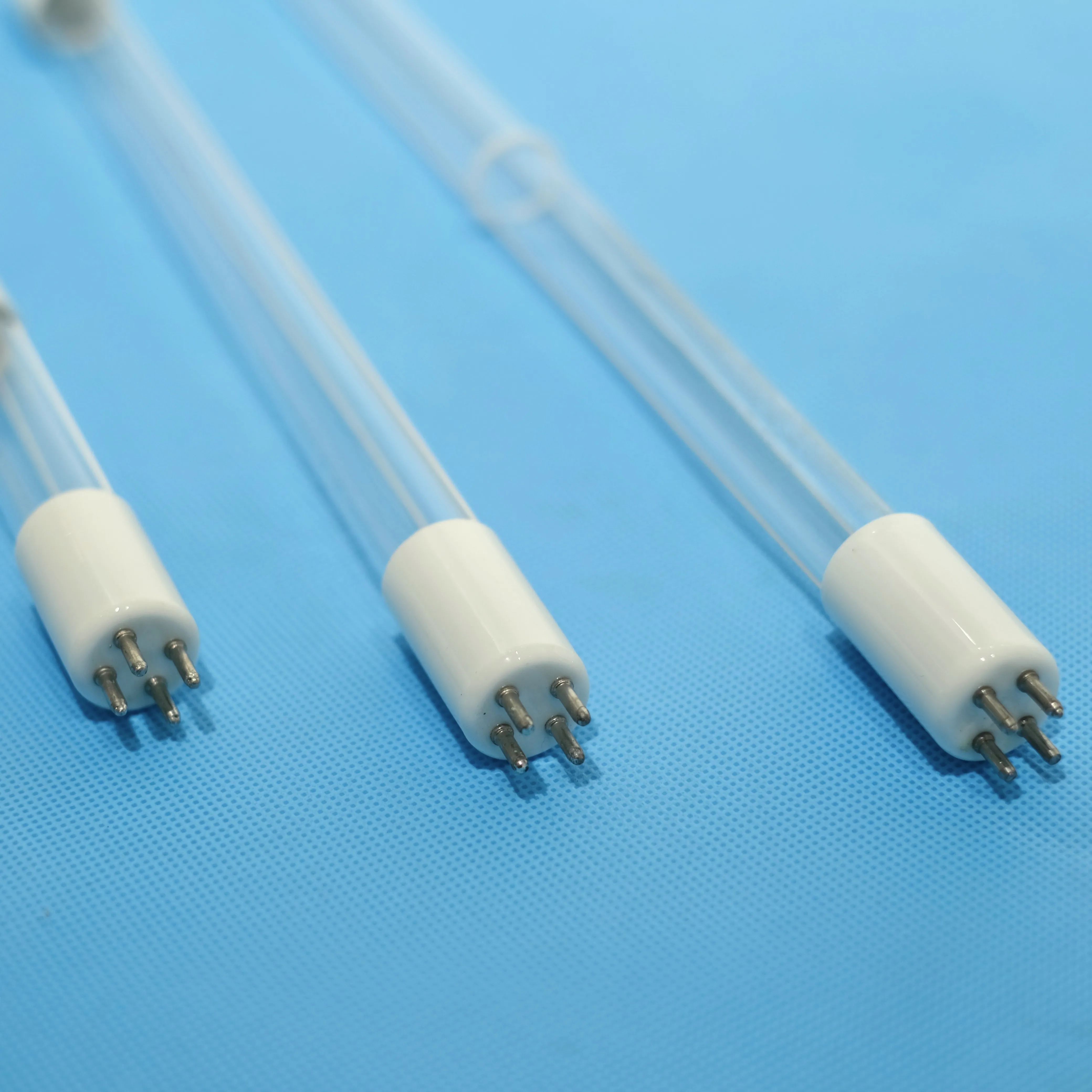

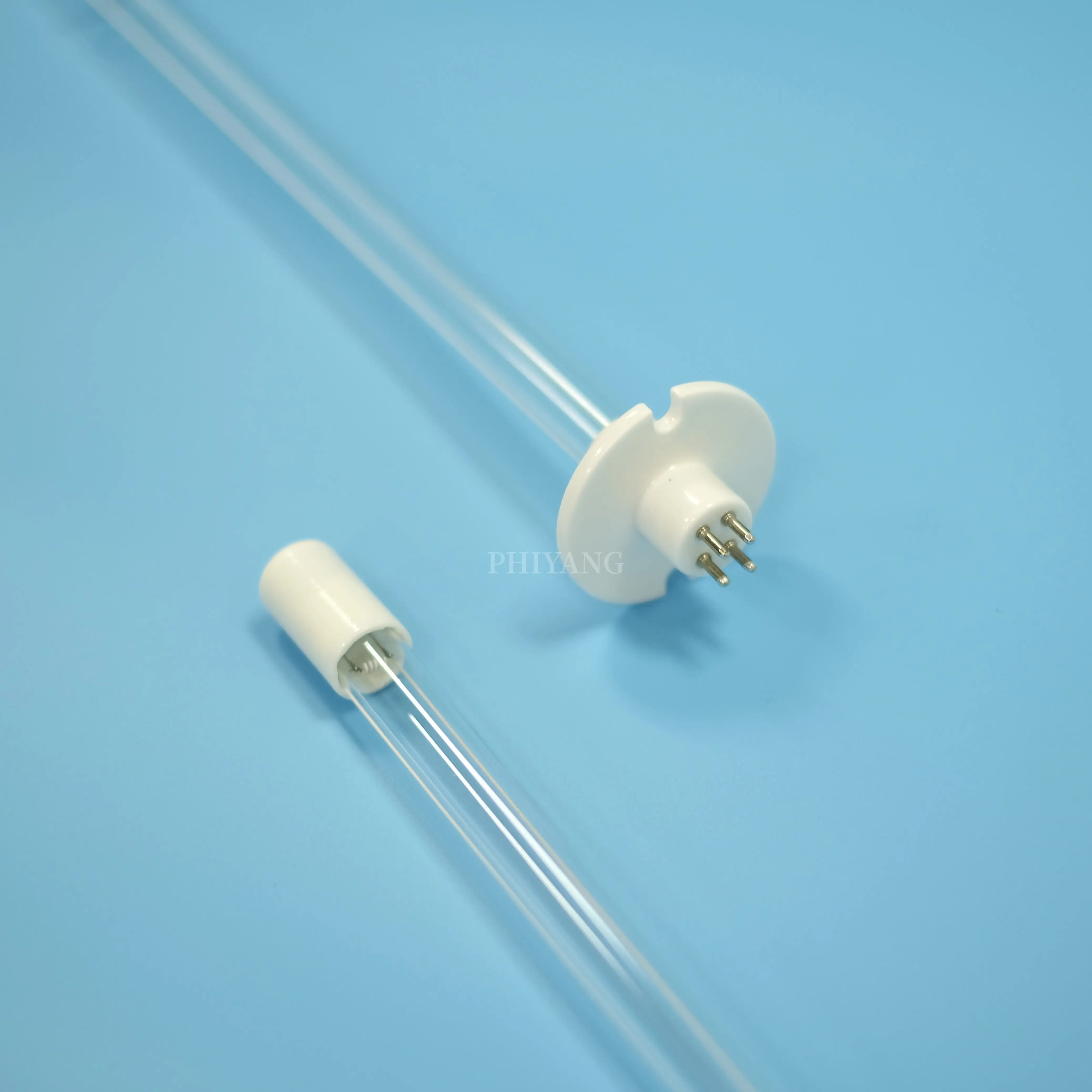

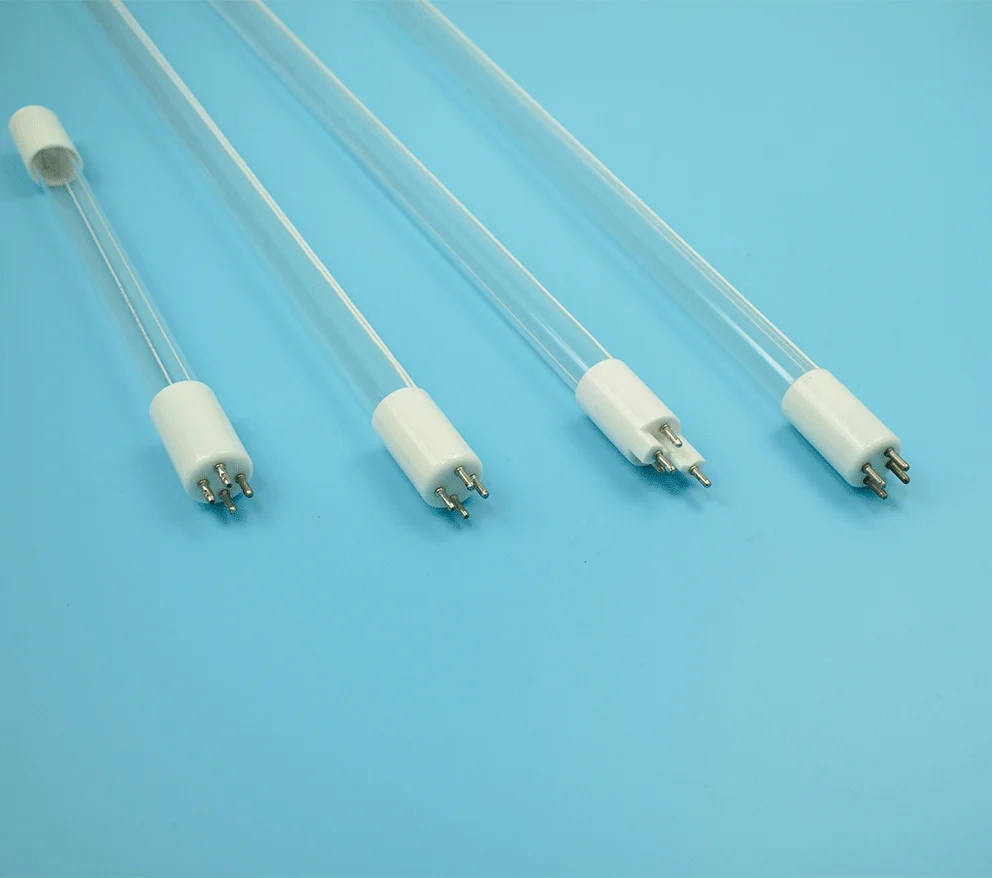

1.Four-Pin, single ended UV germicidal lamps.
2.Made of high quality quartz.
3.Average lamp life is 10,000 hours.
4.Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.
5.Quartz sleeves and ballasts are available.
2.Made of high quality quartz.
3.Average lamp life is 10,000 hours.
4.Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.
5.Quartz sleeves and ballasts are available.

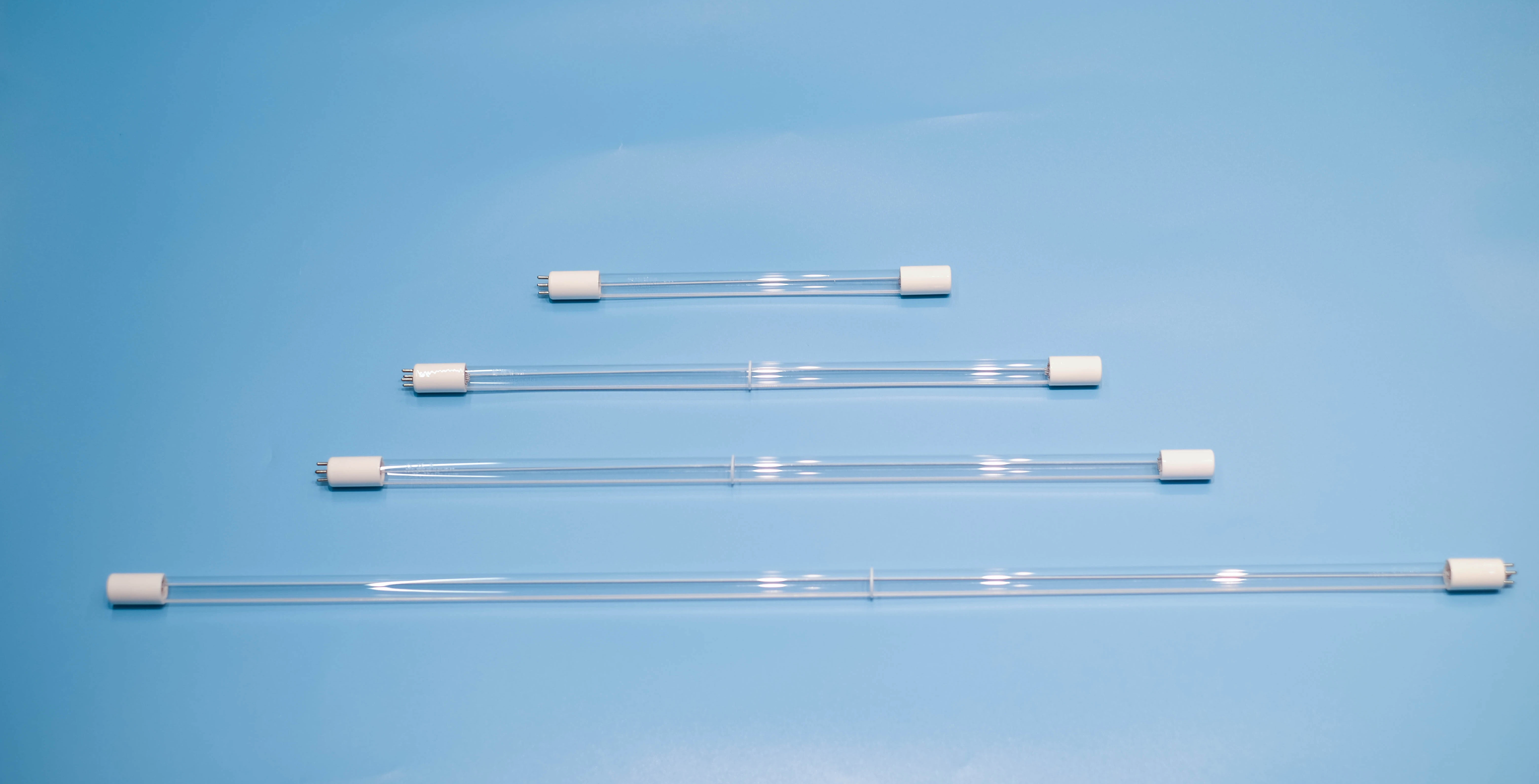

Specification
Type | Lamp Tube diameter (mm) | Length of lamp(mm) | Power (W) | Current (mA) | Voltage of lamp 50/60Hz(V) | UV output | Rated life (hrs) |
(uw/cm2) | |||||||
GPH118T5L | 15 | 118 | 6 | 425 | 25 | 13 | 10000 |
GPH150T5L | 15 | 150 | 8 | 425 | 27 | 20 | 10000 |
GPH212T5L | 15 | 212 | 10 | 425 | 30 | 26 | 10000 |
GPH287T5L | 15 | 287 | 14 | 425 | 41 | 40 | 10000 |
GPH303T5L | 15 | 303 | 15 | 425 | 43 | 43 | 10000 |
GPH357T5L | 15 | 357 | 17 | 425 | 51 | 57 | 10000 |
GPH436T5L | 15 | 436 | 21 | 425 | 62 | 72 | 10000 |
GPH550T5L | 15 | 550 | 28 | 425 | 69 | 85 | 10000 |
GPH793T5L | 15 | 793 | 37 | 425 | 112 | 120 | 10000 |
GPH843T5L | 15 | 843 | 40 | 425 | 120 | 135 | 10000 |
GPH1148T5L | 15 | 1148 | 55 | 425 | 165 | 170 | 10000 |
GPH1554T5L | 15 | 1554 | 75 | 425 | 220 | 220 | 10000 |
