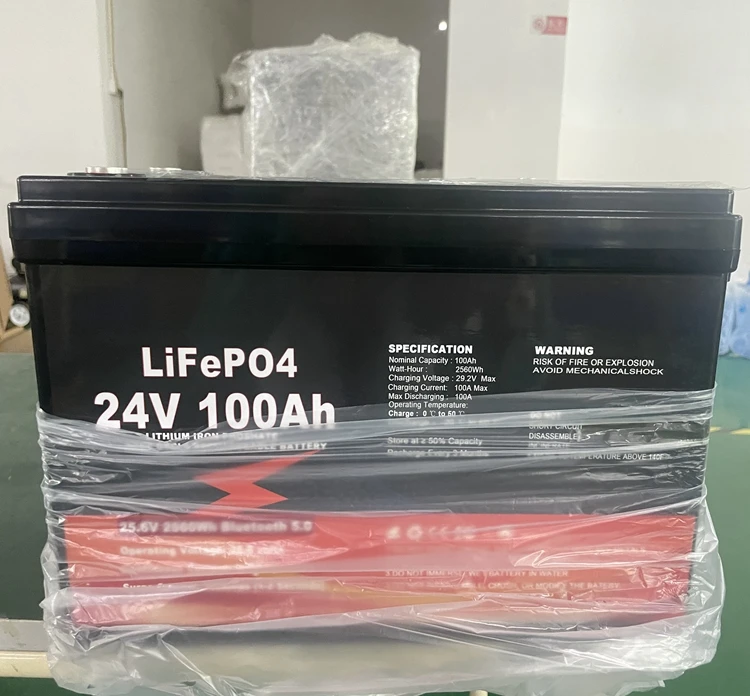

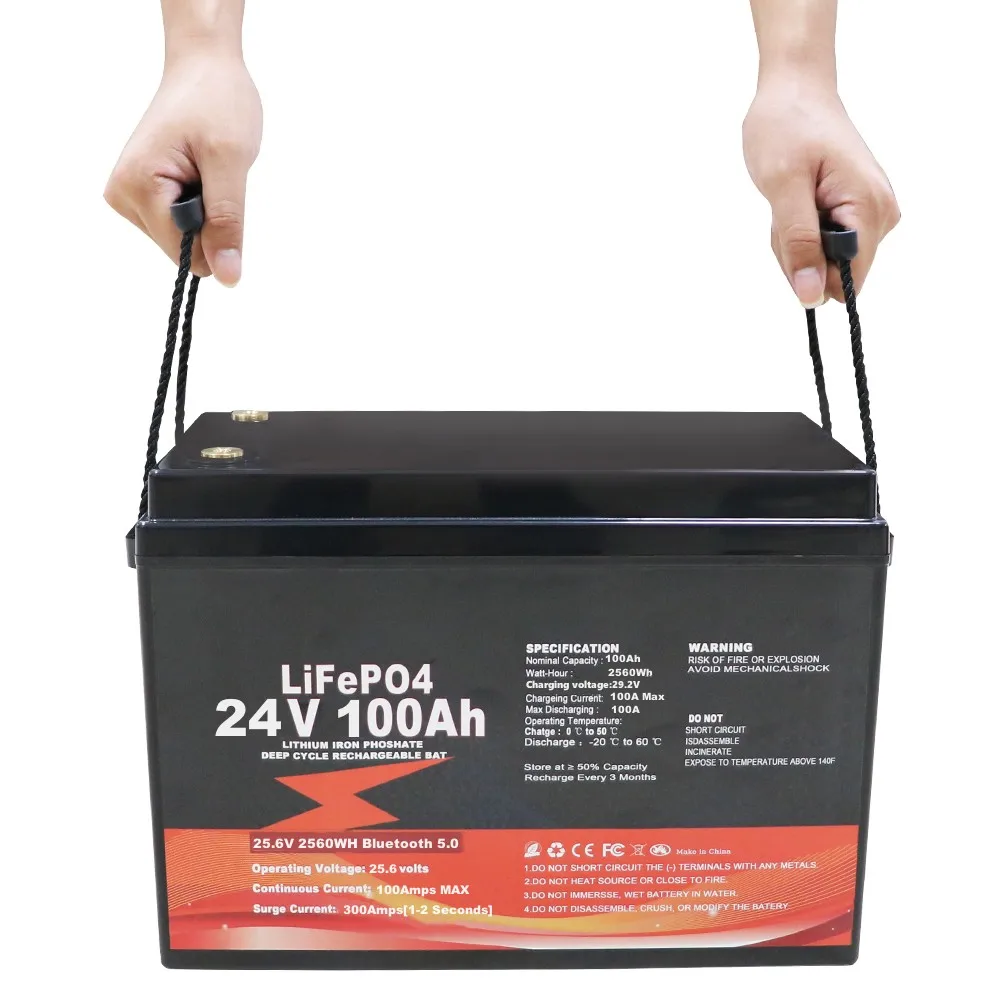

Model | 24V 50Ah | 24V 100Ah | 24V 150Ah | 24V 200Ah | 24V 230Ah | ||||
Nominal Capacity | 50Ah | 100Ah | 150Ah | 200Ah | 230Ah | ||||
Nominal Voltage | 25.6V | ||||||||
Energy | 1280WH | 2560WH | 3840WH | 5120WH | 5888WH | ||||

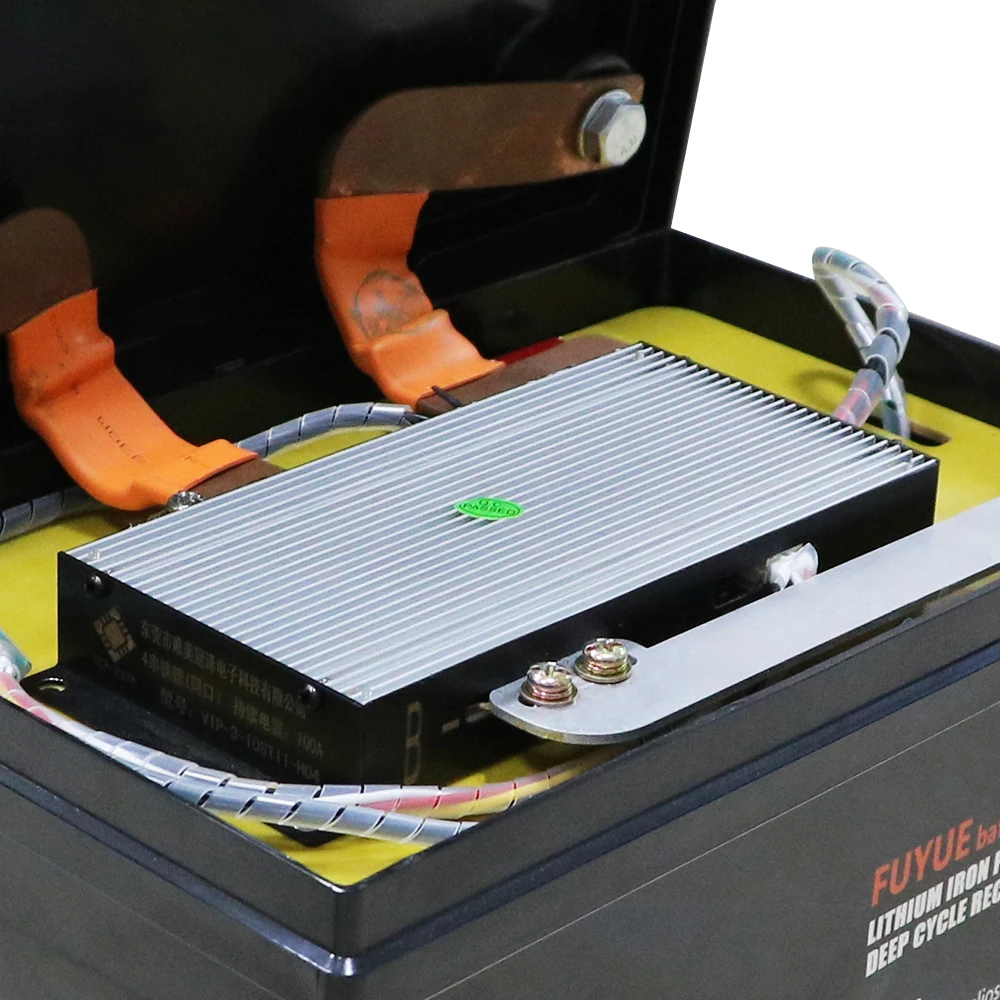

BMS | JBD BMS | ||||||||
Dimension (mm) | 520*269*220 | ||||||||
Standard Charge Current | 10A | 20A | 30A | 40A | 46A | ||||
Max Charge Current | 50A | 100A | 100A | 100A | 100A | ||||
Max Discharge Current | 0.5C(Max to 1C) | ||||||||
Discharge Cut-off | 20V | ||||||||
Operating Temperature(Charge) | 0℃~50℃ (32°F~122°F)@60±25% Relative Humidity | ||||||||
Operating Temperature(Discharge) | -20℃~60℃(-4°F~140°F)@60±25% Relative Humidity | ||||||||
Storage Temperature | -10℃~50℃(14°F~122°F)@60±25% Relative Humidity | ||||||||
Cycle Life | >2000 cycles at 100%DoD up to 6000 cycles at 80% DoD | ||||||||

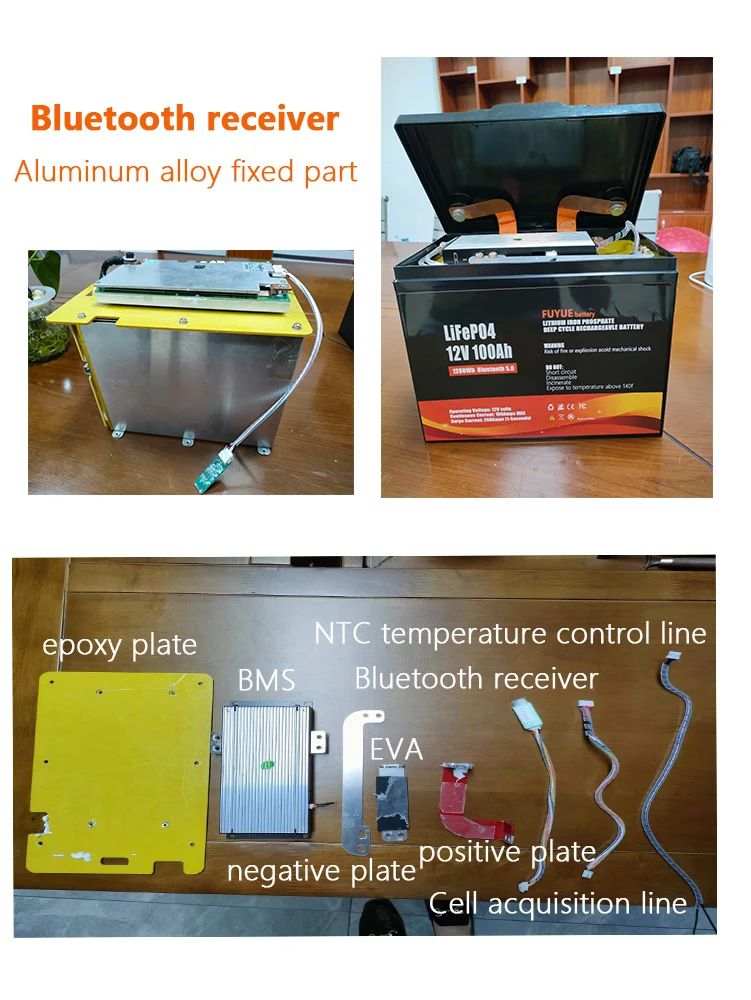

Communication function | Support Bluetooth Connection | ||||||||
Case | ABS Plastic | ||||||||
Warranty | 5 Years | ||||||||
Service Life | 10+ Years | ||||||||
Application | Home Appliances, BOATS, RV,Golf Carts, Electric Folklifts, electric vehicles, Electric Wheelchairs,Solar Energy Storage Systems... | ||||||||
