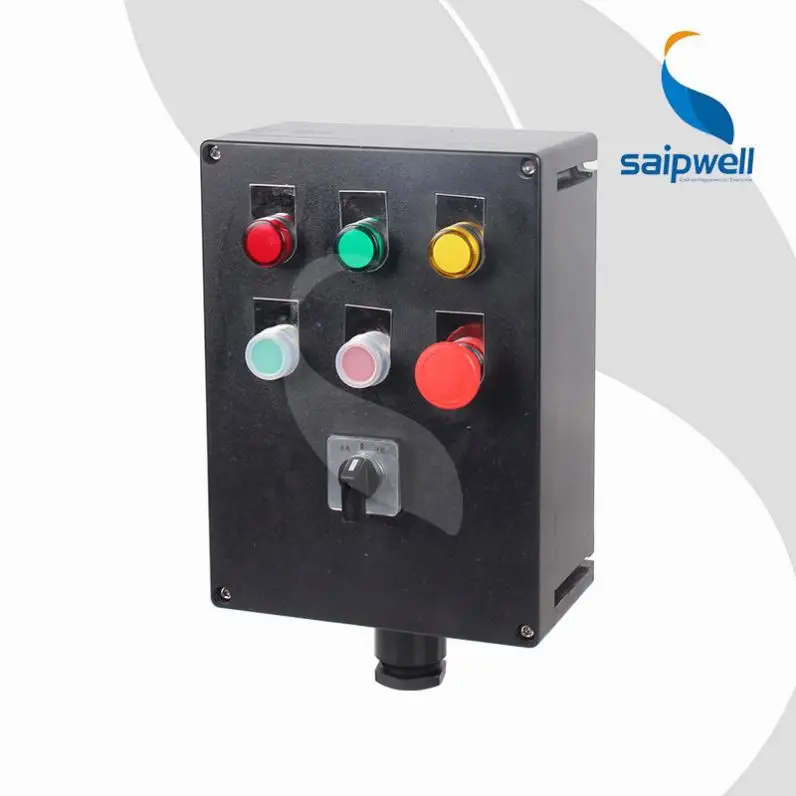

IP66 EX Proof Enclosure Fiberglass SMC Enclosure Terminal Box
- Category: >>>
- Supplier: Yueqing Saip Electric Co. Ltd.
Share on (1601034629042):
Product Overview
Description
Product Description

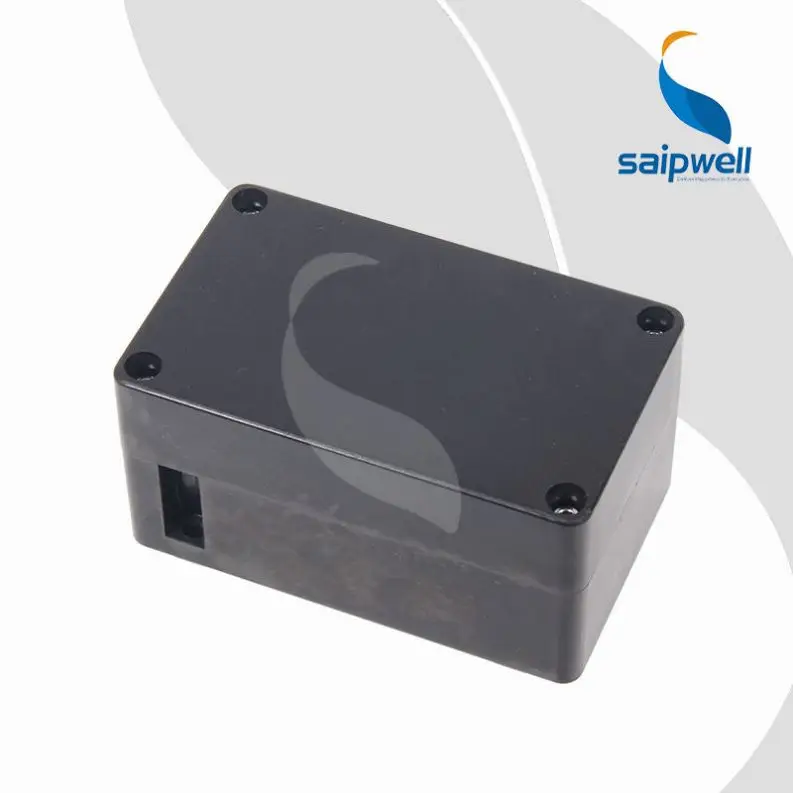

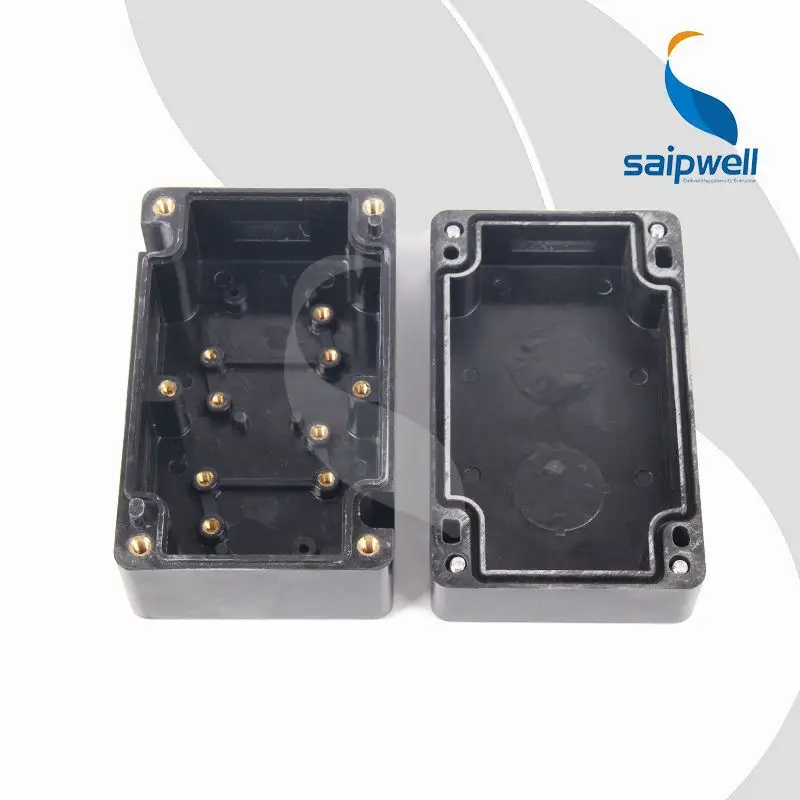

Black Fiberglass SMC Enclosure Junction Box

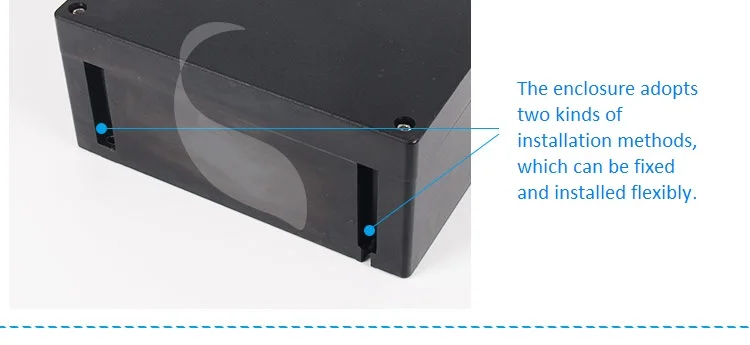

1.SMC material is used for pressing and molding. There are fixed mounting holes at the bottom of the box. The size of the mounting holes is the same as that of the cover screw.
2. The product has passed strict waterproof and dustproof test, it reach IP66.

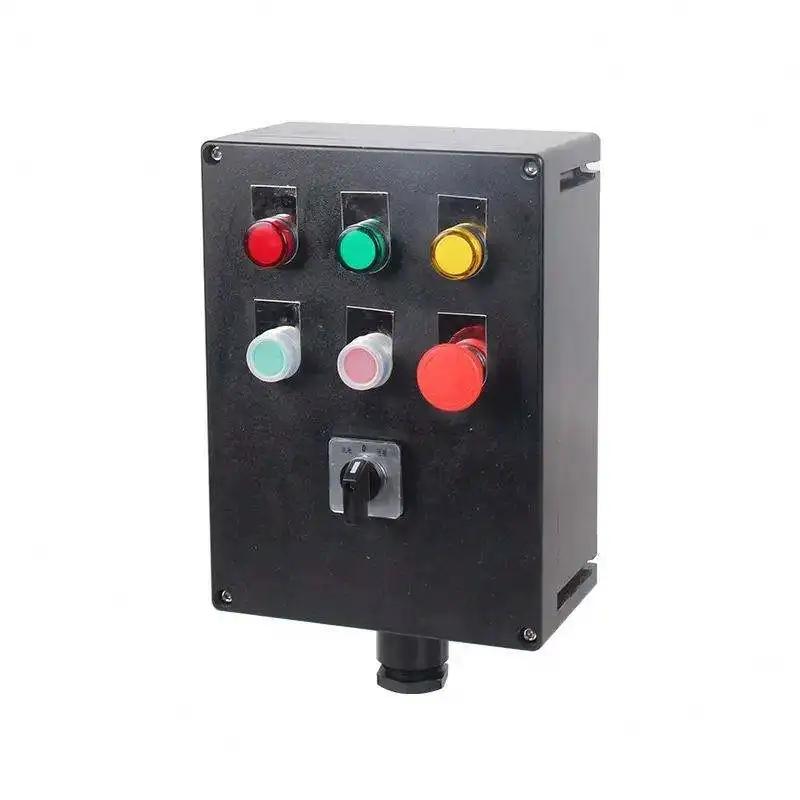

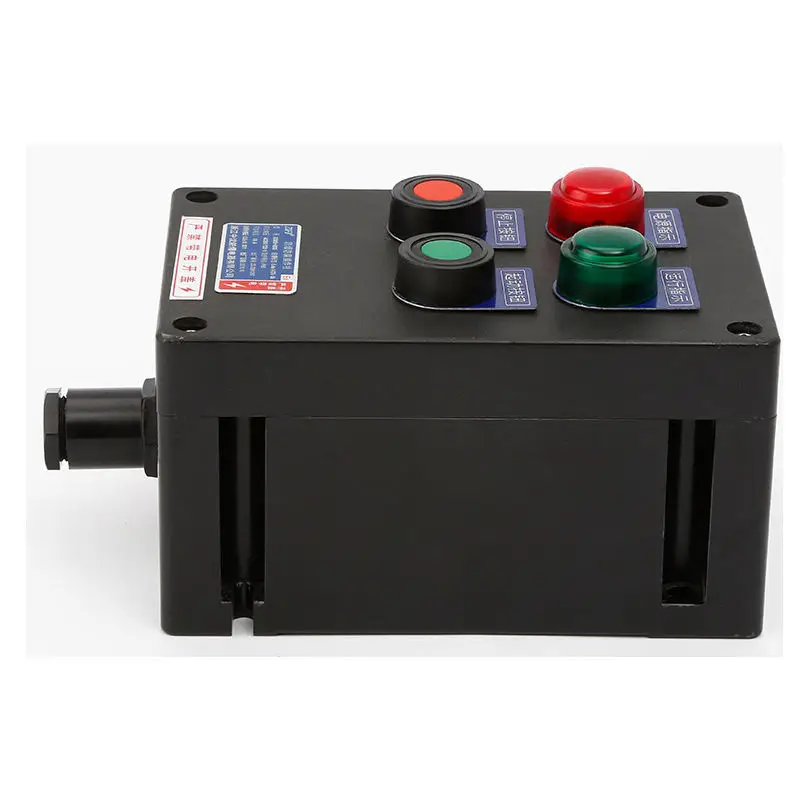

3. I can be used in airport, subway station, and it can be pushbutton box, terminal box, signal box, relays box, sensor box and communication junction box and so on.
2. The product has passed strict waterproof and dustproof test, it reach IP66.
3. I can be used in airport, subway station, and it can be pushbutton box, terminal box, signal box, relays box, sensor box and communication junction box and so on.
4.Model number: SW-MC-148574
5.Dimension: 139*85*74mm
5.Dimension: 139*85*74mm

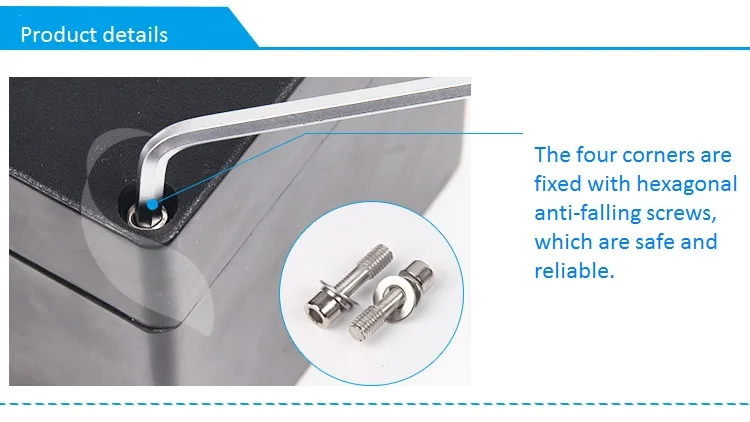

Details Images
Accept Customized
Intend use:
1,Suitable for explosive atmospheres: zone0, zone 1 and zone 2.
2,Explosive atmosphere: class IIA, class IIB and class IIC.
3,Suitable for flammable dust atmosphere: zone 20, zone21 and zone 22.
4,Suitable for temperature classes: T1-T6.
5,Suitable for high corrosion resistance place.
6,It is widely used in oil exploration, oil refining, chemical industry, military, other hazardous environment, offshore oil
platform, oil tanker and other place.
Features:
The shell is increased safety structure, made of high strength refractory engineering plastic.
1,Suitable for explosive atmospheres: zone0, zone 1 and zone 2.
2,Explosive atmosphere: class IIA, class IIB and class IIC.
3,Suitable for flammable dust atmosphere: zone 20, zone21 and zone 22.
4,Suitable for temperature classes: T1-T6.
5,Suitable for high corrosion resistance place.
6,It is widely used in oil exploration, oil refining, chemical industry, military, other hazardous environment, offshore oil
platform, oil tanker and other place.
Features:
The shell is increased safety structure, made of high strength refractory engineering plastic.
It has good appearance, impact resistance, corrosion resistance and good stability.
The concave-convex joint is designed between the cover and body which the silicon rubber bar is sealed between them, it has good waterproof and dust proof ability.

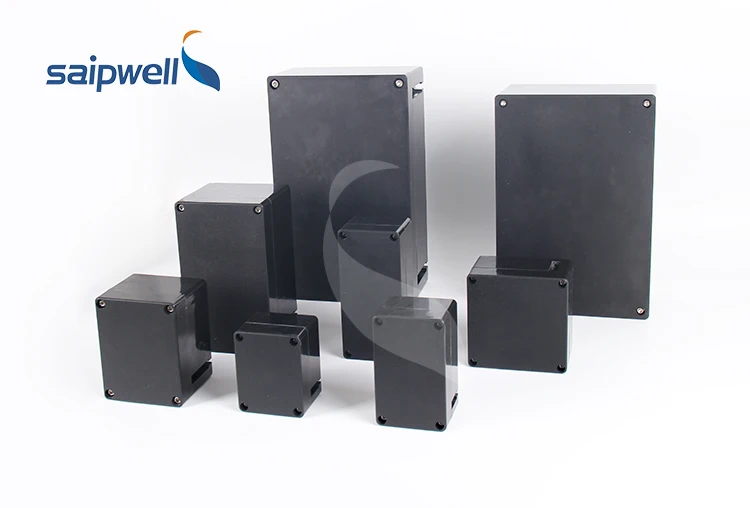

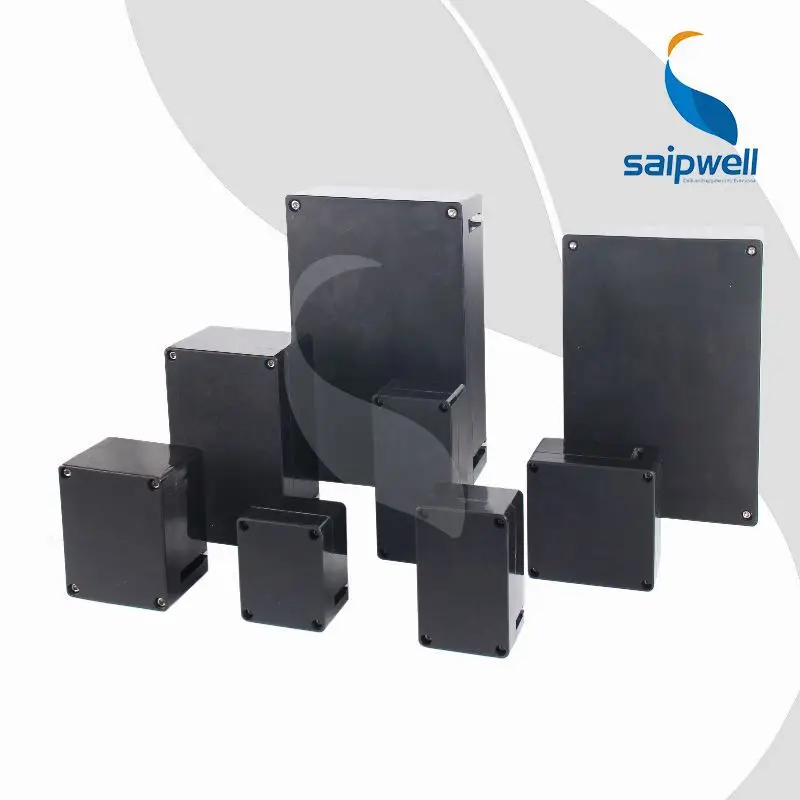

Specification
Model | W*H*D（mm） | Model | W*H*D（mm） | |
SW-MC-108574 | 107X85X74 | BJX-Exe-131310 | 135*135*100 | |
SW-MC-148574 | 139X85x74 | BJX-Exe-201310 | 200*135*100 | |
SW-MC-188574 | 185X85X74 | BJX-Exe-201515 | 200*150*150 | |
SW-MC-238574 | 233X85X74 | BJX-Exe-202010 | 200*200*100 | |
SW-MC-131386 | 130X130X86 | BJX-Exe-231309 | 230*135*90 | |
SW-MC-141110 | 140X110X100 | BJX-Exe-231312 | 230*135*120 | |
SW-MC-151512 | 150X150X120 | BJX-Exe-232309 | 230*230*90 | |
SW-MC-221312 | 220X130X120 | BJX-Exe-232312 | 230*230*120 | |
SW-MC-221512 | 225X150X120 | BJX-Exe-302014 | 300*200*140 | |
SW-MC-221516 | 225X150X160 | BJX-Exe-302015 | 300*200*150 | |
SW-MC-261812 | 260X180X120 | BJX-Exe-302014-6 | 300*200*140 | |
SW-MC-302212 | 300X220X120 | BJX-Exe-302015-6 | 300*200*150 | |
SW-MC-332212 | 330X225X120 | BJX-Exe-402014 | 400*200*140 | |
SW-MC-332216 | 330X225X160 | BJX-Exe-303014 | 300*300*140 | |
SW-MC-362212 | 360X220X120 | BJX-Exe-303015 | 300*300*150 | |
SW-MC-362217 | 360X220X170 | BJX-Exe-403015 | 400*300*150 | |
SW-MC-362222 | 360X220X220 | BJX-Exe-504015 | 500*400*150 | |
SW-MC-363612 | 360X360X120 | BJX-Exd-202013 | 200*200*130 | |
SW-MC-363617 | 360X360X170 | BJX-Exd-202013-1 | 200*200*130 | |
SW-MC-363622 | 360X360X220 | BJX-Exd-202013-2 | 200*200*130 | |
SW-MC-423016 | 420X300X160 | BJX-Exd-202015 | 200*200*150 | |
SW-MC-423019 | 420X300X190 | BJX-Exd-202015-1 | 200*200*150 | |
SW-MC-453316 | 450X330X160 | BJX-Exd-202015-2 | 200*200*150 | |
SW-MC-453324 | 450X330X240 | BJX-Exd-232313 | 230*230*130 | |
SW-MC-524022 | 520X400X220 | BJX-Exd-232313-1 | 230*230*130 | |
SW-MC-724216 | 720X420X160 | BJX-Exd-232315 | 230*230*150 | |
SW-MC-724224 | 720X420X240 | BJX-Exd-232315-1 | 230*230*150 | |
BJX-Exd-503020 | 500*300*200 | BJX-Exd-302015 | 300*200*150 | |
BJX-Exd-503025 | 500*300*250 | BJX-Exd-302018 | 300*200*180 | |
BJX-Exd-504016 | 500*400*160 | BJX-Exd-303015 | 300*300*150 | |
BJX-Exd-504020 | 500*400*200 | BJX-Exd-303018 | 300*300*180 | |
BJX-Exd-504026 | 500*400*260 | BJX-Exd-303020 | 300*300*200 | |
BJX-Exd-605016 | 600*500*160 | BJX-Exd-403015 | 400*300*150 | |
BJX-Exd-605020 | 600*500*200 | BJX-Exd-403018 | 400*300*180 | |
BJX-Exd-605026 | 600*500*260 | BJX-Exd-403020 | 400*300*200 | |
BJX-Exd-706022 | 700*600*220 | BJX-Exd-403025-4 | 400*300*250 | |
BJX-Exd-706025 | 700*600*250 | BJX-Exd-403020-4 | 400*300*200 | |
BJX-Exd-806025 | 800*600*250 | BJX-Exd-404015 | 400*400*150 | |
BJX-Exd-1008030 | 1000*800*300 | BJX-Exd-404020 | 400*400*200 |
