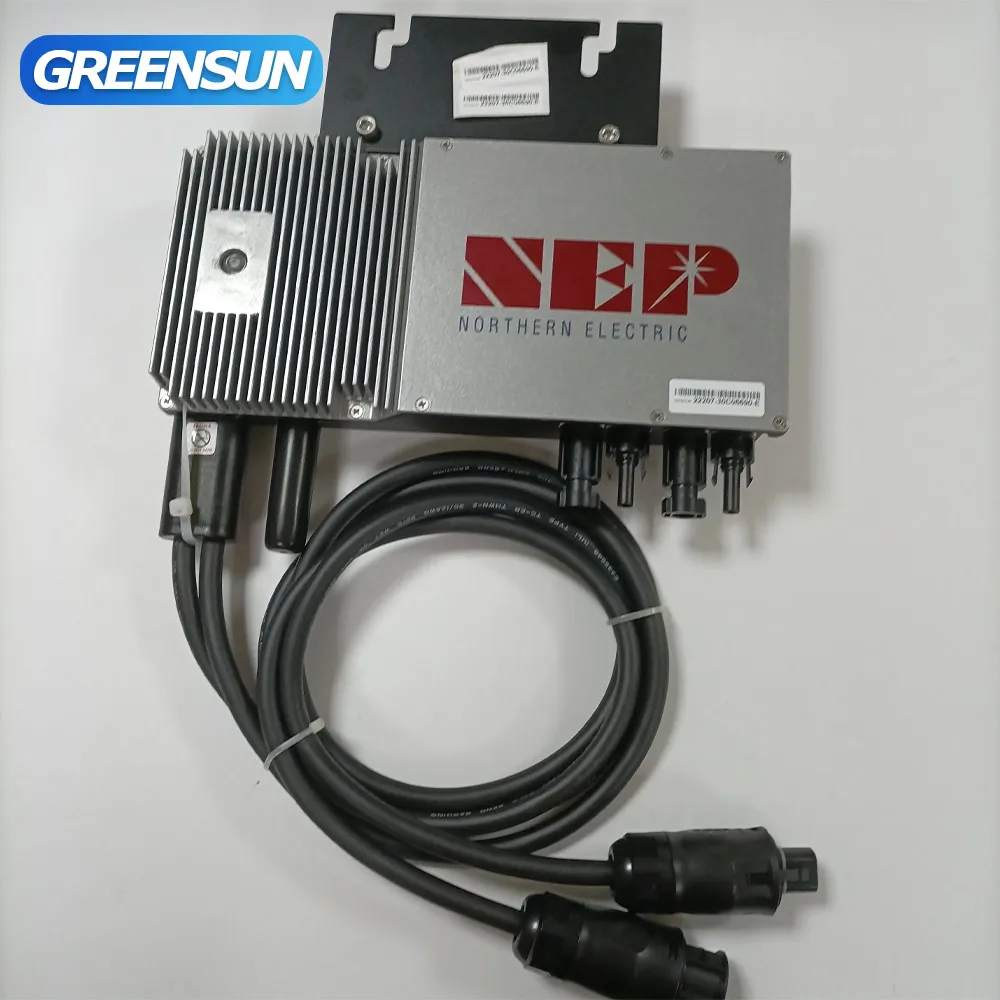

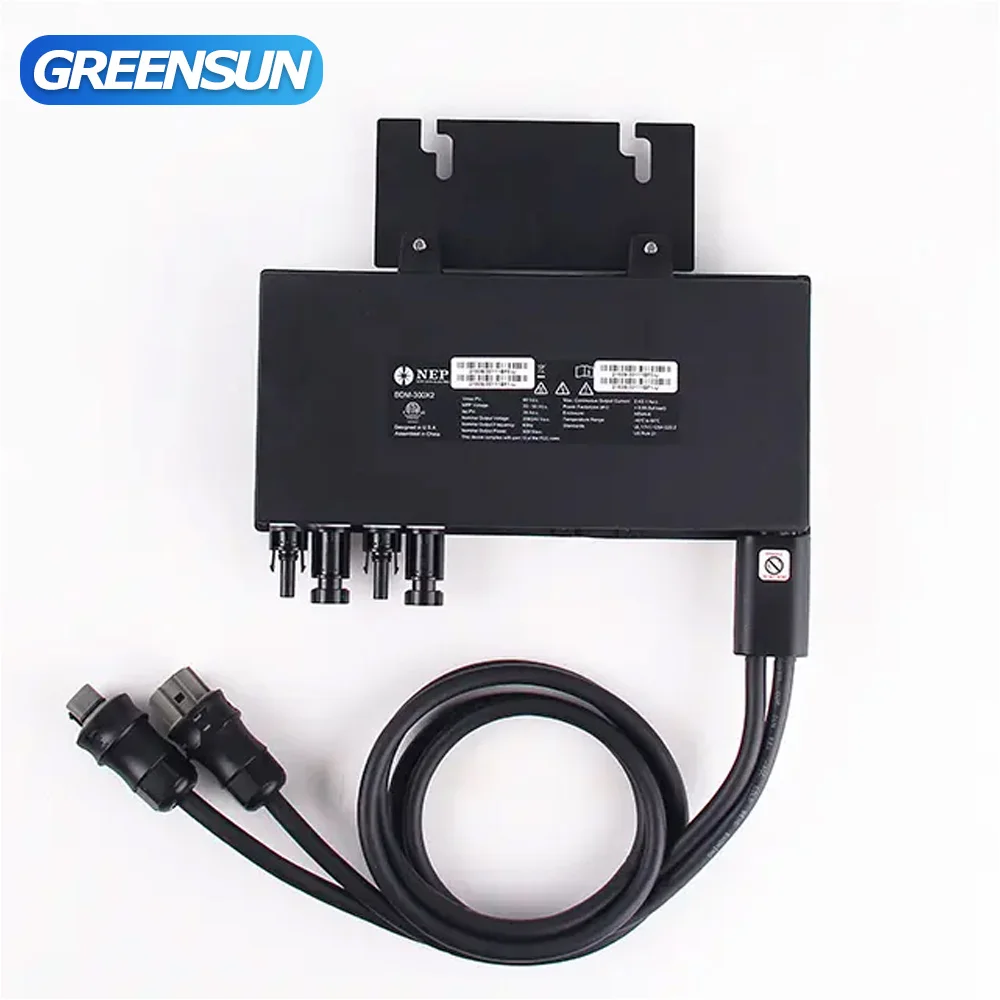

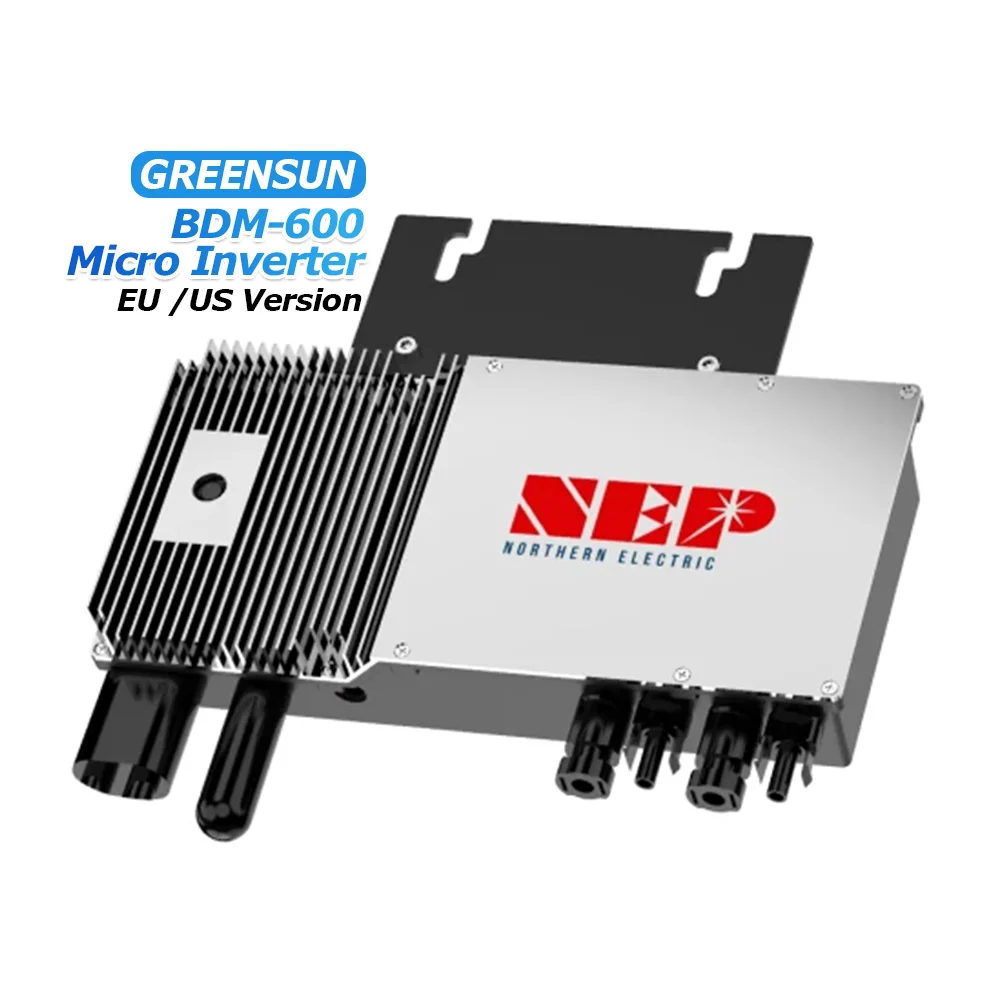

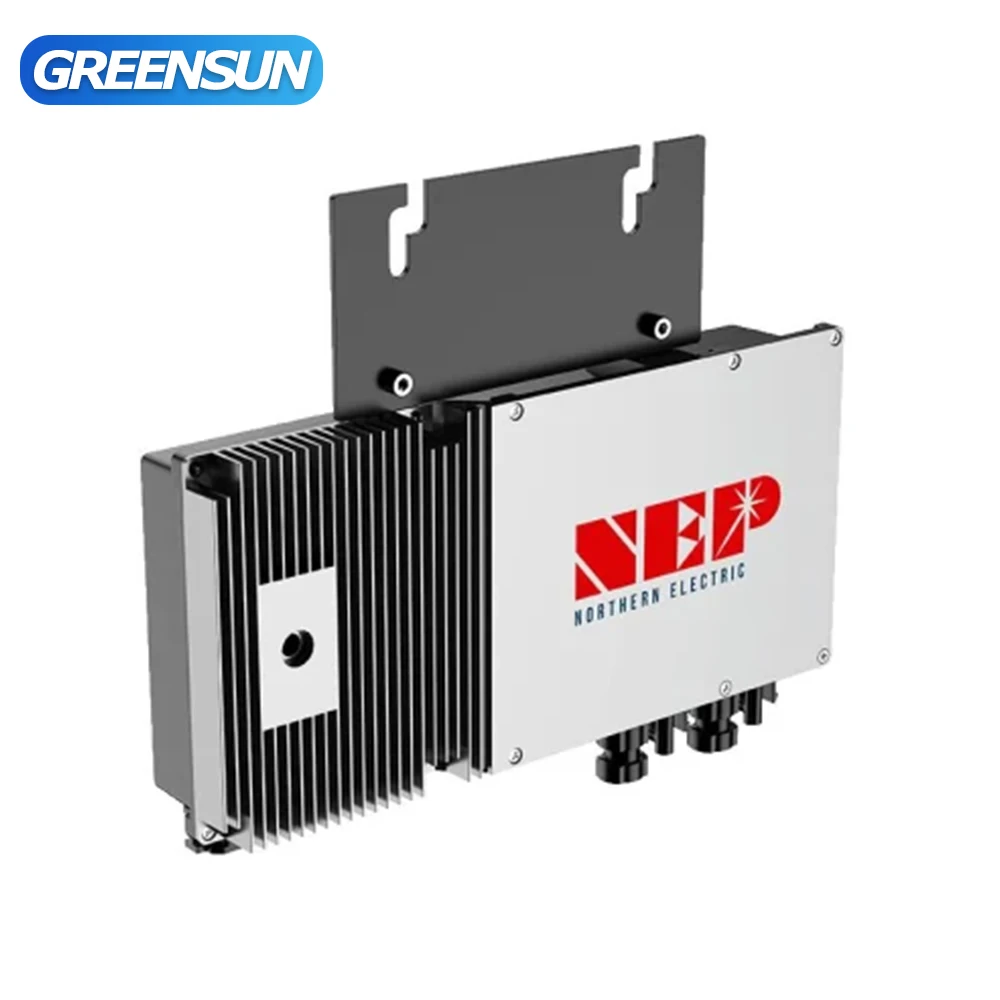

NEP Brand Microinverter 300w 600w 800w EU Standard Voltage Single Phase Small PV Inverter For Household
NEP Brand Microinverter 300w 600w 800w EU Standard Voltage Single Phase Small PV Inverter For Household
NEP Brand Microinverter 300w 600w 800w EU Standard Voltage Single Phase Small PV Inverter For Household
NEP Brand Microinverter 300w 600w 800w EU Standard Voltage Single Phase Small PV Inverter For Household
NEP Brand Microinverter 300w 600w 800w EU Standard Voltage Single Phase Small PV Inverter For Household
NEP Brand Microinverter 300w 600w 800w EU Standard Voltage Single Phase Small PV Inverter For Household
NEP Brand Microinverter 300w 600w 800w EU Standard Voltage Single Phase Small PV Inverter For Household

NEP Brand Microinverter 300w 600w 800w EU Standard Voltage Single Phase Small PV Inverter For Household

Share on (1601034647290):


Price:$99.00 - $117.00

Quantity:


Product Overview

Description



Product Description






Specification


Model
BDM 300
BDM 500
BDM 600
BDM 800
Recommended Max PV Power
450W
750W
450W*2
600W*2
Max DC Open Circuit Voltage
60V
Max DC Input Current
14A
15.5A
14A*2
17A*2
MPPT Tracking Accuracy
>99.5%
MPPT Tracking Range
22-55V
35-55V
22-55V
22-55V
Isc PV (absolute maximum)
18A
14A
18A*2
20A*2
Maximum Inverter Backfeed Current to the Array
0A
Rated AC Output Power
300W
500W
500W
800W
Nominal Power Grid Voltage
240V/208V/230V
Allowable Power Grid Voltage
211-264*/ 183-228*/ Configurable
THD
<3% (at rated power)
Nominal Frequency (Hz)
50HZ/60HZ
Maximum Output Fault Current (Aac)
2.2A PEAK
4.4A PEAK
4.4A PEAK
9.6A PEAK
Maximum Number of Units Per Branch (20A) (All NEC adjustment factors have been considered)
15/13/14
7/6/6
7/6/7
5/5/5
Weighted Averaged Efficiency (CEC)
95.5%
Protection
Over/Under Voltage; Over/Under Frequency; Anti-Islanding; Over Current; Reverse DC Polarity; Overload Protection
Protection Degree
NEMA-6 / IP-66 / IP-67
Ambient Temperature
-40°F to +149°F (-40°C to +65°C)
Operating Temperature
-40°F to +185°F (-40°C to +85°C)
Display
LED LIGHT
Comunications
Power Line

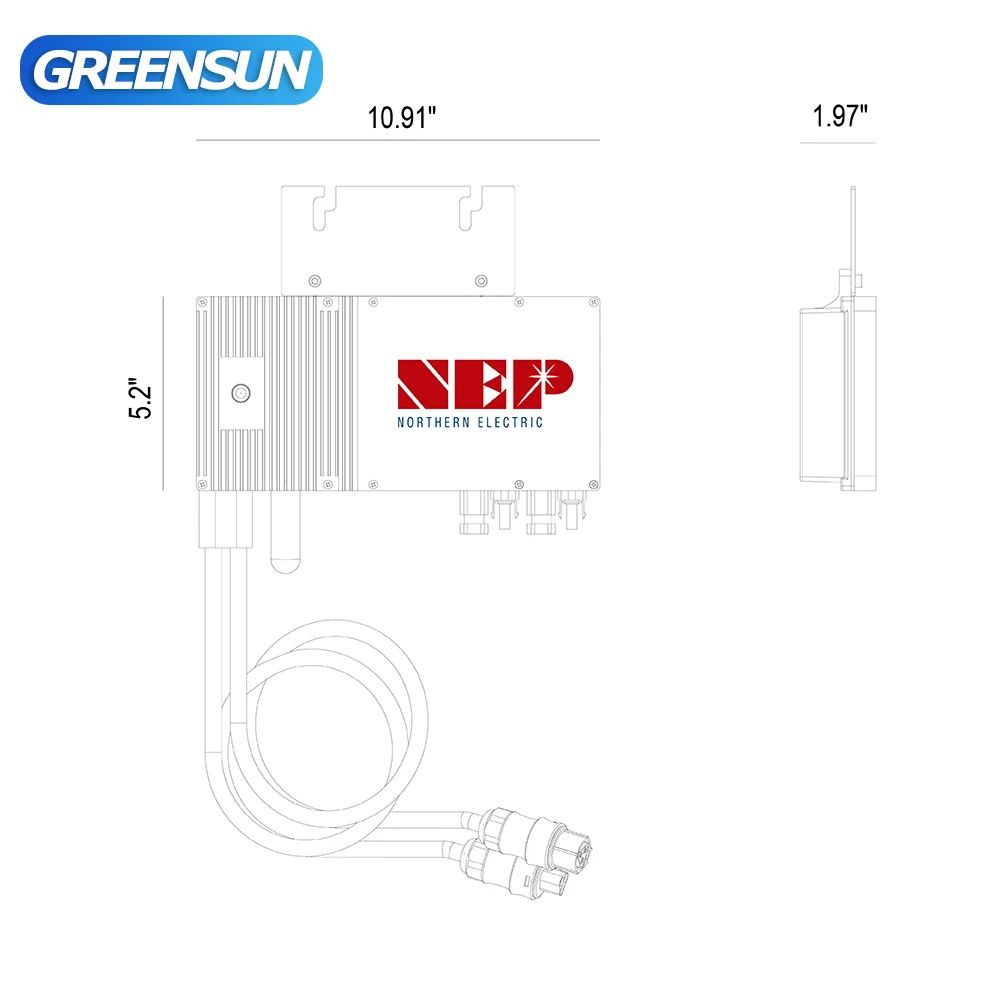

Dimension (W-H-D)
7.09” x7.32” x 0.98” (180x186x25 mm)
10.91”x5.20”x1.97”(277x132x50 mm)
10.91”x5.20”x1.97”(277x132x50 mm)
8.8”x8.2”x1.38” (268x250x42 mm)
Weight (including AC cable)
3.3 lbs. (1.5 kg)
8.8 Ibs. (4.0 kg)
6.4 Ibs. (2.9 kg)
6.4 Ibs. (2.9 kg)
Environment Category
Indoor and outdoor
Wet Location
Suitable
Pollution Degree
PD3
Overvoltage Category
II(PV), III (AC MAINS)
Product Safety Compliance
UL 1741
CSA C22.2
No. 107.1; IEC/EN 62109-1
IEC/EN 62109-2
Grid Code Compliance* (Refer to the label for the
detailed grid code compliance)
IEEE 1547; VDE-AR-N 4105*
VDE V 0126-1-1/A1
G83/2, CEI 021
AS 4777.2 & AS
4777.3,EN50438

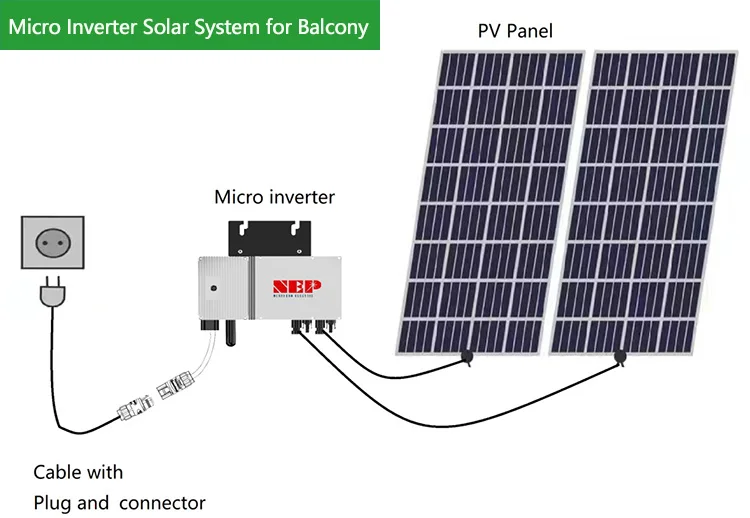

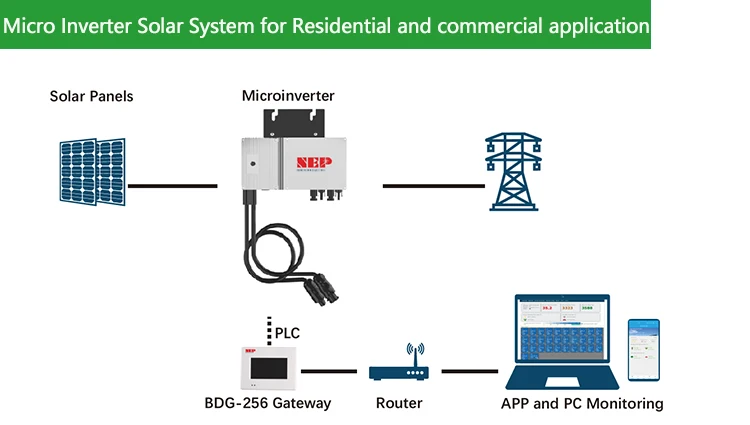

Product Disgram

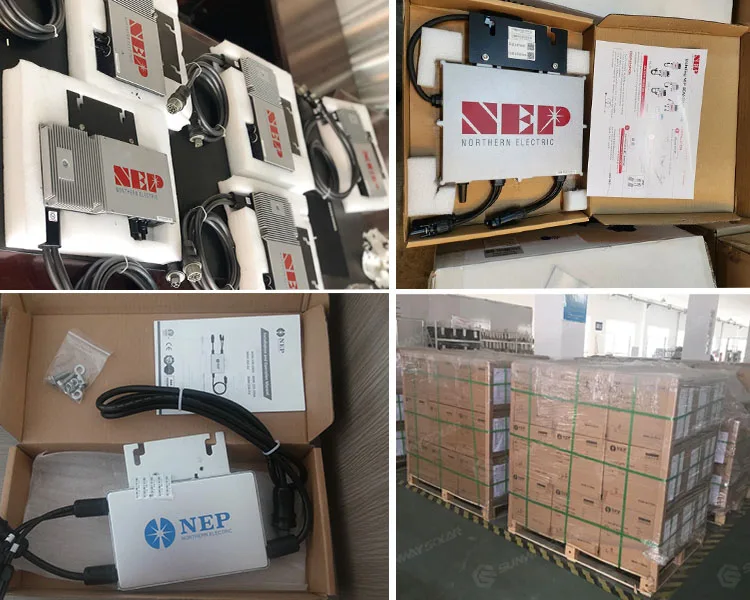

Packing & Delivery

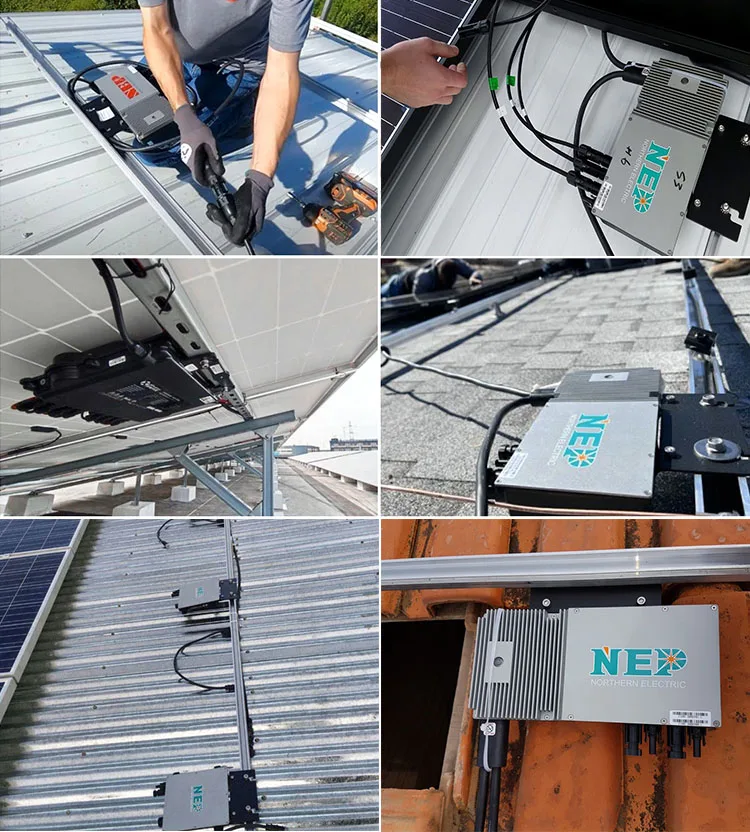

Project Cases
