Product Overview
Description

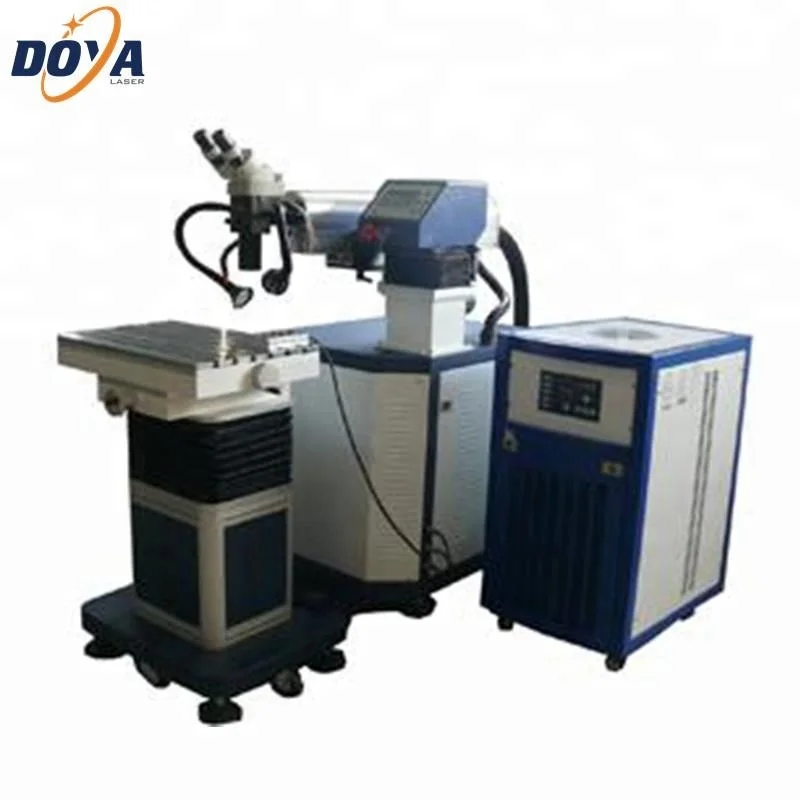

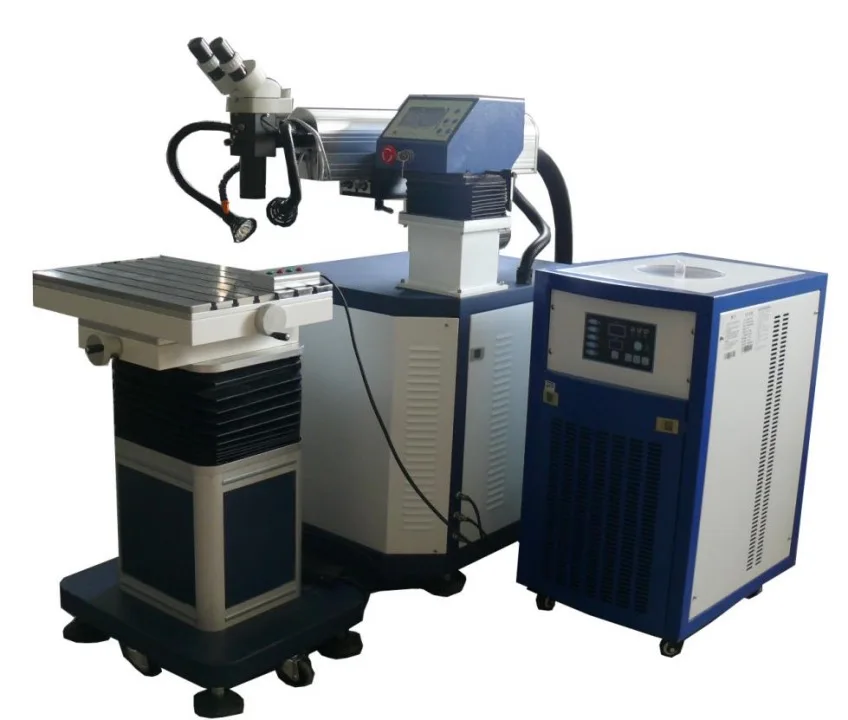

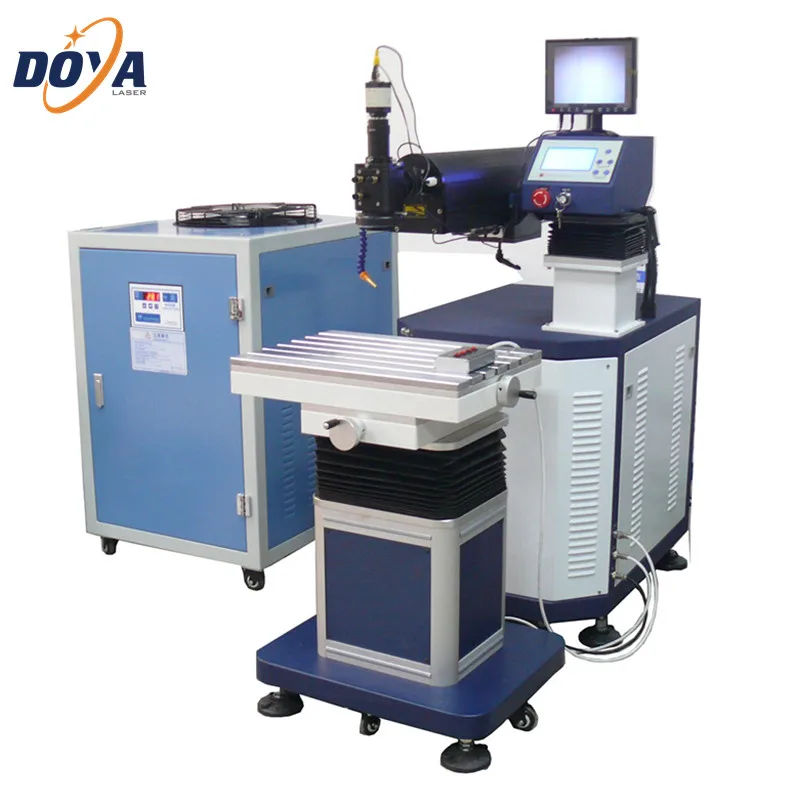

Mold Laser Welding Machine
The mold laser welding machine was originally designed for mold industry for molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds, rubber molds, molds of digital products/mobile phone/toy/automobile/motorcycle etc. By applying suitable soldering wires, it is possible to fill the crack or blowholes and reuse the mold which saves production cost and improves working efficiency significantly. General laser mould welder also can be used in metal sheet stitching welding, pipe/ tube conjunction welding, and manufacturing of sensor, level switch and fine auto parts, etc.
Model | DWM-200 | DWM-300 | DWM-400 |
Laser Power | 200W | 300W | 400W |
Work table capacity | ≤200KG | ≤200KG | ≤200KG |
Power Supply | 220V±10%,50HZ or 60HZ | 220V±10%,50HZ or 60HZ | 220V±10%,50HZ or 60HZ |
Laser Type | Nd: YAG Pulse xenon lamp | Nd: YAG Pulse xenon lamp | Nd: YAG Pulse xenon lamp |
Pulse width | ≤20ms | ≤20ms | ≤20ms |
Diameter of laser spot | 0.1~3mm | 0.1~3mm | 0.1~3mm |
Laser Wavelength | 1064nm | 1064nm | 1064nm |
Laser output focal length | 100mm | 100mm | 100mm |
Pulse Frequency | ≤50Hz adjustable | ≤50Hz adjustable | ≤50Hz adjustable |
Laser Cooling | Water Cooling | Water Cooling | Water Cooling |

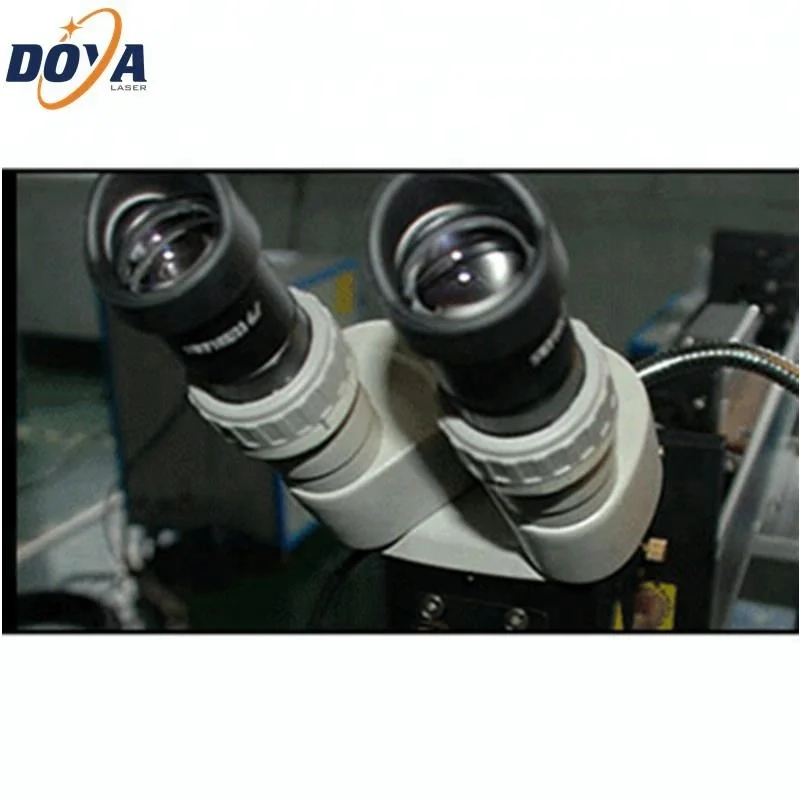

Observing System | Microscope( rotate 360º) | Microscope( rotate 360º) | Microscope( rotate 360º) |
Shield Gas | One line(argon) | One line(argon) | One line(argon) |
Welding Wire Diameter | 0.1mm~0.6mm | 0.1mm~0.6mm | 0.1mm~0.6mm |
Machine Weight | 250-350Kg | 250-350Kg | 250-350Kg |
Dimension | Main Engine 1250*580*1200mm Chiller 700*500*900mm | Main Engine 1250*580*1200mm Chiller 700*500*900mm | Main Engine 1250*580*1200mm Chiller 700*500*900mm |

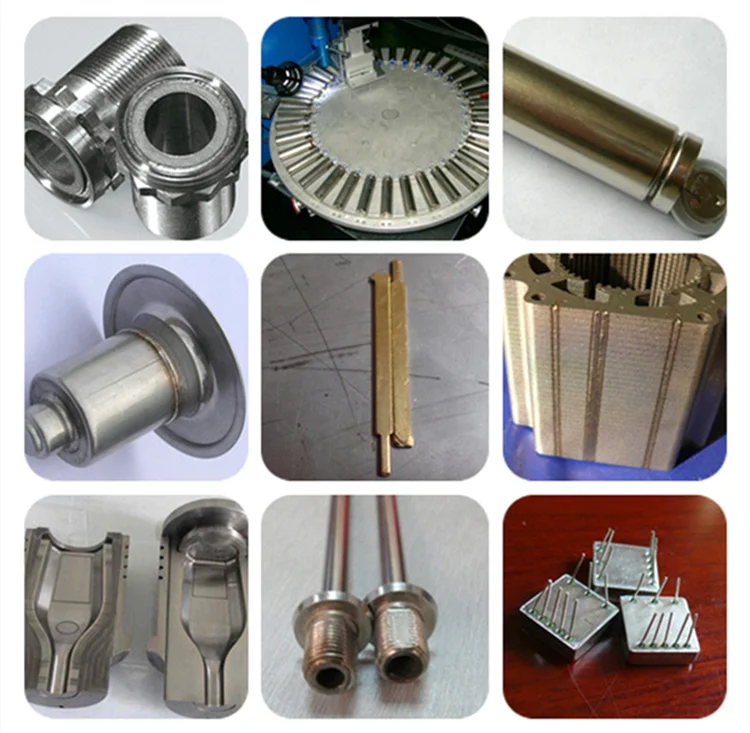

This laser welding machine can not only be used for molds repairing/re-shaping, but also for the precision welding of small articles, such as jewelry, electronics, telecommunication devices, electrical hardware, watch and clocks components, etc.
Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
