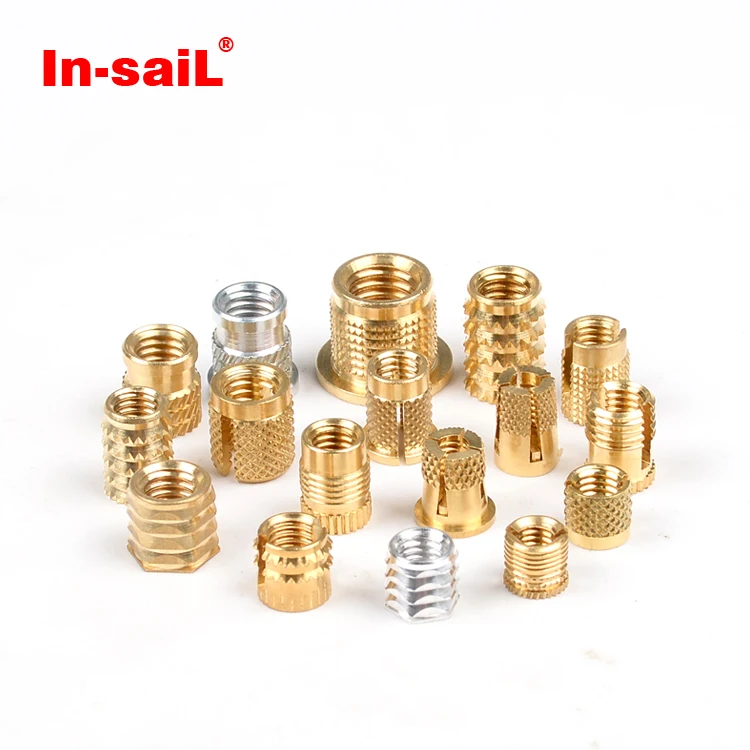

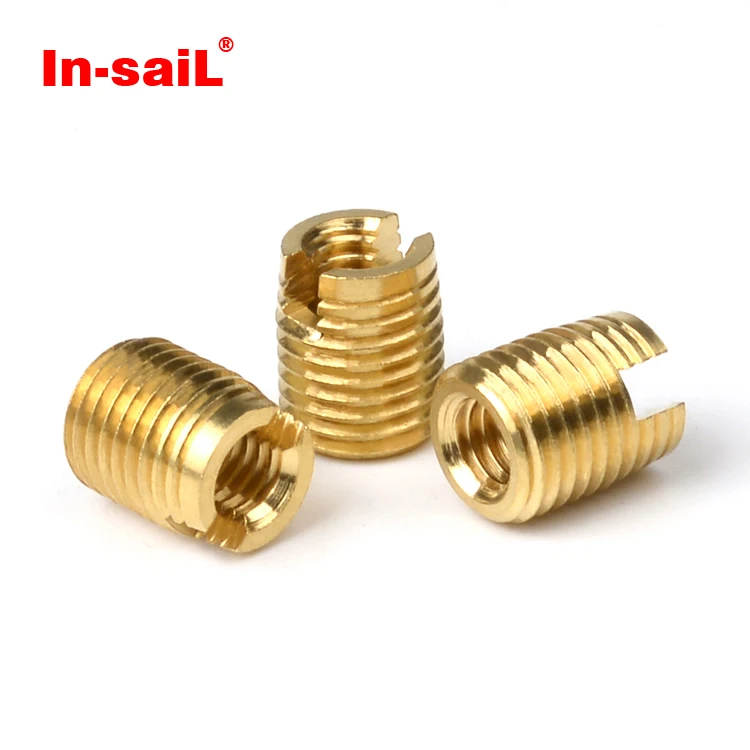

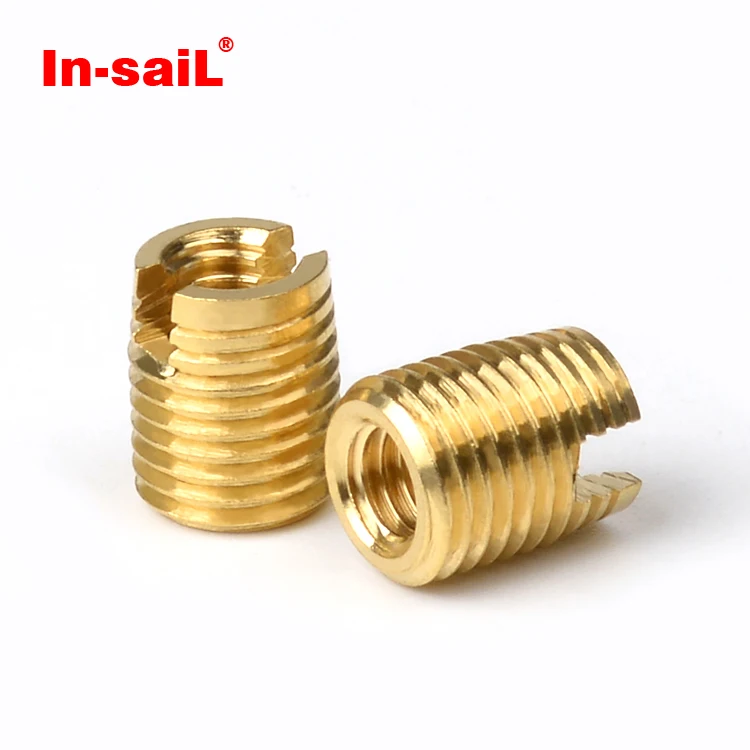

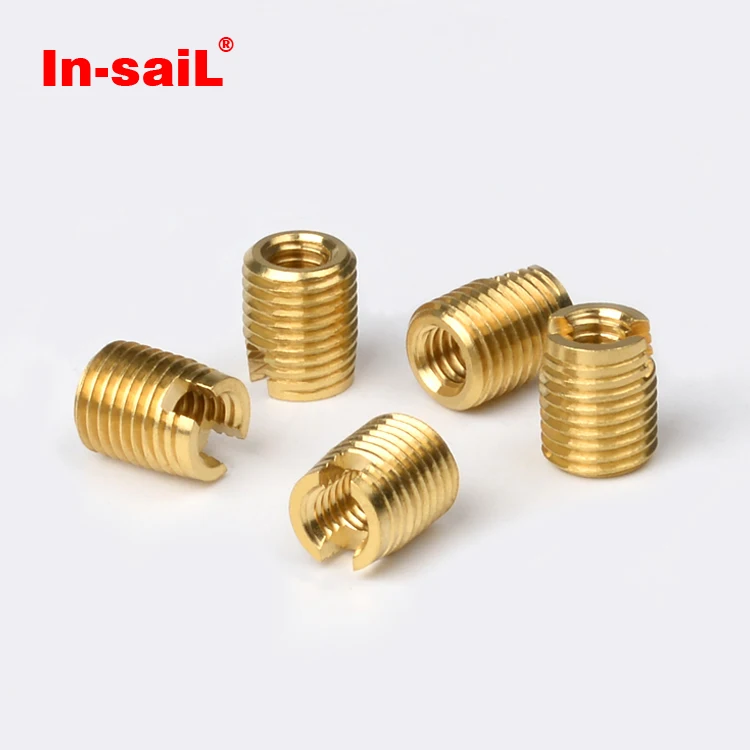

Self tapping threaded insert FOR THERMOPLASTICS AND THERMOSETTING

Product Overview

Description

Company Profile
Quality is our culture
A trustworthy partner

WHAT WE OFFER
In-sail/Sandum is dedicated to manufacturing of precision components and the design, fabrication of engineering specialty fasteners and fastening solution development.

MANUFACTURING CAPABILITY
We have powerful manufacturing capability, our automatic lathes, CNC lathes, CNC machining centers, stamping machines and cold heading machines plus auxiliary equipments like milling machine, grinding machine, EDM and the cooperation of our partners, we are able to support every different components regardless of the prototyping or series production.

WHAT SETS US APART
Quality is our culture. In-saiL has a tradition of exercising total control from raw materials to finished product. And all facilities including: engineering, customer service, sales & marketing, tooling, primary and secondary machining, stamping, electroplating, injection molding, and automatic assembly operations. Custom designs will be welcome.

OUR FOCUS
From order entry to shipping product, In-saiL is focused on the total satisfaction of our Customers.



About us

Material	Brass,Stainless Steel,Carbon steel,Aluminum alloy,according to customer's requirement
Finish	Zn/Ni/Tin/Au plating,Black Oxide,Anodizing and so on.
Insert Methods	By Ultrasonic,Heat staking,Insert Molding,Cold press-in Methods custom by your required
Quality Control	Follow Drawing Spec
Management System	ISO9001:2008
Certification	SGS,RoHS,Material Certication,PPAP
Lead Time	5-10 working days
Samples	Welcome
Delivery term	By DHL,UPS,TNT,FedEx,EMS,By Ocean,By Air
Production Capability	Auto-lathe turning:ODΦ0.5-20mm,Tol.±0.01mm
	CNC lathe turning:ODΦ0.5-250mm,Tol.±0.005mm
	CNC Milling:800x600mm(LxW),Tol.±0.05mm
	Grinding:Tol.±0.002mm
	Screw heading & rolling:Metric 0.8-M6,Unified Imperial#0-1/4''
	Stamping:200T max

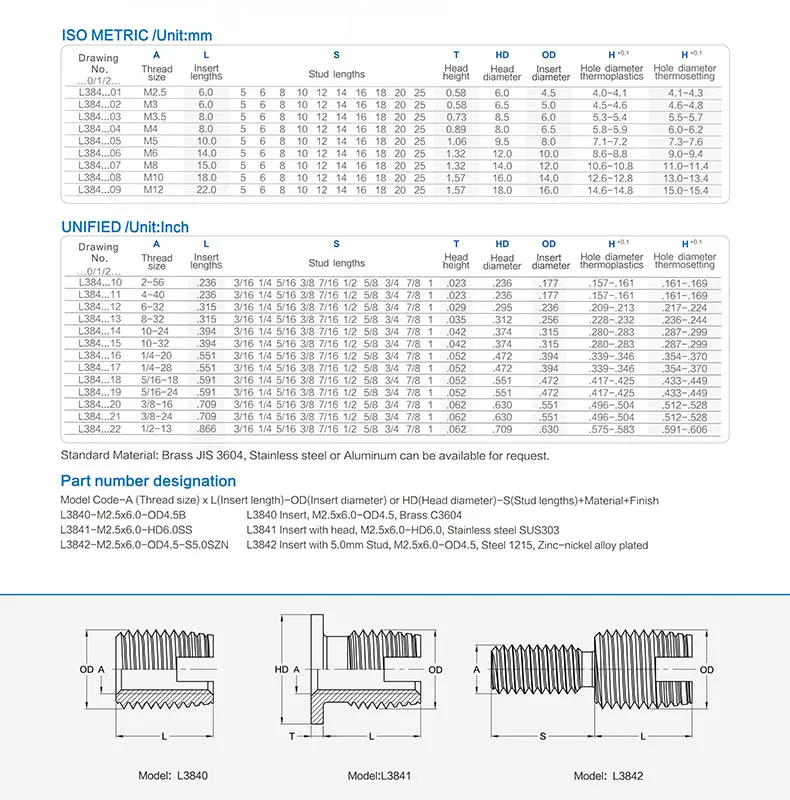

Specification	M2/ M2.5/ M3/M3.5/M4/M5/M6/M8/M10/M12 ect ,custom per your requirement



Special Features of Brass Inserts:

· Threads as per International Go & Not Go Standards.
· Deep Groove for maximum Pull Out Resistance.
· Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts.
· Knurling Available :
o Diamond
o Straight
o Unidirectional
· Both blind and through brass inserts are available with no minimum Qty.

Length / Size :

· Begins from M2 or equivalent threads and up to any size as per custom design or requirement

Material :

· Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
· Any Special Brass Material Composition as per customers requirement

Finish And Coating :

·  Natural, Nickle Plated, Tin Plated brass inserts or any coating as per customer specification.

Any kind of special brass inserts can be developed and supplied exactly as per
customer specifications.

Q1:How to guarantee the Quality of Industrial Parts?

A1:We have been in fastener field over ten years with full experience. And there are 5 checks in the whole processing, We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts production.

Q2:Can I get a sample before mass production?

A2: We can provide free sample if we have this in stock, as long as you afford the freight.if no stock, We can produce for you after get sample fee. lead time:5-7 workdays.

Q3:What is the lead time of the mass production?

A3:Normally, 7-15 workdays, it depends on the quantity.

Q4:What's the advantage?

A4: The competitive prices, fast delivery and high quality. responsible-oriented employees strict tolerance, smooth finish and long-life performance.

Q5:What are our machining equipment?

A5:CNC milling machines, CNC turning machines, stamping machines,grinding machines,automatic lathe machines, tapping machines, grinding machines,screw machines, cutting machines and so on.

Q6:Who are our main customers?

A6:BMW,PHILIPS,AIRBUS,ABB,AUDI,TOYOTA,PANASONIC,SONY,BOSCH,HUAWEI,GREE,NEC,SIEMENS,CANON,Wii,SANYO,FOXCONN,SAMSUNG

Q7:Will my drawing be safe after you get it?

A7: Yes, we will not release your design to third party unless with your permission.
