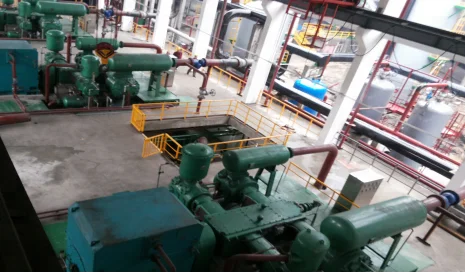

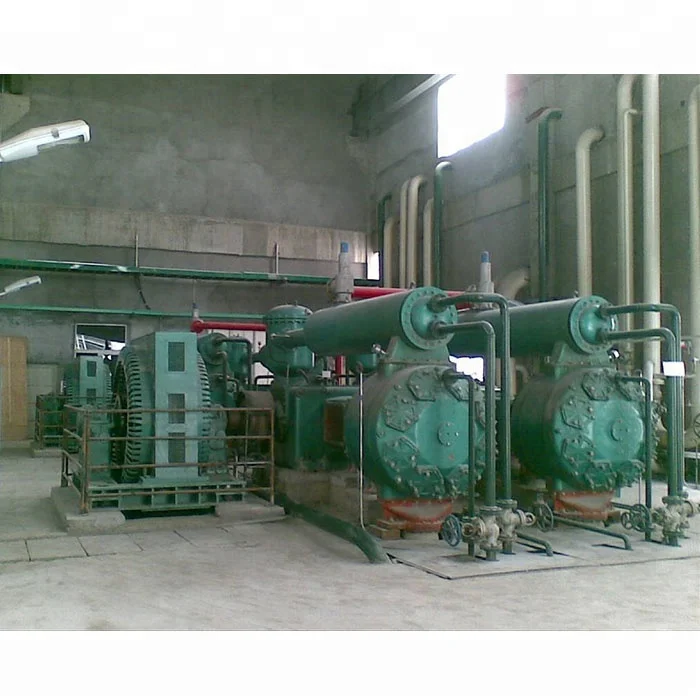

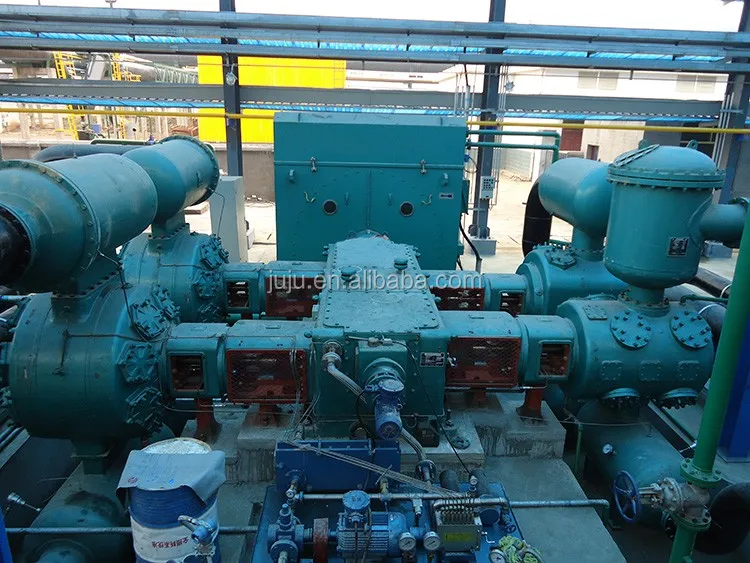

1mmcfd natural gas booster compressor station

Product Overview

Description

                1mmcfd natural gas booster compressor station



our company manufactured the reciprocating piston gas compressor, our engineer has 50 years experience in gas compressor.

Air compressor or other gas compressor, high pressure compressor and gas booster compressor can be individual customized.
 pressure: from 1-200bar,     capacity: from 2-2000m3/min.
 compressor type: Z type, L type, M type ,D type, V type, W type
 voltage range :  380v,415v,460v and high voltage





Benefit

a)  low maintenance cost

b)  low compressor speed-----but operate steadily

c)  24 hours a day, 365 day continuous run

d)  CE certificate and API standard are available.

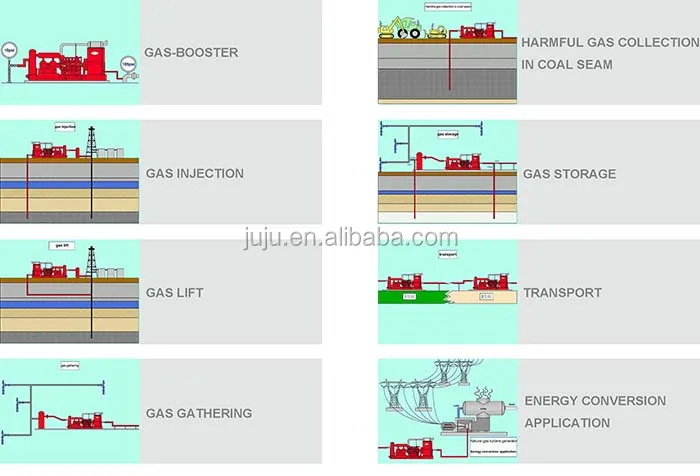

natural gas booster compressor station applications

a)  gas lift

b)  vehicle filling station

c)  natural gas gathering

d)  vapor recovery

e)  gas storage

f)  pipeline transport

g)  downhole gas injection





Technical parameters of natural gas booster compressor station



Gas compressor	Outlet pressure	flow	Cool way	Compressor type	voltage
Oxygen compressor	1-3625 psi	1-21201cfm	Air,water	L.Z,D,M,V	220v,380v,460v,400v,415v
Nitrogen compressor	1-3625 psi	1-10mmcfd	Air,water	L.Z,D,M,V	220v,380v,460v,400v,415v
Hydrogen compressor	1-3625 psi	1-21201cfm	water	L.Z,D,M,V	220v,380v,460v,400v,415v
CO2 compressor	1-1015 psi	1-2000cbm	water	L.Z,D,M,V	220v,380v,460v,400v,415v
Ch4 compressor	1-3625 psi	1-21201cfm	Air,water	V,D,M,	220v,380v,460v,400v,415v
Ammonia compressor	1-3625 psi	1-21201cfm	Air,water	V,D,M,	220v,380v,460v,400v,415v
Argon compressor	1-3625 psi	1-21201cfm	Air,water	L.Z,D,M,V	220v,380v,460v,400v,415v
Acetylene compressor	1-362 psi	1-21201cfm n	water	L.Z,D,M,V	220v,380v,460v,400v,415v
Air compressor	1-2900 psi	1-10mmcfd	Air,water	L.Z,D,M,	220v,380v,460v,400v,415v
NO  compressor	1-3625 psi	1-21201cfm	Air,water	L.Z,D,M,V	220v,380v,460v,400v,415v
N02  compressor	1-3625 psi	1-21201cfm	Air,water	L.Z,D,M,V	220v,380v,460v,400v,415v
Natural gas compressor	1-3625 psi	1-10mmcfd	Air,water	L.Z,D,M,V	220v,380v,460v,400v,415v







Configuration

· Cooler for each stage, after-cooler is equipped for multistage compression.

· stainless steel cylinder is for special gas compressor(NH3, CO2 which contains water)

· safety valve for each stage, will open automatically when pressure exceeds.

· control by PLC or manual

· temperature gauge, pressure transmitter and pressure gauges

· check valves and vent valves, which located behind the exhaust valves.

Options

· Hoerbiger valve

· frequency converter(drive rang from 25-100%)

· sound-proof shield

· soft start

· gas engine compressor





Material

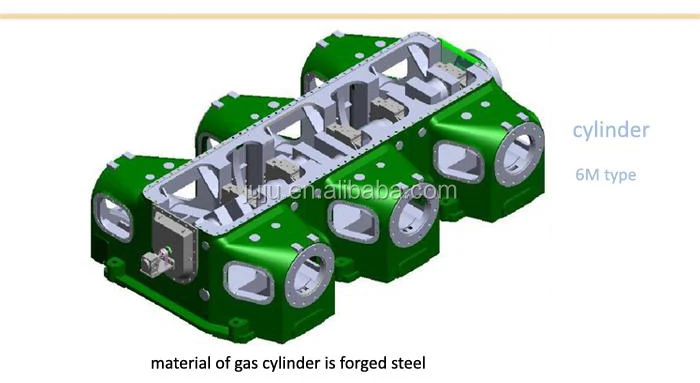

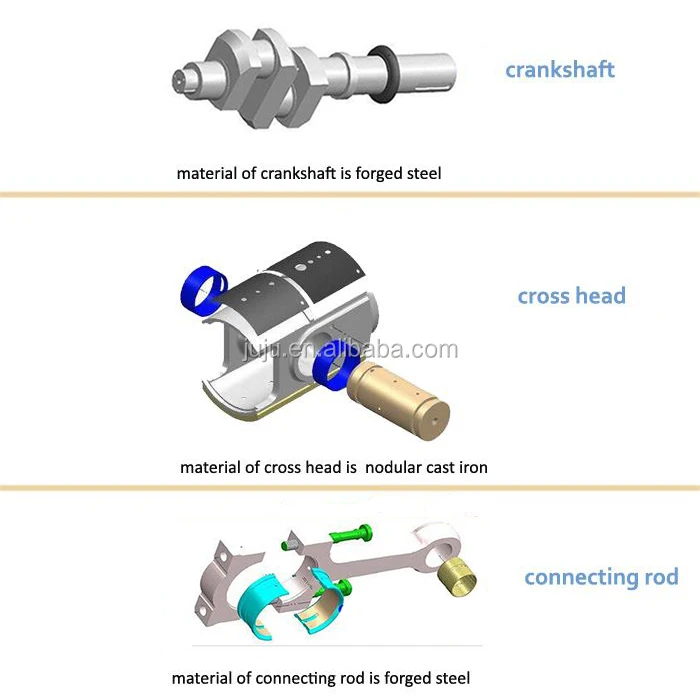

crankshaft, connect rod, crosshead, cylinder



Automatic protection system

· a. Pressure controller is installed on oil pipeline

 to protect when oil pressure is too low.

· b. Target flow controller is installed on master water inlet pipeline

 to protect when cooling water pressure is too low.

· c. electric contact bimetal thermometers are installed on each stage gas outlet

 to protect when each stage discharge temperature is too high.



Quality Inspection Each natural gas booster compressor station is tested with nitrogen/air before leaving factory ,

And each compressor test run for not less than 24 hours in factory. The third inspect party such as

 intertek, sgs can check the process details in behalf of user.





Service and Maintenance

There are three maintenance stages for the air and gas compressor .

Firstly, check the compressor operation condition irregularly,

 and check whether the valve plate break up, spring break, partial piston ring wear and so on .

Secondly, after compressor runs 4000-16000 hours,

check the wearing parts such as intake and discharge valve, packing , piston ring; and correct the

 accuracy of the pressure gauge; check the  sealing of safety valve and other valves.



Thirdly, after compressor runs 16000-24000 hours, then disassemble clean and check all the compressor

 accessories and compressor parts., blow dirt in the gas pipes and buffer tanks.

for reciprocating piston compressor type, they won’t fail to work without any early alarm. so the daily

maintenance is very important for natural gas booster compressor station.
