Sunflx 3000W 12/24 Volt OFF GRID Solar Inverter 1200w Pure Sine Wave MPPT Solar Charge Battery Charger for Off Grid Solar System
Sunflx 3000W 12/24 Volt OFF-GRID Solar Inverter 1200w Pure Sine Wave MPPT Solar Charge Battery Charger for Off Grid Solar System
Sunflx 3000W 12/24 Volt OFF-GRID Solar Inverter 1200w Pure Sine Wave MPPT Solar Charge Battery Charger for Off Grid Solar System
Sunflx 3000W 12/24 Volt OFF-GRID Solar Inverter 1200w Pure Sine Wave MPPT Solar Charge Battery Charger for Off Grid Solar System
Sunflx 3000W 12/24 Volt OFF-GRID Solar Inverter 1200w Pure Sine Wave MPPT Solar Charge Battery Charger for Off Grid Solar System
Sunflx 3000W 12/24 Volt OFF-GRID Solar Inverter 1200w Pure Sine Wave MPPT Solar Charge Battery Charger for Off Grid Solar System
Sunflx 3000W 12/24 Volt OFF-GRID Solar Inverter 1200w Pure Sine Wave MPPT Solar Charge Battery Charger for Off Grid Solar System

Sunflx 3000W 12/24 Volt OFF GRID Solar Inverter 1200w Pure Sine Wave MPPT Solar Charge Battery Charger for Off Grid Solar System

Share on (1601034782857):


Price:

Quantity:


Product Overview

Description







Product Details

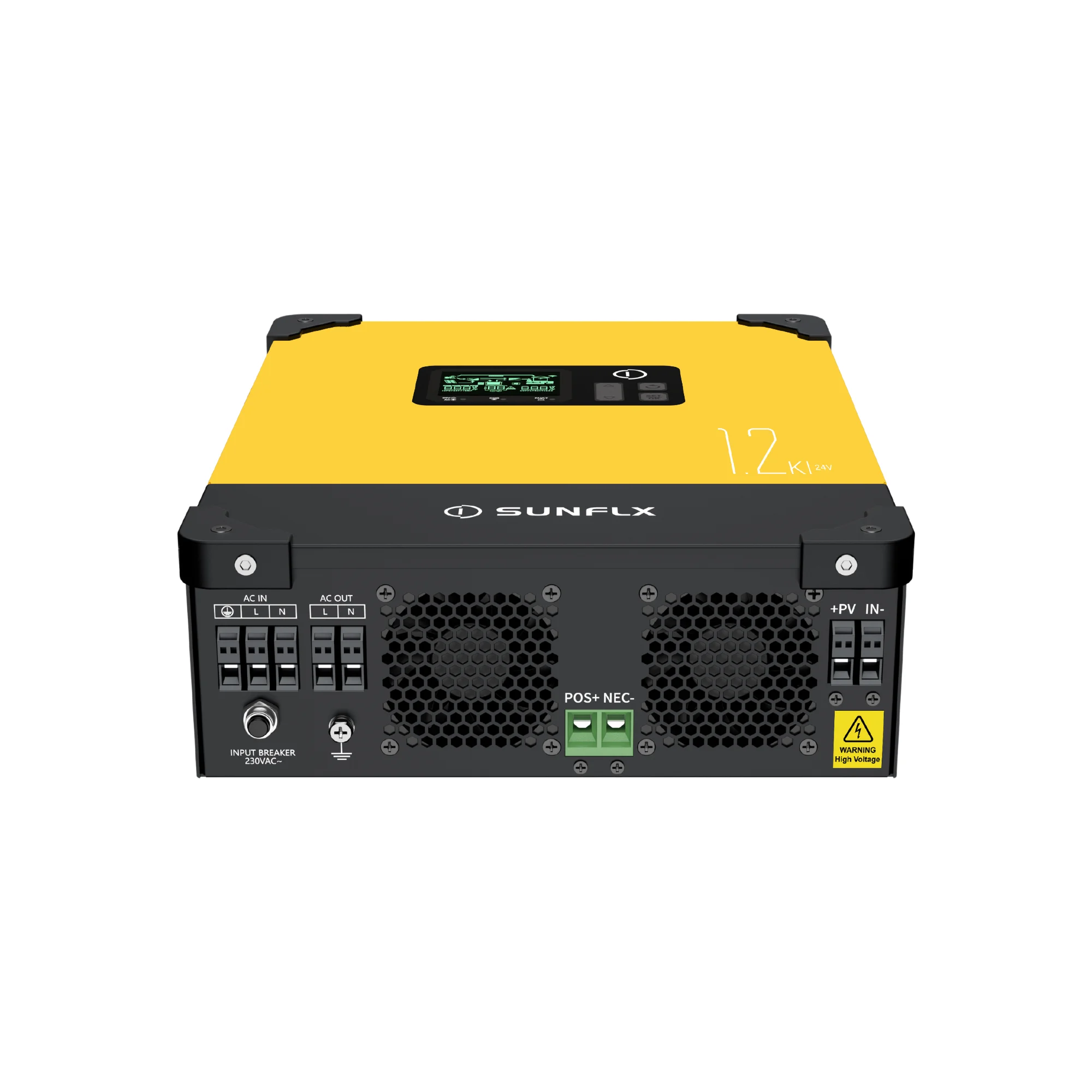

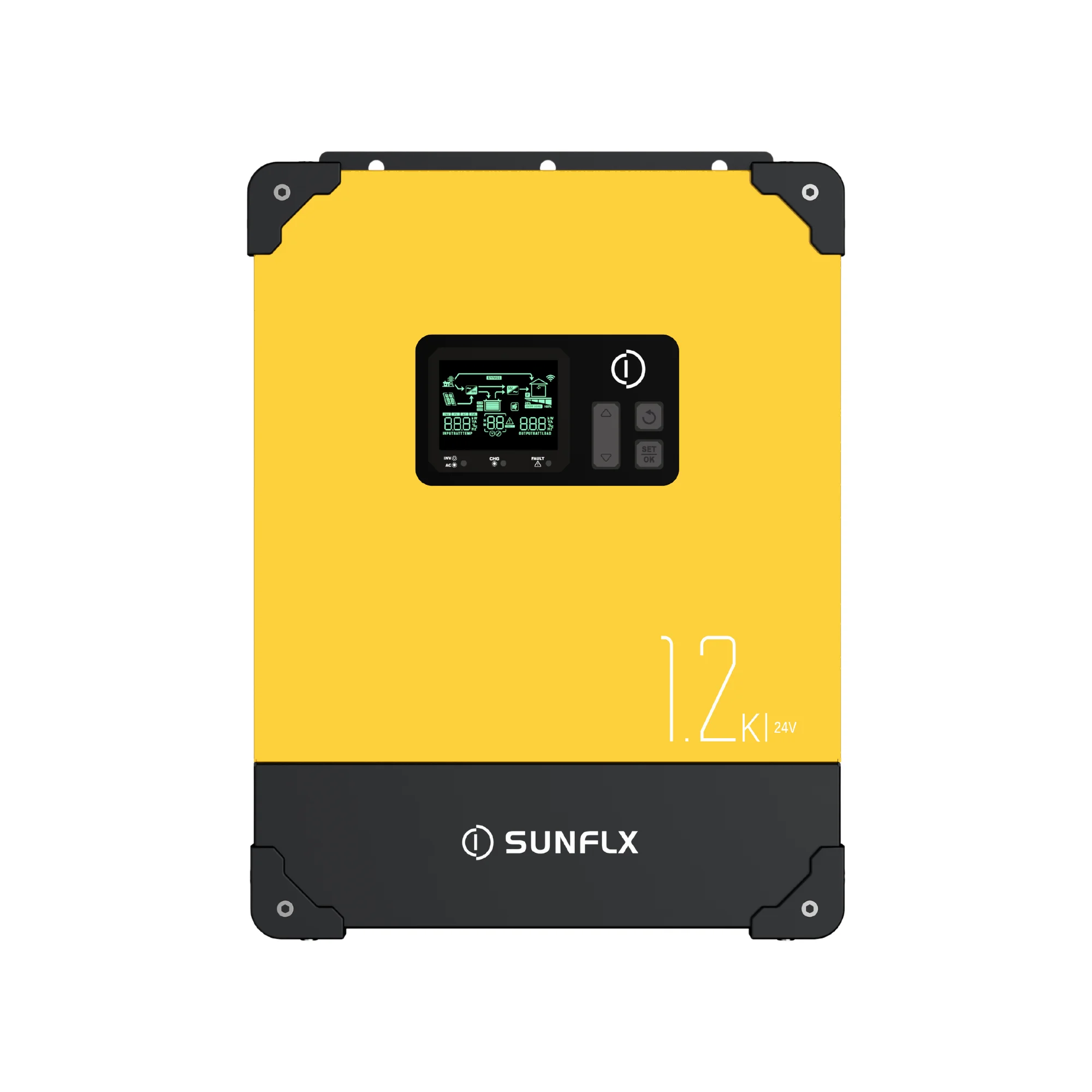

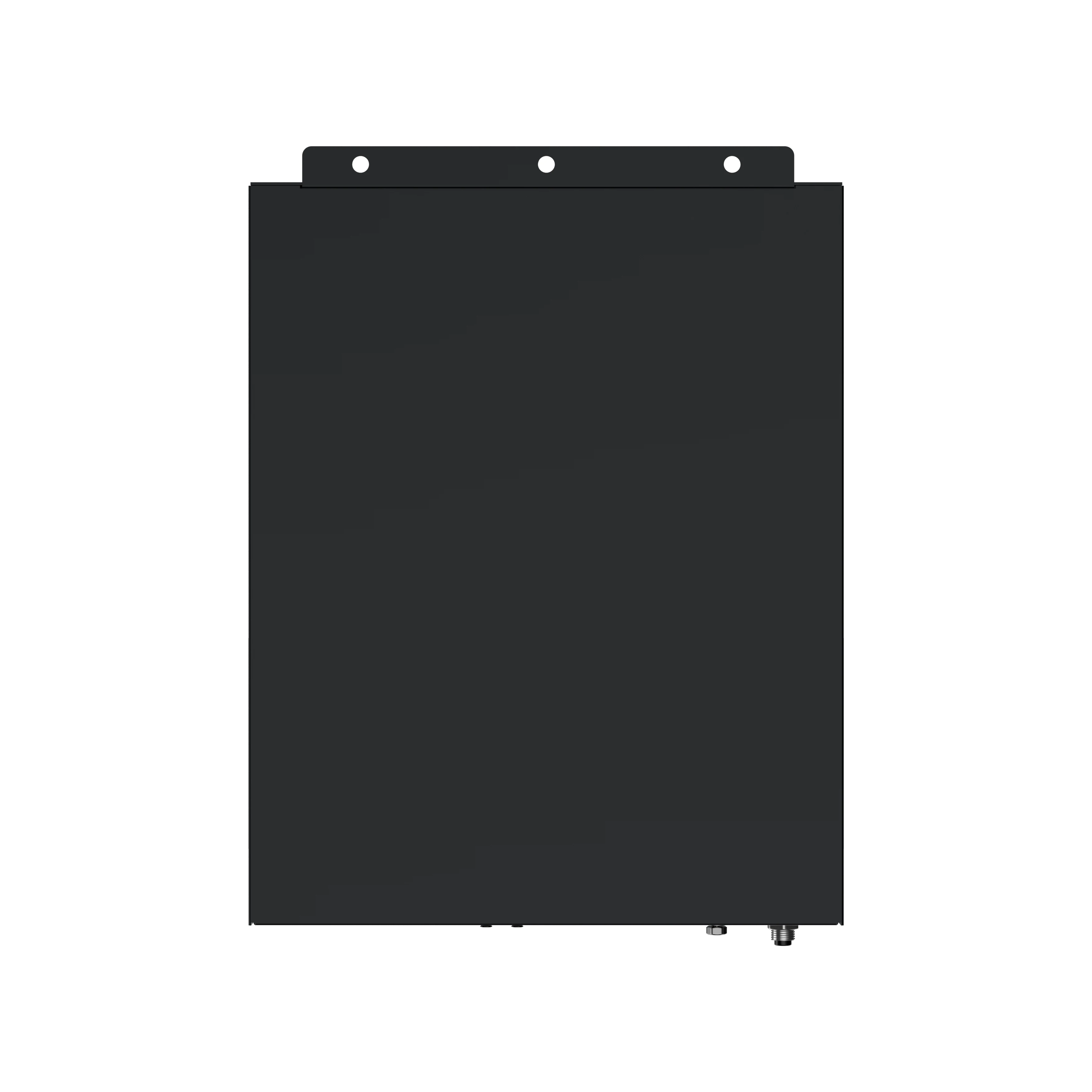

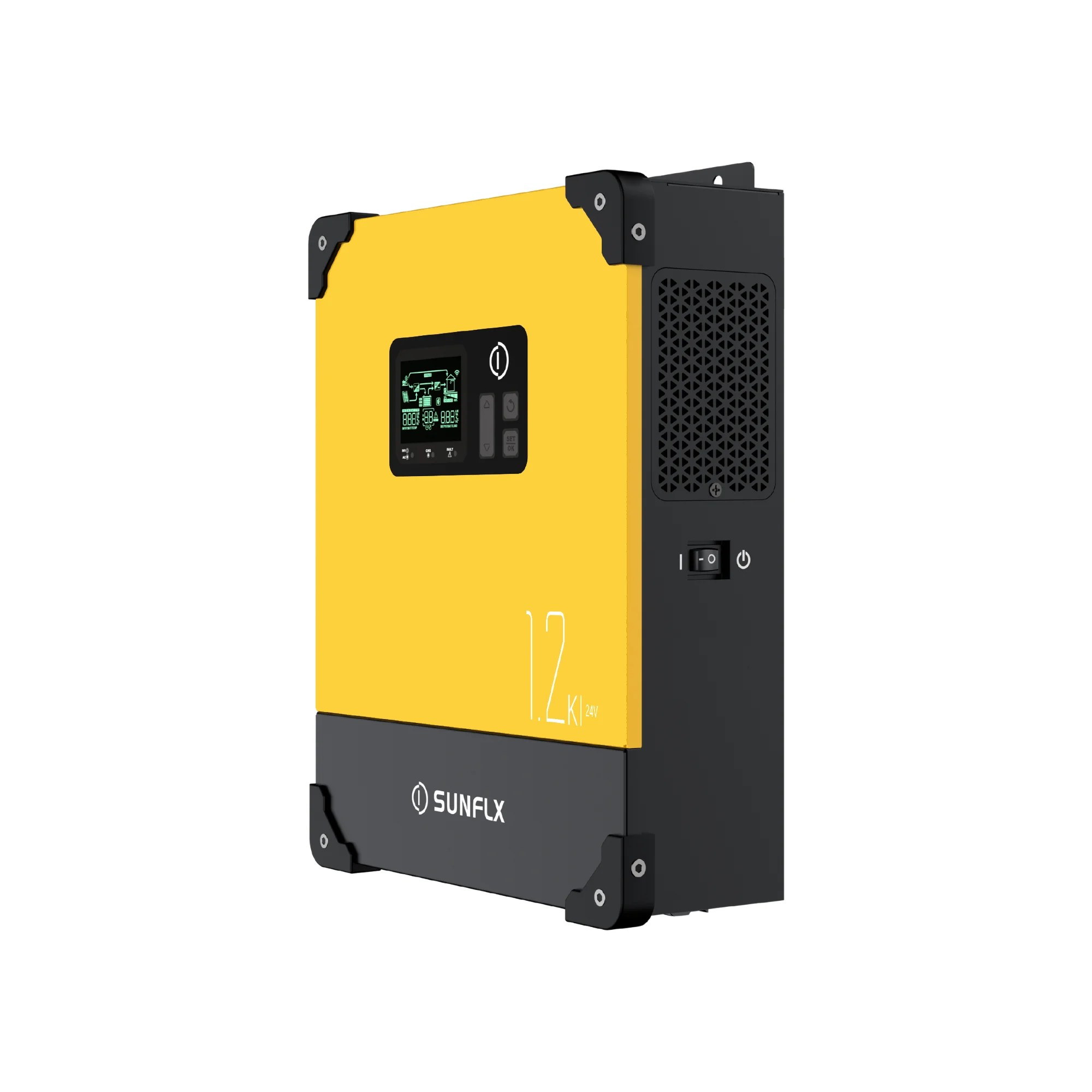

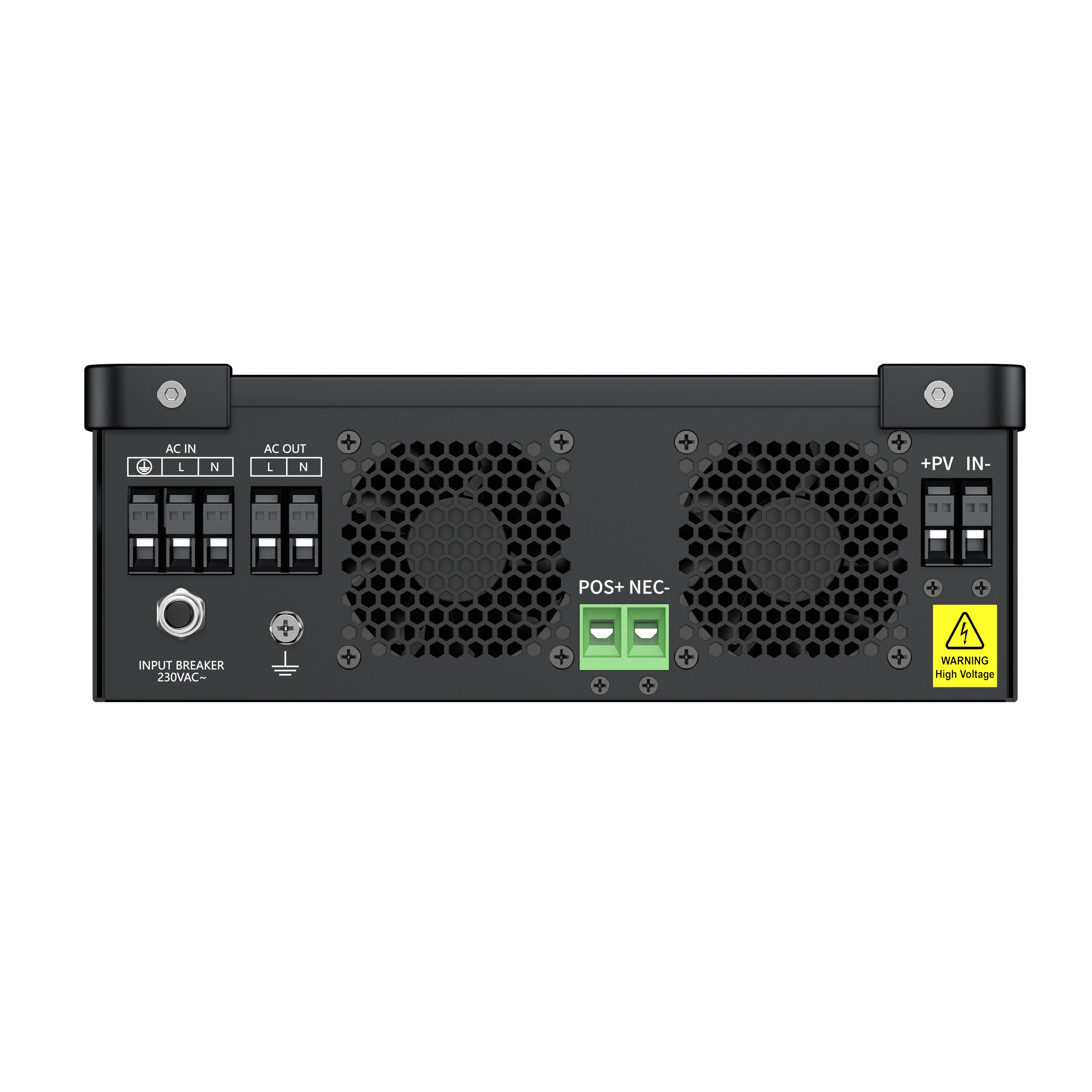

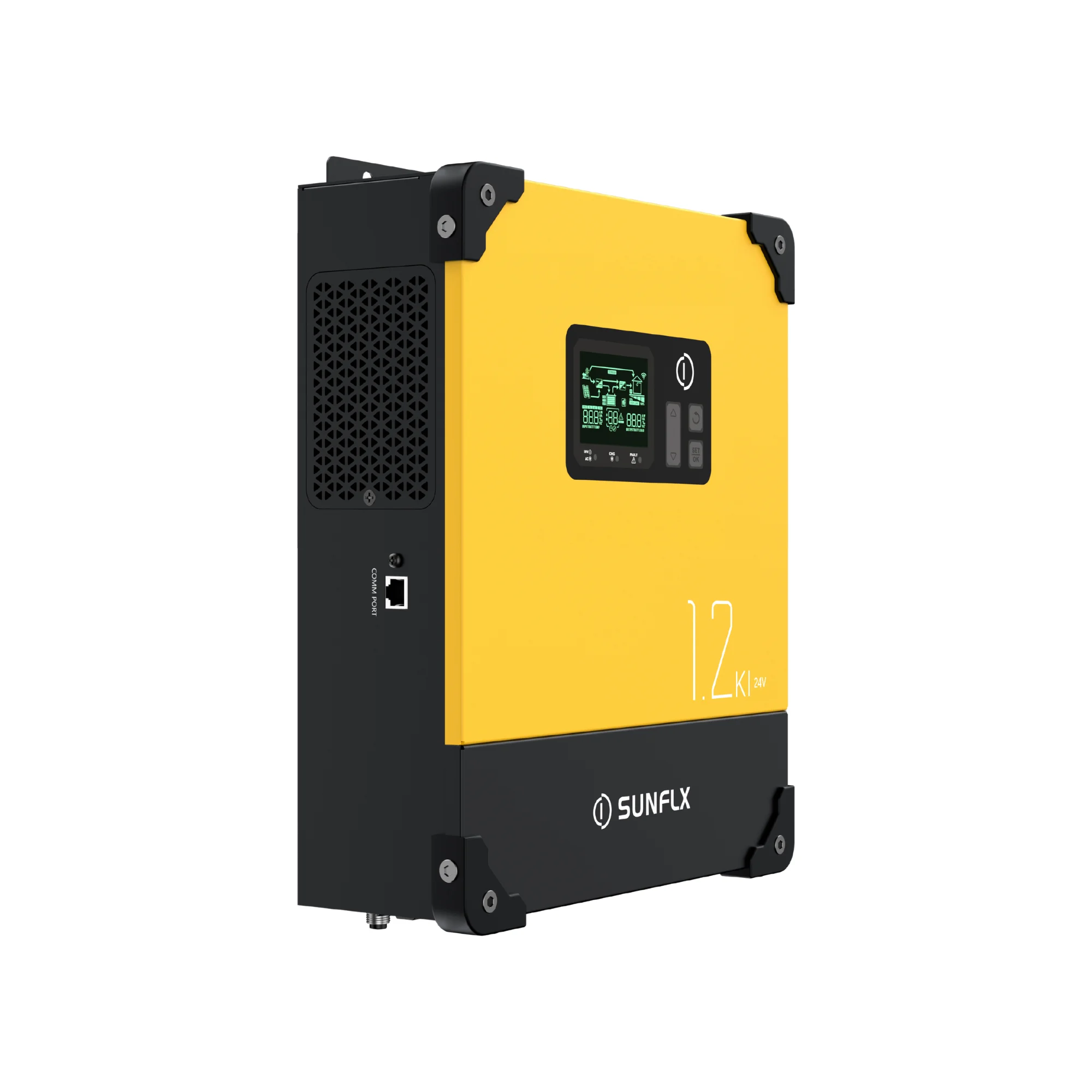

From Different Angle

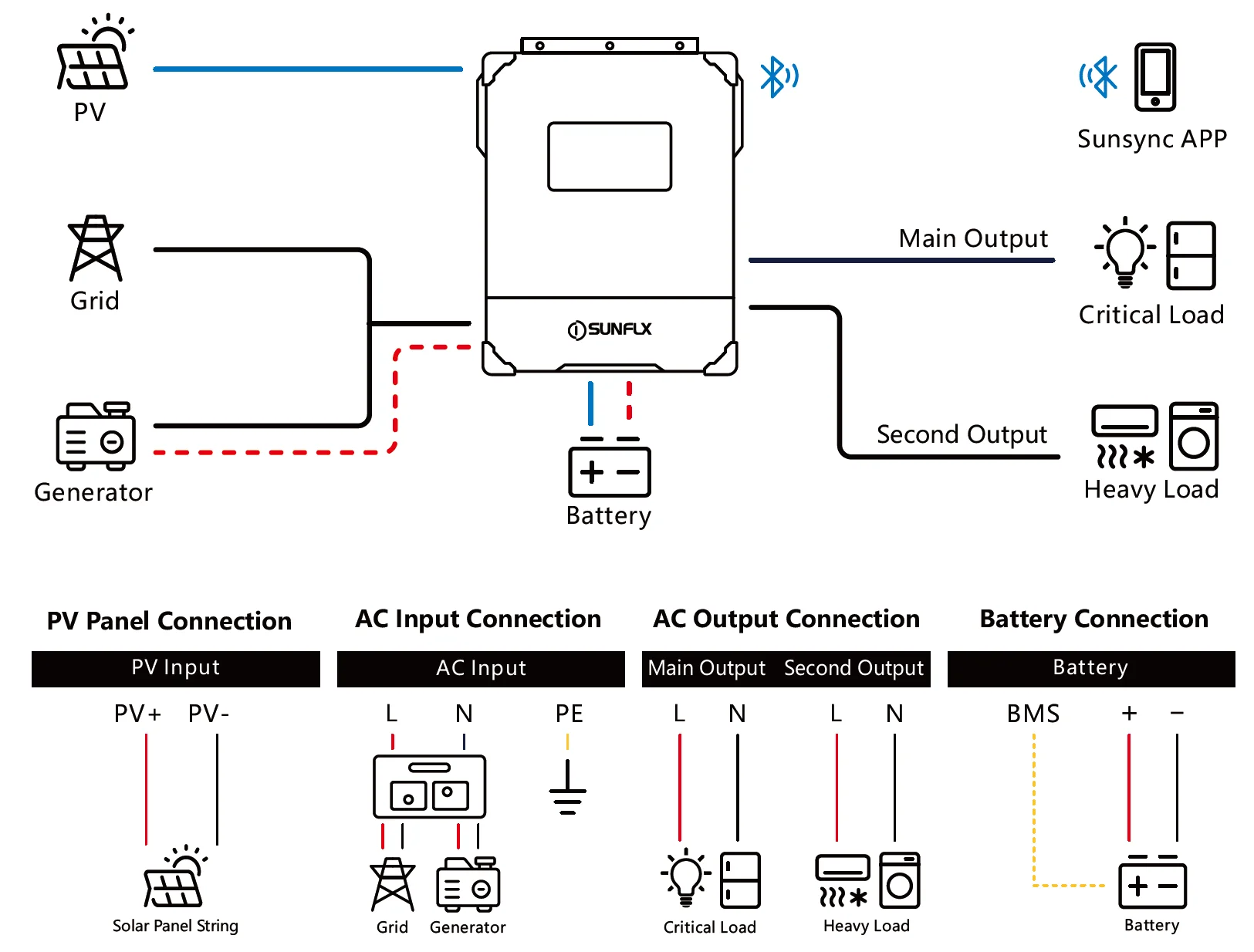

Inverter Working Mode






Product Paramenters


Model
SF 1200-SE
SF 2400-SE
SF 3600-SE
User-Settable
Nominal Battery Voltage.
12Vdc
24Vdc
24Vdc

Battery type
Lithium LiFePO4/Lead-Acid/Flood /User defined
√
AC INPUT
Nominal AC Input Voltage/Waveform
230Vac/Sinusoidal (utility or generator)

AC Input Range
90~280Vac (Appliances)；170Vac~280Vac (UPS)
√
Nominal Input Frequency
50/60Hz (Auto detection)
√
AC Input Frequency Range
40~65±1Hz (>42 or <63±1Hz comeback)

Max Bypass Current
16Amp
30Amp
30Amp

Output Short Circuit Protection
Circuit Breaker

Transfer Time
10ms typical (UPS); 20ms typical (Appliances)

AC CHARGER
Charging Algorithm
3-Step

Max AC Charging Current
60Amp (@VI/P=230Vac)
60Amp (@VI/P=230Vac)
80Amp (@VI/P=230Vac)
√
Bulk Charging Voltage
14.6Vdc (Flooded )
14.1Vdc (AGM/Gel )
29.2Vdc (Flooded )
28.2Vdc (AGM/Gel )
29.2Vdc (Flooded )
28.2Vdc (AGM/Gel )
√
Floating Charging Voltage
13.5Vdc
17Vdc
17Vdc
√
Max Hybrid Charging Current (Solar & Utility)
60Amp
60Amp
80Amp
√
PV INPUT
Num.Of Independent MPPT Tracker
1

MPPT Input Current
1*11Amp
1*11Amp
1*18Amp

Max PV Array Power
2000W
3000W
4000W

Max Solar Charge Current
60Amp
60Amp
80Amp
√
PV Array MPPT Voltage Range
30~400Vdc
30~400Vdc
30~450Vdc

Max PV Array Open Circuit Voltage
450Vdc
450Vdc
500Vdc

MPPT Tracking Efficiency
99.9%

INVERTER OUTPUT
Num. of Output Ports (Main & Second output)
1

Rated Output Power
1.2KVA/1.2KW
2.4KVA/2.4KW
3.6KVA/3.6KW

Surge Capacity
2.4KVA/2.4KW for 5 seconds
4.8KVA/4.8KW for 5 seconds
7.2KVA/7.2KW for 5 seconds

Output Voltage Waveform
Pure Sine Wave

Overload Protection
5s@50% load; 10min@110%~150% load

Output Voltage
220/230/240 Vac ± 5%

Output Frequency
50Hz/60Hz ±1 Hz

Peak Efficiency
92%
93%
94%

Low voltage Cut-off Voltage
10.5Vdc
21.0Vdc
21.0Vdc
√
High voltage Cut-off Voltage
15.5Vdc
31.0Vdc
31.0Vdc

Cold Start Voltage (When only connect with battery)
11.5Vdc
23.0Vdc
23.0Vdc

No Load Power Consumption
<25W
<30W
<30W

Parallel Capacity
NO

GENERAL
Operating Temperature Range
-10°C~55°C

Storage temperature
-15°C~60°C

Humidity
5% to 95% Relative Humidity (Non-condensing)

Altitude
<2000m

Noise
≤60dB

Protection Degree
IP21,Indor OnIy

Cooling Method
Intelligent Fan

Net Dimension (L*W*H)
415*309*110 mm (ft)

Net Weight
8.8 KG (lbs)

Warranty
2 Years

COMMUNICATION
Embedded Interface
RS232*1

Work with Bluetooth Monitoring Dongle (Optional)
YES, by RS232

Work with Lithium Battery BMS
NO

CERTIFICATION
Safety Certification/Standard
CE, IEC62109-1

EMC
EN61000 ,EN55032,EN55035

RoHS
Yes


Certifications




Our Factory






FAQ


Sunflx 6kva 7kva solar inverter on off air conditioner inverter solar system 10kw 48v hybrid single phase solar inverter 10 kw
Q1: Why you should choose us?single phase solar inverter 10 kw
---More than 15 years solar products producing experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services

Q2: How is your after-sale service?single phase solar inverter 10 kw

---solar panel : 10 years warranty ;
Hybrid inverter , charge controller , battery : 1-3 years warranty
--- we offer 1% sapre parts for free , will repair the PCB or provide new one

Q3: What kind of certification you have?single phase solar inverter 10 kw
---ISO9001,ISO14001, CE, ROHS, TUV ,UL and so on
---All series product pass different testing according to different countries’ requirements.

Q4: Delivery time:single phase solar inverter 10 kw
---Standard products could be delivered within 15 days after payment ;

Q5. Can I have a sample order?single phase solar inverter 10 kw
---Yes, we welcome sample order to test and check quality.

Q6. Do you have any MOQ?single phase solar inverter 10 kw
---Yes, we have MOQ , it depends on different models.
Most products 1~10pcs sample order is available. Lowest MOQ : 1 pc

Q7. Do you support OEM , ODM ?single phase solar inverter 10 kw

---Yes. OEM & ODM is available , just tell us your idea , we can design it for you .
OEM& ODM MOQ depends on different models .
