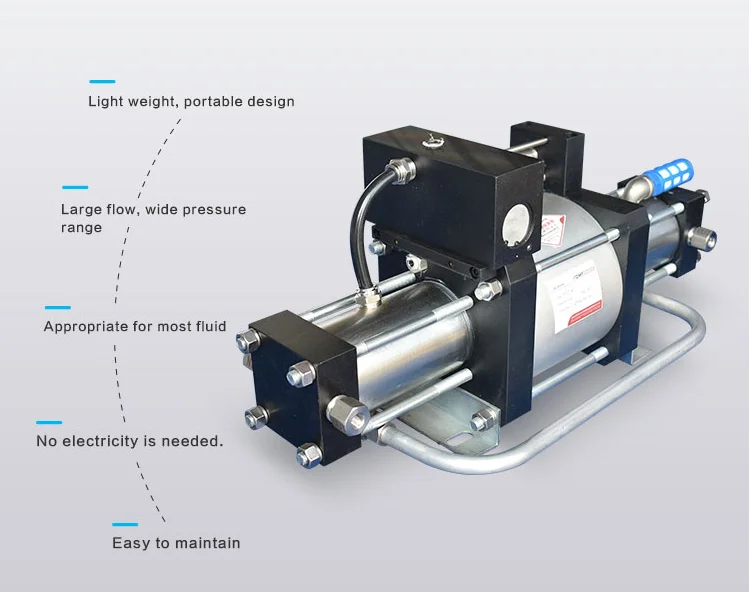

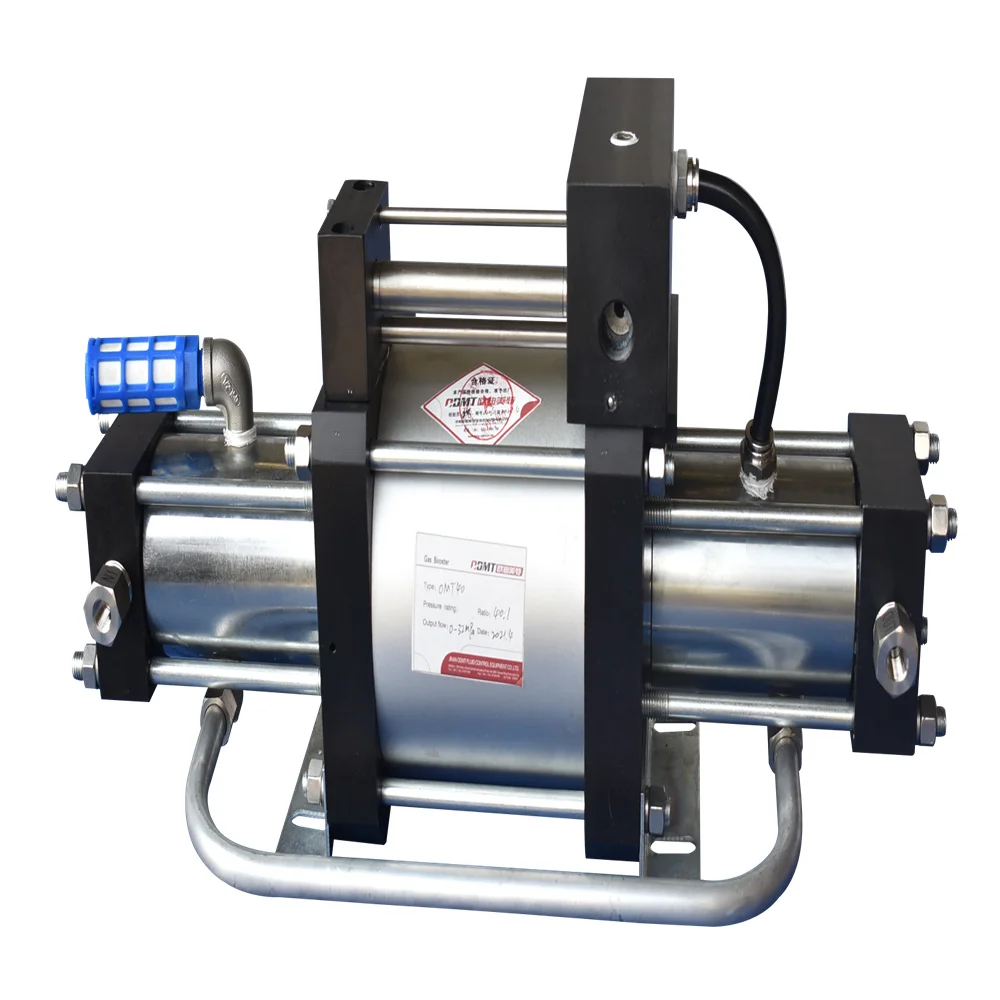

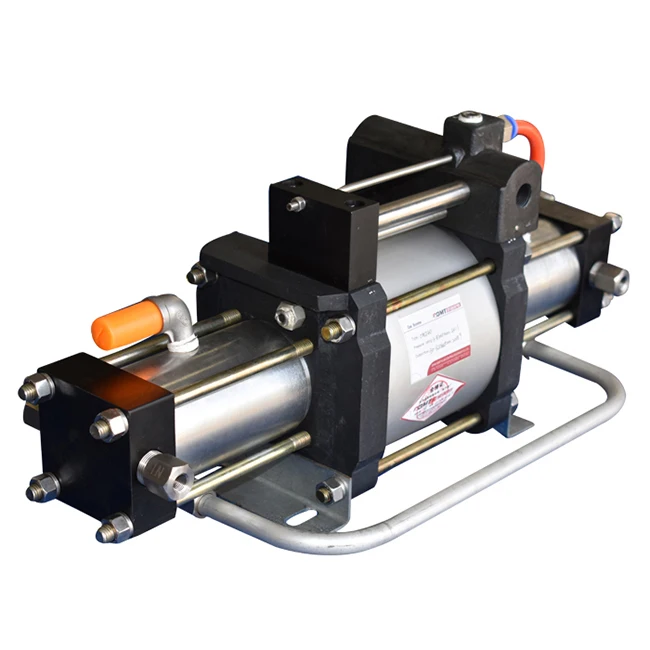

2024 Hot sales ODMT Factory 150 300 Bar Pneumatic Air Pressure Intensifier Gas Booster Pump for Automotive Industry
- Category: >>>
- Supplier: Jinan ODMT Fluid Control Equipment Co. Ltd.
Share on (1601034786926):
Product Overview
Description
Introduction

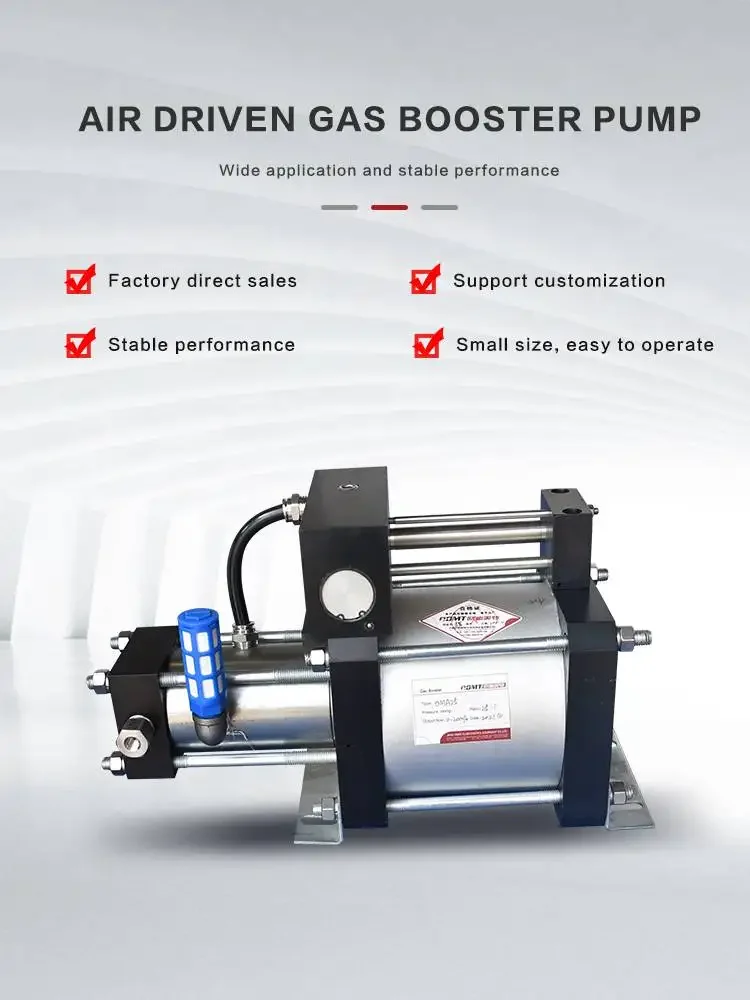

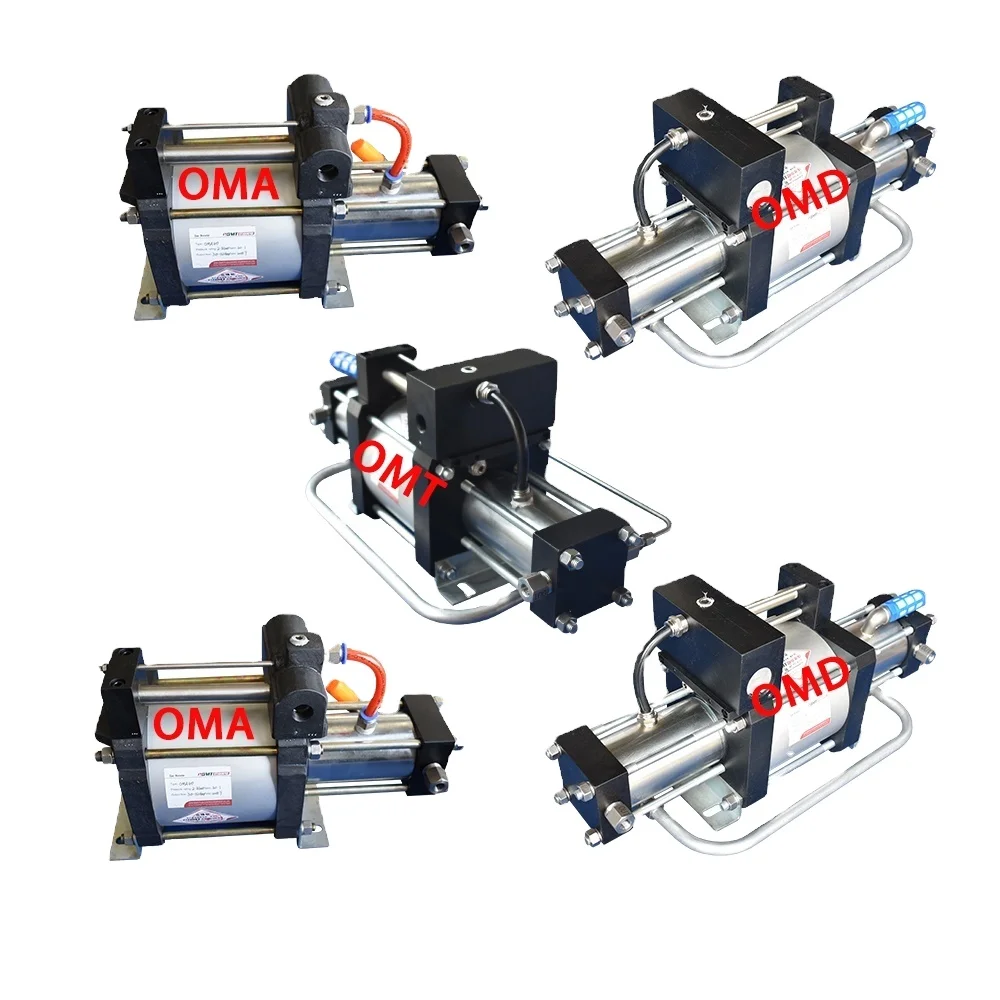

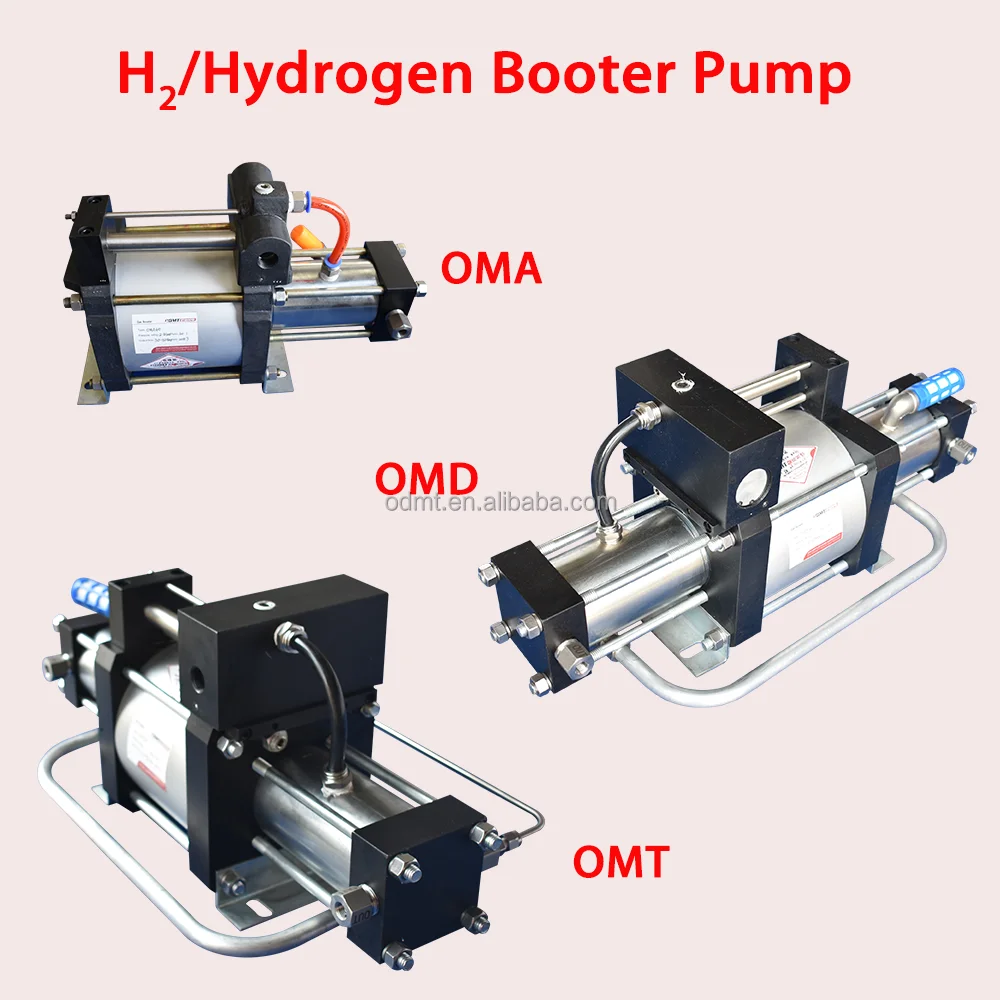

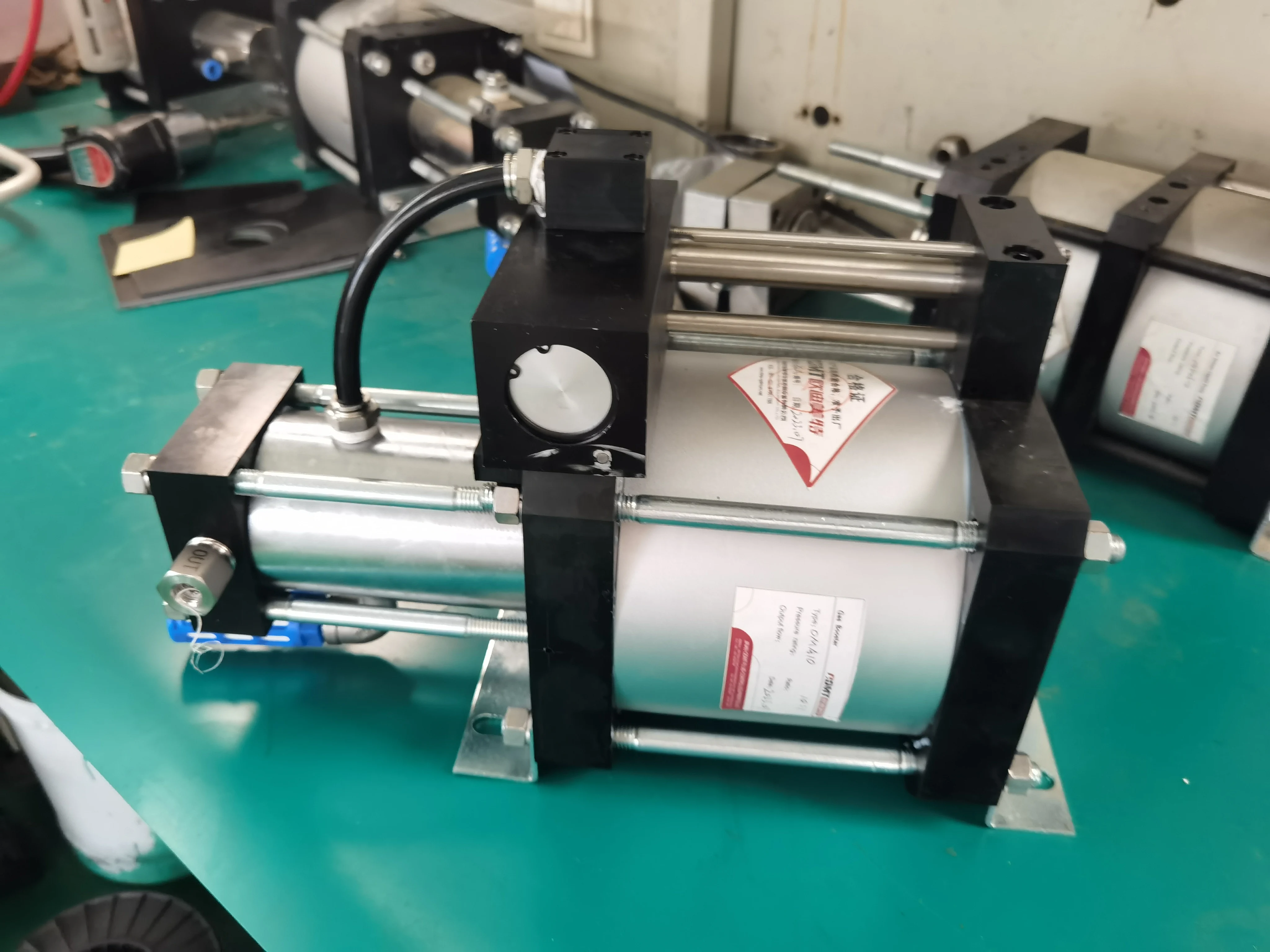

OMA/OMD/OMT-Series Hydrogen booster pump
This series of pump uses single pneumatic non-equilibrium gas distributing valves to move to and fro automatically. The drive parts of the pump are made of aluminum alloy or stainless steel. The full set of sealing parts is imported. The maximum drive
pressure is 10bar. We suggest customers use air pressure≤8bar to ensure long lifespan of the pump.
The diameter of the drive piston is 160mm. This pump is single acting. The pump heads can cool the exhaust air.
pressure is 10bar. We suggest customers use air pressure≤8bar to ensure long lifespan of the pump.
The diameter of the drive piston is 160mm. This pump is single acting. The pump heads can cool the exhaust air.

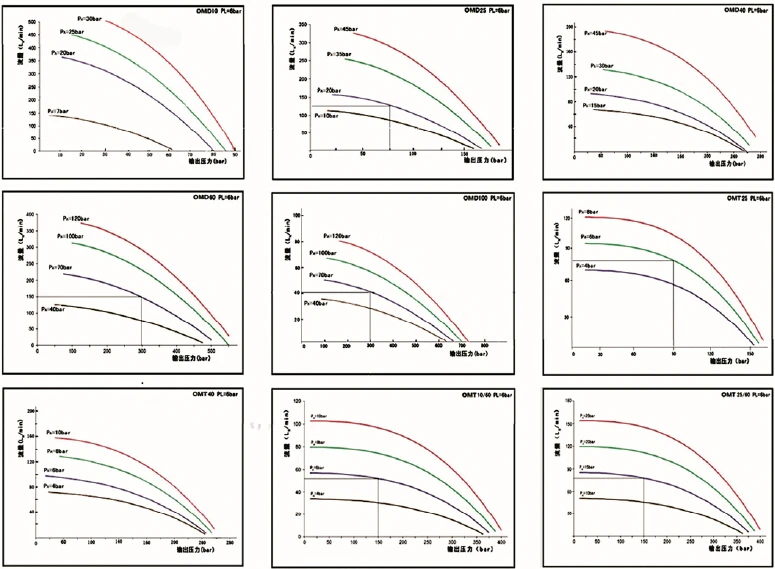

Product Paramenters
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)

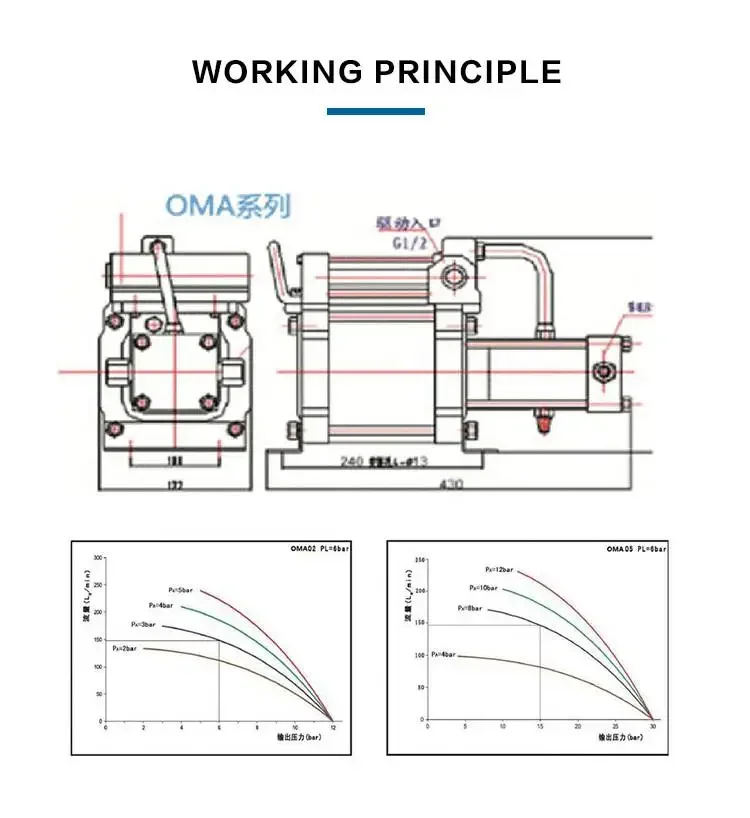

Model | PressureRatio | Min inlet pressure (bar) | Max inlet pressure(bar) | Max outlet pressure(bar) | Outlet Pressure Calculate Formula PB | Inlet size | Outlet size | Max flow L/Min (PL=6 bar) |
OMA02 | 2:1 | 1.7 | 16 | 16 | 2PL | ZG1/2'' | ZG1/2'' | 412@PA-6 |
OMA05 | 5:1 | 3.5 | 40 | 40 | 5PL | ZG1/2'' | ZG1/2'' | 169@PA-6 |
OMA10 | 10:1 | 5.5 | 80 | 80 | 10PL | ZG1/4'' | ZG1/4'' | 196@PA=20 |
OMA25 | 25:1 | 10 | 200 | 200 | 25PL | ZG1/4'' | ZG1/4'' | 81@PA=20 |
OMA40 | 40:1 | 15 | 320 | 320 | 40PL | ZG1/4'' | ZG1/4'' | 40@PA=20 |
OMA60 | 60:1 | 25 | 480 | 400 | 60PL | ZG1/4'' | ZG1/4'' | 61@PA=40 |
OMA100 | 100:1 | 35 | 800 | 800 | 100PL | ZG1/4'' | ZG1/4'' | 39@PA=40 |

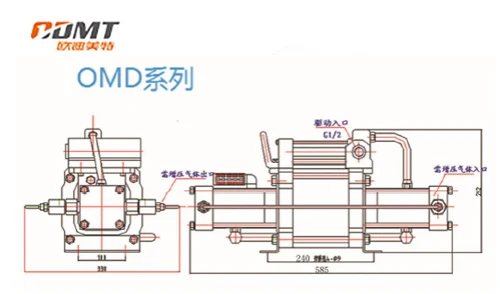

Type | Pressure ratio | Min. Gas Inlet Pressure PA(bar) | Max. Gas Inlet Pressure PA(bar) | Max. Allowed Outlet Pressure PB(bar) | Outlet Pressure Calculate Formula PB | Gas Inlet | Gas Outlet | Max. Flow Ln/min @PL=6bar |
OMD10 | 10:1 | 5 bar | 80 bar | 80 bar | 10PL+PA | ZG1/4 | ZG1/4 | 372@PA=6 |
OMD25 | 25:1 | 10bar | 200bar | 200bar | 25PL+PA | ZG1/4 | ZG1/4 | 154@PA=20 |
OMD40 | 40:1 | 15bar | 320bar | 320bar | 40PL+PA | ZG1/4 | ZG1/4 | 92@PA=20 |
OMD60 | 60:1 | 25bar | 480bar | 480bar | 60PL+PA | ZG1/4 | ZG1/4 | 115@PA=40 |
OMD100 | 100:1 | 35bar | 800bar | 800bar | 100PL+PA | ZG1/4 | ZG1/4 | 74@PA=40 |

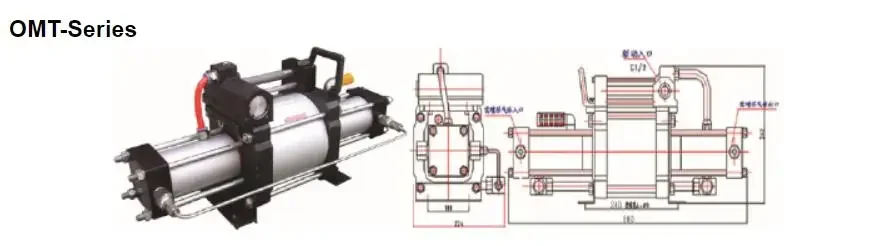

Type | Pressure ratio | Min. Gas Inlet Pressure PA(bar) | Max. Gas Inlet Pressure PA(bar) | Max. Allowed Outlet Pressure PB(bar) | Outlet Pressure Calculate Formula PB | Gas Inlet | Gas Outlet | Max. Flow Ln/min @PL=6bar |
OMT40 | 40:01:00 | 0.1bar | 10bar | 320bar | 40PL+6PA | ZG1/4’’ | ZG1/4’’ | 124@PA=8 |
OMT10/60 | 10:1/60:1 | 0.1bar | 10bar | 480bar | 60PL+6PA | ZG1/4’’ | ZG1/4’’ | 84@PA=8 |
OMT25/60 | 25:1/60:1 | 0.1bar | 25bar | 480bar | 60PL+2.5PA | ZG1/4’’ | ZG1/4’’ | 80@PA=15 |
OMT100 | 100:01:00 | 0.1bar | 10bar | 800bar | 100PL+10PA | ZG1/4’’ | ZG1/4’’ | 63@PA=8 |
Application
100 application scenarios and industries
number | industry |
1 | Fuel cell vehicle manufacturing |
2 | Hydrogen fuel station construction |
3 | Hydrogen storage and transportation |
4 | laboratory research |
5 | aerospace industry |
6 | Semiconductor manufacturing |
7 | Metal processing and smelting |
8 | chemical production |
9 | Medical device manufacturing |
10 | Energy storage and conversion |
11 | Power system backup power |
12 | Food and Beverage Packaging |
13 | Textile industry |
14 | Chemical Analysis and Experiments |
15 | Automotive fuel cell system |
16 | Solar and wind energy storage |
17 | MRI equipment |
18 | Compressed air energy storage system |
19 | Deep sea probes and submersibles |
20 | Power Industry |
21 | Environmental testing and monitoring |
22 | Natural Gas Substitution and Blending |
23 | rocket propulsion system |
24 | Boiler combustion in power plant |
25 | Microelectronics Manufacturing |
26 | Oil and gas extraction |
27 | Ship power system |
28 | High performance gas chromatograph |
29 | Turbine and engine testing |
30 | Flame testing and simulation |
31 | geological exploration and mining |
32 | Refrigeration and air conditioning systems |
33 | rocket engine test |
34 | Gas and city gas |
35 | Pipeline pressure maintenance |
36 | Nuclear Industry |
37 | Hydrogen injection system |
38 | High pressure natural gas injection |
39 | High Altitude Instruments and Equipment |
40 | Ultra high vacuum system |
41 | Power electronic equipment |
42 | Aircraft engine testing |
43 | Aerospace propulsion system |
44 | Experiments under extreme conditions |
45 | High voltage test bench |
46 | Large laboratory equipment |
47 | Water treatment and wastewater treatment |
48 | Power tools and machinery |
49 | Power transformer testing |
50 | Hydrogen fuel cell generator |
51 | High performance air tools |
52 | space science experiment |
53 | Valve and seal testing |
54 | Gas manufacturing and distribution |
55 | Flue gas emission control |
56 | High Altitude Meteorological Instruments |
57 | high speed rail system |
58 | train braking system |
59 | electric satellite propulsion |
60 | Weather stations in plateau and alpine areas |
61 | robot technology |
62 | Nuclear power plant fuel manufacturing |
63 | Electron beam welding system |
64 | Turbocharger testing |
65 | Microgravity environment experiment |
66 | gas chromatography mass spectrometry |
67 | Spectroscopic instrument calibration |
68 | aircraft fuel system |
69 | Hydraulic system testing |
70 | High voltage laboratory research |
71 | gas injection oil recovery |
72 | agricultural equipment |
73 | Hydrogen battery storage system |
74 | Noise and vibration testing |
75 | NMR spectroscopy |
76 | High temperature gas phase reactor |
77 | satellite propulsion system |
78 | aircraft hydraulic system |
79 | High pressure combustion test |
80 | High temperature heat treatment |
81 | space station life support system |
82 | artificial organ culture |
83 | Mars rover propulsion |
84 | Capacitor charge and discharge test |
85 | Rock and Soil Mechanics |
86 | Mechanical Engineering Experiment |
87 | Battery production equipment |
88 | rocket launch system |
89 | military defense technology |
90 | nuclear reactor experiment |
91 | MRI |
92 | Industrial combustion systems |
93 | rocket aerospace engineering |
94 | nuclear fusion research |
95 | biomass energy production |
96 | NMR quantum computing |
97 | High pressure gas turbine |
98 | Nuclear waste disposal |
99 | High pressure spray system |
100 | Gas generator manufacturing |
Product Advantages

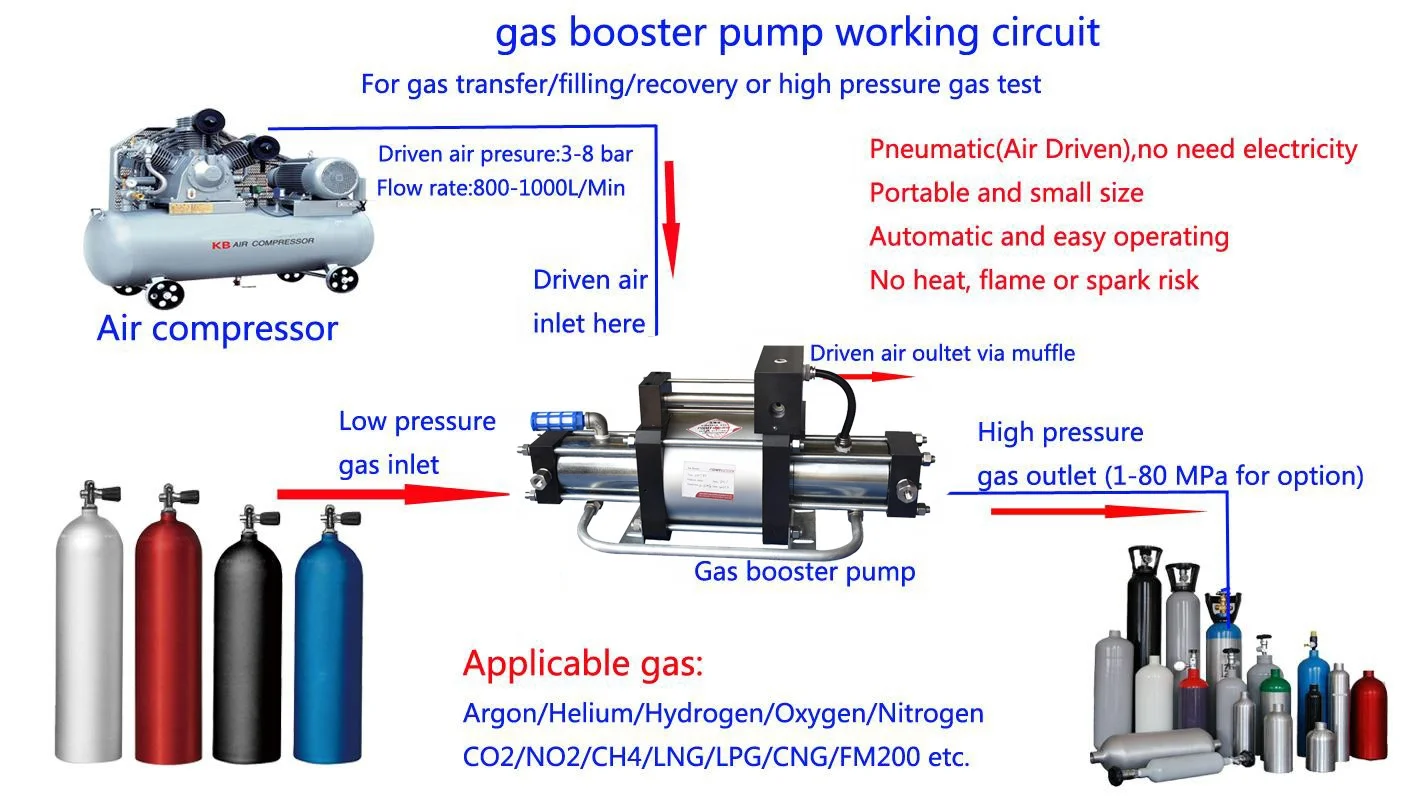

1.Compressed Air driven - no electricity required (connect to normal air compressor)
In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar
2.No airline lubricator required
3. Hydrocarbon free-Separation between air drive and gas booster sections
4.Wide range of models with different ratios
5.Built-in-cooling unit inside each models
6.Easy to install, operate and maintain
7. High quality seals, long life service available
8. Gas drive, No heat,flame or spark risk and explosion proof
9.Automatic pressure holding, whatever the cause of the pressure drop, the pump will automatically start, keep the loop pressure constant
10. All components of the contact with the gas are made of aluminum or stainless steel
In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar
2.No airline lubricator required
3. Hydrocarbon free-Separation between air drive and gas booster sections
4.Wide range of models with different ratios
5.Built-in-cooling unit inside each models
6.Easy to install, operate and maintain
7. High quality seals, long life service available
8. Gas drive, No heat,flame or spark risk and explosion proof
9.Automatic pressure holding, whatever the cause of the pressure drop, the pump will automatically start, keep the loop pressure constant
10. All components of the contact with the gas are made of aluminum or stainless steel

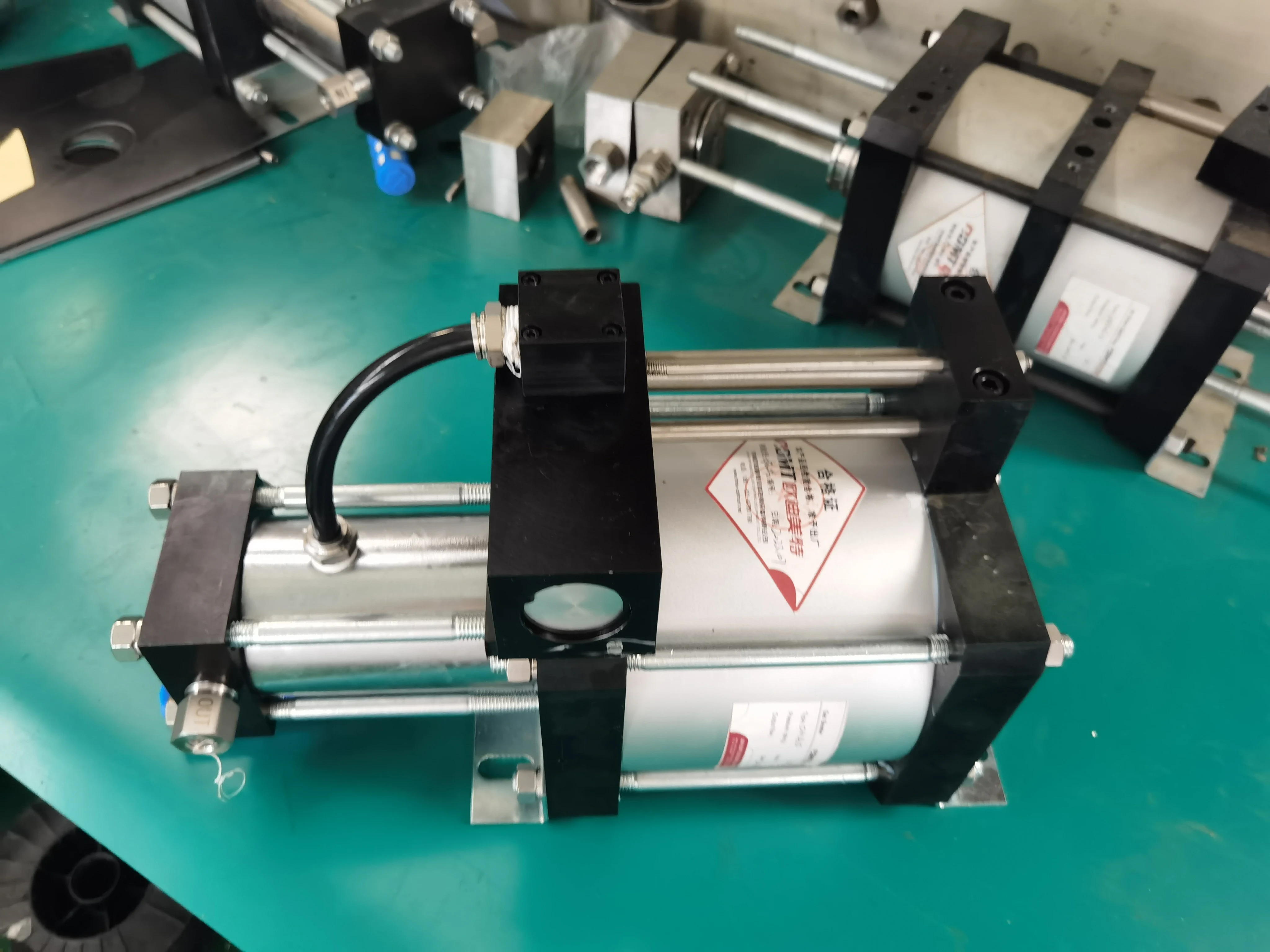

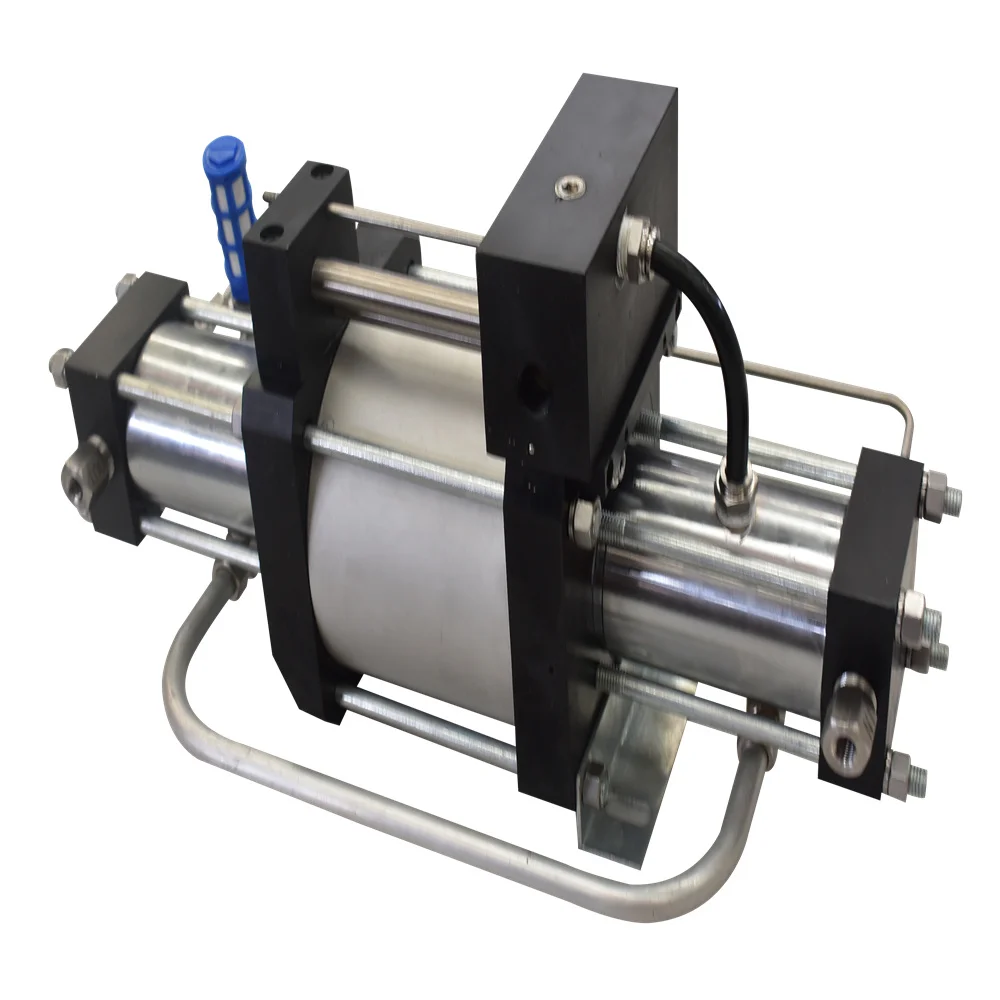

Details Images
Company Profile
Packing & Delivery
FAQ
Q1: What's your main products of your company?
A1: We specialized in all kinds of machines ,such as engine stand Hydraulic press riveting machine test bench brake riveting machine and so on .
Q2: Where is our factory located? How can I visit there?
A2 : Add： Opposite to Quanfu Village Arch, Taohuayuan Road, Ping'an Street, Changqing District, Jinan, Shandong Province
Q4: What's the Payment Terms ?
A4 : T/T ,50% initial payment when order ,50% balance payment before shipment ;Irrevocable LC at sight .
A1: We specialized in all kinds of machines ,such as engine stand Hydraulic press riveting machine test bench brake riveting machine and so on .
Q2: Where is our factory located? How can I visit there?
A2 : Add： Opposite to Quanfu Village Arch, Taohuayuan Road, Ping'an Street, Changqing District, Jinan, Shandong Province
Q3: What is your trade terms?
A3 : FOB, CFR and CIF all acceptable.
A3 : FOB, CFR and CIF all acceptable.
Q4: What's the Payment Terms ?
A4 : T/T ,50% initial payment when order ,50% balance payment before shipment ;Irrevocable LC at sight .
Q5: What's the MOQ?
A5: 1 set .(Only some low cost machines will be more than 1 set )
A5: 1 set .(Only some low cost machines will be more than 1 set )
