Factory supply SMA Male Plug 90 degree right angle for H 155 H155 LMR240 RG59 RG8X 4D FB RF Coax Coaxial connectors in stock
- Category: >>>
- Supplier: Zhenjiang Binjiang Electronic Co. Ltd.
Share on (1601034810681):
Product Overview
Description
Product Description
Factory supply SMA Male Plug 90 degree right angle for H-155 H155 LMR240 RG59 RG8X 4D-FB RF Coax Coaxial connectors in stock
★ We have been making RF connectors since 1991.
★ Our custom RF cable connectors are manufacture direct and skillful manufactured.
★ RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .
★ RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect
★ RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
★ If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
Applicable Standard
MIL-C-39012;
CECC 22210;
IEC 60169-16

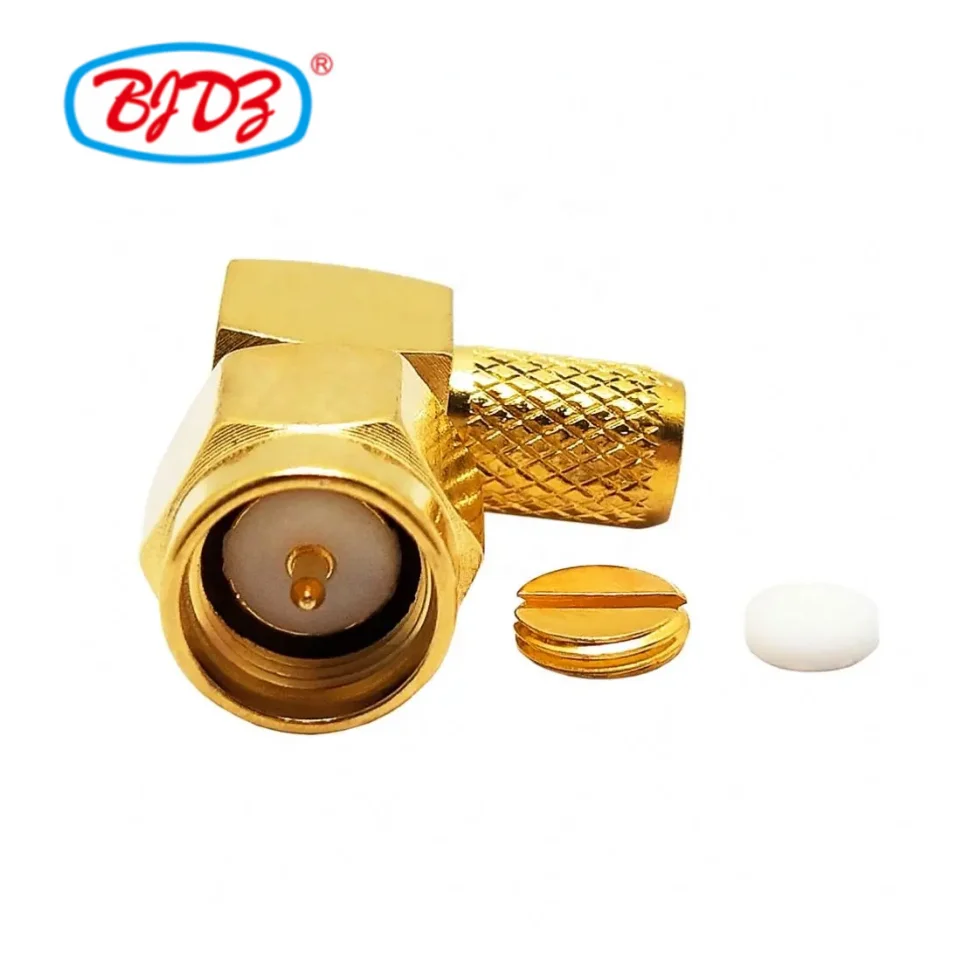

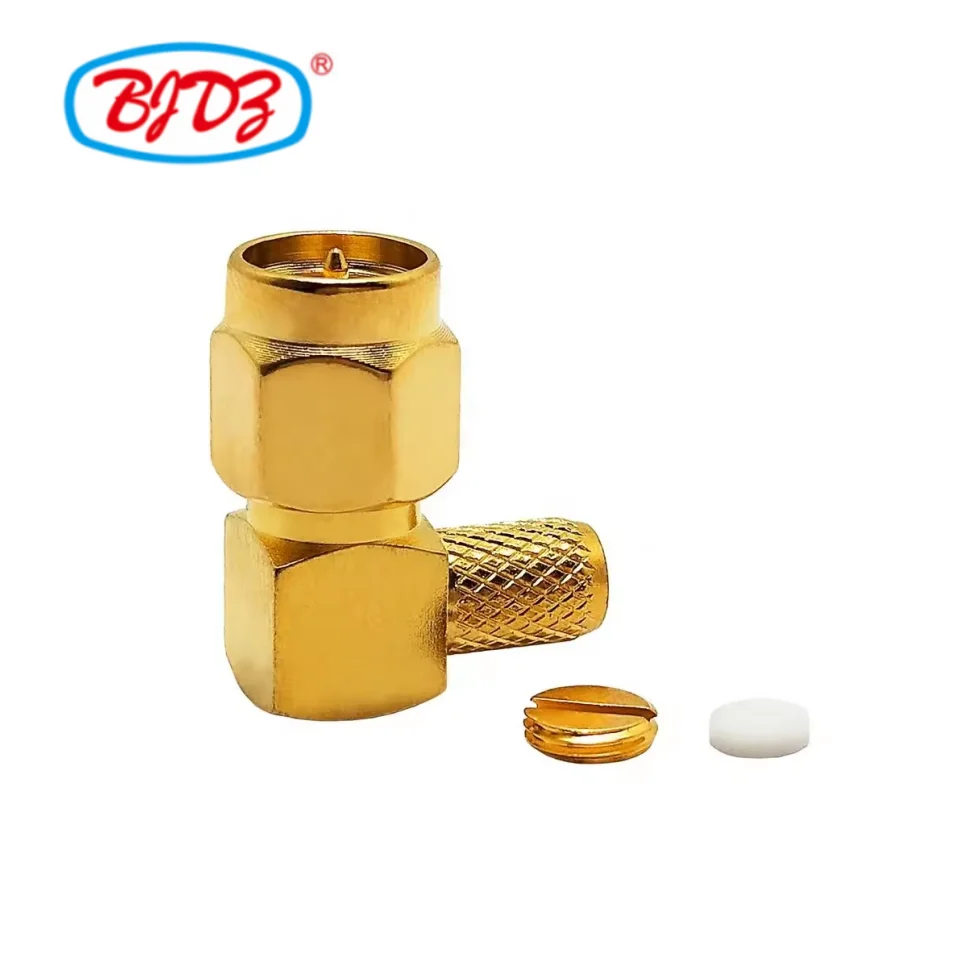

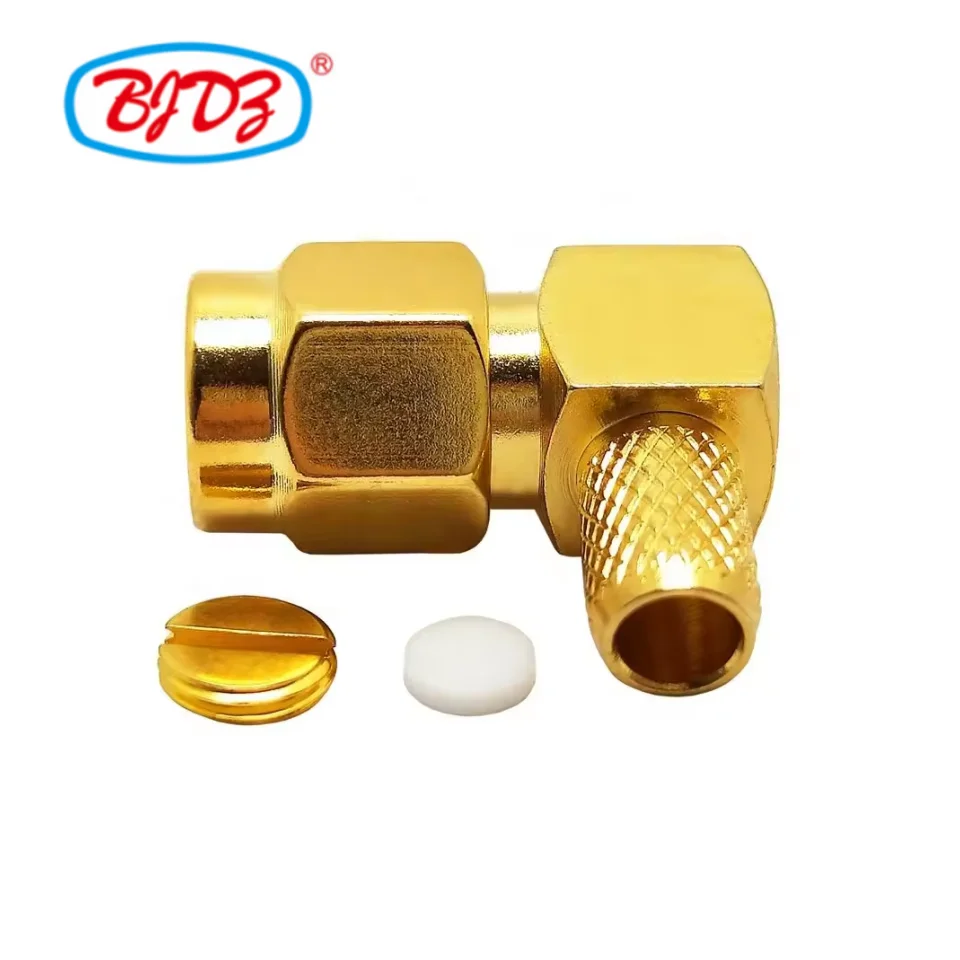

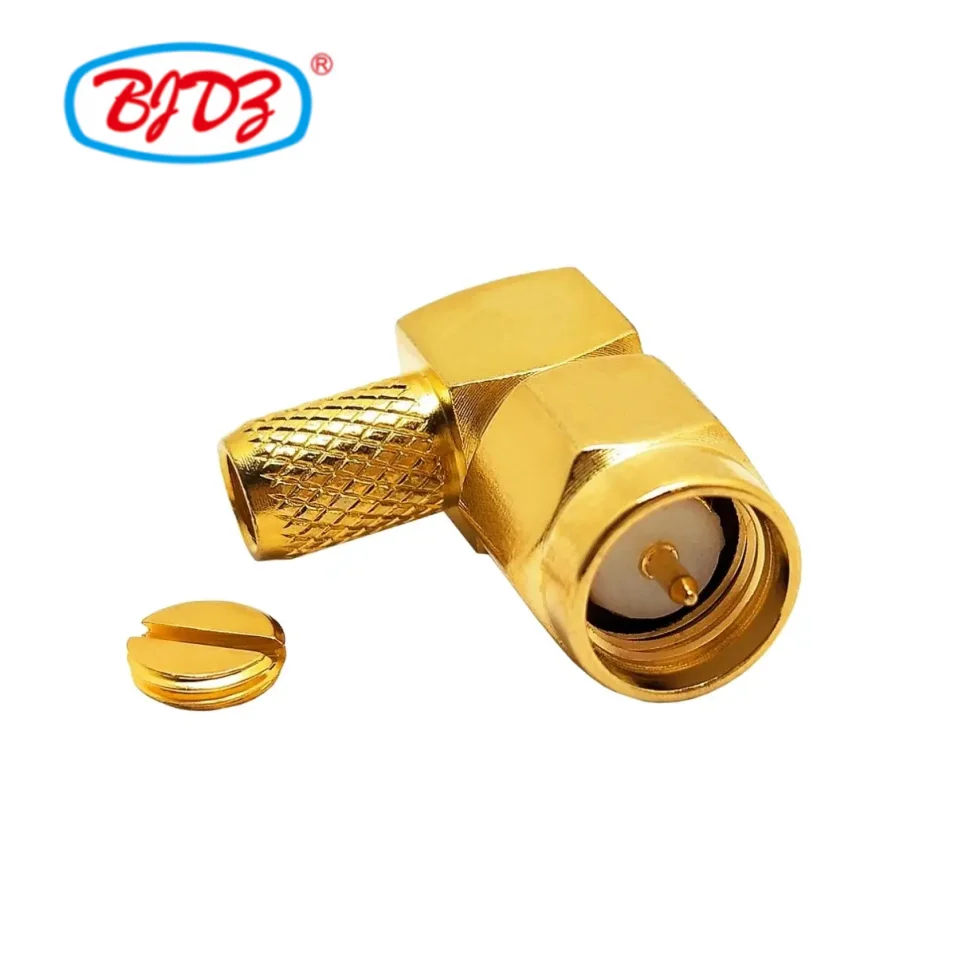

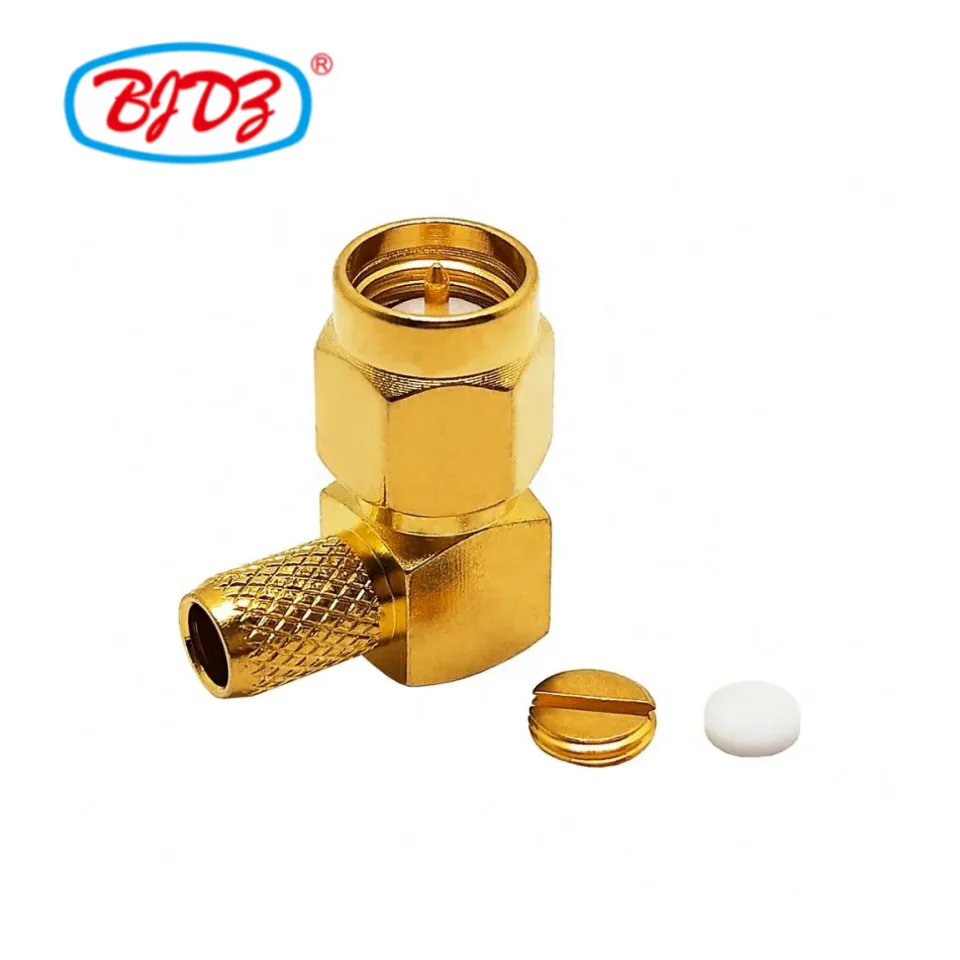

Detailed Images
Factory supply SMA Male Plug 90 degree right angle for H-155 H155 LMR240 RG59 RG8X 4D-FB RF Coax Coaxial connectors in stock | ||
Temperature range | -55~+155°C(PE Cable-40~+85°C) | |
Vibration | 98m/s2 (10~2000Hz),10g | |
Impedance | 50 OHM | |
Frequency Range | DC – 6GHz | |
Working Voltage | 335Vr.m.s at sea level | |
Break-down Voltage | 4000V rms @ sea level | |
Contact resistance | ≤3mΩ @ inner contact ≤2.5mΩ @ outer contact | |
Insulation resistance | ≥5000MΩ | |
VSWR | Straight flex cable ≤ 1.10+0.02f Semi-rigid cable ≤ 1.07+0.018f Right angle flex cable ≤ 1.20+0.03f Semi-rigid cable ≤ 1.17+0.02f | |
Durability (mating) | ≥500 (cycles) | |
Body | Brass | Nickel plated / Alloy plated |
Inner Pin | Brass | Gold plated |
Resilient Contact | Beryllium Copper | Gold plated |
Socket Contact | Beryllium or tin bronze | Gold plated |
Insulator | PTFE | |
Crimp Ferrule | Copper alloy | Nickel / Gold plated |
O-ring sealing | Silicone Rubber |
Company Informantiom
Our Service
Packing & Delivery
1.Q: Are you the manufacture or the trading company?
A : We are the manufacture focused on manufacturing rf connector, coaxial cables, antenna, lightning arrester since 1991!
2. Q: How long will the delivery take?
A : About 7-10 days.(We have a large stock.)
3. Q : How do your company deal with the problem on quality？
A : We are the manufacture focused on manufacturing rf connector, coaxial cables, antenna, lightning arrester since 1991!
2. Q: How long will the delivery take?
A : About 7-10 days.(We have a large stock.)
3. Q : How do your company deal with the problem on quality？
A : We have 7-year experience in the field of rf connectors . High quality and perfect service earn us great reputation . We will have a detailed analysis of the problem. If our product is unqualified , we will deal with the problem according to contract. You have no need to worry about following problem. Our team will provide you great service.
4. Q: Can you send sample for us to test?
A: Of Course! You can check the quality of our products by ordering samples.
5. Q: What kind of payment term you accept?
A: Paypal, western union, alipay, T/T, Bank transfer, Credit Card, GOOGLE_PAY, APPLE_PAY, etc.
6. Q: Is customized service availble?
A: Yes, we can do ODM / OEM. If you need customized service please contact me.
7. Q: The price of your product is too high, can you give me discount?
A : Did you know our product ? If you dont know much about it , you cant judge whether our products are expensive or not.
Actually, the price is reasonable , which product is cheaper than our product？ In the shared market , our products in same grade are not cheaper than us. The quality of our product is match with the price.
8. Q : Can you guarantee the quality of product ?
A : Sure , high quality give us confidence to do business with your company . Long-termcooperation is what we need most instead of short-term cooperation.
4. Q: Can you send sample for us to test?
A: Of Course! You can check the quality of our products by ordering samples.
5. Q: What kind of payment term you accept?
A: Paypal, western union, alipay, T/T, Bank transfer, Credit Card, GOOGLE_PAY, APPLE_PAY, etc.
6. Q: Is customized service availble?
A: Yes, we can do ODM / OEM. If you need customized service please contact me.
7. Q: The price of your product is too high, can you give me discount?
A : Did you know our product ? If you dont know much about it , you cant judge whether our products are expensive or not.
Actually, the price is reasonable , which product is cheaper than our product？ In the shared market , our products in same grade are not cheaper than us. The quality of our product is match with the price.
8. Q : Can you guarantee the quality of product ?
A : Sure , high quality give us confidence to do business with your company . Long-termcooperation is what we need most instead of short-term cooperation.
