LABTEX 5 part hematology analyzer portable blood test machine 5 diff hematological analyzer
- Category: >>>
- Supplier: Labtex Biotech China Co. Ltd.
Share on (1601034814648):
Product Overview
Description
Details Description
LABTEX Automatic Hematology Analyzer
Product Description
Principle | Tri-angle laser scattering, flow cytometry for WBC differentiation and counting Impedance for RBC and PLT counting Cyanide-free method for HGB |
Parameters | 25 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#,Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC. 2 histograms for WBC, RBC and PLT 4 scattergrams for WBC differential |
Throughput | 60 samples per hour |
Calibration | Manual and Auto-calibration |
Quality control | 3 level QC, UJ graph, XB |
Sample volume | CBC+ Diff mode: 20μL Prediluted mode: 20μL |
Reagents | 3 Reagent (2 Lyses + 1 Diluent) 1 PB cleanser for maintenance |
Printout | Built-in thermal printer, support external printer |
Sampling mode | Open mode |
Input | Built-in barcode scanner (optional) |
Maintenance | Auto-cleaning of sample probe and tubes |
Temperature | 10℃-30℃ |

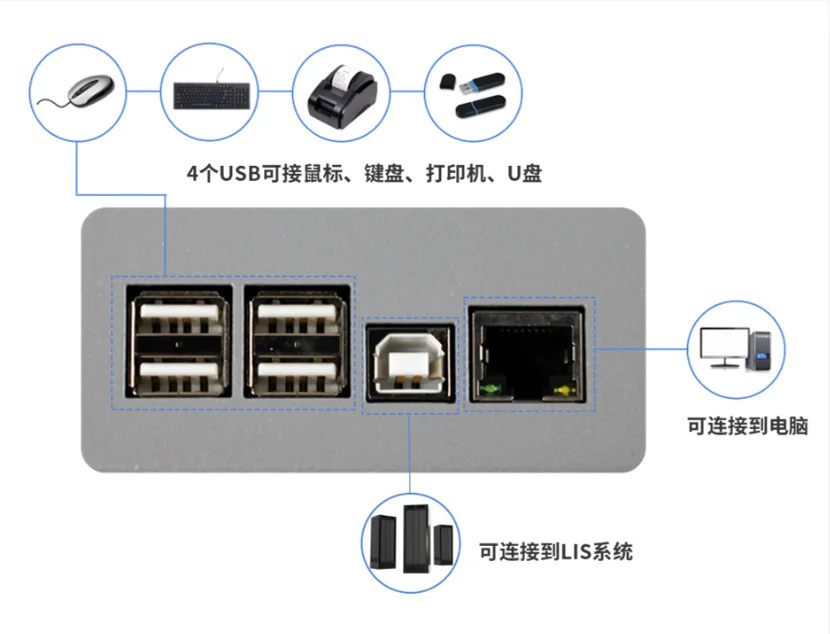

Interface | 4 USB ports, 1LAN port HL7 protocol, support LUIS |
Blockage clear | High voltage, high pressure flush |
Power | AC 100-240V, 50/60+1Hz |
Dimension | L430mmxW350mmxH435mm |
Display | 10.4-inch LCD color touch screen Resolution: 800x600 |
Storage | 60,000 sample results with scattergrams and histograms |

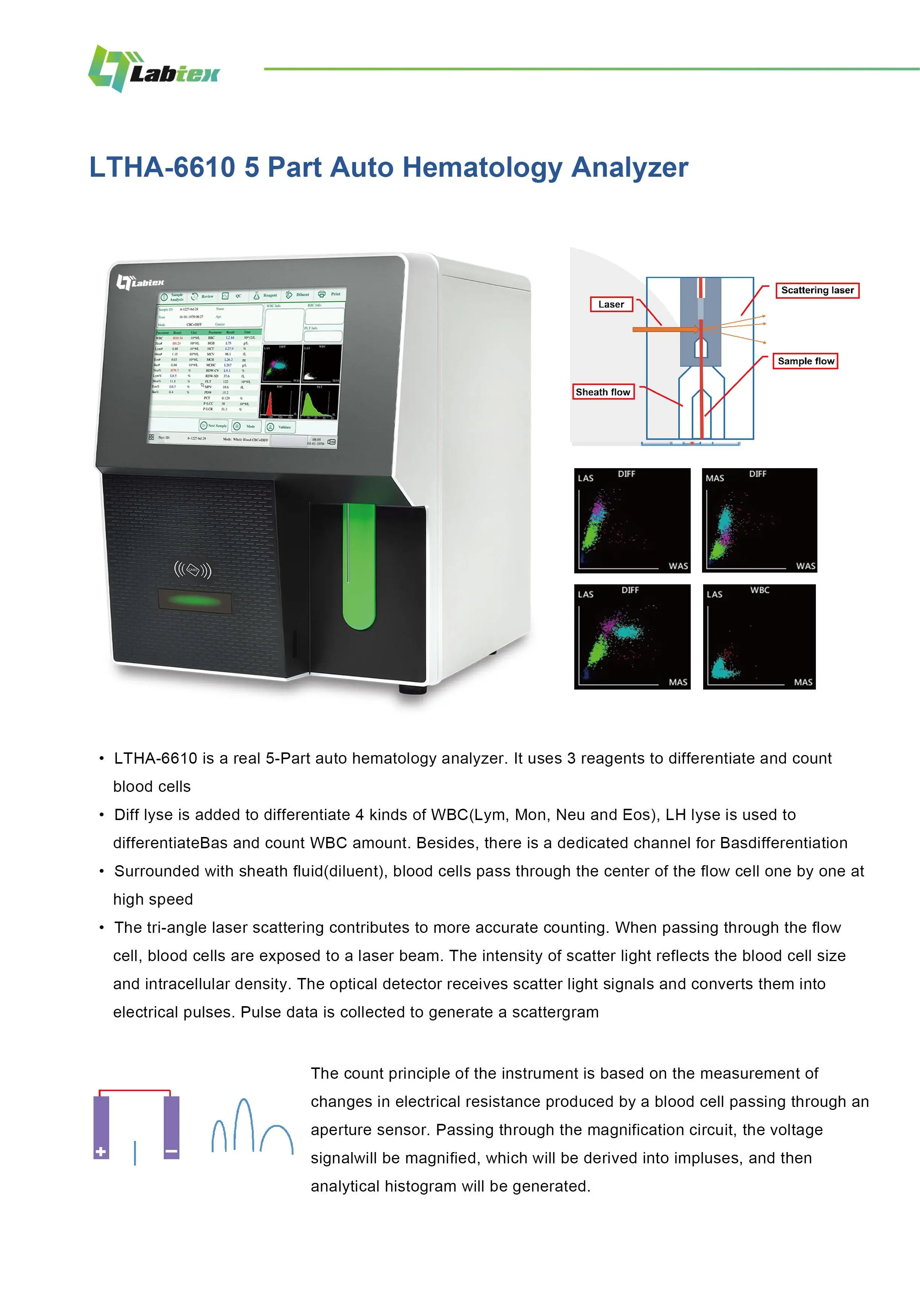

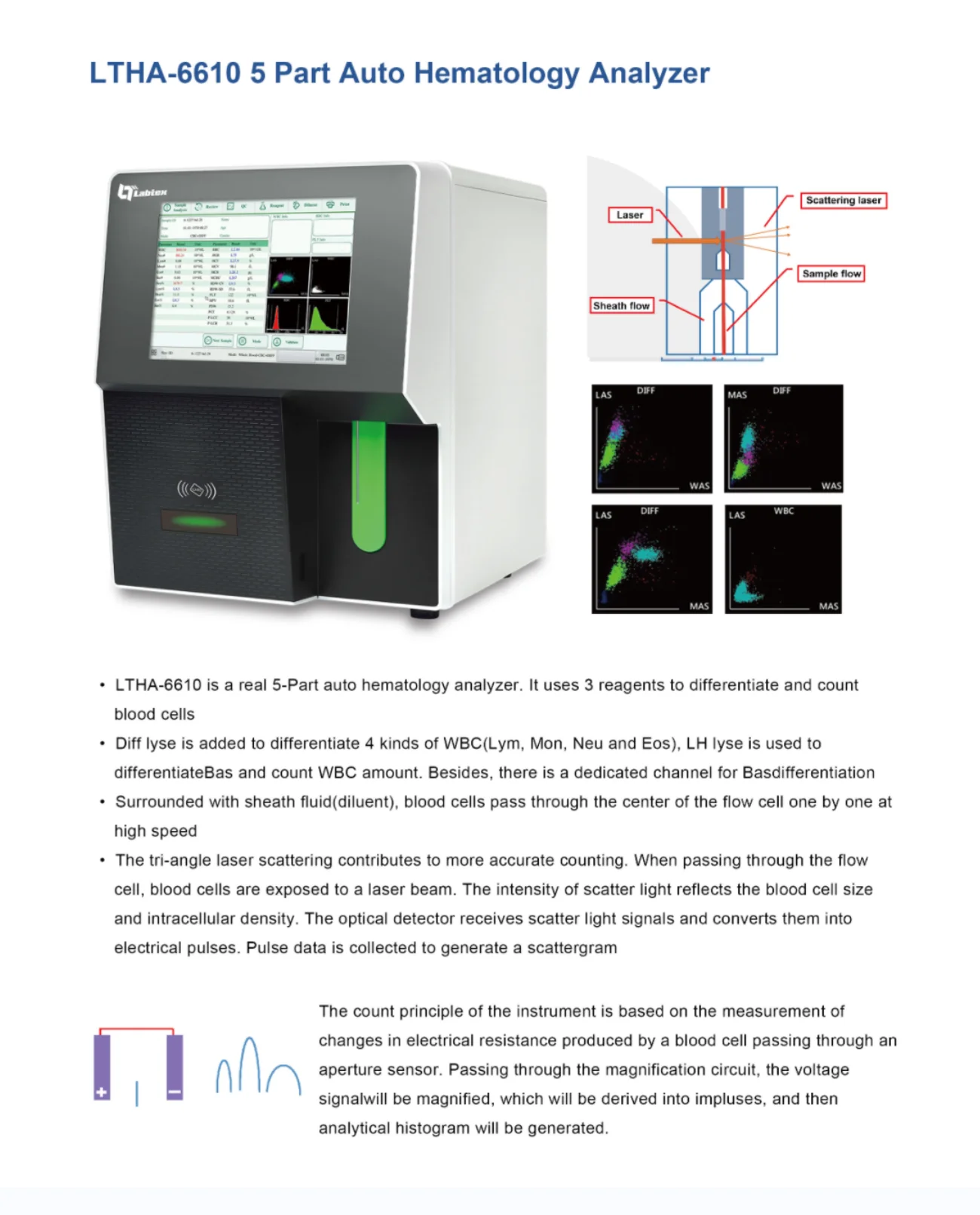

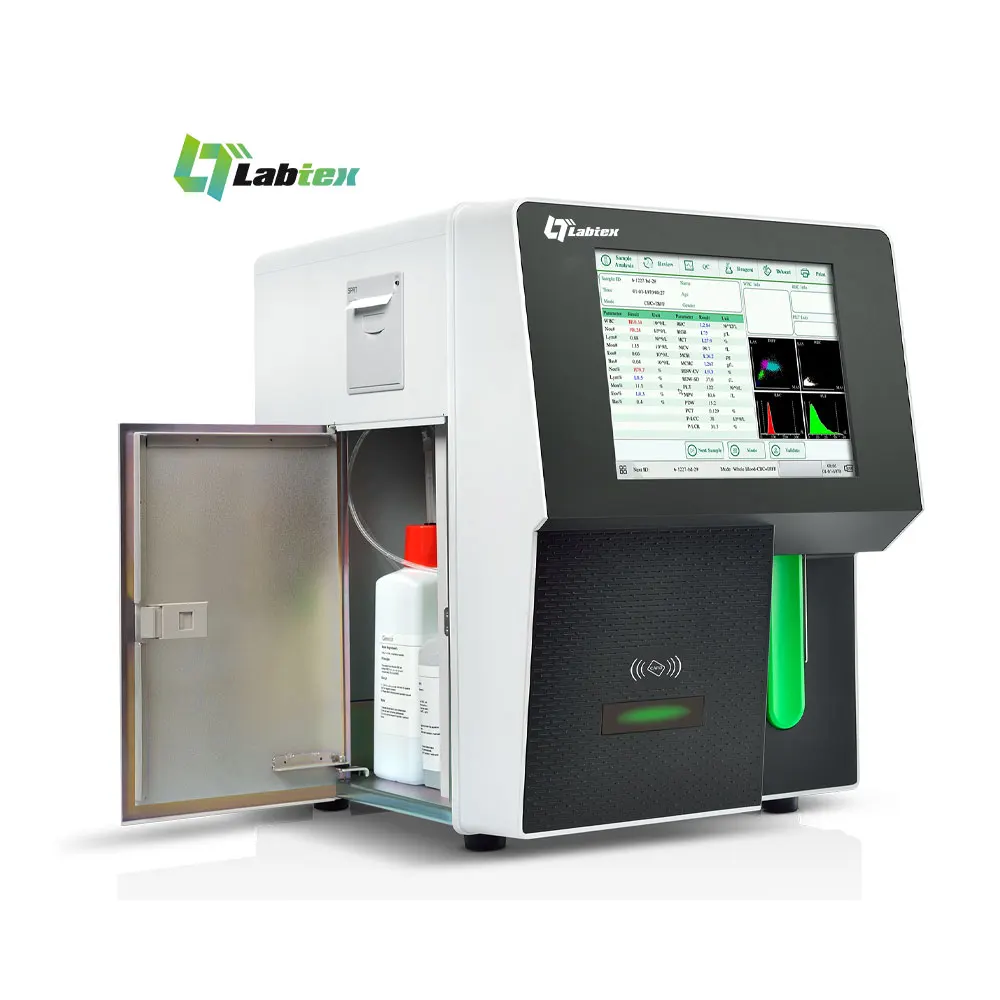

LTHA-6610 is an innovative, economic, compact hematology analyzer using advanced tri-angle laser scattering, flow cytometry technology to deliver cost-efficient 5-part white blood cell differential results. It is a perfect solution for small labs and clinics, which have limited space and budget, but request accurate hematologic results.

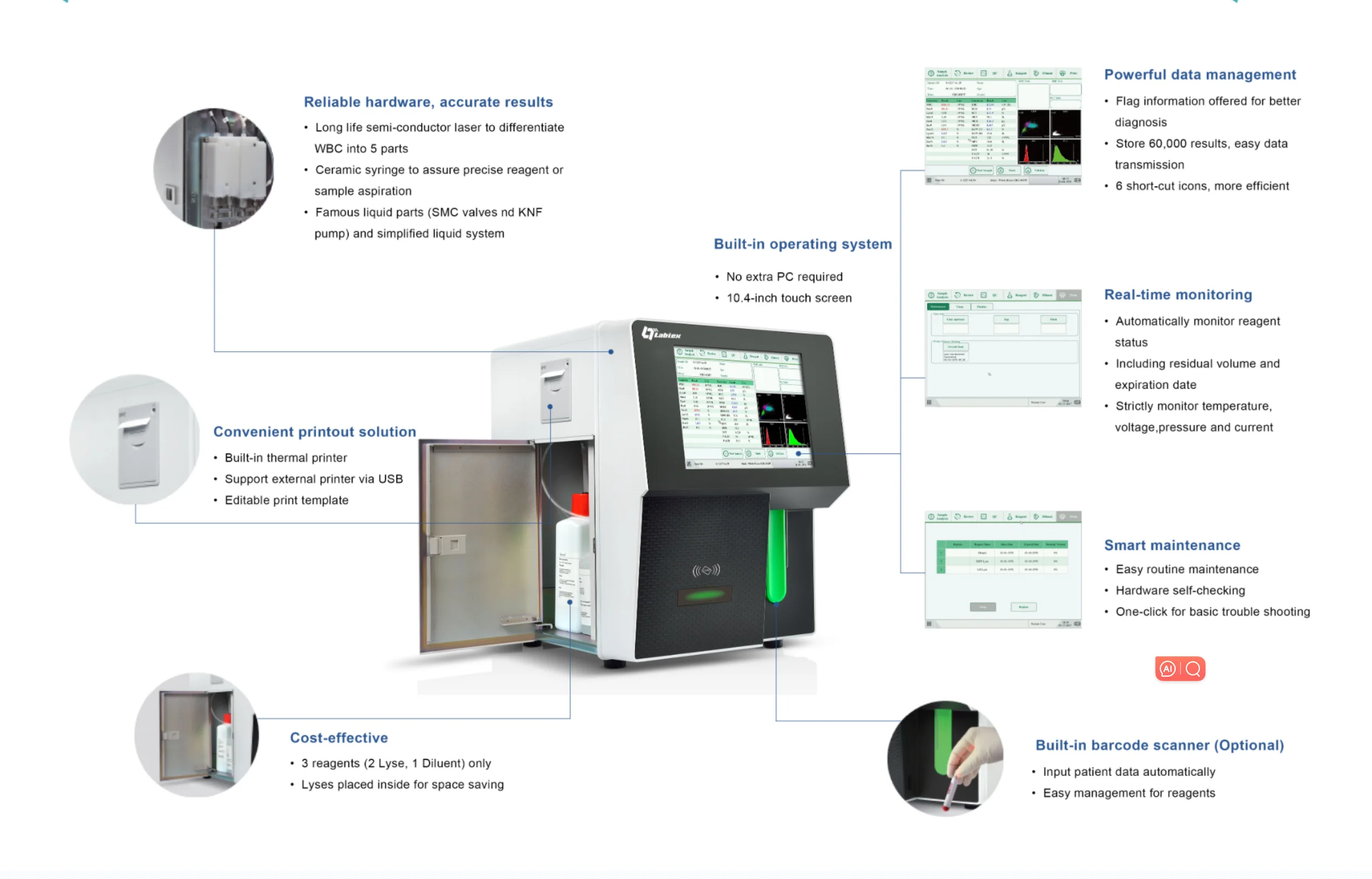

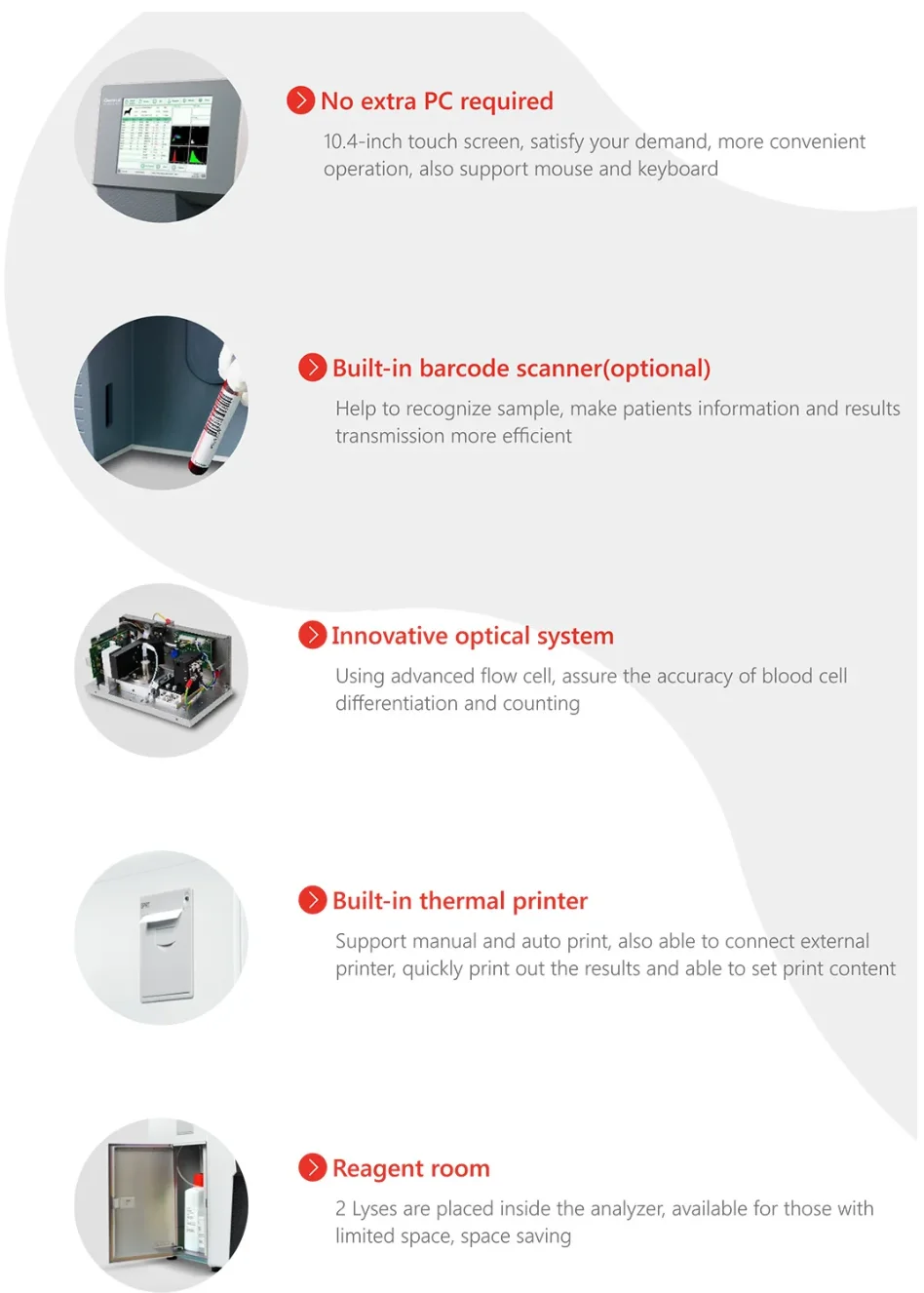

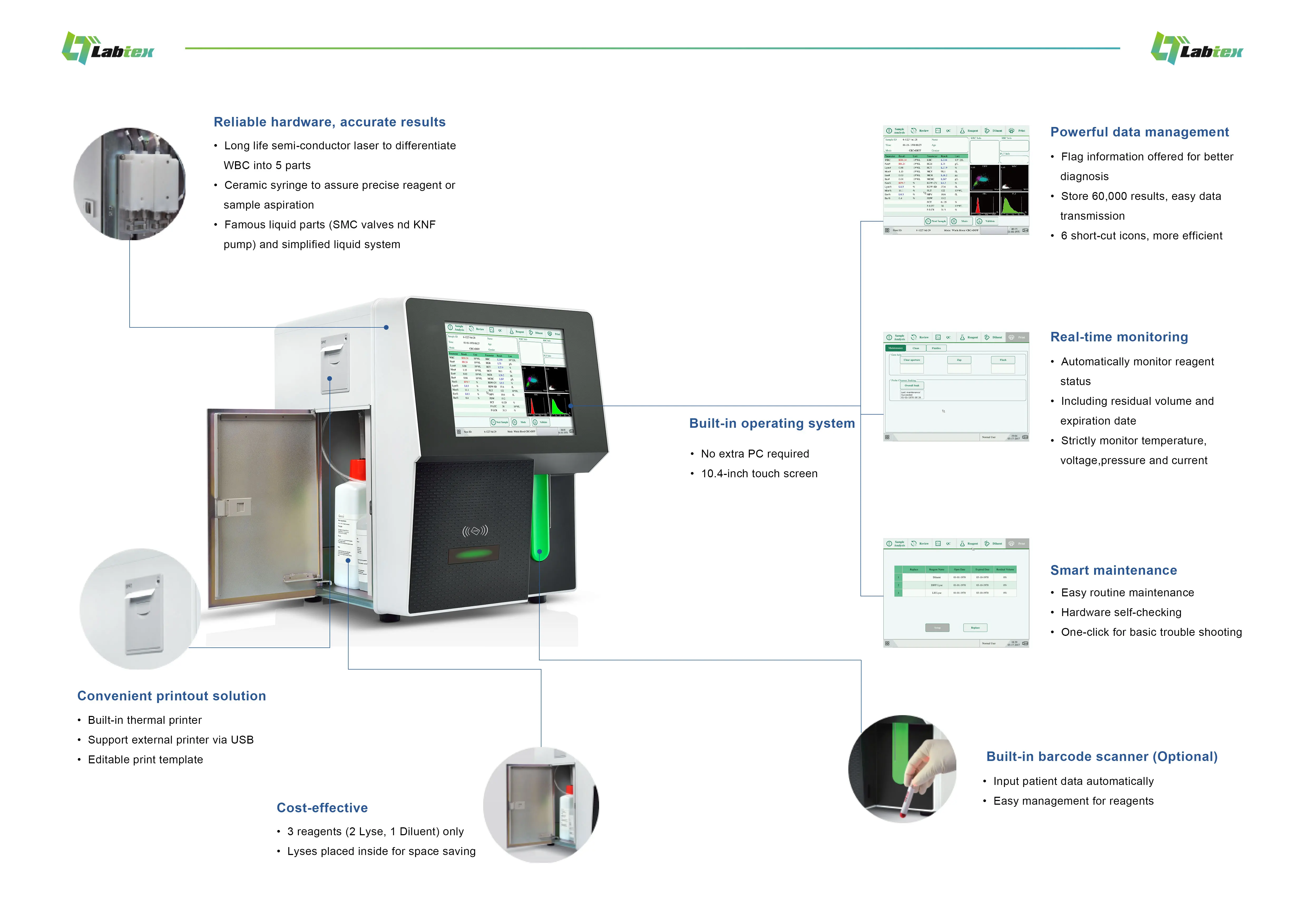

Comprehensive Solution All-in-one machine 10.4inch touch screen, no need extra PC, built-in barcode scanner (optional), built-in thermal printer Cost-effective 3 reagents (2 Lyses, 1 Diluent) only, less consumption 60 samples per hour, minimize your workload Better human-machine interaction Provide 25 parameters with 4 scattergrams and 2 histograms User-fiendly desighed software, store 60,000 results, Real-time monitoring reagent, voltage, temperature status Intelligent software menu for hardware diagnosis Advanced high voltage and flush to remove blockage automatically Accurate results, easy maintenance Long life semi-conductor laser to differentiate WBC into 5 parts Ceramic syringe to assure precise reagent or sample aspiration Imported famous liquid parts to control liquid flow, simplfied liquid system to lessen break-down rate
Comprehensive Solution All-in-one machine 10.4inch touch screen, no need extra PC, built-in barcode scanner (optional), built-in thermal printer Cost-effective 3 reagents (2 Lyses, 1 Diluent) only, less consumption 60 samples per hour, minimize your workload Better human-machine interaction Provide 25 parameters with 4 scattergrams and 2 histograms User-fiendly desighed software, store 60,000 results, Real-time monitoring reagent, voltage, temperature status Intelligent software menu for hardware diagnosis Advanced high voltage and flush to remove blockage automatically Accurate results, easy maintenance Long life semi-conductor laser to differentiate WBC into 5 parts Ceramic syringe to assure precise reagent or sample aspiration Imported famous liquid parts to control liquid flow, simplfied liquid system to lessen break-down rate
Advanced TechnologyLatest innovation Tri-angle laser scattering and flow cytometry • Diff lyse is added to differentiate 4 kinds of WBC (Lym, Mon, Neu and Eos), LH lyse is used to differentiate Bas and count WBC amount. • Surrounded with sheath fluid(diluent), blood cells pass through the center of the flow cell one by one at high speed. • When passing through the flow cell, blood cells are exposed to a laser beam. The intensity of scatter light reflects the blood cell size and intracellular density. • The optical detector receives
scatter light signals and converts them into electrical pulses. Pulse data is collected to generate a scattergram.
Proven technology Impedance and colorimetric • The count principle of the instrument is based on the measurement of changes in electrical resistance produced by a blood cell passing through an aperture sensor. Passing through the magnification circuit, the voltage signal will be magnified, which will be derived into impluses, and then analytical histogram will be generated. • Adding lyse in the blood, the red blood cell will rapidly be broken down and release hemoglobin. Hemoglobin and lyse form a new mixture, which can absorb the wavelength of 530nm. Measure the absorbency. Through comparison of the absorbency between the pure diluent and the sample, the concentration of the sample hemoglobin is calculated.
scatter light signals and converts them into electrical pulses. Pulse data is collected to generate a scattergram.
Proven technology Impedance and colorimetric • The count principle of the instrument is based on the measurement of changes in electrical resistance produced by a blood cell passing through an aperture sensor. Passing through the magnification circuit, the voltage signal will be magnified, which will be derived into impluses, and then analytical histogram will be generated. • Adding lyse in the blood, the red blood cell will rapidly be broken down and release hemoglobin. Hemoglobin and lyse form a new mixture, which can absorb the wavelength of 530nm. Measure the absorbency. Through comparison of the absorbency between the pure diluent and the sample, the concentration of the sample hemoglobin is calculated.
