Solar Panels 5000w System 5kva Complete home mini Solar System Price off grid 5 kilowatts
- Category: >>>
- Supplier: Shandong Xiyuan Solar Energy Co. Ltd.
Share on (1601034818716):
Product Overview
Description
Product Description
Specification
Noted: Below Solar System Solutions Are Our Engineer Team Referee
Combined With Actual Demand We Also Can Customized For You
Components | SIY-3KW | SIY-3KW | SIY-5KW | SIY-10KW | |||
Mono Solar Panels | 450watt * 3 pieces | 550Watt* 6pieces | 550Watt* 9pieces | 550Watt* 18pieces | |||
Off Grid Inverter | 3kw | 3kw | 5kw | 10kw | |||
Gel Battery | 12V 100Ah*2 pieces | 12V 100Ah*2 pieces | 12V 100Ah*4 pieces | 12V 200Ah*4 pieces | |||
Mounting System | Roof Or Ground | ||||||
PV Cables | 100m | 100m | 100m | 200m | |||
MC4 Connector | 3 Paris | 10 Paris | 10 Paris | 10Paris | |||
Combine Box | / | / | / | / | |||
Wooden Box | 1 piece | 1 piece | 1 piece | 1 Piece | |||
Off Grid System Configuration

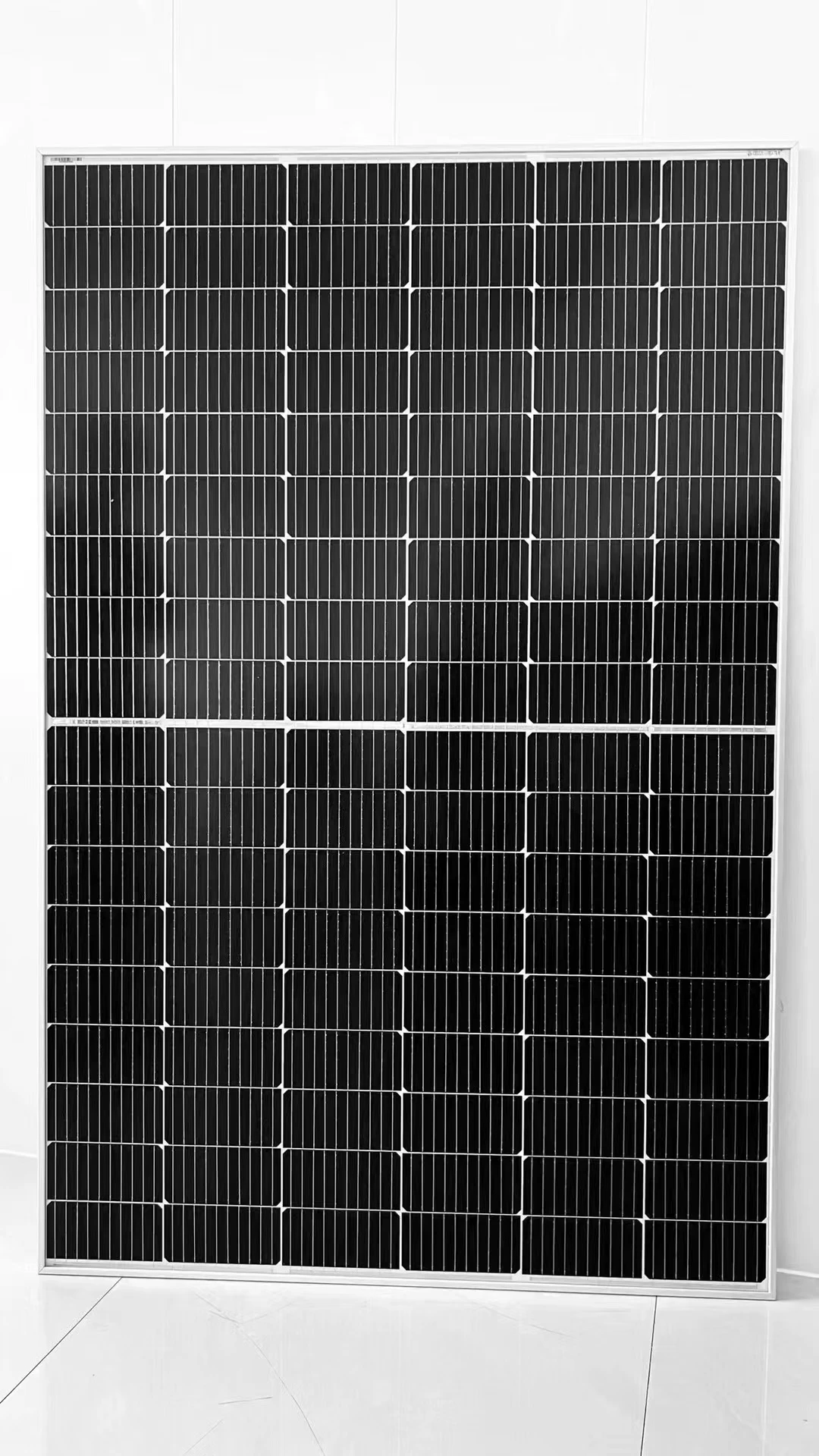

Mono Solar Panels
Solar Panel Power Watts: 450W
Dimensions:1908×1134×35 mm
Weight:24 kg
Solar Panel Power Watts:550W
Dimensions:2278×1134×35 mm
Weight:28.6 kg

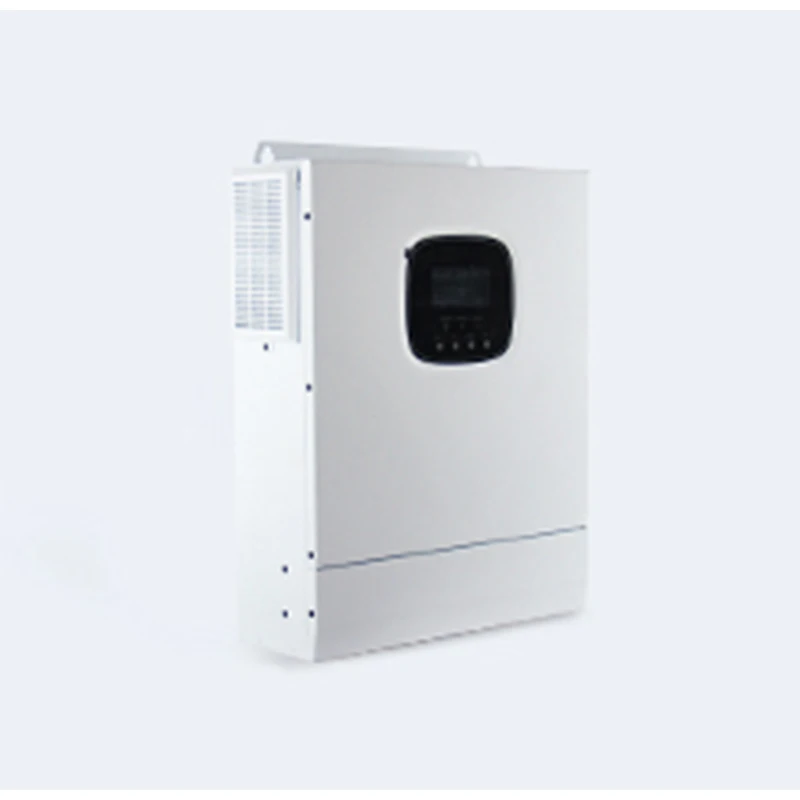

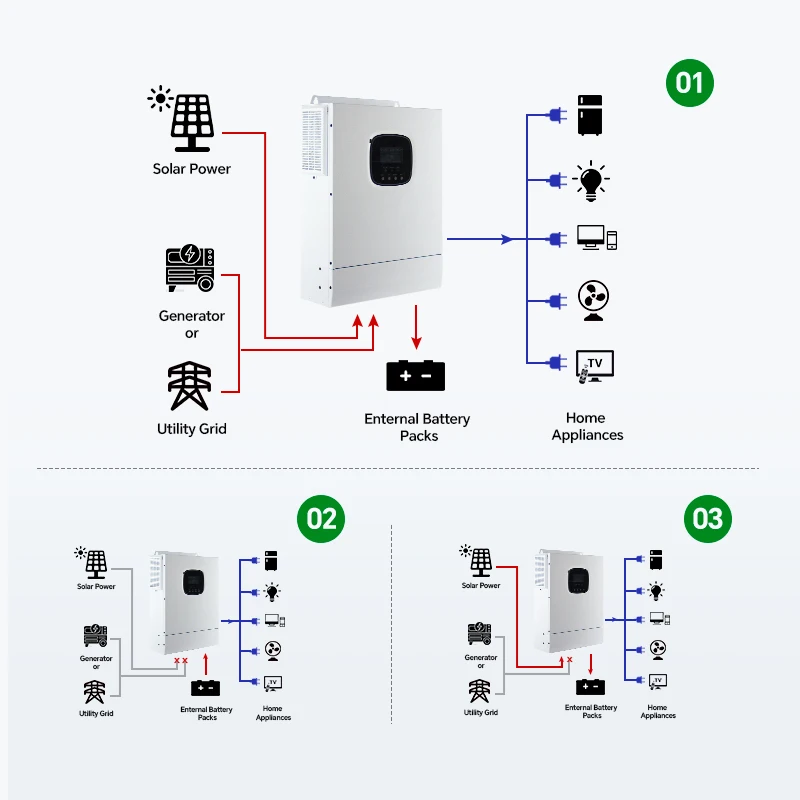

Hybrid Solar Inverter
Efficiency
• Advanced MPPT with up to 99.9% efficiency• Multiple charge and discharge modes are available
Safety
• 360 degrees of security from hardware to software
• Multiple safety approvals available
All in one
• Support for many types of batteries
• Supports Li-ion battery BMS communication
User-Friendly
• Industrial design with a modern aesthetic look
• Easy to install and simple to use
Intelligent
• Exclusive Li-ion battery BMS dual activation
• Remote monitoring operating parameters
PV Mounting System
Mounting Rail & Rail Splice KitMid & End Clamps: 30,35,40mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground PV brackets & Lugs Optional

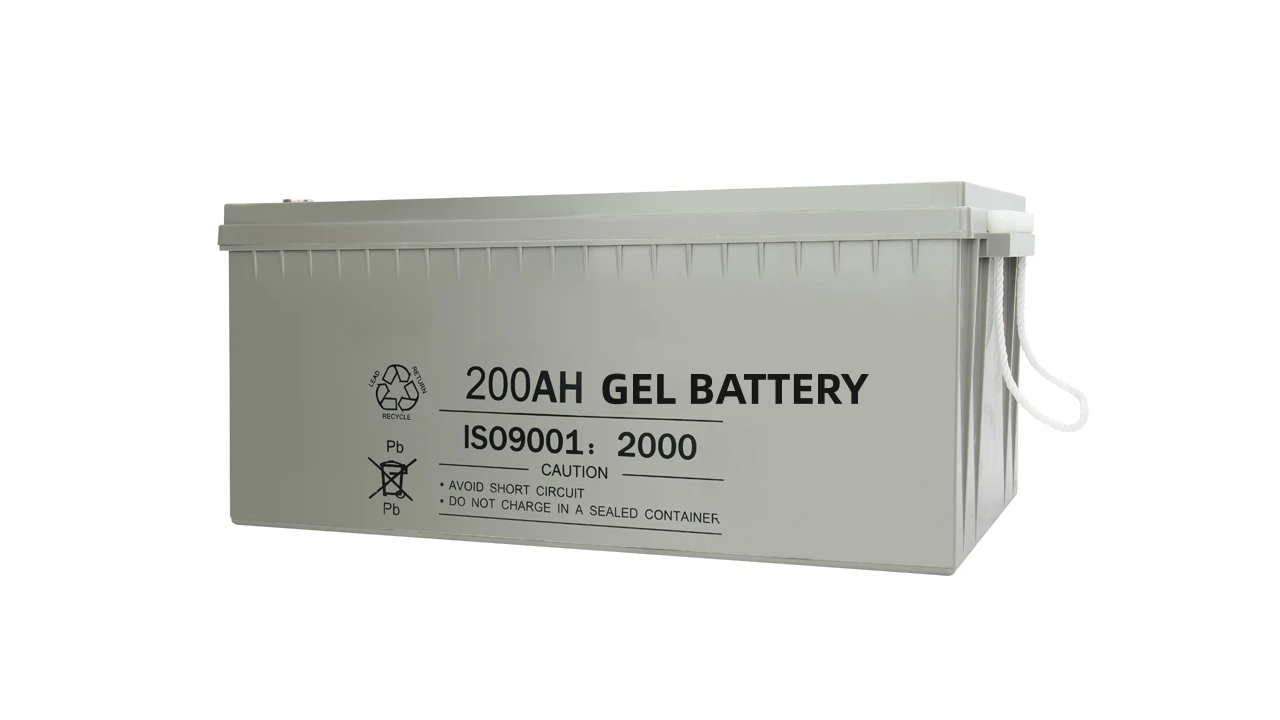

Lead Acid GEL Battery
Capacity(kWh): 2.4
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
PV Combiner Box
DC Disconnect
AC Disconnect
Battery Disconnect
Flexible Inputs Optional
IP65 Protection Degree
AC Disconnect
Battery Disconnect
Flexible Inputs Optional
IP65 Protection Degree

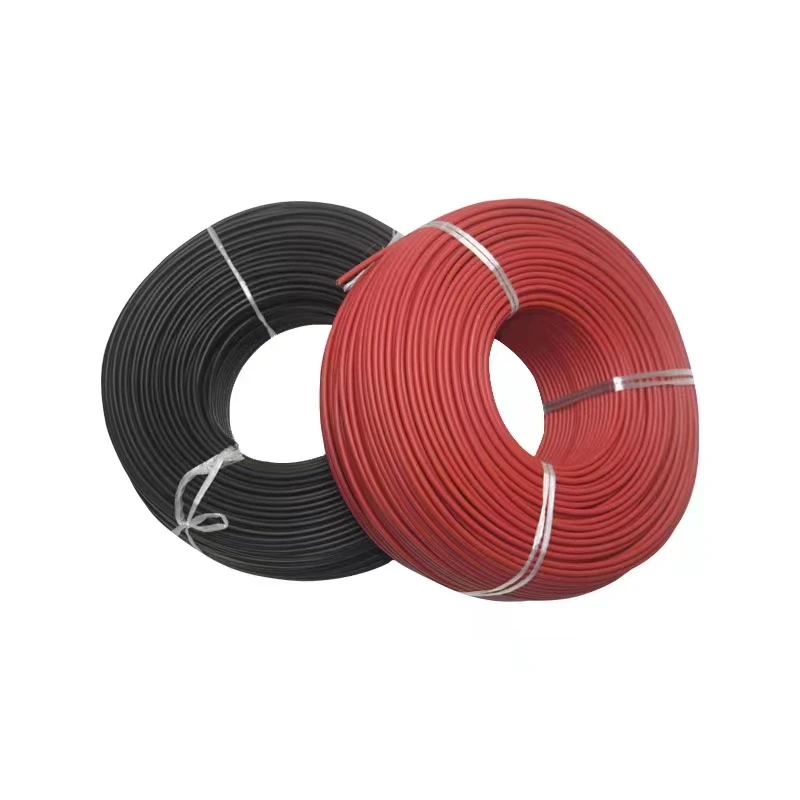

DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Application
