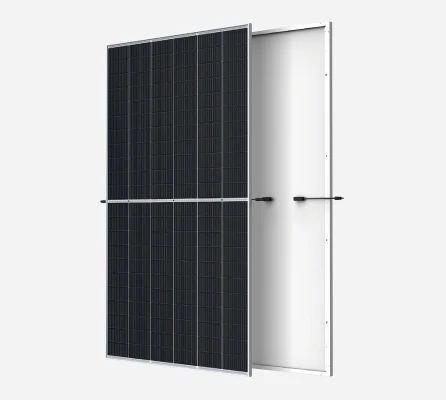

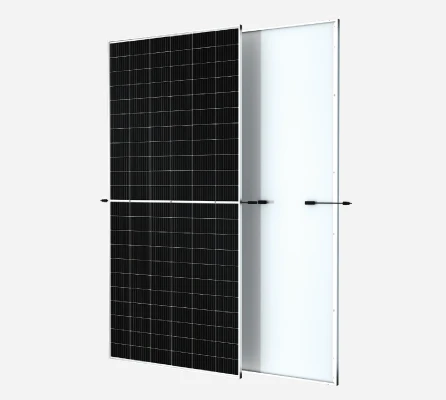

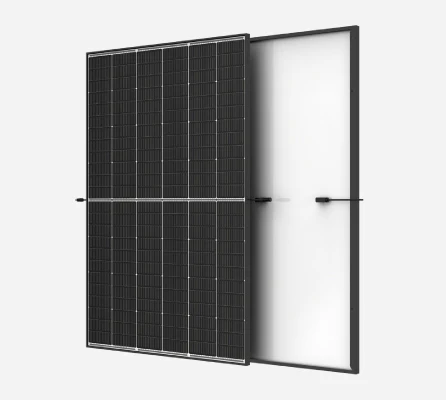

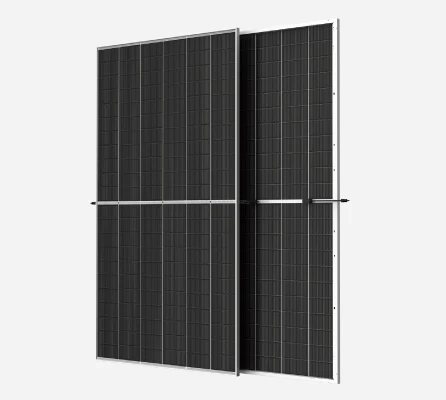

Trina 500W 700W Vertex S Solar Panels 560W 570W 580W Bifacial Dual Glass PV Module Full Black In Jiangsu
- Category: >>>
- Supplier: SunArk Power Co. Ltd.
Share on (1601034835619):
Product Overview
Description
Product Description
Specification

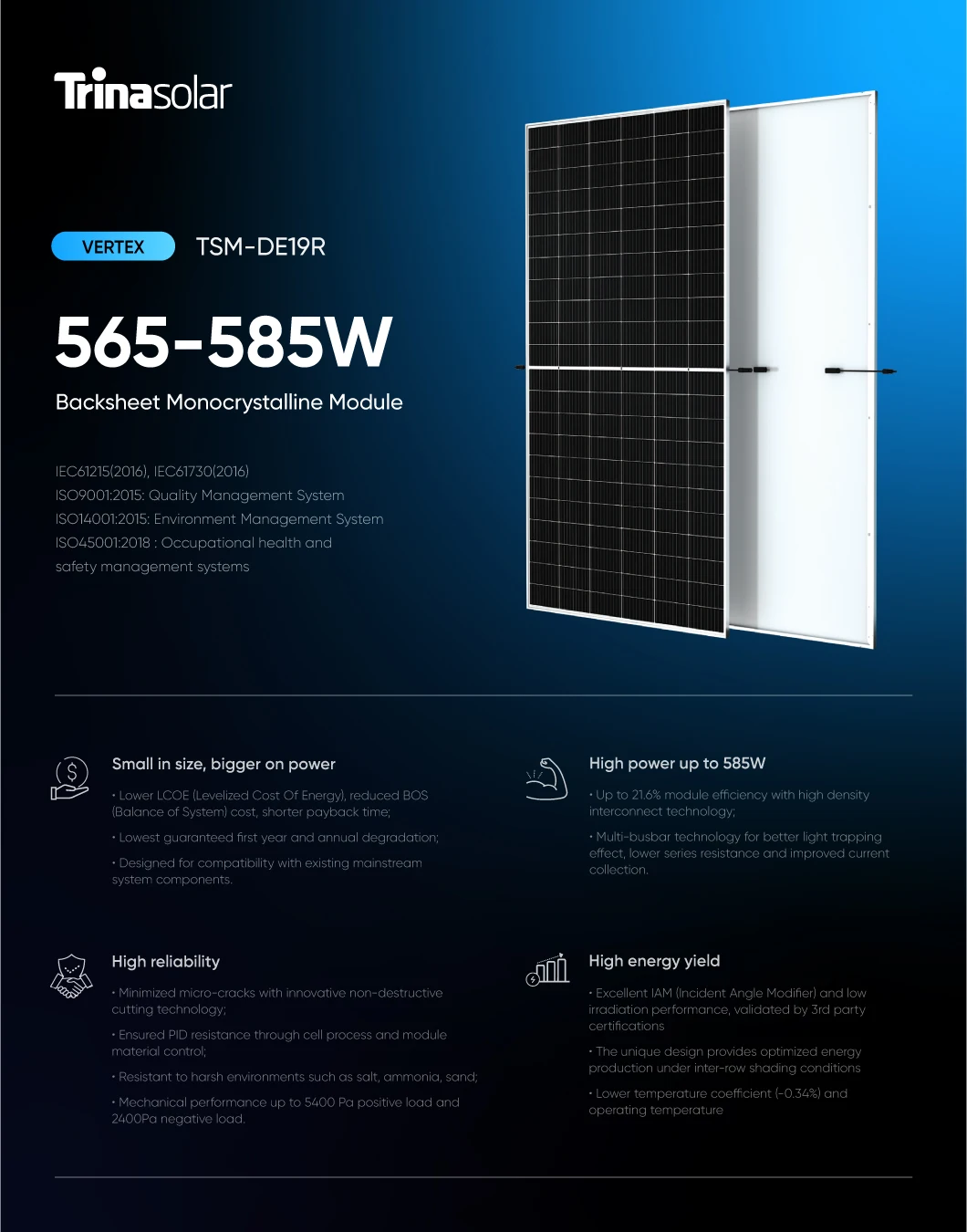

Module Type: TSM-DE19R 565-585M | 565 | 570 | 575 | 580 | 585 | ||||
Peak Power Watts-Pmax(Wp)* | 565 | 570 | 575 | 580 | 585 | ||||
Power Tolerance-Pmax(W) | 0 ~ +5 | ||||||||
Maximum Power Voltage-Vmpp(V) | 38.3 | 38.5 | 38.8 | 39.0 | 39.3 | ||||
Maximum Power Current-Impp(A) | 14.76 | 14.79 | 14.83 | 14.86 | 14.90 | ||||
Open Circuit Voltage-Voc(V) | 45.6 | 45.8 | 46.1 | 46.3 | 46.6 | ||||
Short Circuit Current-Isc(A) | 15.81 | 15.85 | 15.90 | 15.94 | 15.99 | ||||
Module Efficiency(%) | 20.9 | 21.1 | 21.3 | 21.5 | 21.6 | ||||
Maximum System Voltage | 1500V DC (IEC) | ||||||||
Max Series Fuse Rating | 30A | ||||||||
Operational Temperature | -40~+85ºC | ||||||||
Temperature Coeffcient of Pmax | - 0.34%/°C | ||||||||
Temperature Coeffcient of Voc | - 0.25%/°C | ||||||||
Temperature Coeffcient of Isc | 0.04%/°C | ||||||||

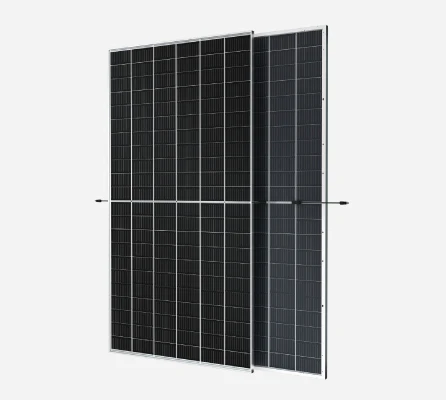

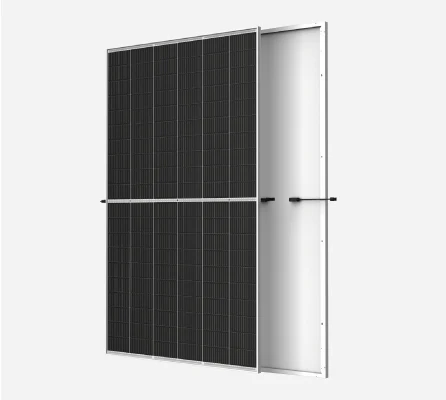

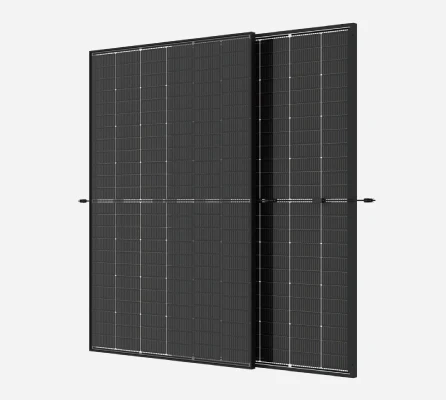

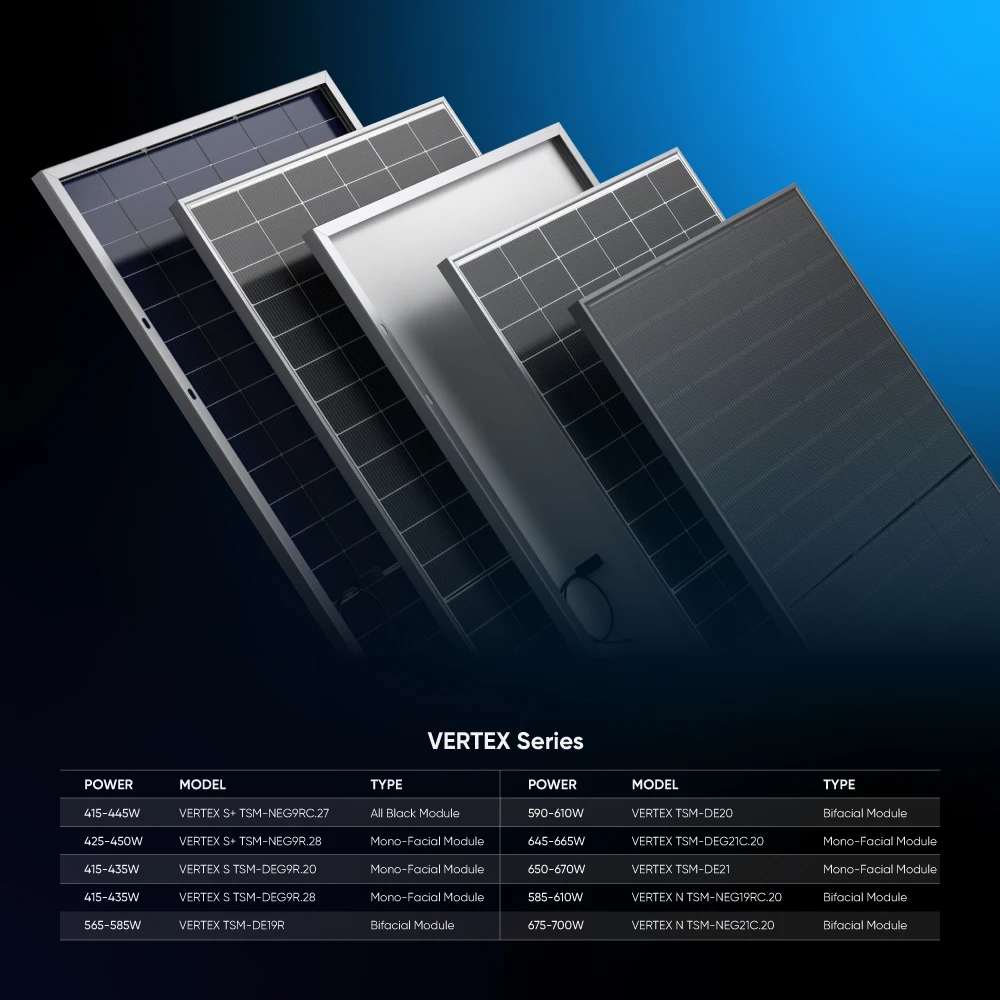

Vertex & Vertex S & Vertex N Series
Vertex N TSM-NEG21C.20
Cells Layout: 132 Half Cells(2x66)
Dimensions: 2384X1303X33mm
Weight: 38.3Kg
Modules per box: 33Pcs
Modules per 40' container: 594Pcs
Weight: 38.3Kg
Modules per box: 33Pcs
Modules per 40' container: 594Pcs
Vertex TSM-DE21
Cells Layout: 132 Half Cells(2x66)
Dimensions: 2384X1303X33mm
Weight: 33.3Kg
Modules per box: 33Pcs
Modules per 40' container: 594Pcs
Weight: 33.3Kg
Modules per box: 33Pcs
Modules per 40' container: 594Pcs
Vertex TSM-DEG21C.20
Cells Layout: 132 Half Cells(2x66)
Dimensions: 2384X1303X33mm
Weight: 38.3Kg
Modules per box: 33Pcs
Modules per 40' container: 594Pcs
Weight: 38.3Kg
Modules per box: 33Pcs
Modules per 40' container: 594Pcs
Vertex TSM-DE20
Cells Layout: 120 Half Cells(2x60)
Dimensions: 2172x1303x33mm
Weight: 30.6Kg
Modules per box: 33Pcs
Modules per 40' container: 594Pcs
Weight: 30.6Kg
Modules per box: 33Pcs
Modules per 40' container: 594Pcs
Vertex TSM-NEG19RC.20
Cells Layout: 132 Half Cells(2x60)
Dimensions: 2382x1134x30mm
Weight: 33.7Kg
Modules per box: 36Pcs
Modules per 40' container: 720Pcs
Weight: 33.7Kg
Modules per box: 36Pcs
Modules per 40' container: 720Pcs
Vertex TSM-DE19R
Cells Layout: 132 Half Cells(2x60)
Dimensions: 2382x1134x30mm
Weight: 28.8Kg
Modules per box: 36Pcs
Modules per 40' container: 720Pcs
Weight: 28.8Kg
Modules per box: 36Pcs
Modules per 40' container: 720Pcs
Vertex S TSM-NEG9R.28
Cells Layout: 144 Half Cells(2x72)
Dimensions: 1762x1134x30mm
Weight: 21.0Kg
Modules per box: 36Pcs
Modules per 40' container: 936Pcs
Weight: 21.0Kg
Modules per box: 36Pcs
Modules per 40' container: 936Pcs
415~445W Bifacial
Vertex S TSM-NEG9RC.27
Cells Layout: 144 Half Cells(2x72)
Dimensions: 1762x1134x30mm
Weight: 21.0Kg
Modules per box: 36Pcs
Modules per 40' container: 936Pcs
Weight: 21.0Kg
Modules per box: 36Pcs
Modules per 40' container: 936Pcs
Vertex S TSM-DEG9R.28
Cells Layout: 144 Half Cells(2x72)
Dimensions: 1762x1134x30mm
Weight: 21.8Kg
Modules per box: 36Pcs
Modules per 40' container: 936Pcs
Weight: 21.8Kg
Modules per box: 36Pcs
Modules per 40' container: 936Pcs
Vertex S TSM-DEG9R.20
Cells Layout: 144 Half Cells(2x72)
Dimensions: 1762x1134x30mm
Weight: 21.8Kg
Modules per box: 36Pcs
Modules per 40' container: 936Pcs
Weight: 21.8Kg
Modules per box: 36Pcs
Modules per 40' container: 936Pcs

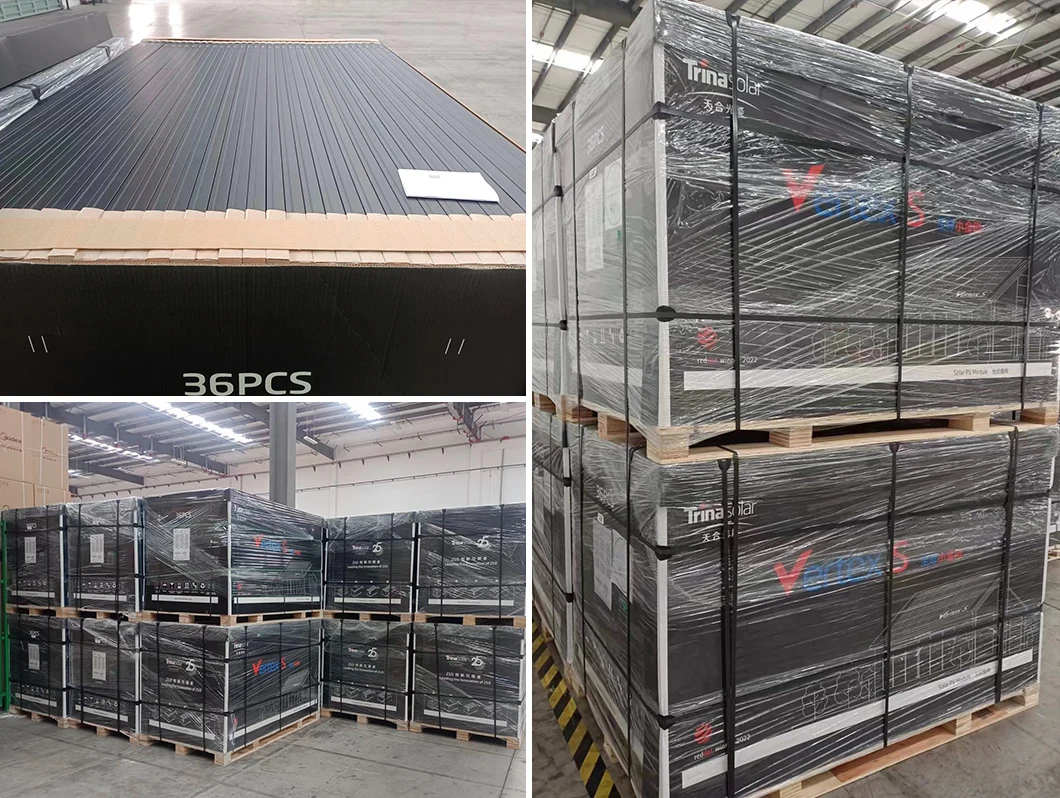

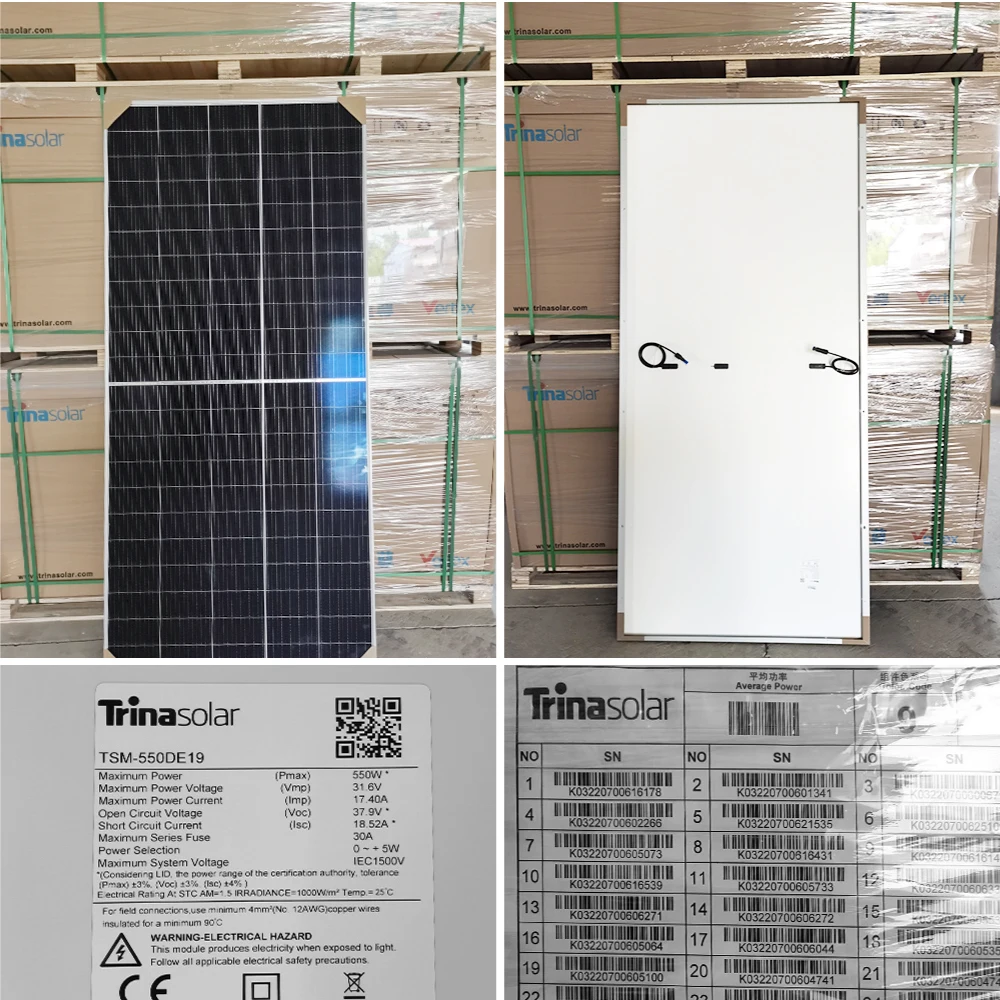

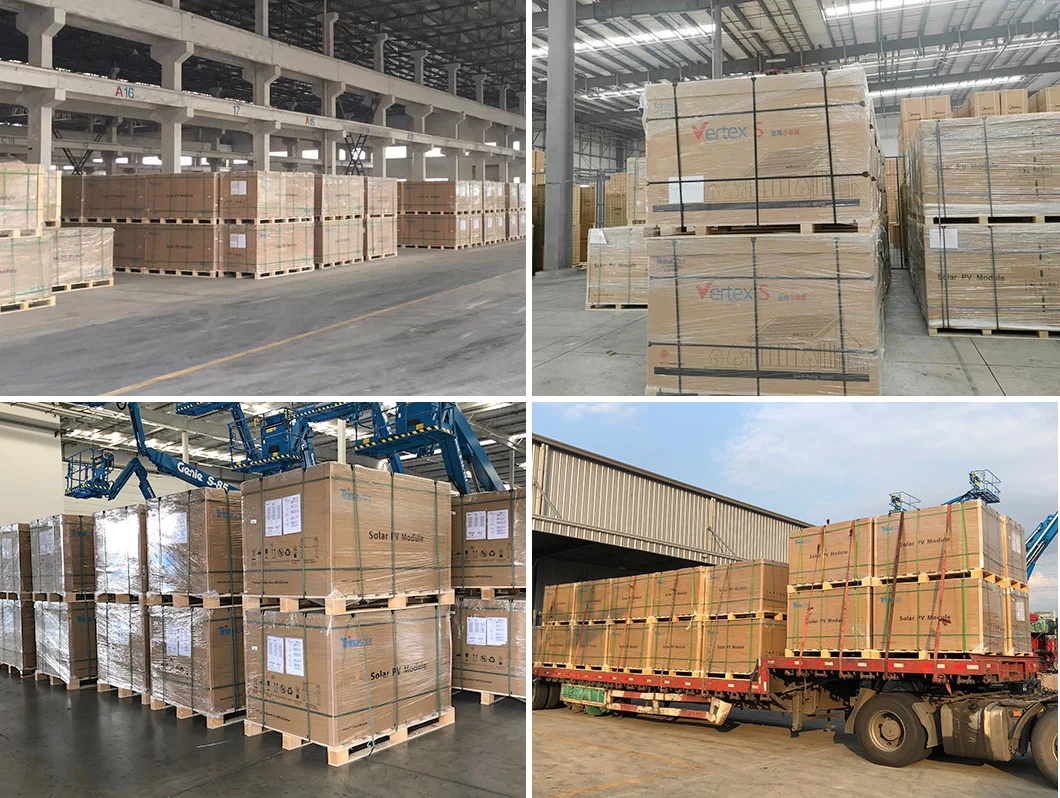

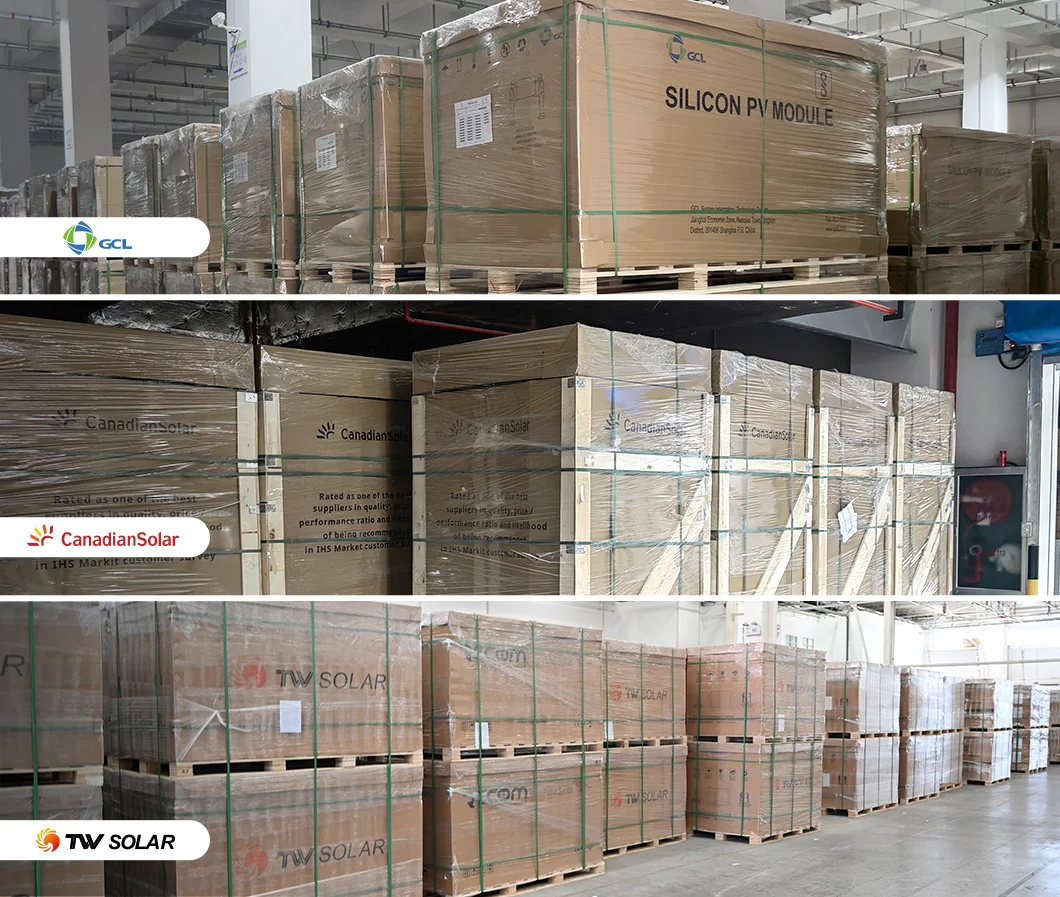

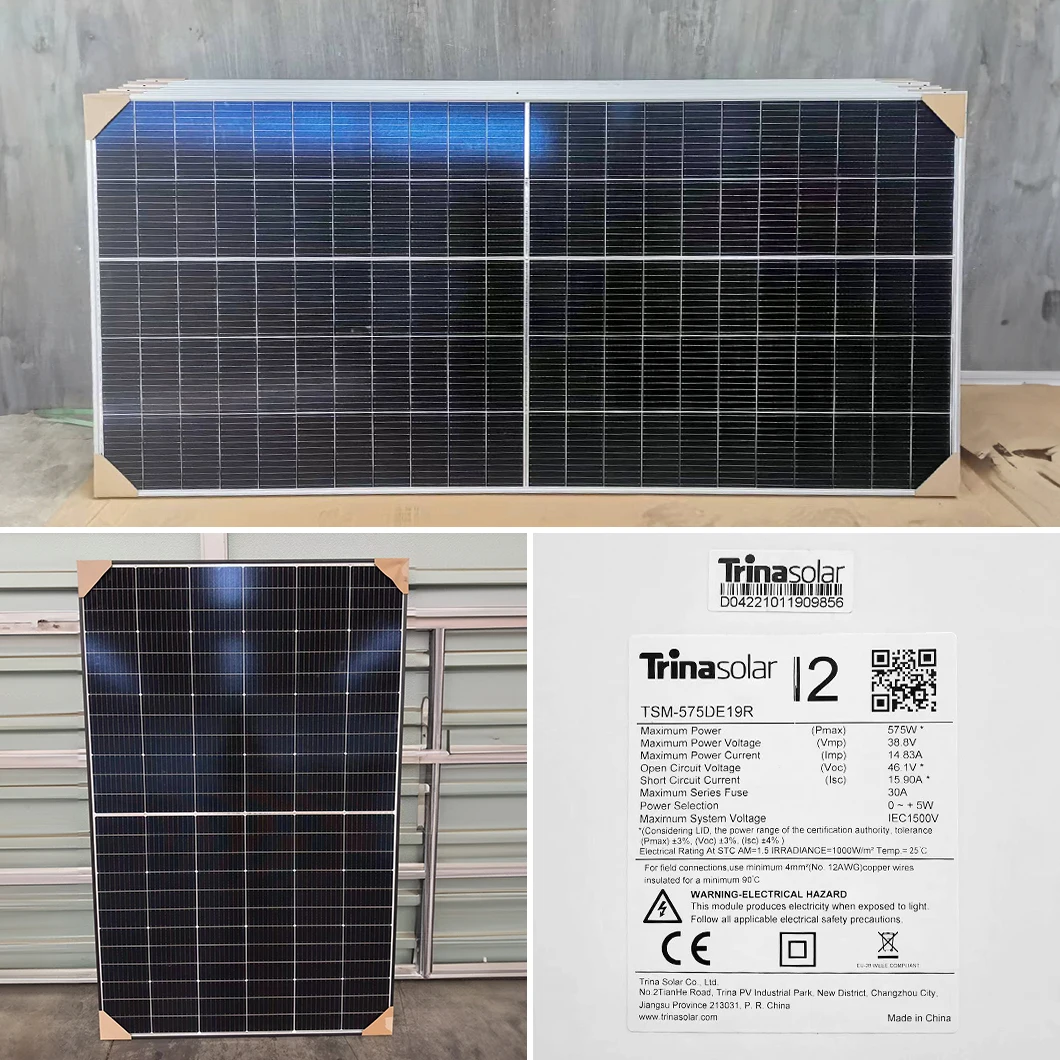

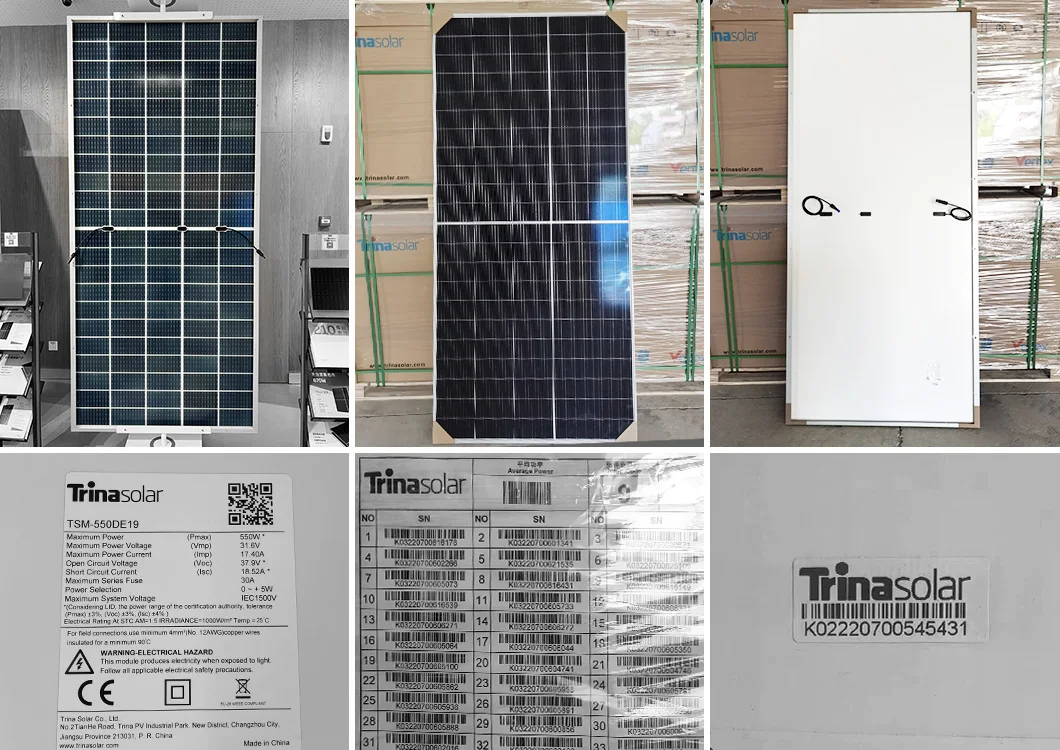

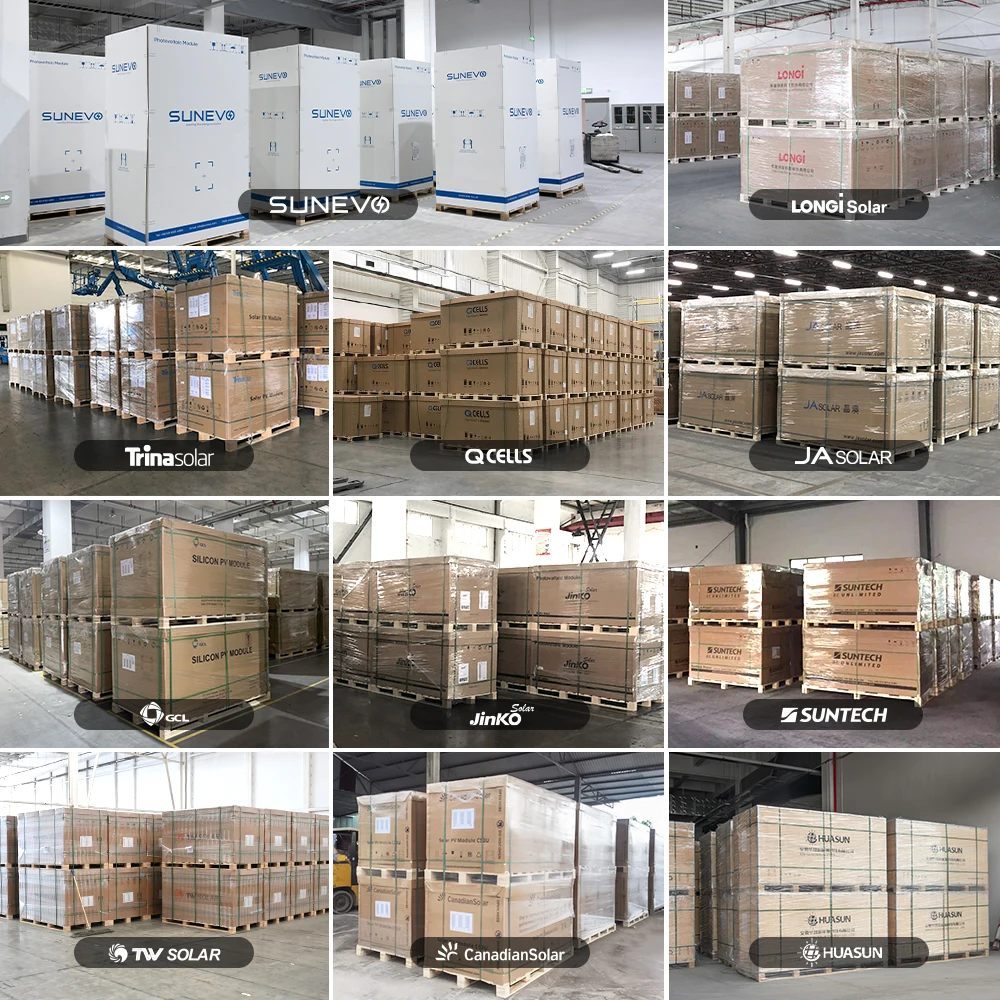

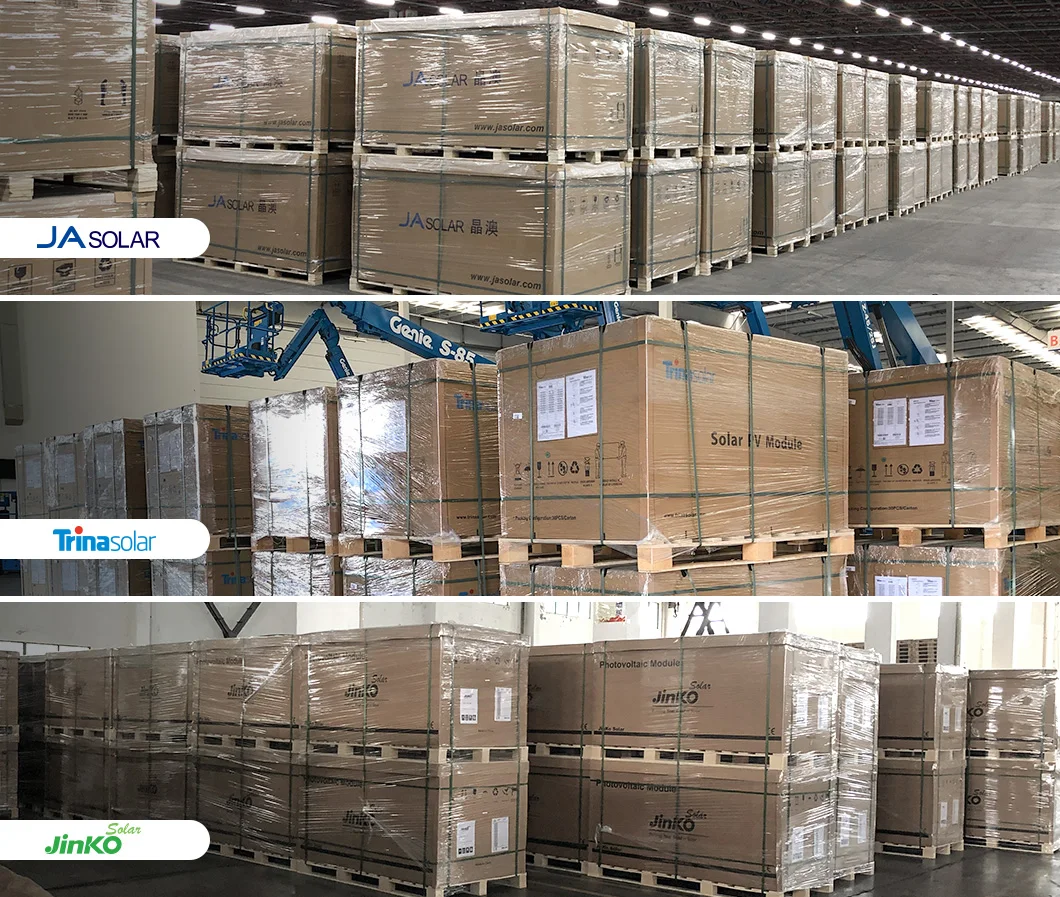

Pictures & Package
Tier 1 Solar Module
About Us
Contact Us
FAQ
Q1.How to solve the technical problem?
A:24 hours after-service consultancy just for you and to make your problem to solve easily.
Q2.What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30days, it depends on the quantity of order.
Q3.Why should we choose you?
A:1: Reliable company - 14 years manufacturing and exporting experience.
2: Qualified products - TUV, CE, UL, IEC, CEC, INMETRO, ISO certified.
3: Good payment term for clients.
4: Module with lower degradation rate than standard degradation in the PV field.
Q4.How to proceed an order?
A:1.let us know your requirements or application.
A:1.let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and pay deposit for formal order.
4. We arrange the production.
If you want to know more information, you can send inquiry to our team, we will cover more details.
