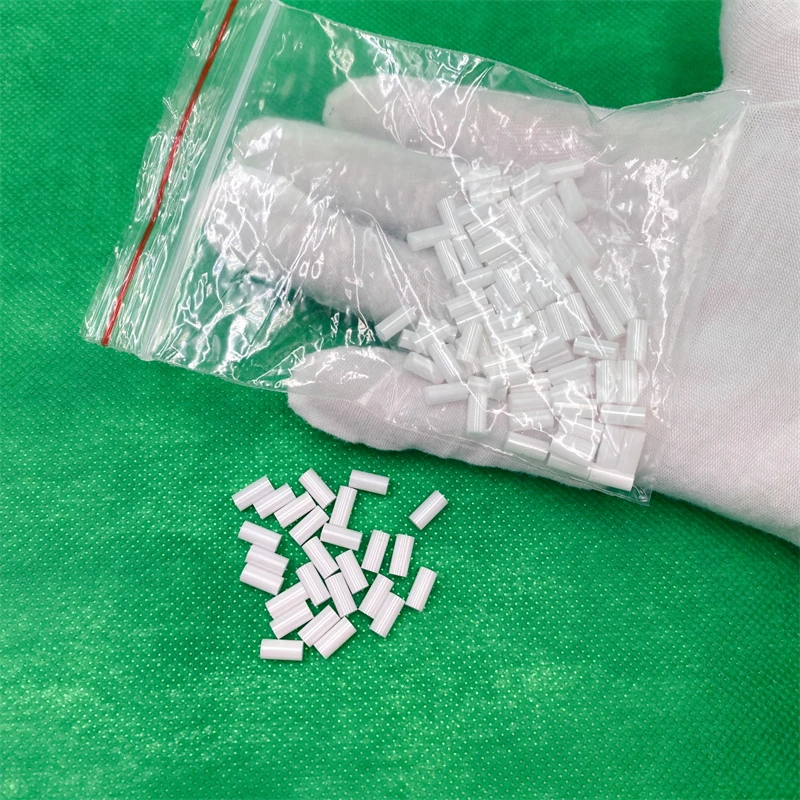

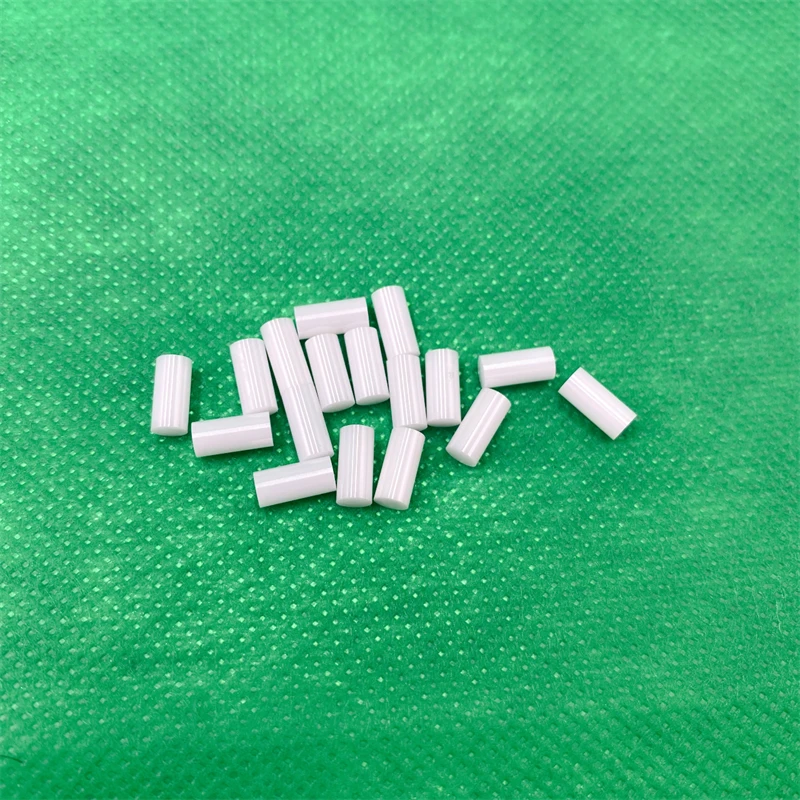

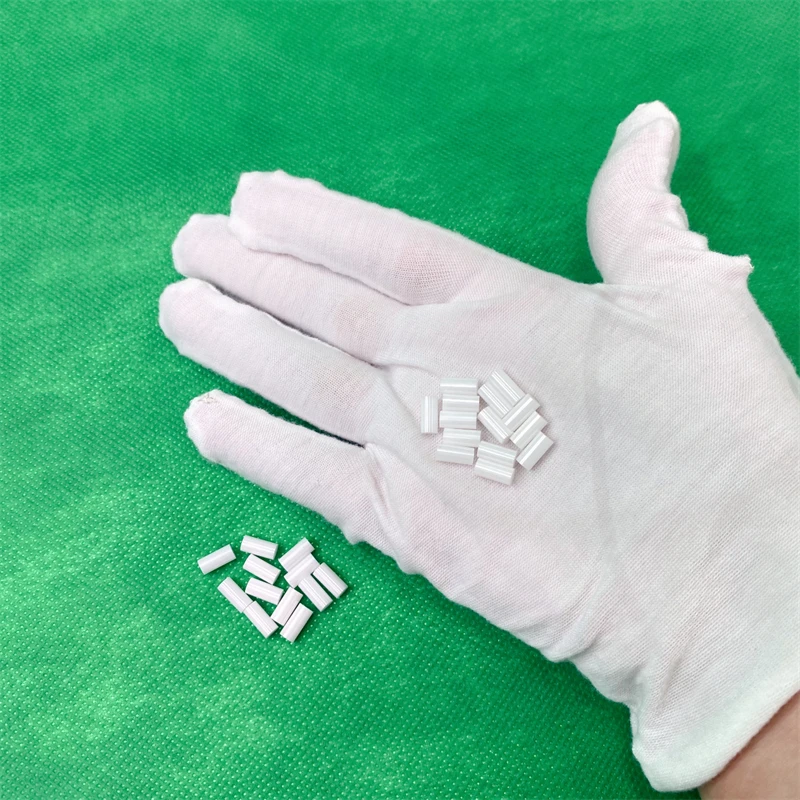

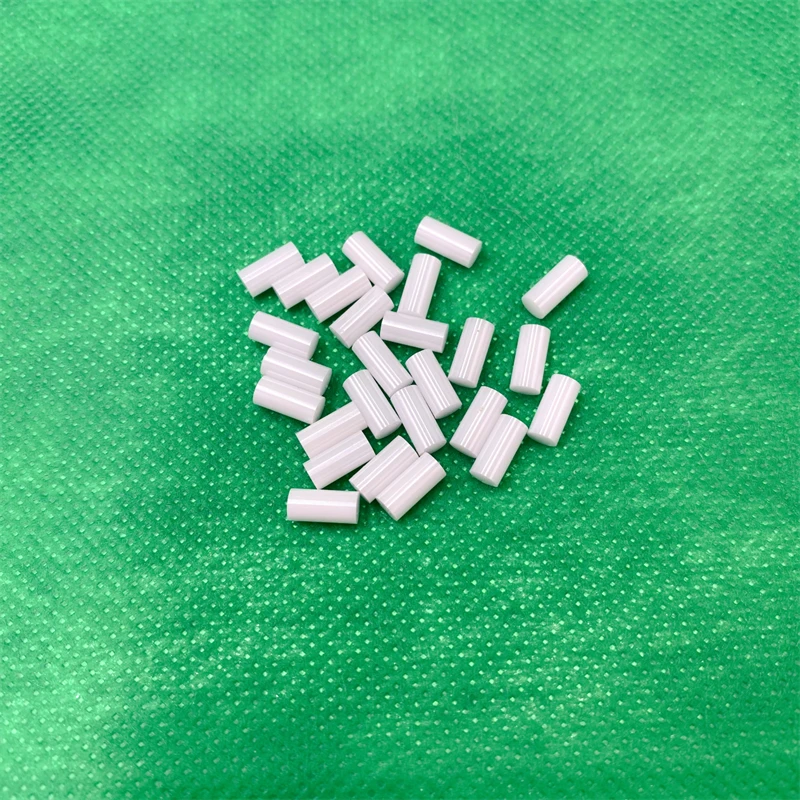

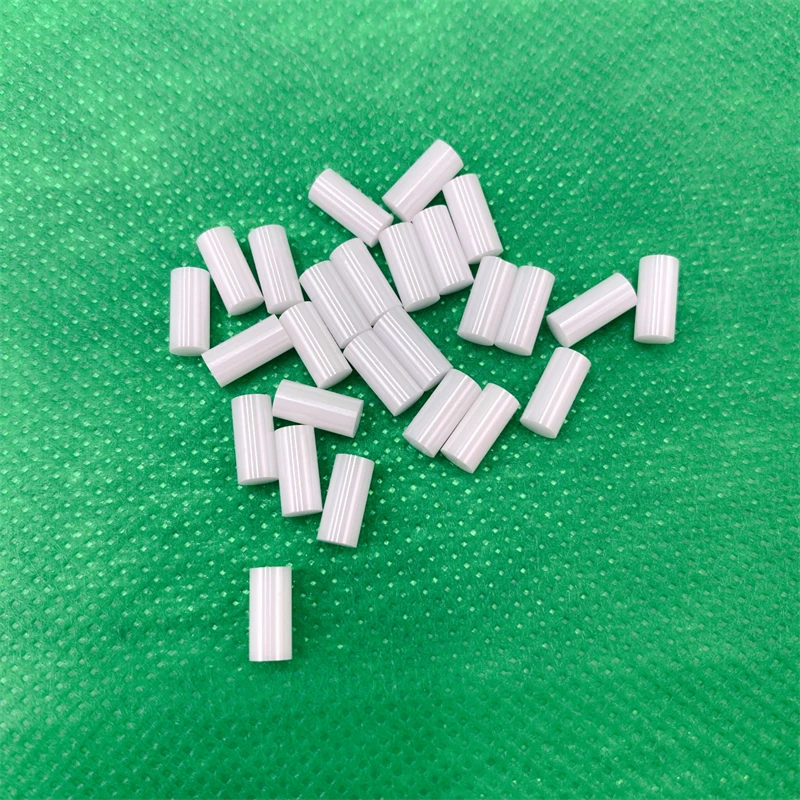

High Hardness Wear Resistant Customized 8% yttrium YSZ Zirconia Ceramic Rod Bar
- Category: >>>
- Supplier: Hoyue Technology (lianyungang) Co. Ltd.
Share on (1601034859998):
Product Overview
Description
Product Description
With good heat insulating properties and oxygen-ion conductivity, zirconia has potential for use in a wide variety of applications.
The pure form crystal structure changes limit mechanical applications, however zirconia dioxide material stabilized with Calcium, Magnesium or Yttrium Oxides has good characteristic of higher strength, hardness and particularly toughness.
In addition, the material has low thermal conductivity to be an ionic conductor above 600°C which can apply in oxygen sensors and high temperature fuel cells.
Features of zirconia ceramic：
1. High strength, high hardness
2. High density, high fracture toughness
3. Wear resistance, corrosion resistance, oxidation resistance
4. Excellent dielectric properties
5. Low thermal conductivity
6. Good chemical stability, nonmagnetic
1. High strength, high hardness
2. High density, high fracture toughness
3. Wear resistance, corrosion resistance, oxidation resistance
4. Excellent dielectric properties
5. Low thermal conductivity
6. Good chemical stability, nonmagnetic
Application and Technology：
Zirconia block ceramic bar is widely used in machinery, semiconductor, electronic, aerospace, petroleum, chemical, electronics, petroleum, medical, refractory, textiles, fluid control, food and other industries.
Specification
Item | Test Condition | Unit&Symbol | Zirconia Ceramic |
The main Chemical Ingredient | ZrO2:95%Y2O8% | ||
Bulk Density | g/cm3 | 6 | |
Maximum Use Temperature | 1300℃ | ||
Water Absorption | % | 0 | |
ROHS Hardness | HRA | ≥83 | |
Compressive Strength | 20℃ | Kgf/cm2 | 25000 |
Fracture Toughness | Map.m3/2 | 6-8 | |
Coefficient of Thermal Expansion | /℃ | 9.5*10-6 | |
Thermal Shock Resistance | Tc | ℃ | 360 |
Volume Resistivity | 20 | Ω.cm20℃ | 1012 |
You May Like

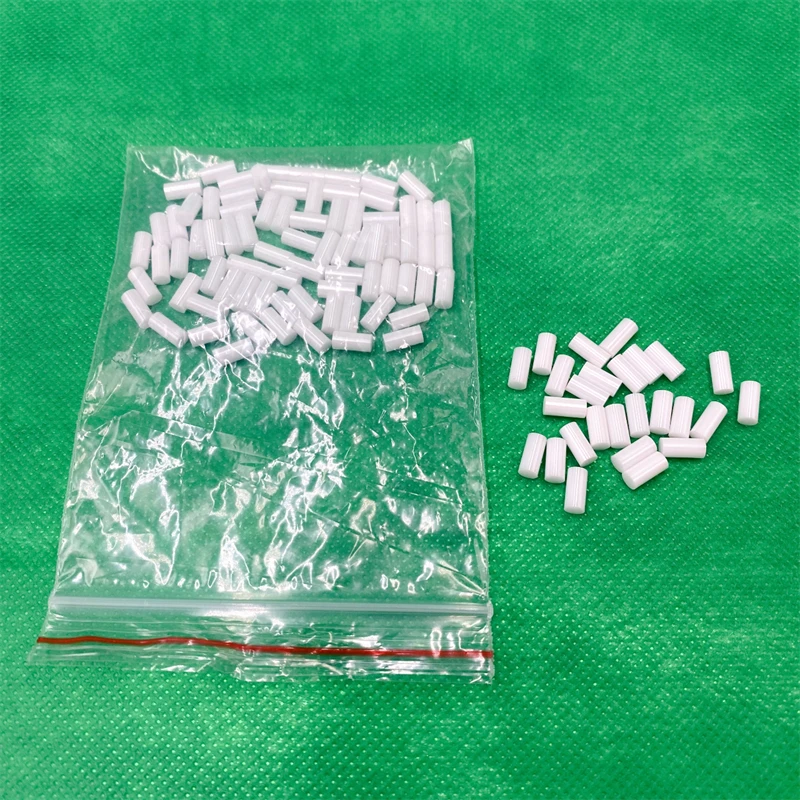

Packing & Delivery
Our Service

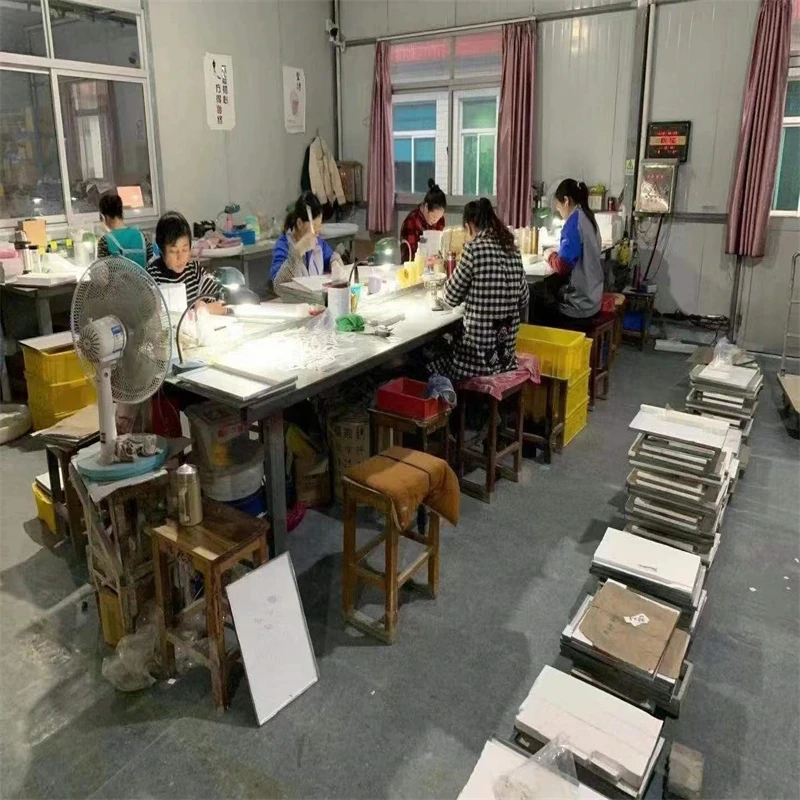

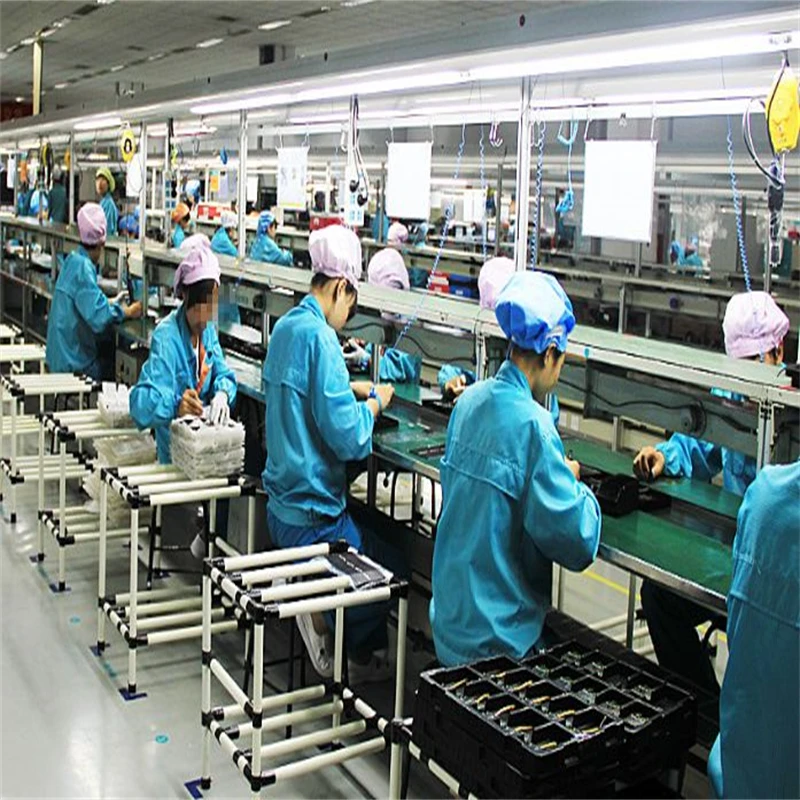

Company Profile

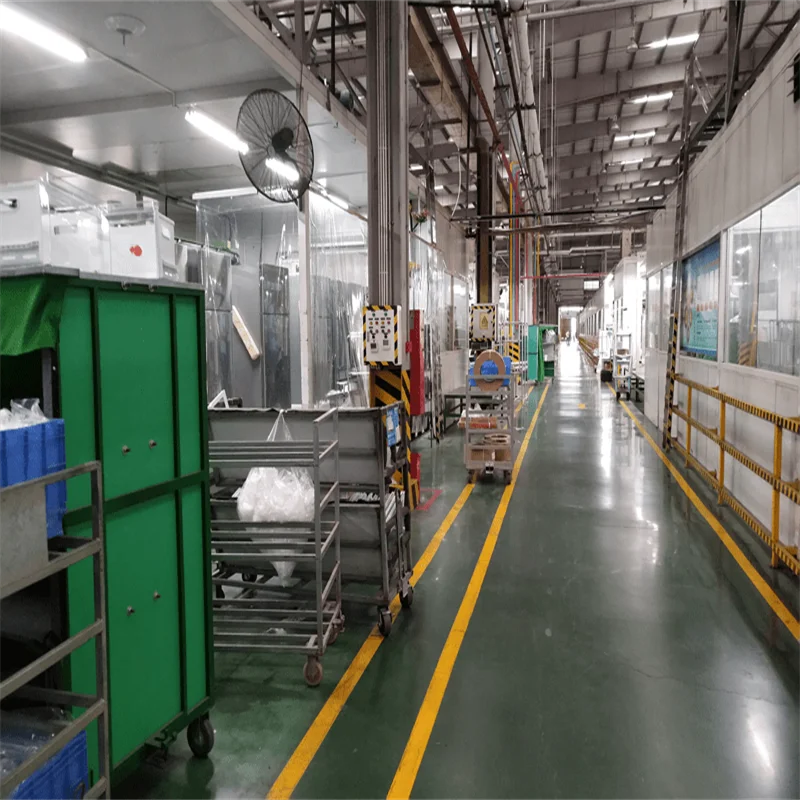

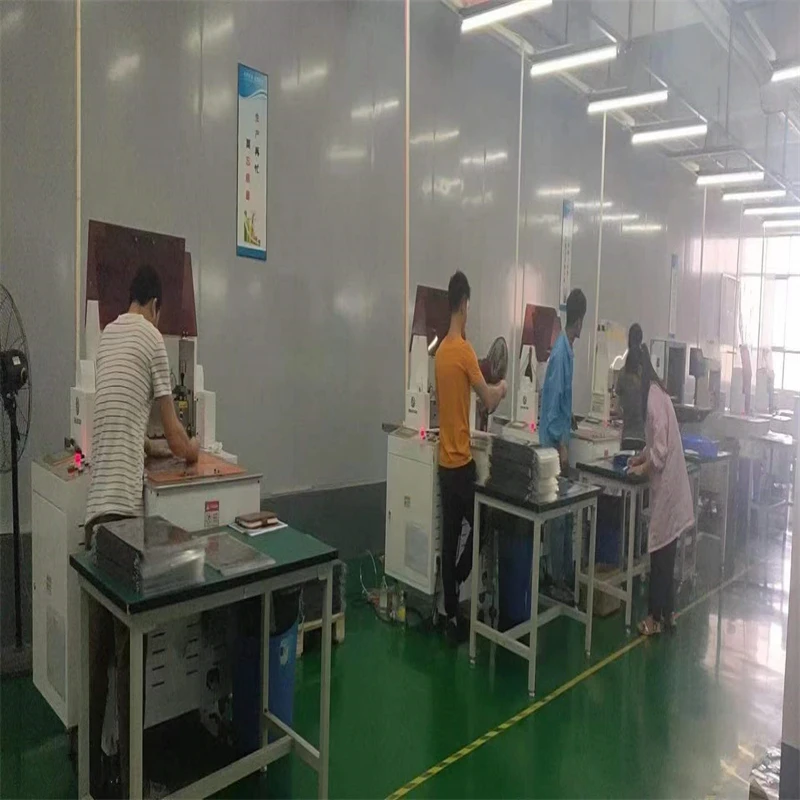

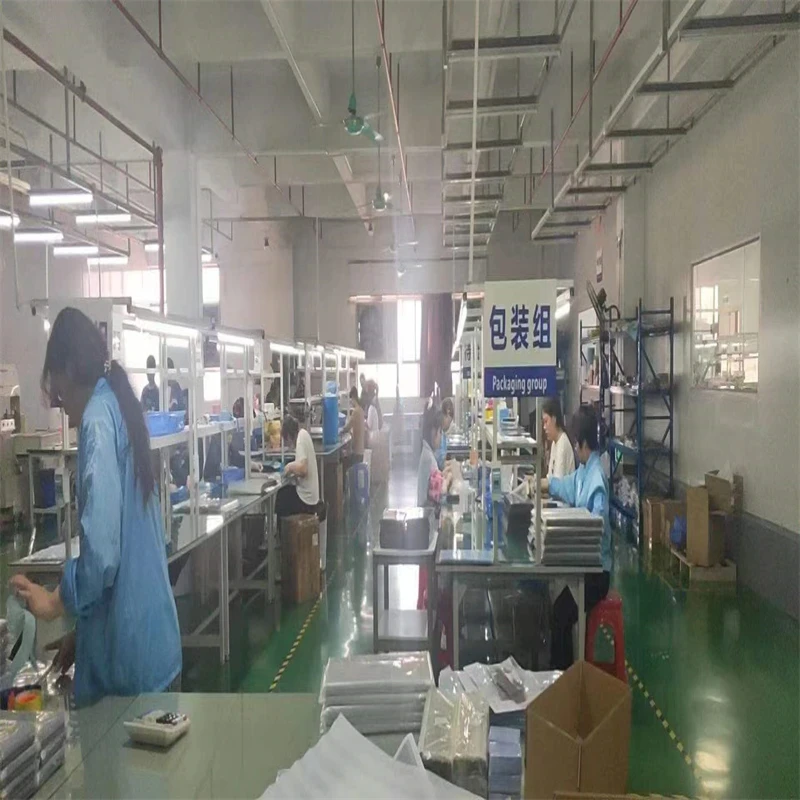

Hoyue technology is one of the manufacturers and suppliers of high-quality quartz glass and precision ceramics in China.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,ceramic washers,ceramic pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,ceramic washers,ceramic pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining.
Hope fora wide range of sincere cooperation with customers at domestic and abroad.
Q: What's your samples policy?
We can provide some free samples if we have the similar products in stock, but customer needs to pay the freight cost.
Q: Do you accept customized dimension?
Yes, we can produce ceramic parts per customer's request.
Q:How to get the price?
You can provide drawings with performance requirement or samples to us for quotation, we will send price to you once received your drawings or samples within 24 hours.
Q: Do you accept customized dimension?
Yes, we can produce ceramic parts per customer's request.
Q:How to get the price?
You can provide drawings with performance requirement or samples to us for quotation, we will send price to you once received your drawings or samples within 24 hours.
Q: How to deal with the faulty?
Our products are produced in strict quality control system and the defective rate will be less than 0.2%.If the products you received is not the same as drawings, we will arrange re-production.
If you only have samples, you can also send us.
If you only have samples, you can also send us.
