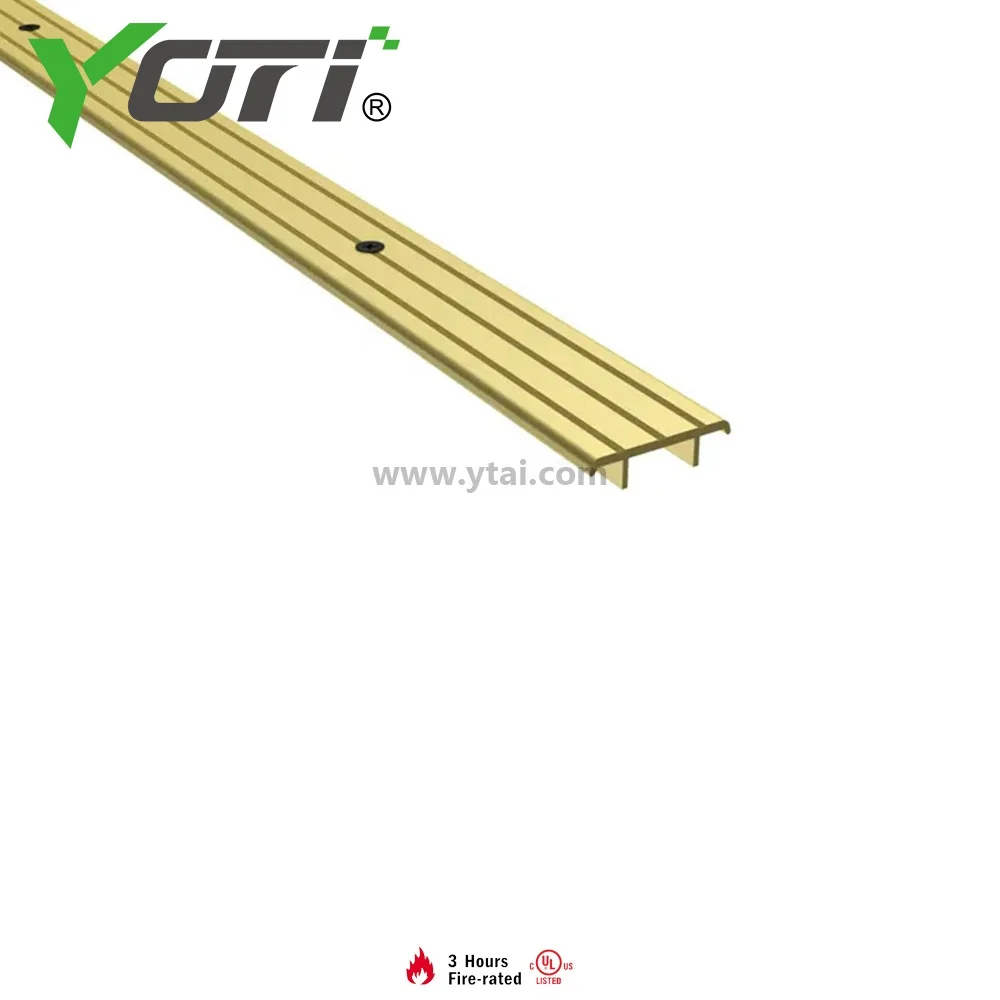

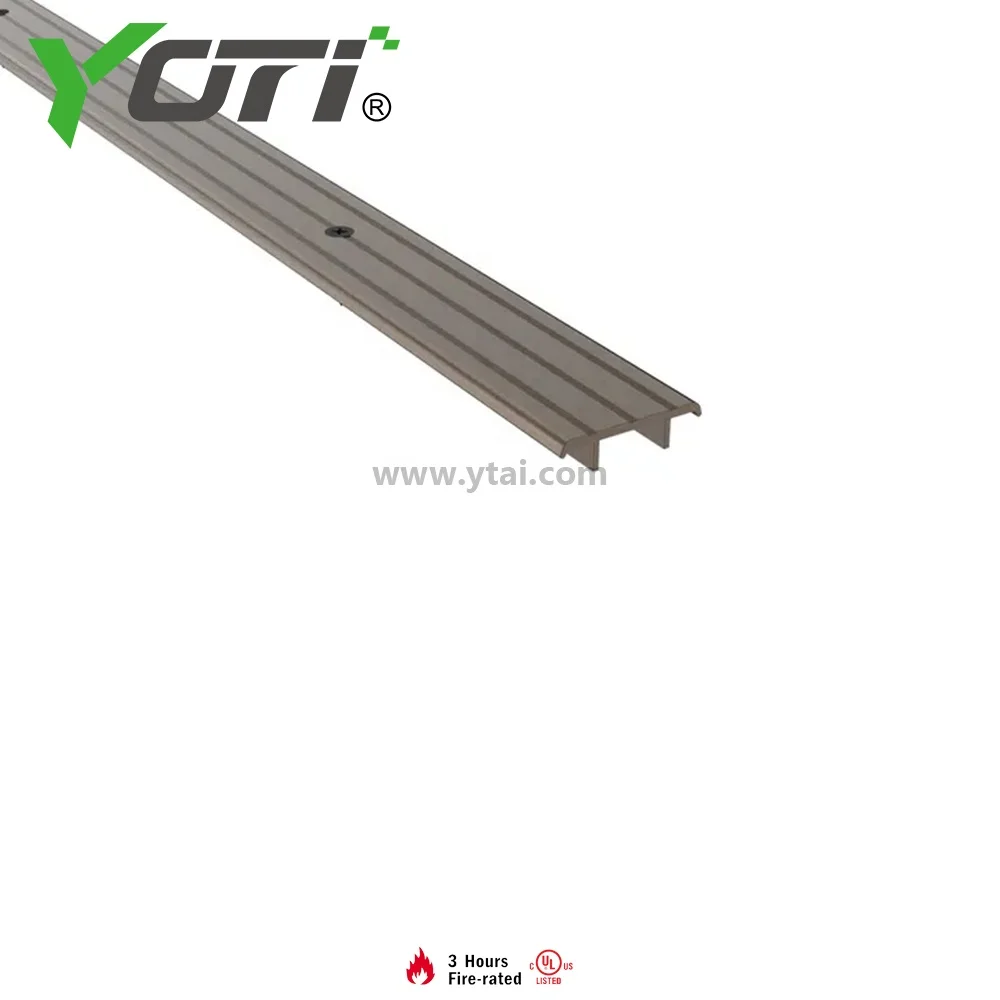

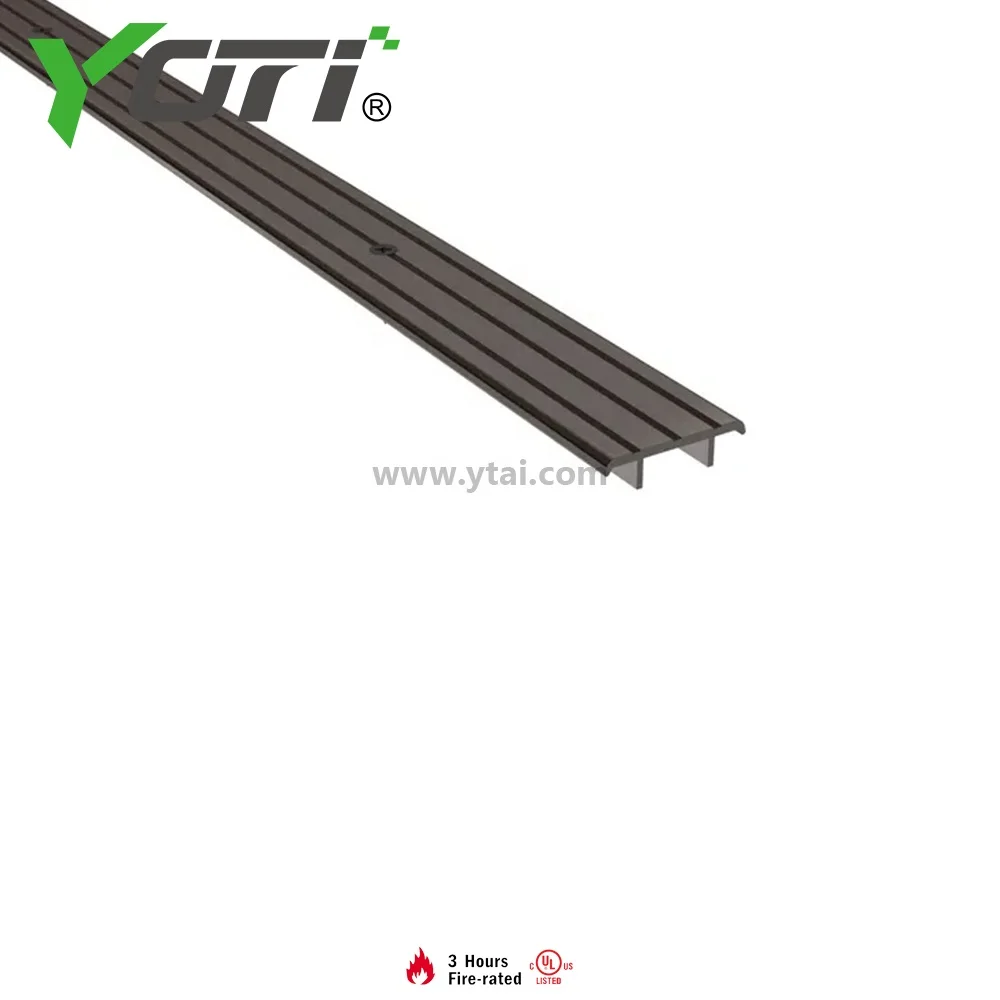

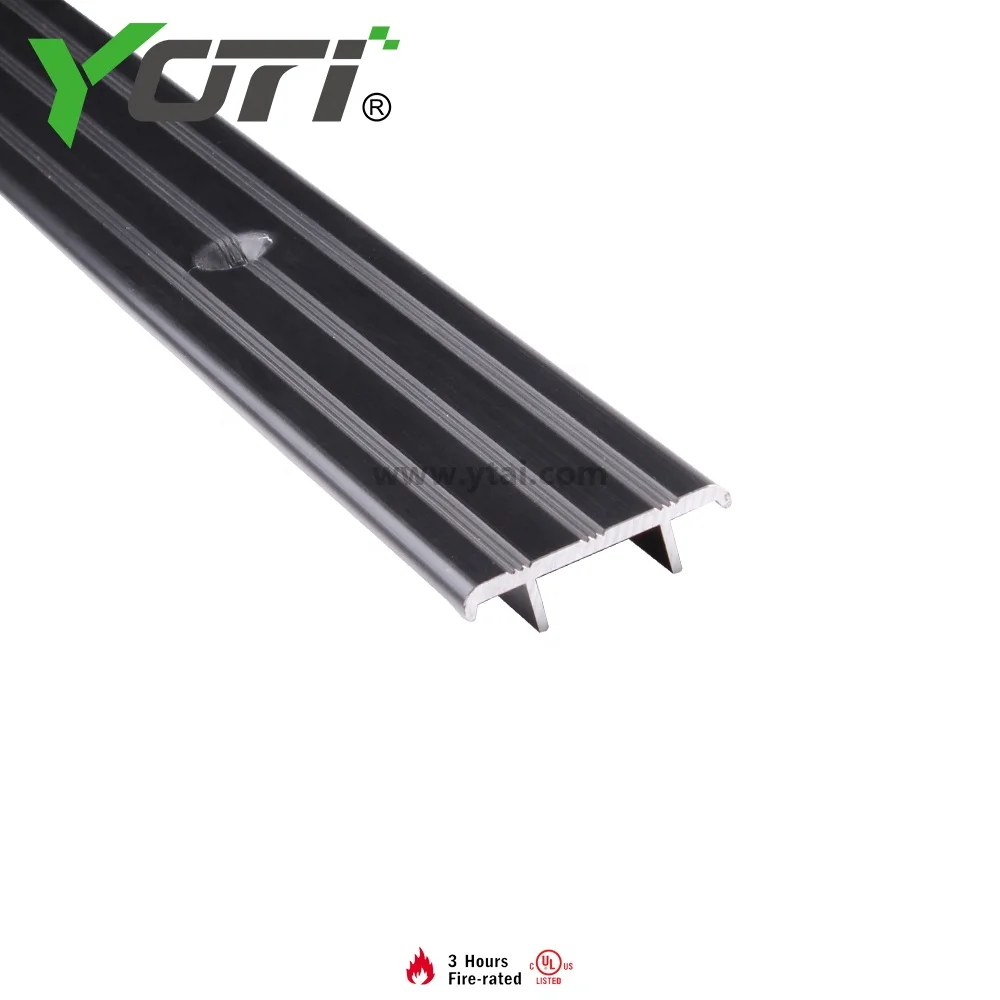

YDT313 Latching Panic Type Aluminum Saddle Threshold Hardware
- Category: >>>
- Supplier: Meihe Hardware Industry Co. Ltd.
Share on (1601034871736):
Product Overview
Description
Product Description
The practical & decorative benefits of a threshold plate:
A threshold plate is usually fitted to the floor immediately under the door leaf in its closed position. It provides a uniform, level surface, and helps to overcome small differences in surface height, or uneven floors. A ramp can be used instead of a plate where there are larger differences in floor heights. The threshold seal fitted into the door leaf can make contact with the plate or ramp, to help ensure the best possible smoke and acoustic seal.
Threshold plates are usually formed from an extruded aluminium or brass profile. Pressed stainless steel threshold plates are also used, particularly in areas of high traffic.
⬇️ Benefits include:
\\uD83D\\uDCA8 Acoustic & smoke containment:
Threshold plates provide a firm + effective sealing surface for threshold / drop seals to rest against, to help ensure the best possible smoke and acoustic seal.
♻ Energy Efficiency:
When combined with a drop seal at the bottom of the door, threshold plates contribute to better insulation, reducing energy loss and helping maintain a comfortable and energy-efficient interior environment.
⛈ Weather Resistance:
Some threshold plates help create a weather-tight seal at the base of a door, preventing rainwater, drafts, and debris from entering your living or working space.
⚠ Smooth Transitions:
Threshold plates create a smooth transition between different floor surfaces, preventing tripping hazards and providing a seamless connection between rooms.
\\uD83D\\uDEAA Aesthetic Enhancement:
Threshold plates come in various materials and finishes, allowing you to choose options that complement the overall aesthetic for your project.
\\uD83D\\uDC69\\uD83E\\uDDBD Accessibility:
In cases of doors with height differences between interior and exterior spaces, threshold plates facilitate easy passage for wheelchairs, strollers, and individuals with mobility challenges.
A threshold plate will usually be bedded on a flexible grout. This helps to give extra cushioning, adds an acoustic benefit, and helps to level out a hard floor surface. Some plates are supplied with soft vinyl “feet” that serve the same purpose and make installation much easier.
A threshold plate is usually fitted to the floor immediately under the door leaf in its closed position. It provides a uniform, level surface, and helps to overcome small differences in surface height, or uneven floors. A ramp can be used instead of a plate where there are larger differences in floor heights. The threshold seal fitted into the door leaf can make contact with the plate or ramp, to help ensure the best possible smoke and acoustic seal.
Threshold plates are usually formed from an extruded aluminium or brass profile. Pressed stainless steel threshold plates are also used, particularly in areas of high traffic.
⬇️ Benefits include:
\\uD83D\\uDCA8 Acoustic & smoke containment:
Threshold plates provide a firm + effective sealing surface for threshold / drop seals to rest against, to help ensure the best possible smoke and acoustic seal.
♻ Energy Efficiency:
When combined with a drop seal at the bottom of the door, threshold plates contribute to better insulation, reducing energy loss and helping maintain a comfortable and energy-efficient interior environment.
⛈ Weather Resistance:
Some threshold plates help create a weather-tight seal at the base of a door, preventing rainwater, drafts, and debris from entering your living or working space.
⚠ Smooth Transitions:
Threshold plates create a smooth transition between different floor surfaces, preventing tripping hazards and providing a seamless connection between rooms.
\\uD83D\\uDEAA Aesthetic Enhancement:
Threshold plates come in various materials and finishes, allowing you to choose options that complement the overall aesthetic for your project.
\\uD83D\\uDC69\\uD83E\\uDDBD Accessibility:
In cases of doors with height differences between interior and exterior spaces, threshold plates facilitate easy passage for wheelchairs, strollers, and individuals with mobility challenges.
A threshold plate will usually be bedded on a flexible grout. This helps to give extra cushioning, adds an acoustic benefit, and helps to level out a hard floor surface. Some plates are supplied with soft vinyl “feet” that serve the same purpose and make installation much easier.
Material | Aluminum |
Finish | Mill Finish/Clear Anodized/Dark Bronze Anodized |
Flat Saddle Design | Smooth Top Design |
Threshold Type | Carpet Divider / Seam Binding |

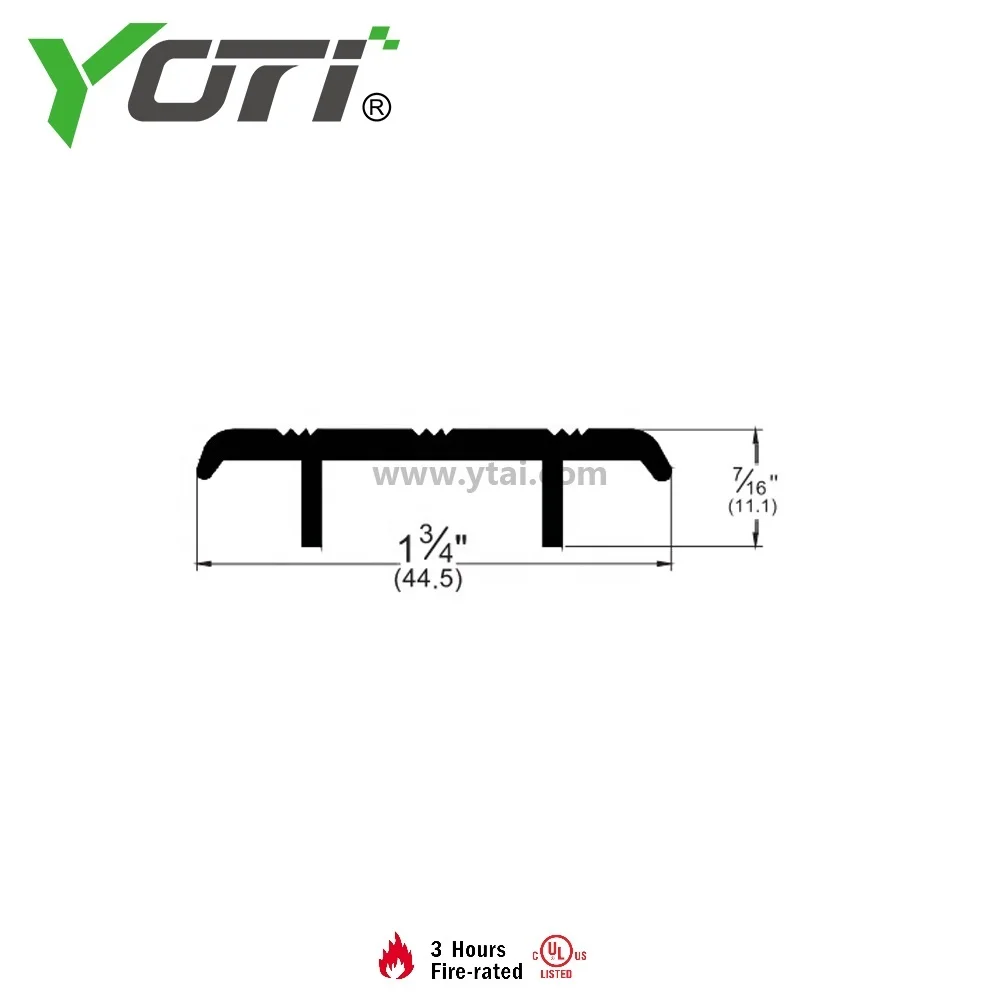

Overall Height | 7/16" Height |
Overall Width | 1.75" Width |
Length | Standard 36", 48"; Custom Cut to Size |
Installation | Drilling holes and Fasteners are provided |
Certificate | Fire Rated - UL 10B/10C |
Cross Reference | PEMKO #236_; NGP #414 |
