Anern wholesale 3000w pure sine wave high frequency 12v 24v 48v DC to AC 110v 220v off grid power inverter
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1601034884954):
Product Overview
Description
Related Products
Products Description
Key Features:
◆ Pure Sine Wave Solar Hybrid Inverter;
◆ Output Power Factor 1.0

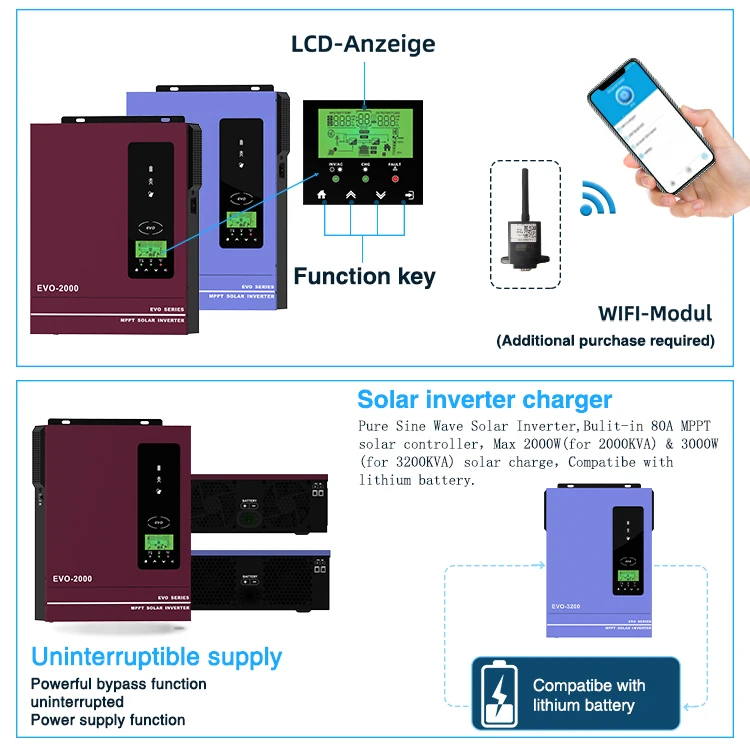

◆ Bulit-in MPPT solar controller, max charge current 80A;
◆ Max 2000W & 3000W solar input power respectively;
◆ Wide PV input voltage range (30-400VDC), lowest voltage only 30V;
◆ Built-in anti-dusk kit for harsh environment;
◆ Smart battery charge design to maximize battery lifespan;
◆ Compatibe with lithium battery;
◆ WIFI available for IOS and Android systems.
◆ WIFI available for IOS and Android systems.
Specifications:
Model | SCI-EVO-2000 | SCI-EVO-3200 | ||
RATED POWER | 2000KVA/1600W | 3200KVA/3000W | ||
AC INPUT | ||||
AC Input Voltage | 230VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |||
90-280 VAC (For Home Appliances) | ||||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
AC OUTPUT | ||||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |||
Surge Power | 4000VA | 6400VA | ||
Efficiency (Peak) PV to Inverter | 98% | |||
Efficiency (Peak) Battery to Inverter | 94% | |||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||
Waveform | Pure sine wave | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 12VDC | 24VDC | ||
Floating Charge Voltage | 13.5VDC | 27VDC | ||
Overcharge Protection | 16VDC | 33VDC | ||
Maximum AC Charge Current | 60A | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 2000W | 3000W | ||
MPPT Range @ Operating Voltage | 30-400VDC | |||
Maximum PV Array Open Circuit Voltage | 400VDC | |||
Maximum Charging Current | 80A | |||
PHYSICAL | ||||

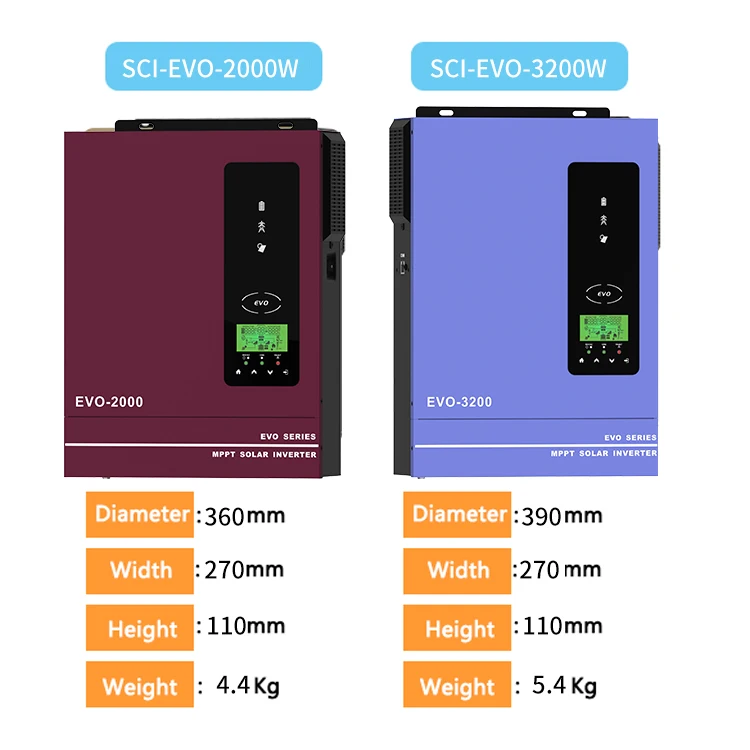

Dimension, D x W x H (mm) | 360*270*100mm | 390*270*100mm | ||
Net Weight (kg) | 4.4 | 5.4 | ||
INTERFACE | ||||
Communication interface | WIFI | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature | –10°C - 50°C | |||
Storage Temperature | –15°C - 60°C | |||

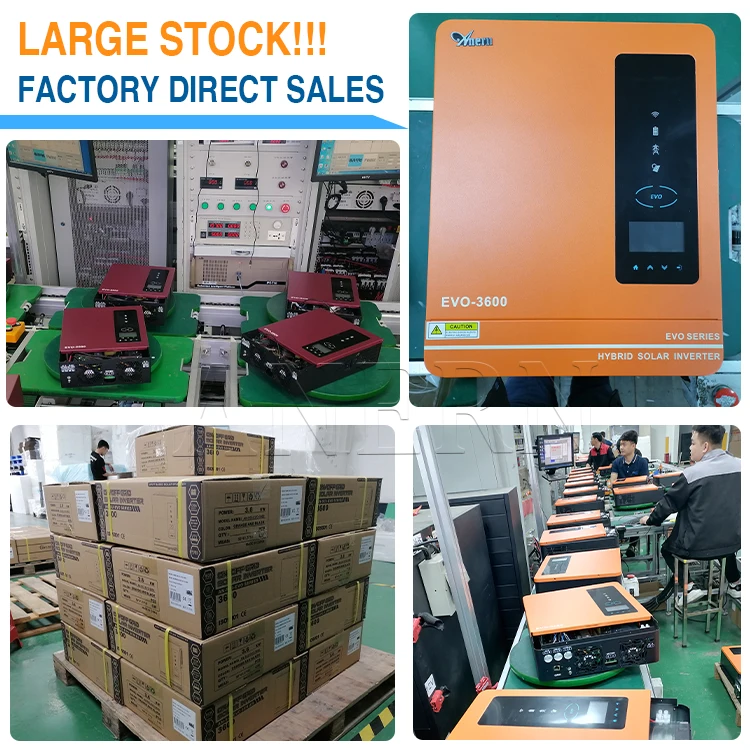

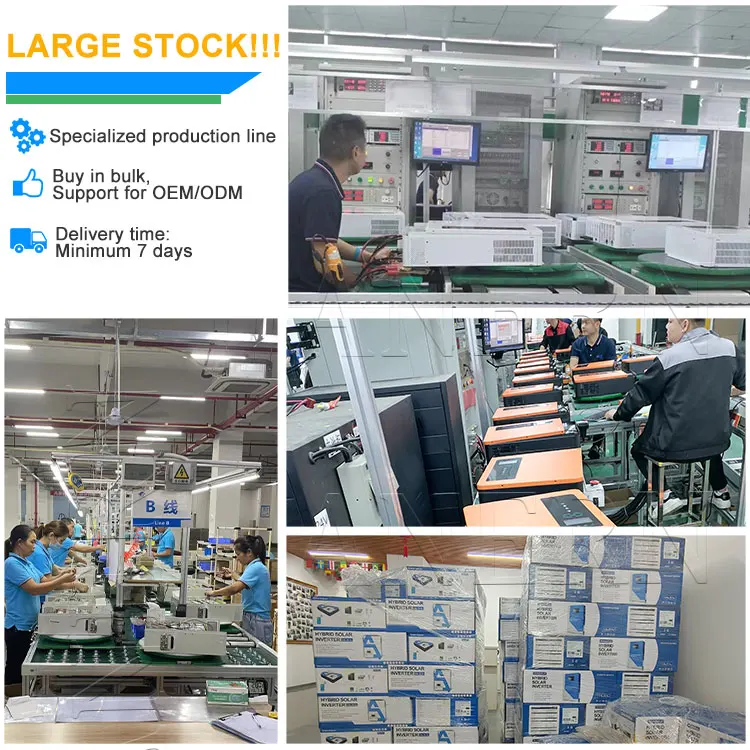

Anern Factory

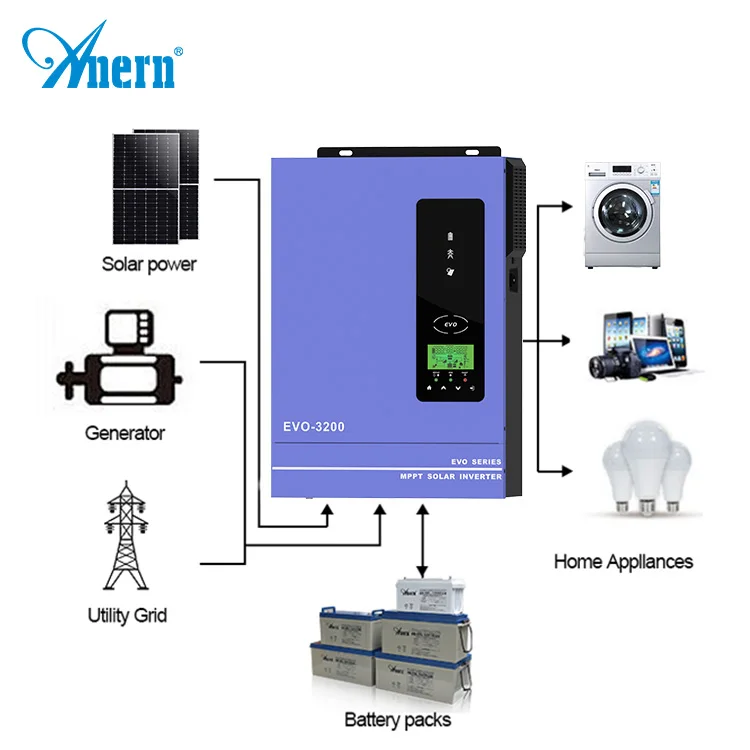

Application
Company Profile
Anern is headquartered in Guangzhou, which is one of most important Chinese Central Cities, with occupying area of 5,000 sqm, among which a modern showroom with area of 7,000 sqm. Each year there are over 1,000 personnel from various countries clients and governemnt institutions come to visit us.
