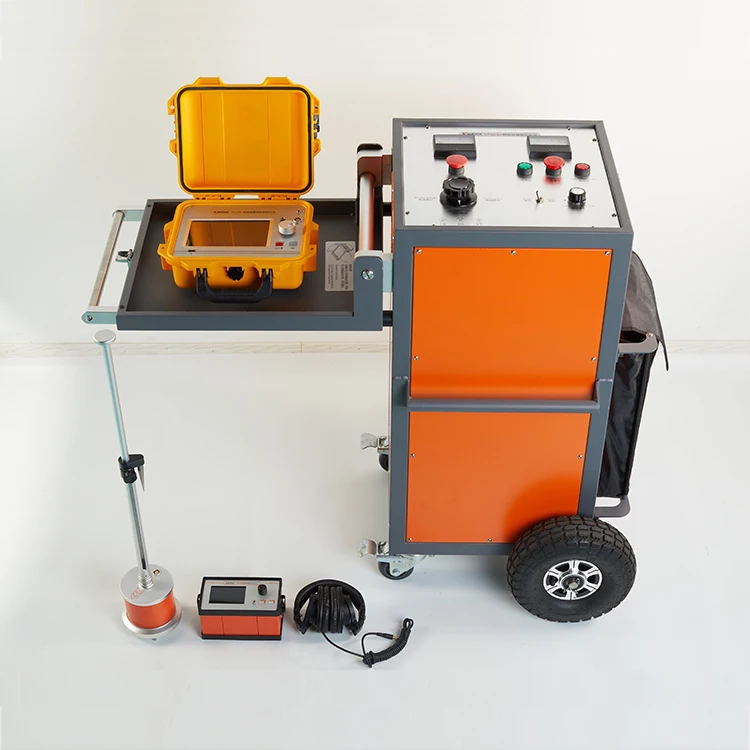

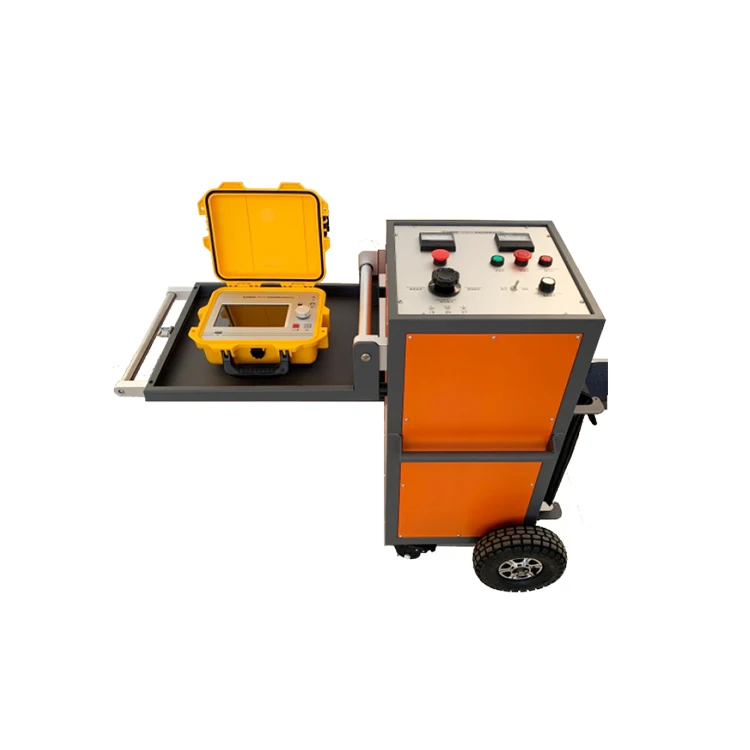

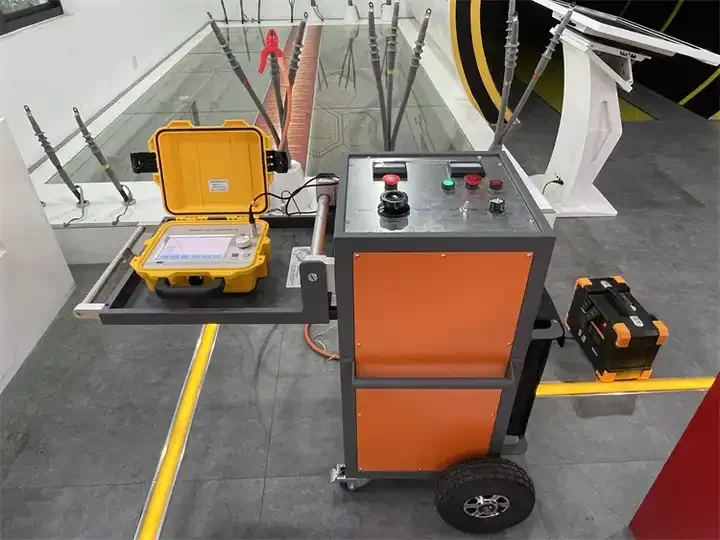

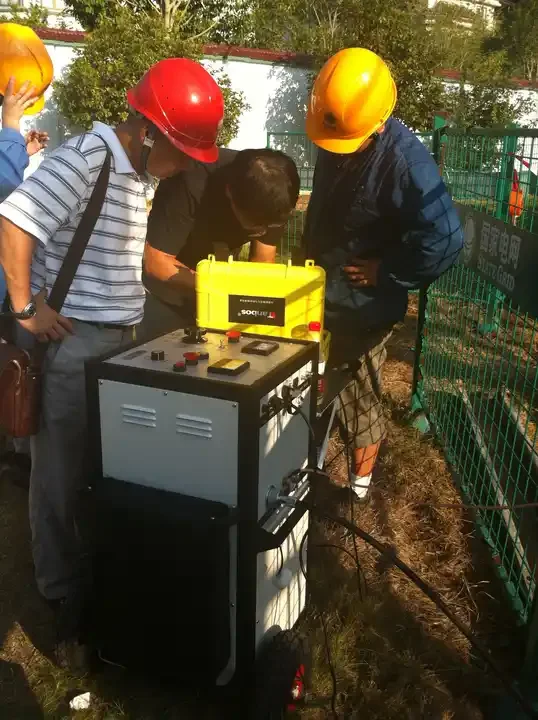

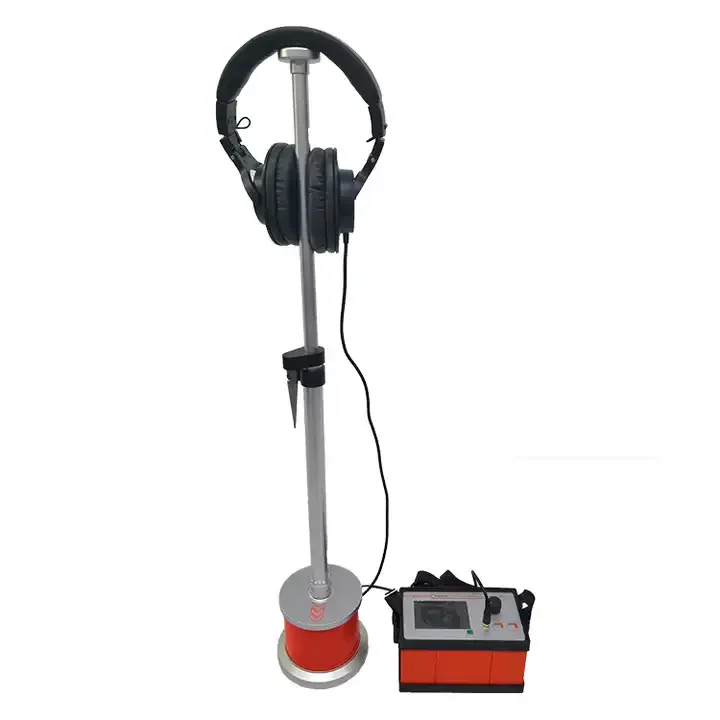

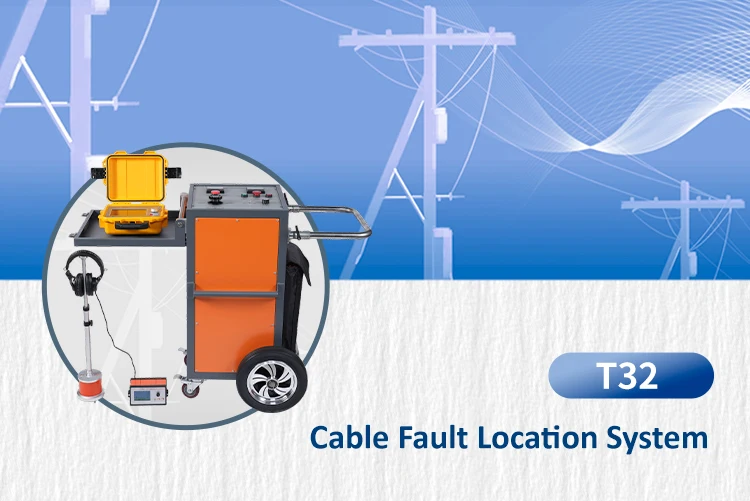

Tanbos T32 Factory Hot Sale Underground High Voltage Power Cable Fault Locator
- Category: >>>
- Supplier: Xianheng International Science& Technology Co. Ltd.
Share on (1601034900417):

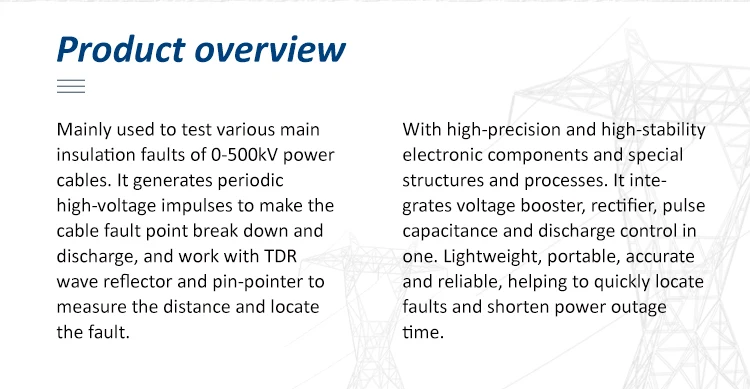

Product Overview
Description

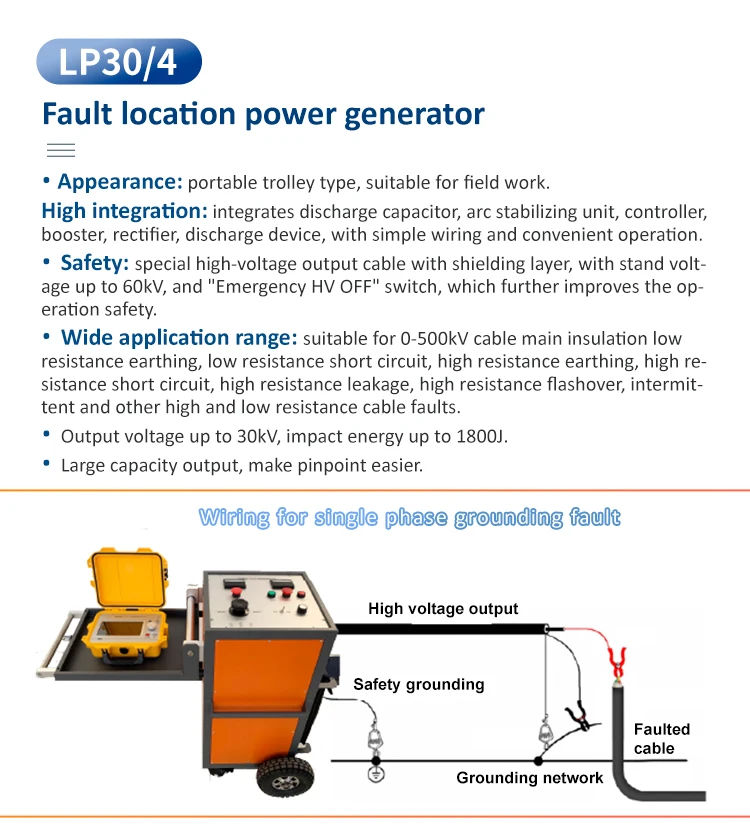

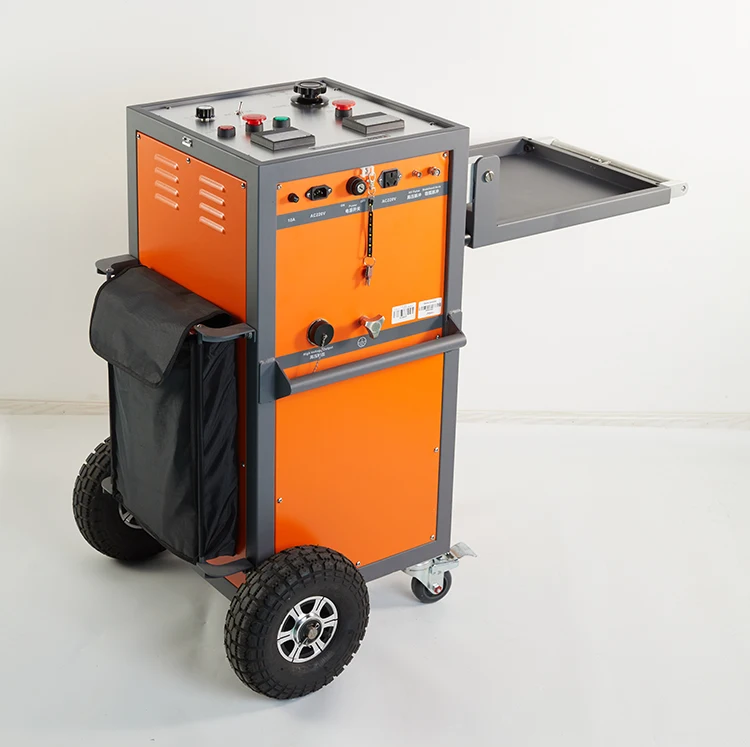

High voltage mode | DC HV, LV impulse, HV impulse (single, period), arc stability impulse | ||||||
Impulse voltage | 30kV continuously adjustable | ||||||
Max output current | 40mA | ||||||
Discharge energy | 1800J | ||||||
Impulse period | Fixed 5s | ||||||
Impulse ratio | 1:05 | ||||||
Output voltage polarity | Negative polarity | ||||||
Arc extend voltage output | 1600V | ||||||
Arc extend time | 50ms | ||||||
Power consumption | 500W | ||||||
Breakdown detection range | 0-30kV | ||||||
Safety | Temperature detection, loop protection, double earth system, high voltage key switch | ||||||
Operating temperature | -25°C -50°C | ||||||
Storage temperature | -30°C-60°C | ||||||
Humidity | < 95% no condensation | ||||||
Power supply | 220V AC 50Hz | ||||||
IP | IP 43 | ||||||
Weight | 90kg | ||||||
Size (L x W x H) | 560x620x940mm | ||||||

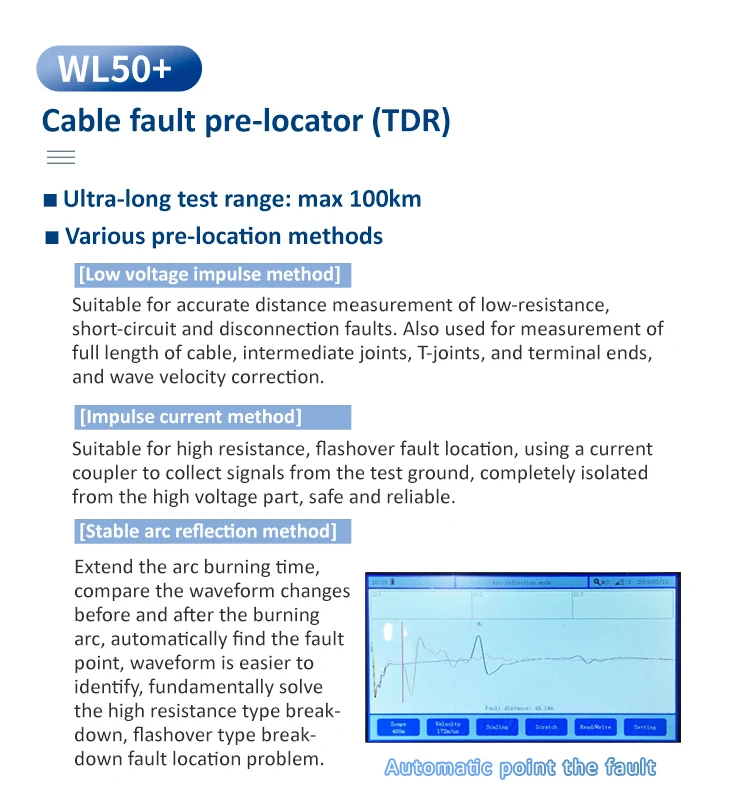

Impulse voltage | 30v | ||||||
Test range | 0 – 100 km (when v/2 = 80 m/µs) | ||||||
Wave speed adjustment | 150-300m/us | ||||||
Impulse width | 70ns-15us automatic adjustment | ||||||
Resolution | 0.4m | ||||||
Time domain accuracy | < 50 ppm | ||||||
Sampling frequency | 200MHz | ||||||
Output impedance | 50Ω | ||||||
Working mode | Low voltage impulse method; impulse current method; stable arc reflection method(secondary impulse method) | ||||||
Waveform transient comparison | Up to 4 waveforms can be compared | ||||||
Dead zone | 4m | ||||||
Impulse polarity | Negative polarity | ||||||
User interface language | English | ||||||
Data import/export | Allowed | ||||||
Cursor | With independent dual cursor control | ||||||
Display | 7 ", 800 x 480 LED backlight color display | ||||||
Brightness | 800 cd/m² anti-glare capacitor touch screen | ||||||
Store | ＞10000 test data | ||||||
Interface | Aviation plug, USB2.0 | ||||||
Power consumption | 3.5W | ||||||
Power supply | Lithium battery 7.4V, 5200mAh | ||||||
Continuous working time | 5h | ||||||
Power consumption | 150VA | ||||||
Weight | 3kg | ||||||
Size (L x W x H) | 270×250×125mm | ||||||

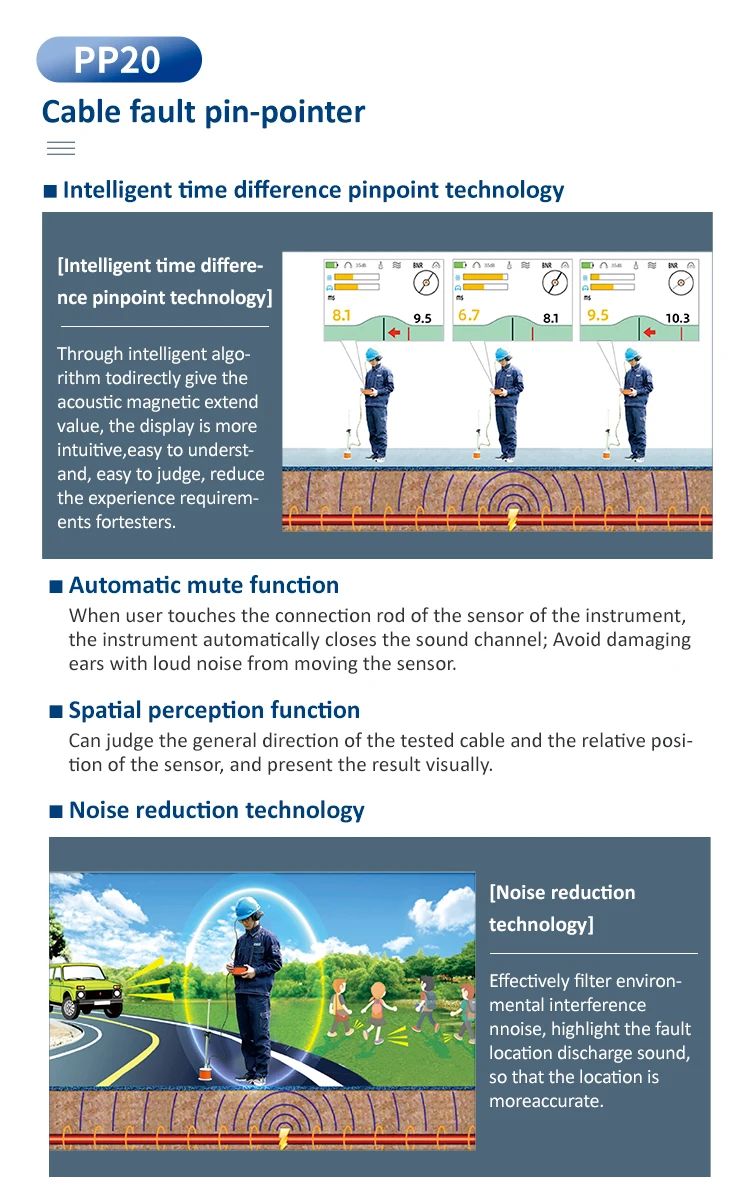

Display | 3.5 ", TFT color display | ||||||
Resolution | 480 x 320 | ||||||
Backlight | LED | ||||||
Dynamic range | Magnetic channel > 99dB; Sound channel > 99dB | ||||||
Acoustic amplification | 80dB, free adjustment | ||||||
Acoustic magnetic time difference display | 1ms—60ms，synchronous display of historical records | ||||||
Auditory protection | Touch mute sound, sound intensity limit | ||||||
Positioning accuracy | 0.1m | ||||||
Space sensing function | Compass guidance, direction indication, cable position identification | ||||||
Filtering range | Full pass: 100Hz—1500Hz Low-pass: 100Hz—400HzBand-pass: 400Hz—800Hz High-pass: 800Hz—1500Hz | ||||||
Noise processing | Intelligent background noise reduction technology, can be activated | ||||||
Pinpoint mode | Intelligent time difference method, acoustic method, electromagnetic patrol method | ||||||
Interface language | English | ||||||
Interface | Acoustic and magnetic pinpoint and audio pinpoint interface; 3.5mm jack | ||||||
Power Supply | DC 7.4V/5200mAh lithium battery | ||||||
Continuous working time | 8h | ||||||
IP | IP64 | ||||||
Weight | 2.1kg | ||||||
Packing weight | 5.5kg (including plastic case) | ||||||
Packing size (L x W x H) | 420×320×150mm | ||||||
