Wireless Long life advance traffic jam detection sensor work with ATC traffic controller for traffic flow monitoring
- Category: >>>
- Supplier: Zhongshan Rosim ITS Technology Co. Ltd.
Share on (1601034927009):
Product Overview
Description
Product Introduction
RosimITS Wireless traffic data collection system mainly include wireless traffic detection magnetic sensor and wireless access point with antenna.This system can provide real-time traffic information to control system to optimize traffic.
How does traffic data collection system work ?

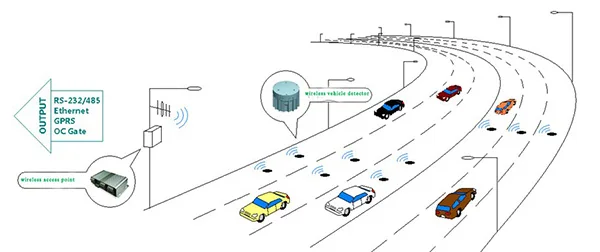

By capture the tiny change of magnetism caused by the passing vehicle,Wireless Vehicle Detector (WVD)will send all of information on it to the access point, and then the access point aggregates the data from individual sensors and can report key traffic parameters including the vehicle velocity, length, type and occupy rate to the user systems through RS-232/485, Internet, GPRS, etc.

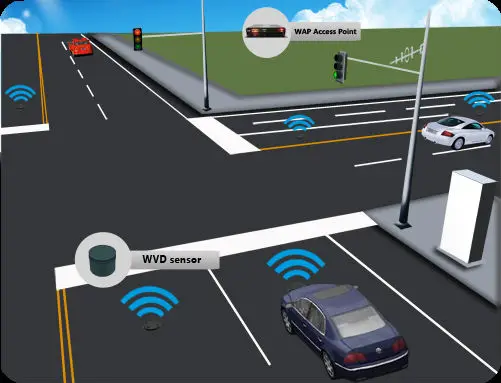

In this picture, the traffic counting sensor was installed in A,B,C three roads to detecting the traffic condition.If there are traffc jam ,then the traffic management system can guiding driver to other lane to improve traffic flow by the LED guiding display which installed in A,B,C road entrance.
Detailed Images

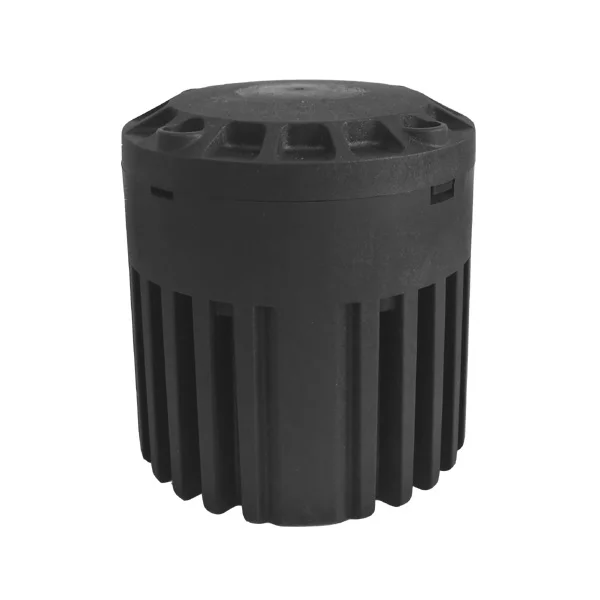

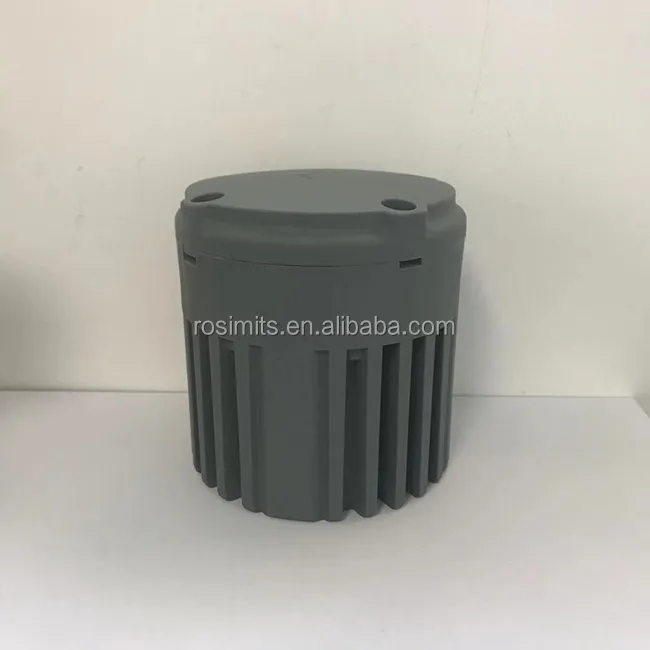

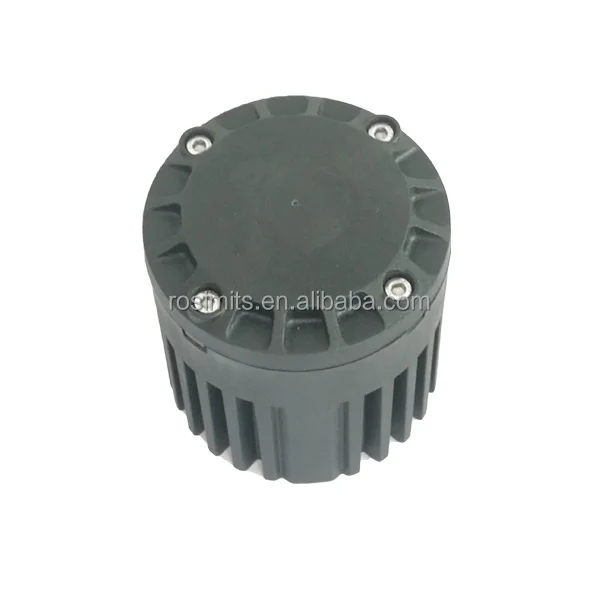

WVD-130x
Name: Wireless vehicle detector
Brand: Rosim
Original: China(mainland)
Function
Vehicle existence measurement
Vehicle move direction measurement
Speed measurement
Temperature measurement
Wireless OTA upgrade

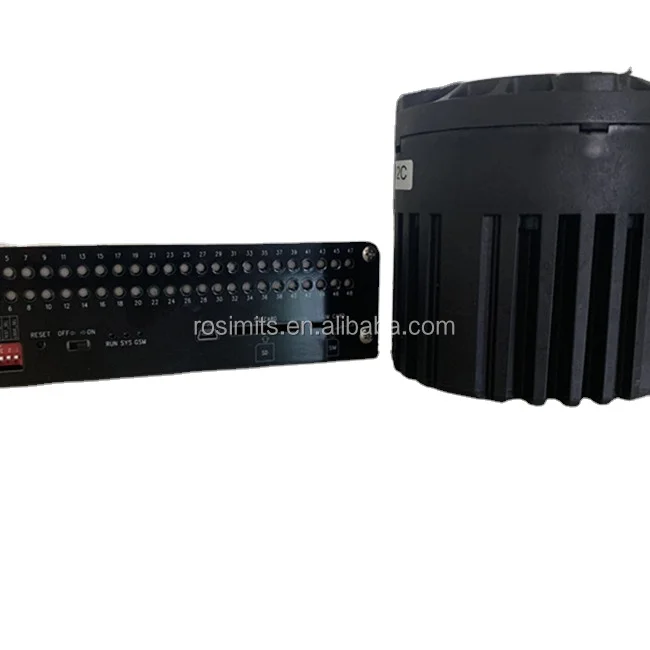

WAP-348x
Name: wireless access point
Brand: Rosim
Original: China(mainland)
Function
Data collection
LEDs indication of detection result
Vhicle exsitence output
Support up to 48 detection channel
RS-232,Ethernet ,USB,GPRS communication
Advantage
In the past 5 more years, Rosim wireless vehicle detector had successfully replaced loops to monitor vehicles and the relative velocity, occupy rate and traffic flow in many projects of artery, freeway and intersection applications.
Reduced installation costs
Ease installation system, no loop cutting or trenching required
More cost-effective than tradditional loops
Increased reliability compared to inductive loops
Easy configuration using Traffic Dot (Java Application)
Installation under certain evaluated sections of motorway possible (MIDAS)
Installation
1.Drill a small hole of Φ12/D10cm
2.Fill it with cement to 1/2
3.Embedded WVD to finish installation
4.Two WVD binding to detect the speed.

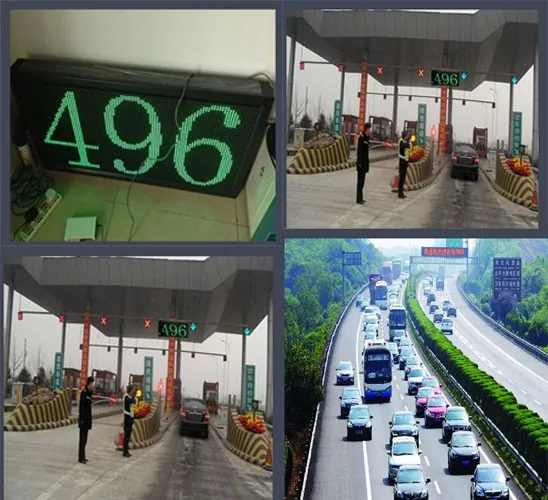

Project view
Traffic siganl light system
Traffic vehicle counting system
Traffic flow monitoring system
Our service
ROSIM ITS provides our customes high quality wireless vehicle detecting products and solutions and all products support wireless updating, which make it easy to maintain. Also, ROSIM ITS provides 24-hour online support.
Thank you for your attention,any question plz contact Lucy freely
Lucy
Skype/Whatsapp/Tel:+86-18814277947
E-mail:lucy_ma at rosimits.com
Web:www.rosim-its.com
