Waterproof Standalone & Network HTTP Web Cloud Based Door Access Control System with Linux SDK
- Category: >>>
- Supplier: CiVinTec Intelligence & Technology Co. Ltd.
Share on (1601034958412):
Product Overview
Description
Waterproof Standalone & Network HTTP Web Cloud Based Door Access Control System with Linux SDK
Product Overview
CT9 Family is Linux based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz, HID Prox and iCLASS®, iCLASS SE/SR®, iCLASS Seos® smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
HTTP Server Centralized Access Control & IOT
System with RFID / QR CODE / BLE Mobile ID Reader
3.5" Touch Screen or Keypad Reader with
Embedded LINUX OS & SDK
Embedded LINUX OS & SDK
+
Embedded WIFI，4G & TCP/IP Ethernet HTTP/HTTPs
for both LAN & Internet Server Software
+
Embedded Relay Control for Lock & Facility Control
Support both of HOST Mode & Local Mode
for both LAN & Internet Server Software
+
Embedded Relay Control for Lock & Facility Control
Support both of HOST Mode & Local Mode
CT9 FAMILY | CT9 E | CT9 PRO | ||
IDENTIFICATION TECHNOLOGIES | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. | |||
RFID Contactless Cards | - 125KHz PROx, 125KHz EM - 13.56MHz Mifare® Classic, Ultralight®, Mifare® Plus, DESFire® EV1/ EV2/ EV3, NFC tags - HID iCLASS; HID Seos; 125KHz HID Prox, Indala, EM4100/4102 and HITAG; HID mobile virtual card (CT9 PRO-D) | |||
Mobile Credential | BLE (2.4Ghz), NFC | |||
Barcode / QR scanner | 1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes | |||
Secure Access Module | ISO7816 (T =0,T = 1) 1 SAM module, SAM AV2 | |||
INTERFACE | ||||
Communication Interfaces | - TCP/ IP(RJ45) - 4G - WiFi 2 .4GHz IEEE802.11b/g/n - RS485, wiegand input | |||
I/ O port | Door contact, Door exit, Buzzer control, Fire alarm, Tamper alarm switch, Output Buzzer control, Access Granted, Access Denied, 1~2 relay outputs | |||
GENERAL | ||||
Operating System | LINUX | |||
Display | ----- | 3 .5” touch screen | ||
Keypad | 12 digit Touch keypad with backlit | Touch screen keypad | ||
Online Card Users / Event logs | Unlimited | |||
Offline Card Users / Event logs | 10,000 users / 50,000 logs (more on request) | |||
APB access control | Yes, external wiegand reader | |||
Indicators | - LEDs - Buzzer and speaker | |||
Power supply | - 12~ 24V DC - PoE IEEE 802 . 3af | |||
Protection Class | IP65 electric epoxy potted (request waterproof spacer) Resistant to UV ray (suitable for UV-resistance model) | |||
* The specifications are subject to change without notice .

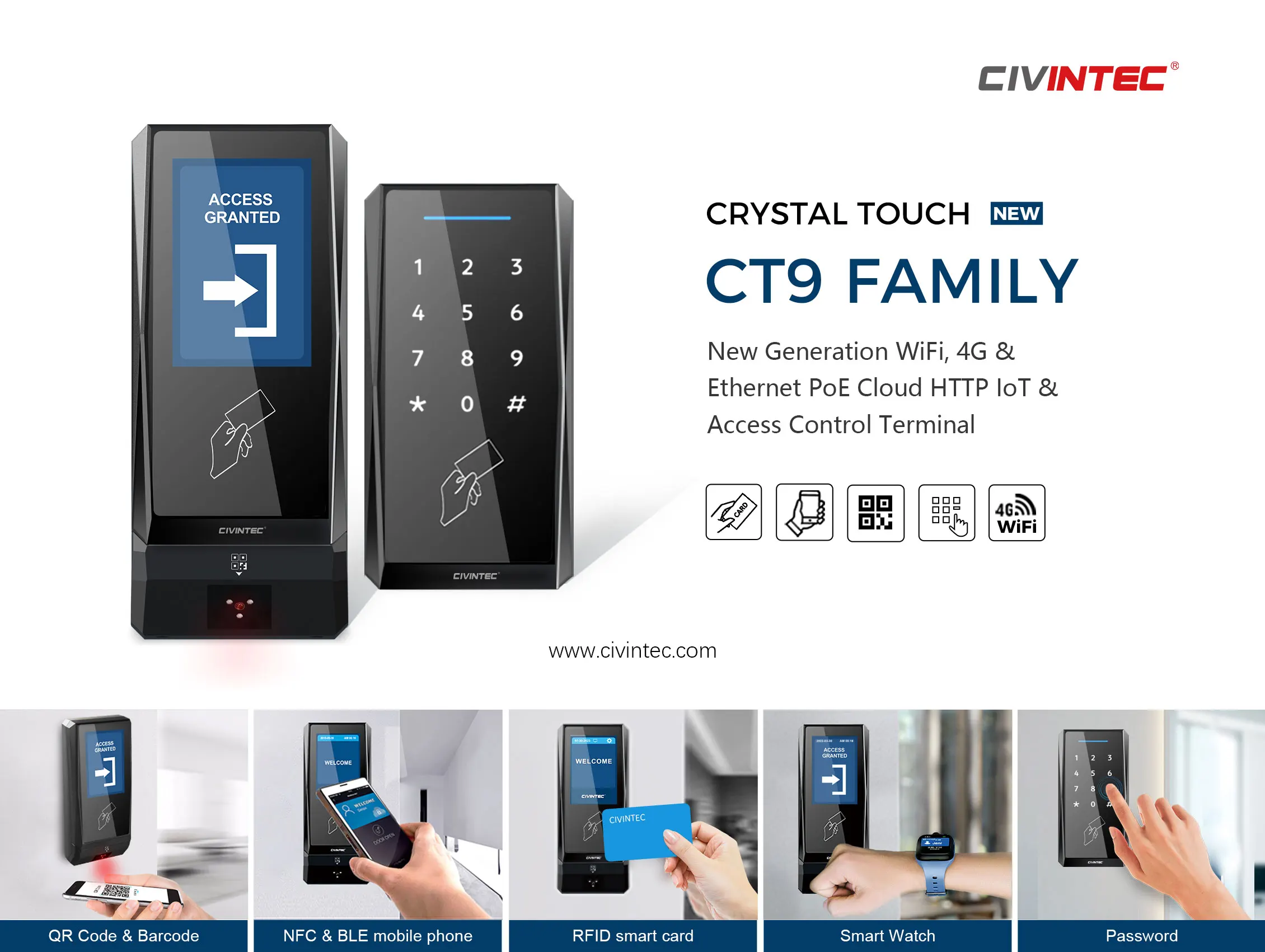

Product Features

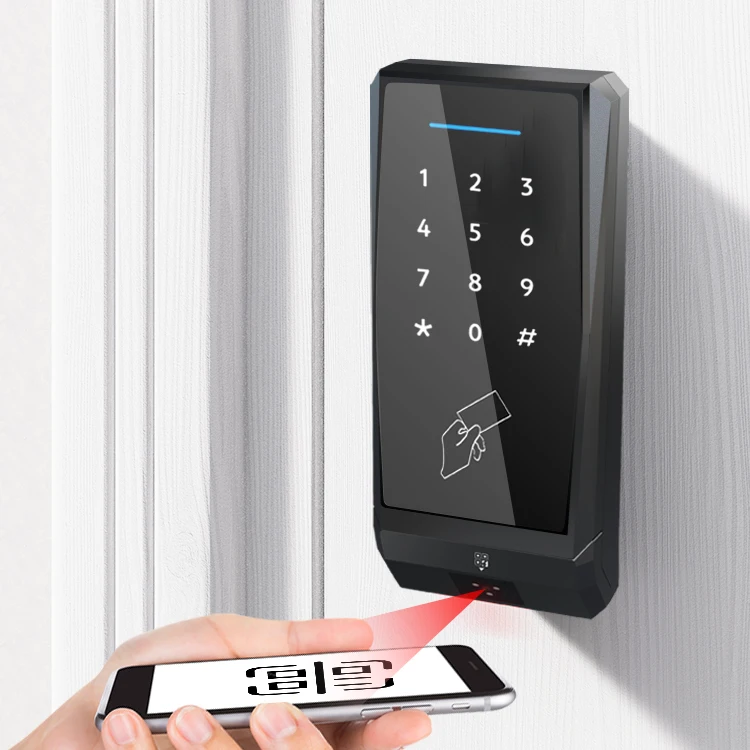

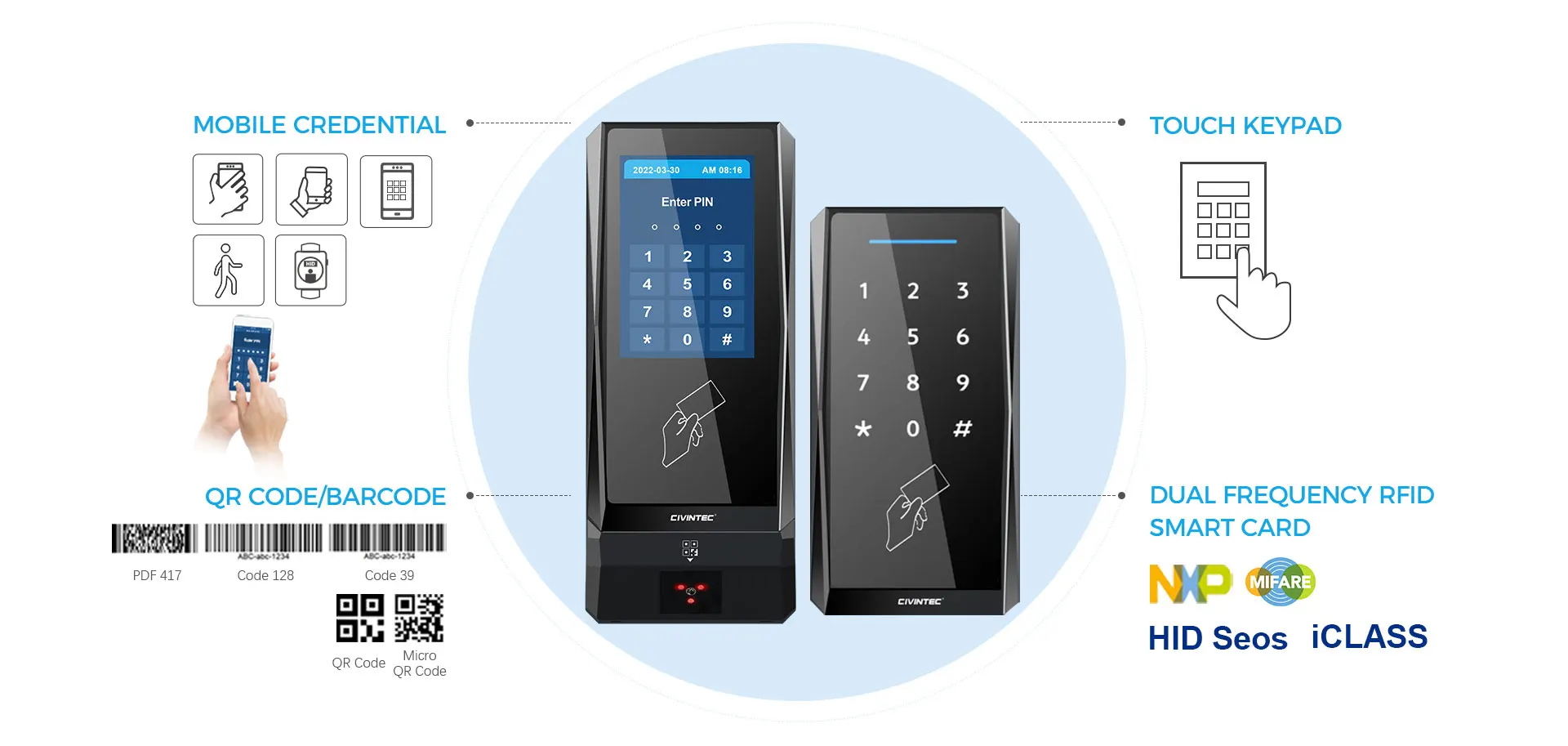

CT9 Family incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

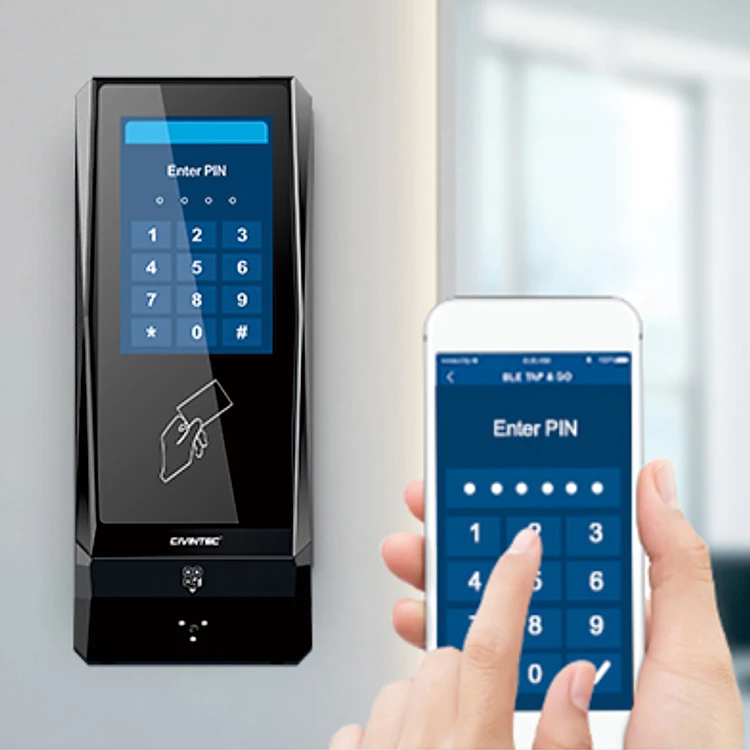

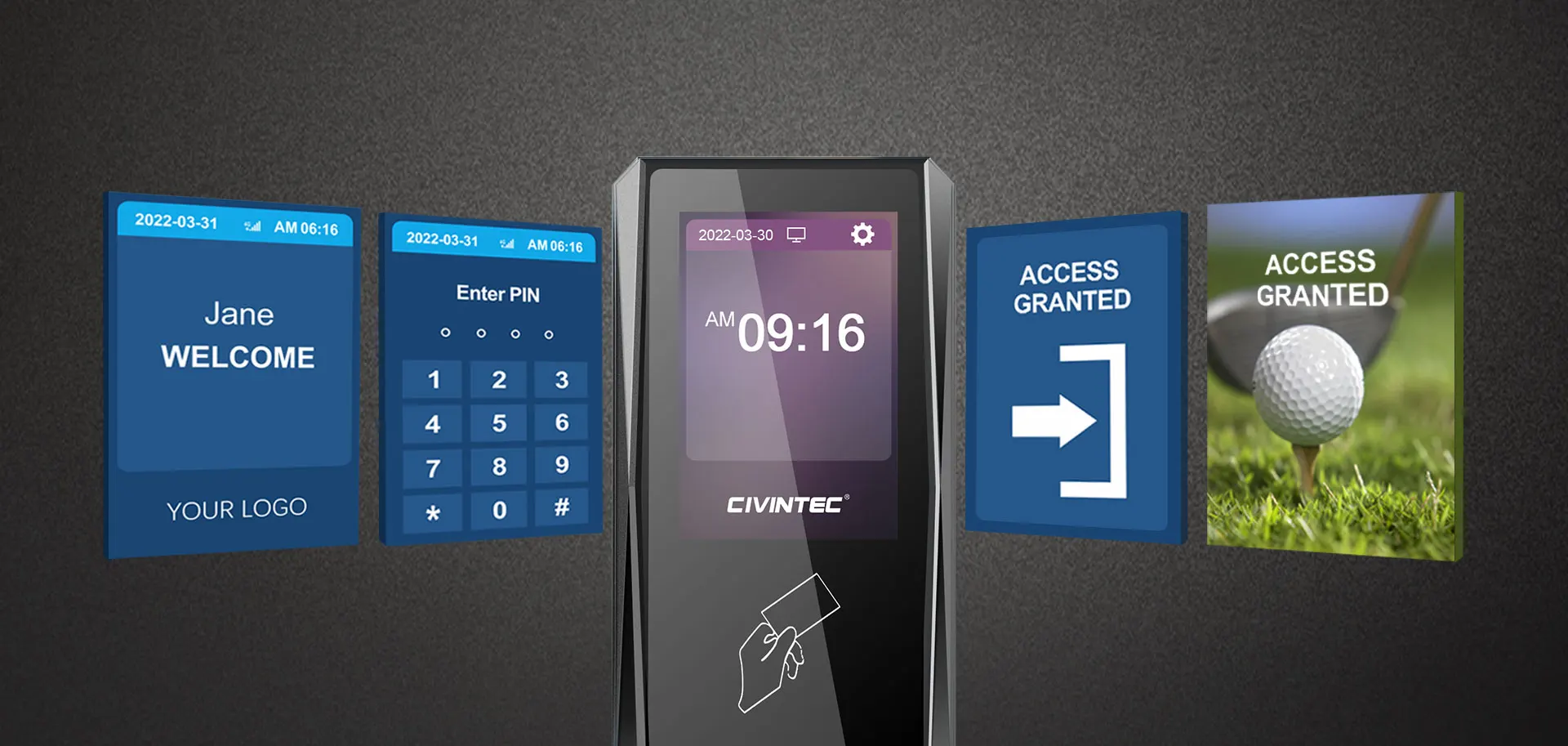

Easy Configurable User Interface
Stylish Linux 3.5” colorful touch screen bring intuitive and clear feedback to visitor. Give access for user to easily program UI and display customized pictures and TEXT, branding LOGO by software tool and HTTP commands

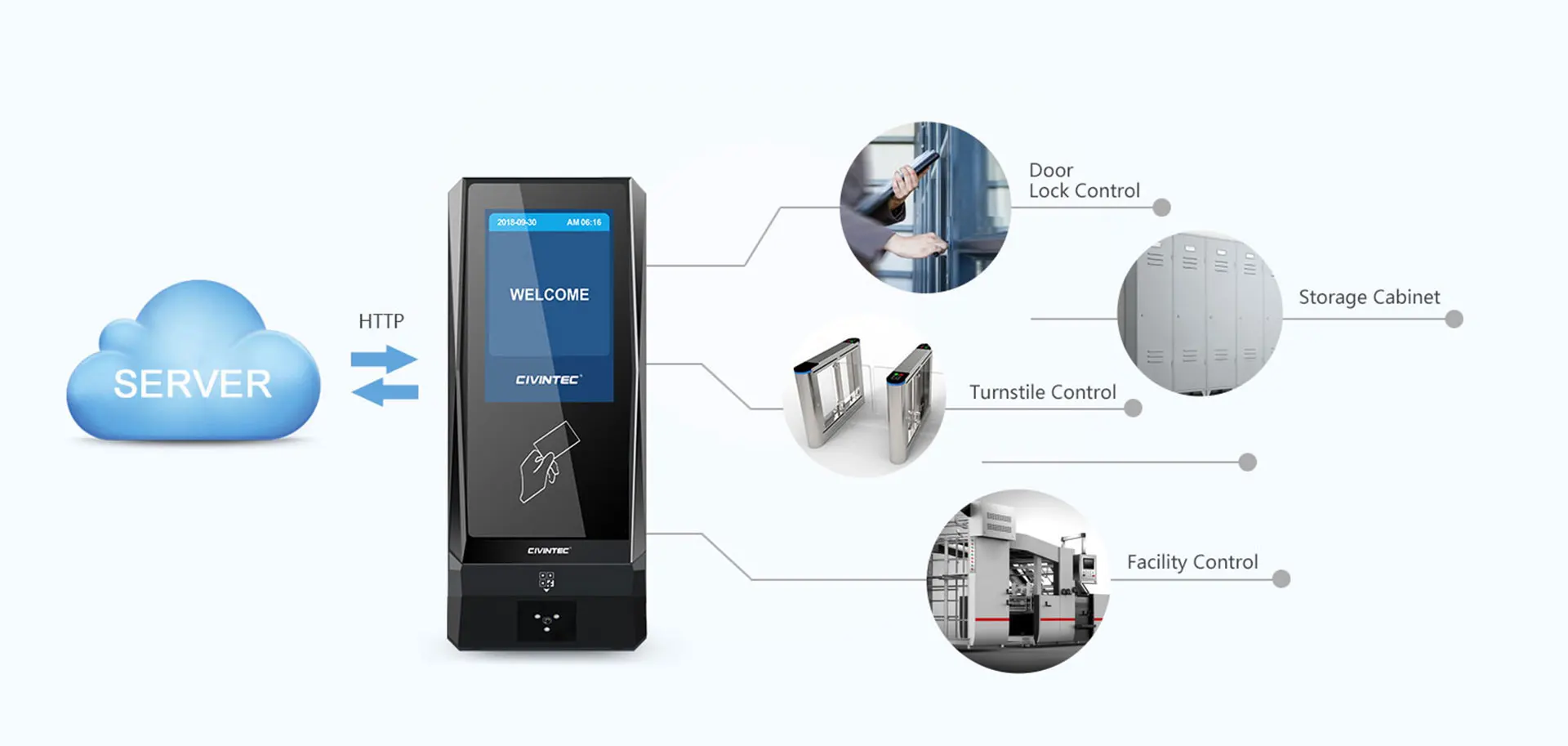

Cloud Server Remote Control for Security & IoT System
Bio-direction communication via standard HTTP & HTTPs between CT9 Family and server to remotely control door lock and various IoT facility management

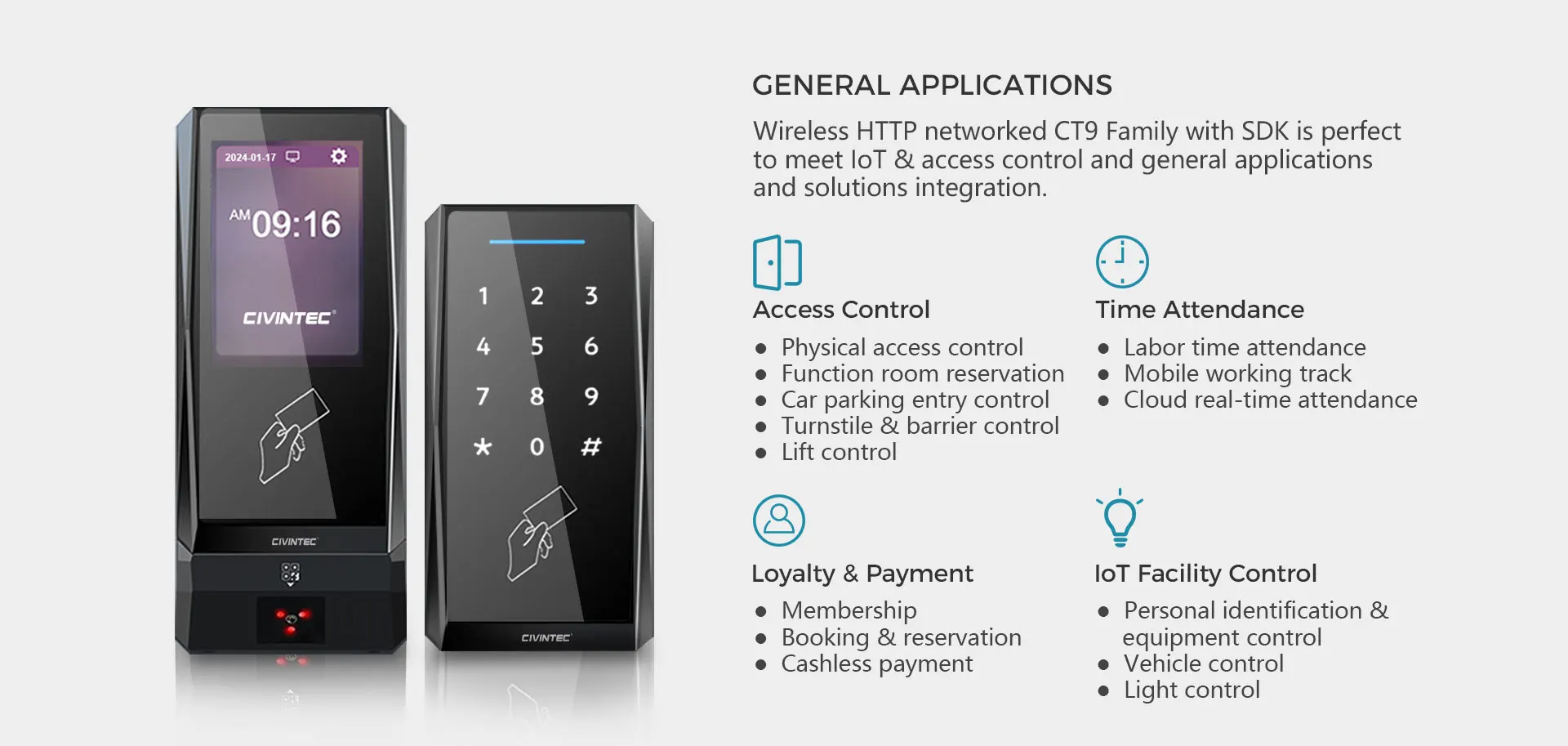

Multiple Application Solutions

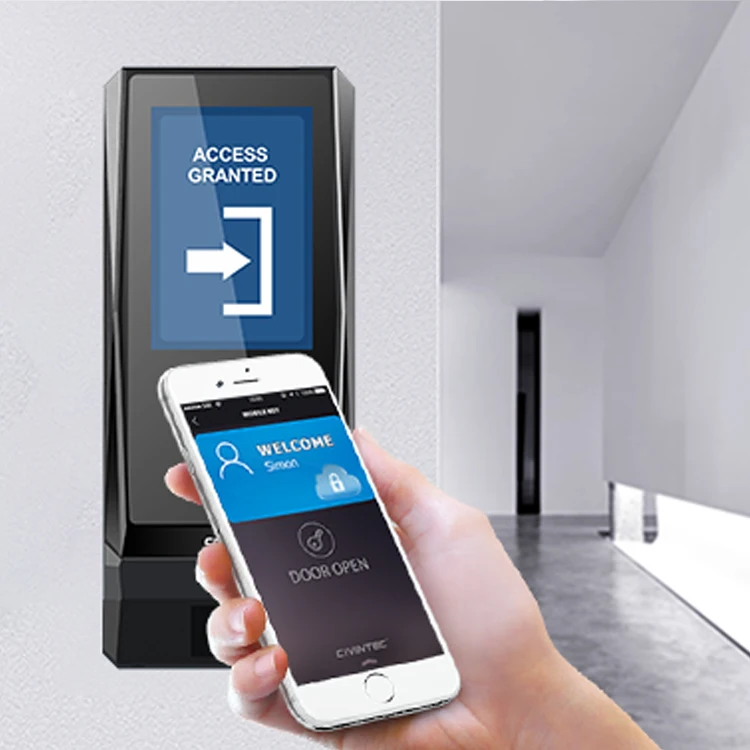

Crystal Touch CT9 Family is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It is with embedded relay output to control door lock as ACCESS DENIED or ACCESS GRANTED. It can also control facility to build IoT solution.

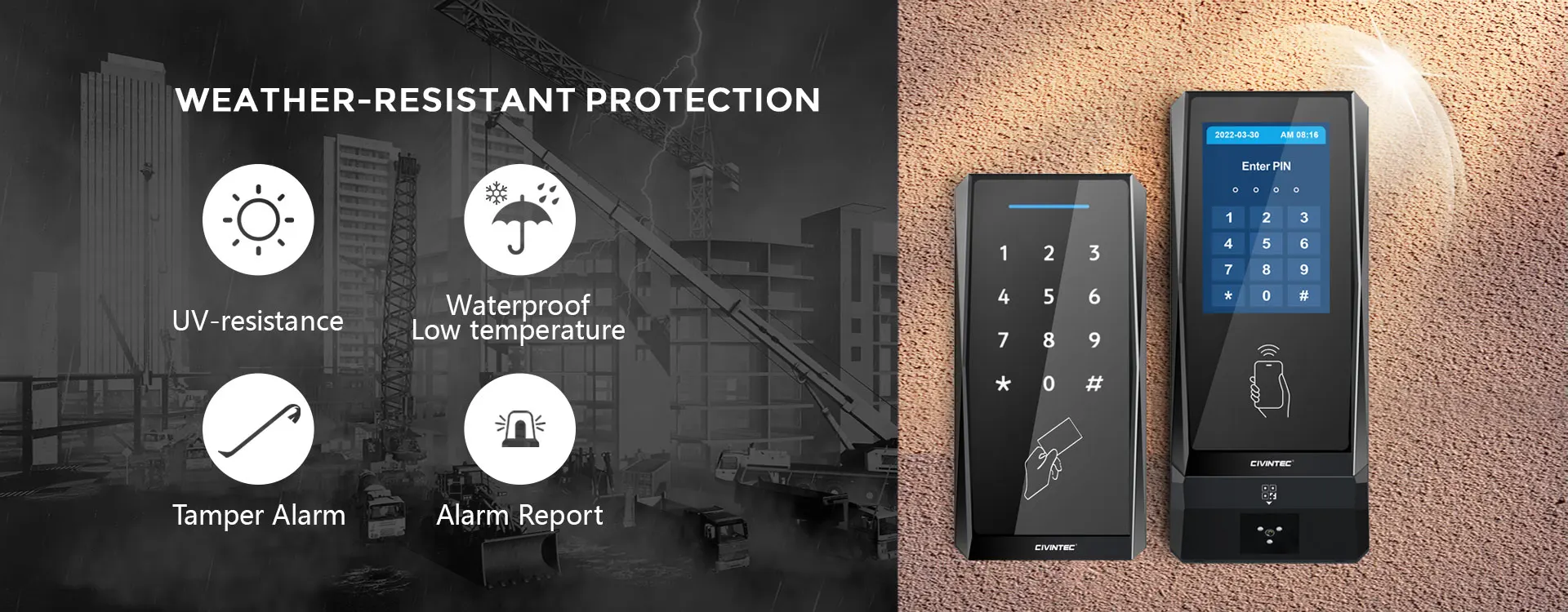

Weather-Resistant Protection
With IP65 ratings, CT9 Family is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments.

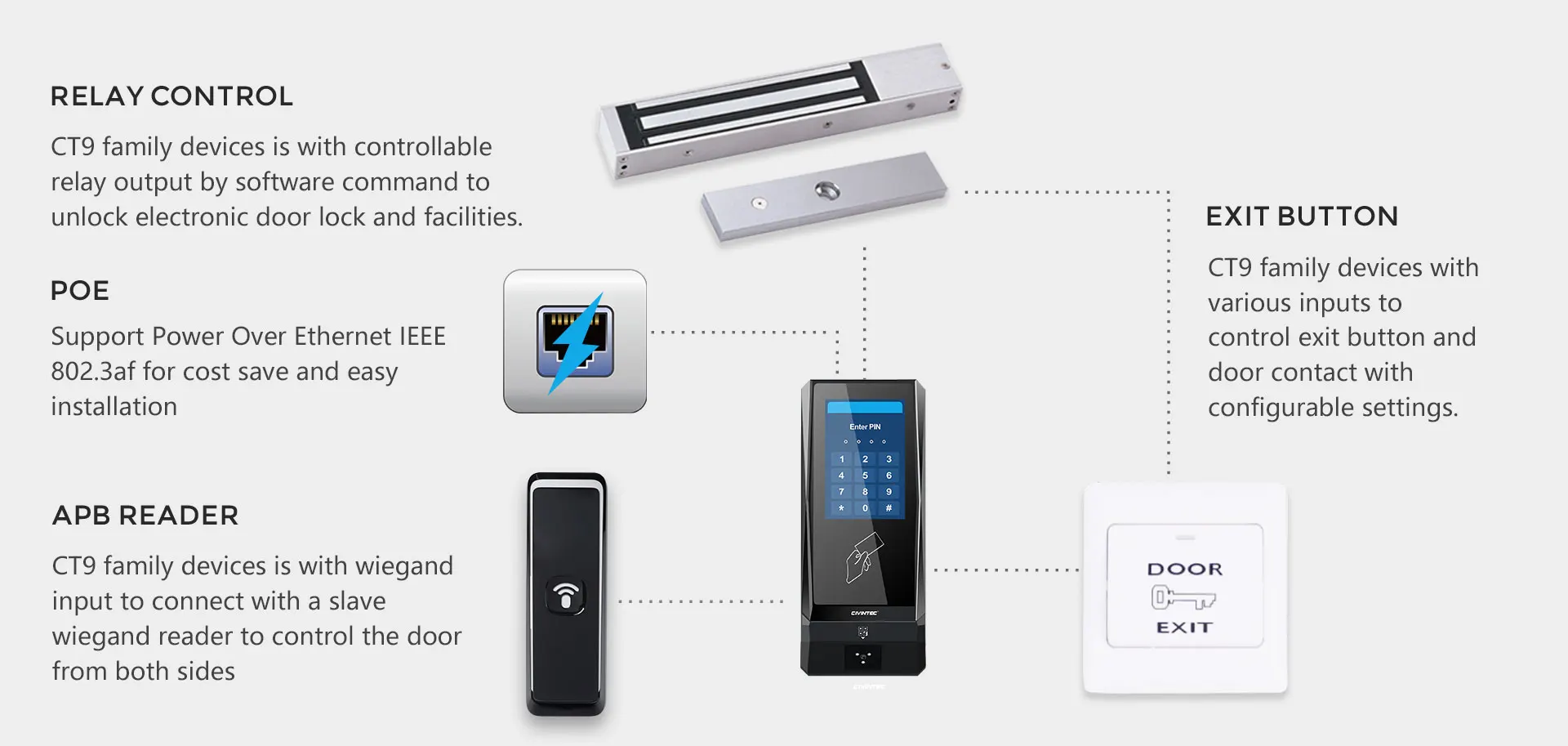

System Configuration
Our Service
Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.
User can free program and display own LOGO on 3.5” touch screen. Civintec also offer OEM LOGO printing on reader body.
