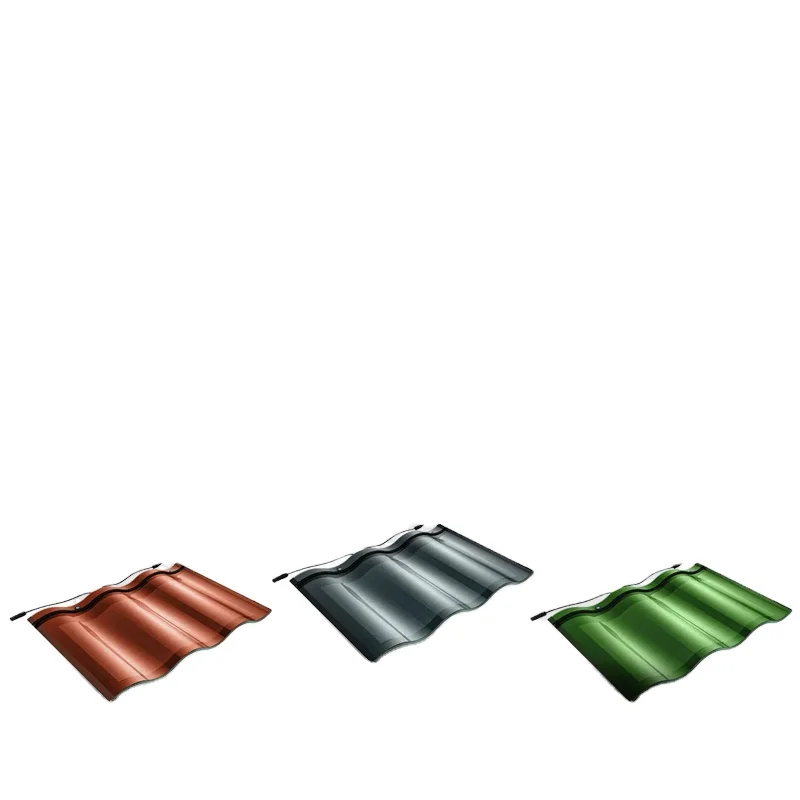

Factory sales good price Solar Roof Tiles 30w High Efficiency Solar System House Using
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.Beijing Ltd.
Share on (1601035006246):
Product Overview
Description
Products Description
Specification
Physical Parameters | ||||||
Product model | H W - M QSB-V1、HW-MQSG-V1 | Color | black and gre y | |||
Length | 721（±1）mm | Junction box | 39*46*16.6mm IP67 | |||
Width | 500（±1）mm | Cable type | 2.5mm Solar energy cable; 450(+10/-0)mm | |||
Height | 8（±1）mm | Cable connecter | MC4 | |||
Weight | 6.5（±0.5）Kg | |||||
Electrical property parameters | ||||||
Core type | CIGS | Open-circuit voltage | 10.6V | |||
Power | 25W (one piece) | Current under PMPP | 3.5A | |||
Short-circuit current | 4A | Voltage under PMPP | 8.6V | |||
Performance rate | ||||||
Loading rate | 2400 Pa | Fireproong rate | A | |||
Water proofing rate | IP67 | Operating temperature | >40°C to +85°C | |||
Anti-hail rate | 4（ANSI FM 4473) | Operating hum i d i ty | 0*80% | |||
Qualification and certification | ||||||
3C/CQC/IS09001/Rohs(being applied)/UL(being applied) | ||||||

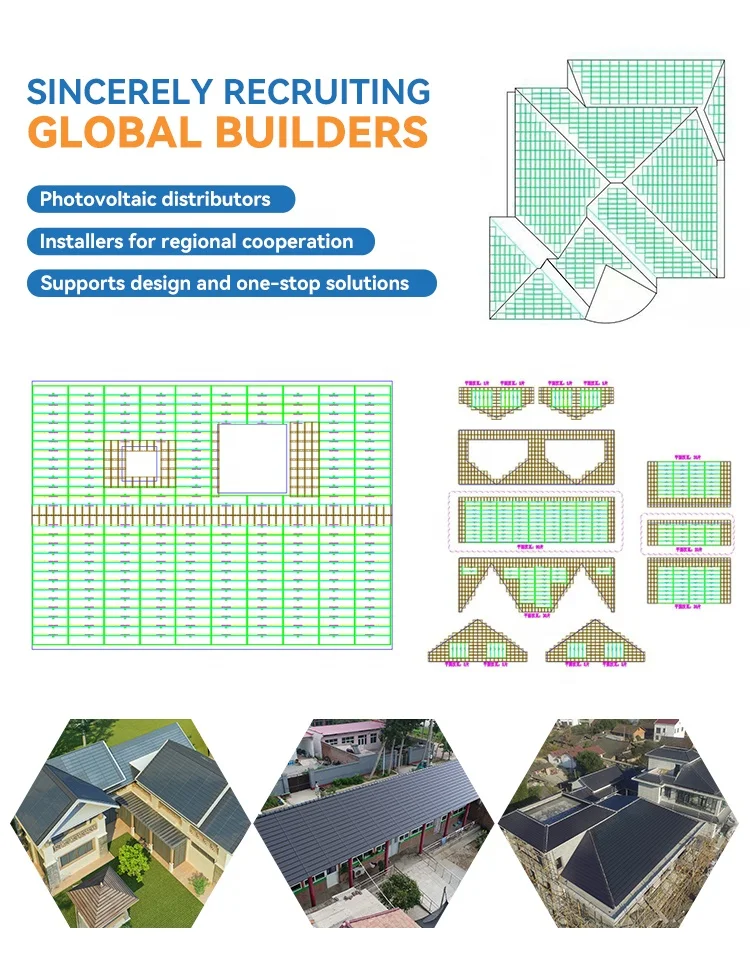

Recruitment of agents
Packing And Shipping
