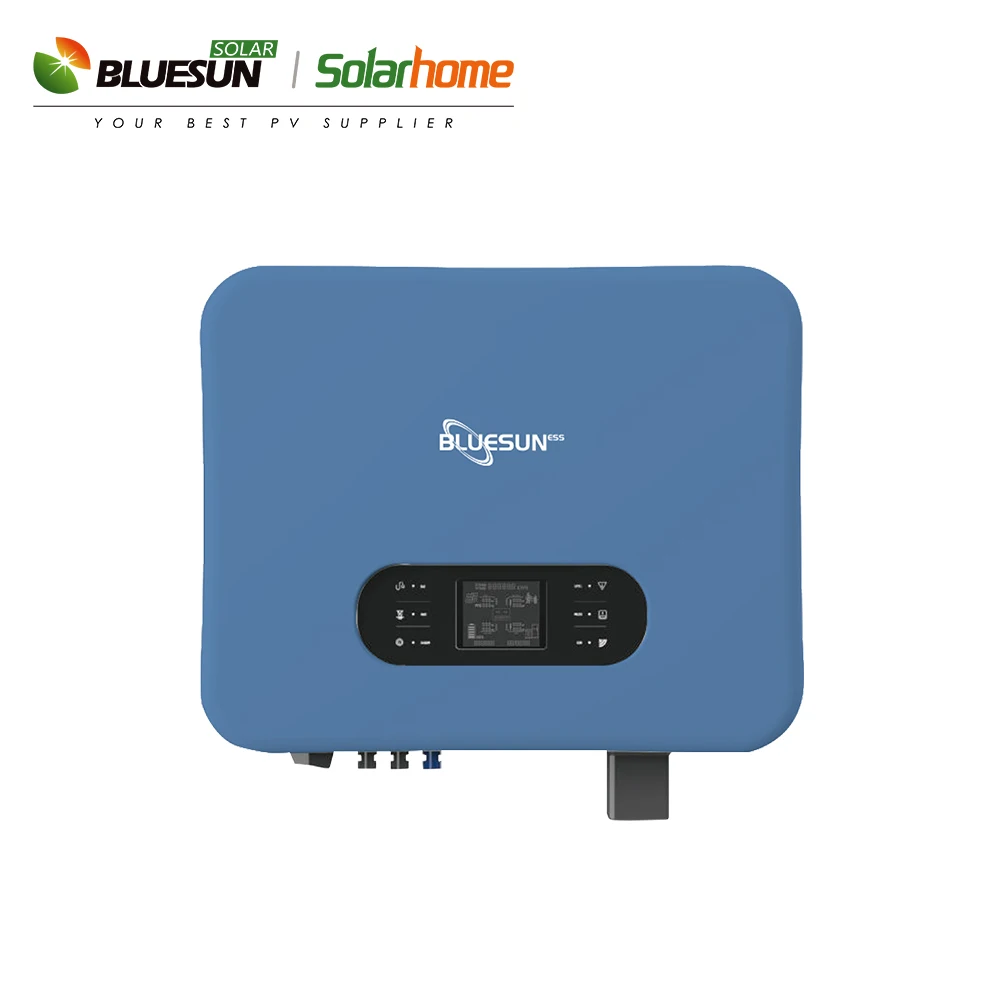

High Voltage Bluesun 12kw Hybrid Inverter Three phase With batteries With High Quality
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.Bluesun Ltd.
Share on (1601035013368):
Product Overview
Description
Products Description

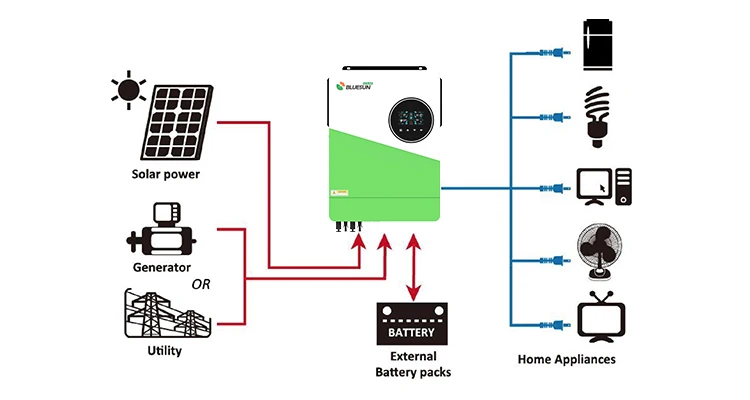

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger tooffer uninterruptible power support with portable slze. Its comprehensive LCD display offers user-configurableand easy-accessible button operation such as battery charging current, AC/solar charger priority, andacceptable input voltage based on different applications.

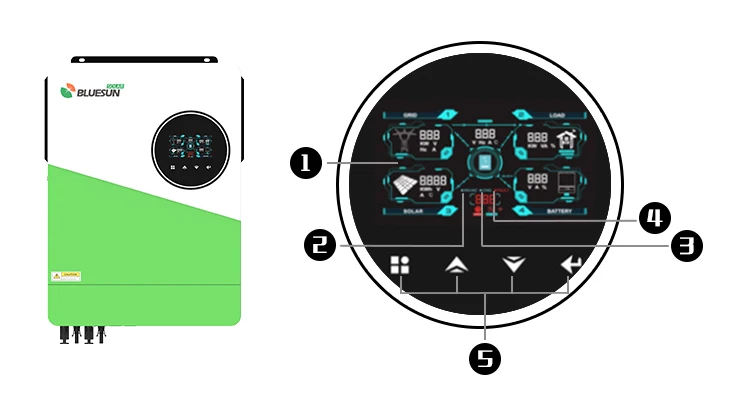

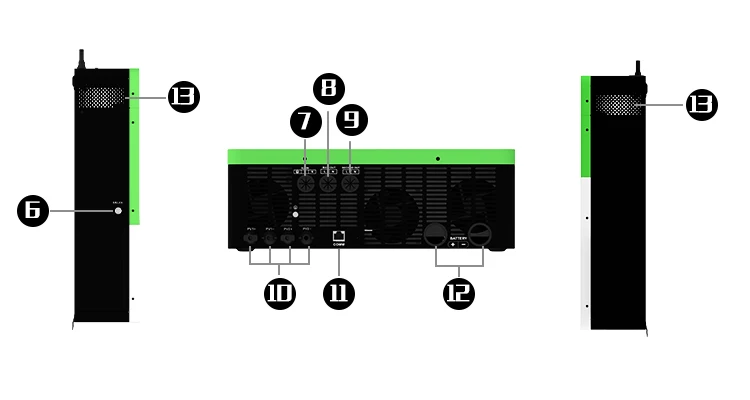

Configuration Details
1 | LCD display | 8 | Main output |
2 | Status indicator | 9 | Second output |
3 | Charging indicator | 10 | PV1 and PV2input |
4 | Fault indicator | 11 | RS-232/WIFI/Remove LCD communication port |
5 | Touch Function buttons | 12 | Battery input |
6 | Power on/off switch | 13 | Anti dust kit |
7 | AC input |
Technical Specifications
Features
* Pure sine wave solar inverter(on/off grid)
* Inverter running without battery
* Output power factor 1.0
* High PV input voltage
* range(90~500VDC) WIFI&GPRS available for IOS and Android
* Built-in anti-dusk kit for harsh enviroment
* Built-in 180A(for 10.2KW)MPPT solar charge
* Smart battery charge design to optimize battery life
* One-click restoration to factory settings
* Dual output
* Built-in lithium battery automatic activation
* Touch buttom
* High PV input voltage
* range(90~500VDC) WIFI&GPRS available for IOS and Android
* Built-in anti-dusk kit for harsh enviroment
* Built-in 180A(for 10.2KW)MPPT solar charge
* Smart battery charge design to optimize battery life
* One-click restoration to factory settings
* Dual output
* Built-in lithium battery automatic activation
* Touch buttom

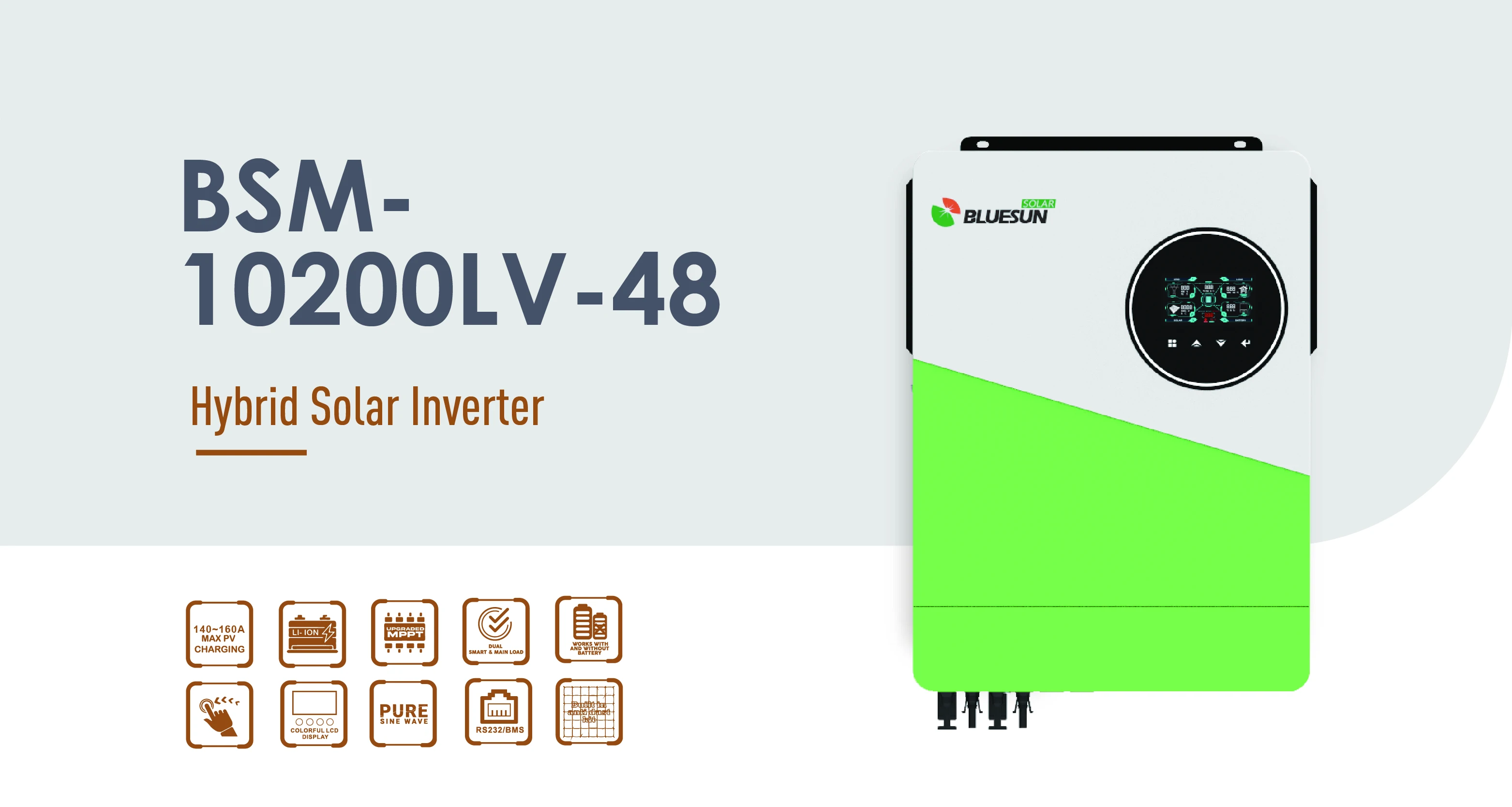

MODEL | BSM-10200LV-48 | |
Phase | 1-phase | |
Maximum PV Input Power | 10200W | |
Maximum Solar Charging Current | 160A | |
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC | |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
Maximum AC Input Current | 50A | |
Nominal Operating Frequency | 50/60Hz | |
Surge Power | 20400W | |
PV INPUT(DC) | ||
Maximum DC Voltage | 500VDC | |
MPPT Voltage Range | 90VDC~450VDC | |
Number of MPPT Trackers/Maximum Input Current | 2/18A | |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 48VDC | |
Output Wavefrom | Pure sinewave | |
Efciency(DC to AC) | 94% | |
BATTERY & CHARGER | ||
Nominal DC Voltage | 48VDC | |
Maximum Solar Charging Current | 160A | |
Maximum AC Charging Current | 140A | |
PHYSICAL | ||
Dimension,D X W X H | 530*420*160 | |
Net Weight(kgs) | 14.8 | |
INTERFACE | 16.3 | |
Commnuication Prot | RS232/WIFI/GPRS/LITHIUM BATTERY | |

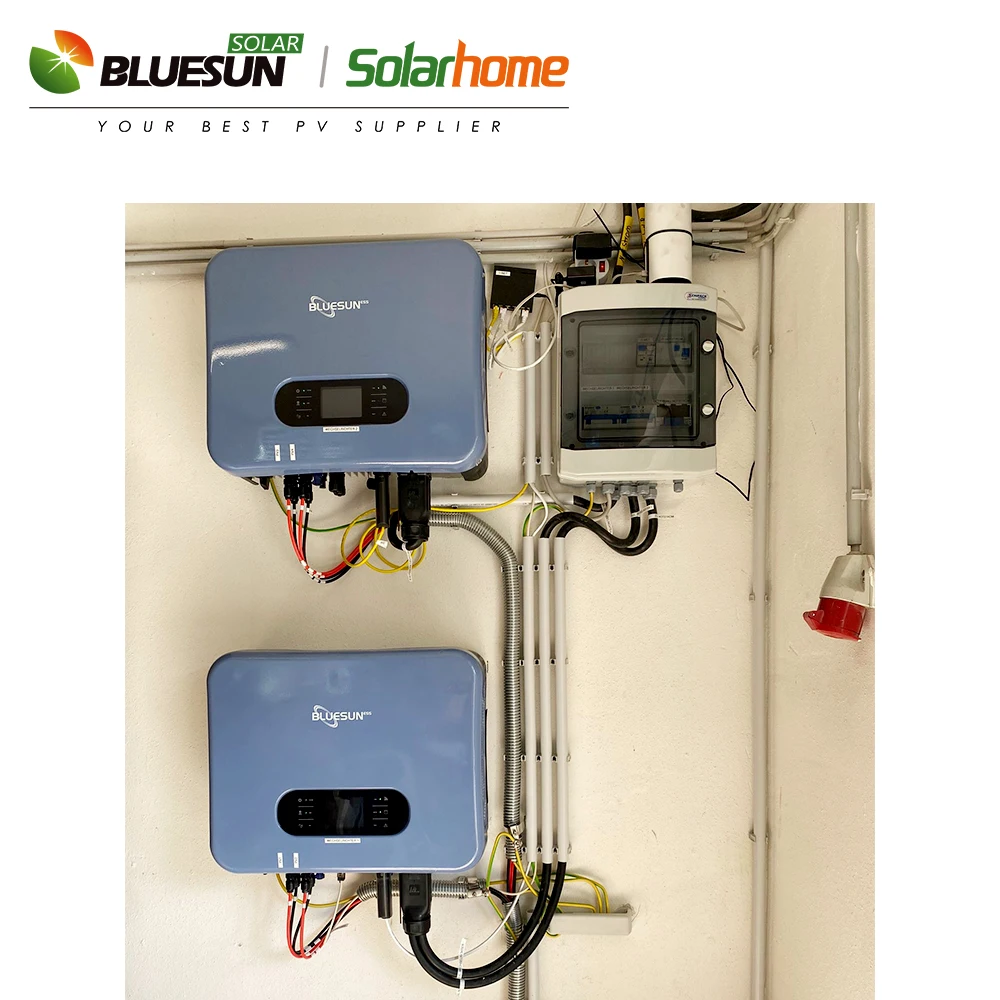

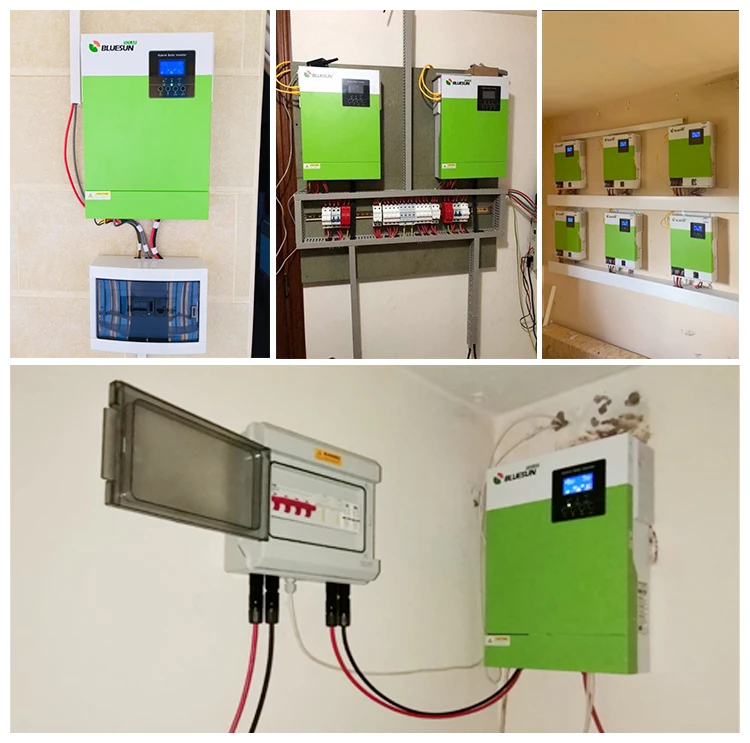

Bluesun Project
