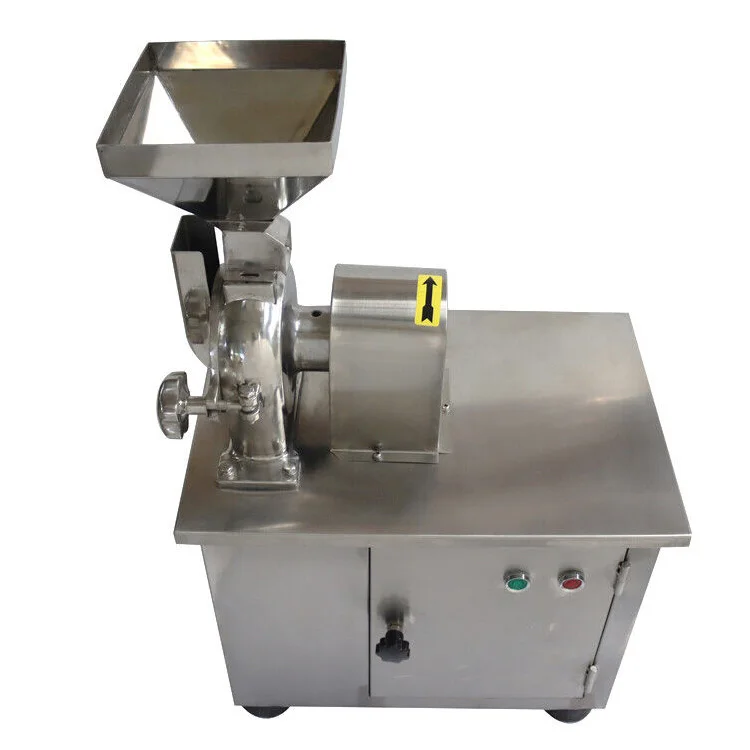

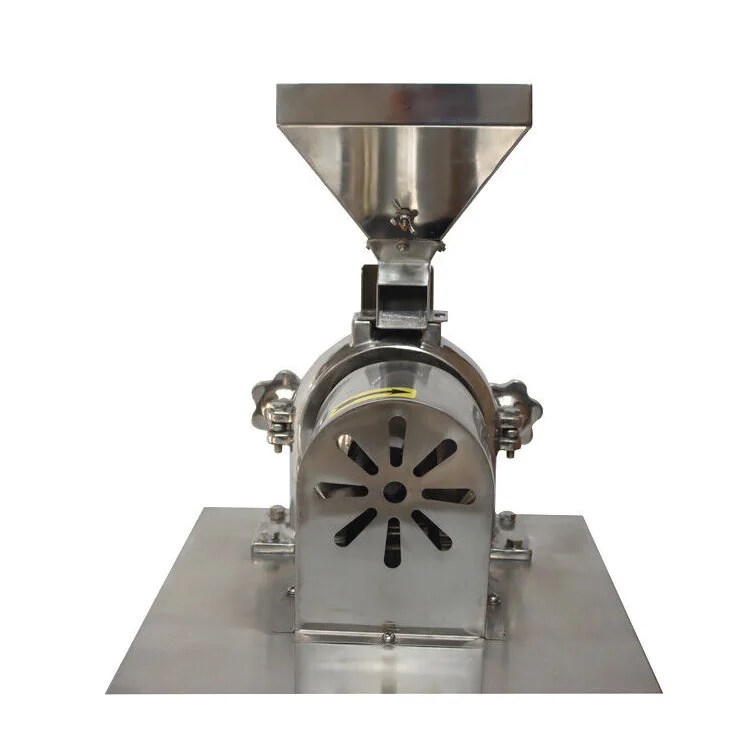

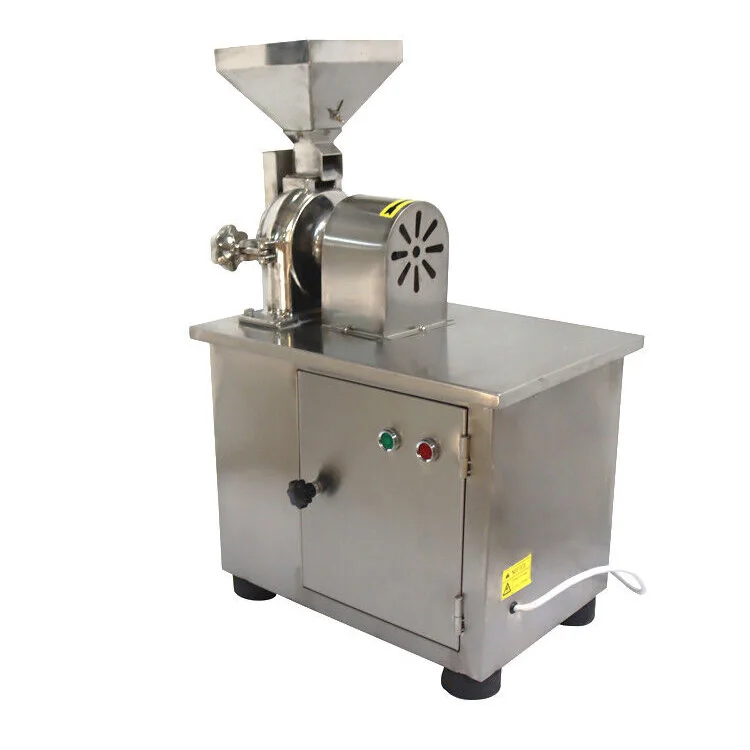

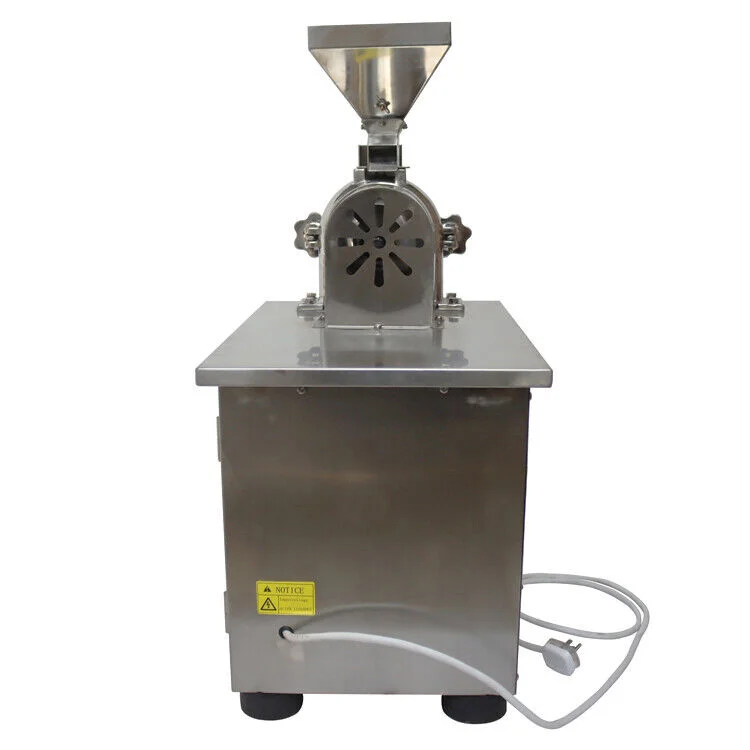

Industrial SF 130B grinder machine For Making Fine Cocoa Powder
- Category: >>>
- Supplier: Changsha Yiguang Pharmaceutical Machinery Co. Ltd.
Share on (1601035133174):
Product Overview
Description
Description
This grinding machine used the relative motion between movable and fixed teeth disc, the raw materials to be crushed undertakes the comprehensive actions, such as impacted by teeth, friction, impacted between raw materials, finally, the raw materials to be crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency, The crushed raw materials can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh. Its inner wall is processed finely. So it is smooth and level. It overcame the shortcomings exited in the old machines such as roughness, accumulated powder in the old machines such as roughness,accumulated powder. The machine made of good quality stainless steel, meet GMP standard.
Applications
This spice/ herb grinding machine has wide application and widely used for pharmaceutical industry, chemical industry,pesticide industry,foodstuff industry etc.
Working Principle

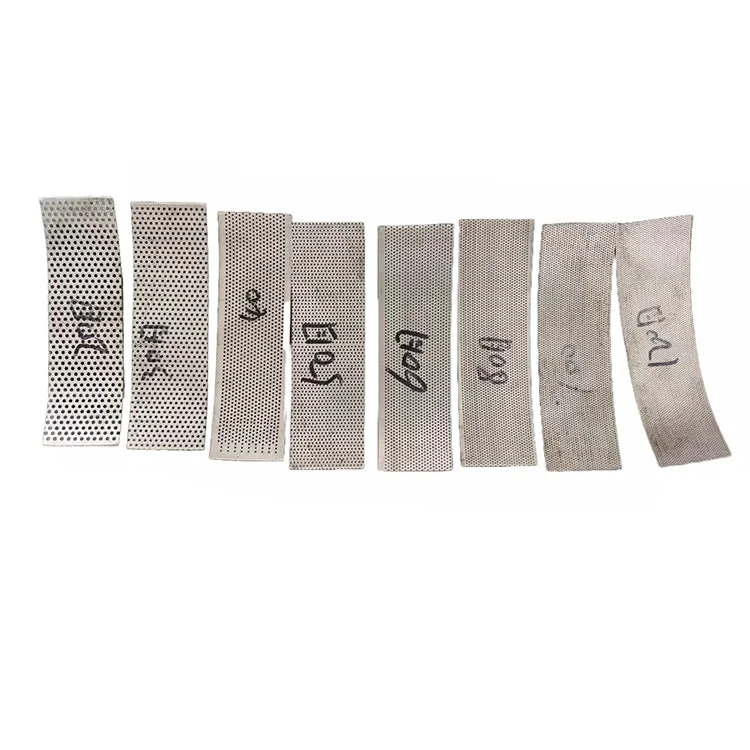

The electrical motor of the grinderdrives the main shaft to rotate at a high speed and spin off the material into the grinder, The material is ground between the moving plate and the fixed plate by striking, shearing and grinding, The ground material is carried by the air flow through the screen to the collecting bag. The size of the particle can beadjusted by changing the screen with different screen holes.
Technical Specifications
| Model | SF-130B | SF-180B | SF-250B | SF-320B | SF-800B |
| Production capacity(kg/h) | 2-5 | 10-20 | 50-250 | 80-300 | 160-800 |
| Spindle rotation speed (r/min) | 7000 | 4000 | 3800 | 3800 | 3400 |
| Feeding size (mm) | 5*5*5 | 8*8*8 | 10*10*10 | 10*10*10 | 10*10*10 |
| Crushing fineness (mesh) | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
| Crushing motor (kw) | 1.1 | 2.2 | 5.5 | 7.5 | 11 |
| Dust collecting motor (kw) | 0.25 | 0.55 | 0.75 | 0.75 | 1.5 |
| Outline dimensions (mm) | 640*350*830 | 800*530*1230 | 950*500*1360 | 1330*790*1540 | 1350*700*1700 |
Samples
Our Services
1.One year warranty for whole machine.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.
2.24 hours technical support.
3. We also can provide training service which help opeators handle the machine well.
4. Competitive price yet high quality models,fast delivery,customers can get discount if order batches.
5. Accept the non-standard customized products.
6. Payment Terms:T/T,Western Union,Moneygram,Transfe wise,Escrow&Trade Assurance Order on Alibaba.

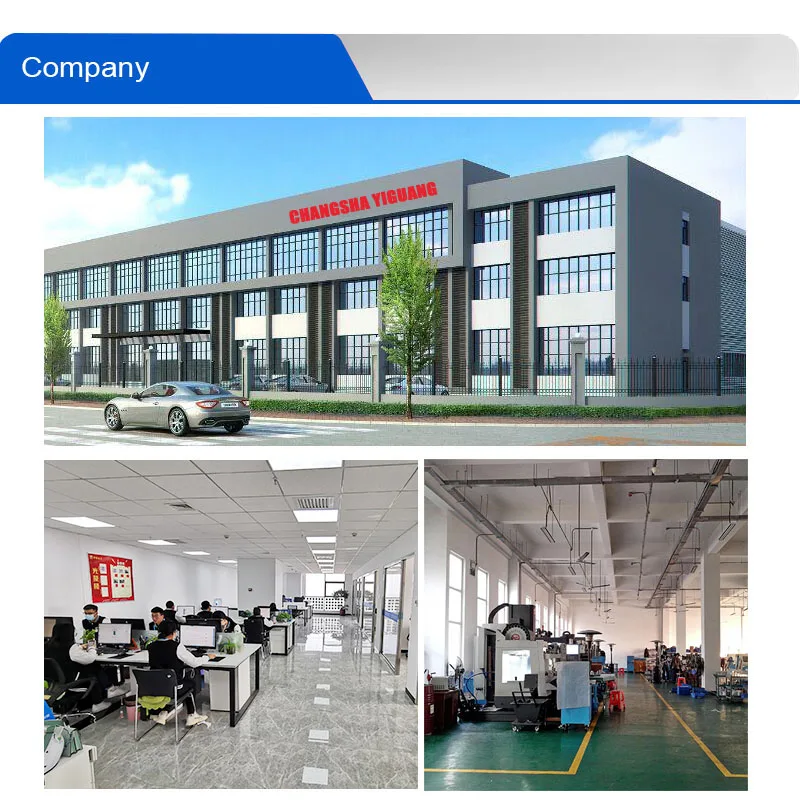

Company Information
Changsha Yiguang pharmaceuticaI Machinery Co., Ltd. is a comprehensive enterprise integrating production and trade in the pharmaceuticaI manufacturing industry more than 10 years. The company is committed to the research and development of products, the cultivation and development of talents, and the innovation of services, which are advertised for the same industry.
The company's pharmaceuticaI equipment and other products are not only supplied to the domestic market, but also exported to many countries,such as USA,United Kingdom,Russia,Georgia,Lithuania,Japan,South Korea,Malaysia,Philippines,Vietnam,Cambodia,Kyrgyzstan,Pakistan,Brazil,etc.The equipment produced by the company is mainly suitable for food, pharmaceuticaI, chemical and other industries; small equipment is suitable for laboratory research, drug approval, etc., and has won many bids in school and laboratory equipment procurement bidding.
The company takes the customer first as the concept and the technical competition as the core, and provides customers with cost-effective pharm equipment. The main production equipment can be divided into several series:
1.Injection device
2.Packaging equipment
The specific equipment includes: pellet machine, pulverizer, pelleting machine, capping machine, filling machine, mixer, coating machine, melting machine, and other dozens of equipment.
Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.
FAQ
1. What about your machine quality?
Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?
1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side or by video.
