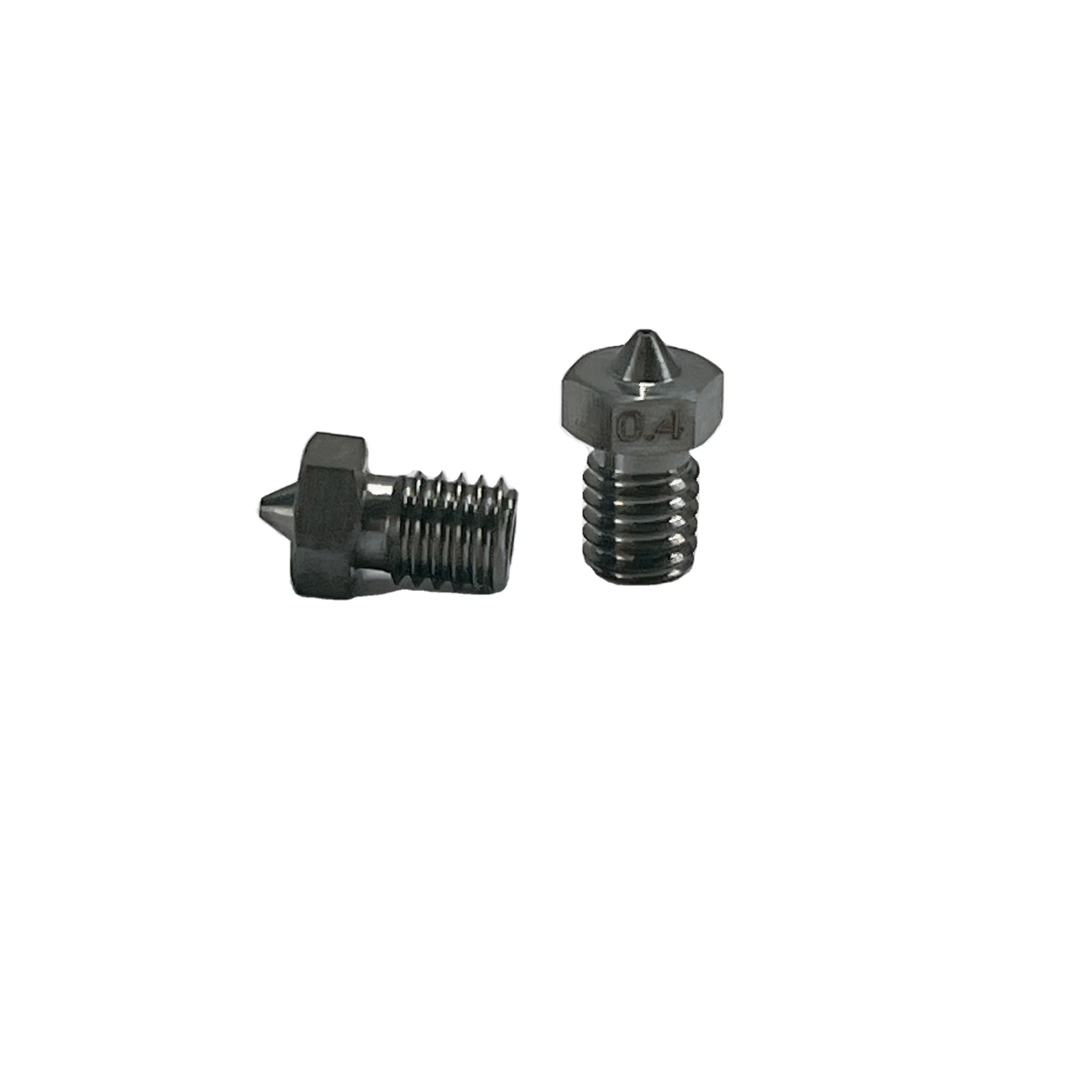

Customized wear resistant tungsten carbide nozzle corrosion resistant cemented carbide nozzle and other odd shaped modle
- Category: >>>
- Supplier: Guangdong Shengdike New Materials Co. Ltd.
Share on (1601035162170):
Product Overview
Description
Products Description
High quality tungsten carbide wear-resistant parts tungsten carbide parts thread carbide die parts with factory price
Material: | Tungsten carbide | ||||||
Application: | The Carbide precision parts will mainly be used in submerged oil centrifugal pumps, submerged oil electric pumps, submerged oil separators, submerged oil protectors, dreg slurry pumps, submerged oil centrifuges, slurry pumps, acid-proof pumps, wastewater treating pumps, drinking water pumps, PDC drill bits, cone roller bits, centrifuge oil raising pumps, MWD and LWD, vertical rotating guides and self-activated oscillating-rotating-impact drilling tools. | ||||||
Feature: | Tungsten carbide precision parts are a versatile and durable material that can be used in a wide range of applications. They offer high hardness, wear resistance, and high-temperature resistance, making them ideal for applications where these properties are required. | ||||||
Wear resistance | Excellent | ||||||
OEM: | customized design is welcomed | ||||||
Ability | We are manufacturer, ISO9001 and SGS certificated. | ||||||
What we have of tungsten carbide wear parts? | Product Features | |

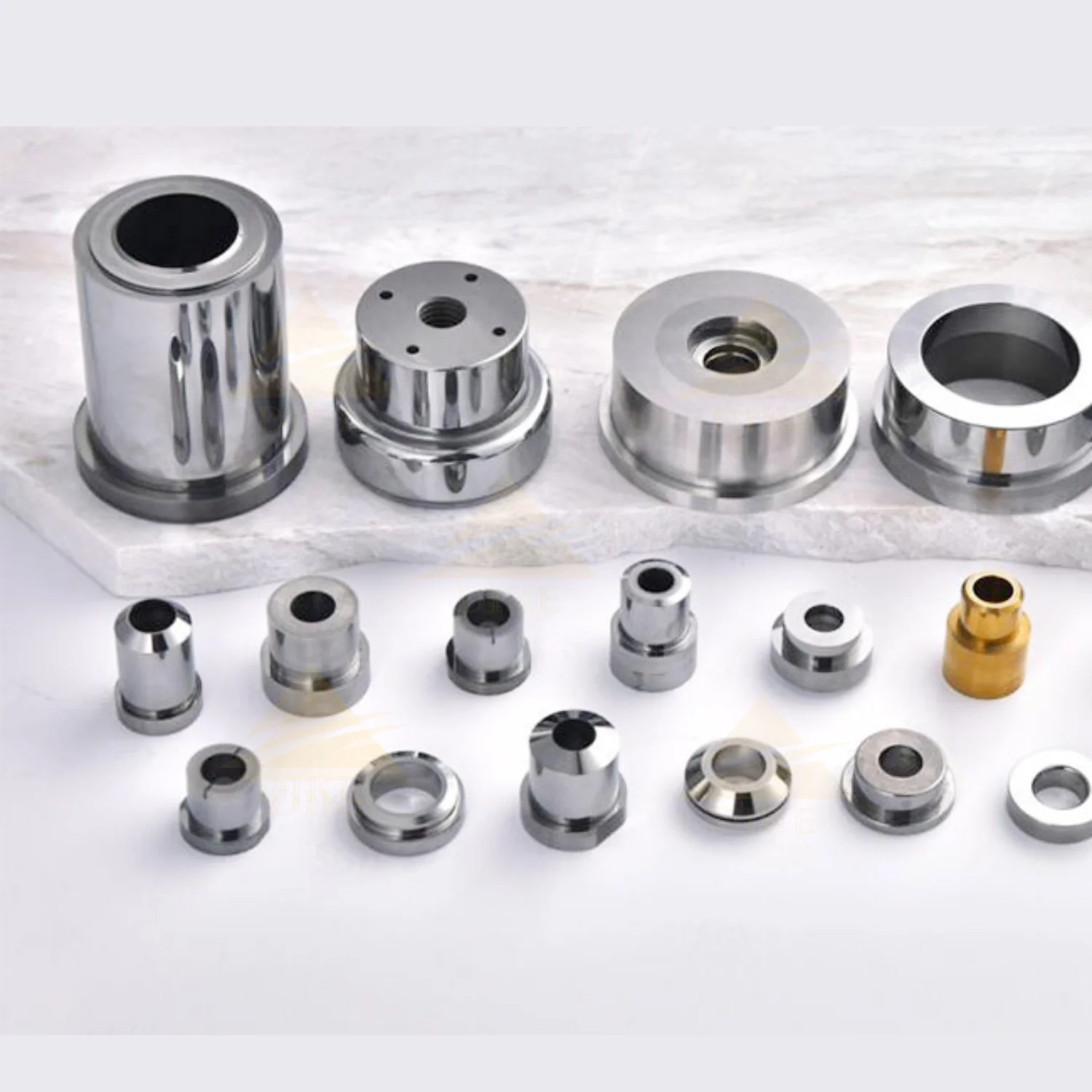

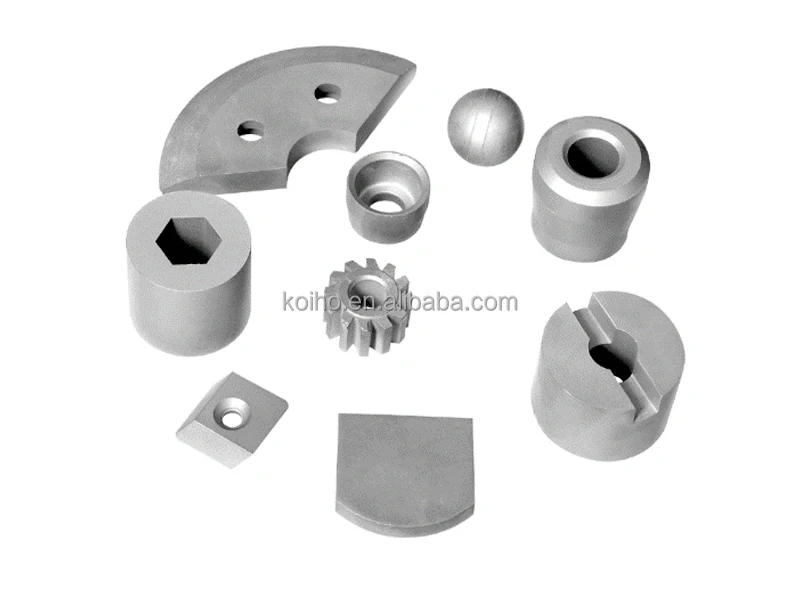

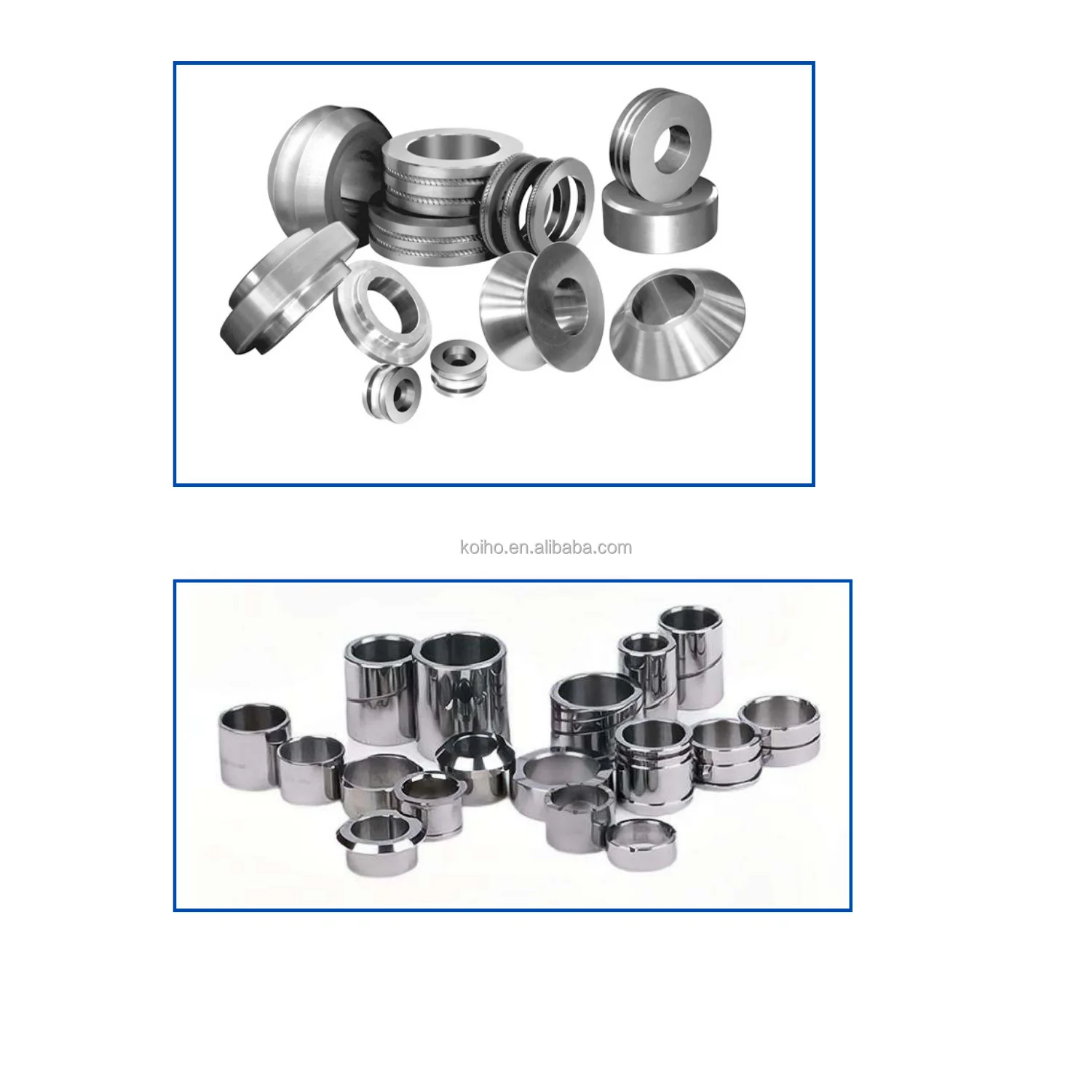

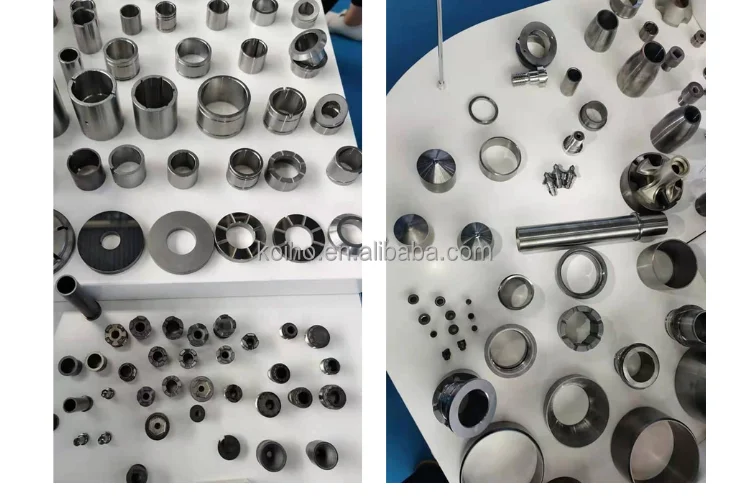

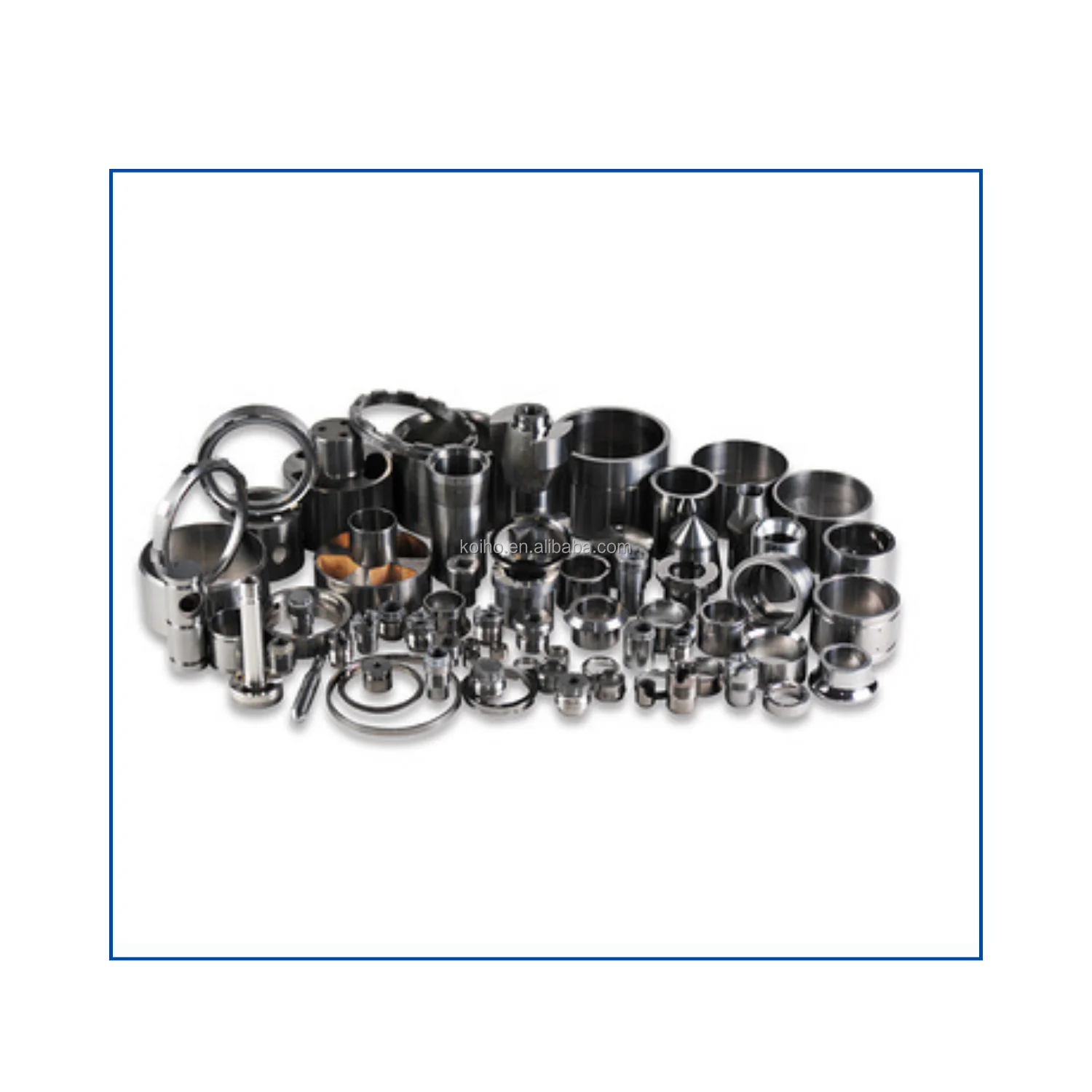

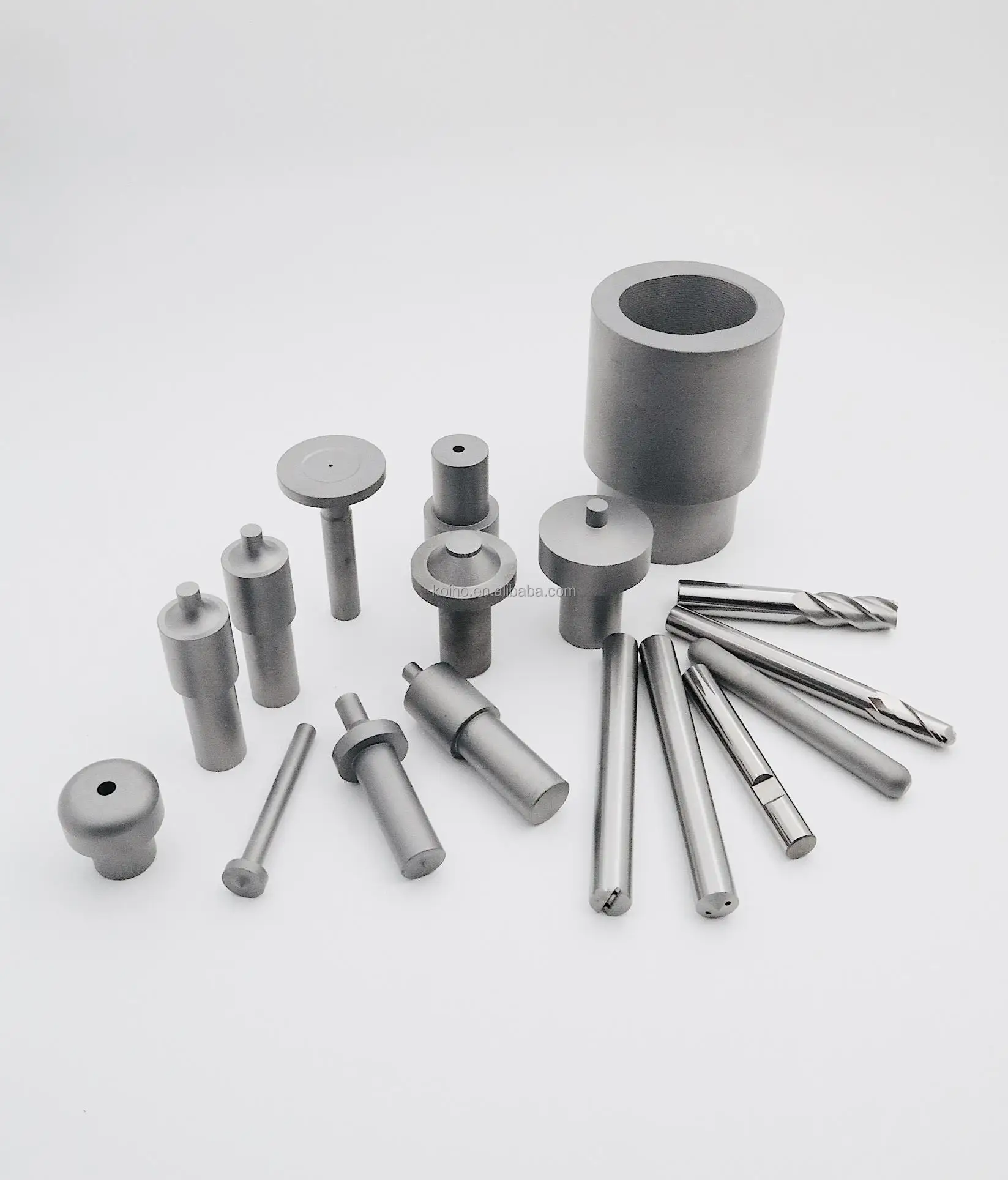

Our Cemented Carbide precision products mainly include axial sleeves, seal-ring, thread nozzles, bushings, valve cores, valve balls & seats, valve discs, non-standard structure parts, and mechanical components,Tungsten Carbide Die. | ||
Customer Feedback
Product Paramenters
Recommended alloy grades, properties and applications for moulds and precision wear parts | ||||||||
Grade | Physial Mechanical Properties | Applications | ||||||
Density | Hardness | MPa | ||||||
YG6 | 14.7-15.1 | ≥90 | ≥1600 | Good wear resistance, high strength, and ordinary stress conditions, is used for alloy ball, template knife, spray cap, valve core, valve seat, top, rotary file, liner, liner, guide, seal ring, measuring tools, fixtures, profiled products structural parts,mechanical accessories | ||||
YG6X | 14.8-15.1 | ≥91 | ≥1500 | |||||
YG6A | 14.8-15.0 | ≥92 | ≥1800 | |||||
YG8 | 14.6-14.9 | 89.3 | ≥1800 | |||||
YG9C | 14.55-14.7 | 88.1 | ≥2000 | Good wear resistance, high strength, suitable for PDC bit and cone bit nozzle and nozzle water hole sleeve | ||||
YG11 | 14.3-14.6 | 87.5 | ≥2100 | Good abrasion resistance and impact resistance, suitable for making high-pressure nozzles, liners and bushing in petroleum,chemical and mechanical industries | ||||
YG11C | 14.2-14.4 | 87 | ≥2200 | |||||
YG15 | 14.0-14.2 | 87 | ≥2400 | Good strength and stamping toughness, suitable for large stress conditions, used for sealing ring, ball mill barrel, special-shaped product structure parts, mechanical accessories and stamping die, etc | ||||
YG15C | 13.9-14.1 | 86.5 | ≥2450 | |||||
YG20 | 13.4-13.6 | 85 | ≥2500 | It is suitable for making cold upsetting, cold punching and cold pressing dies for standard parts, bearings, tools and so on | ||||
YG20C | 13.2-13.5 | 83 | ≥2600 | |||||
HJ10F | 14.82-14.95 | 90.5 | ≥2500 | Excellent abrasion resistance and strength, suitable for shock resistant sealing rings, clamps, structural parts of special-shaped products, mechanical accessories, etc | ||||
HJ6N | 14.85-15.1 | 91.5 | ≥1700 | No magnetic, good wear resistance, corrosion resistance, suitable for submersible oil pump parts, mud pump and acid pump parts,medical parts | ||||
W7 | 14.6-14.8 | 90 | ≥1600 | No magnetic, good wear resistance, corrosion resistance, suitable for submersible oil pump parts, mud pump and acid pump parts,medical parts | ||||
*Our Strength:
•100% virgin raw materials
• Special Design and Development of Materials
• Complete Production Process – from Manufacturing of Materials to Finished Wear Parts
• Over 20 Years of Cooperative Experience with International Oil Service Companies

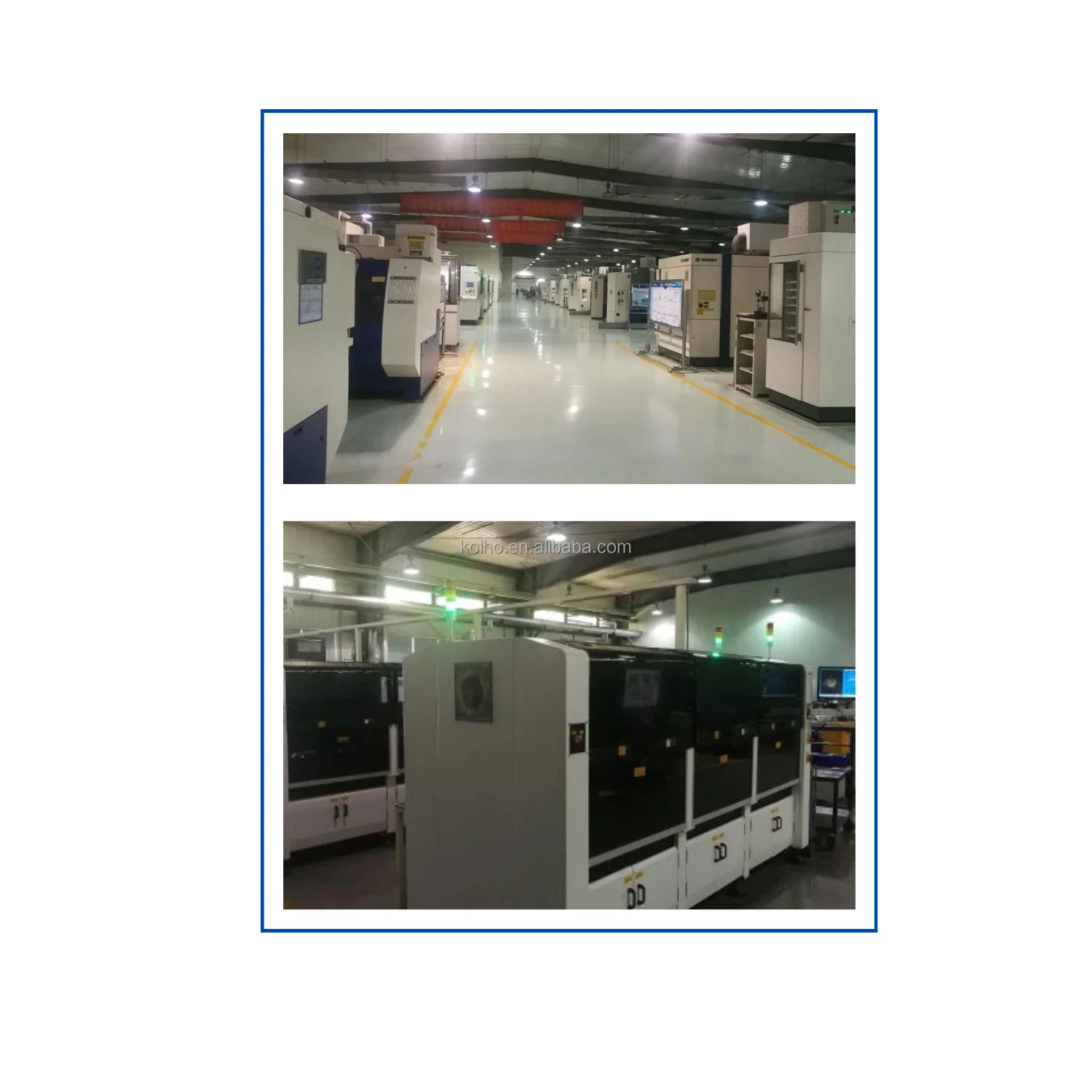

• Advanced Equipment and Powerful Systematic Secure Capabilities
• Wide Range Quality Control
