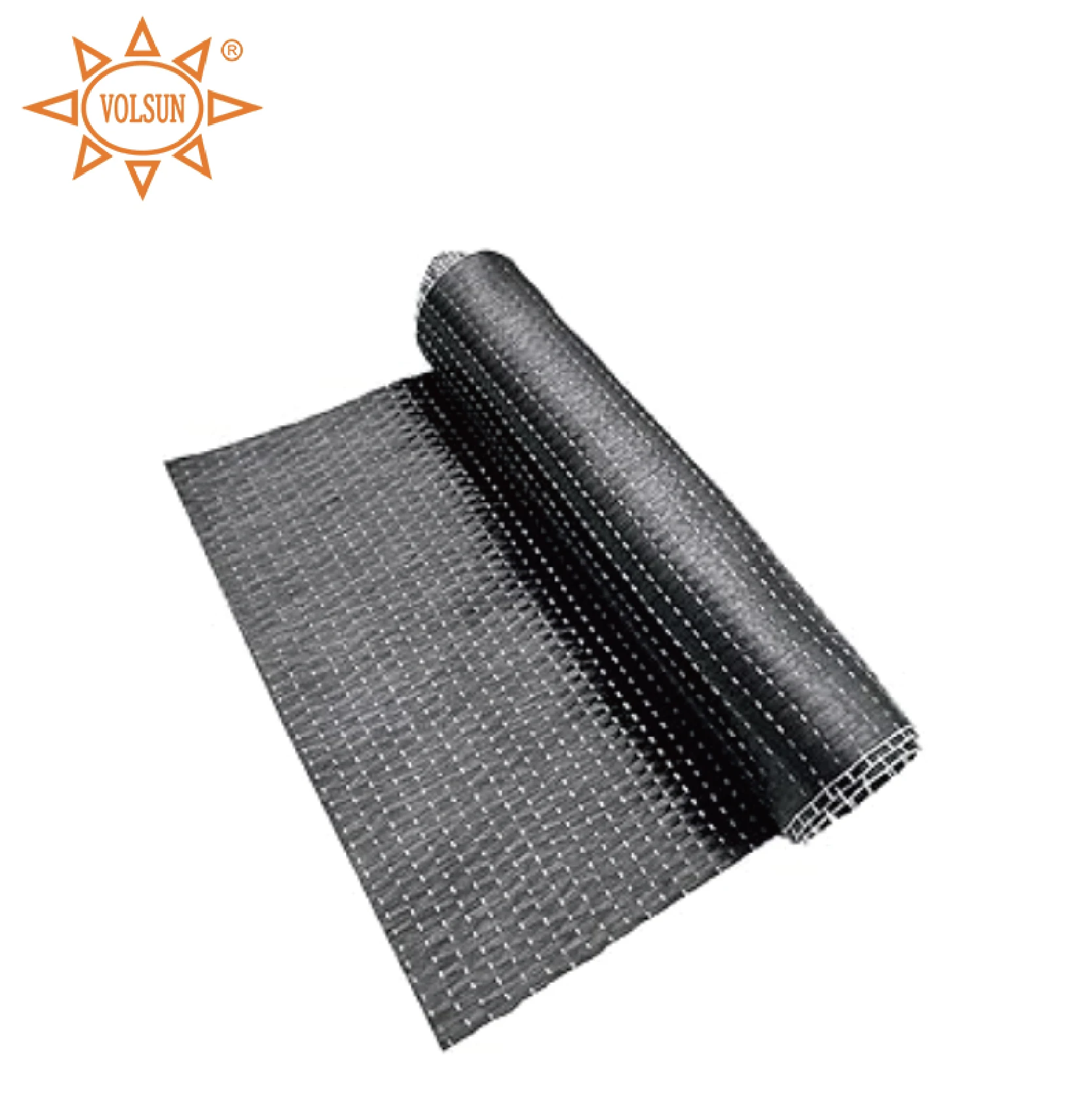

Bi-directional Carbon Fiber Cloth
Description
The VS series of bi-directional carbon fiber cloth is made of high-strength carbon fiber in a weaving process that maintains constant tension on the yarns, ensuring straight fiber bundles. It boasts advantages such as light weight, high strength, excellent durability, and corrosion resistance. An effective shaping process is used to prevent loose deformation when the cloth is cut. The cloth can be woven in plain, twill, or satin weaves using 1K, 3K, 6K, 12K, 24K carbon fiber as raw material. The product is mainly used in aerospace, automotive and motorcycle parts, sports equipment, building reinforcement, and various decorative items.


Features
* Light weight, high strength, with a specific gravity of only one-fourth that of steel structures, and tensile strength exceeding
that of steel

* Made of carbon fiber with superior performance, featuring a sleek black luster and resistance to fuzzing

* Uniform texture, tight structure, and consistent tension

* Processable, the carbon fiber woven cloth can be cut, laminated, and shaped as needed to adapt to different application
requirements



PRODUCT SPECIFICATIONS


Item
Typical Data
Reference Standard
Tensile Strength
≥3400MPa
GB3354-2014
Tensile Elastic Modulus
230GPa
GB3354-2014
Elongation Rate
≥1.6%
GB3354-2014
Flexural Strength
≥700MPa
GB3354-2014



Dimensions


Product Name
Model
Fabric structure
Nominal Weight
(g/㎡)
Cloth Length (m)
Width (cm)
Yarn Density (Strand/cm)
Warp Yarn Density
Weft Yarn Density
Carbon Fiber Bi-directional Woven Cloth
VS20-3KPS
Plain Weave
200
100
100
50
50
VS20-3KP
Plain Weave
200
100
100
50
50
VS20-3KXS
Twill Weave
200
100
100
50
50
VS20-3KX
Twill Weave
200
100
100
50
50
VS24-3KPS
Plain Weave
240
100
100
60
60
VS24-3KP
Plain Weave
240
100
100
60
60
VS24-3KXS
Twill Weave
240
100
100
50
70
VS24-3KX
Twill Weave
240
100
100
50
70
VS36-12KP
Plain Weave
360
25-100
100
22
22
VS40-12KP
Plain Weave
400
25-100
100
25
25


Note：Special size and packing are available as request.

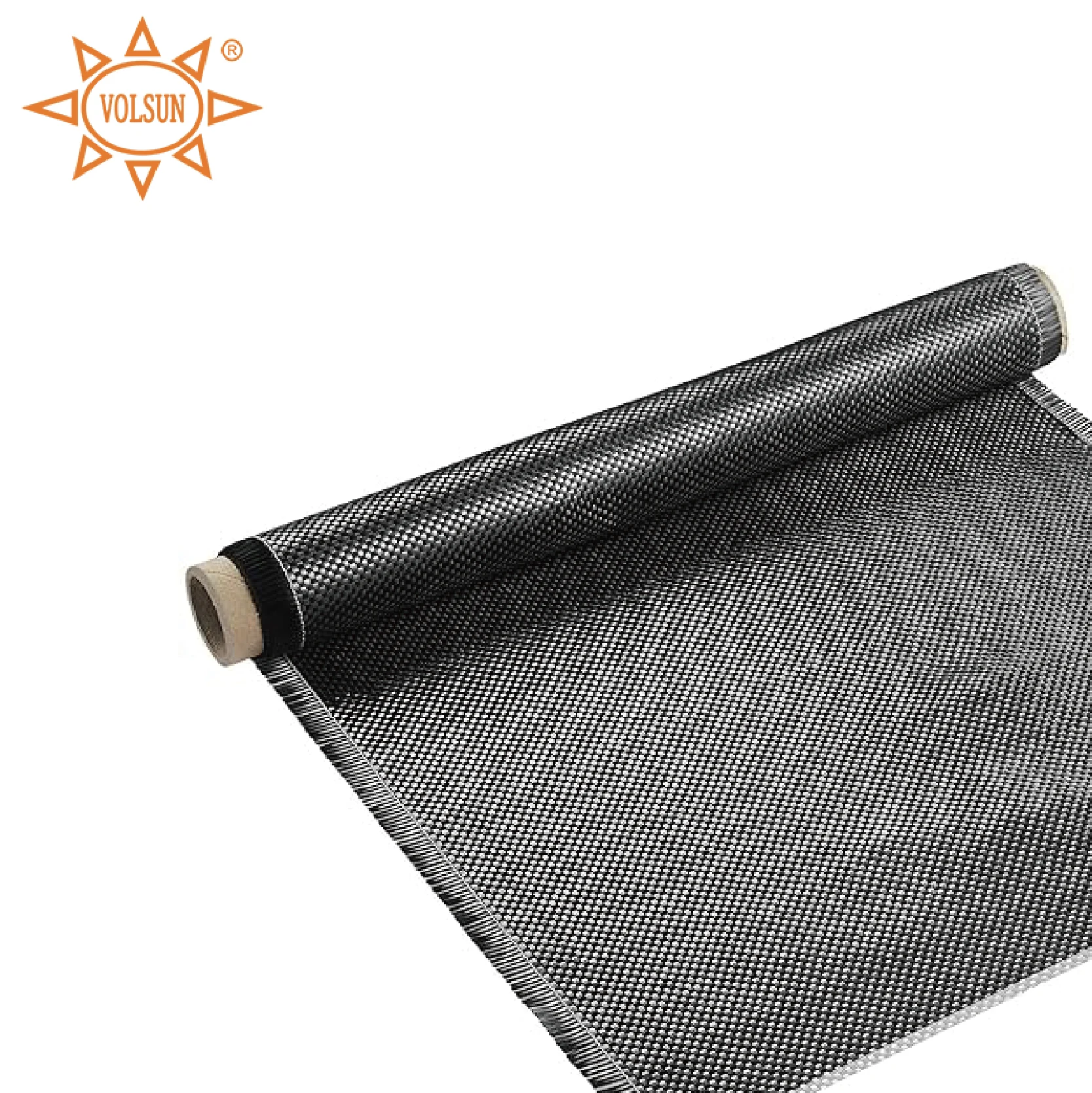

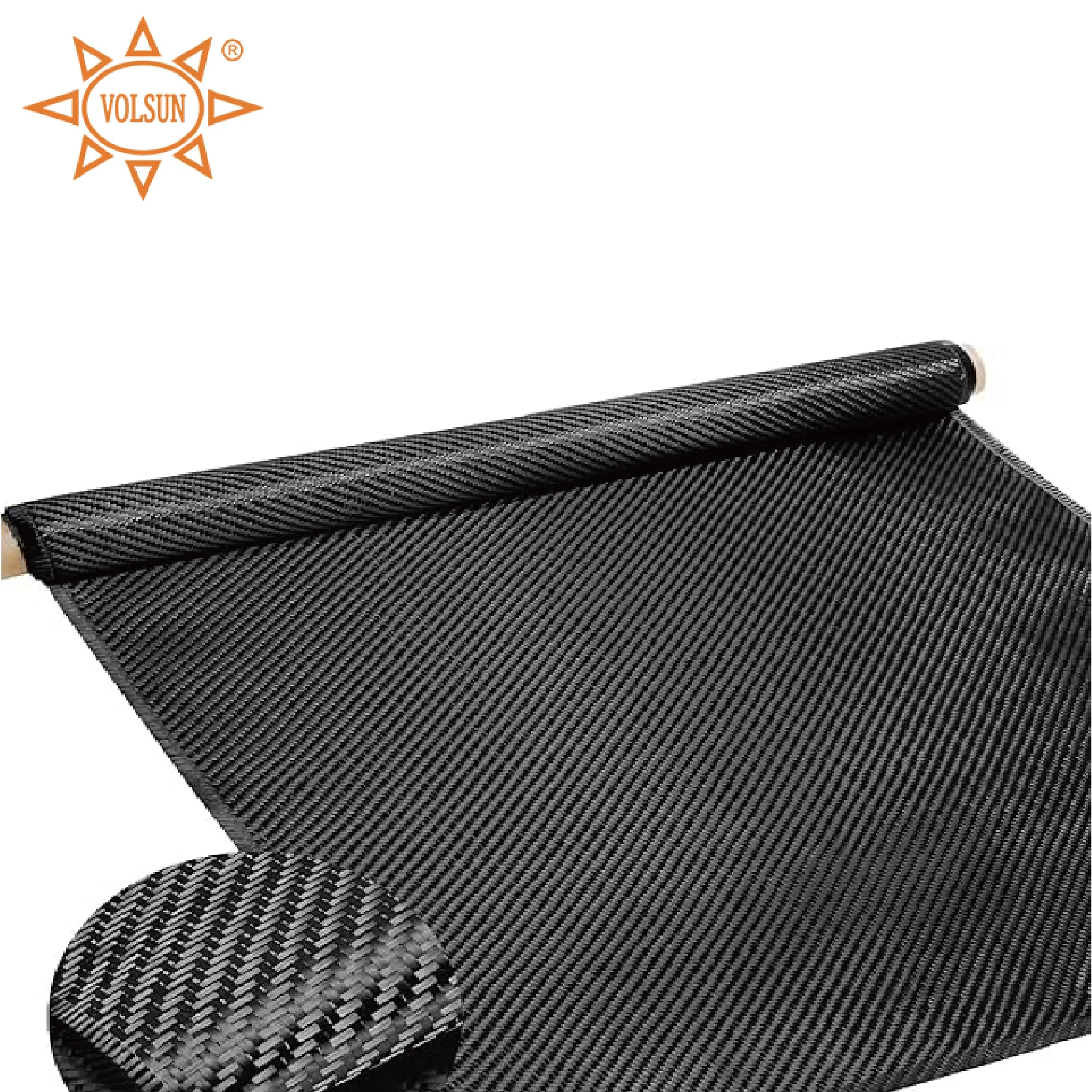

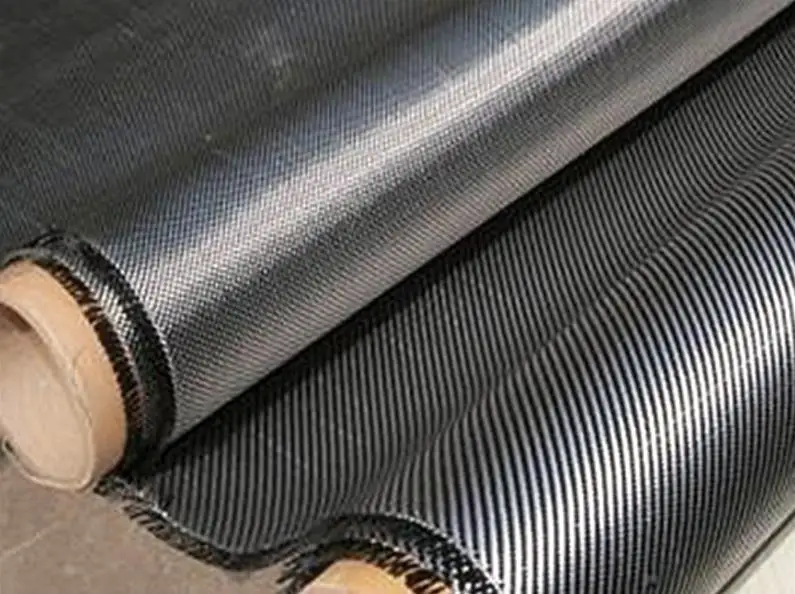

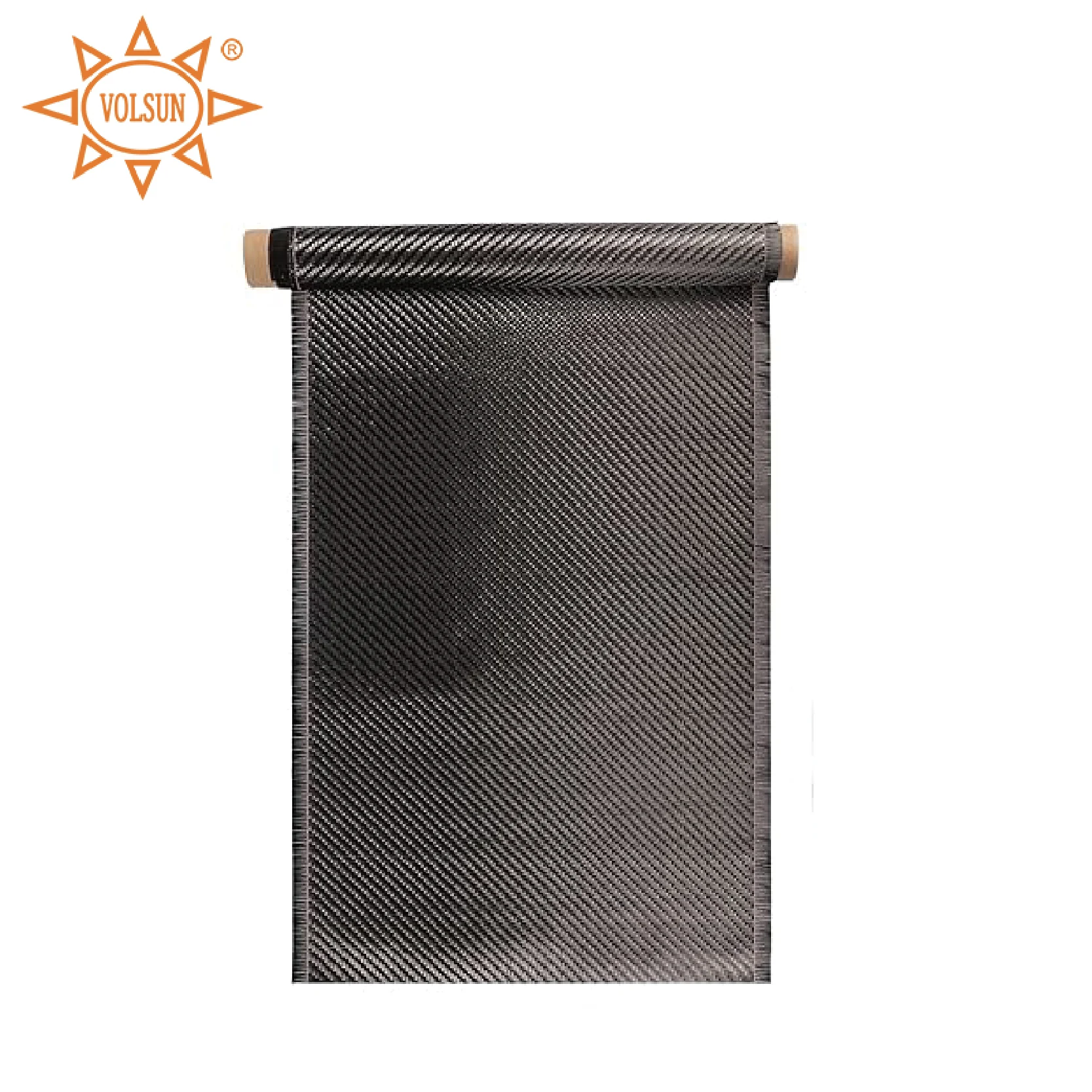

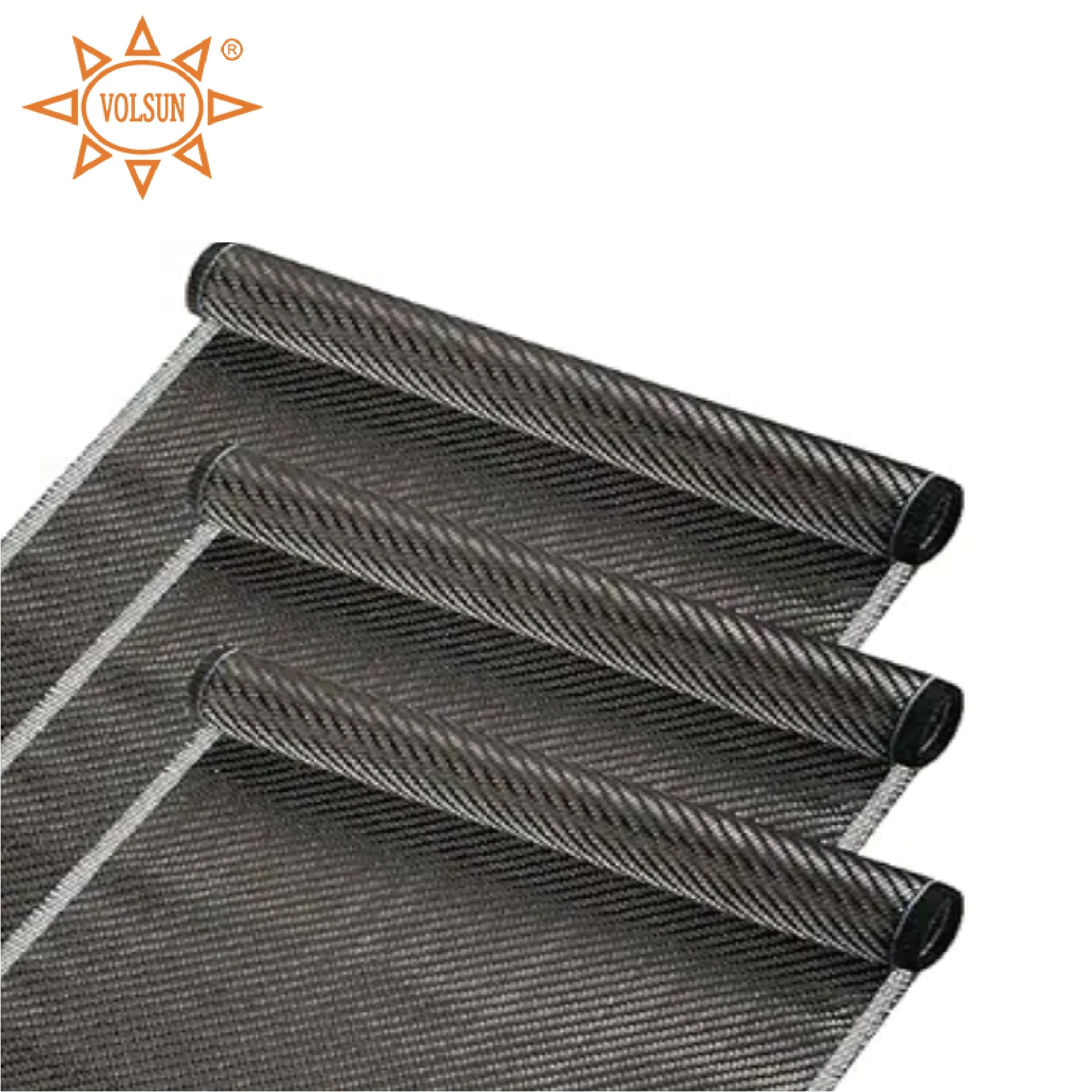

Product Pictures


Application fields

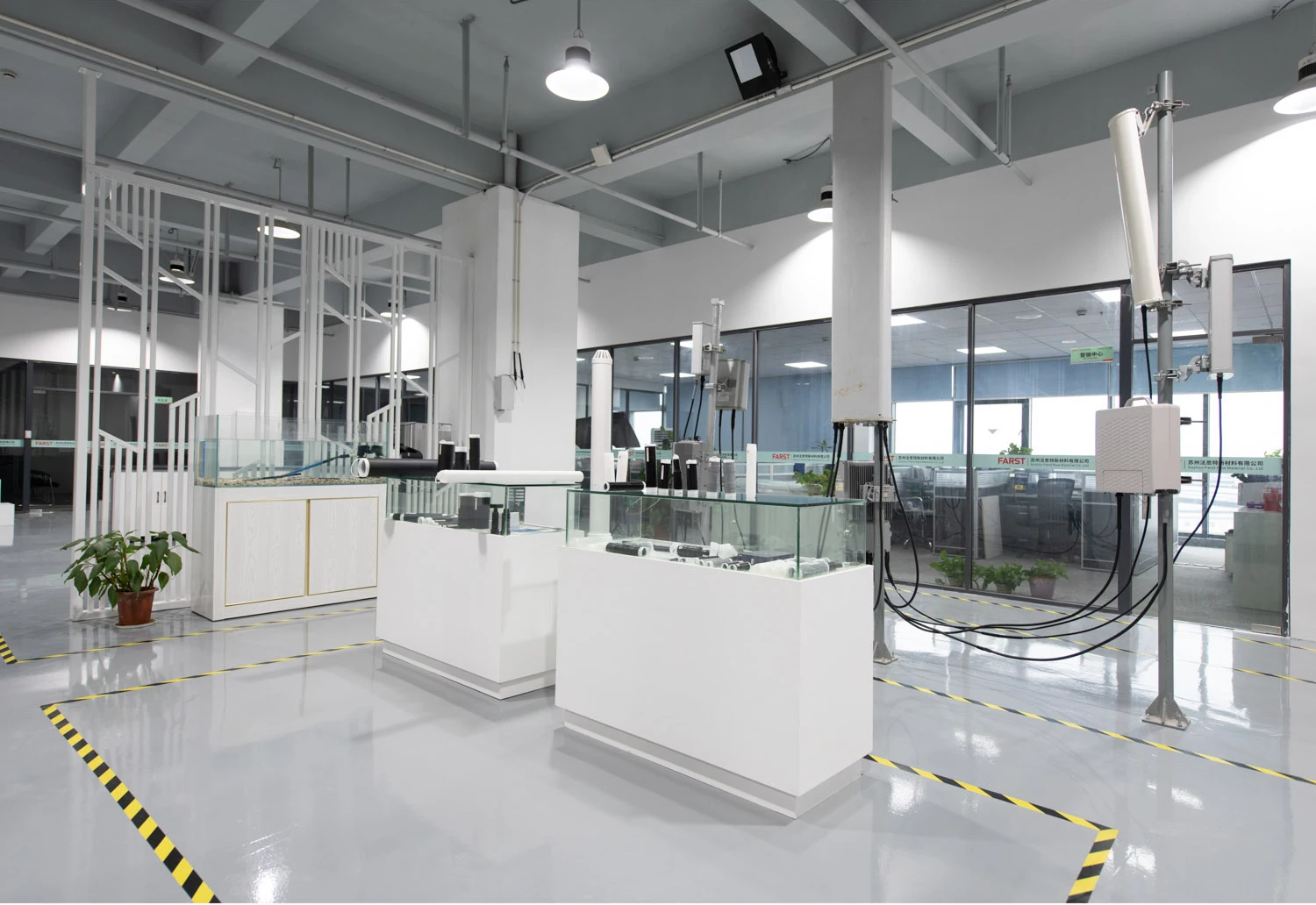

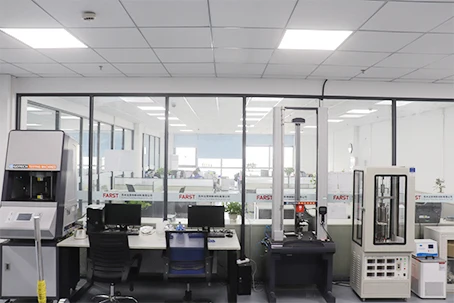

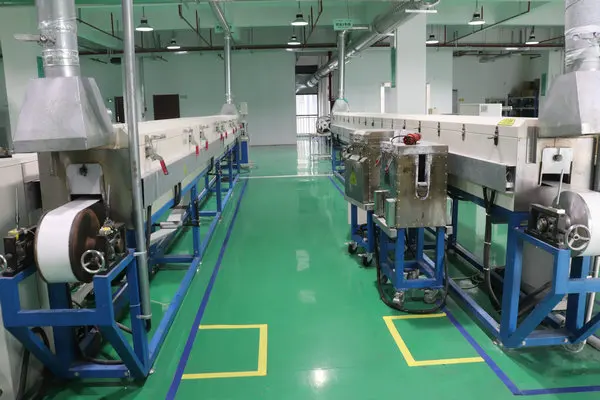

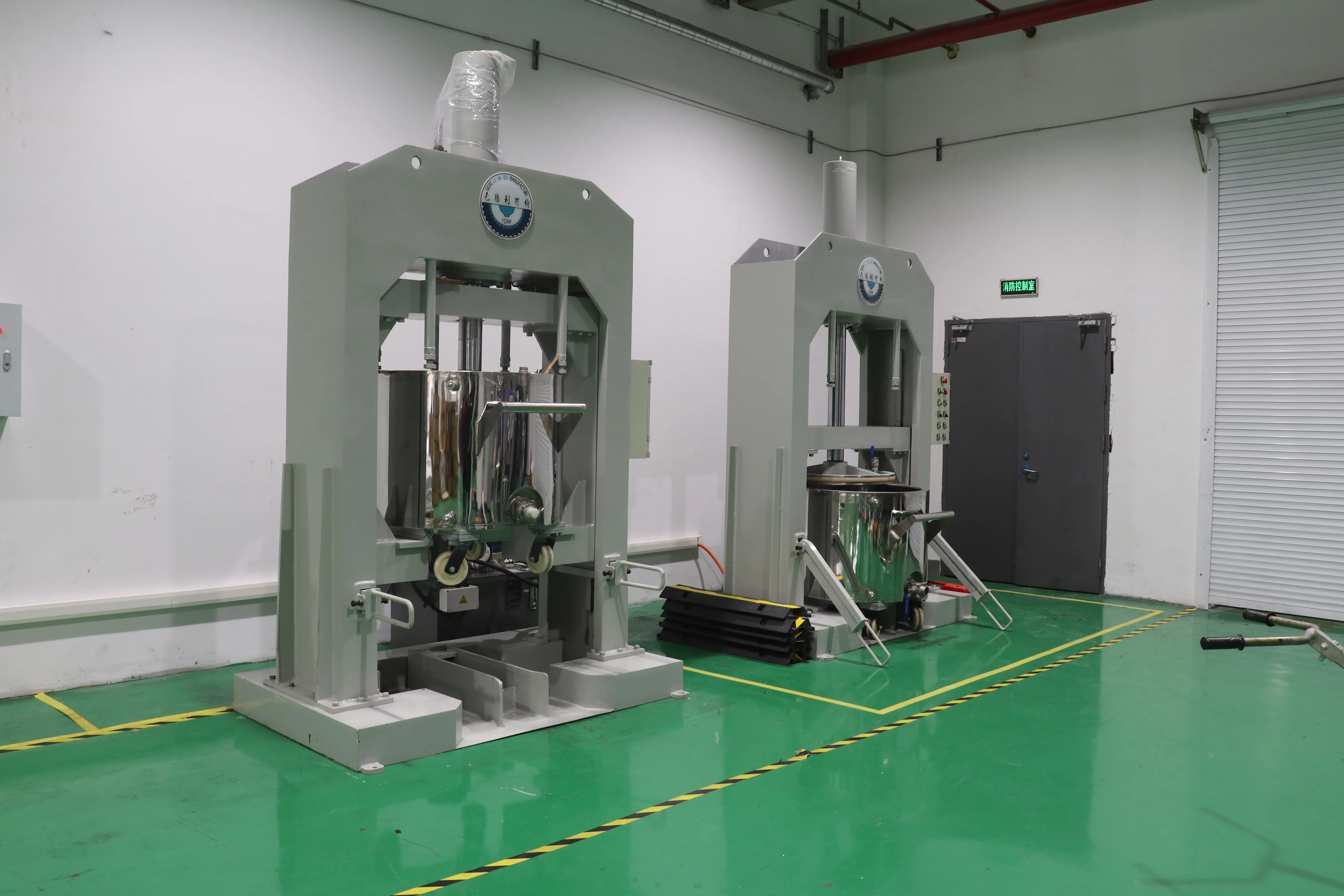

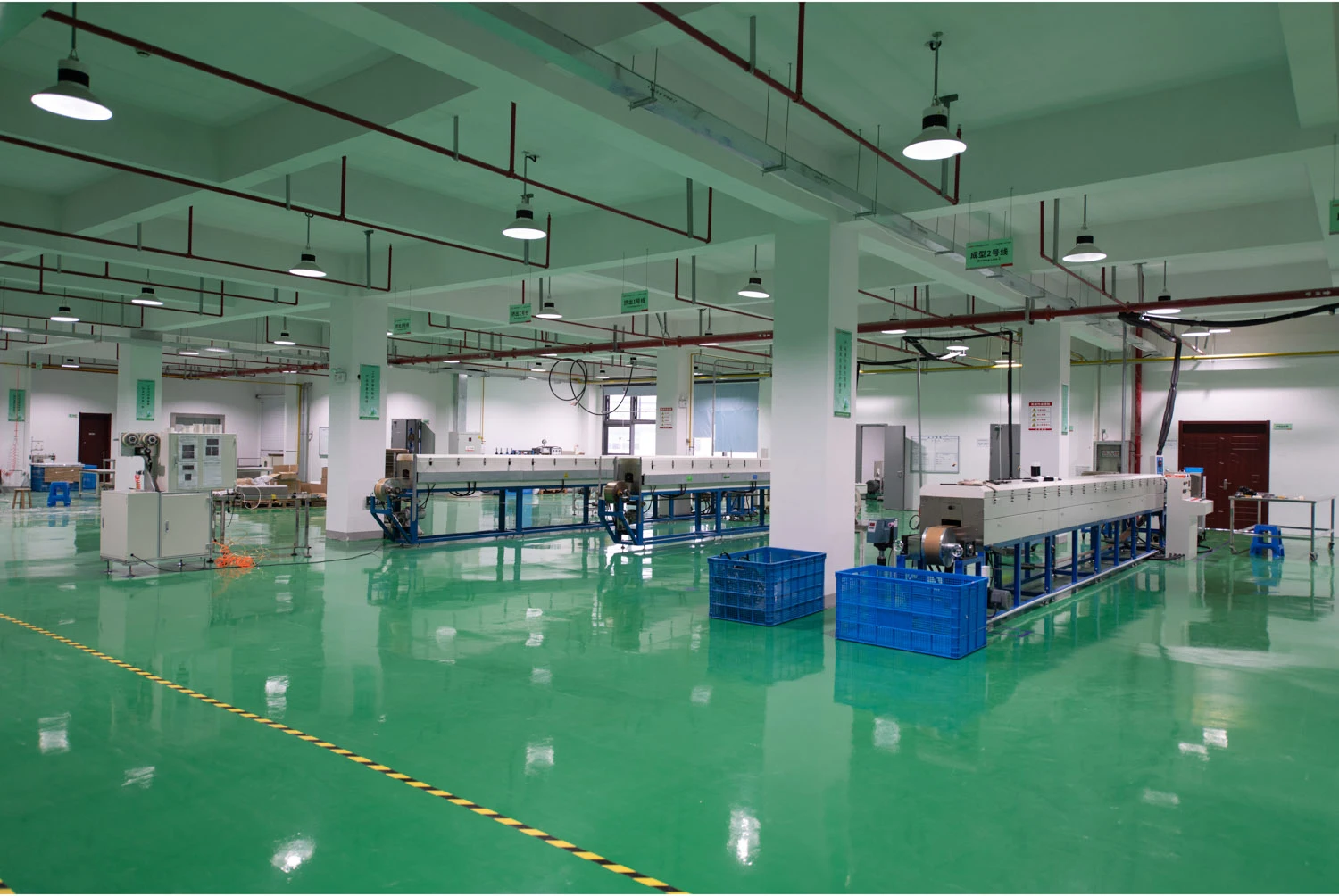

Company Show
